FIAT 500C 2016 2.G Owners Manual

CUPHOLDERS
For the driver and front passenger, cupholders are lo-
cated on the floor console between the front seats.For rear passengers, there are cupholders located on the
floor between the front driver and passenger seats.
Front Cupholders
Rear Cupholders
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129

STORAGE
Glove Compartment
The glove compartment is located on the right side of the
instrument panel. Pull outward on the glove compart-
ment latch to open the glove compartment. Push the
glove compartment door upward to close it.
CARGO AREA FEATURES
The rear seatbacks have a fold down feature to allow
increased cargo capacity.
Push down the release button, located at the outboard
top of the seatback and move the seatback to its folded-
down position to provide a flat load floor cargo area.
When returning the seatback to its upright position, push
rearward until the seatback is properly latched.
Glove Compartment Latch
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rear Seat Release ButtonsFolded Rear Seats
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131

REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located in the
center of the instrument panel, below the radio.
Push this button to turn on the rear window defroster.
An indicator in the instrument cluster will illuminate
when the rear window defroster is on. The rear window
defroster automatically turns off after approximately
20 minutes. To manually shut the defroster off, push the
button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........135
 LOUNGE INSTRUMENT CLUSTERS ........136
 SPORT INSTRUMENT CLUSTERS ..........140
 SPORT TURBO INSTRUMENT CLUSTERS . . . .144
 WARNING AND INDICATOR LIGHTS .......148
▫ Red Telltale Indicator Lights ..............149
▫ Yellow Telltale Indicator Lights ............159
▫ Green Telltale Indicator Lights ............171
▫ Blue Telltale Indicator Lights ..............173
▫ White Telltale Indicator Lights ............174
ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) ...................... .175
▫ EVIC Control Buttons ..................175
▫ Electronic Vehicle Information Center (EVIC)
Setup Menu ........................ .176
▫ Change Engine Oil Indicator System ........178
▫ Trip Computer ...................... .179
▫ Trip Button ......................... .179
▫ Tire Pressure ........................ .180
▫ Trip Functions ...................... .181
▫ Values Displayed ..................... .1824

▫EVIC Submenu Personal Settings ..........183
 CYBERSECURITY ...................... .189
 UCONNECT RADIOS ...................191
 iPod/USB/MEDIA PLAYER CONTROL —
IF EQUIPPED ........................ .191
 UCONNECT SETTINGS ..................192
▫ Buttons On The Faceplate ................193
▫ Buttons On The Touchscreen ..............193
▫ Customer Programmable Features —
Uconnect 5.0 Settings ..................193
 UCONNECT 5.0 VOICE RECOGNITION
QUICK TIPS ......................... .201
▫ Introducing Uconnect ...................201
▫ Get Started ......................... .202
▫ Basic Voice Commands ..................203 ▫
Radio ............................. .204
▫ Media ............................. .205
▫ Voice Text Reply ..................... .206
▫ Radio Operation And Mobile Phones ........207
▫ Harmful Interference Statement ............207
▫ Additional Information .................207
 STEERING WHEEL AUDIO CONTROLS ......208
▫ Radio Operation ..................... .209
 RADIO OPERATION AND MOBILE PHONES . .209
 CLIMATE CONTROLS ...................209
▫ Manual Heating And Air Conditioning ......209
▫ Automatic Temperature Control (ATC) ......212
▫ Operating Tips ...................... .217
134 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1 — Side Vent7 — Passenger Air Bag13 — Storage Compartment
2 — Multifunction Lever – Light Control 8 — Glove Compartment 14 — Shift Lever
3 — Instrument Cluster And Warning Lights9 — Rear Defrost Button15 — Sport Button
4—Windshield Wiper, Washer, Trip Computer10 — Hazard Button 16 — Horn/Driver Airbag
5 — Central Air Vents 11 — Climate Controls
6 — Storage Compartment/Radio 12 — Power Windows Control
4
UNDERSTANDING YOUR INSTRUMENT PANEL 135

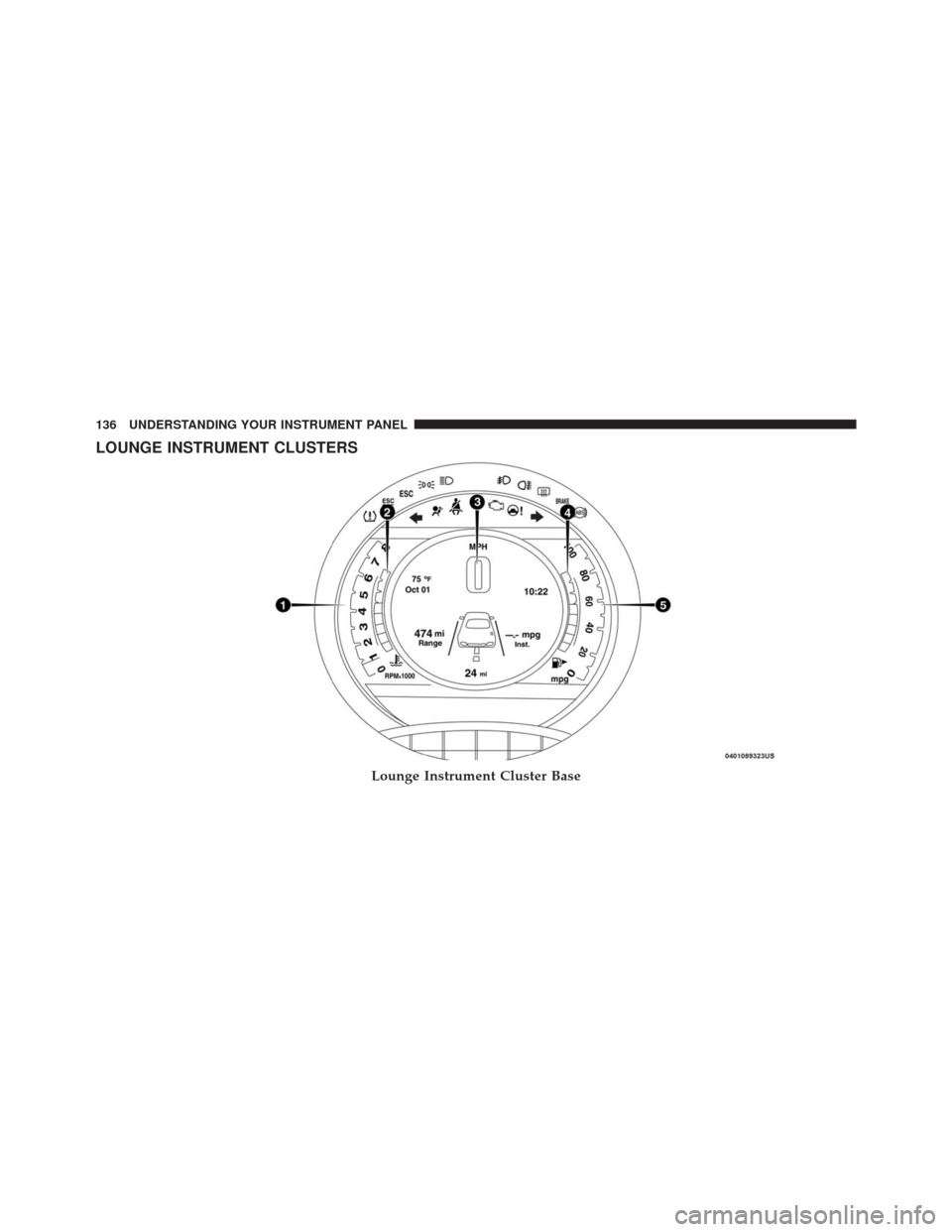

LOUNGE INSTRUMENT CLUSTERS
Lounge Instrument Cluster Base
136 UNDERSTANDING YOUR INSTRUMENT PANEL

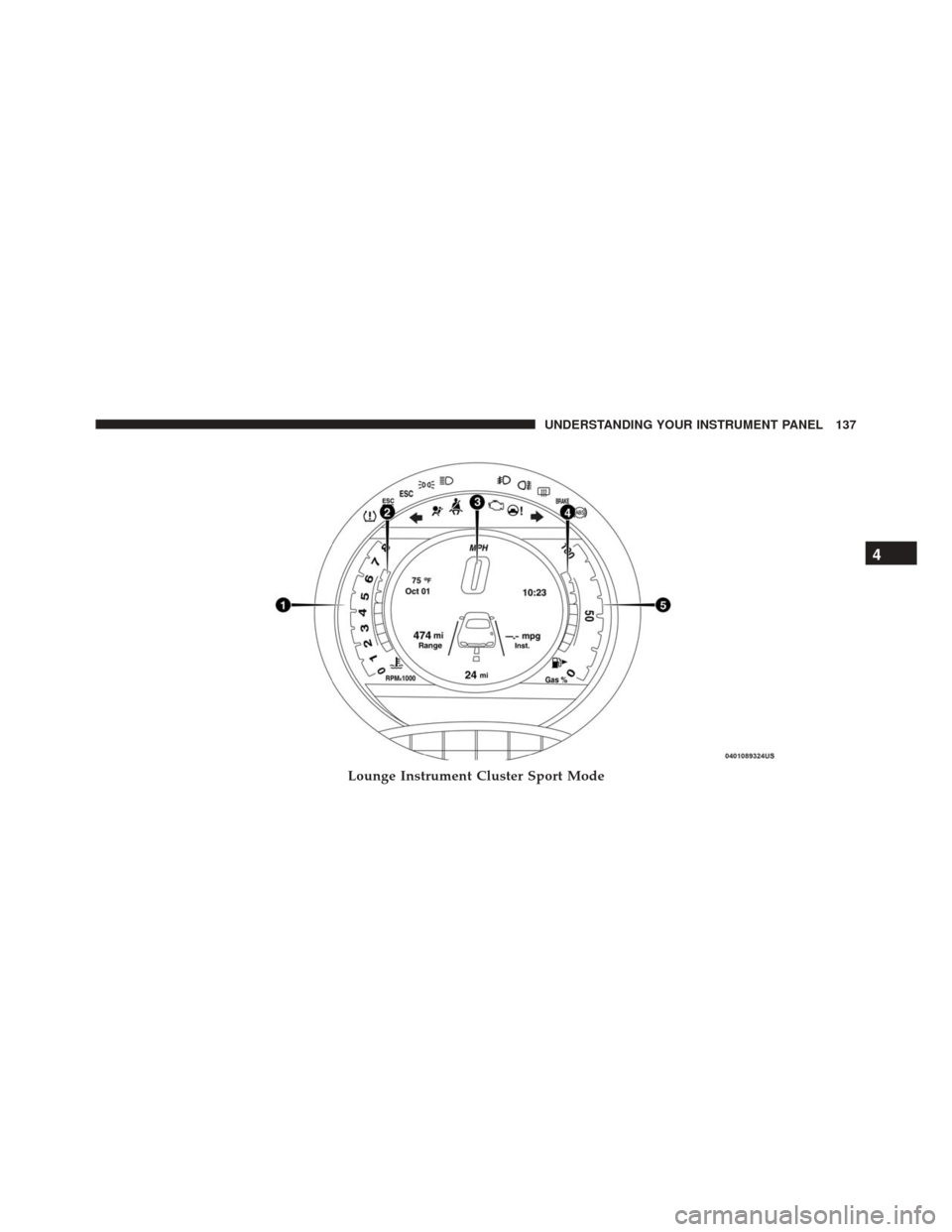

Lounge Instrument Cluster Sport Mode
4
UNDERSTANDING YOUR INSTRUMENT PANEL 137

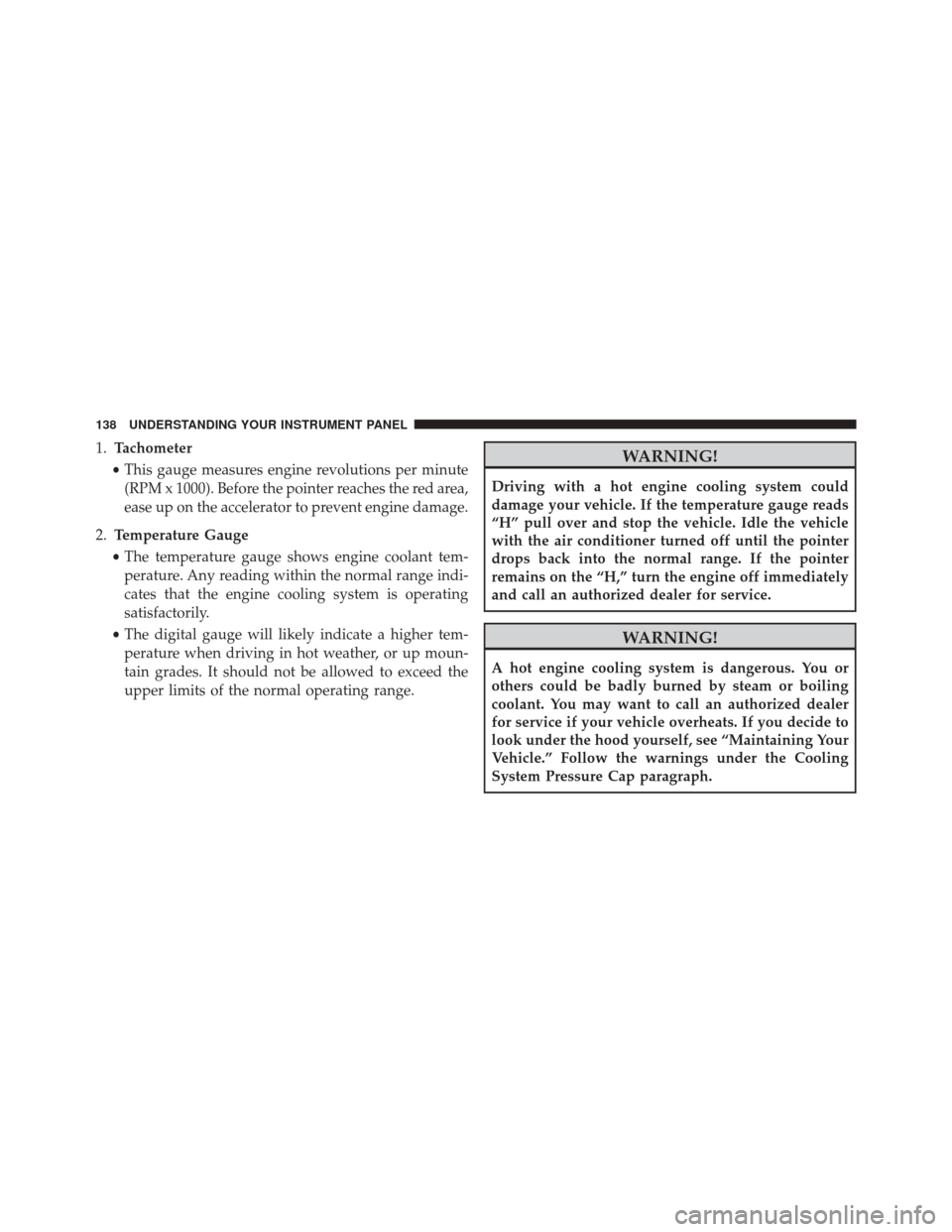

1.Tachometer
• This gauge measures engine revolutions per minute
(RPM x 1000). Before the pointer reaches the red area,
ease up on the accelerator to prevent engine damage.
2. Temperature Gauge
• The temperature gauge shows engine coolant tem-
perature. Any reading within the normal range indi-
cates that the engine cooling system is operating
satisfactorily.
• The digital gauge will likely indicate a higher tem-
perature when driving in hot weather, or up moun-
tain grades. It should not be allowed to exceed the
upper limits of the normal operating range.WARNING!
Driving with a hot engine cooling system could
damage your vehicle. If the temperature gauge reads
“H” pull over and stop the vehicle. Idle the vehicle
with the air conditioner turned off until the pointer
drops back into the normal range. If the pointer
remains on the “H,” turn the engine off immediately
and call an authorized dealer for service.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer
for service if your vehicle overheats. If you decide to
look under the hood yourself, see “Maintaining Your
Vehicle.” Follow the warnings under the Cooling
System Pressure Cap paragraph.
138 UNDERSTANDING YOUR INSTRUMENT PANEL
