FIAT 500C 2018 Owner's Manual

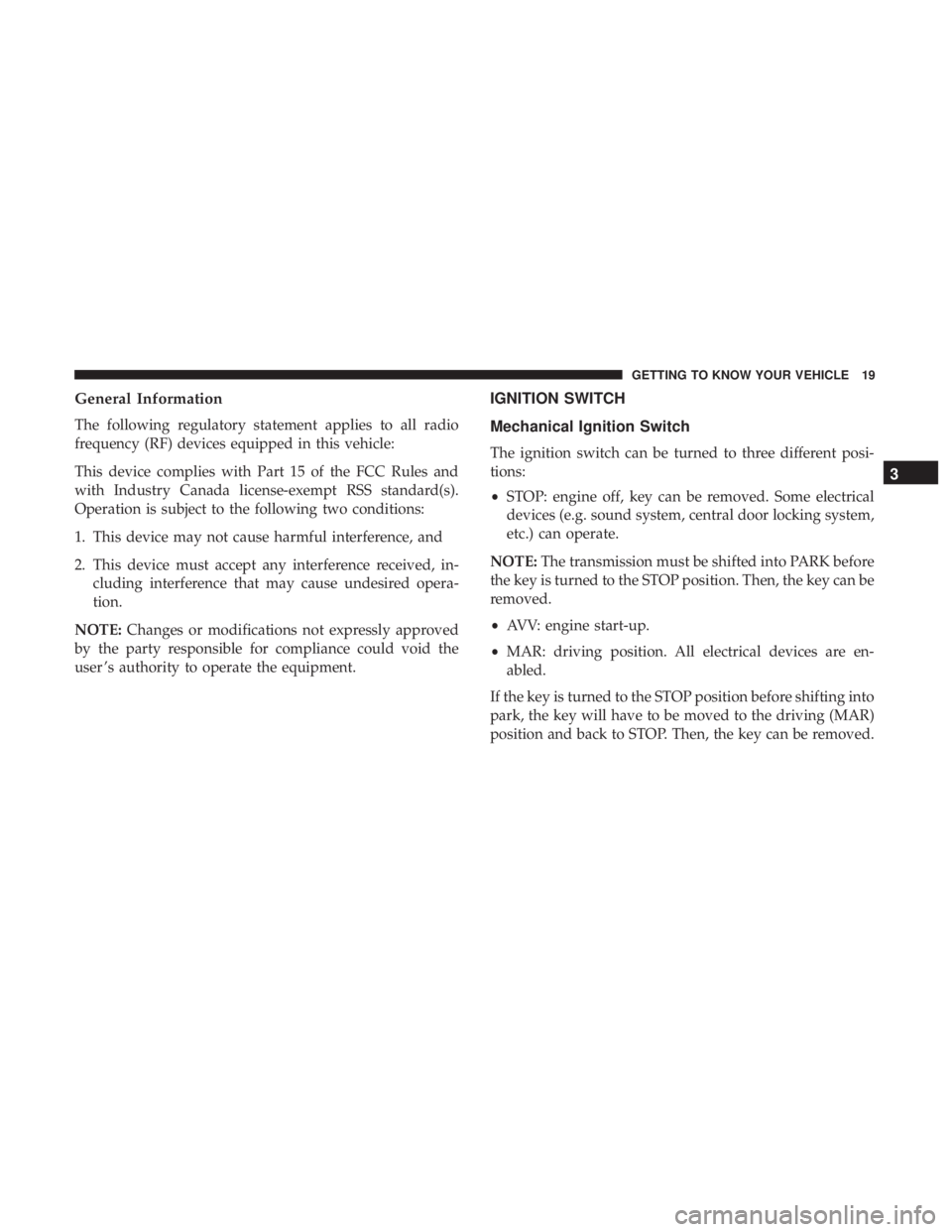

General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, in-
cluding interference that may cause undesired opera-
tion.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment. IGNITION SWITCH
Mechanical Ignition Switch
The ignition switch can be turned to three different posi-
tions:
• STOP: engine off, key can be removed. Some electrical
devices (e.g. sound system, central door locking system,
etc.) can operate.
NOTE: The transmission must be shifted into PARK before
the key is turned to the STOP position. Then, the key can be
removed.
• AVV: engine start-up.
• MAR: driving position. All electrical devices are en-
abled.
If the key is turned to the STOP position before shifting into
park, the key will have to be moved to the driving (MAR)
position and back to STOP. Then, the key can be removed. 3GETTING TO KNOW YOUR VEHICLE 19

WARNING!• Before exiting a vehicle, always shift the automatic
transmission into PARK or the manual transmission
into FIRST gear or REVERSE, apply the parking
brake, then turn the engine OFF, remove the key fob
from the vehicle and lock your vehicle. (Continued) WARNING! (Continued)• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.
• Do not leave the key fob in or near the vehicle, or in
a location accessible to children. A child could oper-
ate power windows, other controls, or move the
vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!An unlocked vehicle is an invitation. Always remove
the key from the ignition and lock all doors when

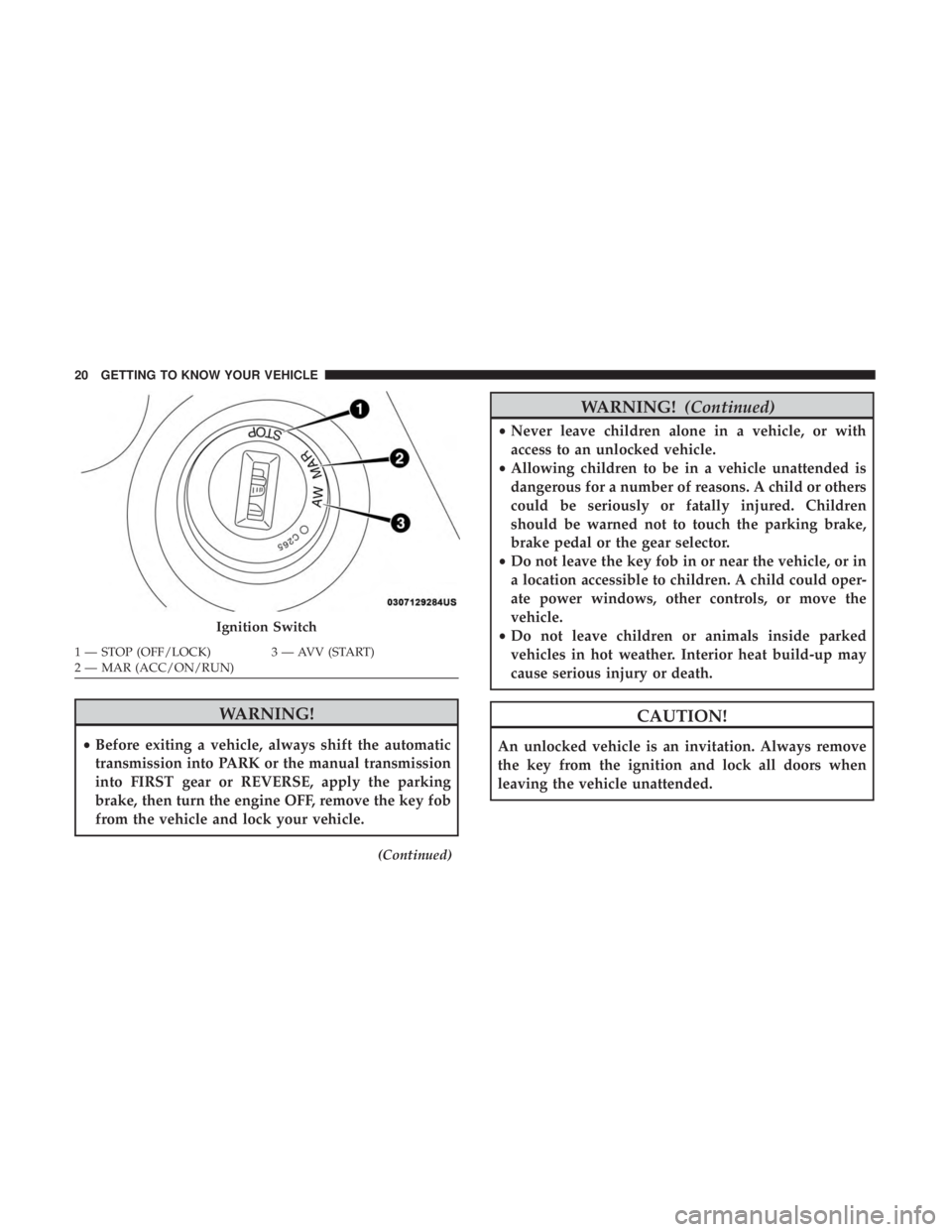

leaving the vehicle unattended.Ignition Switch1 — STOP (OFF/LOCK) 3 — AVV (START)
2 — MAR (ACC/ON/RUN)20 GETTING TO KNOW YOUR VEHICLE

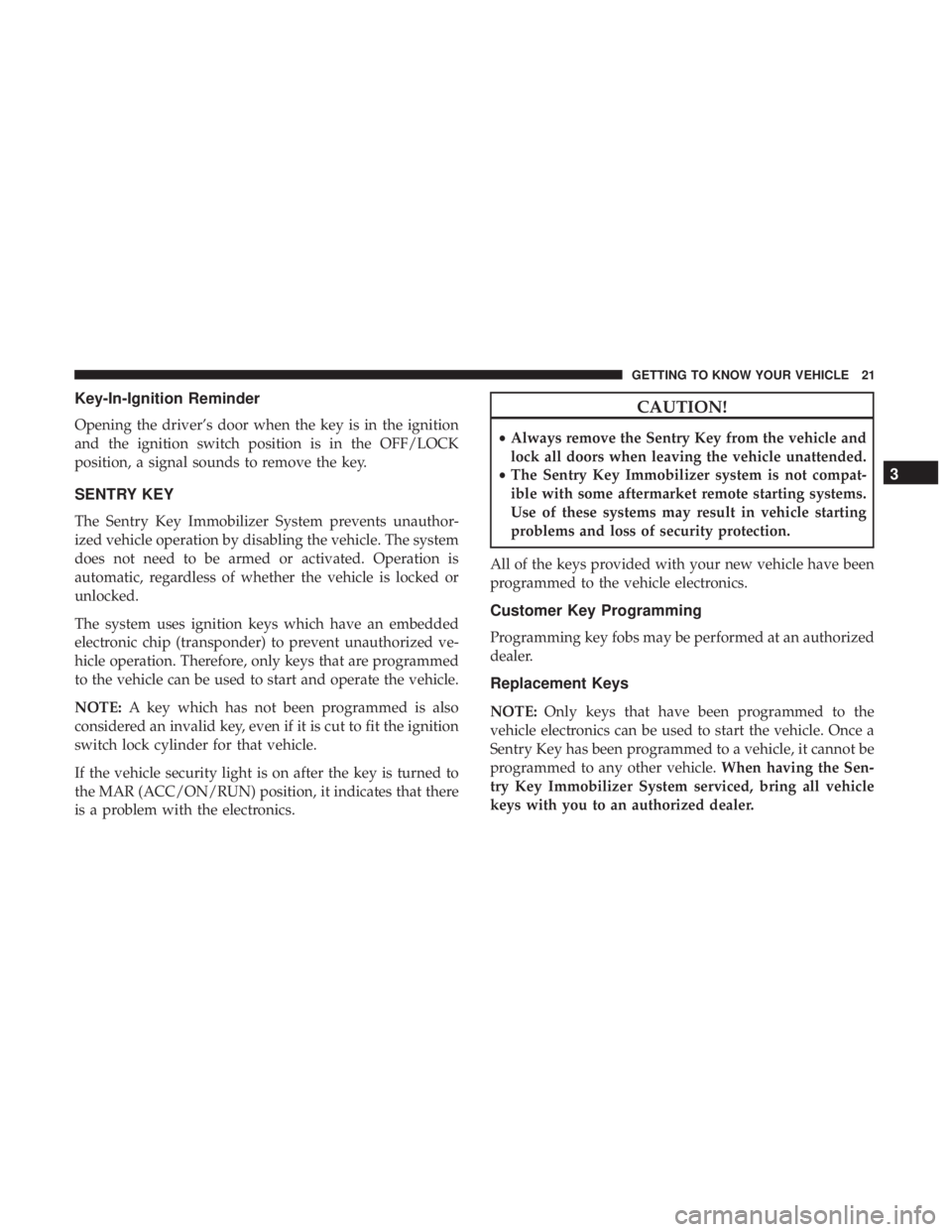

Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
and the ignition switch position is in the OFF/LOCK
position, a signal sounds to remove the key.
SENTRY KEY
The Sentry Key Immobilizer System prevents unauthor-
ized vehicle operation by disabling the vehicle. The system
does not need to be armed or activated. Operation is
automatic, regardless of whether the vehicle is locked or
unlocked.
The system uses ignition keys which have an embedded
electronic chip (transponder) to prevent unauthorized ve-
hicle operation. Therefore, only keys that are programmed
to the vehicle can be used to start and operate the vehicle.
NOTE: A key which has not been programmed is also
considered an invalid key, even if it is cut to fit the ignition
switch lock cylinder for that vehicle.
If the vehicle security light is on after the key is turned to
the MAR (ACC/ON/RUN) position, it indicates that there
is a problem with the electronics. CAUTION!• Always remove the Sentry Key from the vehicle and
lock all doors when leaving the vehicle unattended.
• The Sentry Key Immobilizer system is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the keys provided with your new vehicle have been
programmed to the vehicle electronics.
Customer Key Programming
Programming key fobs may be performed at an authorized
dealer.
Replacement Keys
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once a
Sentry Key has been programmed to a vehicle, it cannot be
programmed to any other vehicle. When having the Sen-
try Key Immobilizer System serviced, bring all vehicle
keys with you to an authorized dealer. 3GETTING TO KNOW YOUR VEHICLE 21

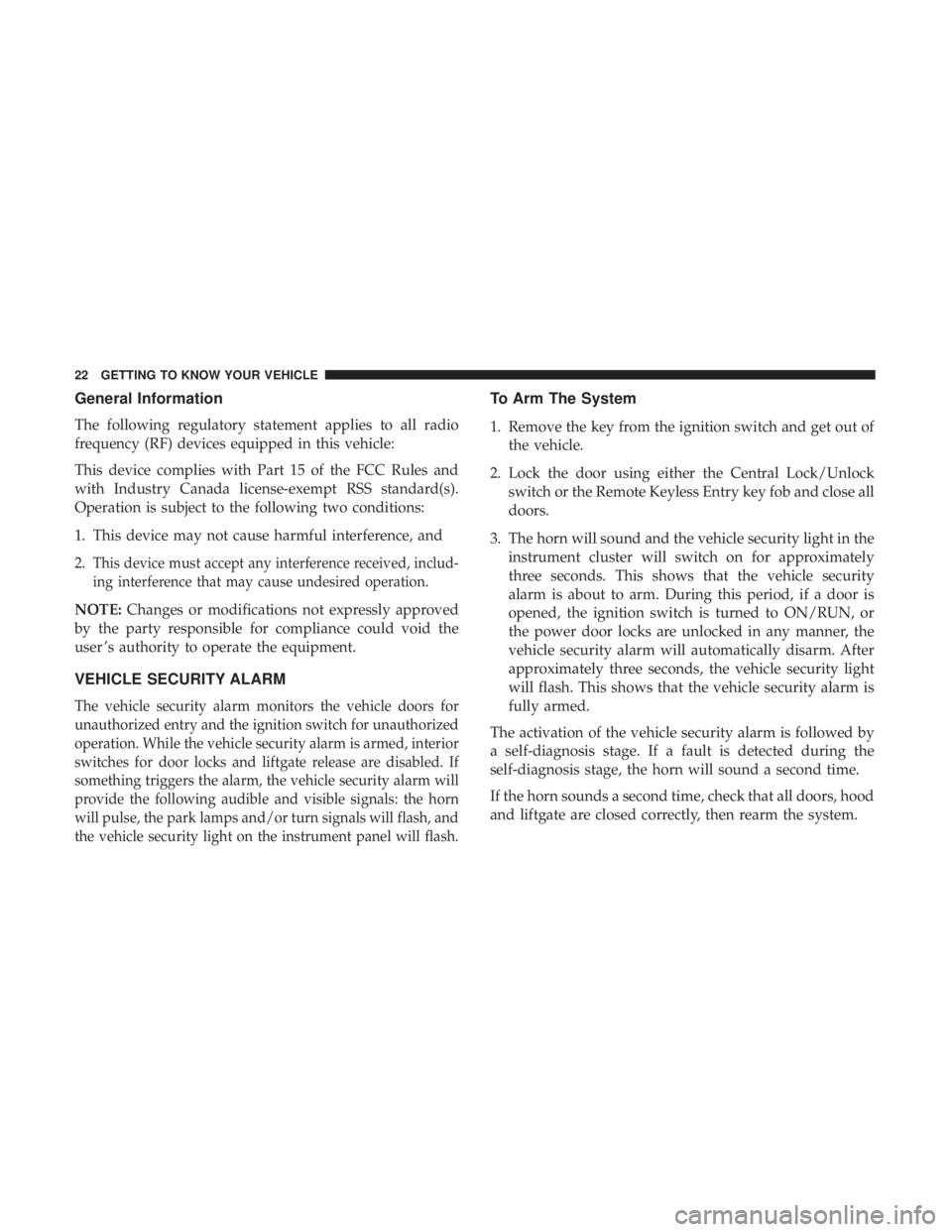

General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, includ-
ing interference that may cause undesired operation.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
VEHICLE SECURITY ALARM
The vehicle security alarm monitors the vehicle doors for
unauthorized entry and the ignition switch for unauthorized
operation. While the vehicle security alarm is armed, interior
switches for door locks and liftgate release are disabled. If
something triggers the alarm, the vehicle security alarm will
provide the following audible and visible signals: the horn
will pulse, the park lamps and/or turn signals will flash, and
the vehicle security light on the instrument panel will flash. To Arm The System
1. Remove the key from the ignition switch and get out of
the vehicle.
2. Lock the door using either the Central Lock/Unlock
switch or the Remote Keyless Entry key fob and close all
doors.
3. The horn will sound and the vehicle security light in the
instrument cluster will switch on for approximately
three seconds. This shows that the vehicle security
alarm is about to arm. During this period, if a door is
opened, the ignition switch is turned to ON/RUN, or
the power door locks are unlocked in any manner, the
vehicle security alarm will automatically disarm. After
approximately three seconds, the vehicle security light
will flash. This shows that the vehicle security alarm is
fully armed.
The activation of the vehicle security alarm is followed by
a self-diagnosis stage. If a fault is detected during the
self-diagnosis stage, the horn will sound a second time.
If the horn sounds a second time, check that all doors, hood
and liftgate are closed correctly, then rearm the system.22 GETTING TO KNOW YOUR VEHICLE

If the vehicle security alarm sounds the horn a second time
even when all doors, hood and liftgate are correctly closed,
a fault has occurred in the operation of the system. Contact
an authorized dealer.
To Disarm The System
Push unlock on the key fob, or insert the key into the
ignition switch and turn the ignition switch to the ON/
RUN position.
NOTE: The vehicle security alarm will not disarm when
the metal insert of the key is used on a single door lock
cylinder.
The vehicle security alarm is designed to protect your
vehicle; however, you can create conditions where the
vehicle security alarm will arm unexpectedly. If you remain
in the vehicle and lock the doors with the key fob, once the
vehicle security alarm is armed, when you pull the door
handle to exit, the alarm will sound. If this occurs, push the
unlock button on the key fob to disarm the vehicle security
alarm. Central Lock/Unlock (Switch Safe Lock Device) —
If Equipped
This safety device prevents the operation of the interior
door handles and the door locking/unlocking button.
It prevents the opening of the doors from inside the
passenger compartment, serving as an obstacle to break-in
attempts (e.g. broken window).
We recommend that you activate the Safe Lock device each
time you park your car.
Safe Lock Device Location 3GETTING TO KNOW YOUR VEHICLE 23

Activating The Safe Lock Device
The Safe Lock device is enabled on all the doors by quickly
double-pushing the lock button on the key fob.
The direction indicators flash three times and the LED
above the button flashes to indicate that the Safe Lock
device has been activated. If one or more of the doors are
not closed correctly, the Safe Lock device will not activate,
preventing a person from getting stuck inside the passen-
ger compartment by entering the car through, and then
closing, the open door.
Deactivating The Safe Lock Device
The Safe Lock device deactivates automatically:
1. By pushing the unlock button on the key fob.
2. By turning the ignition key to the MAR position.
DOORS
Manual Lock
To lock each door from the inside, push the inside door
handle toward the door until the red lock indicator is
visible. To unlock the doors from the inside, pull the inside
door handle to the first detent or until the lock symbol is no
longer visible. If the lock symbol is visible when the door is shut, the door
will lock. Therefore, make sure the key fob is not inside the
vehicle before closing the door.
NOTE: The manual lock knob unlocks each individual
door separately.
WARNING!• When exiting the vehicle, always remove the key fob
from the vehicle and lock your vehicle. (Continued)Manual Lock/Unlock Switch24 GETTING TO KNOW YOUR VEHICLE

WARNING! (Continued)• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.
• Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ON/RUN mode. A child could operate
power windows, other controls, or move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!An unlocked car is an invitation. Always remove the
key from the ignition and lock all doors when leaving

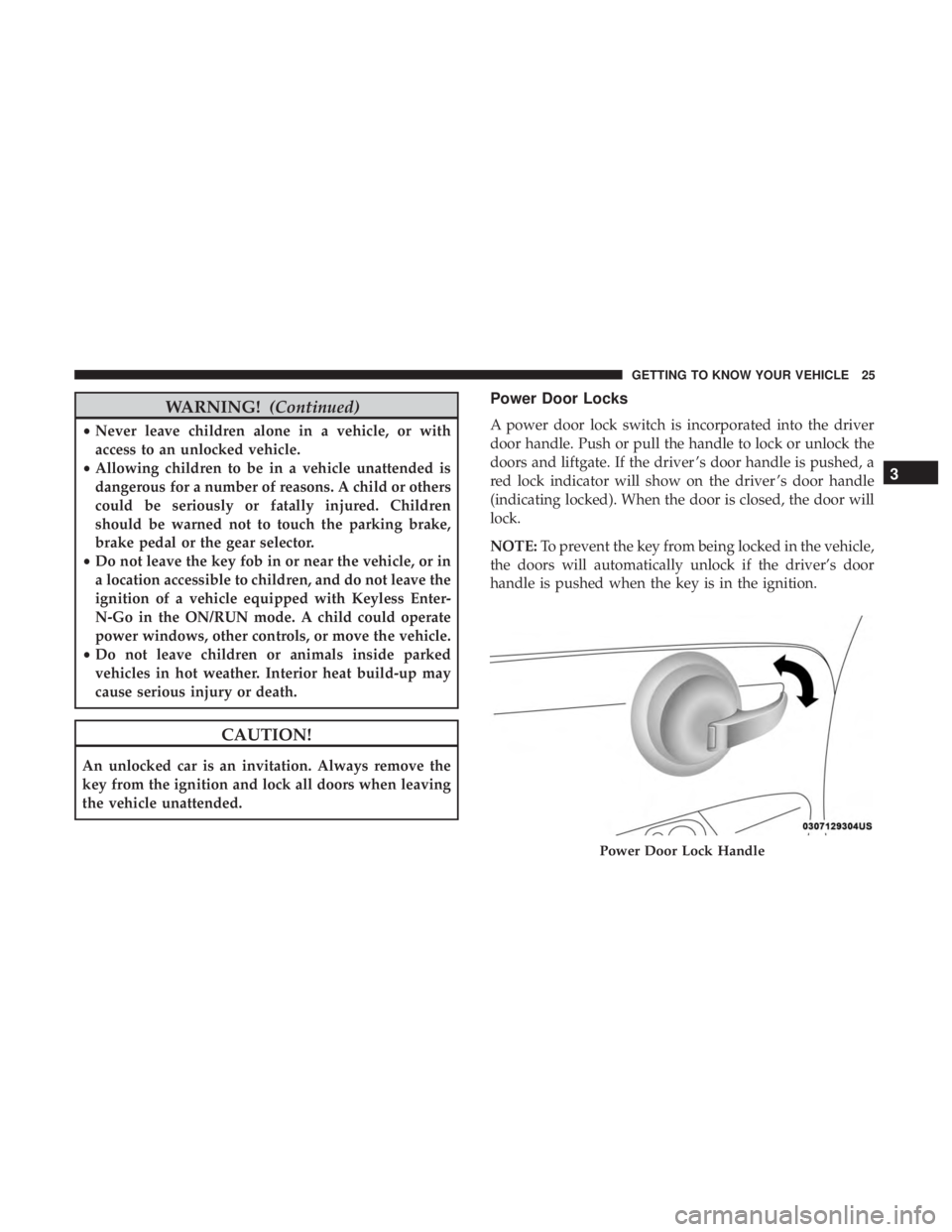

the vehicle unattended. Power Door Locks
A power door lock switch is incorporated into the driver
door handle. Push or pull the handle to lock or unlock the
doors and liftgate. If the driver ’s door handle is pushed, a
red lock indicator will show on the driver ’s door handle
(indicating locked). When the door is closed, the door will
lock.
NOTE: To prevent the key from being locked in the vehicle,
the doors will automatically unlock if the driver’s door
handle is pushed when the key is in the ignition.
Power Door Lock Handle 3GETTING TO KNOW YOUR VEHICLE 25

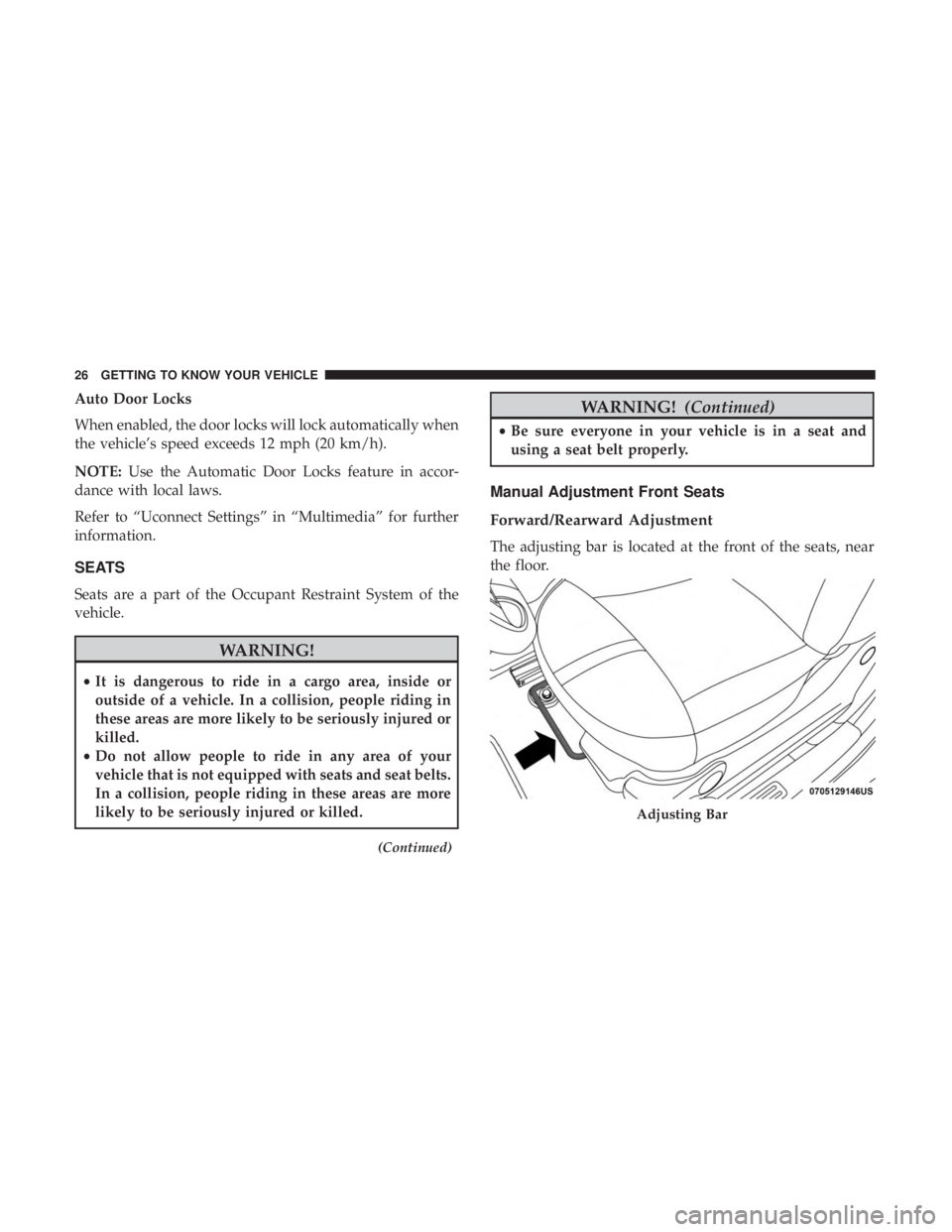

Auto Door Locks
When enabled, the door locks will lock automatically when
the vehicle’s speed exceeds 12 mph (20 km/h).
NOTE: Use the Automatic Door Locks feature in accor-
dance with local laws.
Refer to “Uconnect Settings” in “Multimedia” for further
information.
SEATS
Seats are a part of the Occupant Restraint System of the
vehicle.
WARNING!• It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured or
killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
In a collision, people riding in these areas are more
likely to be seriously injured or killed. (Continued) WARNING! (Continued)• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Manual Adjustment Front Seats
Forward/Rearward Adjustment
The adjusting bar is located at the front of the seats, near
the floor.
Adjusting Bar26 GETTING TO KNOW YOUR VEHICLE

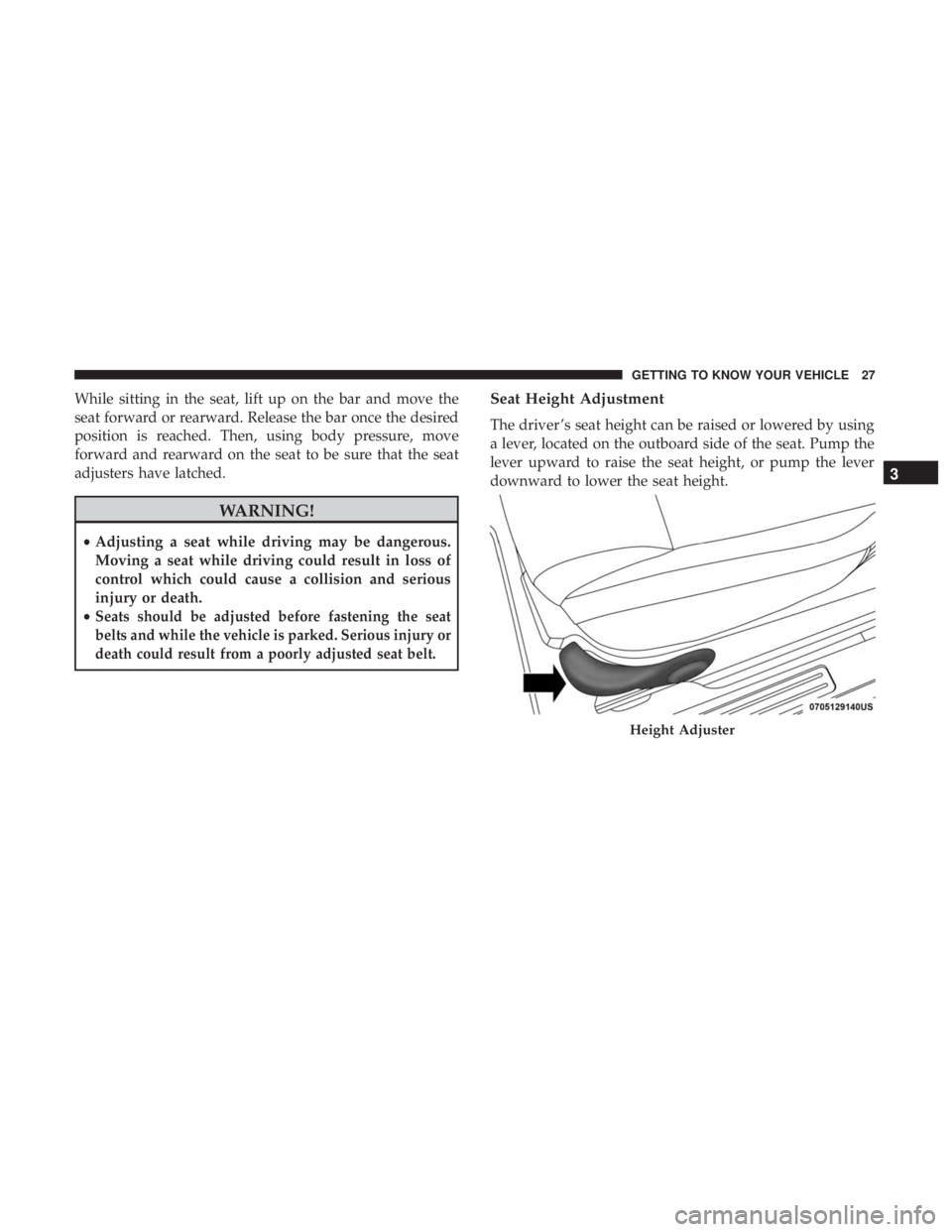

While sitting in the seat, lift up on the bar and move the
seat forward or rearward. Release the bar once the desired
position is reached. Then, using body pressure, move
forward and rearward on the seat to be sure that the seat
adjusters have latched.
WARNING!• Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
• Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious injury or
death could result from a poorly adjusted seat belt. Seat Height Adjustment
The driver ’s seat height can be raised or lowered by using
a lever, located on the outboard side of the seat. Pump the
lever upward to raise the seat height, or pump the lever
downward to lower the seat height.
Height Adjuster 3GETTING TO KNOW YOUR VEHICLE 27

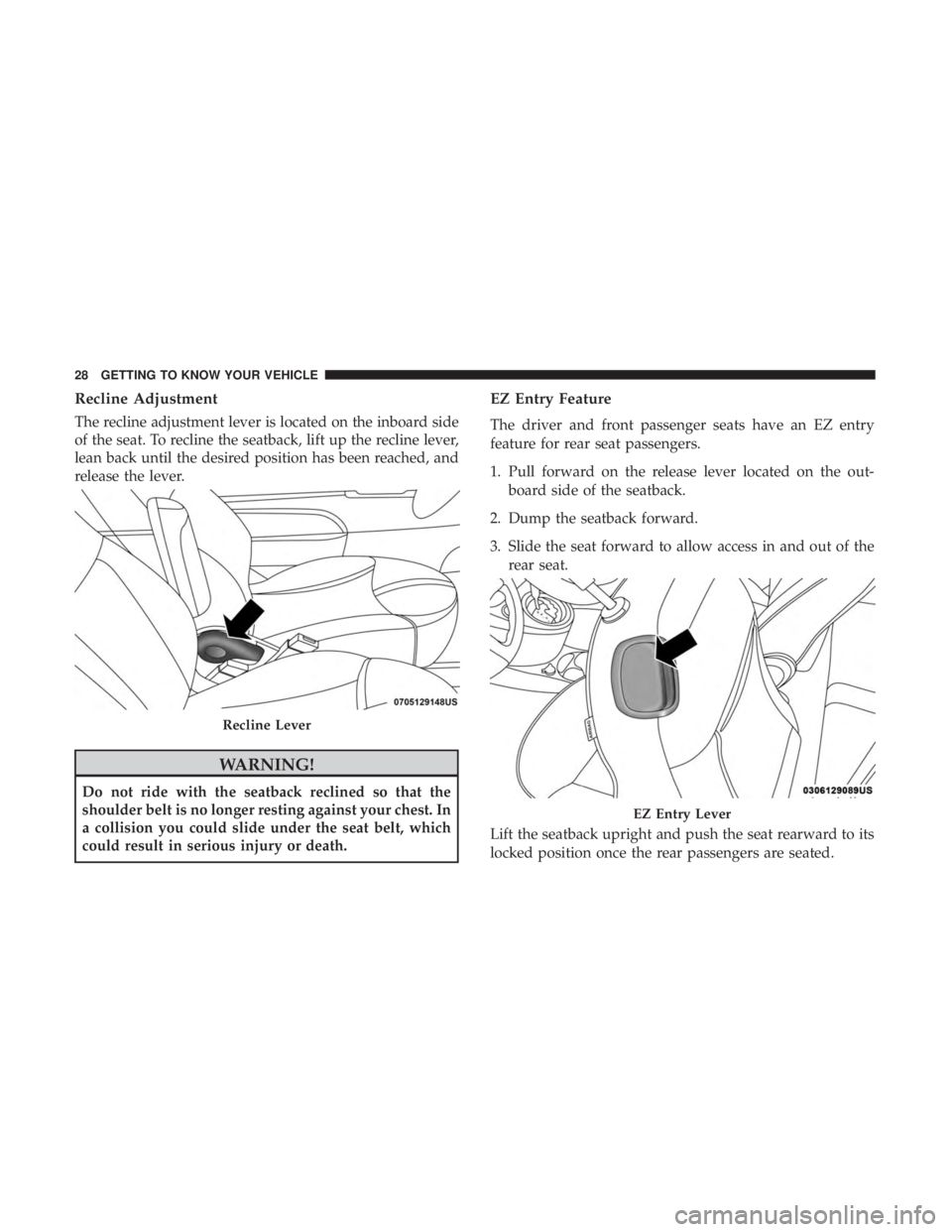

Recline Adjustment
The recline adjustment lever is located on the inboard side
of the seat. To recline the seatback, lift up the recline lever,
lean back until the desired position has been reached, and
release the lever.
WARNING!Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest. In
a collision you could slide under the seat belt, which
could result in serious injury or death. EZ Entry Feature
The driver and front passenger seats have an EZ entry
feature for rear seat passengers.
1. Pull forward on the release lever located on the out-
board side of the seatback.
2. Dump the seatback forward.
3. Slide the seat forward to allow access in and out of the
rear seat.
Lift the seatback upright and push the seat rearward to its
locked position once the rear passengers are seated.Recline Lever
EZ Entry Lever28 GETTING TO KNOW YOUR VEHICLE
