FIAT 500C 2018 Owner's Guide

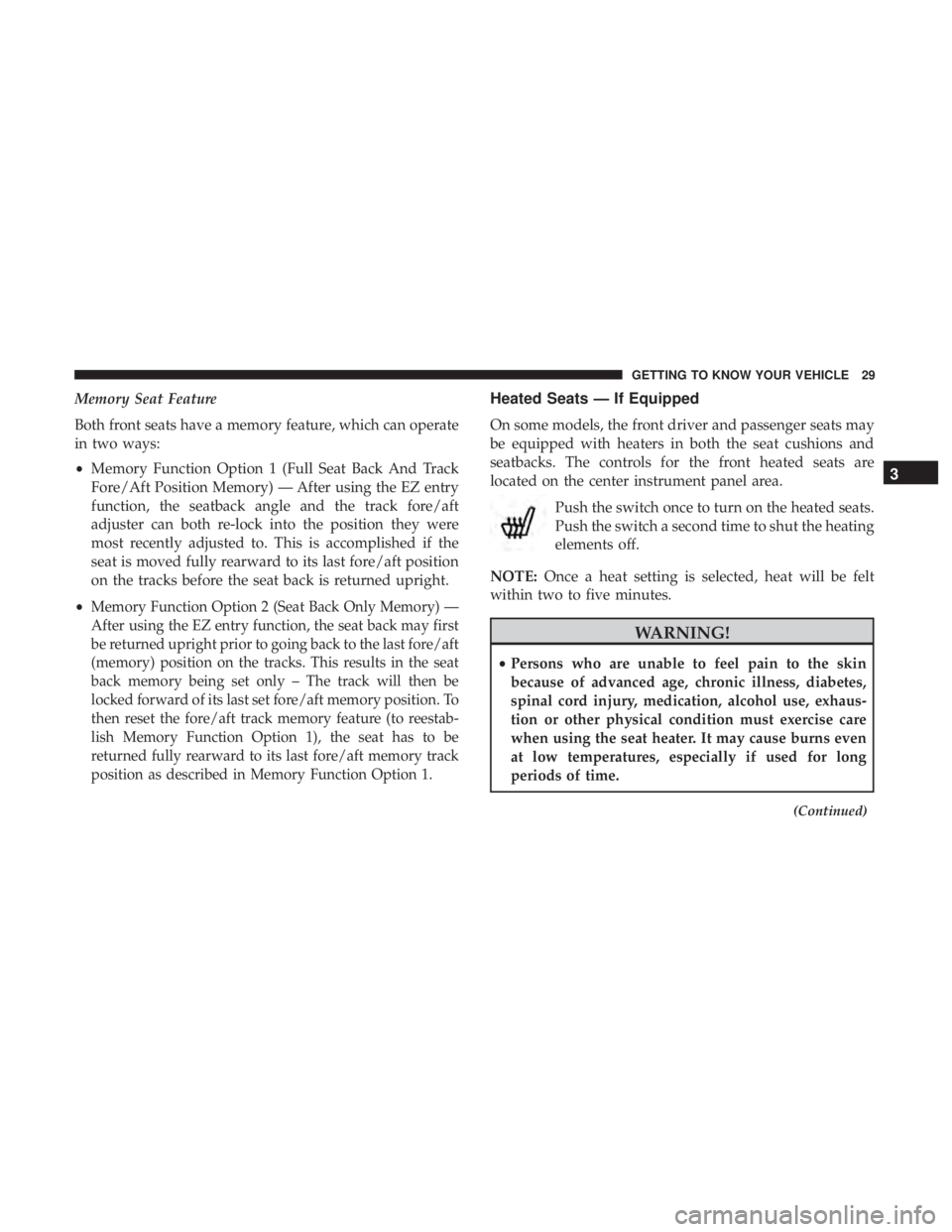

Memory Seat Feature
Both front seats have a memory feature, which can operate
in two ways:
• Memory Function Option 1 (Full Seat Back And Track
Fore/Aft Position Memory) — After using the EZ entry
function, the seatback angle and the track fore/aft
adjuster can both re-lock into the position they were
most recently adjusted to. This is accomplished if the
seat is moved fully rearward to its last fore/aft position
on the tracks before the seat back is returned upright.
• Memory Function Option 2 (Seat Back Only Memory) —
After using the EZ entry function, the seat back may first
be returned upright prior to going back to the last fore/aft
(memory) position on the tracks. This results in the seat
back memory being set only – The track will then be
locked forward of its last set fore/aft memory position. To
then reset the fore/aft track memory feature (to reestab-
lish Memory Function Option 1), the seat has to be
returned fully rearward to its last fore/aft memory track
position as described in Memory Function Option 1. Heated Seats — If Equipped
On some models, the front driver and passenger seats may
be equipped with heaters in both the seat cushions and
seatbacks. The controls for the front heated seats are
located on the center instrument panel area.
Push the switch once to turn on the heated seats.
Push the switch a second time to shut the heating
elements off.
NOTE: Once a heat setting is selected, heat will be felt
within two to five minutes.
WARNING!• Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time. (Continued) 3GETTING TO KNOW YOUR VEHICLE 29

WARNING! (Continued)• Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting in
a seat that has been overheated could cause serious
burns due to the increased surface temperature of the
seat.

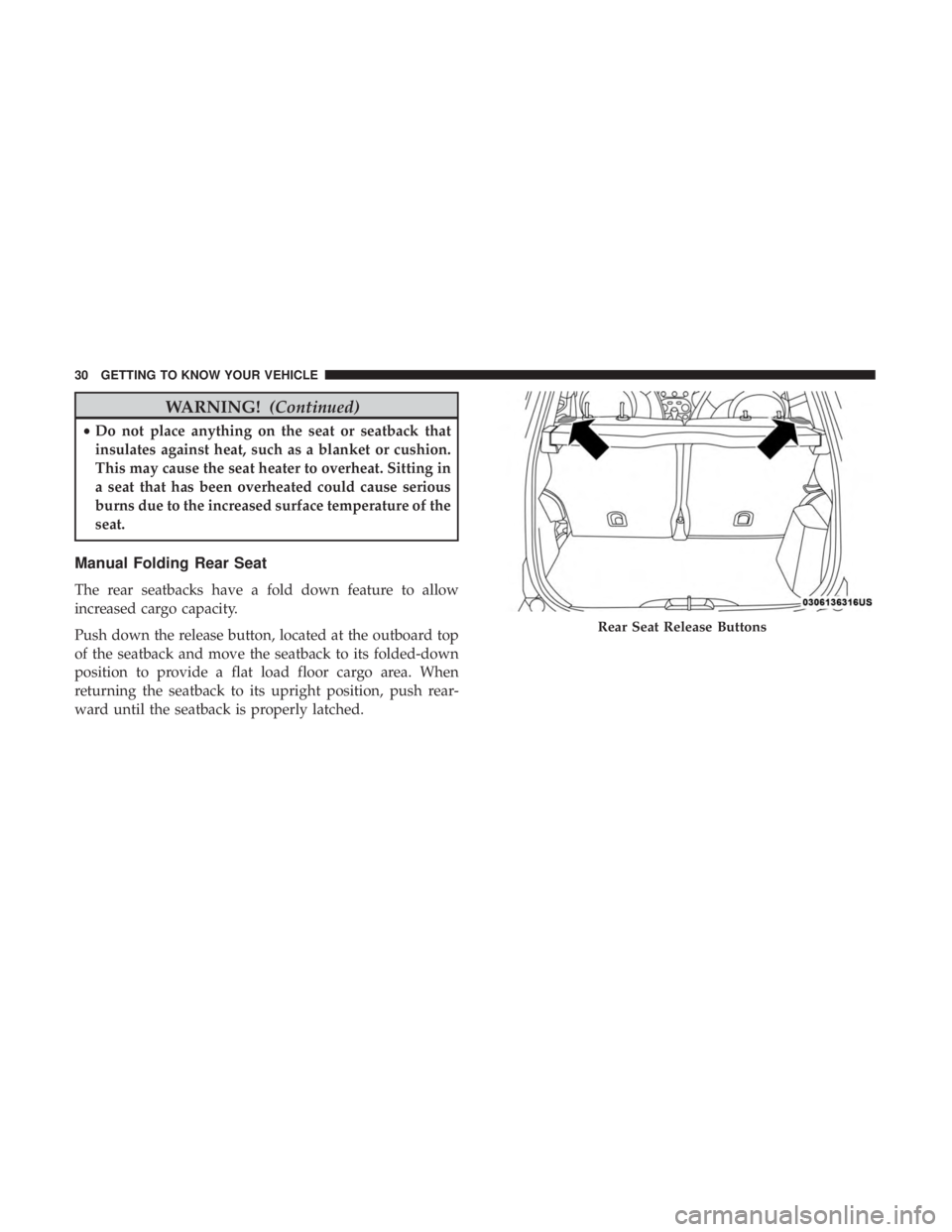

Manual Folding Rear Seat
The rear seatbacks have a fold down feature to allow
increased cargo capacity.
Push down the release button, located at the outboard top
of the seatback and move the seatback to its folded-down
position to provide a flat load floor cargo area. When
returning the seatback to its upright position, push rear-
ward until the seatback is properly latched. Rear Seat Release Buttons30 GETTING TO KNOW YOUR VEHICLE

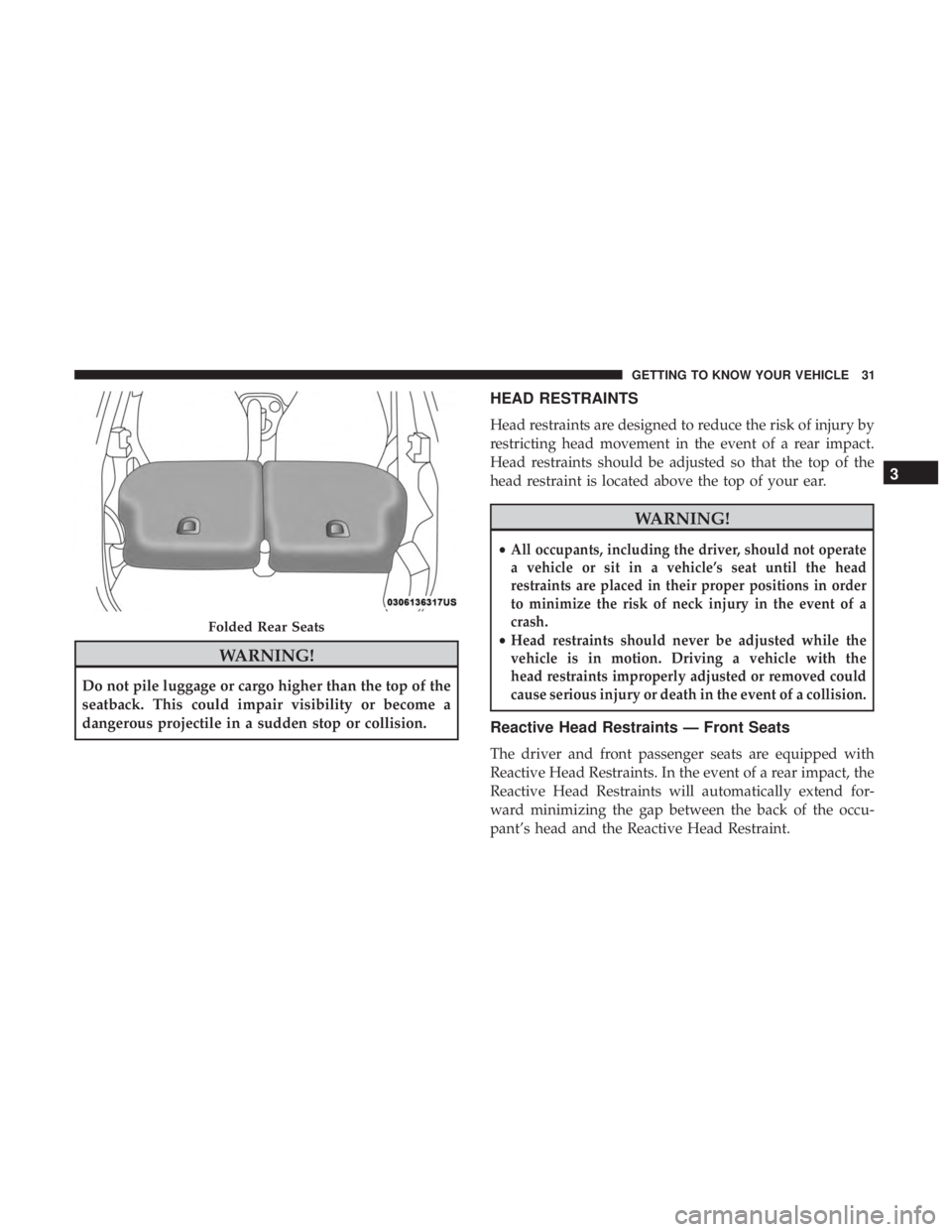

WARNING!Do not pile luggage or cargo higher than the top of the
seatback. This could impair visibility or become a
dangerous projectile in a sudden stop or collision. HEAD RESTRAINTS
Head restraints are designed to reduce the risk of injury by
restricting head movement in the event of a rear impact.
Head restraints should be adjusted so that the top of the
head restraint is located above the top of your ear.
WARNING!• All occupants, including the driver, should not operate
a vehicle or sit in a vehicle’s seat until the head
restraints are placed in their proper positions in order
to minimize the risk of neck injury in the event of a
crash.
• Head restraints should never be adjusted while the
vehicle is in motion. Driving a vehicle with the
head restraints improperly adjusted or removed could
cause serious injury or death in the event of a collision.
Reactive Head Restraints — Front Seats
The driver and front passenger seats are equipped with
Reactive Head Restraints. In the event of a rear impact, the
Reactive Head Restraints will automatically extend for-
ward minimizing the gap between the back of the occu-
pant’s head and the Reactive Head Restraint.Folded Rear Seats 3GETTING TO KNOW YOUR VEHICLE 31

To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, push the adjustment
button, located at the base of the head restraint, and push
downward on the head restraint.
The Reactive Head Restraints will automatically return to
their normal position following a rear impact. If the
Reactive Head Restraints do not return to their normal
position, see an authorized dealer immediately. NOTE: The head restraints should only be removed by
qualified technicians, for service purposes only. If either of
the head restraints require removal, see an authorized dealer.
WARNING!• A loose head restraint thrown forward in a collision
or hard stop could cause serious injury or death to
occupants of the vehicle. Always securely stow re-
moved head restraints in a location outside the
occupant compartment.
• ALL the head restraints MUST be reinstalled in the
vehicle to properly protect the occupants. Follow the
re-installation instructions above prior to operating
the vehicle or occupying a seat.
• Do not place items over the top of the Reactive Head
Restraint, such as coats, seat covers or portable DVD
players. These items may interfere with the opera-
tion of the Reactive Head Restraint in the event of a
collision and could result in serious injury or death.Head Restraint1 — Release Button
2 — Adjustment Button32 GETTING TO KNOW YOUR VEHICLE

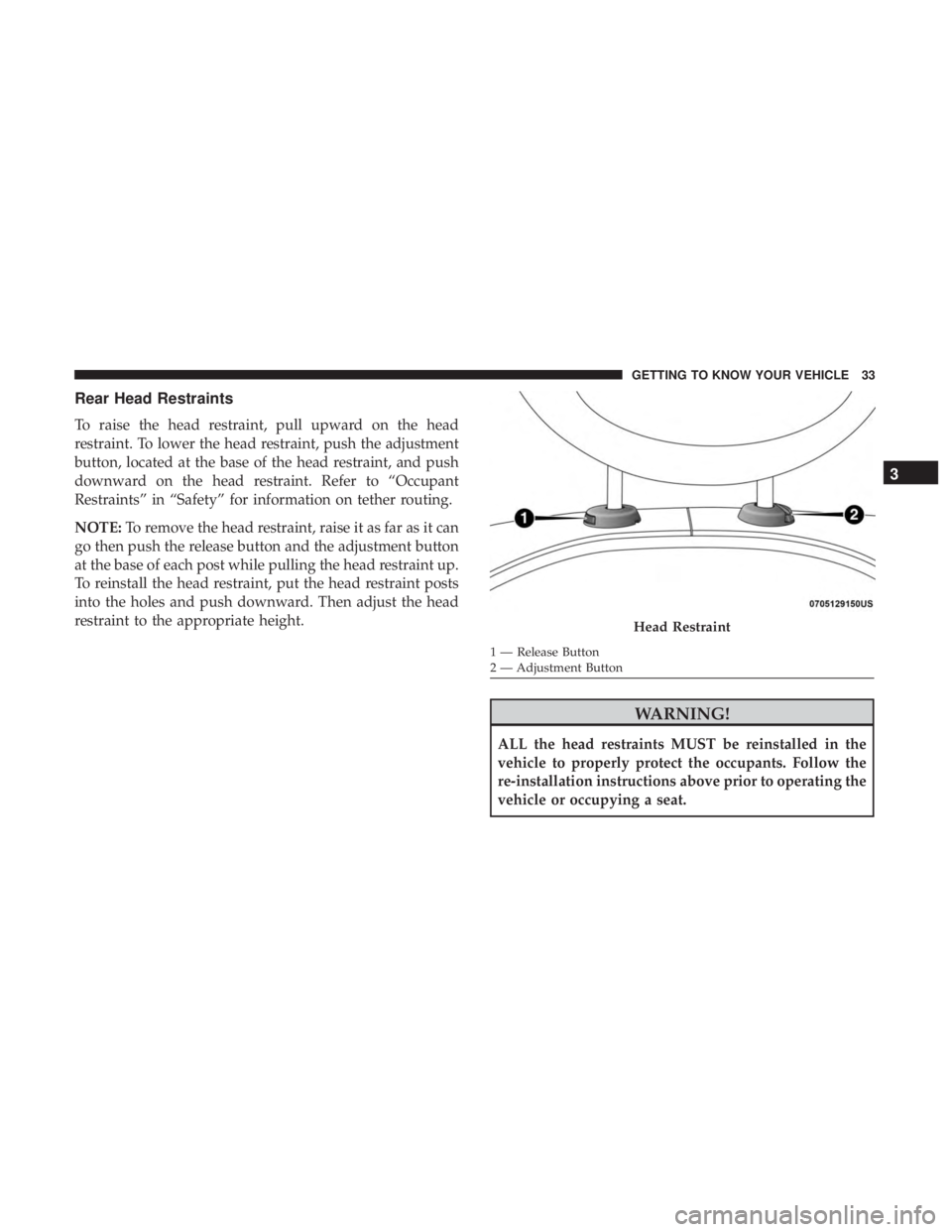

Rear Head Restraints
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, push the adjustment
button, located at the base of the head restraint, and push
downward on the head restraint. Refer to “Occupant
Restraints” in “Safety” for information on tether routing.
NOTE: To remove the head restraint, raise it as far as it can
go then push the release button and the adjustment button
at the base of each post while pulling the head restraint up.
To reinstall the head restraint, put the head restraint posts
into the holes and push downward. Then adjust the head
restraint to the appropriate height.
WARNING!ALL the head restraints MUST be reinstalled in the
vehicle to properly protect the occupants. Follow the
re-installation instructions above prior to operating the
vehicle or occupying a seat. Head Restraint1 — Release Button
2 — Adjustment Button 3GETTING TO KNOW YOUR VEHICLE 33

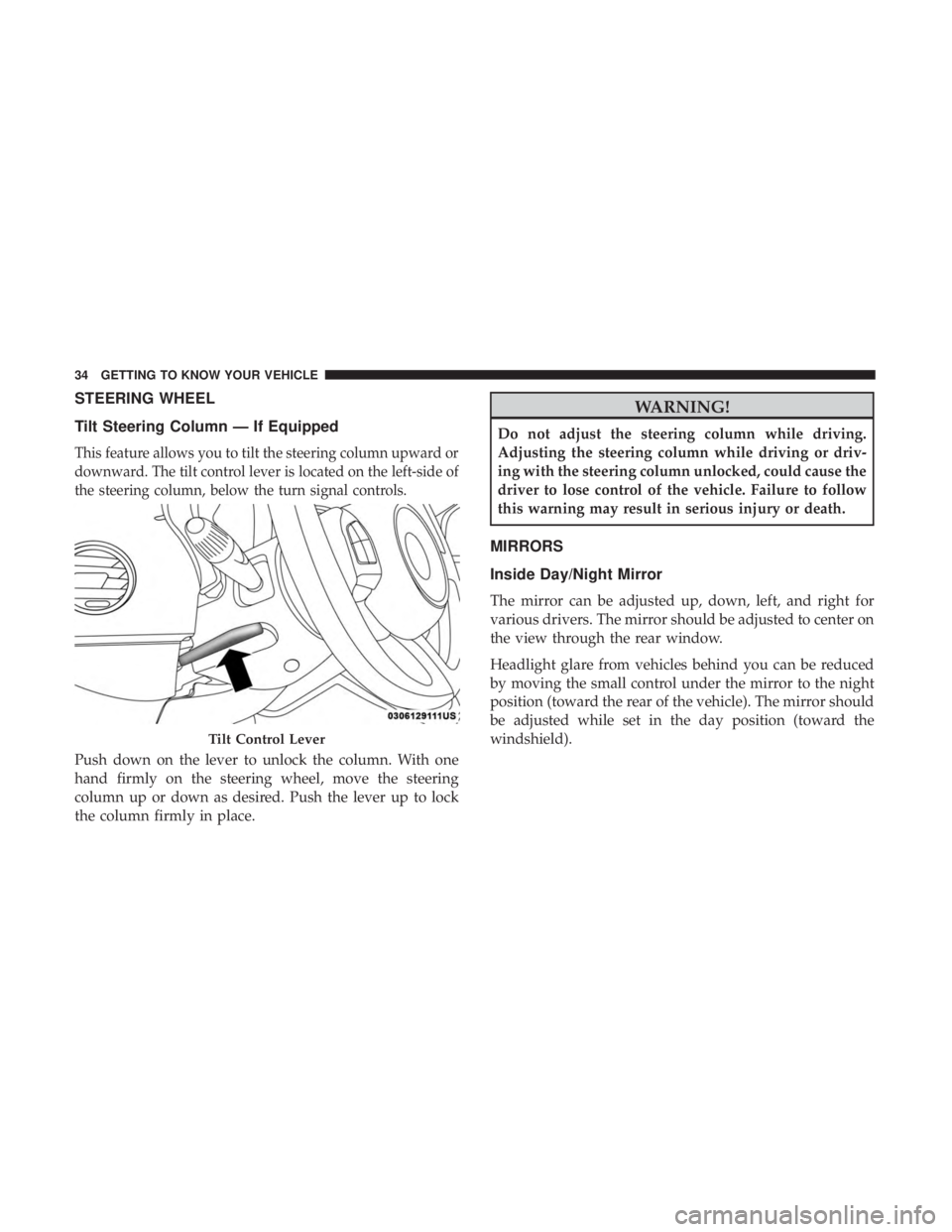

STEERING WHEEL
Tilt Steering Column — If Equipped
This feature allows you to tilt the steering column upward or
downward. The tilt control lever is located on the left-side of
the steering column, below the turn signal controls.
Push down on the lever to unlock the column. With one
hand firmly on the steering wheel, move the steering
column up or down as desired. Push the lever up to lock
the column firmly in place. WARNING!Do not adjust the steering column while driving.
Adjusting the steering column while driving or driv-
ing with the steering column unlocked, could cause the
driver to lose control of the vehicle. Failure to follow
this warning may result in serious injury or death.
MIRRORS
Inside Day/Night Mirror
The mirror can be adjusted up, down, left, and right for
various drivers. The mirror should be adjusted to center on
the view through the rear window.
Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror should
be adjusted while set in the day position (toward the
windshield).Tilt Control Lever34 GETTING TO KNOW YOUR VEHICLE

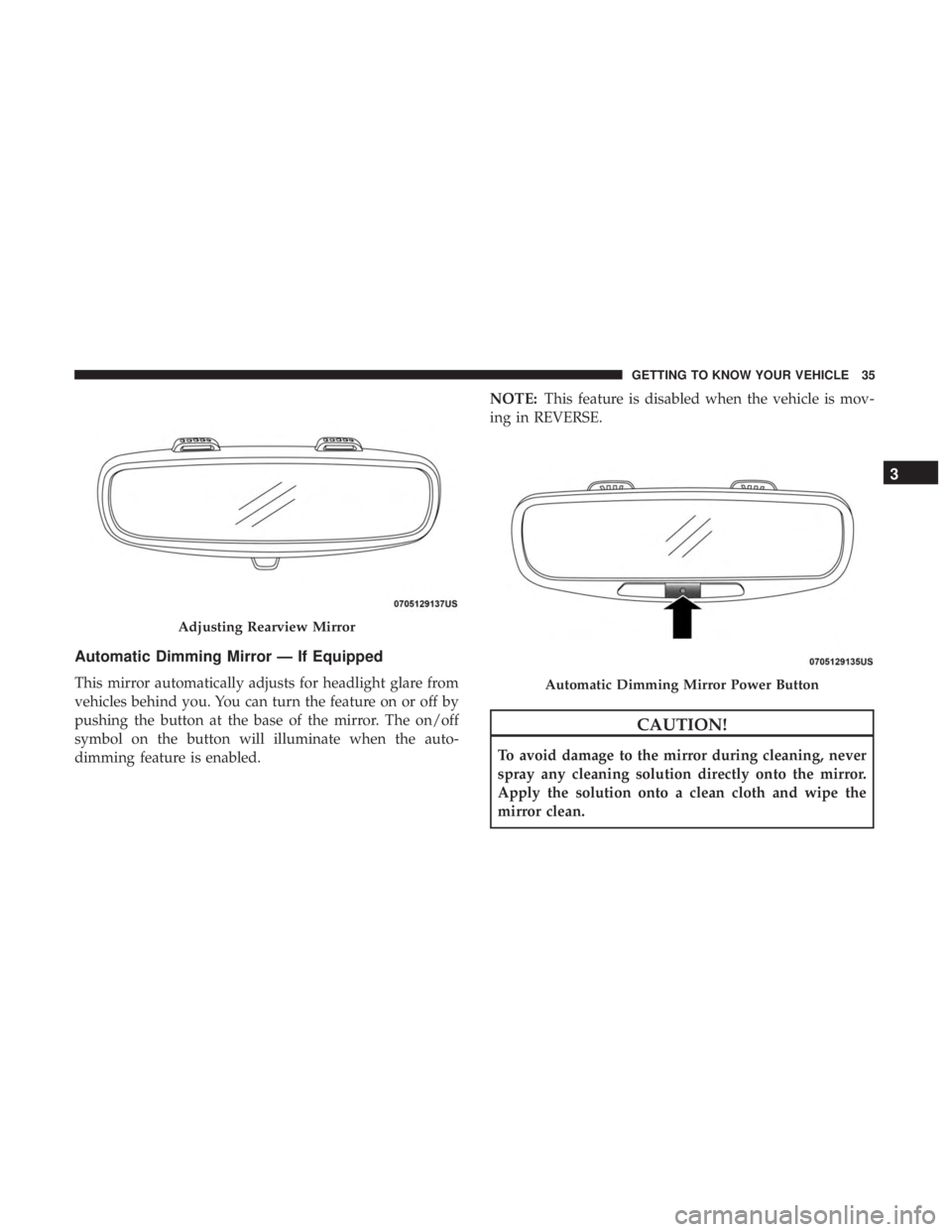

Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare from
vehicles behind you. You can turn the feature on or off by
pushing the button at the base of the mirror. The on/off
symbol on the button will illuminate when the auto-
dimming feature is enabled. NOTE: This feature is disabled when the vehicle is mov-
ing in REVERSE.
CAUTION!To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.Adjusting Rearview Mirror
Automatic Dimming Mirror Power Button 3GETTING TO KNOW YOUR VEHICLE 35

Power Mirrors
The power mirror controls are located on the driver ’s door
trim panel.
The power mirror controls consist of a mirror select switch
and a four-way mirror control switch. To adjust a mirror,
push the mirror select switch to either the L (left) or R
(right) to select the mirror you need to adjust. Using the mirror control switch, push on any of the four
arrows for the direction that you want the mirror to move.
WARNING!Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away than
they really are. Relying too much on your passenger
side convex mirror could cause you to collide with
another vehicle or other object. Use your inside mirror
when judging the size or distance of a vehicle seen in
the passenger side convex mirror.
Folding Mirrors
The exterior mirrors are hinged to allow the mirror to pivot
forward or rearward to help avoid damage. The mirror has
three detent positions: full forward, normal and full rear-
ward.Power Mirror Switches36 GETTING TO KNOW YOUR VEHICLE

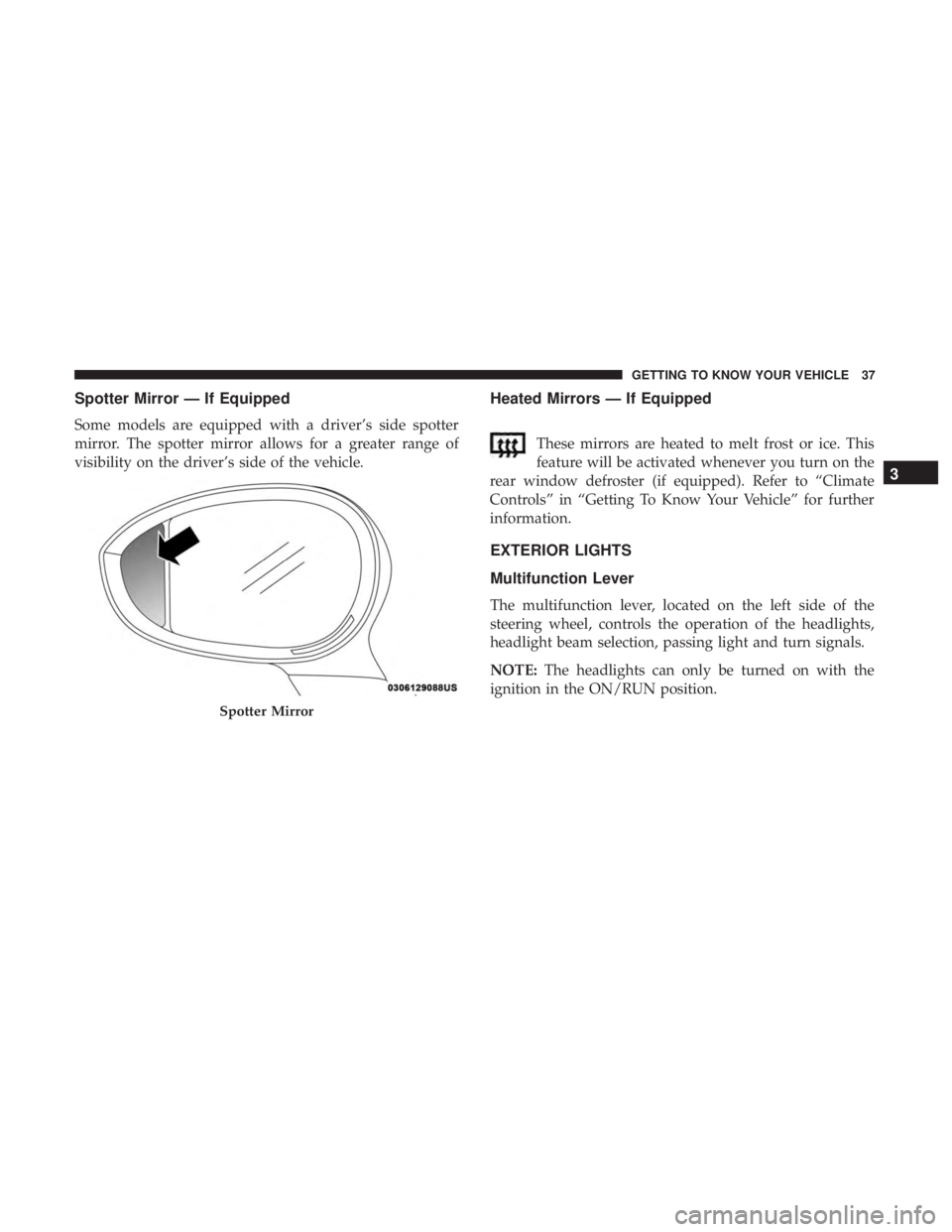

Spotter Mirror — If Equipped
Some models are equipped with a driver’s side spotter
mirror. The spotter mirror allows for a greater range of
visibility on the driver’s side of the vehicle. Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature will be activated whenever you turn on the
rear window defroster (if equipped). Refer to “Climate
Controls” in “Getting To Know Your Vehicle” for further
information.
EXTERIOR LIGHTS
Multifunction Lever
The multifunction lever, located on the left side of the
steering wheel, controls the operation of the headlights,
headlight beam selection, passing light and turn signals.
NOTE: The headlights can only be turned on with the
ignition in the ON/RUN position.Spotter Mirror 3GETTING TO KNOW YOUR VEHICLE 37

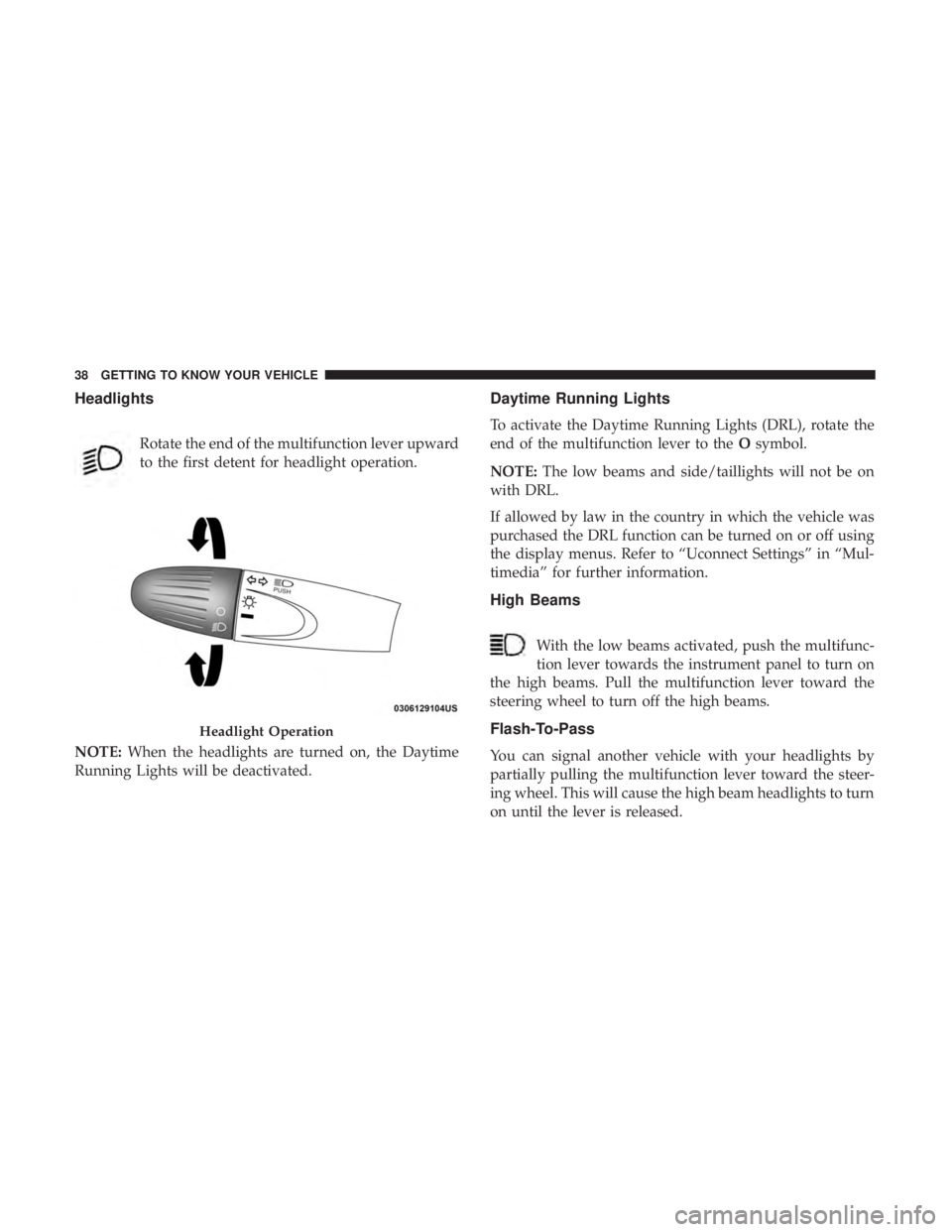

Headlights
Rotate the end of the multifunction lever upward
to the first detent for headlight operation.
NOTE: When the headlights are turned on, the Daytime
Running Lights will be deactivated. Daytime Running Lights
To activate the Daytime Running Lights (DRL), rotate the
end of the multifunction lever to the O symbol.
NOTE: The low beams and side/taillights will not be on
with DRL.
If allowed by law in the country in which the vehicle was
purchased the DRL function can be turned on or off using
the display menus. Refer to “Uconnect Settings” in “Mul-
timedia” for further information.
High Beams
With the low beams activated, push the multifunc-
tion lever towards the instrument panel to turn on
the high beams. Pull the multifunction lever toward the
steering wheel to turn off the high beams.
Flash-To-Pass
You can signal another vehicle with your headlights by
partially pulling the multifunction lever toward the steer-
ing wheel. This will cause the high beam headlights to turn
on until the lever is released.Headlight Operation38 GETTING TO KNOW YOUR VEHICLE
