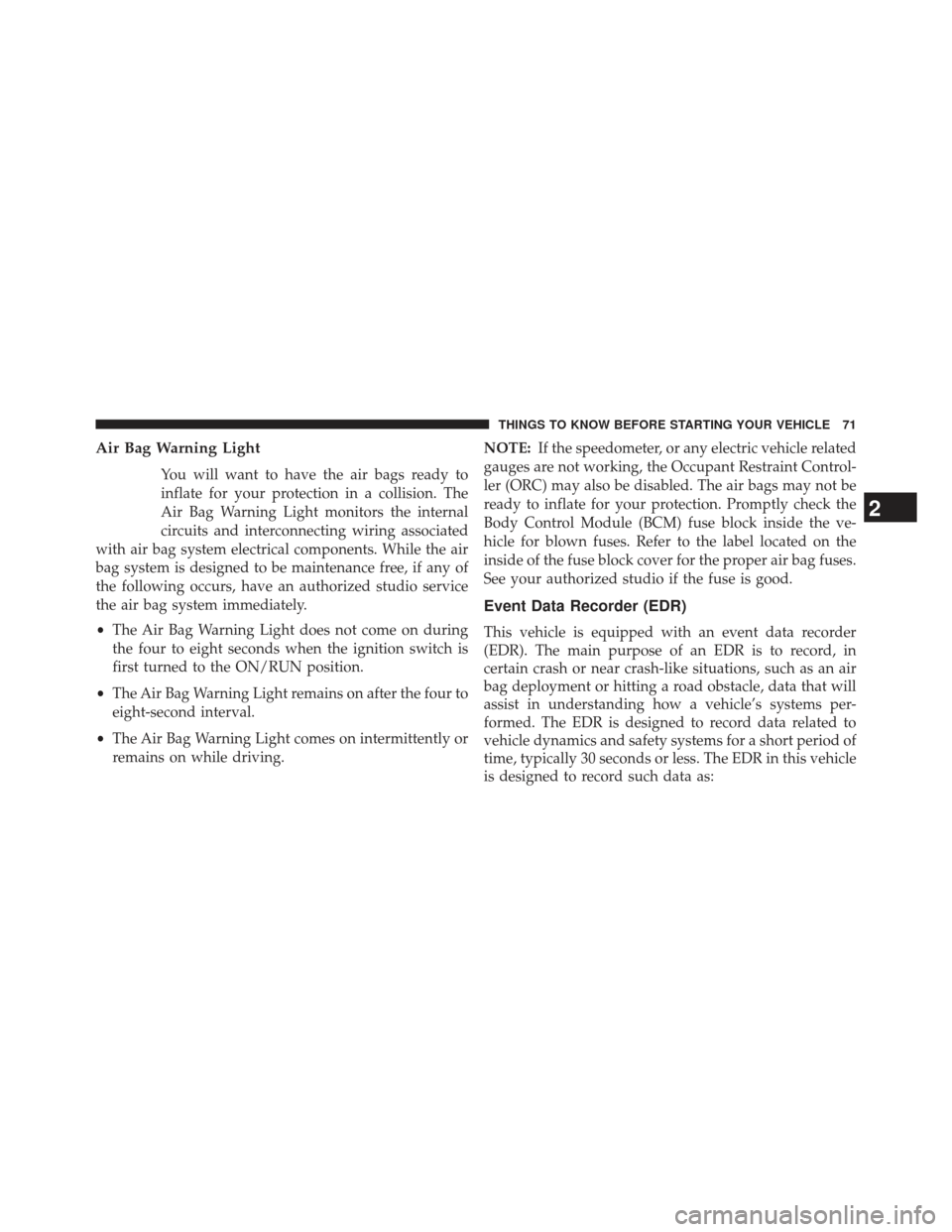

Air Bag Warning Light
You will want to have the air bags ready to
inflate for your protection in a collision. The
Air Bag Warning Light monitors the internal
circuits and interconnecting wiring associated
with air bag system electrical components. While the air
bag system is designed to be maintenance free, if any of
the following occurs, have an authorized studio service
the air bag system immediately.
• The Air Bag Warning Light does not come on during
the four to eight seconds when the ignition switch is
first turned to the ON/RUN position.
• The Air Bag Warning Light remains on after the four to
eight-second interval.
• The Air Bag Warning Light comes on intermittently or
remains on while driving. NOTE:
If the speedometer, or any electric vehicle related
gauges are not working, the Occupant Restraint Control-
ler (ORC) may also be disabled. The air bags may not be
ready to inflate for your protection. Promptly check the
Body Control Module (BCM) fuse block inside the ve-
hicle for blown fuses. Refer to the label located on the
inside of the fuse block cover for the proper air bag fuses.
See your authorized studio if the fuse is good.
Event Data Recorder (EDR)
This vehicle is equipped with an event data recorder
(EDR). The main purpose of an EDR is to record, in
certain crash or near crash-like situations, such as an air
bag deployment or hitting a road obstacle, data that will
assist in understanding how a vehicle’s systems per-
formed. The EDR is designed to record data related to
vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle
is designed to record such data as:
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71

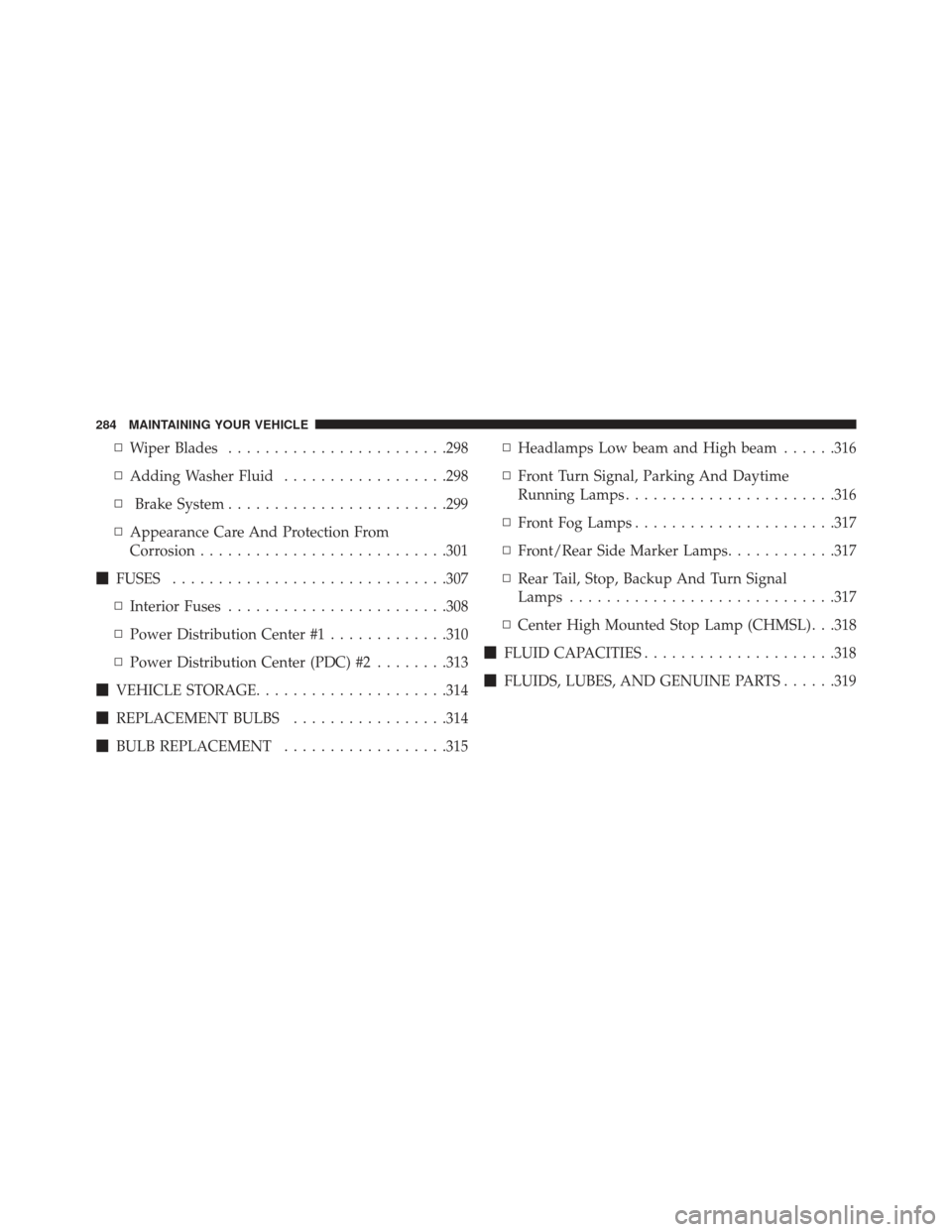

▫Wiper Blades ....................... .298
▫ Adding Washer Fluid ..................298
▫ Brake System ....................... .299
▫ Appearance Care And Protection From
Corrosion .......................... .301
 FUSES ............................. .307
▫ Interior Fuses ....................... .308
▫ Power Distribution Center #1 .............310
▫ Power Distribution Center (PDC) #2 ........313
 VEHICLE STORAGE .....................314
 REPLACEMENT BULBS .................314
 BULB REPLACEMENT ..................315 ▫
Headlamps Low beam and High beam ......316
▫ Front Turn Signal, Parking And Daytime
Running Lamps ...................... .316
▫ Front Fog Lamps ..................... .317
▫ Front/Rear Side Marker Lamps ............317
▫ Rear Tail, Stop, Backup And Turn Signal
Lamps ............................ .317
▫ Center High Mounted Stop Lamp (CHMSL) . . .318
 FLUID CAPACITIES .....................318
 FLUIDS, LUBES, AND GENUINE PARTS ......319
284 MAINTAINING YOUR VEHICLE

UNDERHOOD COMPARTMENT
1 — Battery Thermal Coolant Reservoir2 — Power Electronics Coolant Reservoir
4 — Fuses 3 — Brake Fluid Reservoir
5 — Washer Fluid Reservoir
7
MAINTAINING YOUR VEHICLE 285

Replace the belts if they appear frayed or worn or if the
buckles do not work properly.

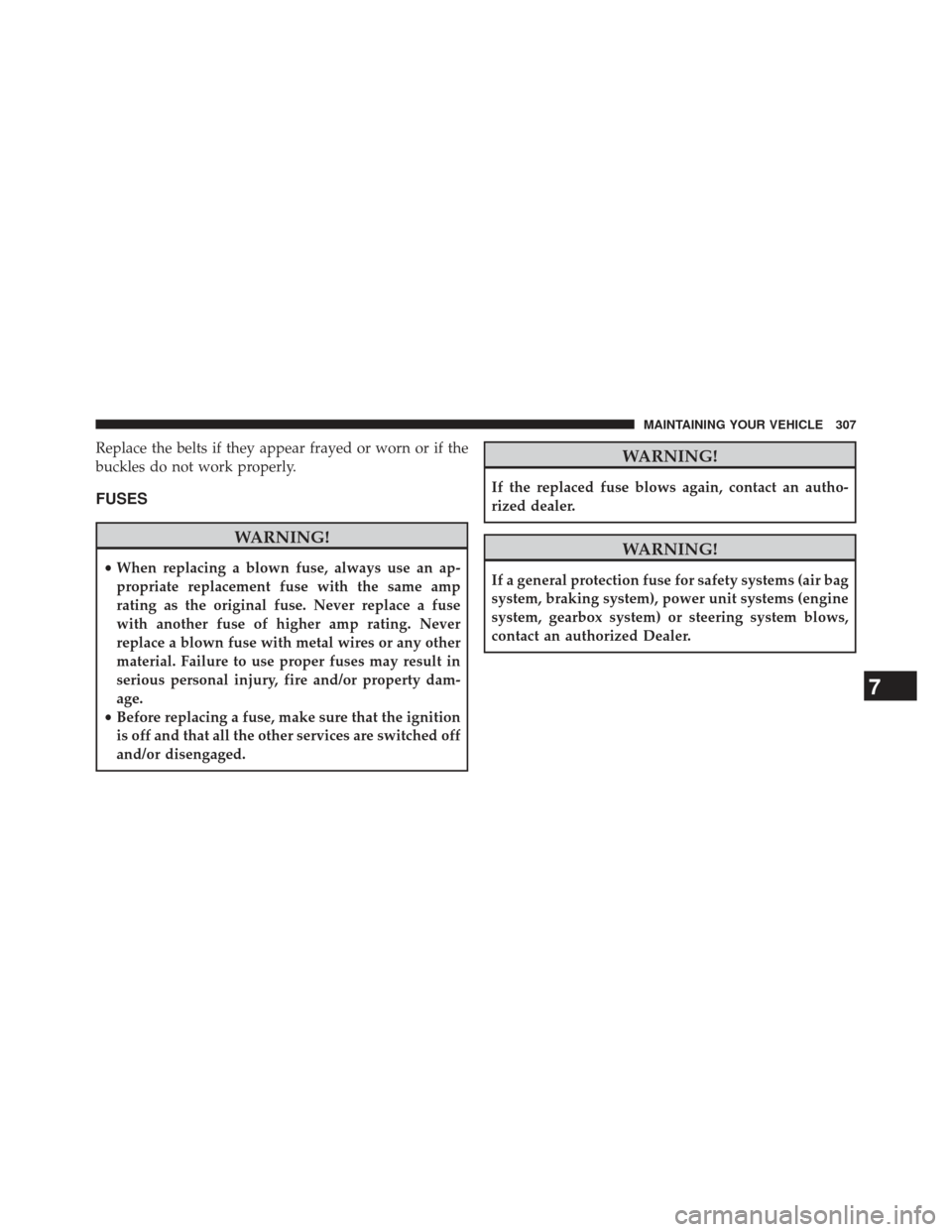

FUSES
WARNING!
•When replacing a blown fuse, always use an ap-
propriate replacement fuse with the same amp
rating as the original fuse. Never replace a fuse
with another fuse of higher amp rating. Never
replace a blown fuse with metal wires or any other
material. Failure to use proper fuses may result in
serious personal injury, fire and/or property dam-
age.
• Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
WARNING!
If the replaced fuse blows again, contact an autho-
rized dealer.
WARNING!
If a general protection fuse for safety systems (air bag
system, braking system), power unit systems (engine
system, gearbox system) or steering system blows,
contact an authorized Dealer.
7
MAINTAINING YOUR VEHICLE 307

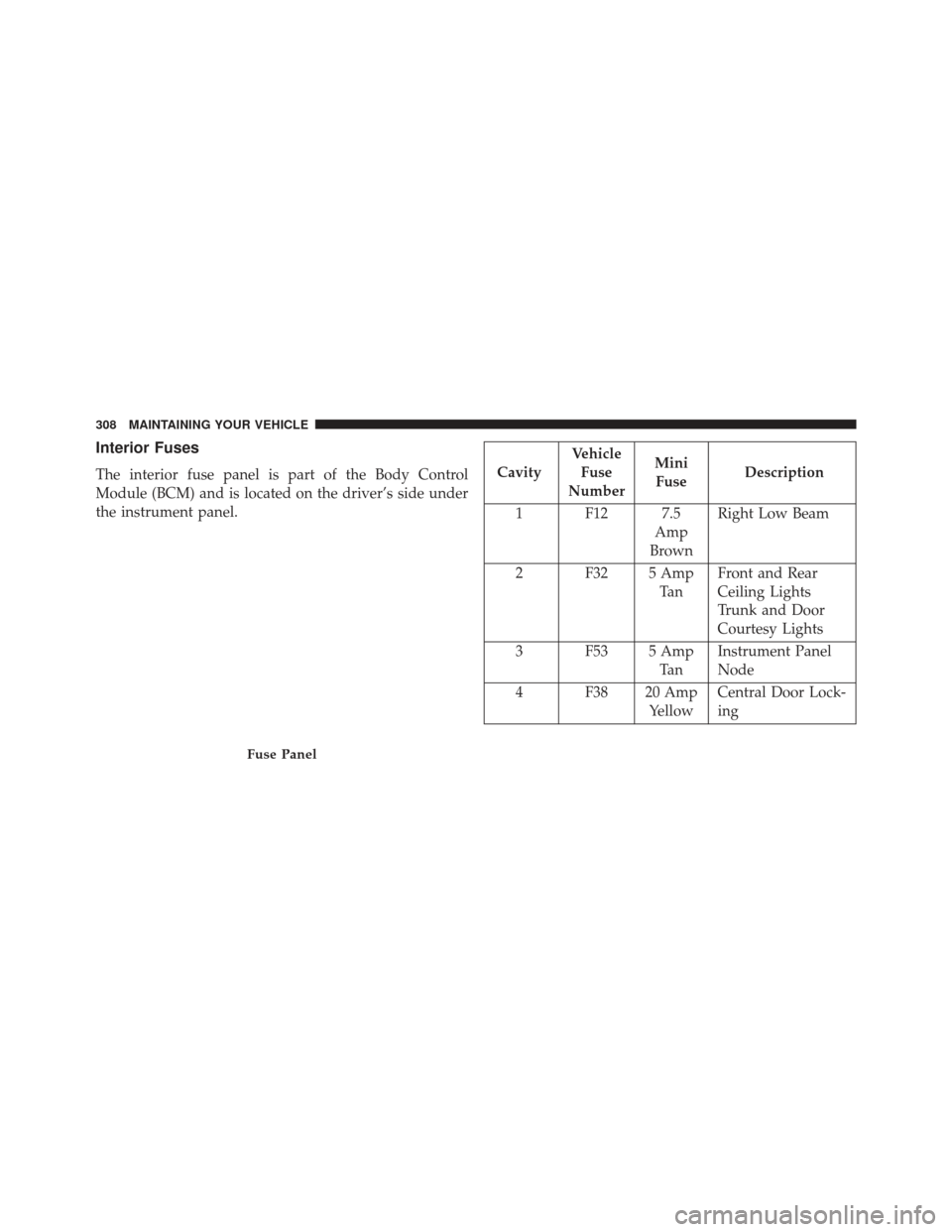

Interior Fuses
The interior fuse panel is part of the Body Control
Module (BCM) and is located on the driver’s side under
the instrument panel.CavityVehicle
Fuse
Number Mini
Fuse Description
1 F12 7.5 Amp
Brown Right Low Beam
2 F32 5 Amp Ta nFront and Rear
Ceiling Lights
Trunk and Door
Courtesy Lights
3 F53 5 Amp Ta nInstrument Panel
Node
4 F38 20 Amp YellowCentral Door Lock-
ing
Fuse Panel
308 MAINTAINING YOUR VEHICLE

CavityVehicle
Fuse
Number Mini
Fuse Description
13 F31 5 Amp Ta nIgnition, Climate
Control, RDU and
EVCU
14 F47 20 Amp YellowDriver Power Win-
dow
Power Distribution Center #1
The Power Distribution Center #1 is located on the right
side of the underhood compartment. To access the fuses,
remove locking screw and slide cover off.
The ID number of the electrical component correspond-
ing to each fuse can be found on the back of the cover.
Front Distribution Unit
310 MAINTAINING YOUR VEHICLE

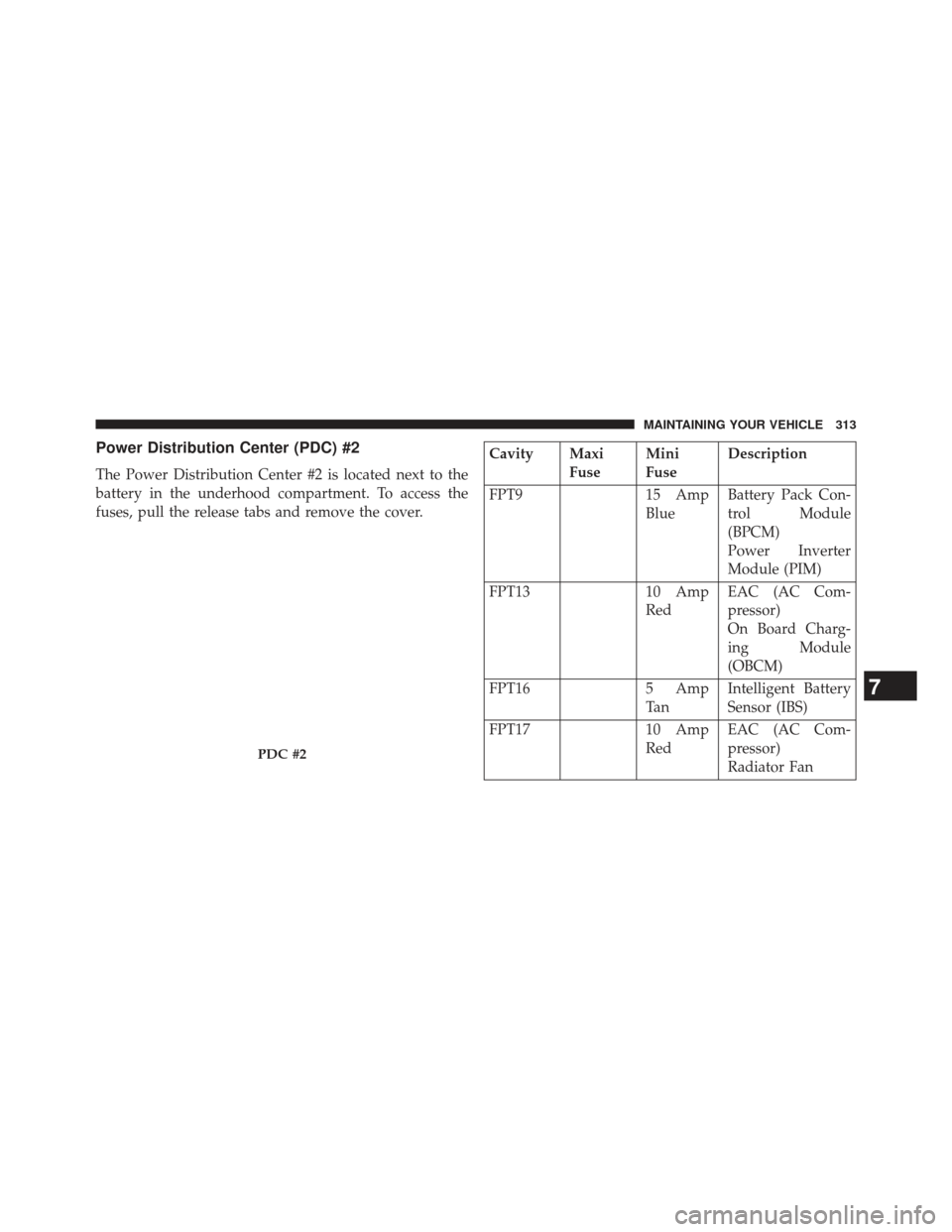

Power Distribution Center (PDC) #2
The Power Distribution Center #2 is located next to the
battery in the underhood compartment. To access the
fuses, pull the release tabs and remove the cover.
Cavity MaxiFuseMini
Fuse Description
FPT9 15 Amp
BlueBattery Pack Con-
trol Module
(BPCM)
Power Inverter
Module (PIM)
FPT13 10 Amp
Red EAC (AC Com-
pressor)
On Board Charg-
ing Module
(OBCM)
FPT16 5 Amp
Ta n Intelligent Battery
Sensor (IBS)
FPT17 10 Amp
Red EAC (AC Com-
pressor)
Radiator Fan
PDC #2
7
MAINTAINING YOUR VEHICLE 313

Emergency, In Case ofHazard Warning Flasher ..................264
Towing ............................. .280
Engine Compartment ......................... .285
Starting ............................. .208
Enhanced Accident Response Feature ............67
Event Data Recorder ........................71
Exterior Lights ............................94
Flashers Turn Signal ............................94
Fog Lights ............................. .123
Freeing A Stuck Vehicle .....................277
Fuel Cutoff ................................67
Fuses ................................. .307
Gear Ranges ............................ .212General Information
........................35
General Maintenance ...................... .287
Glass Cleaning .......................... .305
Hazard Driving Through Flowing, Rising, or Shallow
Standing Water ........................ .217
Headlights ..............................119
Cleaning ............................ .305
High Beam ........................... .155
Passing ............................. .120
Switch .............................. .120
Heated Mirrors .......................... .101
Heated Seats .............................114
Holder, Cup ............................ .143
Hood Release ............................117
Ignition .................................32
Key..................................31
340 INDEX
