FIAT 500E 2014 2.G Owner's Manual

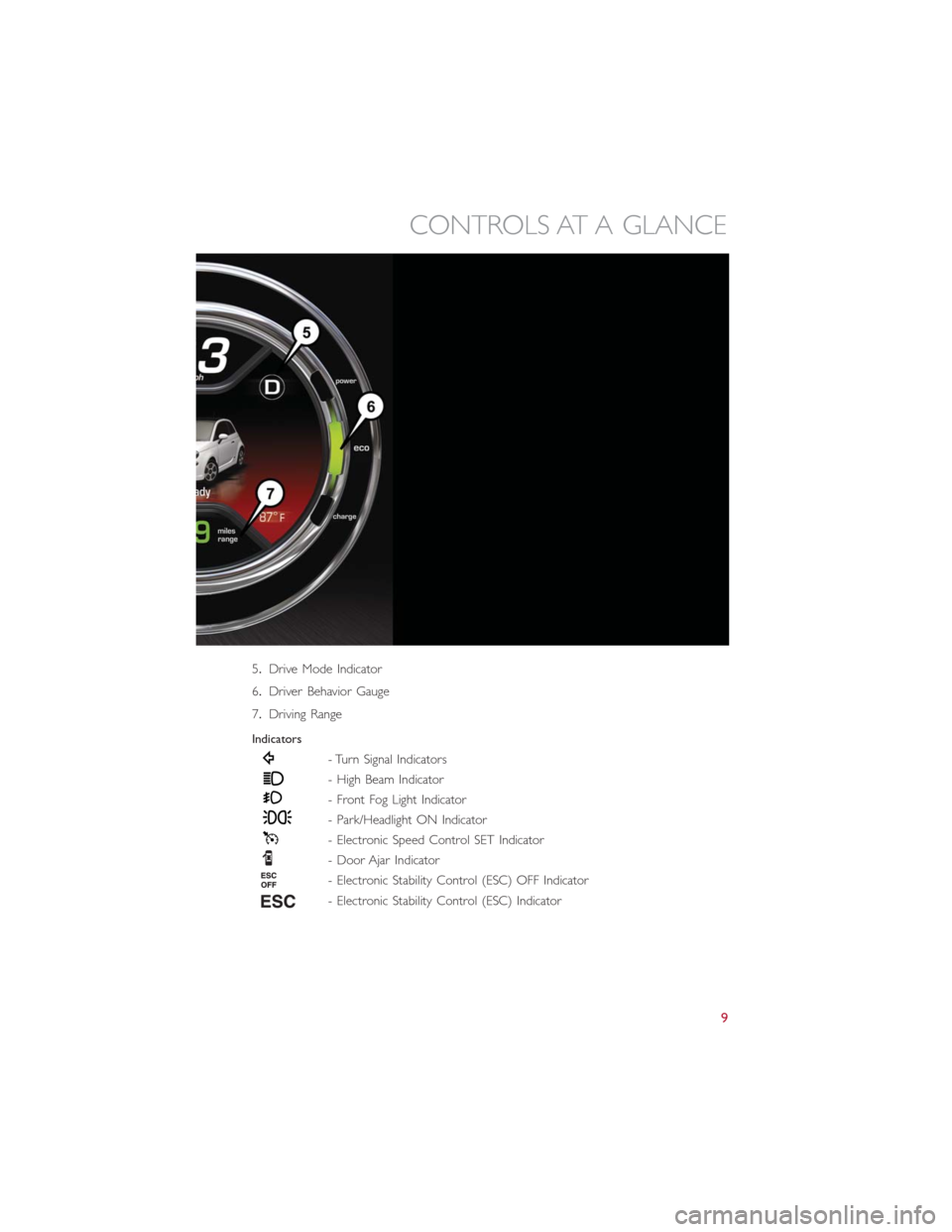

5.Drive Mode Indicator
6.Driver Behavior Gauge
7.Driving Range
Indicators
- Turn Signal Indicators
- High Beam Indicator
- Front Fog Light Indicator
- Park/Headlight ON Indicator
- Electronic Speed Control SET Indicator
- Door Ajar Indicator
- Electronic Stability Control (ESC) OFF Indicator
- Electronic Stability Control (ESC) Indicator
CONTROLS AT A GLANCE
9

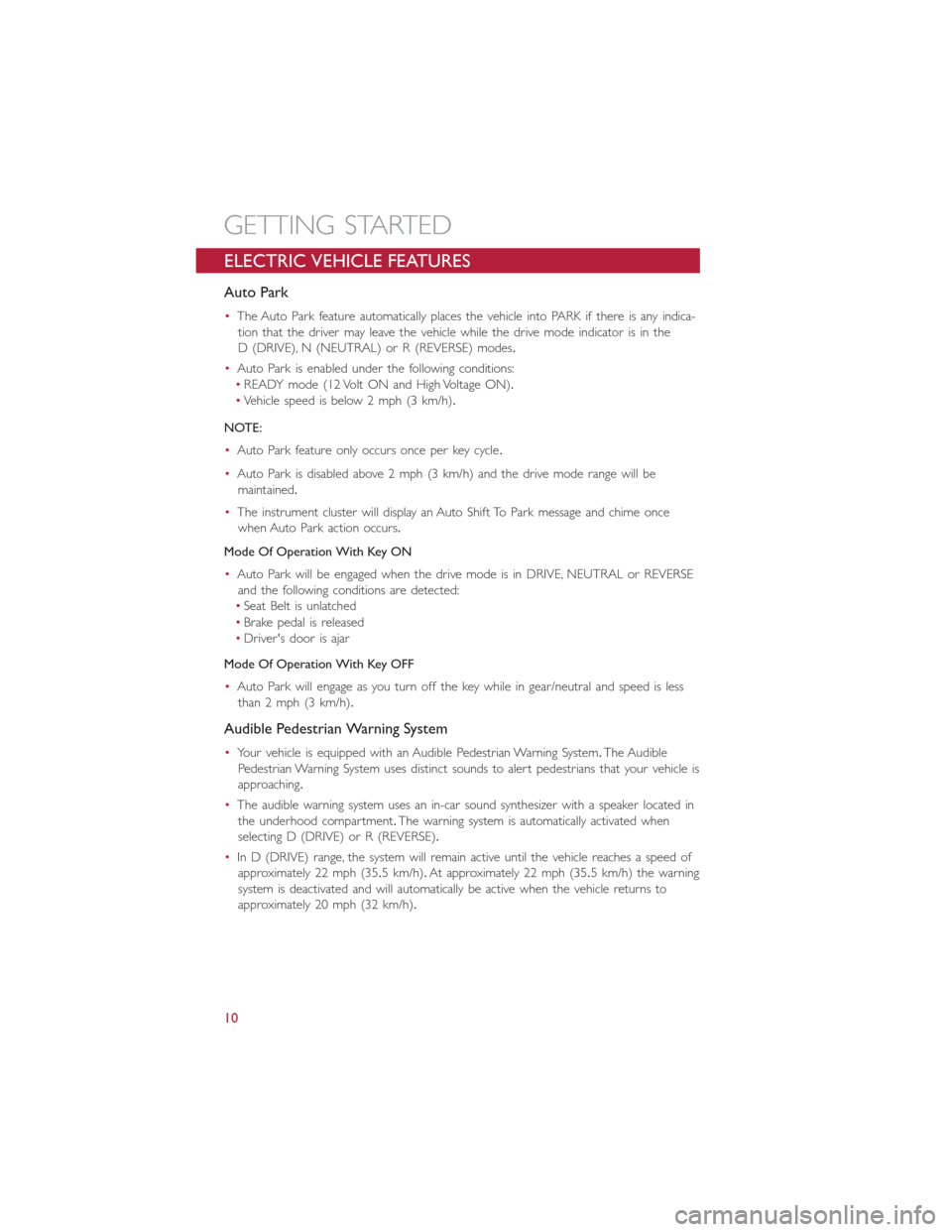

ELECTRIC VEHICLE FEATURES
Auto Park
•The Auto Park feature automatically places the vehicle into PARK if there is any indica-
tion that the driver may leave the vehicle while the drive mode indicator is in the
D (DRIVE), N (NEUTRAL) or R (REVERSE) modes.
•Auto Park is enabled under the following conditions:
•READY mode (12 Volt ON and High Voltage ON).
•Vehicle speed is below 2 mph (3 km/h).
NOTE:
•Auto Park feature only occurs once per key cycle.
•Auto Park is disabled above 2 mph (3 km/h) and the drive mode range will be
maintained.
•The instrument cluster will display an Auto Shift To Park message and chime once
when Auto Park action occurs.
Mode Of Operation With Key ON
•Auto Park will be engaged when the drive mode is in DRIVE, NEUTRAL or REVERSE
and the following conditions are detected:
•Seat Belt is unlatched
•Brake pedal is released
•Driver's door is ajar
Mode Of Operation With Key OFF
•Auto Park will engage as you turn off the key while in gear/neutral and speed is less
than 2 mph (3 km/h).
Audible Pedestrian Warning System
•Your vehicle is equipped with an Audible Pedestrian Warning System.The Audible
Pedestrian Warning System uses distinct sounds to alert pedestrians that your vehicle is
approaching.
•The audible warning system uses an in-car sound synthesizer with a speaker located in
the underhood compartment.The warning system is automatically activated when
selecting D (DRIVE) or R (REVERSE).
•In D (DRIVE) range, the system will remain active until the vehicle reaches a speed of
approximately 22 mph (35.5 km/h).At approximately 22 mph (35.5 km/h) the warning
system is deactivated and will automatically be active when the vehicle returns to
approximately 20 mph (32 km/h).
GETTING STARTED
10

Smartphone Features
With the “FIAT Access” smartphone app, you can monitor the state of charge of the high
voltage battery or initiate charging from your phone.You can also turn on your car’s cli-
mate control system remotely.The smartphone app provides the following features:
•Monitor battery charge level
•Display available driving distance
•Check charging status
•Remotely activate vehicle climate control system
•Unlock and lock doors
•Assist with locating your vehicle
•Locate charging stations
•Send a point-of-interest to your vehicle
•Schedule a charge
•View energy consumed
•Notifications for charging and preconditioning events
How Do I Get The “FIAT Access” Smartphone App?
Visit the 500e registration website:
https://www.fiataccess.com/500eSubscribe
Once in the registration website, you will
need to enter your vehicle’s VIN and Con-
nectivity ID.The connectivity ID is found in
the vehicle's instrument cluster.To locate
the connectivity ID follow the steps below:
1.Press the Menu button on the instru-
ment cluster.
GETTING STARTED
11

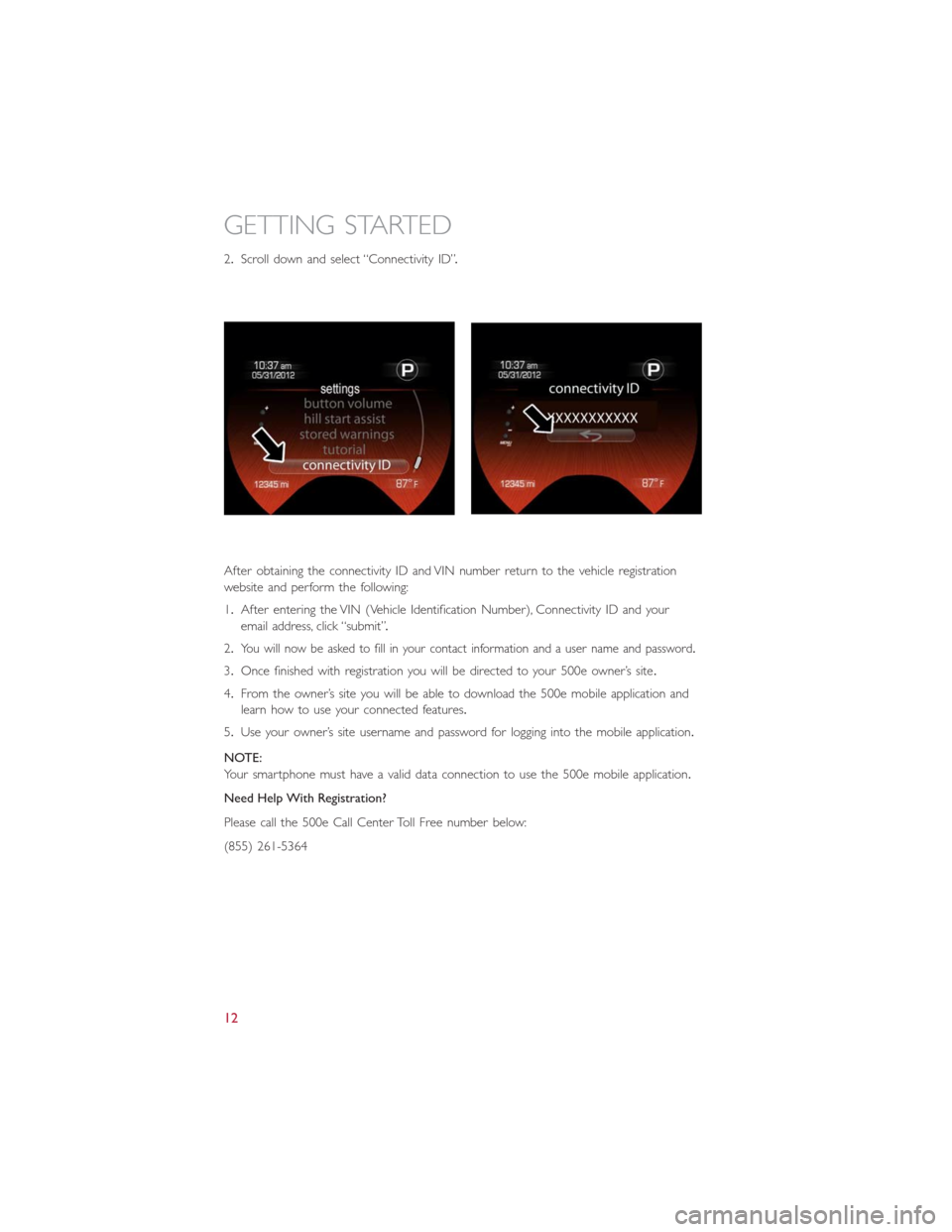

2.Scroll down and select “Connectivity ID”.
After obtaining the connectivity ID and VIN number return to the vehicle registration
website and perform the following:
1.After entering the VIN (Vehicle Identification Number), Connectivity ID and your
email address, click “submit”.
2.
You will now be asked to fill in your contact information and a user name and password.
3.Once finished with registration you will be directed to your 500e owner’s site.
4.From the owner’s site you will be able to download the 500e mobile application and
learn how to use your connected features.
5.Use your owner’s site username and password for logging into the mobile application.
NOTE:
Your smartphone must have a valid data connection to use the 500e mobile application.
Need Help With Registration?
Please call the 500e Call Center Toll Free number below:
(855) 261-5364
GETTING STARTED
12

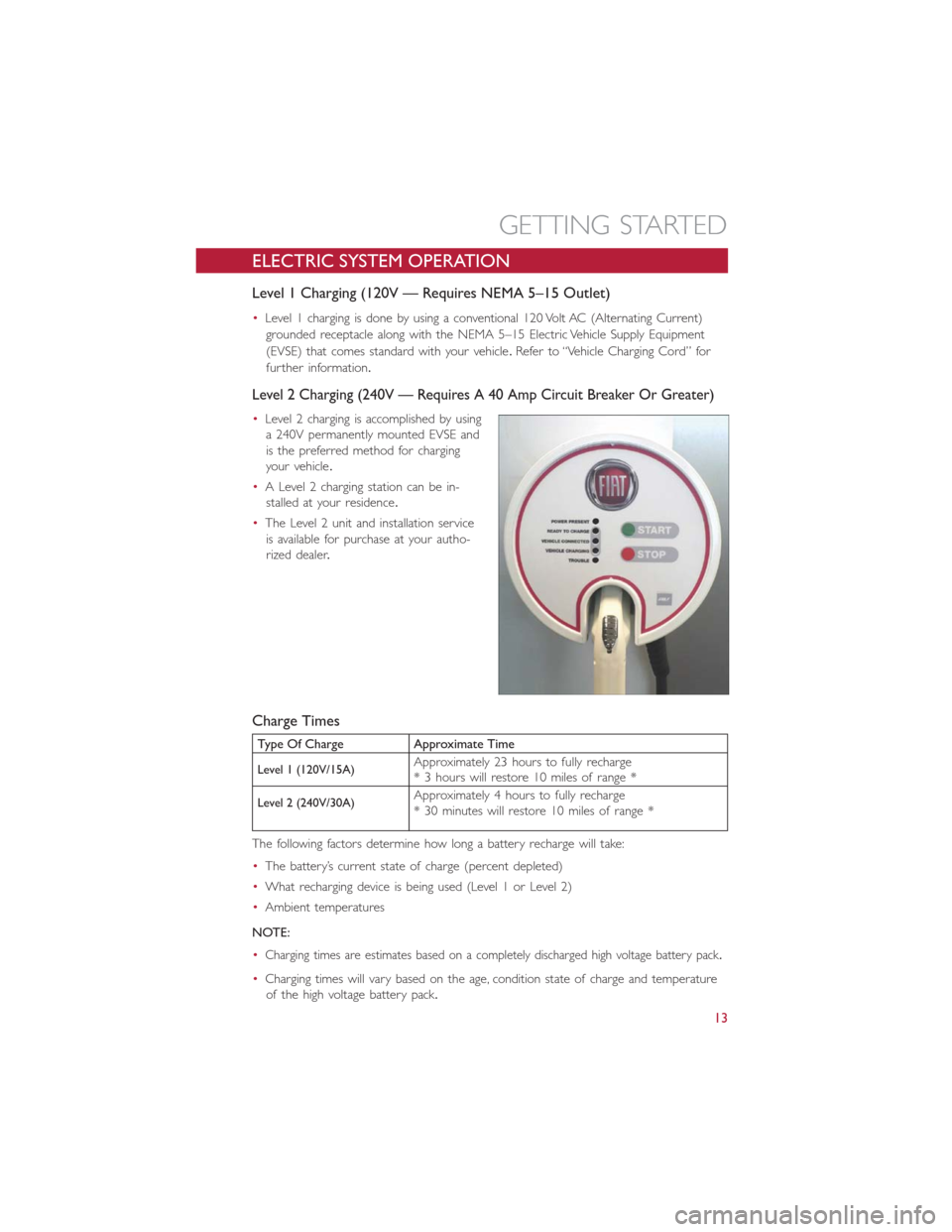

ELECTRIC SYSTEM OPERATION
Level 1 Charging (120V — Requires NEMA 5–15 Outlet)
•Level 1 charging is done by using a conventional 120 Volt AC (Alternating Current)
grounded receptacle along with the NEMA 5–15 Electric Vehicle Supply Equipment
(EVSE) that comes standard with your vehicle.Refer to “Vehicle Charging Cord” for
further information.
Level 2 Charging (240V — Requires A 40 Amp Circuit Breaker Or Greater)
•Level 2 charging is accomplished by using
a 240V permanently mounted EVSE and
is the preferred method for charging
your vehicle.
•A Level 2 charging station can be in-
stalled at your residence.
•The Level 2 unit and installation service
is available for purchase at your autho-
rized dealer.
Charge Times
Type Of Charge Approximate Time
Level 1 (120V/15A)Approximately 23 hours to fully recharge
* 3 hours will restore 10 miles of range *
Level 2 (240V/30A)Approximately 4 hours to fully recharge
* 30 minutes will restore 10 miles of range *
The following factors determine how long a battery recharge will take:
•The battery’s current state of charge (percent depleted)
•What recharging device is being used (Level 1 or Level 2)
•Ambient temperatures
NOTE:
•
Charging times are estimates based on a completely discharged high voltage battery pack.
•Charging times will vary based on the age, condition state of charge and temperature
of the high voltage battery pack.
GETTING STARTED
13

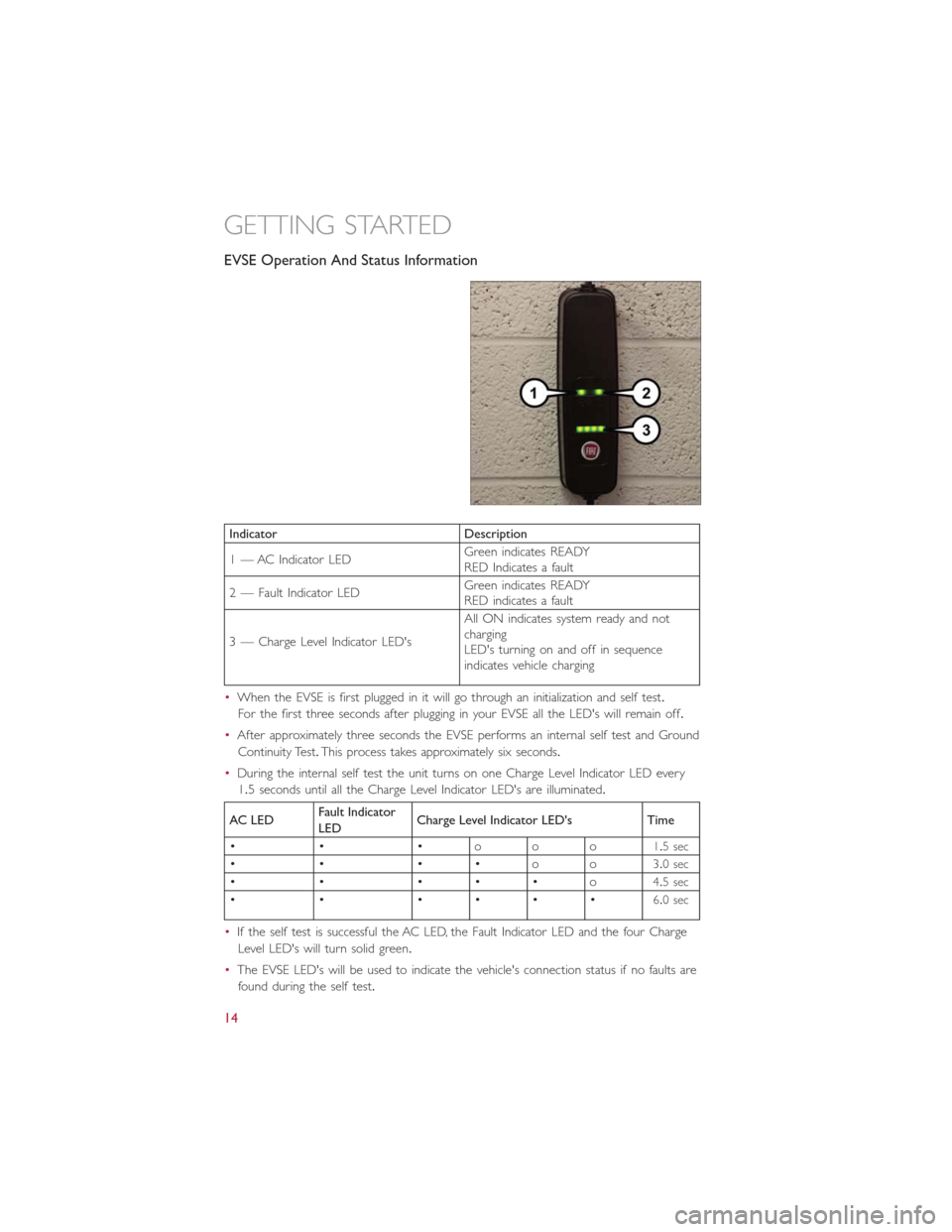

EVSE Operation And Status Information
Indicator Description
1 — AC Indicator LEDGreen indicates READY
RED Indicates a fault
2 — Fault Indicator LEDGreen indicates READY
RED indicates a fault
3 — Charge Level Indicator LED'sAll ON indicates system ready and not
charging
LED's turning on and off in sequence
indicates vehicle charging
•When the EVSE is first plugged in it will go through an initialization and self test.
For the first three seconds after plugging in your EVSE all the LED's will remain off.
•After approximately three seconds the EVSE performs an internal self test and Ground
Continuity Test.This process takes approximately six seconds.
•During the internal self test the unit turns on one Charge Level Indicator LED every
1.5 seconds until all the Charge Level Indicator LED's are illuminated.
AC LEDFault Indicator
LEDCharge Level Indicator LED's Time
• • •ooo
1.5 sec
• • ••oo3.0 sec
• • •••o4.5 sec
• • ••••6.0 sec
•If the self test is successful the AC LED, the Fault Indicator LED and the four Charge
Level LED's will turn solid green.
•The EVSE LED's will be used to indicate the vehicle's connection status if no faults are
found during the self test.
GETTING STARTED
14

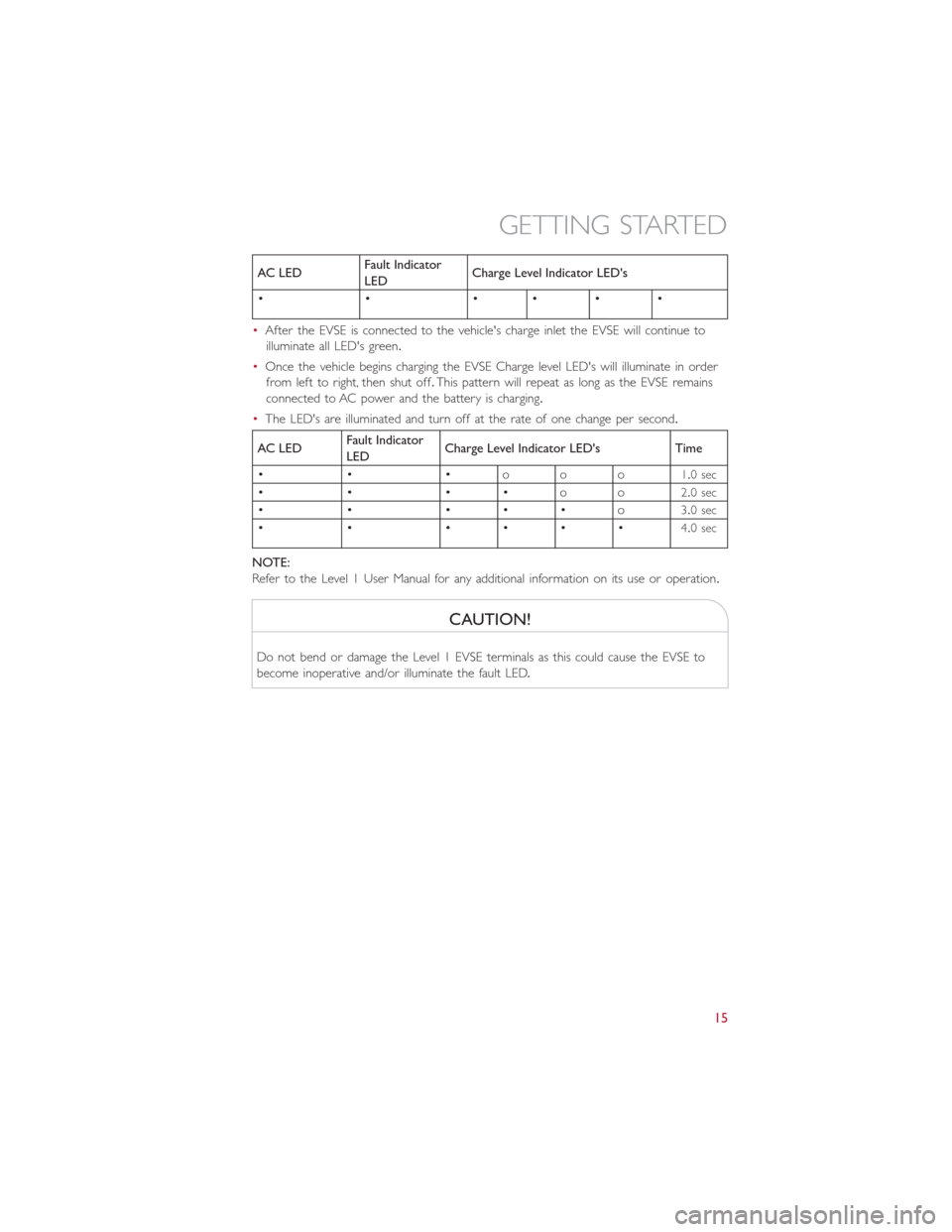

AC LEDFault Indicator
LEDCharge Level Indicator LED's
•• ••••
•After the EVSE is connected to the vehicle's charge inlet the EVSE will continue to
illuminate all LED's green.
•Once the vehicle begins charging the EVSE Charge level LED's will illuminate in order
from left to right, then shut off.This pattern will repeat as long as the EVSE remains
connected to AC power and the battery is charging.
•The LED's are illuminated and turn off at the rate of one change per second.
AC LEDFault Indicator
LEDCharge Level Indicator LED's Time
• • •ooo
1.0 sec
• • ••oo2.0 sec
• • •••o3.0 sec
• • ••••4.0 sec
NOTE:
Refer to the Level 1 User Manual for any additional information on its use or operation.
CAUTION!
Do not bend or damage the Level 1 EVSE terminals as this could cause the EVSE to
become inoperative and/or illuminate the fault LED.
GETTING STARTED
15

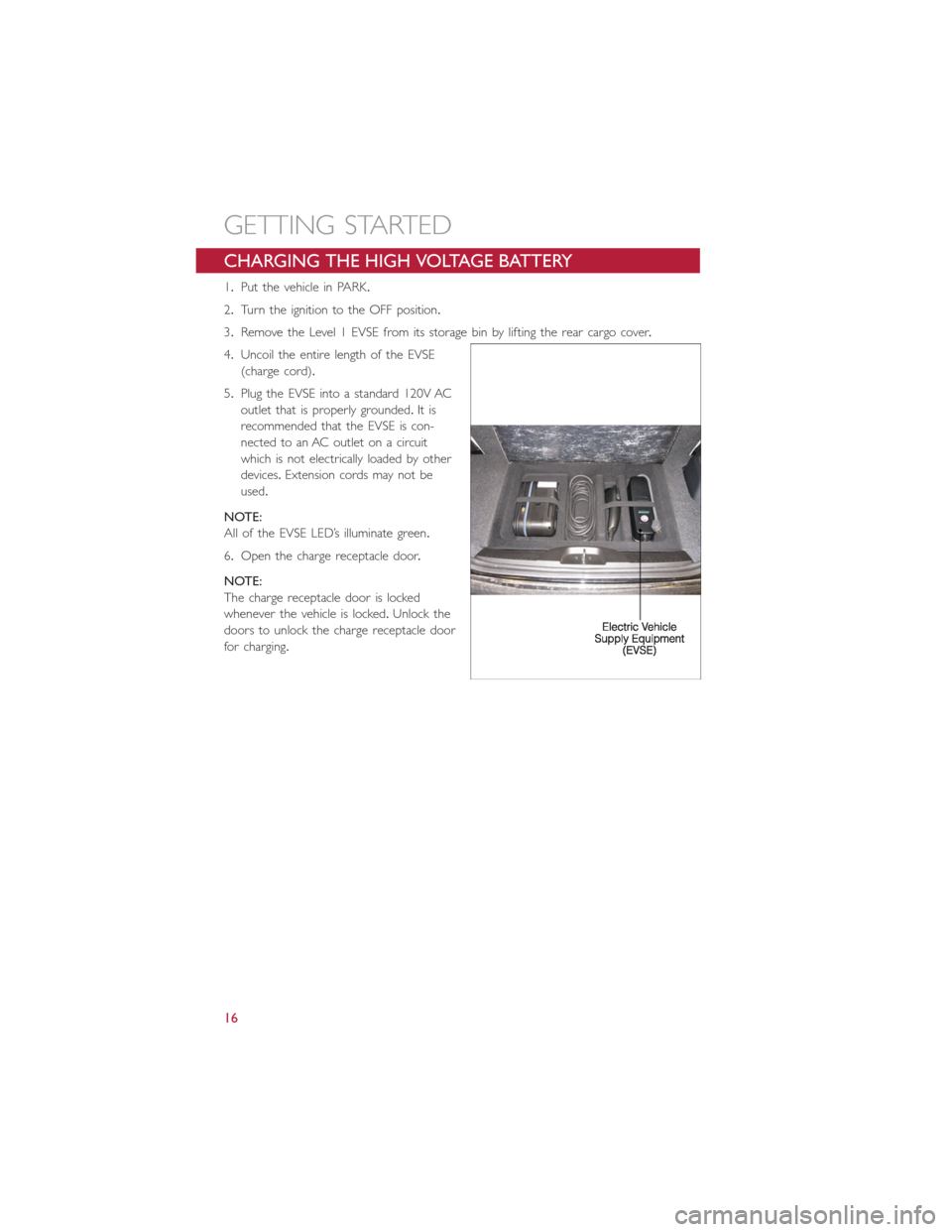

CHARGING THE HIGH VOLTAGE BATTERY
1.Put the vehicle in PARK.
2.Turn the ignition to the OFF position.
3.Remove the Level 1 EVSE from its storage bin by lifting the rear cargo cover.
4.Uncoil the entire length of the EVSE
(charge cord).
5.Plug the EVSE into a standard 120V AC
outlet that is properly grounded.It is
recommended that the EVSE is con-
nected to an AC outlet on a circuit
which is not electrically loaded by other
devices.Extension cords may not be
used.
NOTE:
All of the EVSE LED’s illuminate green.
6.Open the charge receptacle door.
NOTE:
The charge receptacle door is locked
whenever the vehicle is locked.Unlock the
doors to unlock the charge receptacle door
for charging.
GETTING STARTED
16

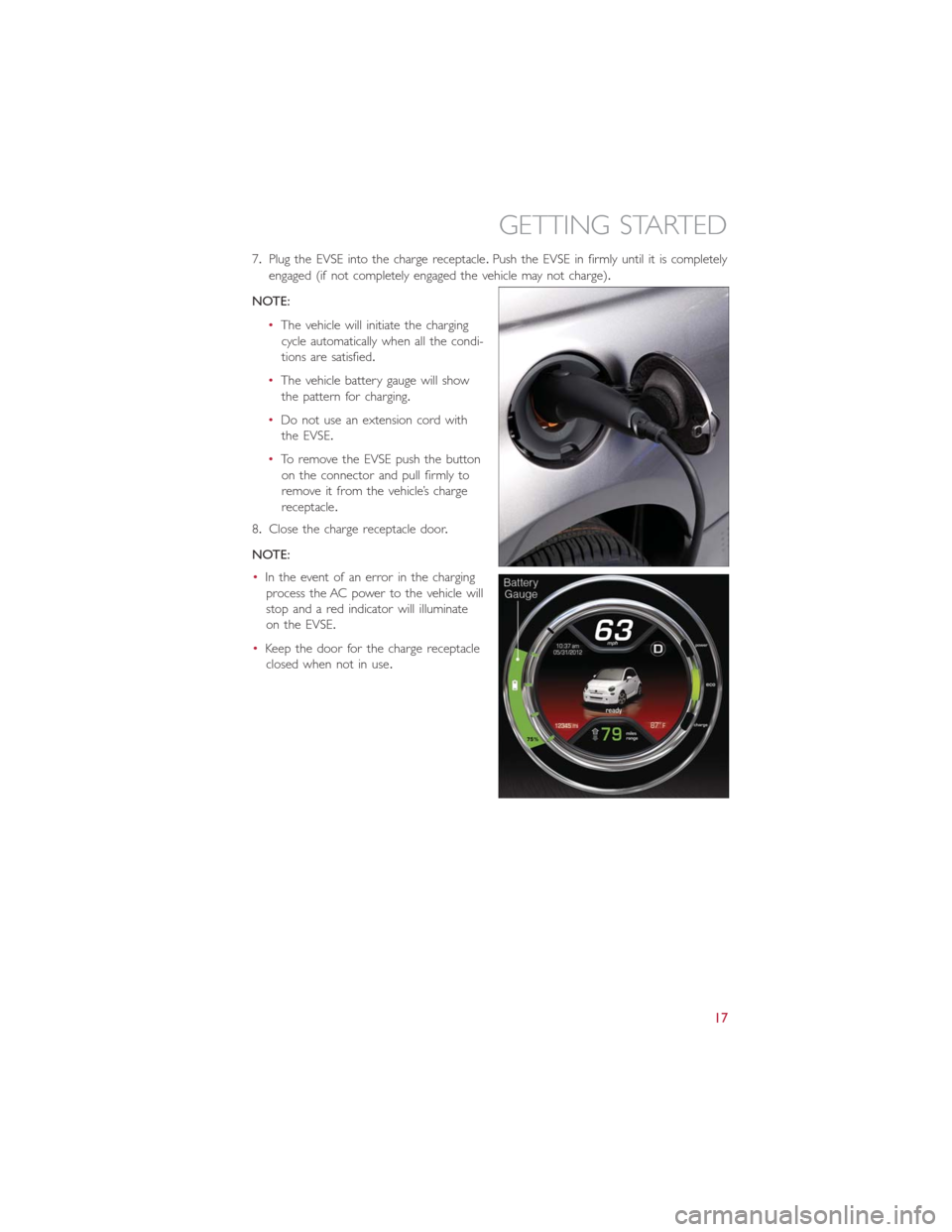

7.Plug the EVSE into the charge receptacle.Push the EVSE in firmly until it is completely
engaged (if not completely engaged the vehicle may not charge).
NOTE:
•The vehicle will initiate the charging
cycle automatically when all the condi-
tions are satisfied.
•The vehicle battery gauge will show
the pattern for charging.
•Do not use an extension cord with
the EVSE.
•To remove the EVSE push the button
on the connector and pull firmly to
remove it from the vehicle’s charge
receptacle.
8.Close the charge receptacle door.
NOTE:
•In the event of an error in the charging
process the AC power to the vehicle will
stop and a red indicator will illuminate
on the EVSE.
•Keep the door for the charge receptacle
closed when not in use.
GETTING STARTED
17

Instrument Panel State Of Charge Indicator
•In addition to the instrument cluster the vehicle is also equipped with a State Of
Charge indicator.The indicator is made up of five lights that are mounted to the
center of the instrument panel.
•The State Of Charge indicator repre-
sents the current state of charge for the
high voltage battery.The indicator lights
quickly identify the battery state of
charge while the vehicle is being
charged.Each light represents an incre-
mental 20% level of charge.Solid and
blinking lights indicate charge status simi-
lar to a mobile device.
NOTE:
In the event of an error in the charging
process the outer two lights will blink.
Number Of Indicator Lights Illuminated Percent Of Battery Charge
1 Light 0 – 20%
2 Lights 21 – 40%
3 Lights 41 – 60%
4 Lights 61 – 80%
5 Lights 81 – 100%
