Page 421 of 476

FIAT 500L 2016 2.G Owners Manual Underhood Fuses
The Front Distribution Unit is located on the right side of
the engine compartment, next to the battery. To access the
fuses, push the release tabs and remove the cover.The ID number o

Page 422 of 476

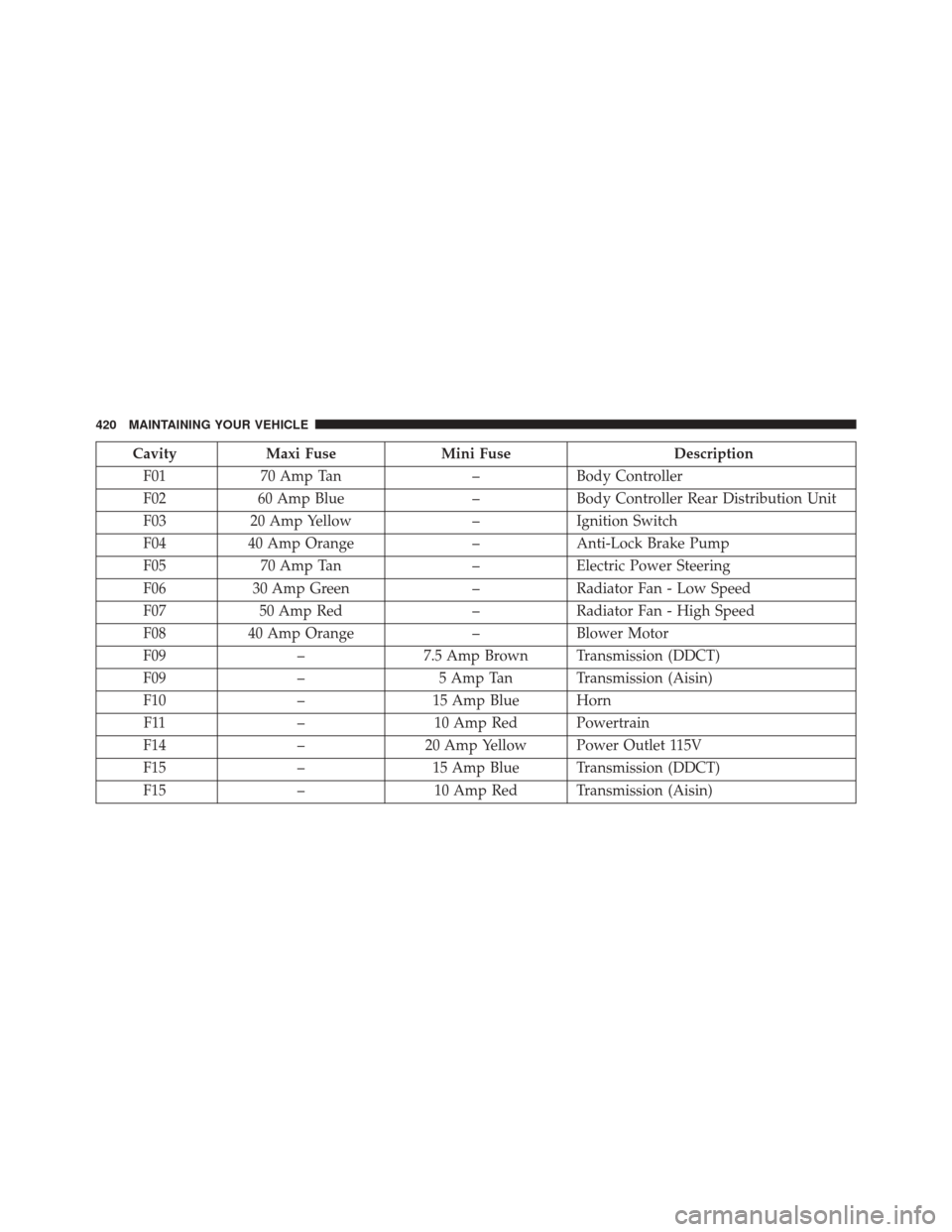

FIAT 500L 2016 2.G Owners Manual CavityMaxi Fuse Mini Fuse Description
F01 70 Amp Tan –Body Controller
F02 60 Amp Blue –Body Controller Rear Distribution Unit
F03 20 Amp Yellow –Ignition Switch
F04 40 Amp Orange –Anti-Lock Br

Page 423 of 476

FIAT 500L 2016 2.G Owners Manual CavityMaxi Fuse Mini Fuse Description
F16 –7.5 Amp Brown Transmission Powertrain
F17 –10 Amp Red Powertrain
F18 –5 Amp Tan Powertrain (Multiair – If Equipped)
F19 –7.5 Amp Brown Air Conditio

Page 424 of 476

FIAT 500L 2016 2.G Owners Manual Interior Fuses
The interior fuse panel is part of the Body Control
Module (BCM) and is located on the driver’s side under
the instrument panel.
Interior Fuse Panel
422 MAINTAINING YOUR VEHICLE

Page 425 of 476

FIAT 500L 2016 2.G Owners Manual Fuse Panel Cavity Locations
7
MAINTAINING YOUR VEHICLE 423

Page 426 of 476

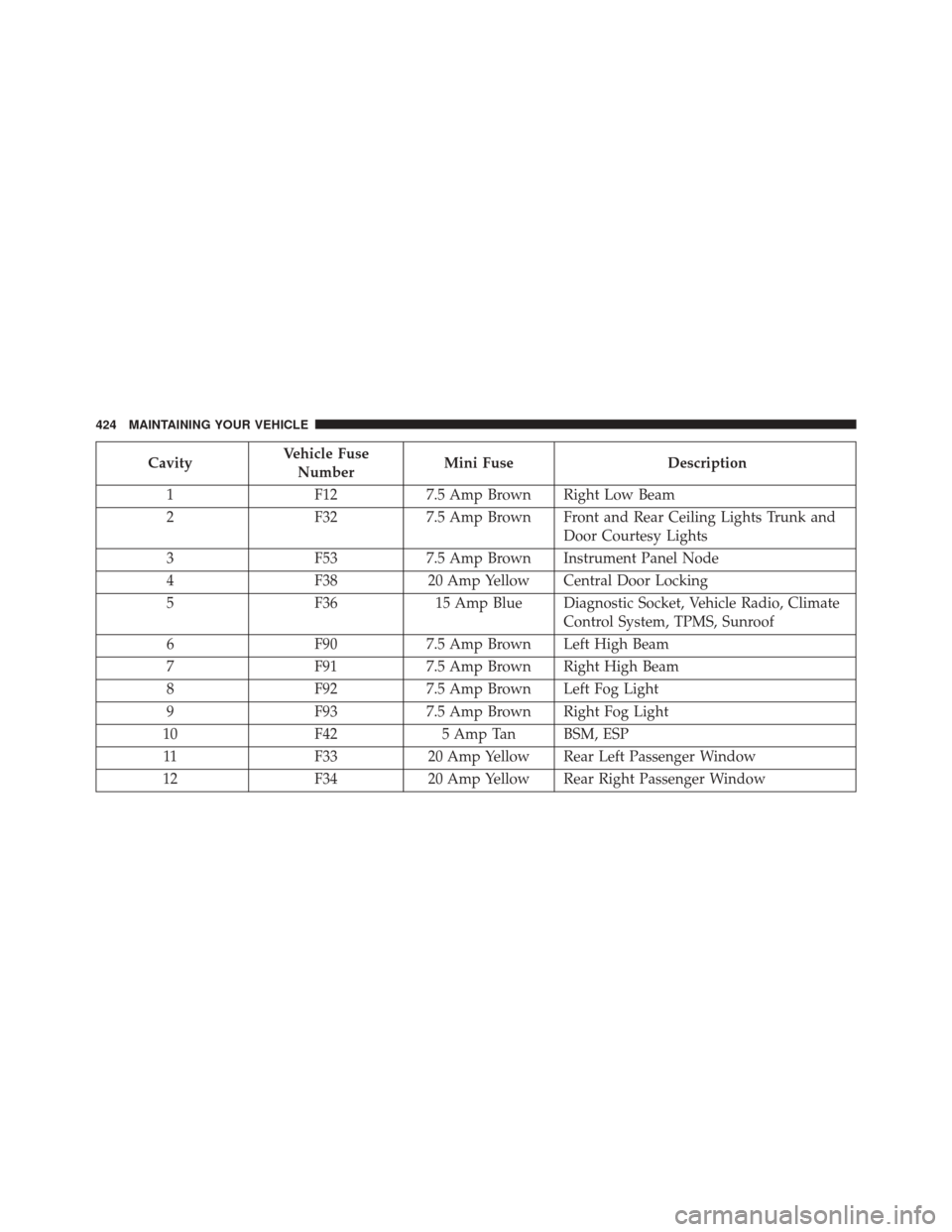

FIAT 500L 2016 2.G Owners Manual CavityVehicle Fuse
Number Mini Fuse
Description
1 F127.5 Amp Brown Right Low Beam
2 F327.5 Amp Brown Front and Rear Ceiling Lights Trunk and
Door Courtesy Lights
3 F537.5 Amp Brown Instrument Panel No

Page 427 of 476

FIAT 500L 2016 2.G Owners Manual CavityVehicle Fuse
Number Mini Fuse
Description
13 F4320 Amp Yellow Bi-Directional Washer
14 F4820 Amp Yellow Passenger Power Window
15 F137.5 Amp Brown Left Low Beam, Headlamp Leveling
16 F507.5 Amp

Page 428 of 476

FIAT 500L 2016 2.G Owners Manual Rear Interior Fuses
The rear interior fuse panel is located on the driver’s side
in the rear compartment.
CavityVehicle Fuse
Number Mini Fuse
Description
1 F6115 Amp Blue Lumbar Regulation Seats
2 F

Page 429 of 476

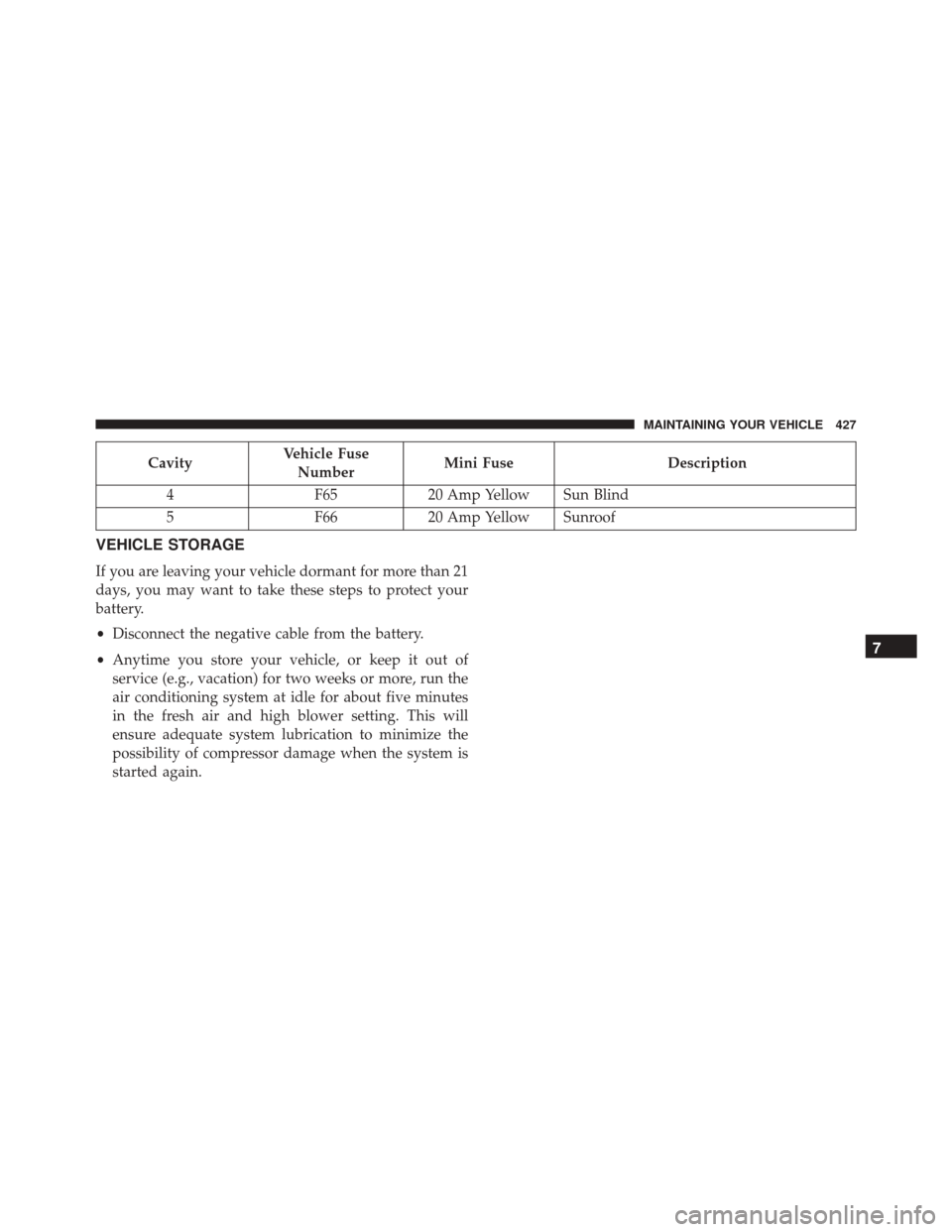

FIAT 500L 2016 2.G Owners Manual CavityVehicle Fuse
Number Mini Fuse
Description
4 F6520 Amp Yellow Sun Blind
5 F6620 Amp Yellow Sunroof
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to t

Page 430 of 476

FIAT 500L 2016 2.G Owners Manual REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Overhead Lamp C5W
Sun Visors C5W
Courtesy Lamp W5W
Glove Compartment C5W
Rear Courtesy Lamp C5W
Exterior Bulbs
Bulb Number
Front Low and High Beam Headlamp
