Page 382 of 476

FIAT 500L 2016 2.G Owners Manual ▫Euro Twin Clutch Transmission —
If Equipped ........................ .407
▫ Automatic Transmission — Aisin AW6F25
Transmission — If Equipped .............409
▫ Appearance Care And Protect

Page 383 of 476

FIAT 500L 2016 2.G Owners Manual ENGINE COMPARTMENT — 1.4L TURBO
1 — Air Cleaner Filter4 — Battery7 — Coolant Pressure Cap
2 — Engine Oil Dipstick 5 — Front Distribution Unit (Fuses) 8 — Coolant Pressure Bottle
3 — Br

Page 420 of 476

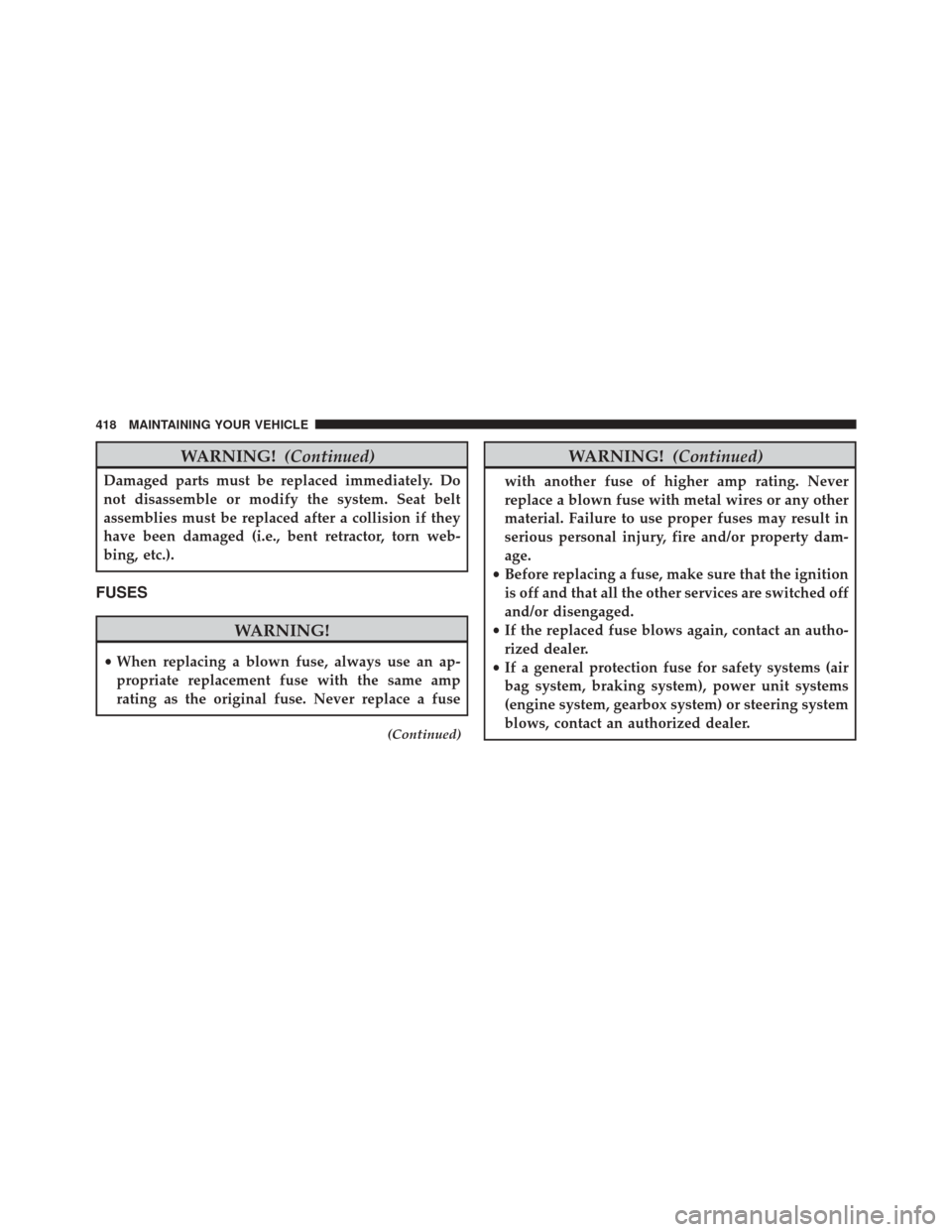

FIAT 500L 2016 2.G Owners Manual WARNING!(Continued)
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (i.e., bent r

Page 421 of 476

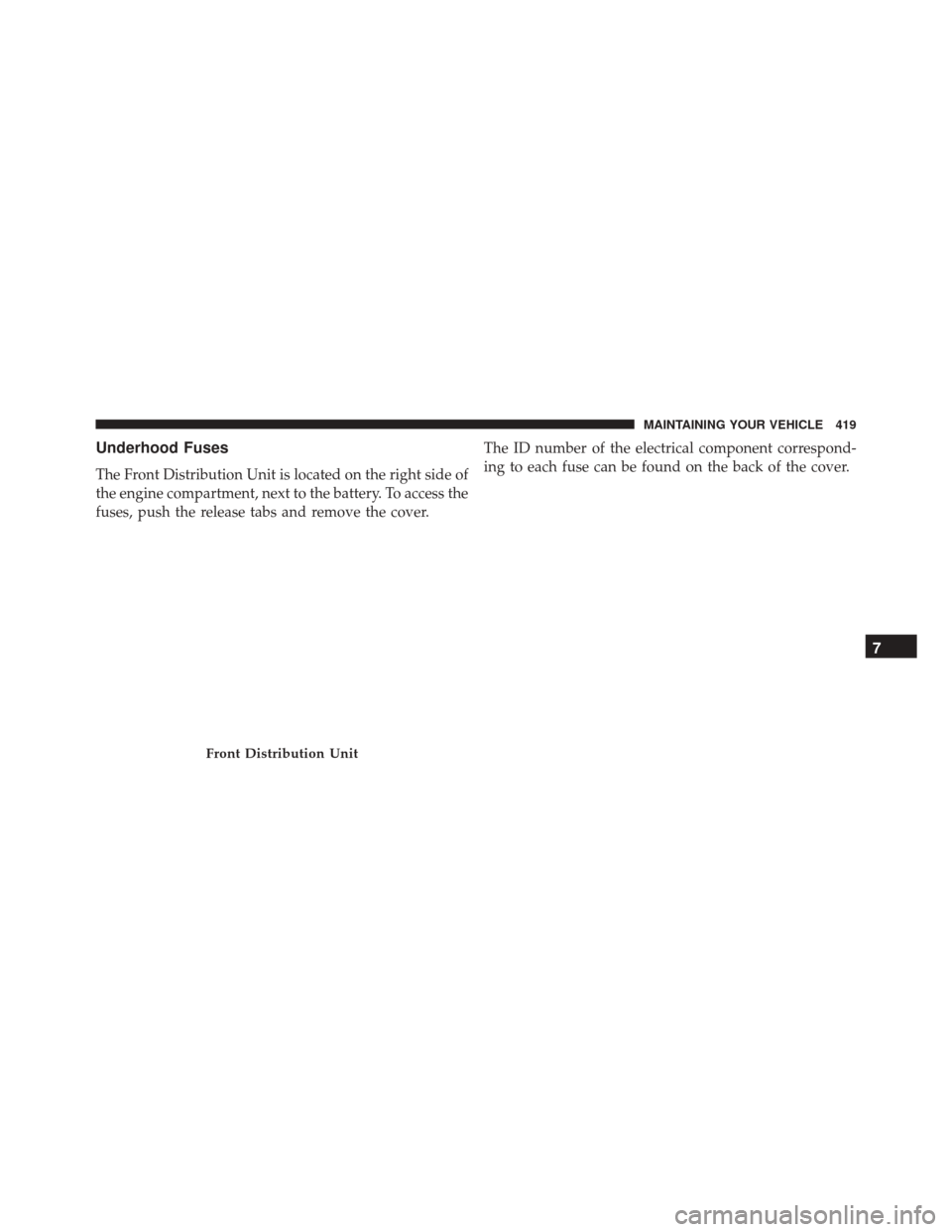

FIAT 500L 2016 2.G Owners Manual Underhood Fuses
The Front Distribution Unit is located on the right side of
the engine compartment, next to the battery. To access the
fuses, push the release tabs and remove the cover.The ID number o

Page 424 of 476

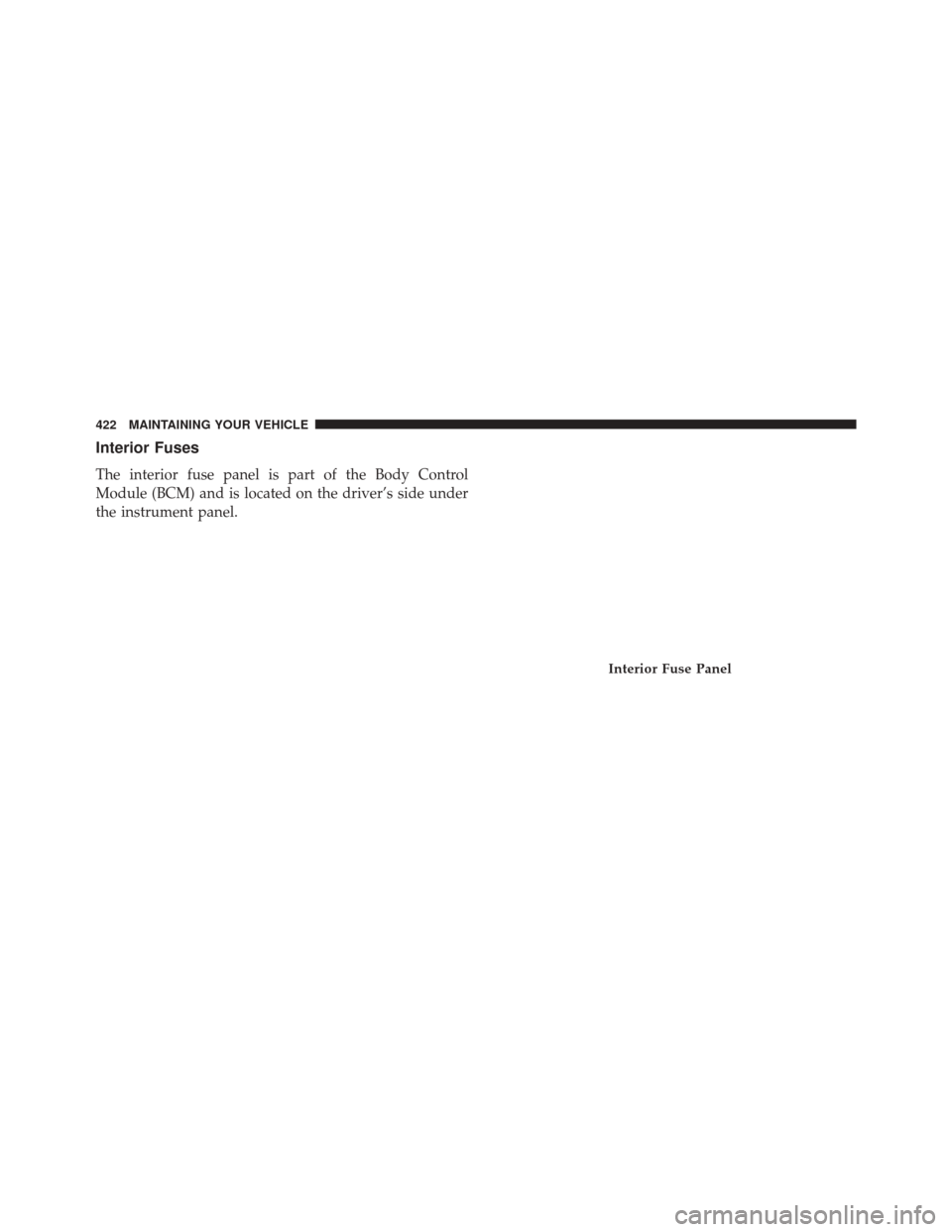

FIAT 500L 2016 2.G Owners Manual Interior Fuses
The interior fuse panel is part of the Body Control
Module (BCM) and is located on the driver’s side under
the instrument panel.
Interior Fuse Panel
422 MAINTAINING YOUR VEHICLE

Page 428 of 476

FIAT 500L 2016 2.G Owners Manual Rear Interior Fuses
The rear interior fuse panel is located on the driver’s side
in the rear compartment.
CavityVehicle Fuse
Number Mini Fuse
Description
1 F6115 Amp Blue Lumbar Regulation Seats
2 F

Page 465 of 476

FIAT 500L 2016 2.G Owners Manual FiltersAir Cleaner .......................... .387
Air Conditioning ...................... .390
Engine Fuel .......................... .435
Engine Oil ........................... .387
Engine Oil Dispo
