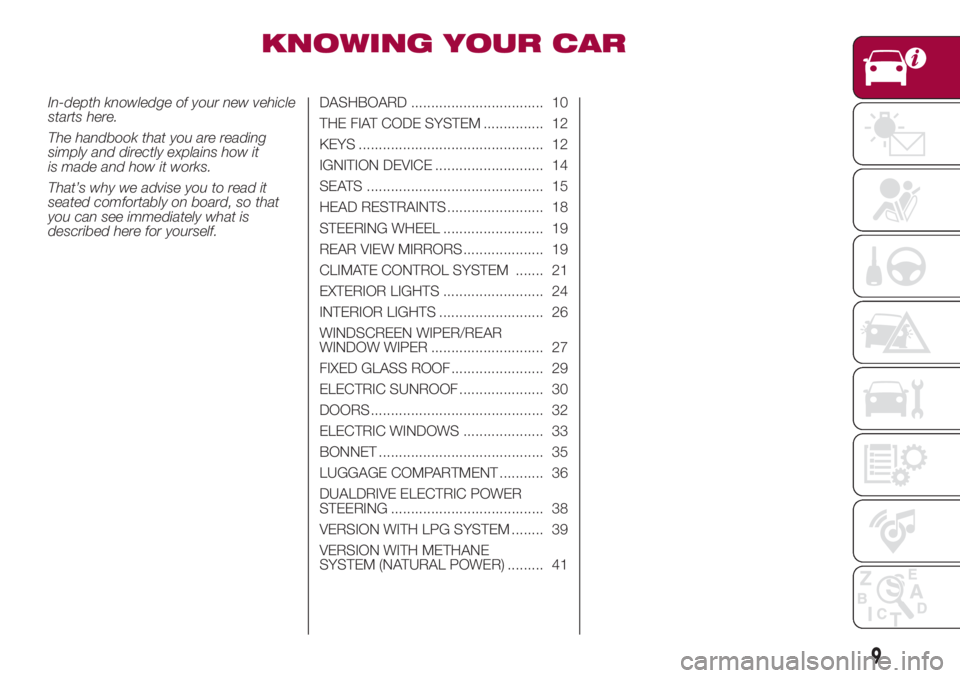

KNOWING YOUR CAR
In-depth knowledge of your new vehicle
starts here.
The handbook that you are reading
simply and directly explains how it
is made and how it works.
That’s why we advise you to read it
seated comfortably on board, so that
you can see immediately what is
described here for yourself.DASHBOARD ................................. 10
THE FIAT CODE SYSTEM ............... 12
KEYS .............................................. 12
IGNITION DEVICE ........................... 14
SEATS ............................................ 15
HEAD RESTRAINTS ........................ 18
STEERING WHEEL ......................... 19
REAR VIEW MIRRORS .................... 19
CLIMATE CONTROL SYSTEM ....... 21
EXTERIOR LIGHTS ......................... 24
INTERIOR LIGHTS .......................... 26
WINDSCREEN WIPER/REAR
WINDOW WIPER ............................ 27
FIXED GLASS ROOF ....................... 29
ELECTRIC SUNROOF ..................... 30
DOORS ........................................... 32
ELECTRIC WINDOWS .................... 33
BONNET ......................................... 35
LUGGAGE COMPARTMENT ........... 36
DUALDRIVE ELECTRIC POWER
STEERING ...................................... 38
VERSION WITH LPG SYSTEM ........ 39
VERSION WITH METHANE
SYSTEM (NATURAL POWER) ......... 41
9
Page 12 of 268

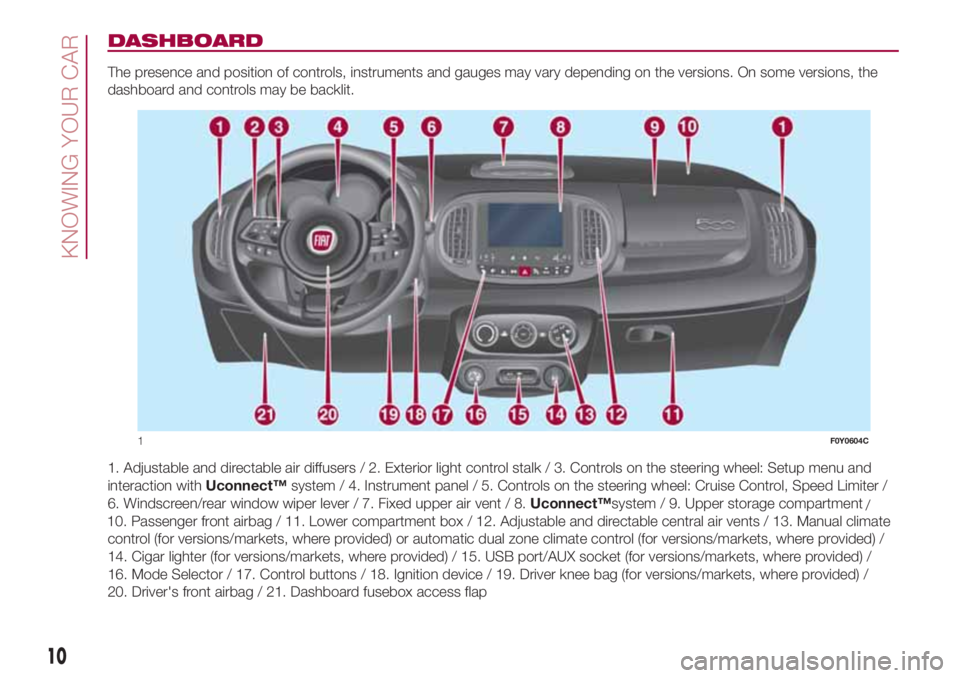

DASHBOARD
The presence and position of controls, instruments and gauges may vary depending on the versions. On some versions, the
dashboard and controls may be backlit.
1. Adjustable and directable air diffusers / 2. Exterior light control stalk / 3. Controls on the steering wheel: Setup menu and
interaction withUconnect™system / 4. Instrument panel / 5. Controls on the steering wheel: Cruise Control, Speed Limiter /
6. Windscreen/rear window wiper lever / 7. Fixed upper air vent / 8.Uconnect™system / 9. Upper storage compartment
/
10. Passenger front airbag / 11. Lower compartment box / 12. Adjustable and directable central air vents / 13. Manual climate
control (for versions/markets, where provided) or automatic dual zone climate control (for versions/markets, where provided) /
14. Cigar lighter (for versions/markets, where provided) / 15. USB port/AUX socket (for versions/markets, where provided) /
16. Mode Selector / 17. Control buttons / 18. Ignition device / 19. Driver knee bag (for versions/markets, where provided) /
20. Driver's front airbag / 21. Dashboard fusebox access flap
1F0Y0604C
10
KNOWING YOUR CAR
Page 13 of 268

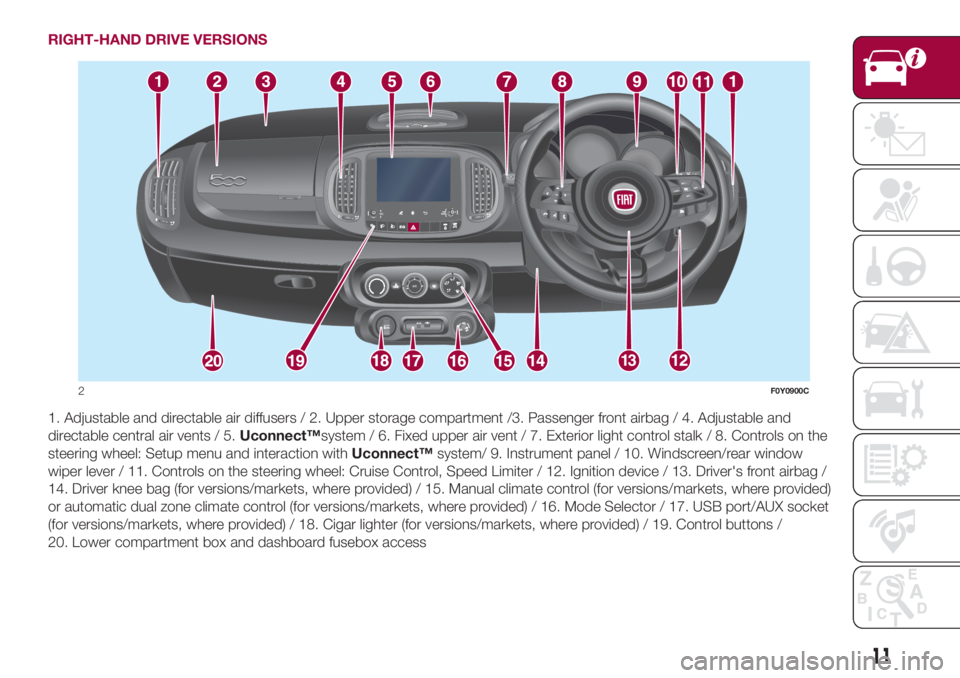

RIGHT-HAND DRIVE VERSIONS
1. Adjustable and directable air diffusers / 2. Upper storage compartment /3. Passenger front airbag / 4. Adjustable and
directable central air vents / 5.Uconnect™system / 6. Fixed upper air vent / 7. Exterior light control stalk / 8. Controls on the
steering wheel: Setup menu and interaction withUconnect™system/ 9. Instrument panel / 10. Windscreen/rear window
wiper lever / 11. Controls on the steering wheel: Cruise Control, Speed Limiter / 12. Ignition device / 13. Driver's front airbag /
14. Driver knee bag (for versions/markets, where provided) / 15. Manual climate control (for versions/markets, where provided)
or automatic dual zone climate control (for versions/markets, where provided) / 16. Mode Selector / 17. USB port/AUX socket
(for versions/markets, where provided) / 18. Cigar lighter (for versions/markets, where provided) / 19. Control buttons /
20. Lower compartment box and dashboard fusebox access
13
2F0Y0900C
11
Page 14 of 268

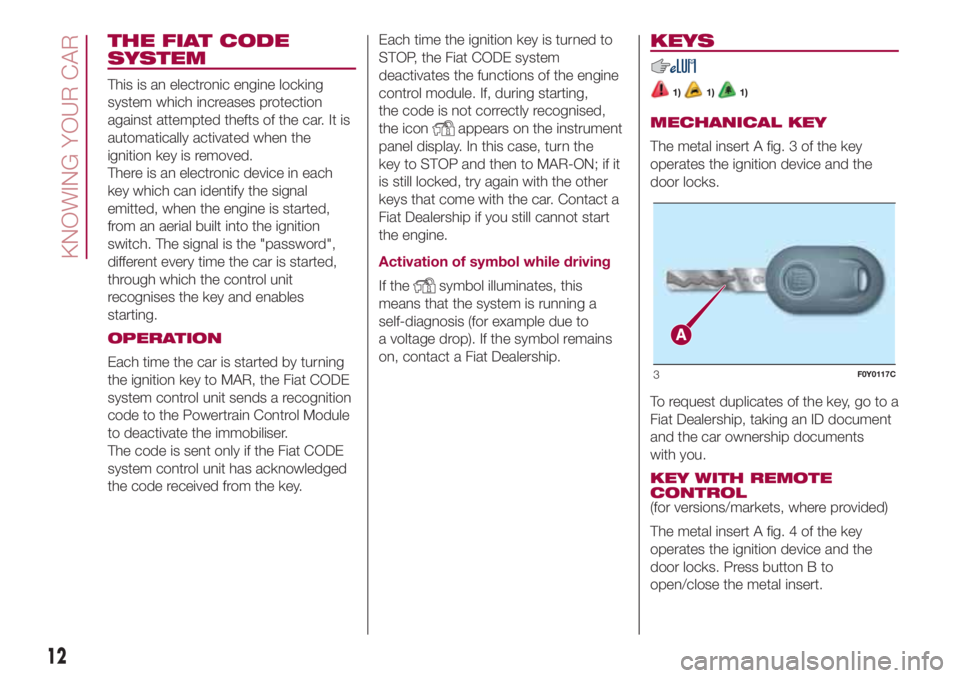

THE FIAT CODE
SYSTEM
This is an electronic engine locking
system which increases protection
against attempted thefts of the car. It is
automatically activated when the
ignition key is removed.
There is an electronic device in each
key which can identify the signal
emitted, when the engine is started,
from an aerial built into the ignition
switch. The signal is the "password",
different every time the car is started,
through which the control unit
recognises the key and enables
starting.
OPERATION
Each time the car is started by turning
the ignition key to MAR, the Fiat CODE
system control unit sends a recognition
code to the Powertrain Control Module
to deactivate the immobiliser.
The code is sent only if the Fiat CODE
system control unit has acknowledged
the code received from the key.Each time the ignition key is turned to
STOP, the Fiat CODE system
deactivates the functions of the engine
control module. If, during starting,
the code is not correctly recognised,
the icon
appears on the instrument
panel display. In this case, turn the
key to STOP and then to MAR-ON; if it
is still locked, try again with the other
keys that come with the car. Contact a
Fiat Dealership if you still cannot start
the engine.
Activation of symbol while driving
If the
symbol illuminates, this
means that the system is running a
self-diagnosis (for example due to
a voltage drop). If the symbol remains
on, contact a Fiat Dealership.
KEYS
1)1)1)
MECHANICAL KEY
The metal insert A fig. 3 of the key
operates the ignition device and the
door locks.
To request duplicates of the key, go to a
Fiat Dealership, taking an ID document
and the car ownership documents
with you.
KEY WITH REMOTE
CONTROL
(for versions/markets, where provided)
The metal insert A fig. 4 of the key
operates the ignition device and the
door locks. Press button B to
open/close the metal insert.
3F0Y0117C
12
KNOWING YOUR CAR
Page 15 of 268

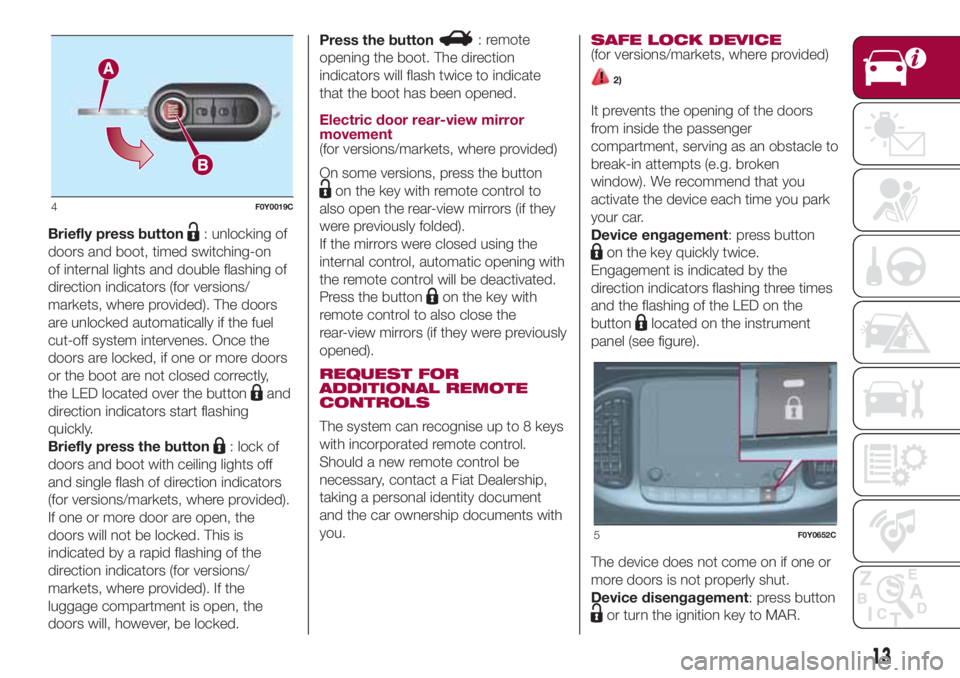

Briefly press button: unlocking of
doors and boot, timed switching-on
of internal lights and double flashing of
direction indicators (for versions/
markets, where provided). The doors
are unlocked automatically if the fuel
cut-off system intervenes. Once the
doors are locked, if one or more doors
or the boot are not closed correctly,
the LED located over the button
and
direction indicators start flashing
quickly.
Briefly press the button
: lock of
doors and boot with ceiling lights off
and single flash of direction indicators
(for versions/markets, where provided).
If one or more door are open, the
doors will not be locked. This is
indicated by a rapid flashing of the
direction indicators (for versions/
markets, where provided). If the
luggage compartment is open, the
doors will, however, be locked.Press the button
: remote
opening the boot. The direction
indicators will flash twice to indicate
that the boot has been opened.
Electric door rear-view mirror
movement
(for versions/markets, where provided)
On some versions, press the button
on the key with remote control to
also open the rear-view mirrors (if they
were previously folded).
If the mirrors were closed using the
internal control, automatic opening with
the remote control will be deactivated.
Press the button
on the key with
remote control to also close the
rear-view mirrors (if they were previously
opened).
REQUEST FOR
ADDITIONAL REMOTE
CONTROLS
The system can recognise up to 8 keys
with incorporated remote control.
Should a new remote control be
necessary, contact a Fiat Dealership,
taking a personal identity document
and the car ownership documents with
you.SAFE LOCK DEVICE
(for versions/markets, where provided)
2)
It prevents the opening of the doors
from inside the passenger
compartment, serving as an obstacle to
break-in attempts (e.g. broken
window). We recommend that you
activate the device each time you park
your car.
Device engagement: press button
on the key quickly twice.
Engagement is indicated by the
direction indicators flashing three times
and the flashing of the LED on the
button
located on the instrument
panel (see figure).
The device does not come on if one or
more doors is not properly shut.
Device disengagement: press button
or turn the ignition key to MAR.
4F0Y0019C
5F0Y0652C
13
Page 16 of 268
WARNING
1)Button B fig. 4should only be pressed
when the key is away from the body, in
particular from the eyes and from objects
that can be spoilt (e.g. clothes). Do not
leave the key unattended to avoid the
button being accidentally pressed while it
is being handled, e.g. by a child.
2)Once the safe lock system is engaged, it
is impossible to open the doors from
inside the car. Therefore, before getting out
of the car check that there is no-one left
on board.
WARNING
1)The electronic components inside the
key may be damaged if the key is
subjected to strong shocks. In order to
ensure complete efficiency of the
electronic devices inside the key, it should
never be exposed to direct sunlight.
WARNING
1)Used batteries should be disposed of,
as specified by law, in the special
containers, otherwise take them to a Fiat
Dealership, which will deal with their
disposal.
IGNITION DEVICE
3) 4) 5) 6)
The key can be turned to three different
positions fig. 6:
STOP: engine off, key can be
removed, steering column locked.
Some electrical devices (e.g. central
door locking system, etc.) can operate;
MAR: driving position. All electrical
devices are enabled;
AVV: engine starting.
The ignition device is fitted with a safety
system that requires the ignition key
to be turned back to STOP if the engine
does not start, before the starting
operation can be repeated.STEERING LOCK
Engagement: when at STOP, remove
the key and turn the steering wheel until
it locks.
Disengagement:move the steering
wheel slightly as you turn the ignition
key to MAR.
WARNING
3)If the ignition device has been tampered
with (e.g. an attempted theft), have it
checked by a Fiat Dealership before driving
again.
4)Always remove the key when you leave
your car to prevent someone from
accidentally operating the controls.
Remember to engage the handbrake.
Engage 1
stgear if the car is parked uphill or
reverse if the car is parked downhill. Never
leave children unattended in the vehicle.
5)It is absolutely forbidden to carry out any
after-market operation involving steering
system or steering column modifications
(e.g.: installation of anti-theft device) that
could badly affect performance and safety,
invalidate the warranty and also result in
non-compliance of the car with type-
approval requirements.
6)Never remove the key while the car is
moving. The steering wheel would
automatically lock as soon as you try to
turn it. This holds true for cars being towed
as well.
6F0Y0654C
14
KNOWING YOUR CAR
Page 17 of 268

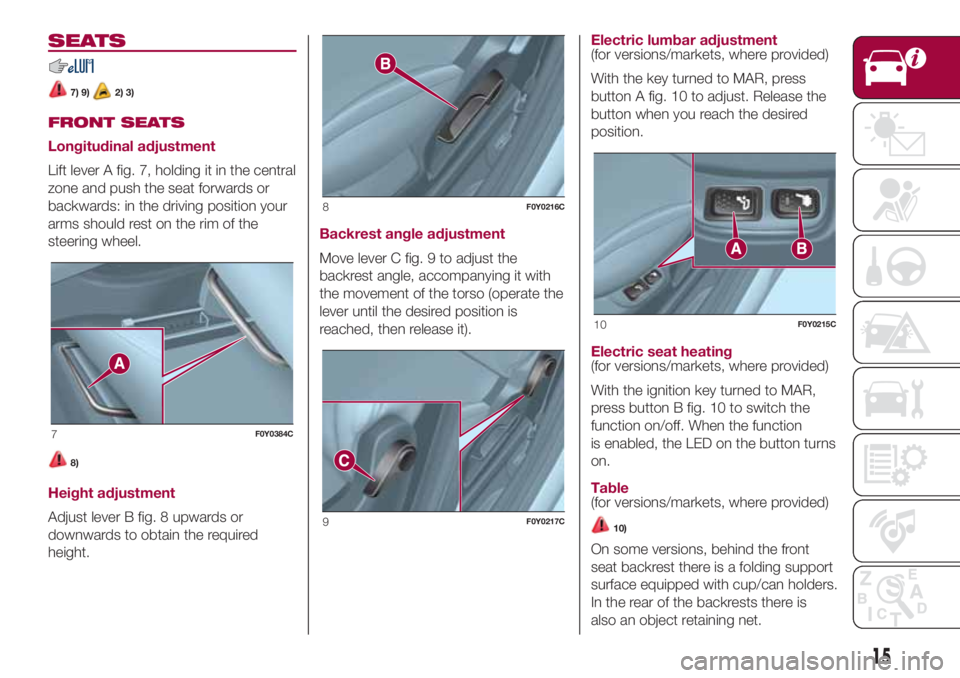

SEATS
7) 9)2) 3)
FRONT SEATS
Longitudinal adjustment
Lift lever A fig. 7, holding it in the central
zone and push the seat forwards or
backwards: in the driving position your
arms should rest on the rim of the
steering wheel.
8)
Height adjustment
Adjust lever B fig. 8 upwards or
downwards to obtain the required
height.Backrest angle adjustment
Move lever C fig. 9 to adjust the
backrest angle, accompanying it with
the movement of the torso (operate the
lever until the desired position is
reached, then release it).Electric lumbar adjustment
(for versions/markets, where provided)
With the key turned to MAR, press
button A fig. 10 to adjust. Release the
button when you reach the desired
position.
Electric seat heating
(for versions/markets, where provided)
With the ignition key turned to MAR,
press button B fig. 10 to switch the
function on/off. When the function
is enabled, the LED on the button turns
on.
Table
(for versions/markets, where provided)
10)
On some versions, behind the front
seat backrest there is a folding support
surface equipped with cup/can holders.
In the rear of the backrests there is
also an object retaining net.
7F0Y0384C
8F0Y0216C
9F0Y0217C
10F0Y0215C
15
Page 18 of 268
IMPORTANT Do not place objects
heavier than 3 kg on the supporting
surface: for safety reasons the
supporting surface is detached from its
housing when subject to higher loads.

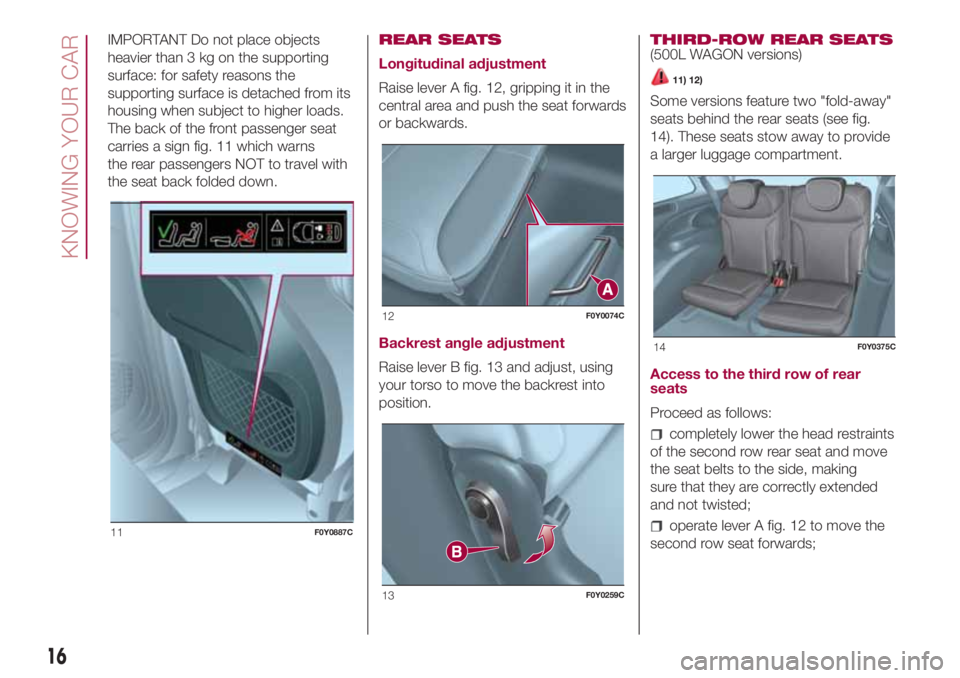

The back of the front passenger seat
carries a sign fig. 11 which warns
the rear passengers NOT to travel with
the seat back folded down.REAR SEATS
Longitudinal adjustment
Raise lever A fig. 12, gripping it in the
central area and push the seat forwards
or backwards.
Backrest angle adjustment
Raise lever B fig. 13 and adjust, using
your torso to move the backrest into
position.THIRD-ROW REAR SEATS
(500L WAGON versions)
11) 12)
Some versions feature two "fold-away"
seats behind the rear seats (see fig.
14). These seats stow away to provide
a larger luggage compartment.
Access to the third row of rear
seats
Proceed as follows:
completely lower the head restraints
of the second row rear seat and move
the seat belts to the side, making
sure that they are correctly extended
and not twisted;
operate lever A fig. 12 to move the
second row seat forwards;11F0Y0887C
12F0Y0074C
13F0Y0259C
14F0Y0375C
16
KNOWING YOUR CAR
Page 19 of 268

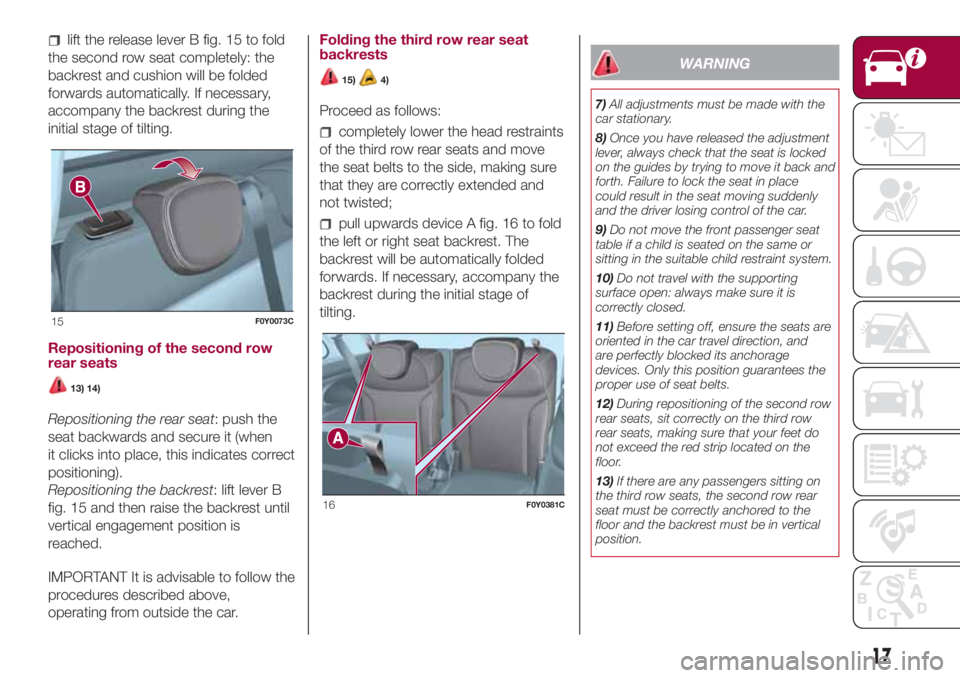

lift the release lever B fig. 15 to fold
the second row seat completely: the
backrest and cushion will be folded
forwards automatically. If necessary,
accompany the backrest during the
initial stage of tilting.
Repositioning of the second row
rear seats
13) 14)
Repositioning the rear seat: push the
seat backwards and secure it (when
it clicks into place, this indicates correct
positioning).
Repositioning the backrest: lift lever B
fig. 15 and then raise the backrest until
vertical engagement position is
reached.
IMPORTANT It is advisable to follow the
procedures described above,
operating from outside the car.Folding the third row rear seat
backrests
15)4)
Proceed as follows:
completely lower the head restraints
of the third row rear seats and move
the seat belts to the side, making sure
that they are correctly extended and
not twisted;
pull upwards device A fig. 16 to fold
the left or right seat backrest. The
backrest will be automatically folded
forwards. If necessary, accompany the
backrest during the initial stage of
tilting.
WARNING
7)All adjustments must be made with the
car stationary.
8)Once you have released the adjustment
lever, always check that the seat is locked
on the guides by trying to move it back and
forth. Failure to lock the seat in place
could result in the seat moving suddenly
and the driver losing control of the car.
9)Do not move the front passenger seat
table if a child is seated on the same or
sitting in the suitable child restraint system.
10)Do not travel with the supporting
surface open: always make sure it is
correctly closed.
11)Before setting off, ensure the seats are
oriented in the car travel direction, and
are perfectly blocked its anchorage
devices. Only this position guarantees the
proper use of seat belts.
12)During repositioning of the second row
rear seats, sit correctly on the third row
rear seats, making sure that your feet do
not exceed the red strip located on the
floor.
13)If there are any passengers sitting on
the third row seats, the second row rear
seat must be correctly anchored to the
floor and the backrest must be in vertical
position.
15F0Y0073C
16F0Y0381C
17
Page 20 of 268
14)Make sure the backrest is properly
secured at both sides to prevent it moving
forward in the event of sharp braking,
with possible impact with the occupants. A
metallic click is heard when locking is
correct.
15)Do not move the seat when a child is
sitting in the car.
WARNING
2)The fabric upholstery of the seats has
been designed to withstand long-term
wear deriving from normal use of the car.
Some precautions are however required.
Avoid prolonged and/or excessive rubbing
against clothing accessories such as
metal buckles and Velcro strips which, by
applying a high pressure on the fabric in
a small area, could cause it to break,
thereby damaging the upholstery.
3)Before tilting the front passenger seat
table fully, remove any objects laid on it.
4)Before tilting the seat backrest fully,
remove any objects laid on it.

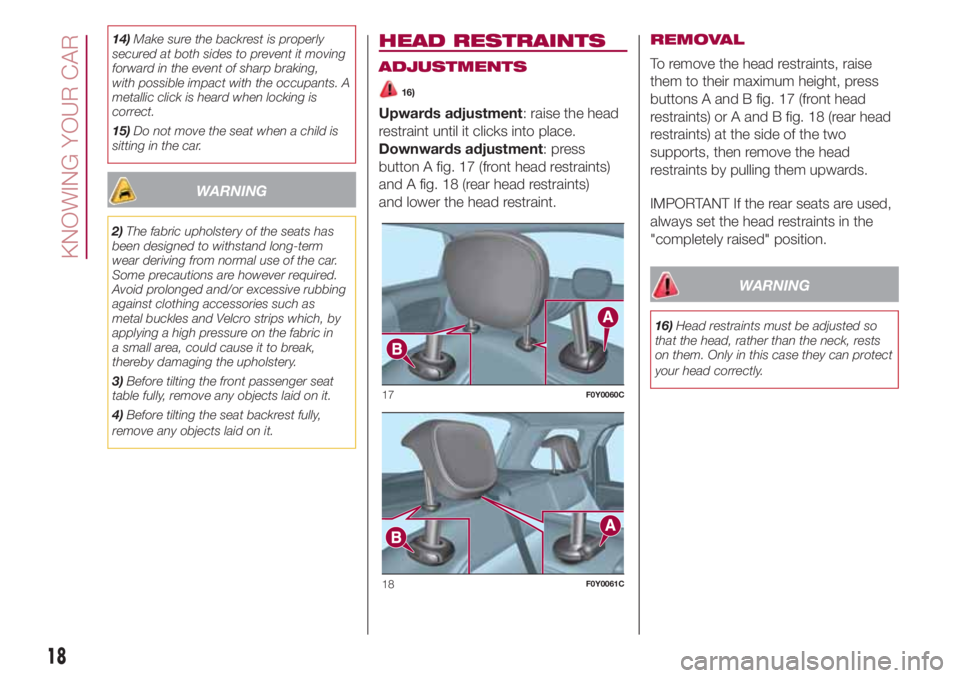

HEAD RESTRAINTS
ADJUSTMENTS
16)
Upwards adjustment: raise the head
restraint until it clicks into place.
Downwards adjustment: press
button A fig. 17 (front head restraints)
and A fig. 18 (rear head restraints)
and lower the head restraint.REMOVAL
To remove the head restraints, raise
them to their maximum height, press
buttons A and B fig. 17 (front head
restraints) or A and B fig. 18 (rear head
restraints) at the side of the two
supports, then remove the head
restraints by pulling them upwards.
IMPORTANT If the rear seats are used,
always set the head restraints in the
"completely raised" position.
WARNING
16)Head restraints must be adjusted so
that the head, rather than the neck, rests
on them. Only in this case they can protect
your head correctly.
17F0Y0060C
18F0Y0061C
18
KNOWING YOUR CAR
