technical data FIAT 500L 2018 Owner handbook (in English)

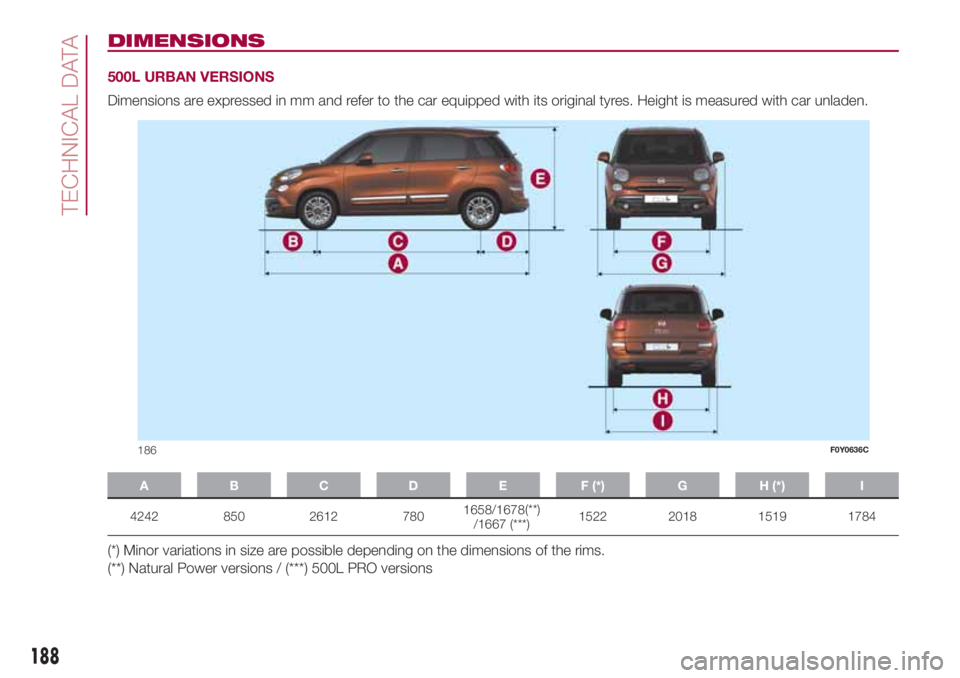

DIMENSIONS
500L URBAN VERSIONS
Dimensions are expressed in mm and refer to the car equipped with its original tyres. Height is measured with car unladen.
A B C D E F (*) G H (*) I
4242 850 2612 7801658/1678(**)
/1667 (***)1522 2018 1519 1784
(*) Minor variations in size are possible depending on the dimensions of the rims.
(**) Natural Power versions / (***) 500L PRO versions
186F0Y0636C
188
TECHNICAL DATA

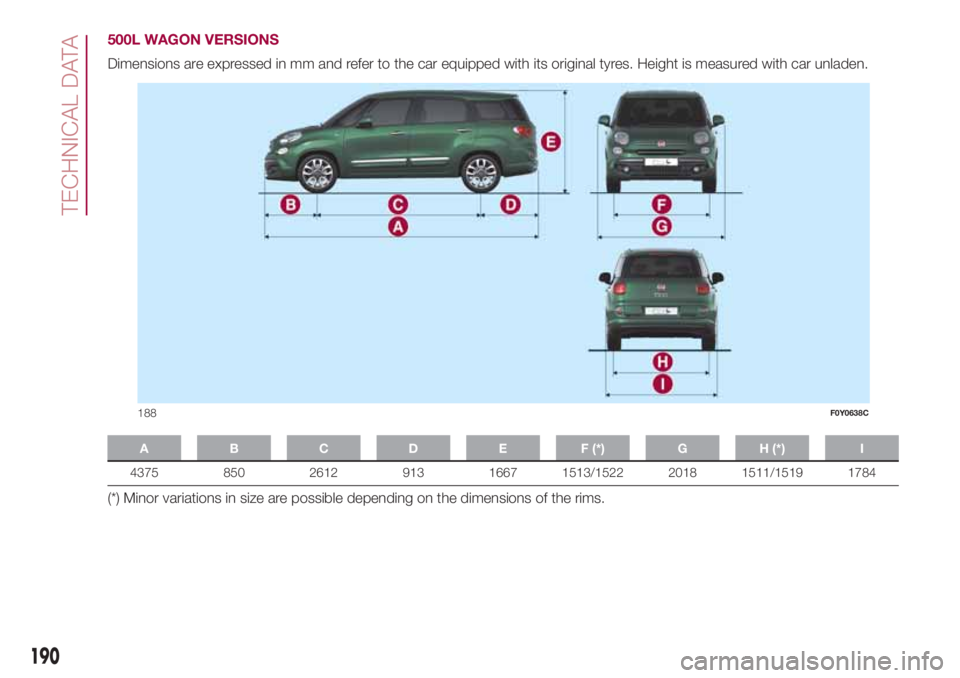

500L WAGON VERSIONS
Dimensions are expressed in mm and refer to the car equipped with its original tyres. Height is measured with car unladen.
A B C D E F (*) G H (*) I
4375 850 2612 913 1667 1513/1522 2018 1511/1519 1784
(*) Minor variations in size are possible depending on the dimensions of the rims.
188F0Y0638C
190
TECHNICAL DATA

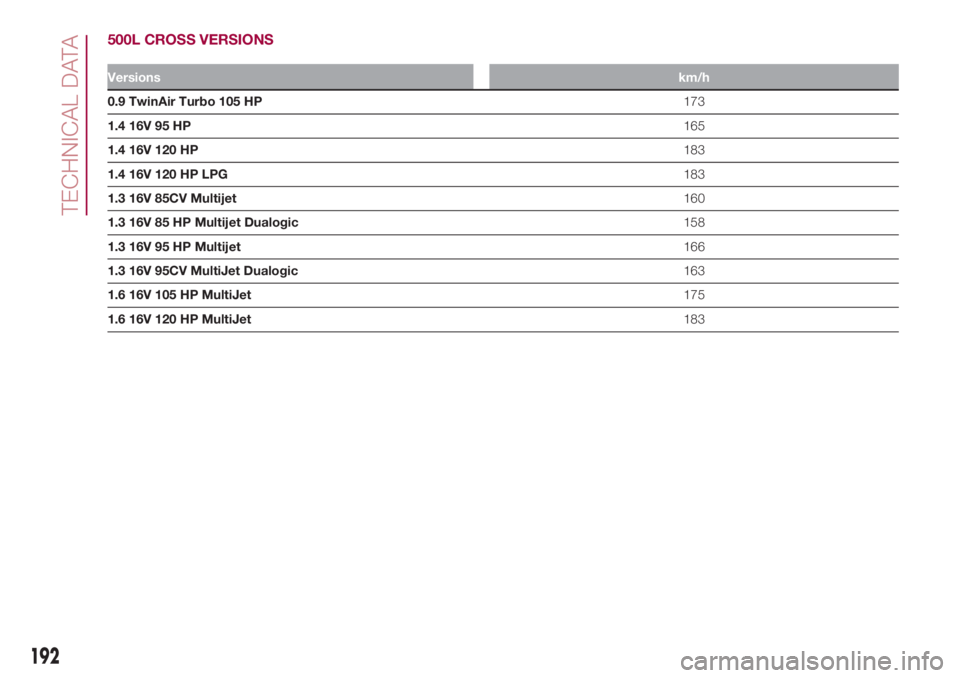

500L CROSS VERSIONS
Versionskm/h
0.9 TwinAir Turbo 105 HP173
1.4 16V 95 HP165
1.4 16V 120 HP183
1.4 16V 120 HP LPG183
1.3 16V 85CV Multijet160
1.3 16V 85 HP Multijet Dualogic158
1.3 16V 95 HP Multijet166
1.3 16V 95CV MultiJet Dualogic163
1.6 16V 105 HP MultiJet175
1.6 16V 120 HP MultiJet183
192
TECHNICAL DATA

WEIGHTS
NOTE Towing trailers is not permitted on versions for Cyprus.
500L / 500L CROSS VERSIONS
Weights (kg) 0.9 TwinAir Turbo Natural Power 0.9 TwinAir Turbo 105 HP
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1390
1260 / 1270(*)/ 1300(*) (**)
Payload including the driver(***)505
560 / 545(*)/ 520(*) (**)
Maximum permitted loads(****)
1050 1050 - front axle:
– rear axle: 1000 1000
- total:
1895 1820 / 1815
(*)/ 1820(*) (**)
Towable loads
– 1000
– braked trailer:
– non-braked trailer: – 400
Maximum load on roof: 60 60
Maximum load on ball joint (braked trailer): – 60
(*) Cross versions
(**) Version for specific markets
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum
permissible loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
194
TECHNICAL DATA

Weights (kg) 1.4 16V 120 HP LPG 1.3 16V 85CV Multijet1.3 16V 85 HP Multijet
Dualogic
Unladen weight (with all fluids, fuel tank 90%
full and without optional equipment):1310 / 1320(*)1295 / 1305(*)/ 1320(**)1300 / 1310(*)
Payload including the driver(****)560
550 / 545(*)/ 575(**)560 / 545(*)
Maximum permitted loads(*****)
1050 1050 1050 - front axle:
– rear axle: 1000 1000 1000
- total:
1870 / 1880
(*)1845 / 1850(*)/ 1895(**)1850 / 1855(*)
Towable loads
1000 1000 1000
– braked trailer:
– non-braked trailer: 400 400 400
Maximum load on roof: 60 60 60
Maximum load on ball joint (braked trailer): 60 60 60
(*) Cross versions
(**) PRO versions
(****) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation tothe maximum
permissible loads.
(*****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
196
TECHNICAL DATA

Weights (kg) 1.6 16V 105 HP MultiJet 1.6 16V 120 HP Multijet Euro 5
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1365 / 1375(*)/ 1365(**)1370 / 1380(*)
Payload including the driver(***)560 / 550(*)/ 575(**)550
Maximum permitted loads
(****)
1050 1050 - front axle:
– rear axle: 1000 1000
- total:
1925 / 1940
(**)1920 / 1930(*)
Towable loads
1100 1100
– braked trailer:
– non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on ball joint (braked trailer): 60 60
(*) Cross versions
(**) PRO versions
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum
permissible loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
198
TECHNICAL DATA

500L WAGON VERSIONS
Weights (kg)0.9 TwinAir Turbo
Natural Power0.9 TwinAir Turbo 105 HP
5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1420 1290 1320
Payload including the driver
(*)500 515 645
Maximum permitted loads
(**)
- front axle: 1050 1050 1050
– rear axle: 1000 1000 1080
- total: 1920 1805 1965
Towable loads
– braked trailer: – 1000 1000
– non-braked trailer: – 400 400
Maximum load on roof: 60 60 60
Maximum load on ball joint (braked trailer): – 60 60
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to themaximum
permissible loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
200
TECHNICAL DATA

Versions1.3 16V 85CV Multijet 1.3 16V 85 HP Multijet Dualogic
5-seater versions 7-seater versions 5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank filled to 90%
and without optional equipment)1315 1305 1320 1310
Payload including the driver
(*)550 715 550 715
Maximum permitted loads
(**)
- front axle: 1050 1050 1050 1050
– rear axle: 1000 1080 1000 1080
- total: 1865 2020 1870 2025
Towable loads:
– braked trailer: 1000 1000 1000 1000
– non-braked trailer: 400 400 400 400
Maximum load on roof: 60 60 60 60
Maximum load on ball joint (braked trailer): 60 60 60 60
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to themaximum
permissible loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
202
TECHNICAL DATA

Versions1.6 16V 105 HP MultiJet 1.6 16V 120 HP MultiJet
5-seater versions 7-seater versions 5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank filled to 90%
and without optional equipment)1395 1425
1400(*)/ 1410(**)1430
Payload including the driver
(***)520 650
540(*)/ 530(**)645
Maximum permitted loads
(****)
- front axle: 1050 1050 1050 1050
– rear axle: 1000 1080 1000 1080
- total: 1915 2075 1940 2075
Towable loads:
– braked trailer: 1100 1100 1100 1100
– non-braked trailer: 400 400 400 400
Maximum load on roof: 60 60 60 60
Maximum load on ball joint (braked trailer): 60 60 60 60
(*) Euro 5 versions
(**) Euro 6 versions
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum
permissible loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
204
TECHNICAL DATA

1.3 16V MultiJet 1.6 16V MultijetRecommended fuels and
original lubricants
Fuel tank (litres) 50 50
Diesel for motor vehicles (EN590
Specification)
including a reserve of (litres) 6 ÷ 8 6 ÷ 8
Engine cooling system (litres) 5.9 6.35Mixture of distilled water and
PARAFLU
UPliquid at 50%(*)
Engine sump (litres)
3.0 / 3.7(**)4.3
SELENIA WR P.E.
Engine sump and filter (litres)
3.2 / 3.9
(**)4.75
Gearbox casing/differential (litres) 2.0 2.0TUTELA TRANSMISSION
TECHNYX (1.3 16V Multijet 85
HP Euro 5 versions)
TUTELA TRANSMISSION
GEARFORCE (1.3 16V Multijet
95 HP Euro 6 and 1.6 16V
Multijet versions)
Dualogic transmission hydraulic
activation system (litres)0.7 – TUTELA CS SPEED
Hydraulic brake circuit (kg) 0.5 0.5 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.9 2.9Mixture of water and PETRONAS
DURANCE SC35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUPand 40% demineralised water.
(**) 1.3 16V Multijet 95 HP Euro 6 versions
