GETTING TO KNOW YOUR CAR
DASHBOARDThe presence and position of the controls, instruments and indicators may vary according to the different
versions.1. Adjustable and directable air diffusers 2. Radio controls on the steering wheel (for versions/markets, where provided)
3. Exterior light control stalk 4. Instrument panel 5. Windscreen wiper/rear window wiper/trip computer control stalk
6. Adjustable and directable centre air vents 7. Fixed upper air vent 8. Passenger front airbag 9. Upper glove
compartment (for versions/markets, where provided the compartment may be conditioned) 10. Storage compartment
11. Lower glove compartment 12. Control buttons 13. Heating/ventilation system or manual climate control (for
versions/markets, where provided) or automatic dual zone climate control (for versions/markets, where provided)
14. USB port/AUX socket (for versions/markets, where provided) 15.
UConnect
vided) or radio system setup 16. Ignition switch 17. Driver front airbag 18. Cruise Control/Speed Limiter lever (for
versions/markets, where provided)
fig. 1
F0Y0042
3GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
™ (for versions/markets, where pro-

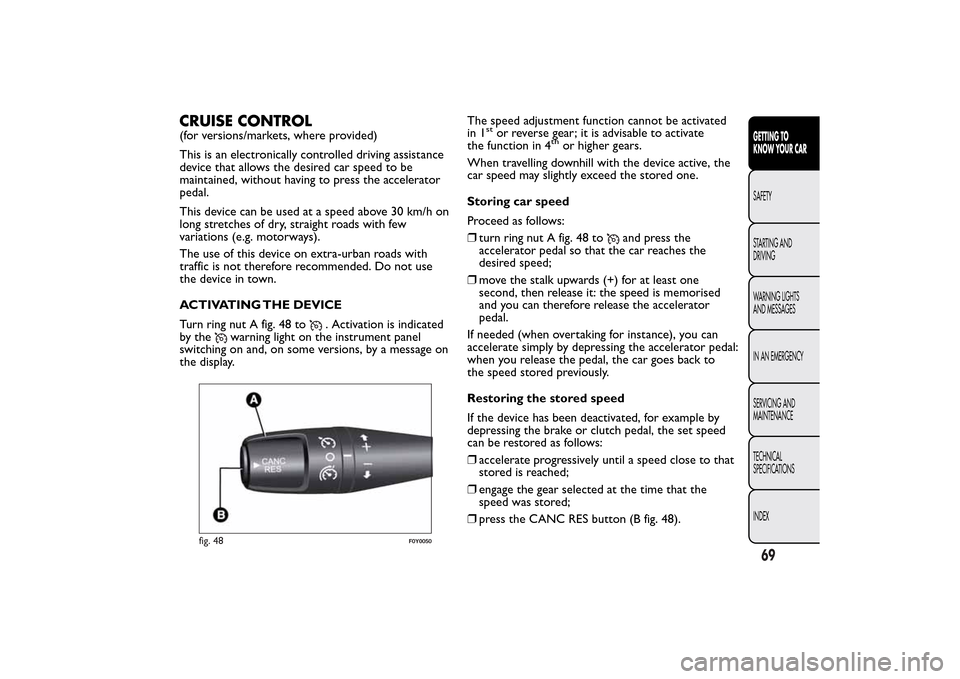

CRUISE CONTROL(for versions/markets, where provided)
This is an electronically controlled driving assistance
device that allows the desired car speed to be
maintained, without having to press the accelerator
pedal.
This device can be used at a speed above 30 km/h on
long stretches of dry, straight roads with few
variations (e.g. motorways).
The use of this device on extra-urban roads with
traffic is not therefore recommended. Do not use
the device in town.
ACTIVATING THE DEVICE
Turn ring nut A fig. 48 to
. Activation is indicated
by the
warning light on the instrument panel
switching on and, on some versions, by a message on
the display.The speed adjustment function cannot be activated
in 1
stor reverse gear; it is advisable to activate
the function in 4
th
or higher gears.
When travelling downhill with the device active, the
car speed may slightly exceed the stored one.
Storing car speed
Proceed as follows:
❒turn ring nut A fig. 48 to
and press the
accelerator pedal so that the car reaches the
desired speed;
❒move the stalk upwards (+) for at least one
second, then release it: the speed is memorised
and you can therefore release the accelerator
pedal.
If needed (when overtaking for instance), you can
accelerate simply by depressing the accelerator pedal:
when you release the pedal, the car goes back to
the speed stored previously.
Restoring the stored speed
If the device has been deactivated, for example by
depressing the brake or clutch pedal, the set speed
can be restored as follows:
❒accelerate progressively until a speed close to that
stored is reached;
❒engage the gear selected at the time that the
speed was stored;
❒press the CANC RES button (B fig. 48).
fig. 48
F0Y0050
69GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

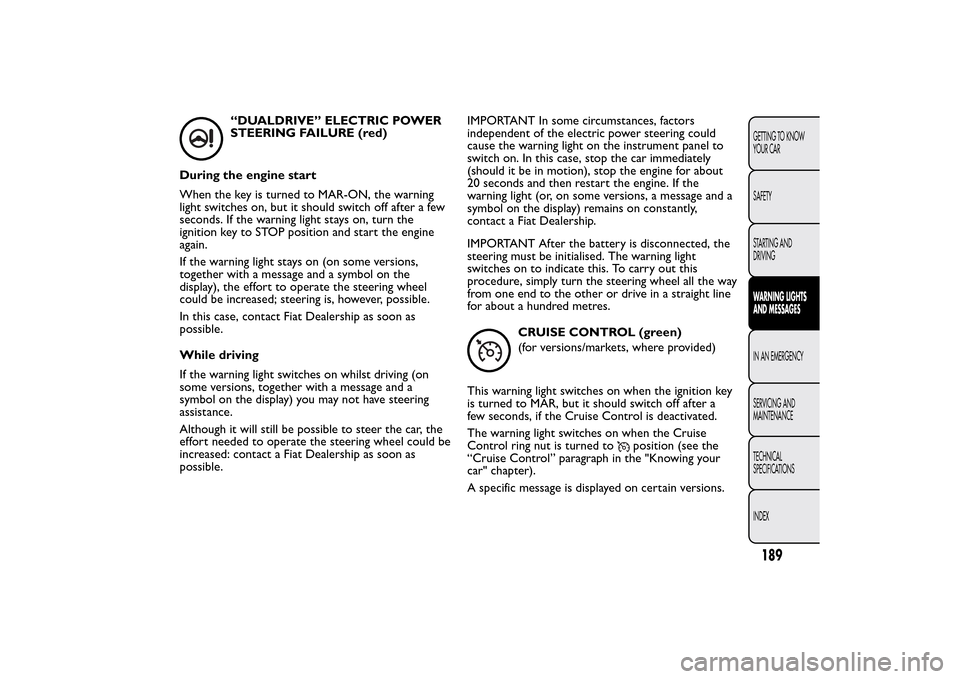

“DUALDRIVE” ELECTRIC POWER
STEERING FAILURE (red)
During the engine start
When the key is turned to MAR-ON, the warning
light switches on, but it should switch off after a few
seconds. If the warning light stays on, turn the
ignition key to STOP position and start the engine
again.
If the warning light stays on (on some versions,
together with a message and a symbol on the
display), the effort to operate the steering wheel
could be increased; steering is, however, possible.
In this case, contact Fiat Dealership as soon as
possible.
While driving
If the warning light switches on whilst driving (on
some versions, together with a message and a
symbol on the display) you may not have steering
assistance.
Although it will still be possible to steer the car, the
effort needed to operate the steering wheel could be
increased: contact a Fiat Dealership as soon as
possible.IMPORTANT In some circumstances, factors
independent of the electric power steering could
cause the warning light on the instrument panel to
switch on. In this case, stop the car immediately
(should it be in motion), stop the engine for about
20 seconds and then restart the engine. If the
warning light (or, on some versions, a message and a
symbol on the display) remains on constantly,
contact a Fiat Dealership.
IMPORTANT After the battery is disconnected, the
steering must be initialised. The warning light
switches on to indicate this. To carry out this
procedure, simply turn the steering wheel all the way
from one end to the other or drive in a straight line
for about a hundred metres.
CRUISE CONTROL (green)
(for versions/markets, where provided)
This warning light switches on when the ignition key
is turned to MAR, but it should switch off after a
few seconds, if the Cruise Control is deactivated.
The warning light switches on when the Cruise
Control ring nut is turned to
position (see the
“Cruise Control” paragraph in the "Knowing your
car" chapter).
A specific message is displayed on certain versions.
189GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

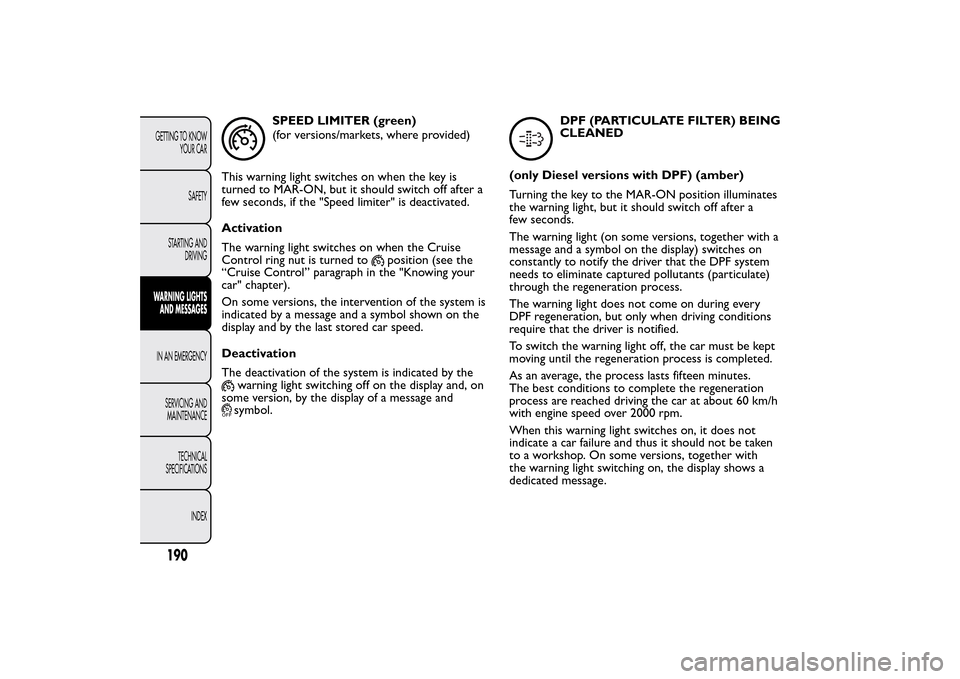

SPEED LIMITER (green)
(for versions/markets, where provided)
This warning light switches on when the key is
turned to MAR-ON, but it should switch off after a
few seconds, if the "Speed limiter" is deactivated.
Activation
The warning light switches on when the Cruise
Control ring nut is turned to
position (see the
“Cruise Control” paragraph in the "Knowing your
car" chapter).
On some versions, the intervention of the system is
indicated by a message and a symbol shown on the
display and by the last stored car speed.
Deactivation
The deactivation of the system is indicated by the
warning light switching off on the display and, on
some version, by the display of a message andsymbol.
DPF (PARTICULATE FILTER) BEING
CLEANED
(only Diesel versions with DPF) (amber)
Turning the key to the MAR-ON position illuminates
the warning light, but it should switch off after a
few seconds.
The warning light (on some versions, together with a
message and a symbol on the display) switches on
constantly to notify the driver that the DPF system
needs to eliminate captured pollutants (particulate)
through the regeneration process.
The warning light does not come on during every
DPF regeneration, but only when driving conditions
require that the driver is notified.
To switch the warning light off, the car must be kept
moving until the regeneration process is completed.
As an average, the process lasts fifteen minutes.
The best conditions to complete the regeneration
process are reached driving the car at about 60 km/h
with engine speed over 2000 rpm.
When this warning light switches on, it does not
indicate a car failure and thus it should not be taken
to a workshop. On some versions, together with
the warning light switching on, the display shows a
dedicated message.
190GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

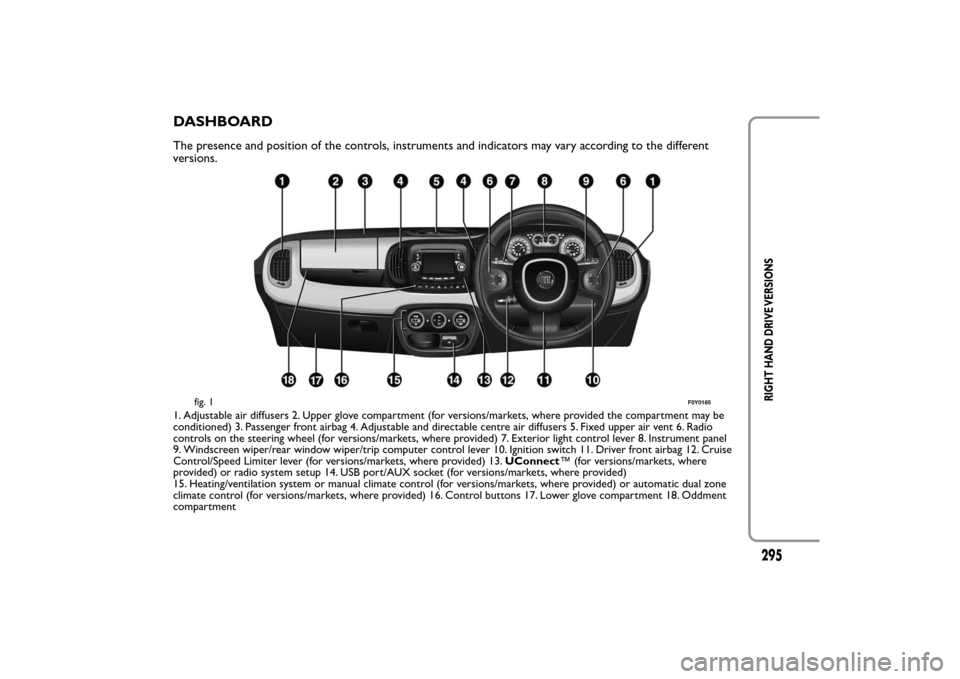

DASHBOARDThe presence and position of the controls, instruments and indicators may vary according to the different
versions.1. Adjustable air diffusers 2. Upper glove compartment (for versions/markets, where provided the compartment may be
conditioned) 3. Passenger front airbag 4. Adjustable and directable centre air diffusers 5. Fixed upper air vent 6. Radio
controls on the steering wheel (for versions/markets, where provided) 7. Exterior light control lever 8. Instrument panel
9. Windscreen wiper/rear window wiper/trip computer control lever 10. Ignition switch 11. Driver front airbag 12. Cruise
Control/Speed Limiter lever (for versions/markets, where provided) 13.UConnect™ (for versions/markets, where
provided) or radio system setup 14. USB port/AUX socket (for versions/markets, where provided)
15. Heating/ventilation system or manual climate control (for versions/markets, where provided) or automatic dual zone
climate control (for versions/markets, where provided) 16. Control buttons 17. Lower glove compartment 18. Oddment
compartment
fig. 1
F0Y0185
295
RIGHT HAND DRIVE VERSIONS

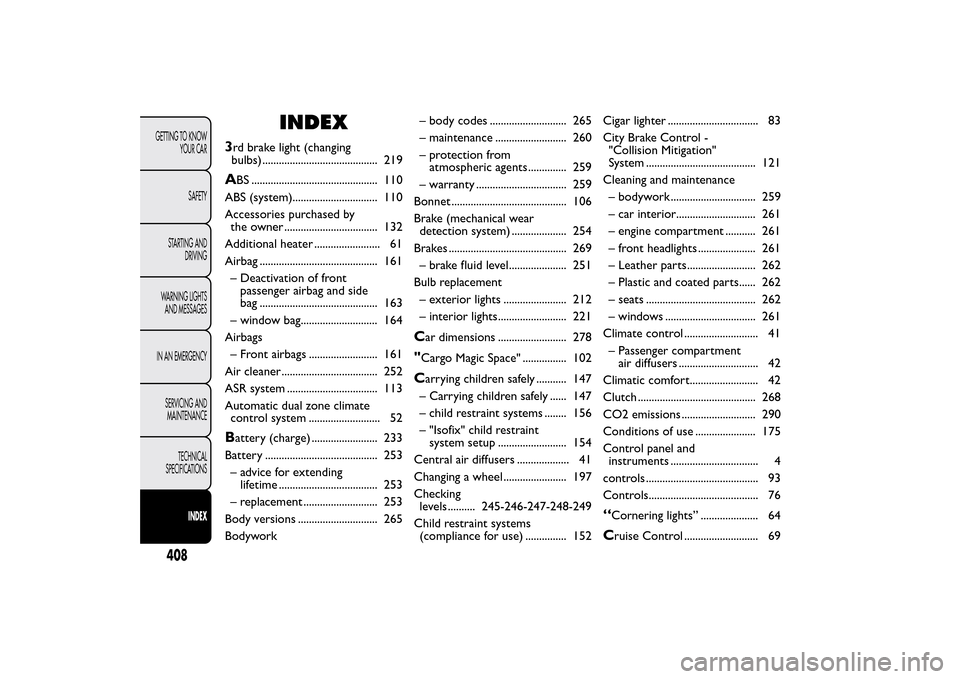

INDEX
3rd brake light (changing
bulbs) .......................................... 219A
BS .............................................. 110
ABS (system)............................... 110
Accessories purchased by
the owner .................................. 132
Additional heater ........................ 61
Airbag ........................................... 161
– Deactivation of front
passenger airbag and side
bag ........................................... 163
– window bag............................ 164
Airbags
– Front airbags ......................... 161
Air cleaner ................................... 252
ASR system ................................. 113
Automatic dual zone climate
control system .......................... 52
Battery (charge) ........................ 233
Battery ......................................... 253
– advice for extending
lifetime .................................... 253
– replacement ........................... 253
Body versions ............................. 265
Bodywork– body codes ............................ 265
– maintenance .......................... 260
– protection from
atmospheric agents.............. 259
– warranty ................................. 259
Bonnet .......................................... 106
Brake (mechanical wear
detection system) .................... 254
Brakes ........................................... 269
– brake fluid level..................... 251
Bulb replacement
– exterior lights ....................... 212
– interior lights......................... 221
Car dimensions ......................... 278"Cargo Magic Space" ................ 102Carrying children safely ........... 147
– Carrying children safely ...... 147
– child restraint systems ........ 156
– "Isofix" child restraint
system setup ......................... 154
Central air diffusers ................... 41
Changing a wheel ....................... 197
Checking
levels .......... 245-246-247-248-249
Child restraint systems
(compliance for use) ............... 152Cigar lighter ................................. 83
City Brake Control -
"Collision Mitigation"
System ........................................ 121
Cleaning and maintenance
– bodywork ............................... 259
– car interior............................. 261
– engine compartment ........... 261
– front headlights ..................... 261
– Leather parts......................... 262
– Plastic and coated parts...... 262
– seats ........................................ 262
– windows ................................. 261
Climate control ........................... 41
– Passenger compartment
air diffusers ............................. 42
Climatic comfort......................... 42
Clutch ........................................... 268
CO2 emissions ........................... 290
Conditions of use ...................... 175
Control panel and
instruments ................................ 4
controls ......................................... 93
Controls........................................ 76
“Cornering lights” ..................... 64Cruise Control ........................... 69
