FIAT 500X 2015 2.G Owners Manual

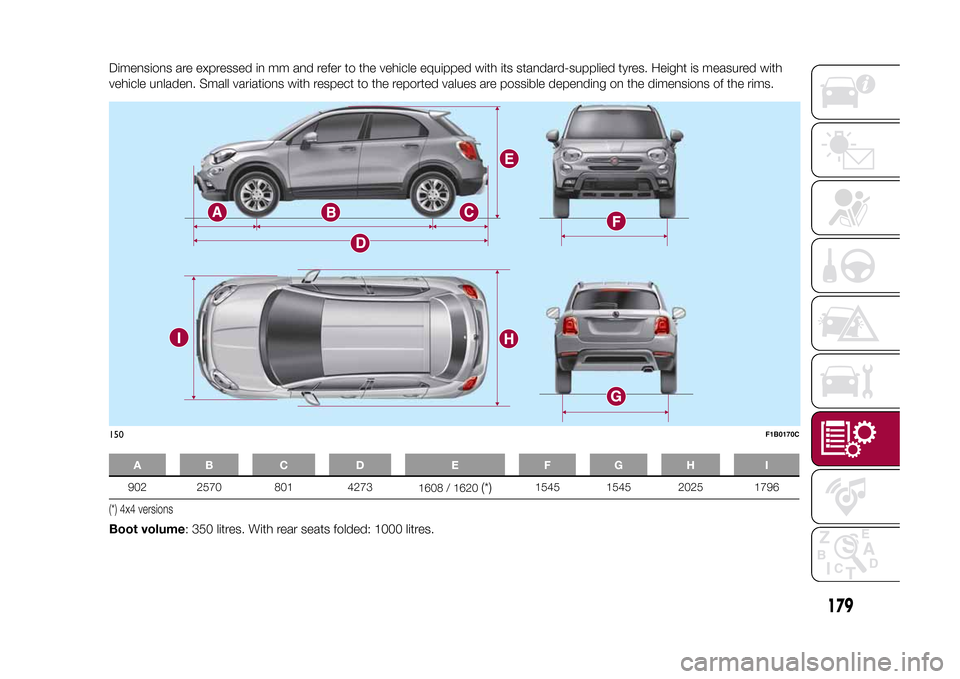

Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D E FGH I902 2570 801 4273
1608 / 1620
(*)
1545 1545 2025 1796
(*) 4x4 versionsBoot volume: 350 litres. With rear seats folded: 1000 litres.150
F1B0170C
179
15-12-2014 8:23 Pagina 179

WEIGHTS
Weights (kg) 1.4 Turbo MultiAir 1.6 E.torQ
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1320 1275
Payload including the driver
(*)
555 / 540
(**)
600
Maximum permitted loads
(***)
– front axle 1050 1050
– rear axle 900 900
– total: 1875 1875
Towable loads
– braked trailer 1200 800
Maximum load on tow hitch (trailer with
brakes)60 60
Maximum load on roof
(****)
50 50
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted
loads.
(****) With roof rack bars
180
TECHNICAL SPECIFICATIONS
15-12-2014 8:23 Pagina 180

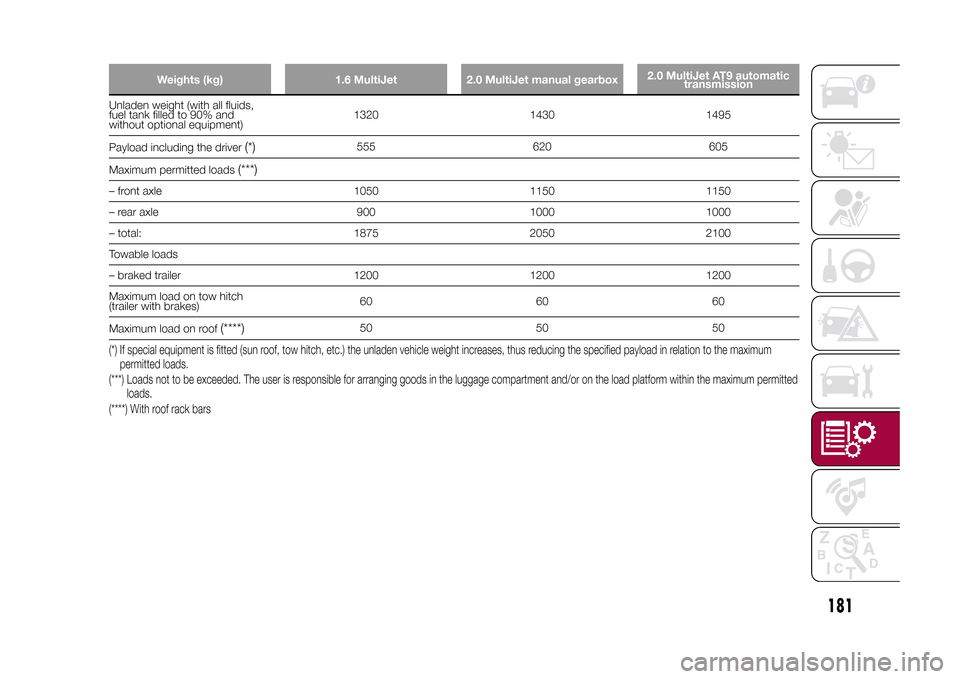

Weights (kg) 1.6 MultiJet 2.0 MultiJet manual gearbox2.0 MultiJet AT9 automatic
transmission
Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional equipment)1320 1430 1495
Payload including the driver
(*)
555 620 605
Maximum permitted loads
(***)
– front axle 1050 1150 1150
– rear axle 900 1000 1000
– total: 1875 2050 2100
Towable loads
– braked trailer 1200 1200 1200
Maximum load on tow hitch
(trailer with brakes)60 60 60
Maximum load on roof
(****)
50 50 50
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted
loads.
(****) With roof rack bars
181
15-12-2014 8:23 Pagina 181

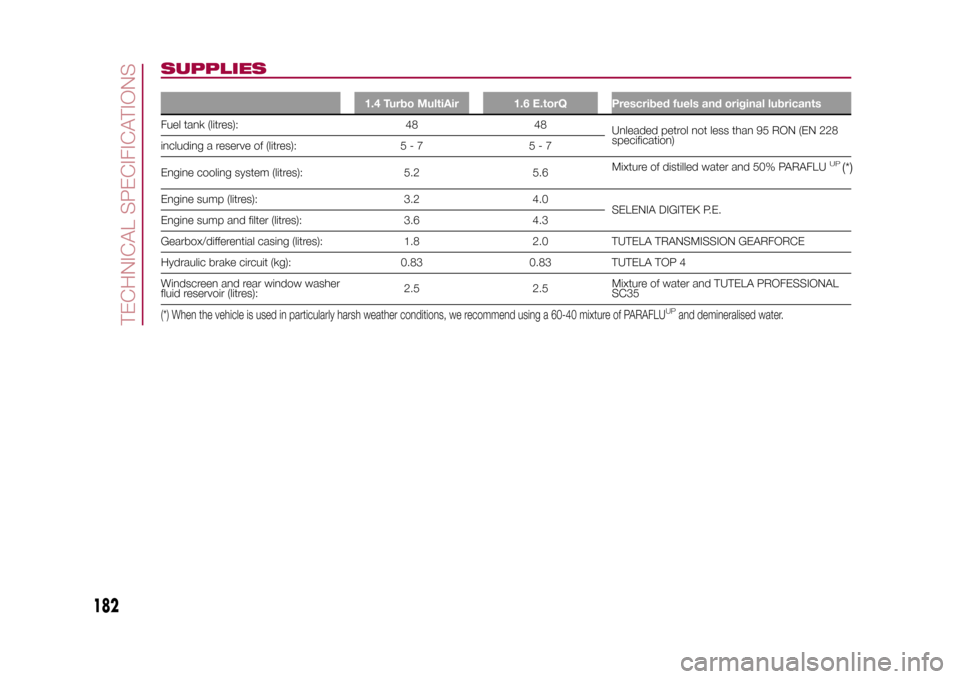

SUPPLIES
1.4 Turbo MultiAir 1.6 E.torQ Prescribed fuels and original lubricants
Fuel tank (litres): 48 48
Unleaded petrol not less than 95 RON (EN 228
specification)
including a reserve of (litres): 5 - 7 5 - 7
Engine cooling system (litres): 5.2 5.6Mixture of distilled water and 50% PARAFLU
UP
(*)
Engine sump (litres): 3.2 4.0
SELENIA DIGITEK P.E.
Engine sump and filter (litres): 3.6 4.3
Gearbox/differential casing (litres): 1.8 2.0 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg): 0.83 0.83 TUTELA TOP 4
Windscreen and rear window washer
fluid reservoir (litres):2.5 2.5Mixture of water and TUTELA PROFESSIONAL
SC35(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UP
and demineralised water.
182
TECHNICAL SPECIFICATIONS
15-12-2014 8:23 Pagina 182

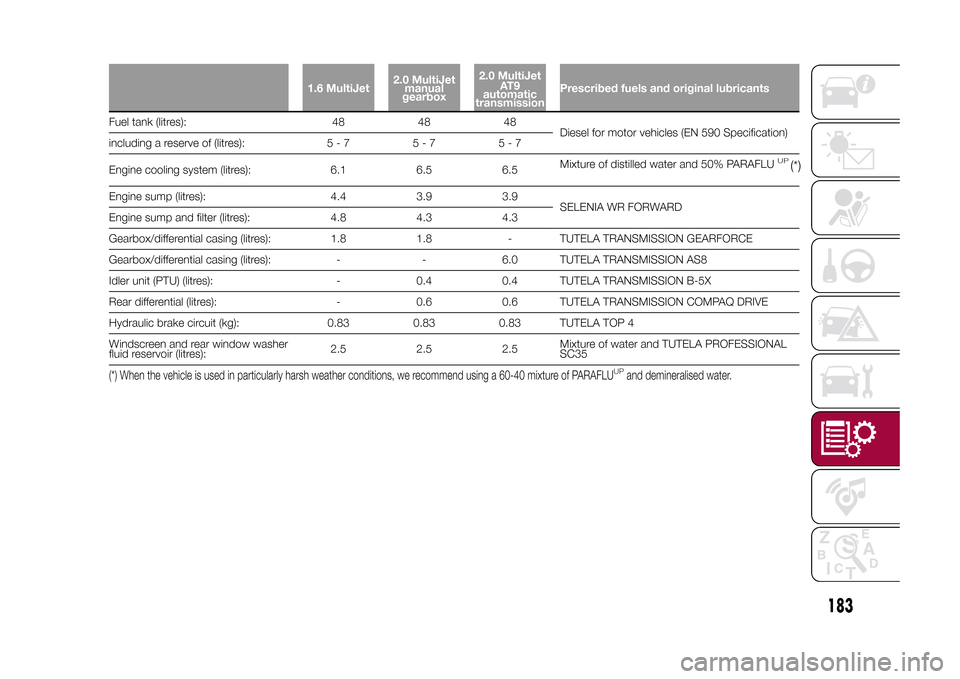

1.6 MultiJet2.0 MultiJet
manual
gearbox2.0 MultiJet
AT 9
automatic
transmissionPrescribed fuels and original lubricants
Fuel tank (litres): 48 48 48
Diesel for motor vehicles (EN 590 Specification)
including a reserve of (litres): 5 - 7 5 - 7 5 - 7
Engine cooling system (litres): 6.1 6.5 6.5Mixture of distilled water and 50% PARAFLU
UP
(*)
Engine sump (litres): 4.4 3.9 3.9
SELENIA WR FORWARD
Engine sump and filter (litres): 4.8 4.3 4.3
Gearbox/differential casing (litres): 1.8 1.8 - TUTELA TRANSMISSION GEARFORCE
Gearbox/differential casing (litres): - - 6.0 TUTELA TRANSMISSION AS8
Idler unit (PTU) (litres): - 0.4 0.4 TUTELA TRANSMISSION B-5X
Rear differential (litres): - 0.6 0.6 TUTELA TRANSMISSION COMPAQ DRIVE
Hydraulic brake circuit (kg): 0.83 0.83 0.83 TUTELA TOP 4
Windscreen and rear window washer
fluid reservoir (litres):2.5 2.5 2.5Mixture of water and TUTELA PROFESSIONAL
SC35(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UP
and demineralised water.
183
15-12-2014 8:23 Pagina 183

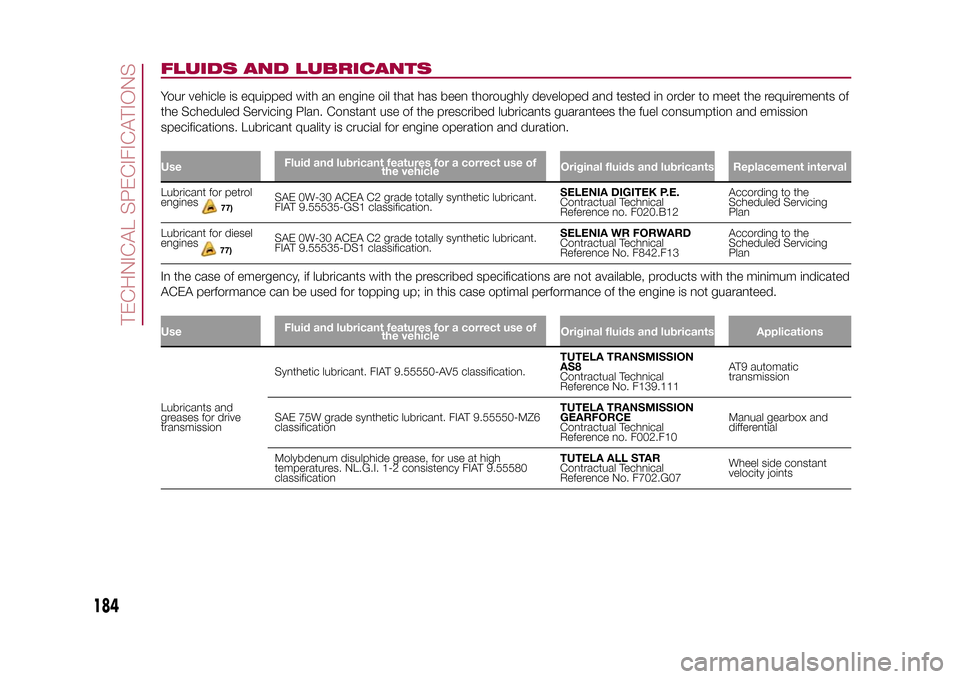

FLUIDS AND LUBRICANTSYour vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.UseFluid and lubricant features for a correct use of
the vehicleOriginal fluids and lubricants Replacement intervalLubricant for petrol
enginesSAE 0W-30 ACEA C2 grade totally synthetic lubricant.
FIAT 9.55535-GS1 classification.SELENIA DIGITEK P.E.
Contractual Technical
Reference no. F020.B12According to the
Scheduled Servicing
Plan
Lubricant for diesel
engines
77)
SAE 0W-30 ACEA C2 grade totally synthetic lubricant.
FIAT 9.55535-DS1 classification.SELENIA WR FORWARD
Contractual Technical
Reference No. F842.F13According to the
Scheduled Servicing
Plan
In the case of emergency, if lubricants with the prescribed specifications are not available, products with the minimum indicated
ACEA performance can be used for topping up; in this case optimal performance of the engine is not guaranteed.UseFluid and lubricant features for a correct use of

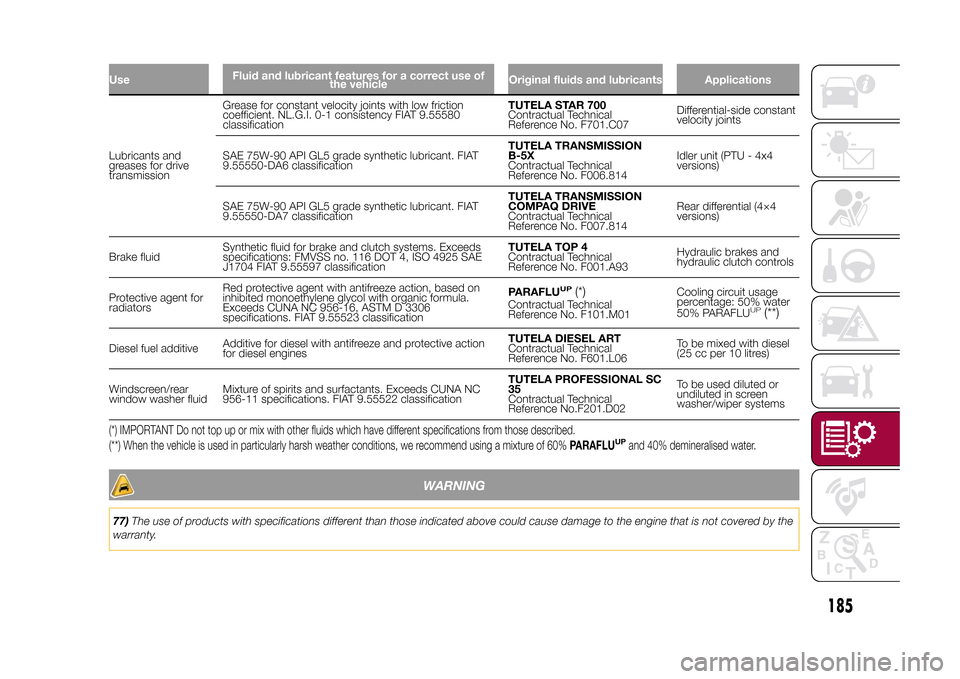

the vehicleOriginal fluids and lubricants ApplicationsLubricants and
greases for drive
transmissionSynthetic lubricant. FIAT 9.55550-AV5 classification.TUTELA TRANSMISSION
AS8
Contractual Technical
Reference No. F139.111AT9 automatic
transmission
SAE 75W grade synthetic lubricant. FIAT 9.55550-MZ6
classificationTUTELA TRANSMISSION
GEARFORCE
Contractual Technical
Reference no. F002.F10Manual gearbox and
differential
Molybdenum disulphide grease, for use at high
temperatures. NL.G.I. 1-2 consistency FIAT 9.55580
classificationTUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
184
TECHNICAL SPECIFICATIONS
15-12-2014 8:23 Pagina 184
77)

UseFluid and lubricant features for a correct use of
the vehicleOriginal fluids and lubricants ApplicationsLubricants and
greases for drive
transmissionGrease for constant velocity joints with low friction
coefficient. NL.G.I. 0-1 consistency FIAT 9.55580
classificationTUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential-side constant
velocity joints
SAE 75W-90 API GL5 grade synthetic lubricant. FIAT
9.55550-DA6 classificationTUTELA TRANSMISSION
B-5X
Contractual Technical
Reference No. F006.814Idler unit (PTU - 4x4
versions)
SAE 75W-90 API GL5 grade synthetic lubricant. FIAT
9.55550-DA7 classificationTUTELA TRANSMISSION
COMPAQ DRIVE
Contractual Technical
Reference No. F007.814Rear differential (4×4
versions)
Brake fluidSynthetic fluid for brake and clutch systems. Exceeds
specifications: FMVSS no. 116 DOT 4, ISO 4925 SAE
J1704 FIAT 9.55597 classificationTUTELA TOP 4
Contractual Technical
Reference No. F001.A93Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsRed protective agent with antifreeze action, based on
inhibited monoethylene glycol with organic formula.
Exceeds CUNA NC 956-16, ASTM D 3306
specifications. FIAT 9.55523 classificationPARAFLU
UP
(*)
Contractual Technical
Reference No. F101.M01Cooling circuit usage
percentage: 50% water
50% PARAFLU
UP
(**)
Diesel fuel additiveAdditive for diesel with antifreeze and protective action
for diesel enginesTUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
(25 cc per 10 litres)
Windscreen/rear
window washer fluidMixture of spirits and surfactants. Exceeds CUNA NC
956-11 specifications. FIAT 9.55522 classificationTUTELA PROFESSIONAL SC
35
Contractual Technical
Reference No.F201.D02To be used diluted or
undiluted in screen
washer/wiper systems(*) IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLU
UP
and 40% demineralised water.
WARNING
77)The use of products with specifications different than those indicated above could cause damage to the engine that is not covered by the
warranty.
185
15-12-2014 8:23 Pagina 185

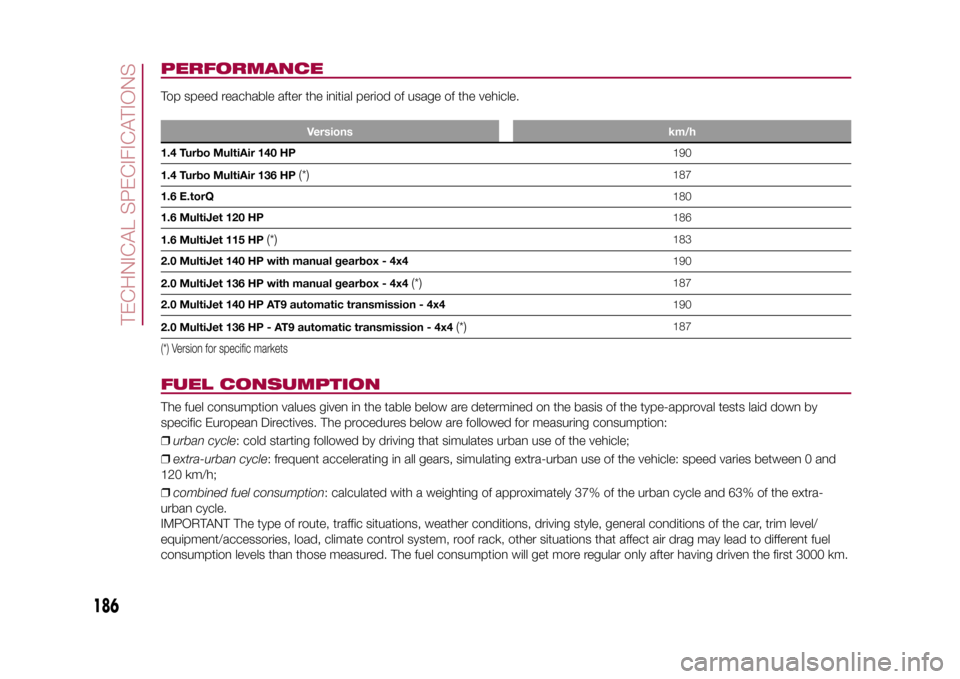

PERFORMANCETop speed reachable after the initial period of usage of the vehicle.
Versions km/h
1.4 Turbo MultiAir 140 HP190
1.4 Turbo MultiAir 136 HP
(*)
187
1.6 E.torQ180
1.6 MultiJet 120 HP186
1.6 MultiJet 115 HP
(*)
183
2.0 MultiJet 140 HP with manual gearbox - 4x4190
2.0 MultiJet 136 HP with manual gearbox - 4x4
(*)
187
2.0 MultiJet 140 HP AT9 automatic transmission - 4x4190
2.0 MultiJet 136 HP - AT9 automatic transmission - 4x4
(*)
187
(*) Version for specific marketsFUEL CONSUMPTIONThe fuel consumption values given in the table below are determined on the basis of the type-approval tests laid down by
specific European Directives. The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the vehicle;
❒extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the vehicle: speed varies between 0 and
120 km/h;
❒combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-
urban cycle.
IMPORTANT The type of route, traffic situations, weather conditions, driving style, general conditions of the car, trim level/
equipment/accessories, load, climate control system, roof rack, other situations that affect air drag may lead to different fuel
consumption levels than those measured. The fuel consumption will get more regular only after having driven the first 3000 km.
186
TECHNICAL SPECIFICATIONS
15-12-2014 8:23 Pagina 186

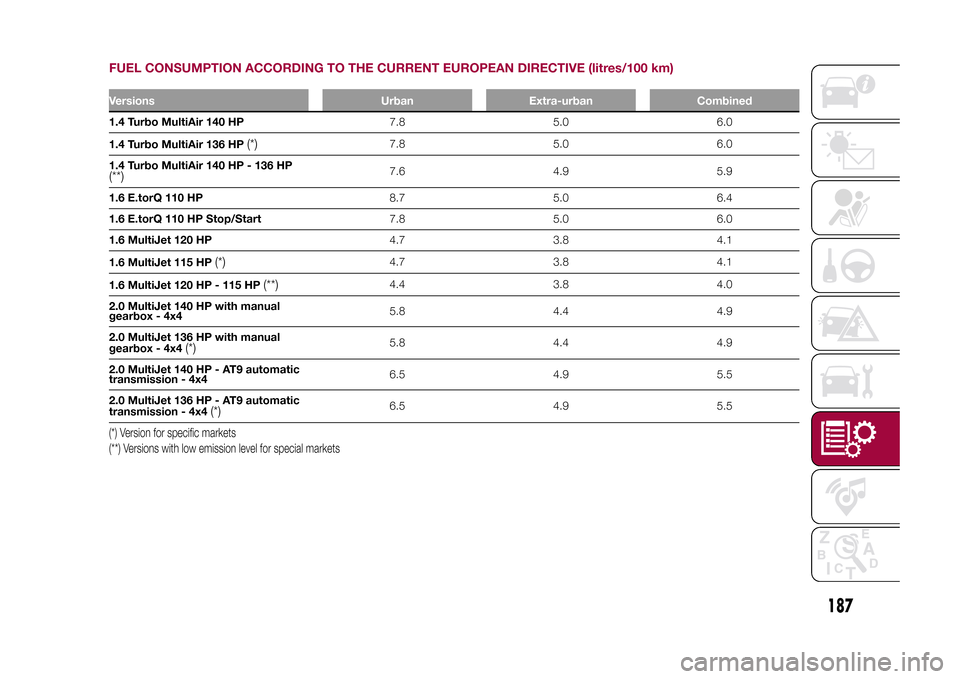

FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)Versions Urban Extra-urban Combined1.4 Turbo MultiAir 140 HP7.8 5.0 6.0
1.4 Turbo MultiAir 136 HP
(*)
7.8 5.0 6.0
1.4 Turbo MultiAir 140 HP - 136 HP
(**)
7.6 4.9 5.9
1.6 E.torQ 110 HP8.7 5.0 6.4
1.6 E.torQ 110 HP Stop/Start7.8 5.0 6.0
1.6 MultiJet 120 HP4.7 3.8 4.1
1.6 MultiJet 115 HP
(*)
4.7 3.8 4.1
1.6 MultiJet 120 HP - 115 HP
(**)
4.4 3.8 4.0
2.0 MultiJet 140 HP with manual
gearbox - 4x45.8 4.4 4.9
2.0 MultiJet 136 HP with manual
gearbox - 4x4
(*)
5.8 4.4 4.9
2.0 MultiJet 140 HP - AT9 automatic
transmission - 4x46.5 4.9 5.5
2.0 MultiJet 136 HP - AT9 automatic
transmission - 4x4
(*)
6.5 4.9 5.5
(*) Version for specific markets
(**) Versions with low emission level for special markets
187
15-12-2014 8:23 Pagina 187

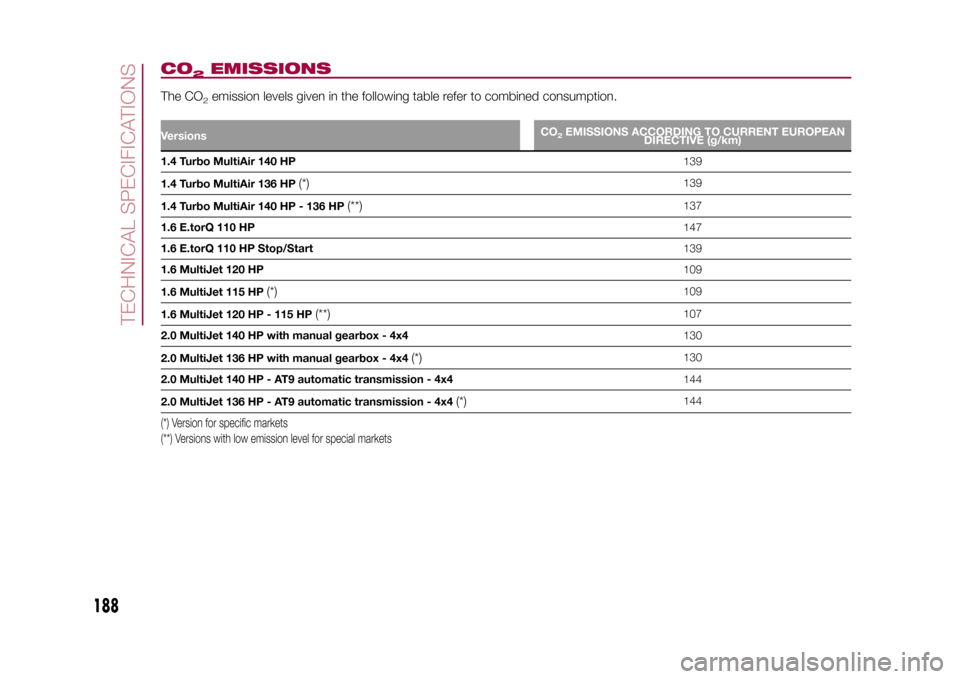

CO
2
EMISSIONS
The CO
2emission levels given in the following table refer to combined consumption.
VersionsCO
2EMISSIONS ACCORDING TO CURRENT EUROPEAN
DIRECTIVE (g/km)
1.4 Turbo MultiAir 140 HP139
1.4 Turbo MultiAir 136 HP
(*)
139
1.4 Turbo MultiAir 140 HP - 136 HP
(**)
137
1.6 E.torQ 110 HP147
1.6 E.torQ 110 HP Stop/Start139
1.6 MultiJet 120 HP109
1.6 MultiJet 115 HP
(*)
109
1.6 MultiJet 120 HP - 115 HP
(**)
107
2.0 MultiJet 140 HP with manual gearbox - 4x4130
2.0 MultiJet 136 HP with manual gearbox - 4x4
(*)
130
2.0 MultiJet 140 HP - AT9 automatic transmission - 4x4144
2.0 MultiJet 136 HP - AT9 automatic transmission - 4x4
(*)
144
(*) Version for specific markets
(**) Versions with low emission level for special markets
188
TECHNICAL SPECIFICATIONS
