FIAT 500X 2018 Owner handbook (in English)

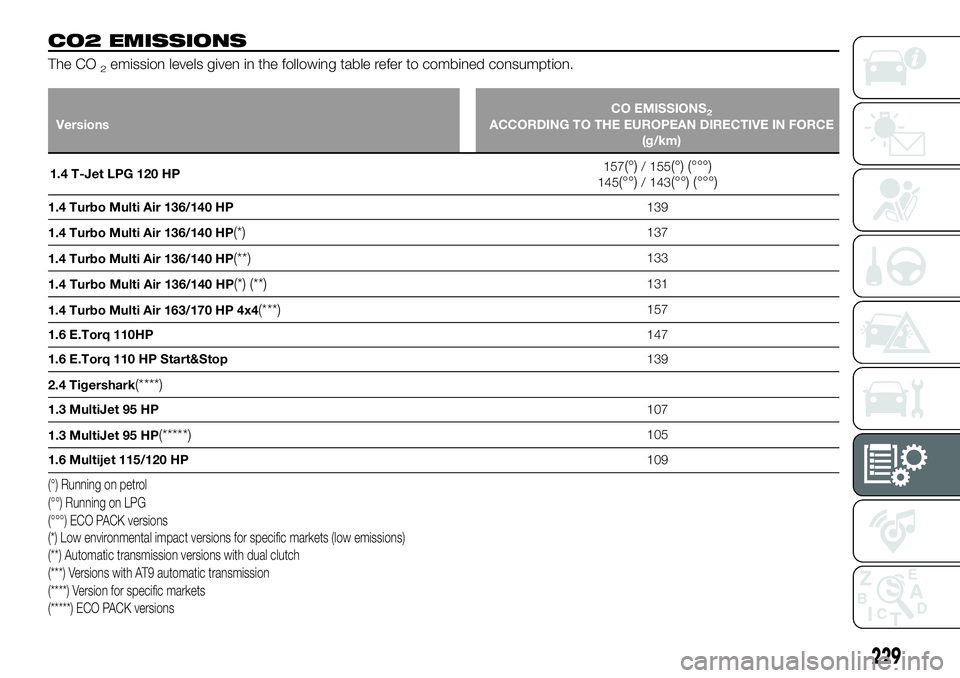

CO2 EMISSIONS
The CO2emission levels given in the following table refer to combined consumption.
VersionsCO EMISSIONS2ACCORDING TO THE EUROPEAN DIRECTIVE IN FORCE
(g/km)
1.4 T-Jet LPG 120 HP 157
(°)/ 155(°) (°°°)145(°°)/ 143(°°) (°°°)
1.4 Turbo Multi Air 136/140 HP
139
1.4 Turbo Multi Air 136/140 HP
(*)137
1.4 Turbo Multi Air 136/140 HP
(**)133
1.4 Turbo Multi Air 136/140 HP
(*) (**)131
1.4 Turbo Multi Air 163/170 HP 4x4
(***)157
1.6 E.Torq 110HP 147
1.6 E.Torq 110 HP Start&Stop 139
2.4 Tigershark
(****)
1.3 MultiJet 95 HP 107
1.3 MultiJet 95 HP
(*****)105
1.6 Multijet 115/120 HP 109
(°) Running on petrol
(°°°) ECO PACK versions (°°) Running on LPG
(*) Low environmental impact versions for specific markets (low emissions)
(**) Automatic transmission versions with dual clutch
(***) Versions with AT9 automatic transmission
(****) Version for specific markets
(*****) ECO PACK versions
229

VersionsCO EMISSIONS2ACCORDING TO THE EUROPEAN DIRECTIVE IN FORCE
(g/km)
1.6 Multijet 115/120 HP
(*)107
1.6 Multijet 115/120 HP
(*****)106
1.6 Multijet 115/120 HP
(*) (**)111
1.6 Multijet 115/120 HP
(**) (******)110
2.0 Multijet 136/140 HP 4x4 130
2.0 Multijet 136/140 HP 4x4
(***)144
(*) Low environmental impact versions for specific markets (low emissions)
(*****) ECO PACK versions (**) Automatic transmission versions with dual clutch
(******) Ultra low environmental impact versions for specific markets (low emissions) (***) Versions with AT9 automatic transmission
230
TECHNICAL SPECIFICATIONS

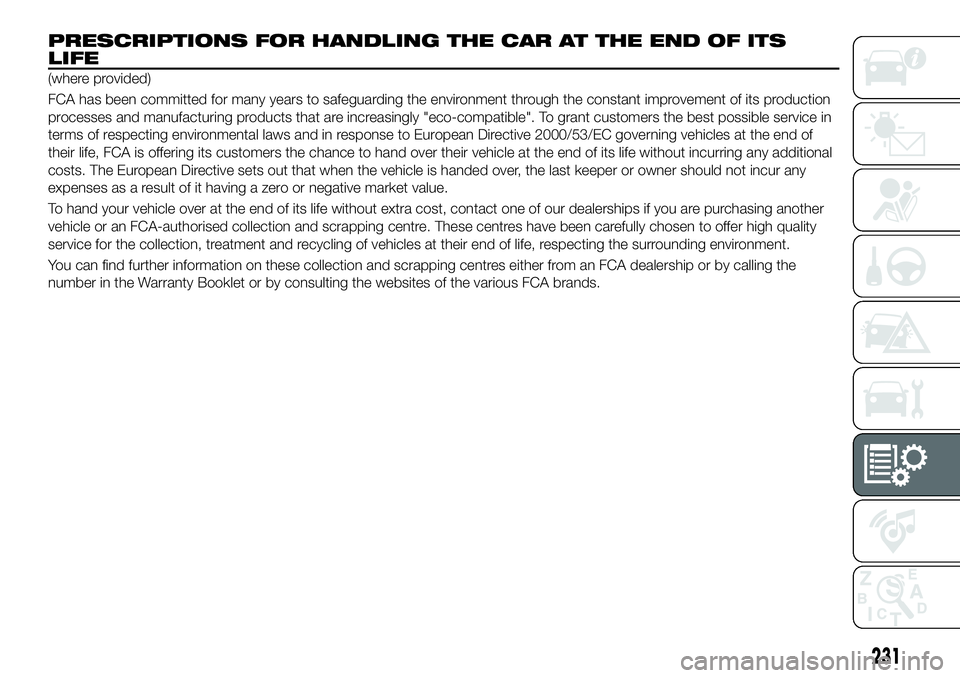

PRESCRIPTIONS FOR HANDLING THE CAR AT THE END OF ITS
LIFE
(where provided)
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service in
terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of
their life, FCA is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional
costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality
service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.
231

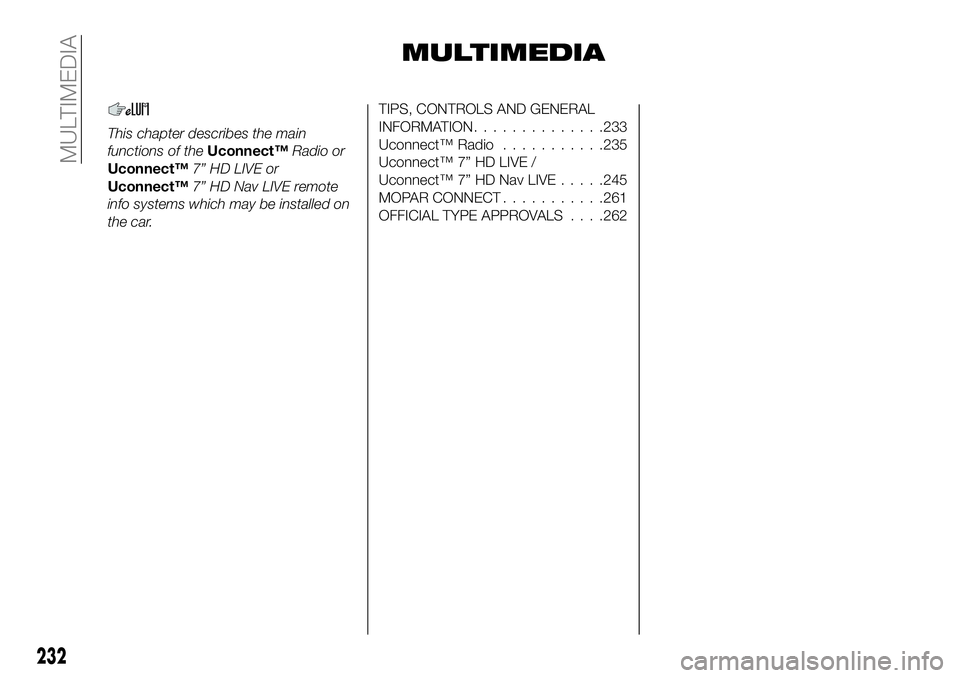

MULTIMEDIA
This chapter describes the main
functions of theUconnect™Radio or
Uconnect™ 7” HD LIVE or
Uconnect™ 7” HD Nav LIVE remote
info systems which may be installed on
the car.
TIPS, CONTROLS AND GENERAL
INFORMATION ..............233
Uconnect™ Radio ...........235
Uconnect™ 7” HD LIVE /
Uconnect™ 7” HD Nav LIVE .....245
MOPAR CONNECT ...........261
OFFICIAL TYPE APPROVALS . . . .262
232
MULTIMEDIA

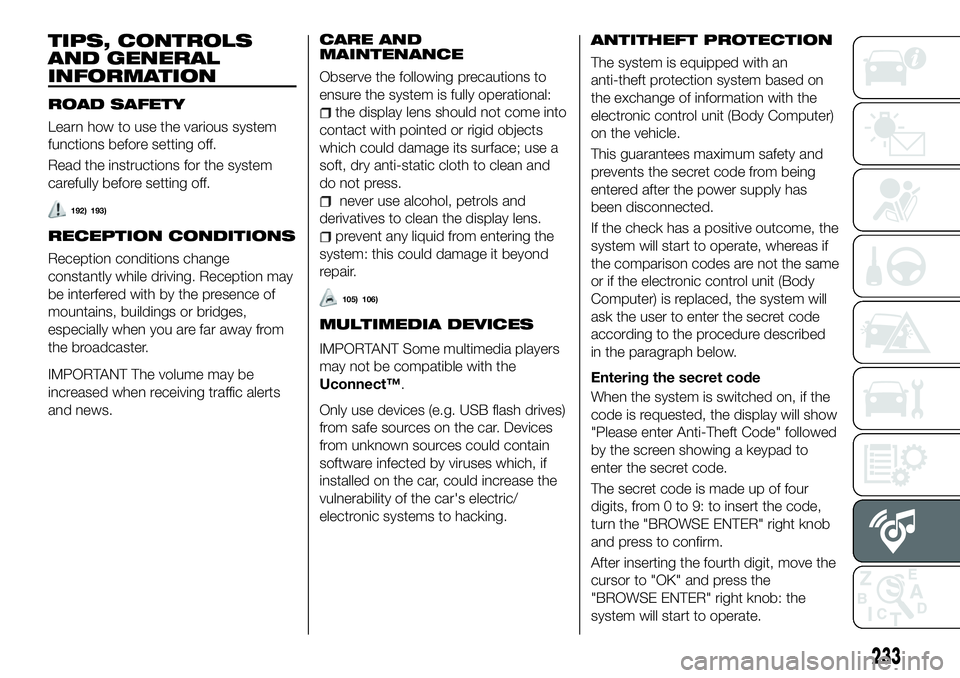

TIPS, CONTROLS
AND GENERAL
INFORMATION
ROAD SAFETY
Learn how to use the various system
functions before setting off.
Read the instructions for the system
carefully before setting off.
192) 193)
RECEPTION CONDITIONS
Reception conditions change
constantly while driving. Reception may
be interfered with by the presence of
mountains, buildings or bridges,
especially when you are far away from
the broadcaster.
IMPORTANT The volume may be
increased when receiving traffic alerts
and news.CARE AND
MAINTENANCE
Observe the following precautions to
ensure the system is fully operational:
the display lens should not come into
contact with pointed or rigid objects
which could damage its surface; use a
soft, dry anti-static cloth to clean and
do not press.
never use alcohol, petrols and
derivatives to clean the display lens.
prevent any liquid from entering the
system: this could damage it beyond
repair.
105) 106)
MULTIMEDIA DEVICES
IMPORTANT Some multimedia players
may not be compatible with the
Uconnect™.
Only use devices (e.g. USB flash drives)
from safe sources on the car. Devices
from unknown sources could contain
software infected by viruses which, if
installed on the car, could increase the
vulnerability of the car's electric/
electronic systems to hacking.
ANTITHEFT PROTECTION
The system is equipped with an
anti-theft protection system based on
the exchange of information with the
electronic control unit (Body Computer)
on the vehicle.
This guarantees maximum safety and
prevents the secret code from being
entered after the power supply has
been disconnected.
If the check has a positive outcome, the
system will start to operate, whereas if
the comparison codes are not the same
or if the electronic control unit (Body
Computer) is replaced, the system will
ask the user to enter the secret code
according to the procedure described
in the paragraph below.
Entering the secret code
When the system is switched on, if the
code is requested, the display will show
"Please enter Anti-Theft Code" followed
by the screen showing a keypad to
enter the secret code.
The secret code is made up of four
digits, from 0 to 9: to insert the code,
turn the "BROWSE ENTER" right knob
and press to confirm.
After inserting the fourth digit, move the
cursor to "OK" and press the
"BROWSE ENTER" right knob: the
system will start to operate.
233

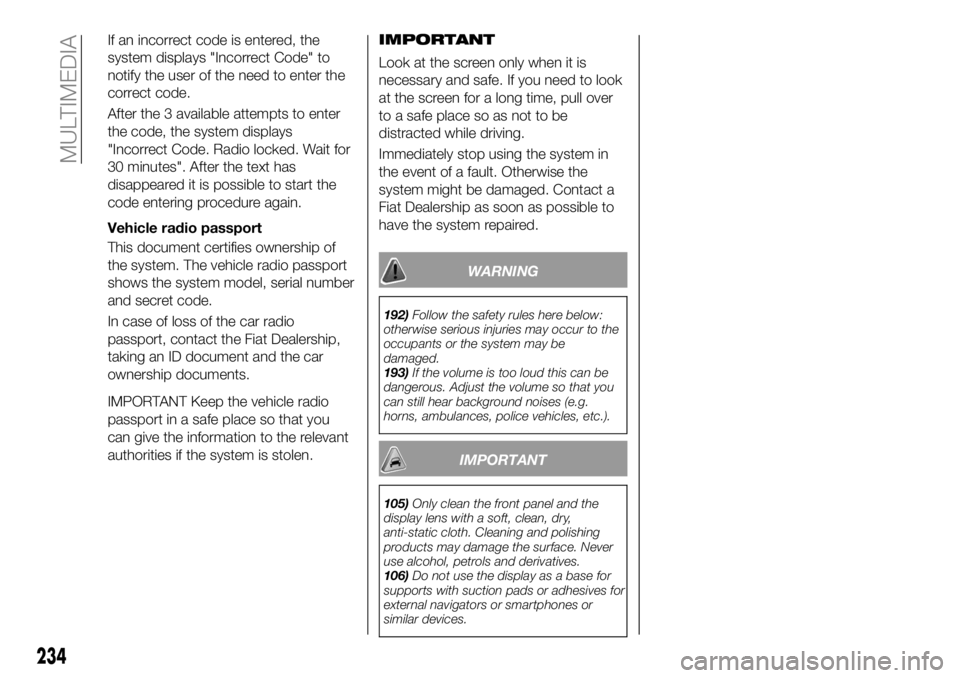

If an incorrect code is entered, the
system displays "Incorrect Code" to
notify the user of the need to enter the
correct code.
After the 3 available attempts to enter
the code, the system displays
"Incorrect Code. Radio locked. Wait for
30 minutes". After the text has
disappeared it is possible to start the
code entering procedure again.
Vehicle radio passport
This document certifies ownership of
the system. The vehicle radio passport
shows the system model, serial number
and secret code.
In case of loss of the car radio
passport, contact the Fiat Dealership,
taking an ID document and the car
ownership documents.
IMPORTANT Keep the vehicle radio
passport in a safe place so that you
can give the information to the relevant
authorities if the system is stolen.IMPORTANT
Look at the screen only when it is
necessary and safe. If you need to look
at the screen for a long time, pull over
to a safe place so as not to be
distracted while driving.
Immediately stop using the system in
the event of a fault. Otherwise the
system might be damaged. Contact a
Fiat Dealership as soon as possible to
have the system repaired.
WARNING
192)
Follow the safety rules here below:
otherwise serious injuries may occur to the
occupants or the system may be
damaged.
193) If the volume is too loud this can be
dangerous. Adjust the volume so that you
can still hear background noises (e.g.
horns, ambulances, police vehicles, etc.).
IMPORTANT
105) Only clean the front panel and the
display lens with a soft, clean, dry,
anti-static cloth. Cleaning and polishing
products may damage the surface. Never
use alcohol, petrols and derivatives.
106) Do not use the display as a base for
supports with suction pads or adhesives for
external navigators or smartphones or
similar devices.
234
MULTIMEDIA

Uconnect™ Radio

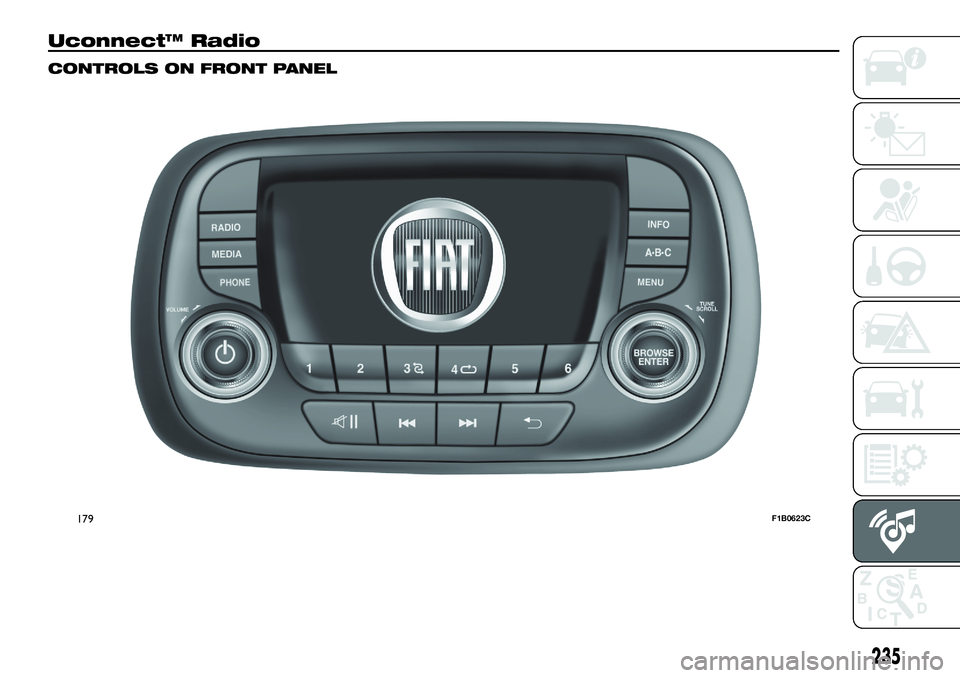

CONTROLS ON FRONT PANEL
179F1B0623C
235

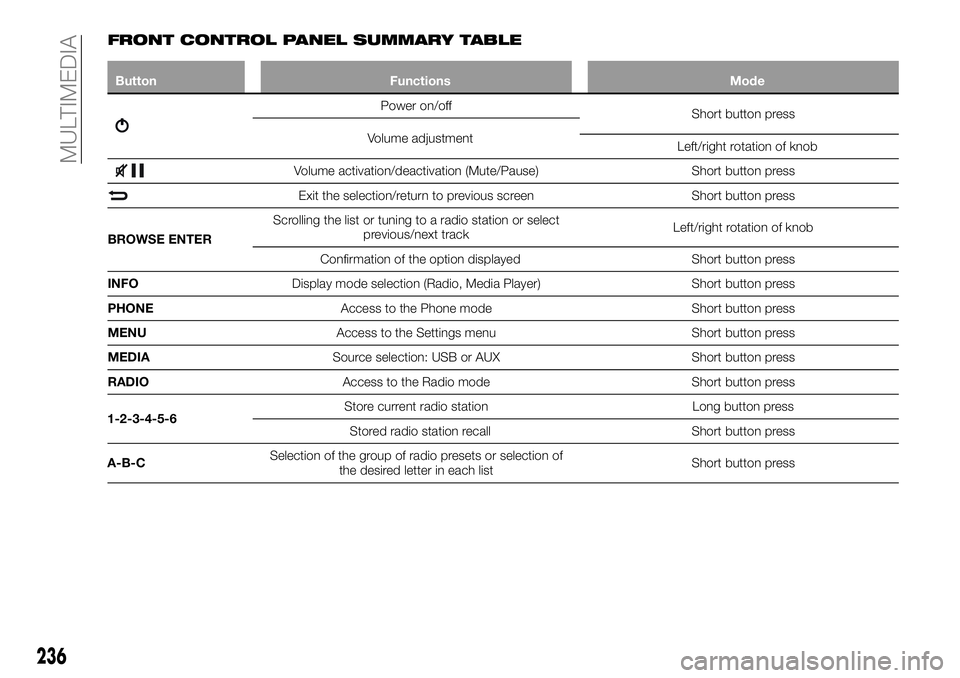

FRONT CONTROL PANEL SUMMARY TABLE
ButtonFunctions Mode
Power on/off
Short button press
Volume adjustment Left/right rotation of knob
Volume activation/deactivation (Mute/Pause) Short button press
Exit the selection/return to previous screenShort button press
BROWSE ENTER Scrolling the list or tuning to a radio station or select
previous/next track Left/right rotation of knob
Confirmation of the option displayed Short button press
INFO Display mode selection (Radio, Media Player) Short button press
PHONE Access to the Phone mode Short button press
MENU Access to the Settings menu Short button press
MEDIA Source selection: USB or AUX Short button press
RADIO Access to the Radio mode Short button press
1-2-3-4-5-6 Store current radio station
Long button press
Stored radio station recall Short button press
A-B-C Selection of the group of radio presets or selection of
the desired letter in each list Short button press
236
MULTIMEDIA

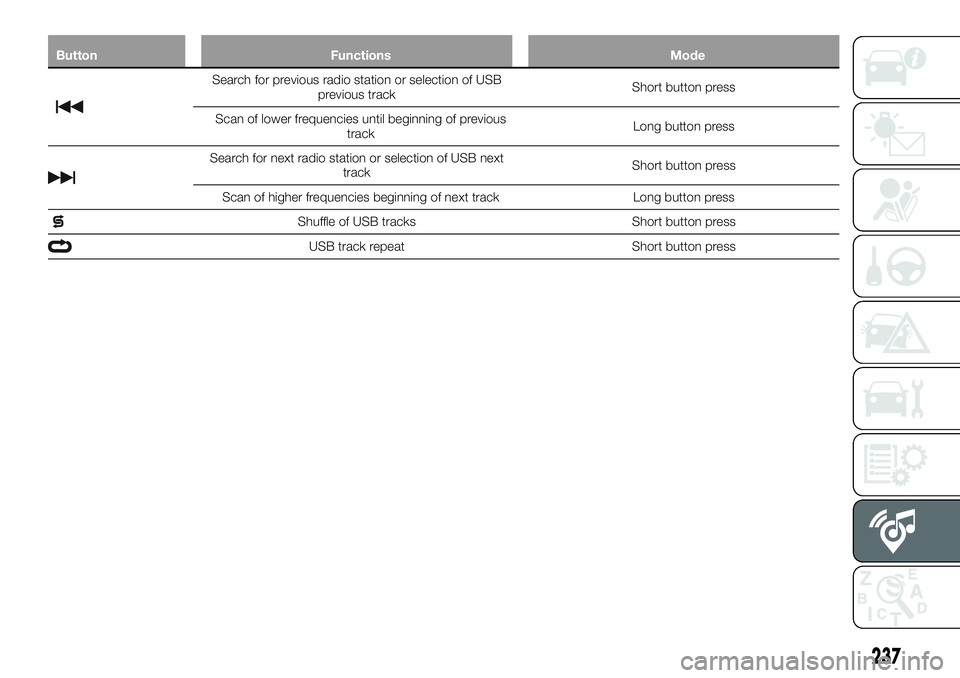

ButtonFunctions Mode
Search for previous radio station or selection of USB
previous track Short button press
Scan of lower frequencies until beginning of previous track Long button press
Search for next radio station or selection of USB next
track Short button press
Scan of higher frequencies beginning of next track Long button press
Shuffle of USB tracks Short button press
USB track repeatShort button press
237

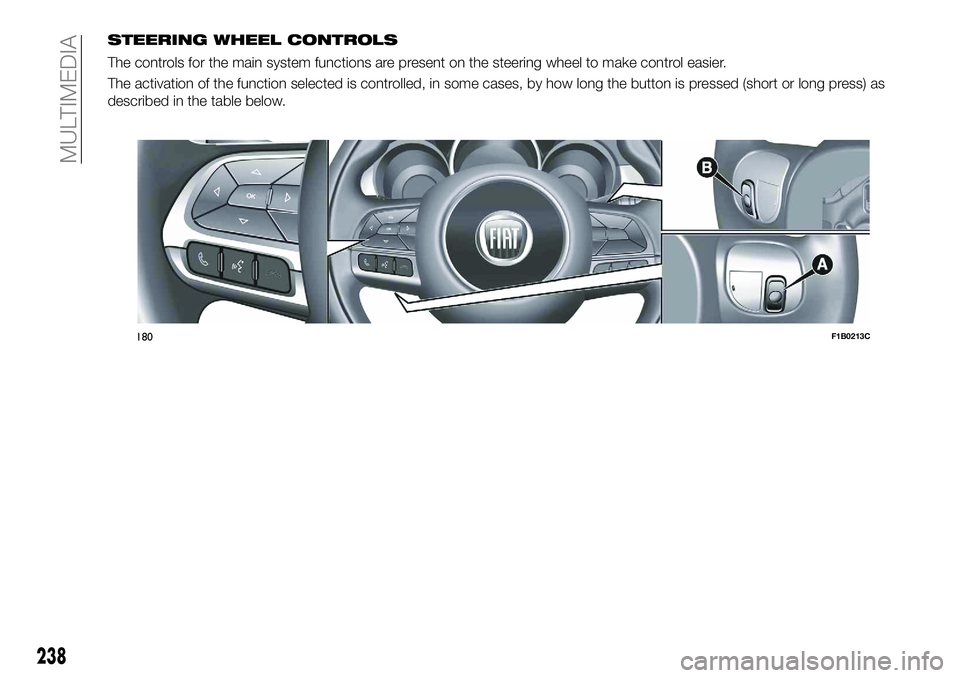

STEERING WHEEL CONTROLS
The controls for the main system functions are present on the steering wheel to make control easier.
The activation of the function selected is controlled, in some cases, by how long the button is pressed (short or long press) as
described in the table below.
180F1B0213C
238
