FIAT 500X 2018 Owner handbook (in English)

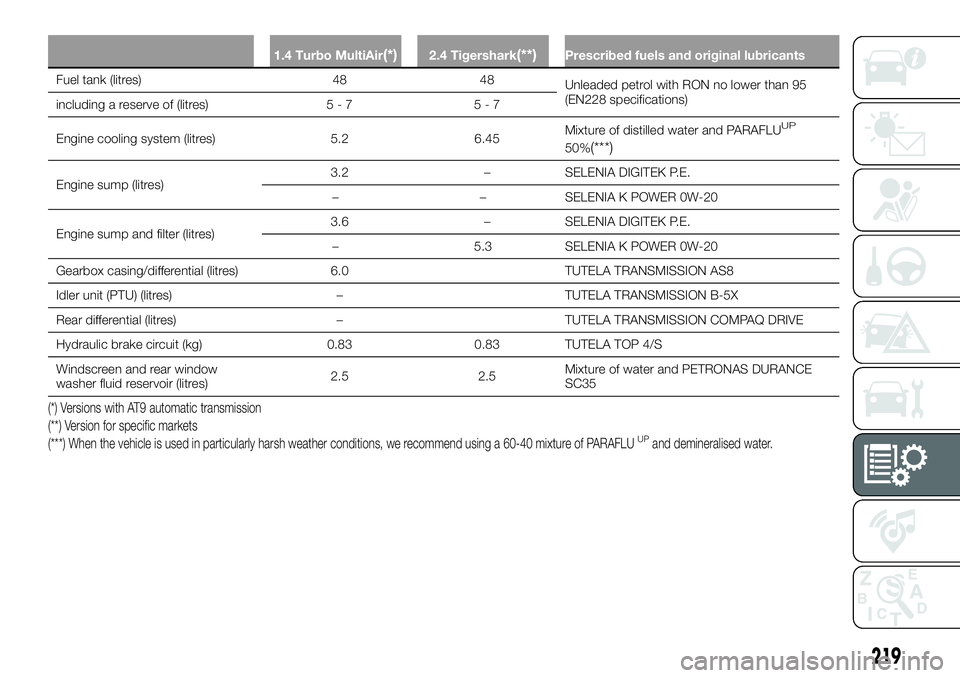

1.4 Turbo MultiAir(*)2.4 Tigershark(**)Prescribed fuels and original lubricants
Fuel tank (litres) 4848
Unleaded
petrol with RON no lower than 95
(EN228 specifications)
including a reserve of (litres) 5 - 75 - 7
Engine cooling system (litres) 5.26.45Mixture of distilled water and PARAFLU
UP
50%(***)
Engine sump (litres) 3.2 – SELENIA DIGITEK P.E.
– –SELENIA K POWER 0W-20
Engine sump and filter (litres) 3.6
–SELENIA DIGITEK P.E.
– 5.3SELENIA K POWER 0W-20
Gearbox casing/differential (litres) 6.0TUTELA TRANSMISSION AS8
Idler unit (PTU) (litres) –TUTELA TRANSMISSION B-5X
Rear differential (litres) –TUTELA TRANSMISSION COMPAQ DRIVE
Hydraulic brake circuit (kg) 0.830.83TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres) 2.5
2.5Mixture of water and PETRONAS DURANCE
SC35
(*) Versions with AT9 automatic transmission
(**) Version for specific markets
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
219

1.6 E.Torq1.3 Multijet Prescribed fuels and original lubricants
Fuel tank (litres) 4848Unleaded
petrol with RON no lower than 95 (EN
228 specifications) (1.6 E.Torq versions) / Diesel
for motor vehicles (EN 590 Specification)
(1.3 Multijet versions)
including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 5.6 6.1 Mixture of distilled water and PARAFLU
UP
50%(***)
Engine sump (litres)
4.03.7
SELENIA DIGITEK P.E. (1.6 E.Torq versions) /
SELENIA WR FORWARD (1.3 Multijet versions)
Engine sump and filter (litres) 4.33.9
Transmission/differential casing
(litres) 2.0
2.0TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.830.83TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres) 2.5
2.5Mixture of water and PETRONAS DURANCE
SC35
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40% demineralised water.
220
TECHNICAL SPECIFICATIONS

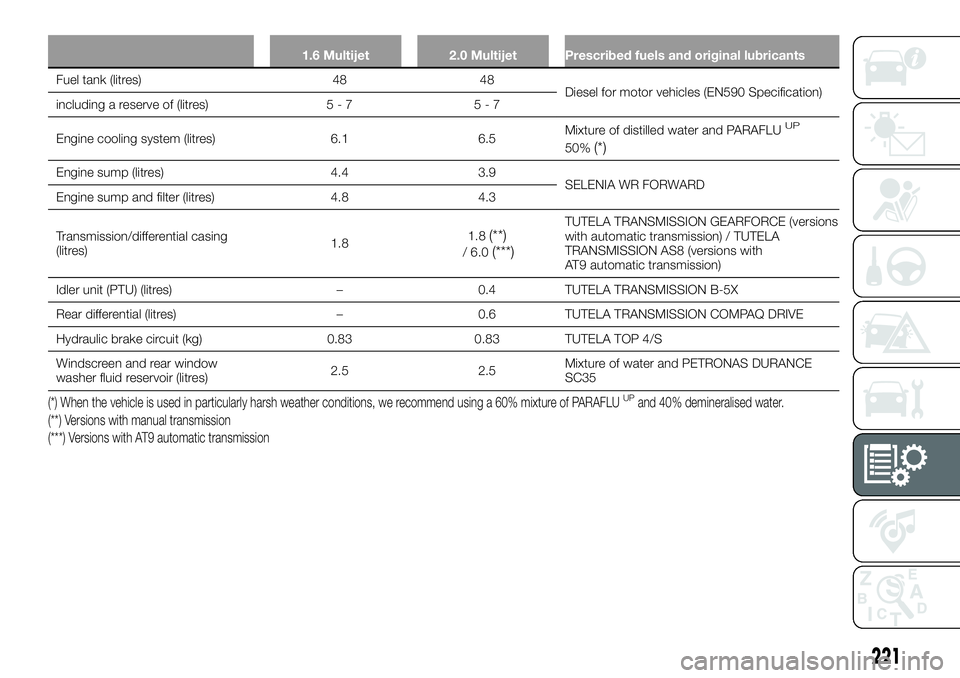

1.6 Multijet2.0 Multijet Prescribed fuels and original lubricants
Fuel tank (litres) 4848
Diesel
for motor vehicles (EN590 Specification)
including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 6.1 6.5 Mixture of distilled water and PARAFLU
UP
50%(*)
Engine sump (litres)
4.43.9
SELENIA WR FORWARD
Engine sump and filter (litres) 4.84.3
Transmission/differential casing
(litres) 1.81.8
(**)/ 6.0(***)
TUTELA TRANSMISSION GEARFORCE (versions
with automatic transmission) / TUTELA
TRANSMISSION AS8 (versions with
AT9 automatic transmission)
Idler unit (PTU) (litres) – 0.4 TUTELA TRANSMISSION B-5X
Rear differential (litres) – 0.6 TUTELA TRANSMISSION COMPAQ DRIVE
Hydraulic brake circuit (kg) 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres) 2.5 2.5Mixture of water and PETRONAS DURANCE
SC35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40% demineralised water.
(**) Versions with manual transmission
(***) Versions with AT9 automatic transmission
221

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONS
UseFeaturesSpecificationOriginal fluids and
lubricants Replacement interval
Lubricant for petrol
engines
(excluding
2.4 Tigershark) SAE 0W-30
ACEA C2 / API SN 9.55535-GS1 SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12According to Scheduled
Servicing Plan
Lubricant for
2.4 Tigershark
petrol engines SAE 0W-20
API SN 9.55535-CR1 or MS-6395 SELENIA K POWER
0W-20
Contractual Technical
Reference N° F029.F14According to Scheduled
Servicing Plan
Lubricant for diesel
engines SAE 0W-30
ACEA C2 9.55535-DS1 or
MS.90047 SELENIA WR FORWARD
Contractual Technical
Reference N° F842.F13According to Scheduled
Servicing Plan
Lubricants for
petrol/LPG
engines SAE 5W-40
ACEA C3/API SM 9.55535-T2 SELENIA Multipower
GAS
Contractual Technical
Reference N° F922.E09According to Scheduled
Servicing Plan
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up; in this case optimal performance of the engine is not guaranteed.
222
TECHNICAL SPECIFICATIONS
194)

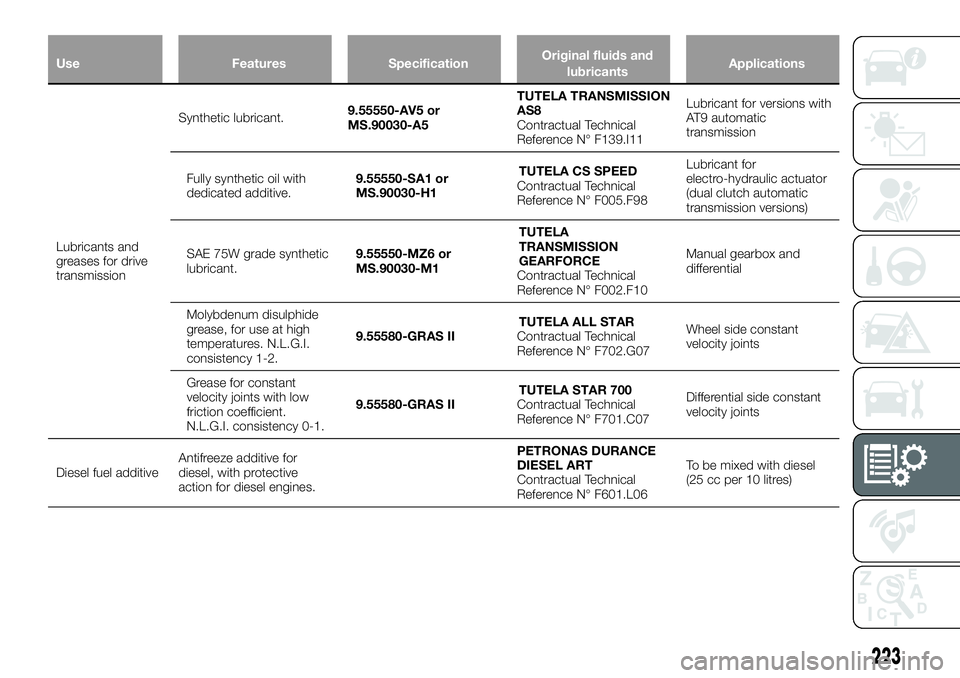

UseFeaturesSpecificationOriginal fluids and
lubricants Applications
Lubricants and
gr
eases for drive
transmission Synthetic lubricant.
9.55550-AV5 or
MS.90030-A5TUTELA TRANSMISSION
AS8
Contractual Technical
Reference N° F139.I11Lubricant for versions with
AT9 automatic
transmission
Fully synthetic oil with
dedicated additive. 9.55550-SA1 or
MS.90030-H1TUTELA CS SPEED
Contractual Technical
Reference N° F005.F98 Lubricant for
electro-hydraulic actuator
(dual clutch automatic
transmission versions)
SAE 75W grade synthetic
lubricant. 9.55550-MZ6 or
MS.90030-M1TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference N° F002.F10 Manual gearbox and
differential
Molybdenum disulphide
grease, for use at high
temperatures. N.L.G.I.
consistency 1-2. 9.55580-GRAS II
TUTELA ALL STAR
Contractual Technical
Reference N° F702.G07 Wheel side constant
velocity joints
Grease for constant
velocity joints with low
friction coefficient.
N.L.G.I. consistency 0-1. 9.55580-GRAS II
TUTELA STAR 700
Contractual Technical
Reference N° F701.C07 Differential side constant
velocity joints
Diesel fuel additive Antifreeze additive for
diesel, with protective
action for diesel engines. PETRONAS DURANCE
DIESEL ART
Contractual Technical
Reference N° F601.L06
To be mixed with diesel
(25 cc per 10 litres)
223

UseFeaturesSpecificationOriginal fluids and
lubricants Applications
Lubricants and
gr
eases for drive
transmission SAE 75W-90 API
GL5 grade synthetic
lubricant.
9.55550-DA6TUTELA
TRANSMISSION B-5X
Contractual Technical
Reference N° F006.A14 Transfer unit (PTU -
4x4 versions)
SAE 75W-90 API
GL5 grade synthetic
lubricant. 9.55550-DA7TUTELA
TRANSMISSION
COMPAQ DRIVE
Contractual Technical
Reference N° F007.A14Rear differential
(4x4 versions)
Brake fluid Synthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704. 9.55597 or MS.90039
TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiators Red protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.
9.55523 or MS.90032
PARAFLU
UP
Contractual Technical
Reference N° F101.M01Cooling circuits
proportions of use: 50%
water 50% PARAFLU
UP(**)
Windscreen/rear
window washer fluid
Mixture of spirits and
surfactants. Exceeds
CUNA NC
956-11 specifications.
9.55522 or MS.90043PETRONAS DURANCE
SC 35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in screen
washer/wiper systems
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%
PARAFLUUPand 40% demineralised water.
IMPORTANT
104)The use of products with different specifications than those indicated above could cause damage to the engine that is not covered by
the warranty.
224
TECHNICAL SPECIFICATIONS

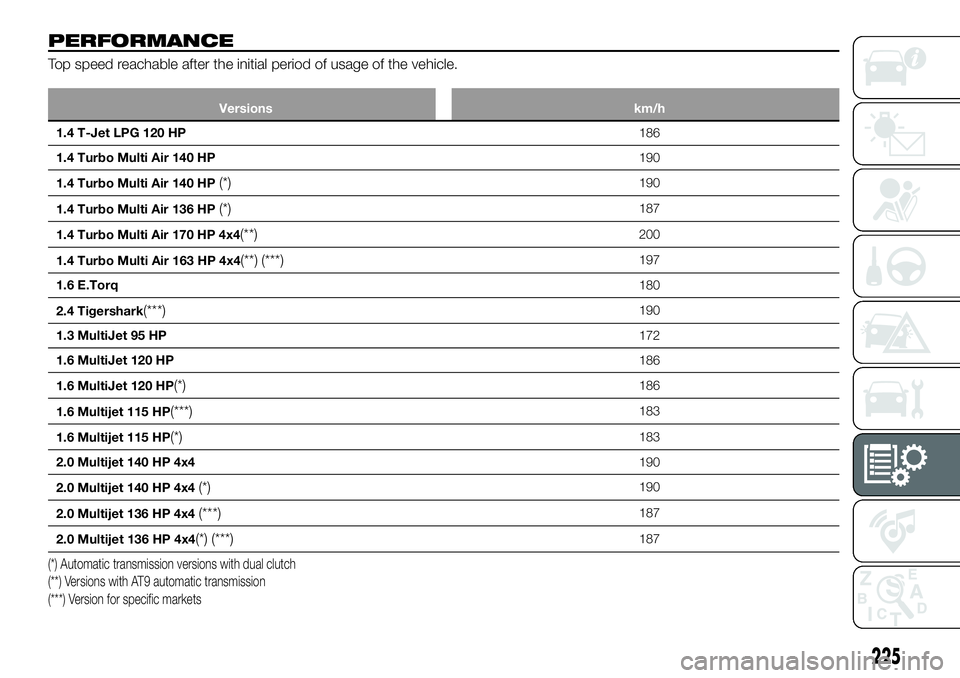

PERFORMANCE
Top speed reachable after the initial period of usage of the vehicle.
Versionskm/h
1.4 T-Jet LPG 120 HP 186
1.4
Turbo Multi Air 140 HP 190
1.4 Turbo Multi Air 140 HP
(*)190
1.4 Turbo Multi Air 136 HP
(*)187
1.4 Turbo Multi Air 170 HP 4x4
(**)200
1.4 Turbo Multi Air 163 HP 4x4
(**) (***)197
1.6 E.Torq 180
2.4 Tigershark
(***)190
1.3 MultiJet 95 HP 172
1.6 MultiJet 120 HP 186
1.6 MultiJet 120 HP
(*)186
1.6 Multijet 115 HP
(***)183
1.6 Multijet 115 HP
(*)183
2.0 Multijet 140 HP 4x4 190
2.0 Multijet 140 HP 4x4
(*)190
2.0 Multijet 136 HP 4x4
(***)187
2.0 Multijet 136 HP 4x4
(*) (***)187
(*) Automatic transmission versions with dual clutch
(**) Versions with AT9 automatic transmission
(***) Version for specific markets
225

FUEL CONSUMPTION
The fuel consumption values given in the table below are determined on the basis of the type-approval tests laid down by
specific European Directives. The procedures below are followed for measuring consumption:
urban cycle: cold starting followed by driving that simulates urban use of the vehicle;
extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the vehicle: speed varies between 0 and
120 km/h;
combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the
extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim
level/equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that
adversely affect the aerodynamics or wind resistance lead to different fuel consumption figures than those measured. The fuel
consumption will get more regular only after having driven the first 3000 km.
226
TECHNICAL SPECIFICATIONS

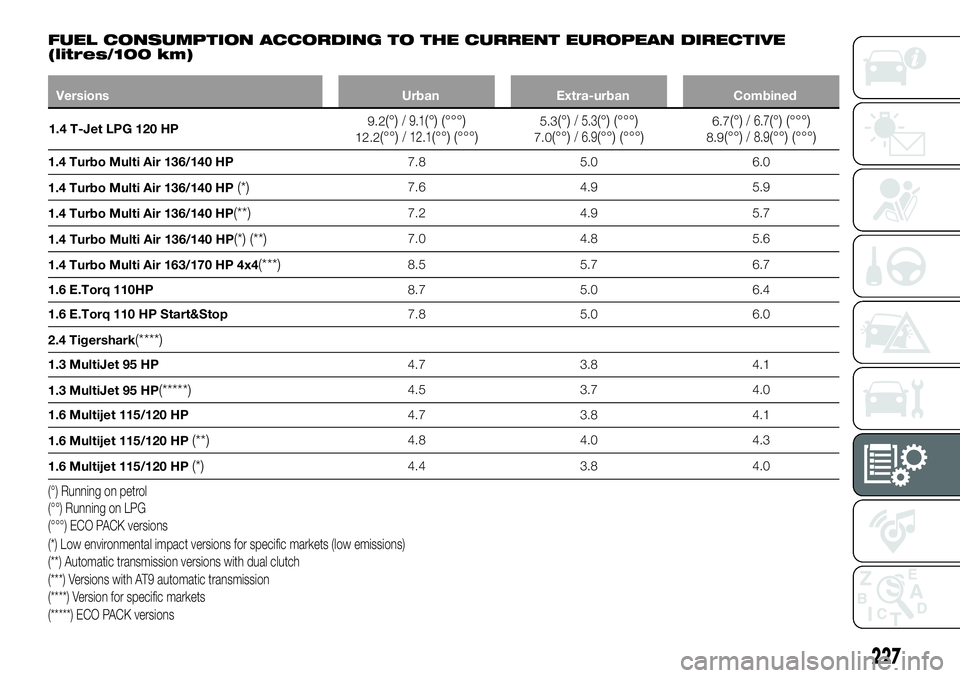

FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
(litres/100 km)
VersionsUrbanExtra-urban Combined
1.4 T-Jet LPG 120 HP 9.2
(°)/ 9.1(°) (°°°)12.2(°°)/ 12.1(°°) (°°°)5.3(°)/ 5.3(°) (°°°)7.0(°°)/ 6.9(°°) (°°°)6.7(°)/ 6.7(°) (°°°)8.9(°°)/ 8.9(°°) (°°°)
1.4 Turbo Multi Air 136/140 HP
7.8 5.0 6.0
1.4 Turbo Multi Air 136/140 HP
(*)7.6 4.95.9
1.4 Turbo Multi Air 136/140 HP
(**)7.2 4.95.7
1.4 Turbo Multi Air 136/140 HP
(*) (**)7.0 4.85.6
1.4 Turbo Multi Air 163/170 HP 4x4
(***)8.5 5.76.7
1.6 E.Torq 110HP 8.75.06.4
1.6 E.Torq 110 HP Start&Stop 7.85.06.0
2.4 Tigershark
(****)
1.3 MultiJet 95 HP 4.7 3.8 4.1
1.3 MultiJet 95 HP
(*****)4.5 3.74.0
1.6 Multijet 115/120 HP 4.73.84.1
1.6 Multijet 115/120 HP
(**)4.8 4.04.3
1.6 Multijet 115/120 HP
(*)4.4 3.84.0
(°) Running on petrol
(°°°) ECO PACK versions (°°) Running on LPG
(*) Low environmental impact versions for specific markets (low emissions)
(**) Automatic transmission versions with dual clutch
(***) Versions with AT9 automatic transmission
(****) Version for specific markets
(*****) ECO PACK versions
227

VersionsUrbanExtra-urban Combined
1.6 Multijet 115/120 HP
(*****)4.4 3.84.0
1.6 Multijet 115/120 HP
(*) (**)4.7 4.04.3
1.6 Multijet 115/120 HP
(**) (******)4.7 4.04.2
2.0 Multijet 136/140 HP 4x4 5.84.44.9
2.0 Multijet 136/140 HP 4x4
(***)6.5 4.95.5
(*****) ECO PACK versions (*) Low environmental impact versions for specific markets (low emissions)
(**) Automatic transmission versions with dual clutch
(******) Ultra low environmental impact versions for specific markets (low emissions) (***) Versions with AT9 automatic transmission
228
