FIAT 500X 2018 Owner handbook (in English)

Versions1.6 E.Torq2.4 Tigershark(*)
Engine code 55263842
Cycle OttoOtto
Number and position of cylinders 4 in line4 in line
Piston bore and stroke (mm) 77 × 85.888 × 97
Total displacement (cm³) 15982360
Compression ratio 11 ± 0.1510 ± 0.2
Maximum power (EC) (kW) 81129
Maximum power (EEC) (HP) 110175
corresponding engine speed (rpm) 55006400
Maximum torque (EEC) (Nm) 152230
corresponding engine speed (rpm) 45003900
Spark plugs NGK - SINGLE IR - ZKR7BI - 10 JAPAN
C128 CHAMPION - SP148183AB
Fuel Unleaded petrol 95 R.O.N.
(EN228 specifications) Unleaded petrol 95 R.O.N.
(EN228 specifications)
(*) Version for specific markets
209

Versions1.3 Multijet 1.6 Multijet2.0 MultiJet(*)2.0 MultiJet(**)
Engine code 55266963552603845526308755263088
Cycle DieselDieselDieselDiesel
Number and position of
cylinders 4 in line
4 in line4 in line4 in line
Piston bore and stroke
(mm) 69.6 X 82
79.5 × 80.5 83 × 90.483 × 90.4
Total displacement (cm³) 1248159819561956
Compression ratio 16.8 ± 0.216.5 ± 0.416.5 ± 0.416.5 ± 0.4
Maximum power (EC)
(kW) 70
88 / 84.4
(***)103 / 100(***)103 / 100(***)
Maximum power (EC)
(HP) 95
120 / 115(***)140 / 136(***)140 / 136(***)
corresponding engine
speed (rpm) 3750 3750 3750 4000
Maximum torque (EC)
(Nm) 200 320 350 350
corresponding engine
speed (rpm) 1750 1750 1750 1500
Fuel Diesel for motor vehicles
(EN 590 Specification) Diesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)
(*) Versions with mechanical gearbox
(**) Versions with AT9 automatic transmission
(***) Version for specific markets
WARNING
189)
Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
210
TECHNICAL SPECIFICATIONS

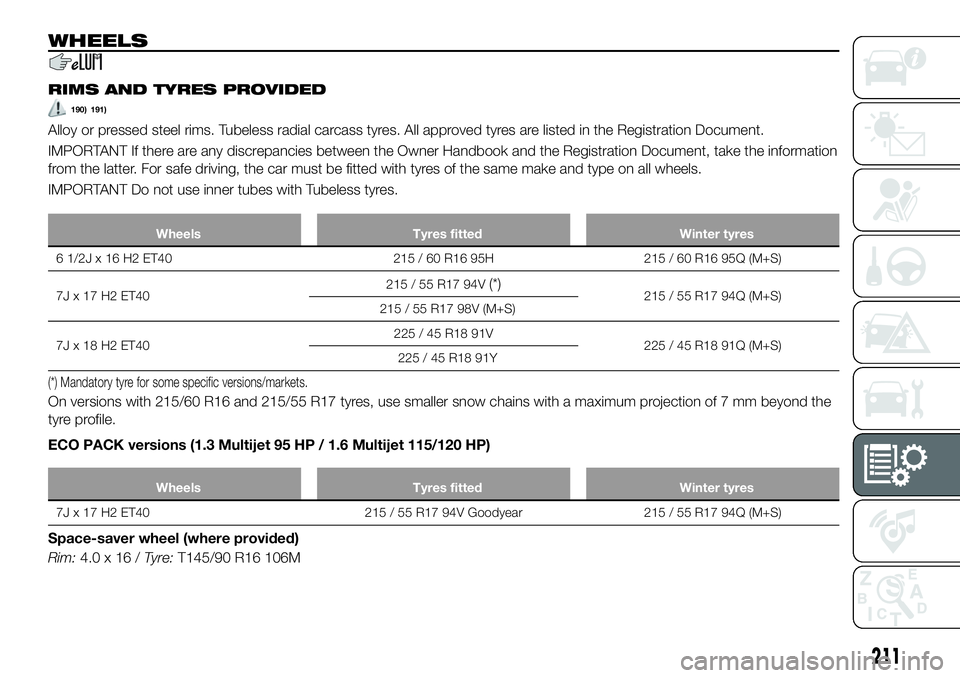

WHEELS
RIMS AND TYRES PROVIDED
190) 191)
Alloy or pressed steel rims. Tubeless radial carcass tyres. All approved tyres are listed in the Registration Document.
IMPORTANT If there are any discrepancies between the Owner Handbook and the Registration Document, take the information
from the latter. For safe driving, the car must be fitted with tyres of the same make and type on all wheels.
IMPORTANT Do not use inner tubes with Tubeless tyres.
WheelsTyres fitted Winter tyres
6 1/2J x 16 H2 ET40 215 / 60 R16 95H215 / 60 R16 95Q (M+S)
7J
x 17 H2 ET40 215 / 55 R17 94V
(*)215 / 55 R17 94Q (M+S)
215 / 55 R17 98V (M+S)
7J x 18 H2 ET40 225 / 45 R18 91V
225 / 45 R18 91Q (M+S)
225 / 45 R18 91Y
(*) Mandatory tyre for some specific versions/markets.
On versions with 215/60 R16 and 215/55 R17 tyres, use smaller snow chains with a maximum projection of 7 mm beyond the
tyre profile.
ECO PACK versions (1.3 Multijet 95 HP / 1.6 Multijet 115/120 HP)
Wheels Tyres fitted Winter tyres
7J x 17 H2 ET40 215 / 55 R17 94V Goodyear215 / 55 R17 94Q (M+S)
Space-saver wheel (where provided)
Rim:4.0x16/Tyre: T145/90 R16 106M
211

COLD TYRE INFLATION PRESSURE (bar)
When the tyres are warm, the inflation pressure should be +0.3 bar compared with the prescribed value. However, recheck that
the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
If it is necessary to raise the vehicle, refer to the "Raising the vehicle" paragraph in the "In an emergency" chapter.
TyresUnladen/medium load Full load
Space-saver
wheel
Front Rear Front Rear
215 / 60 R16 95H 2.42.42.62.6
4.2
215

/ 55 R17 94V 2.42.42.62.6
225 / 45 R18 91V 2.42.42.62.6
225 / 45 R18 91Y 2.42.42.62.6
WARNING
190)If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed
corresponding to the speed rating of the tyres used.
191) DO NOT fit wheel hub caps when using integral hub caps fixed (with springs) to the steel rim and after sale tyres provided with Rim
Protector. Use of unsuitable tyres and wheel caps may cause sudden decrease of tyre pressure.
212
TECHNICAL SPECIFICATIONS

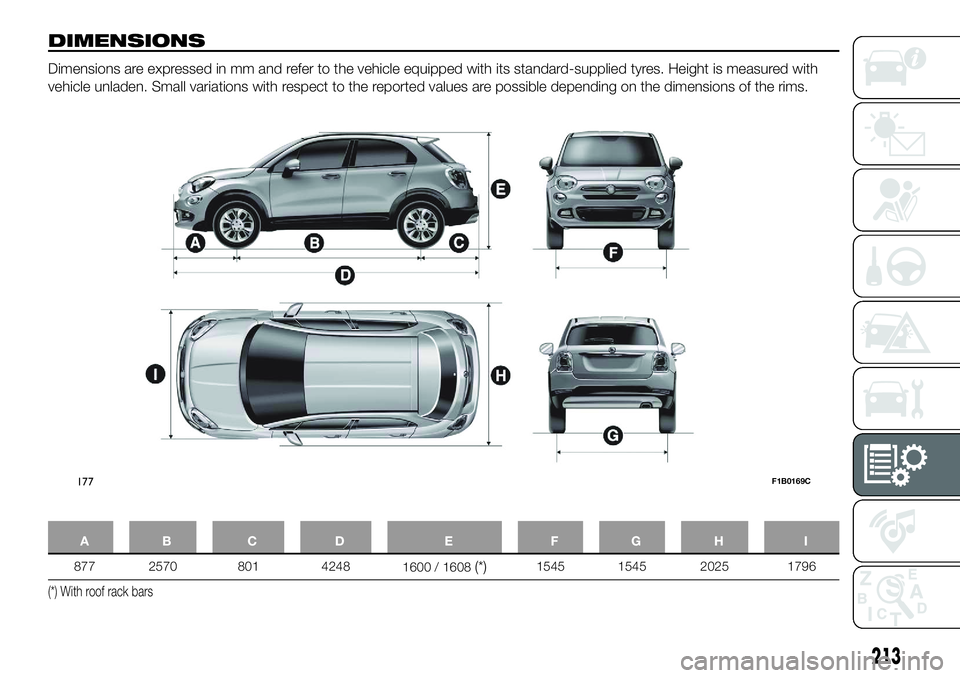

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D E FGH I
877 2570 801 4248 1600
/ 1608(*)1545 1545 2025 1796
(*) With roof rack bars
177F1B0169C
213

Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D E FGH I
902 2570 801 4273 1608
/ 1620(*)1545 1545 2025 1796
(*) 4x4 versions
178F1B0170C
214
TECHNICAL SPECIFICATIONS

WEIGHTS
Weights (kg) 1.4 T-Jet LPG 120 HP 1.4 Turbo MultiAir(°°)1.4 Turbo MultiAir(°)1.6 E.Torq
Unladen weight (with all
fluids,
fuel tank filled to
90% and without
optional equipment) 1320 1320 1430
1275 / 1320
(**)
Payload including the
driver(*)555555 / 540(**)670600 / 555(**)
Maximum permitted
loads(***)
– front axle 1050105011501050
– rear axle 9309001000 900
– total 1875187521001875
Towable loads
– braked trailer 9001200 1200 800
Maximum load on tow
hitch (trailer with brakes) 60
(*****)60
6060
Maximum load on
roof
(****)50 505050
(°°) Manual transmission versions with dual clutch (°) Versions with AT9 automatic transmission
(**) Version for specific markets (*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum
permissible loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted loads.
(*****) For some versions/markets, trailers cannot be towed so there are no provisions for fitting a tow hook. (****) With carrier rack
215

Weights (kg)2.4 Tigershark(*)1.3 Multijet 1.6 Multijet
Unladen weight (with all fluids,
fuel
tank filled to 90% and
without optional equipment) 1505 1320 1320
Payload including the driver
(**)595 555
555 / 580(*****)
Maximum permitted loads(***)
– front axle 115010501050
– rear axle 1000900900
– total 20801875
1875 / 1900
(*****)
Towable loads
– braked trailer 1200
(°)/ 900(°°)10001200 / 900(*****)
Maximum load on tow hitch
(trailer with brakes) 60 60 60
Maximum load on roof
(****)50 5050
(*) Version for specific markets
(**) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum
permissible loads.
(*****) Automatic transmission versions with dual clutch (***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted loads.
(°) 4x4 version
(°°) 4x2 version (****) With carrier rack
216
TECHNICAL SPECIFICATIONS

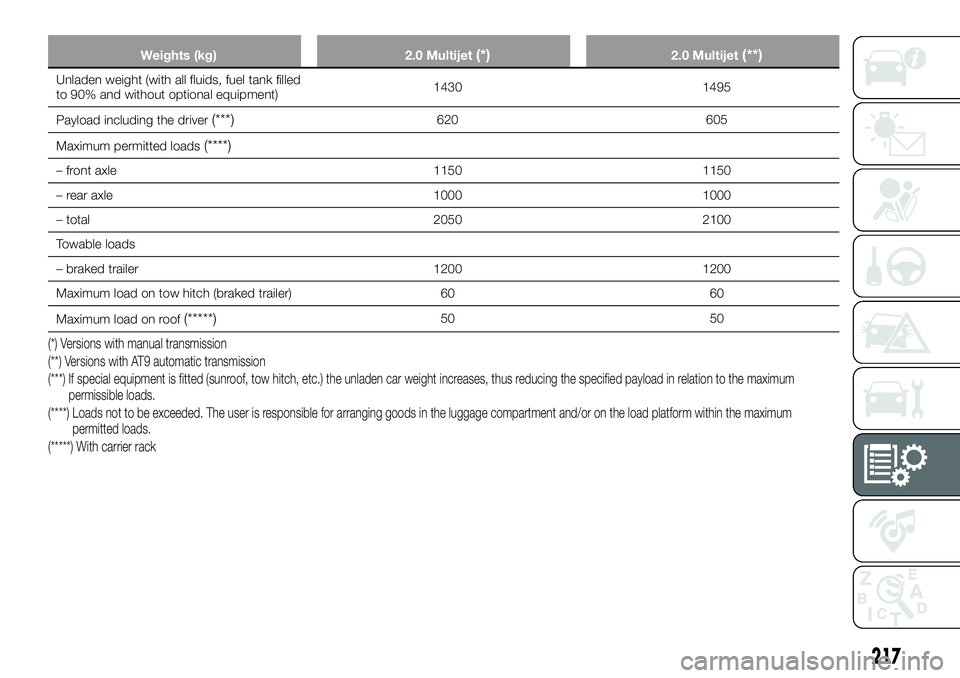

Weights (kg)2.0 Multijet(*)2.0 Multijet(**)
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment) 1430 1495
Payload including the driver
(***)620 605
Maximum permitted loads
(****)
– front axle 11501150
– rear axle 10001000
– total 20502100
Towable loads
– braked trailer 12001200
Maximum load on tow hitch (braked trailer) 6060
Maximum load on roof
(*****)50 50
(*) Versions with manual transmission
(**) Versions with AT9 automatic transmission
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum
permissible loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted loads.
(*****) With carrier rack
217

SUPPLIES
1.4 T-Jet
LPG 120 HP 1.4 Turbo
Multi Air(*)1.4 Turbo
Multi Air(**)Recommended fuels and original lubricants
Fuel tank (litres) 484848
Unleaded
petrol with RON no lower than 95
(EN228 specifications)
including a reserve of (litres) 5 - 7 5 - 7 5 - 7
Fuel tank (LPG) (litres) 38 – – LPG for motor vehicles (EN589 Specification)
Engine cooling system (litres) 5.2 5.2 5.2 Mixture of distilled water and PARAFLU
UP
50%(***)
Engine sump (litres)– 3.2 3.2 SELENIA DIGITEK P.E.
2.95 –– SELENIA Multipower GAS
Engine sump and filter (litres) – 3.6 3.6 SELENIA DIGITEK P.E.
3.25 – – SELENIA Multipower GAS
Gearbox casing/differential (litres) 2.0 1.8 2.1 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.83 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres) 2.5 2.5 2.5 Mixture of water and PETRONAS DURANCE
SC35
(*) Versions with manual transmission
(**) Automatic transmission versions with dual clutch
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLU
UPand 40% demineralised water.
218
