FIAT 500X 2019 Owner handbook (in English)

Warning light What it means

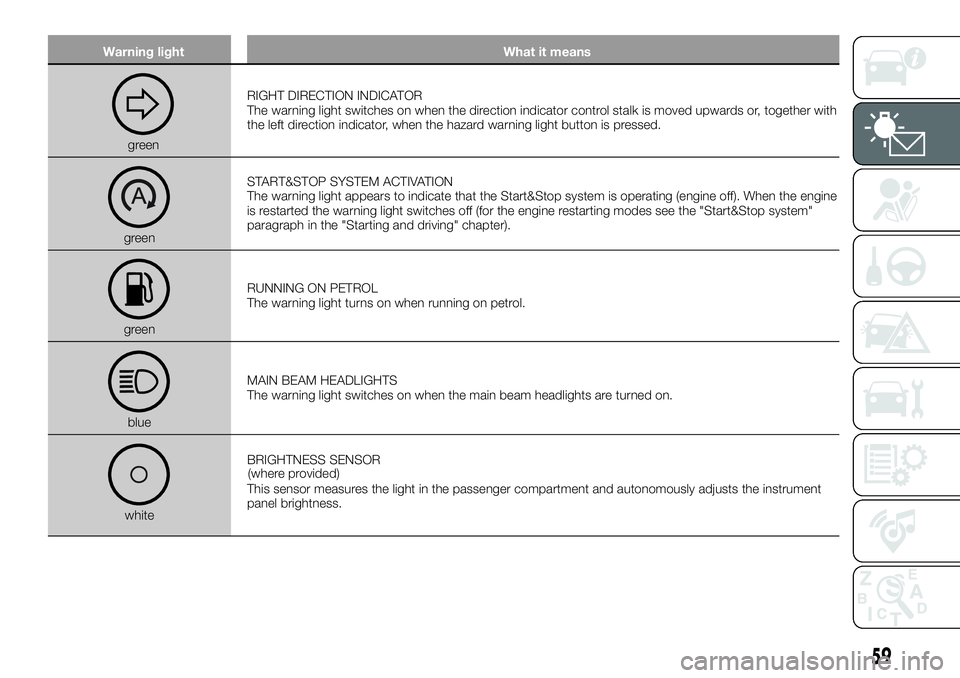

greenRIGHT DIRECTION INDICATOR
The warning light switches on when the direction indicator control stalk is moved upwards or, together with
the left direction indicator, when the hazard warning light button is pressed.
greenSTART&STOP SYSTEM ACTIVATION
The warning light appears to indicate that the Start&Stop system is operating (engine off). When the engine
is restarted the warning light switches off (for the engine restarting modes see the "Start&Stop system"
paragraph in the "Starting and driving" chapter).
greenRUNNING ON PETROL
The warning light turns on when running on petrol.
blueMAIN BEAM HEADLIGHTS
The warning light switches on when the main beam headlights are turned on.
whiteBRIGHTNESS SENSOR
This sensor measures the light in the passenger compartment and autonomously adjusts the instrument
panel brightness.
59
(where provided)

SYMBOLS ON THE DISPLAY
Symbol What it means
redLOW ENGINE OIL PRESSURE
The symbol switches on, together with a message on the display, if there is insufficient engine oil pressure.15)
IMPORTANT Do not use the car until the failure has been solved. The switching on of the symbol does not
show the quantity of oil in the engine: the oil level must be checked manually.
redAIR BAG FAILURE
If the symbol switches on constantly, this indicates a failure in the airbag system. Contact a Fiat Dealership
as soon as possible.
redBONNET NOT PROPERLY SHUT
The symbol switches on when the engine bonnet is not properly shut. Close the bonnet properly.
redTAILGATE NOT PROPERLY SHUT
The symbol switches on when the tailgate is not properly shut. Close the tailgate correctly.
redAT9 AUTOMATIC TRANSMISSION FAILURE / DUAL CLUTCH AUTOMATIC TRANSMISSION FAILURE
The symbol turns on to indicate that there is a failure in the automatic transmission or in the dual clutch
automatic transmission. Contact a Fiat Dealership as soon as possible.16)
60
KNOWING THE INSTRUMENT PANEL

Symbol What it means
redALTERNATOR FAILURE
The switching on of the symbol with engine on corresponds to an alternator failure. Contact a Fiat
Dealership as soon as possible.
redDOOR OPEN
The symbol switches on when one or more doors are not completely shut. An acoustic signal is activated
with the doors open and the car moving. Close the doors properly.
yellow
yellowFULL BRAKE CONTROL SYSTEM FAILURE
The symbols switch on (with the displayed message) in the case of failure of the Full Brake Control system.
Contact a Fiat Dealership as soon as possible.
yellowLANE ASSIST SYSTEM FAILURE
The symbol comes on in the case of permanent Lane Assist system failure. Contact a Fiat Dealership as
soon as possible.
61

Symbol What it means

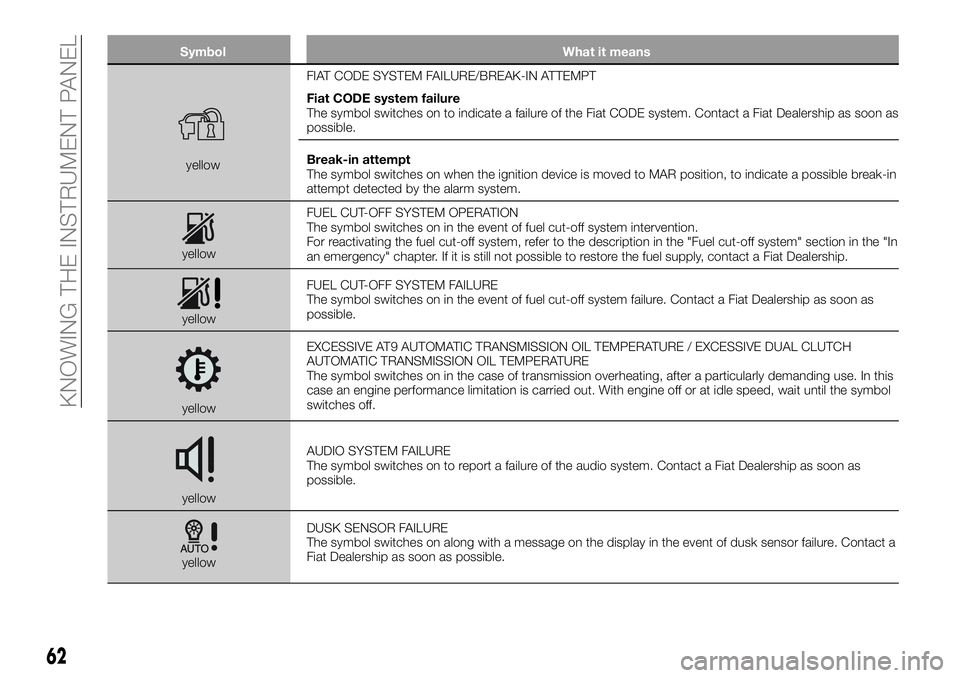

yellowFIAT CODE SYSTEM FAILURE/BREAK-IN ATTEMPT
Fiat CODE system failure
The symbol switches on to indicate a failure of the Fiat CODE system. Contact a Fiat Dealership as soon as
possible.
Break-in attempt
The symbol switches on when the ignition device is moved to MAR position, to indicate a possible break-in
attempt detected by the alarm system.
yellowFUEL CUT-OFF SYSTEM OPERATION
The symbol switches on in the event of fuel cut-off system intervention.
For reactivating the fuel cut-off system, refer to the description in the "Fuel cut-off system" section in the "In
an emergency" chapter. If it is still not possible to restore the fuel supply, contact a Fiat Dealership.
yellowFUEL CUT-OFF SYSTEM FAILURE
The symbol switches on in the event of fuel cut-off system failure. Contact a Fiat Dealership as soon as
possible.
yellowEXCESSIVE AT9 AUTOMATIC TRANSMISSION OIL TEMPERATURE / EXCESSIVE DUAL CLUTCH
AUTOMATIC TRANSMISSION OIL TEMPERATURE
The symbol switches on in the case of transmission overheating, after a particularly demanding use. In this
case an engine performance limitation is carried out. With engine off or at idle speed, wait until the symbol
switches off.
yellowAUDIO SYSTEM FAILURE
The symbol switches on to report a failure of the audio system. Contact a Fiat Dealership as soon as
possible.
yellowDUSK SENSOR FAILURE
The symbol switches on along with a message on the display in the event of dusk sensor failure. Contact a
Fiat Dealership as soon as possible.
62
KNOWING THE INSTRUMENT PANEL

Symbol What it means

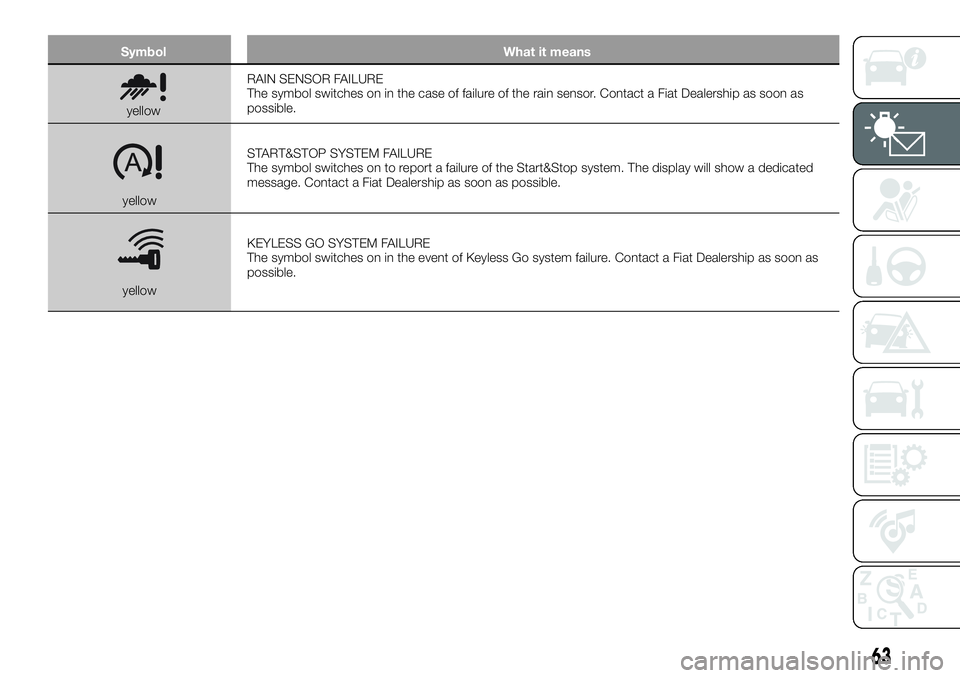

yellowRAIN SENSOR FAILURE
The symbol switches on in the case of failure of the rain sensor. Contact a Fiat Dealership as soon as
possible.
yellowSTART&STOP SYSTEM FAILURE
The symbol switches on to report a failure of the Start&Stop system. The display will show a dedicated
message. Contact a Fiat Dealership as soon as possible.
yellowKEYLESS GO SYSTEM FAILURE
The symbol switches on in the event of Keyless Go system failure. Contact a Fiat Dealership as soon as
possible.
63

Symbol What it means
yellowPOSSIBLE ICE ON ROAD
The symbol turns on when the outside temperature falls to or below 3°C.
IMPORTANT In the event of outside temperature sensor failure, the digits that indicate the value are
replaced by dashes.
yellowSPEED LIMITER FAILURE
The symbol switches on in the case of failure of the Speed Limiter device. Contact a Fiat Dealership as
soon as possible to have the failure eliminated.
yellow4x4 ALL-WHEEL TRANSMISSION SYSTEM FAILURE
The symbol turns on to indicate that there is a failure in the four-wheel drive system. Contact a Fiat
Dealership as soon as possible.
yellowEXTERIOR LIGHTS FAILURE
The symbol switches on to indicate a failure on the following lights: daytime running lights (DRLs); parking
lights; side lights; direction indicators; rear fog light; reversing light; number plate lights; brake lights, LED
dipped beam headlights (where provided).
The failure may be caused by a blown bulb, a blown protection fuse or an interruption of the electrical
connection.
yellowAUTOMATIC MAIN BEAM HEADLIGHTS FAILURE
The symbol switches on to report a failure of the automatic main beam headlights. Contact a Fiat
Dealership as soon as possible.
64
KNOWING THE INSTRUMENT PANEL

Symbol What it means

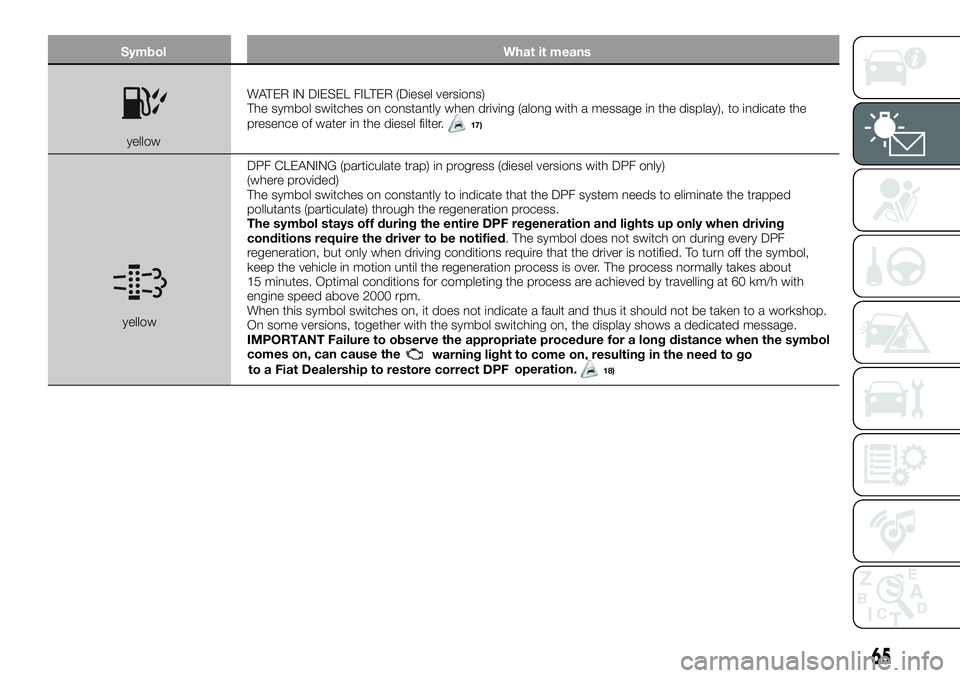

yellowWATER IN DIESEL FILTER (Diesel versions)
The symbol switches on constantly when driving (along with a message in the display), to indicate the
presence of water in the diesel filter.
17)
yellowDPF CLEANING (particulate trap) in progress (diesel versions with DPF only)
(where provided)
The symbol switches on constantly to indicate that the DPF system needs to eliminate the trapped
pollutants (particulate) through the regeneration process.
The symbol stays off during the entire DPF regeneration and lights up only when driving
conditions require the driver to be notified. The symbol does not switch on during every DPF
regeneration, but only when driving conditions require that the driver is notified. To turn off the symbol,
keep the vehicle in motion until the regeneration process is over. The process normally takes about
15 minutes. Optimal conditions for completing the process are achieved by travelling at 60 km/h with
engine speed above 2000 rpm.
When this symbol switches on, it does not indicate a fault and thus it should not be taken to a workshop.
On some versions, together with the symbol switching on, the display shows a dedicated message.
IMPORTANT Failure to observe the appropriate procedure for a long distance when the symbol
comes on, can cause the
warning light to come on, resulting in the need to go
to a Fiat Dealership to restore correct DPFoperation.18)
65

Symbol What it means

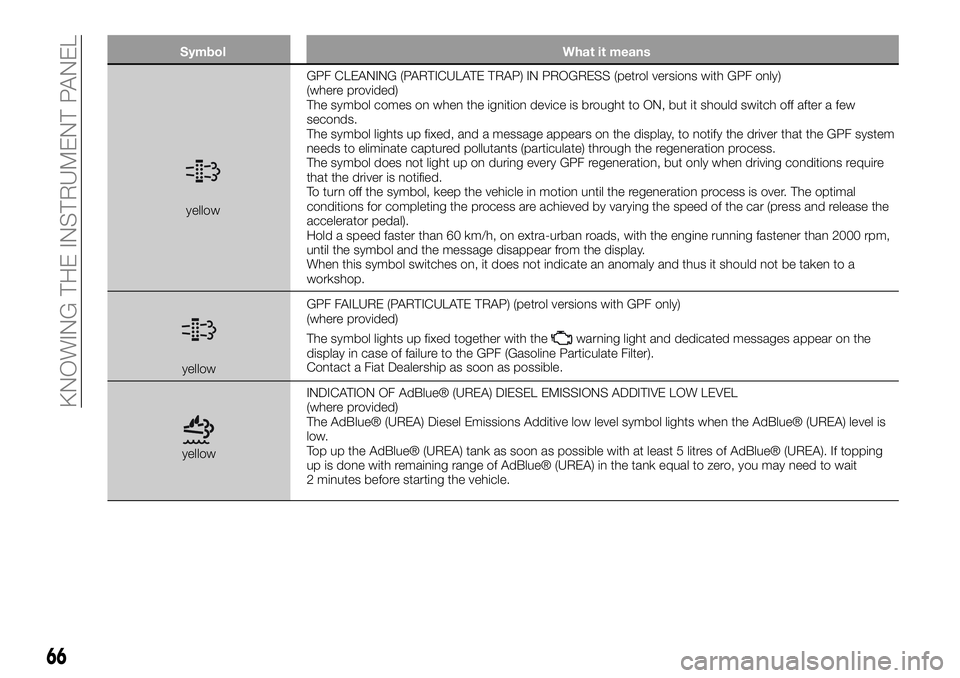

yellowGPF CLEANING (PARTICULATE TRAP) IN PROGRESS (petrol versions with GPF only)
(where provided)
The symbol comes on when the ignition device is brought to ON, but it should switch off after a few
seconds.
The symbol lights up fixed, and a message appears on the display, to notify the driver that the GPF system
needs to eliminate captured pollutants (particulate) through the regeneration process.
The symbol does not light up on during every GPF regeneration, but only when driving conditions require
that the driver is notified.
To turn off the symbol, keep the vehicle in motion until the regeneration process is over. The optimal
conditions for completing the process are achieved by varying the speed of the car (press and release the
accelerator pedal).
Hold a speed faster than 60 km/h, on extra-urban roads, with the engine running fastener than 2000 rpm,
until the symbol and the message disappear from the display.
When this symbol switches on, it does not indicate an anomaly and thus it should not be taken to a
workshop.
yellowGPF FAILURE (PARTICULATE TRAP) (petrol versions with GPF only)
(where provided)
The symbol lights up fixed together with the
warning light and dedicated messages appear on the
display in case of failure to the GPF (Gasoline Particulate Filter).
Contact a Fiat Dealership as soon as possible.
yellowINDICATION OF AdBlue® (UREA) DIESEL EMISSIONS ADDITIVE LOW LEVEL
(where provided)
The AdBlue® (UREA) Diesel Emissions Additive low level symbol lights when the AdBlue® (UREA) level is
low.
Top up the AdBlue® (UREA) tank as soon as possible with at least 5 litres of AdBlue® (UREA). If topping
up is done with remaining range of AdBlue® (UREA) in the tank equal to zero, you may need to wait
2 minutes before starting the vehicle.
66
KNOWING THE INSTRUMENT PANEL

Symbol What it means

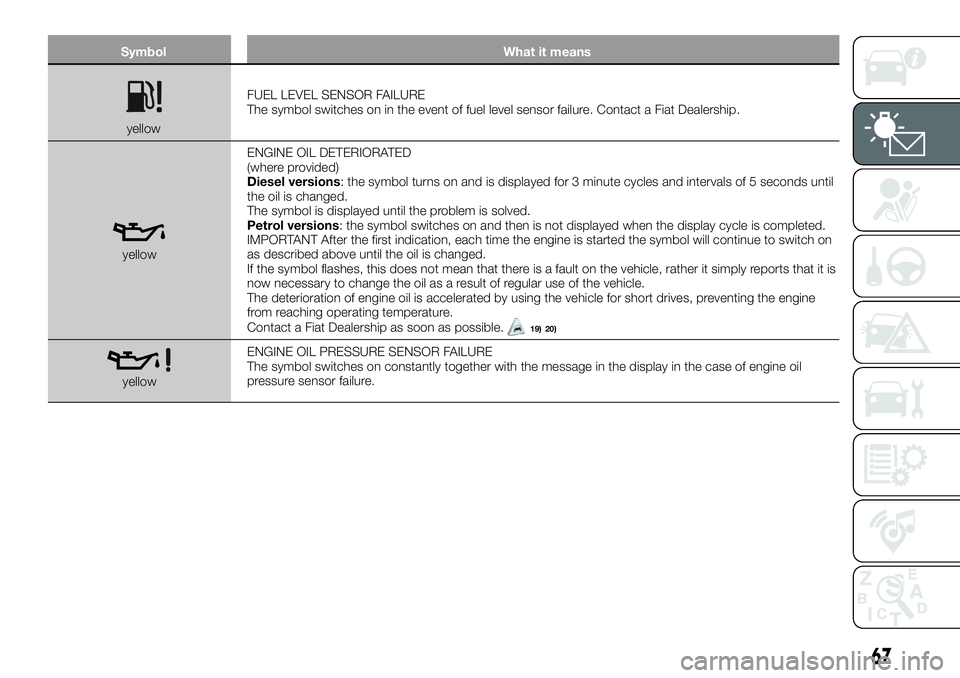

yellowFUEL LEVEL SENSOR FAILURE
The symbol switches on in the event of fuel level sensor failure. Contact a Fiat Dealership.
yellowENGINE OIL DETERIORATED
(where provided)
Diesel versions: the symbol turns on and is displayed for 3 minute cycles and intervals of 5 seconds until
the oil is changed.
The symbol is displayed until the problem is solved.
Petrol versions: the symbol switches on and then is not displayed when the display cycle is completed.
IMPORTANT After the first indication, each time the engine is started the symbol will continue to switch on
as described above until the oil is changed.
If the symbol flashes, this does not mean that there is a fault on the vehicle, rather it simply reports that it is
now necessary to change the oil as a result of regular use of the vehicle.
The deterioration of engine oil is accelerated by using the vehicle for short drives, preventing the engine
from reaching operating temperature.
Contact a Fiat Dealership as soon as possible.
19) 20)
yellowENGINE OIL PRESSURE SENSOR FAILURE
The symbol switches on constantly together with the message in the display in the case of engine oil
pressure sensor failure.
67

Symbol What it means
yellowTRAFFIC SIGN RECOGNITION SYSTEM FAILURE (where provided)
The symbol comes on, on some versions together with a message, in the event of Traffic Sign Recognition
system failure.
Contact a Fiat Dealership as soon as possible.
yellowADAPTIVE CRUISE CONTROL (ACC) FAILURE
(where provided)
The symbol turns on (together with a message on the display) to indicate an Adaptive Cruise Control (ACC)
system failure. Contact a Fiat Dealership.
yellowSCHEDULED SERVICING (SERVICE)
The “Service Schedule” includes car maintenance at fixed intervals (refer to the "Maintenance and care"
chapter). When the next scheduled service is approaching, the symbol will be displayed, followed by the
number of kilometres/miles or days (where provided) left, when the ignition device is turned to MAR.
This is displayed automatically, with ignition device at MAR, 2000 km before servicing or, where provided,
30 days before servicing. It is also displayed each time the ignition device is turned to MAR. The display will
be in km or miles depending on the unit of measurement set.
Go to a Fiat Dealership, where the "Scheduled Servicing Plan" operations will be performed and the
message will be reset.
whiteThis symbol turns on to indicate that the clutch pedal must be pressed to enable starting.
whiteThis symbol appears to suggest engaging a higher gear (upshifting).
whiteThe symbol appears to suggest engaging a lower gear (downshifting).
68
