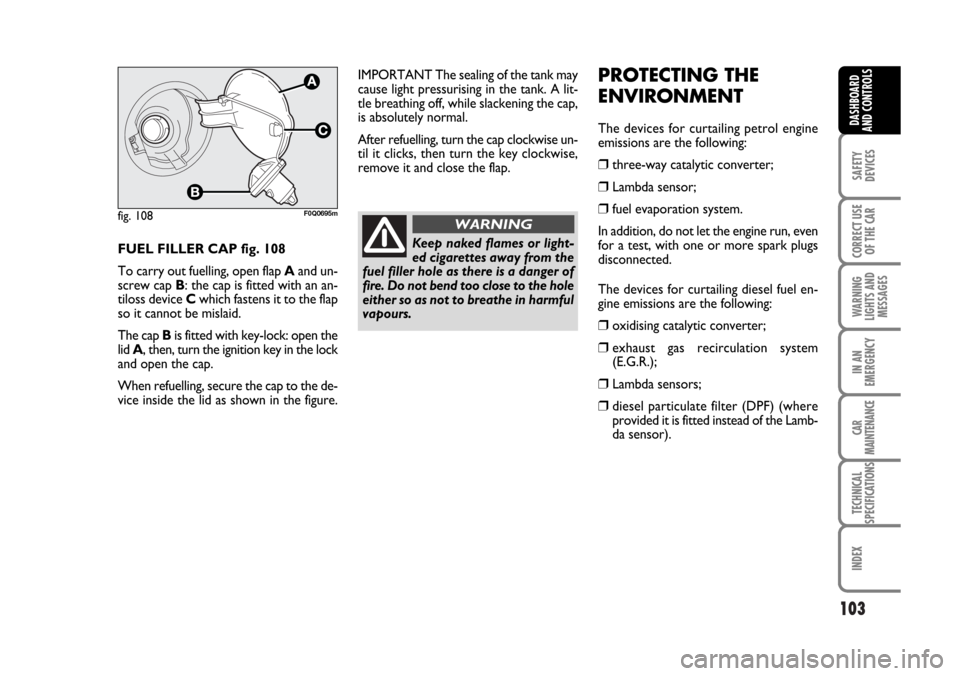

FUEL FILLER CAP fig. 108
To carry out fuelling, open flap Aand un-
screw cap B: the cap is fitted with an an-
tiloss device Cwhich fastens it to the flap
so it cannot be mislaid.
The cap Bis fitted with key-lock: open the
lid A, then, turn the ignition key in the lock
and open the cap.
When refuelling, secure the cap to the de-
vice inside the lid as shown in the figure. IMPORTANT The sealing of the tank may
cause light pressurising in the tank. A lit-
tle breathing off, while slackening the cap,
is absolutely normal.
After refuelling, turn the cap clockwise un-
til it clicks, then turn the key clockwise,
remove it and close the flap.
fig. 108F0Q0695m
Keep naked flames or light-
ed cigarettes away from the
fuel filler hole as there is a danger of
fire. Do not bend too close to the hole
either so as not to breathe in harmful
vapours.
WARNING
PROTECTING THE
ENVIRONMENT
The devices for curtailing petrol engine
emissions are the following:
❒three-way catalytic converter;
❒Lambda sensor;
❒fuel evaporation system.
In addition, do not let the engine run, even
for a test, with one or more spark plugs
disconnected.
The devices for curtailing diesel fuel en-
gine emissions are the following:
❒oxidising catalytic converter;
❒exhaust gas recirculation system
(E.G.R.);
❒Lambda sensors;
❒diesel particulate filter (DPF) (where
provided it is fitted instead of the Lamb-
da sensor).
083-104 BRAVO GB 10-05-2007 9:10 Pagina 103

194
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE
Thousands of km
Check exhaust emissions (petrol versions)
Check emissions/fumes (diesel versions)
Check evaporation control system (petrol versions)
Check operation of engine control systems
(by means of test interface)
Replace accessory drive belt/s
Replace toothed timing belt (petrol versions) (*)
Replace toothed timing belt (1.9 Multijet 8Vversions) (*)
Replace toothed timing belt (1.9 Multijet 16Vversions) (*)
Replace spark plugs (petrol versions)
Replace fuel filter (diesel versions)
Replace air filter cartridge (petrol versions)
Replace air filter cartridge (diesel versions)
Replace engine oil and oil filter (petrol versions)
(or every 24 months)
Change engine oil and oil filter (diesel versions without DPF)
(or every 24 months)
Change engine oil and oil filter (diesel versions with DPF) (**)
Change brake fluid (or every 24 months)
Change pollen filter (or every 12 months)
(*) Irrespective of mileage, the timing drive belt must be replace every 4 years for heavy duty applications, cold climates, town use, long
periods idling) or at least every 5 years.
(**)The engine oil and oil filter should be changed depending on their actual condition, which is indicated by a warning light/message on the
control panel or at least every 2 years.
For 1.4 T-JET 150 HP version, in order to ensure correct operation and avoid significant damages to the engine, it is mandatory:
- to use spark plugs specifically certified for the T-JET engine only, of the same type and brand (see paragraph “Engine”);
- to replace the plugs as often as required by the Programmed Maintenance Plan;
- we recommend to refer to the Fiat Dealership.
If the car is used mainly on urban routes or if the yearly kilometres travelled are less than 10,000 km, the engine oil and filter must be changed every 12 months.
30 60 90 120 150 180
●● ● ●● ●
●● ● ●● ●
●●
●● ● ●● ●
●
●
●
●
●● ● ●● ●
●●●
●●●
●●●
●● ● ●● ●
●● ● ●● ●
●●●
●● ● ●● ●
191-212 BRAVO GB 10-05-2007 9:21 Pagina 194

1.9
Multijet 8V
192A8000
Diesel
4 in line
82.0 x 90.4
1910
18
88
120
4000
255
26
2000
–
Diesel fuel for
motor vehicles
(Specification
EN590)
217
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
TECHNICAL
SPECIFICATIONS
1.4 16V
192B2000
Otto
4 in line
72.0 x 84.0
1368
11
66
90
5500
128
13
4500
NGK
DCPR7E-N-10
Unleaded
petrol
95 RON
(Specification
EN228)
1.9
Multijet 16V
937A5000
Diesel
4 in line
82.0 x 90.4
1910
17.5
110
150
4000
305
31
2000
–
Diesel fuel for
motor vehicles
(Specification
EN590)
1.9
Multijet 8V (●)
192B5000
Diesel
4 in line
82.0 x 90.4
1910
18
66
90
4000
255
26
2000
–
Diesel fuel for
motor vehicles
(Specification
EN590)
1.9
Multijet 8V (●)
192B4000
Diesel
4 in line
82.0 x 90.4
1910
18
85
115
4000
255
26
2000
–
Diesel fuel for
motor vehicles
(Specification
EN590)
1.4 T-JET
150 HP
198A1000
Otto
4
in line
72.0 x 84.0
1368
9.8
110
150
5500
206
21
2250
NGK
IKR9F8
Unleaded
petrol
95 RON
(Specification
EN228)
ENGINE
GENERAL
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Spark plugs
Fuel
(●)Versions for specific markets
213-236 BRAVO GB 16-05-2007 10:11 Pagina 217

239
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Steering wheel ...................................... 40
Sun roof ................................................. 72
Sun visors .............................................. 71
Suspensions ........................................... 219
Symbols .................................................. 8
T.P.M.S. system .................................... 96
Technical specifications .............. 213
Third brake light
(bulb replacement) ........................... 174
Towing the car ..................................... 189
Towing trailers ..................................... 137
Transmission ........................................ 218
Trip Computer ................................... 35
Tyres
– replacement .................................... 157
– snow tyres ...................................... 139
– standard tyres ................................ 222
– tyre marking ................................... 220
– pressure ............................................ 223
Using the gearbox ............................. 134
Isofix child restraint system .............. 117
Warning lights and messages... 141
Weights ................................................. 226Wheel geometry ................................. 220
Wheels and tyres ....................... 204-220
When needing to change a bulb ...... 167
Window washing ................................. 57
Windows (cleaning) ............................ 210 Remote control: ministerial
homologations ................................... 232
Right hand drive versions............ 234
Rim marking .......................................... 221
Roof rack/ski rack ............................... 84
Rubber hoses ....................................... 205
Safe lock device .................................. 14
S.B.R system ......................................... 108
Safety devices................................... 105
Seat belts ............................................... 106
Seats ........................................................ 37
– cleaning ............................................ 210
– manual adjustment ........................ 37
– electrical adjustment .................... 38
– seat warming .................................. 38
Side lights
– activation ......................................... 55
– bulbs replacement ................ 171-172
Smart washing function ...................... 58
Snow chains .......................................... 139
Sound System ....................................... 92
Spark plugs ............................................ 217
Sport function ...................................... 95
Spray nozzles ........................................ 207
Steering .................................................. 219
Steering column lock .......................... 19
