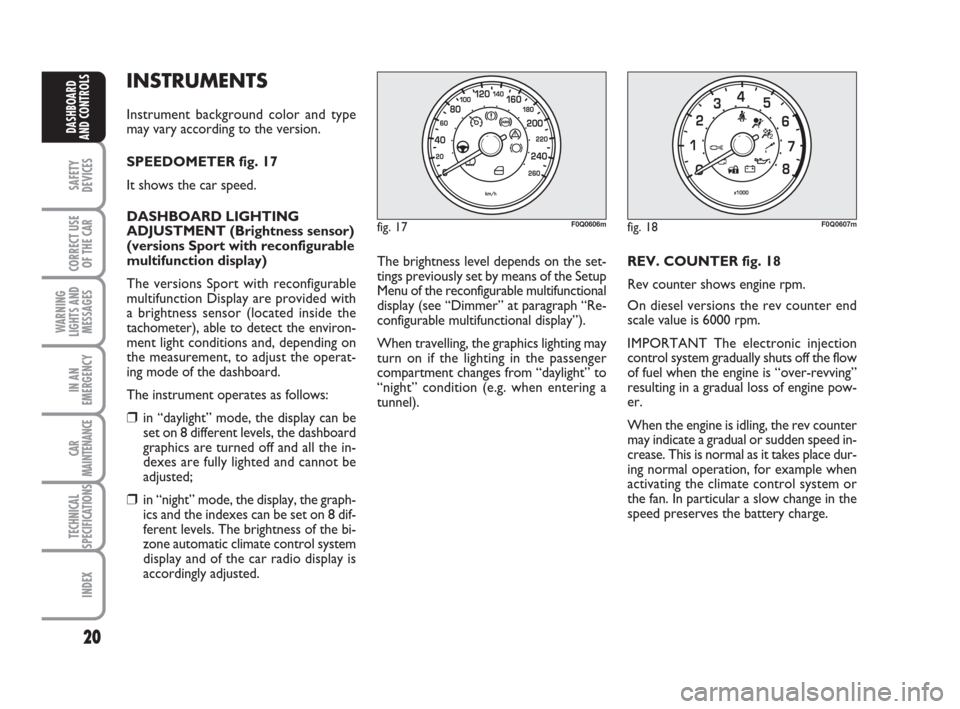

SPEEDOMETER fig. 17
It shows the car speed.
DASHBOARD LIGHTING
ADJUSTMENT (Brightness sensor)
(versions Sport with reconfigurable
multifunction display)
The versions Sport with reconfigurable
multifunction Display are provided with
a brightness sensor (located inside the
tachometer), able to detect the environ-
ment light conditions and, depending on
the measurement, to adjust the operat-
ing mode of the dashboard.
The instrument operates as follows:
❒in “daylight” mode, the display can be
set on 8 different levels, the dashboard
graphics are turned off and all the in-
dexes are fully lighted and cannot be
adjusted;
❒in “night” mode, the display, the graph-
ics and the indexes can be set on 8 dif-
ferent levels. The brightness of the bi-
zone automatic climate control system
display and of the car radio display is
accordingly adjusted.REV. COUNTER fig. 18
Rev counter shows engine rpm.
On diesel versions the rev counter end
scale value is 6000 rpm.
IMPORTANT The electronic injection
control system gradually shuts off the flow
of fuel when the engine is “over-revving”
resulting in a gradual loss of engine pow-
er.
When the engine is idling, the rev counter
may indicate a gradual or sudden speed in-
crease. This is normal as it takes place dur-
ing normal operation, for example when
activating the climate control system or
the fan. In particular a slow change in the
speed preserves the battery charge.
fig. 18F0Q0607mfig. 17F0Q0606m
The brightness level depends on the set-
tings previously set by means of the Setup
Menu of the reconfigurable multifunctional
display (see “Dimmer” at paragraph “Re-
configurable multifunctional display”).
When travelling, the graphics lighting may
turn on if the lighting in the passenger
compartment changes from “daylight” to
“night” condition (e.g. when entering a
tunnel).
001-022 BRAVO GB 29-10-2008 12:36 Pagina 20

21
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
If the needle reaches the red
area, stop the engine immedi-
ately and contact a Fiat Deal-
ership.fig. 19F0Q0608m
ENGINE COOLANT
TEMPERATURE GAUGE
This shows the temperature of the engine
coolant fluid and begins working when the
fluid temperature exceeds approx. 50°C.
Under normal conditions, the needle
should move to different positions of the
scale according to the conditions of use
of the car.
C- Low engine coolant temperature.
H- High engine coolant temperature.The turning on of the warning light B-fig.
19(together with the message shown on
the display) indicates that the coolant flu-
id temperature is too high; in this case,
stop the engine and contact a Fiat Deal-
ership. FUEL LEVEL GAUGE
This shows the amount of fuel left in the
fuel tank.
The reserve warning light A-fig. 19turns
on to indicate that approx. 8-10 litres of
fuel are left in the tank.
E- tank empty.
F- tank full (see contents of “At the filling
station” paragraph in this chapter).
Do not travel with the tank almost emp-
ty because the catalytic converter could
become damaged.
IMPORTANT The needle sets to Ewith
warning light Aflashing to indicate that the
system is failing. In this event contact Fiat
Dealership to have the system checked.
001-022 BRAVO GB 29-10-2008 12:36 Pagina 21

22
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

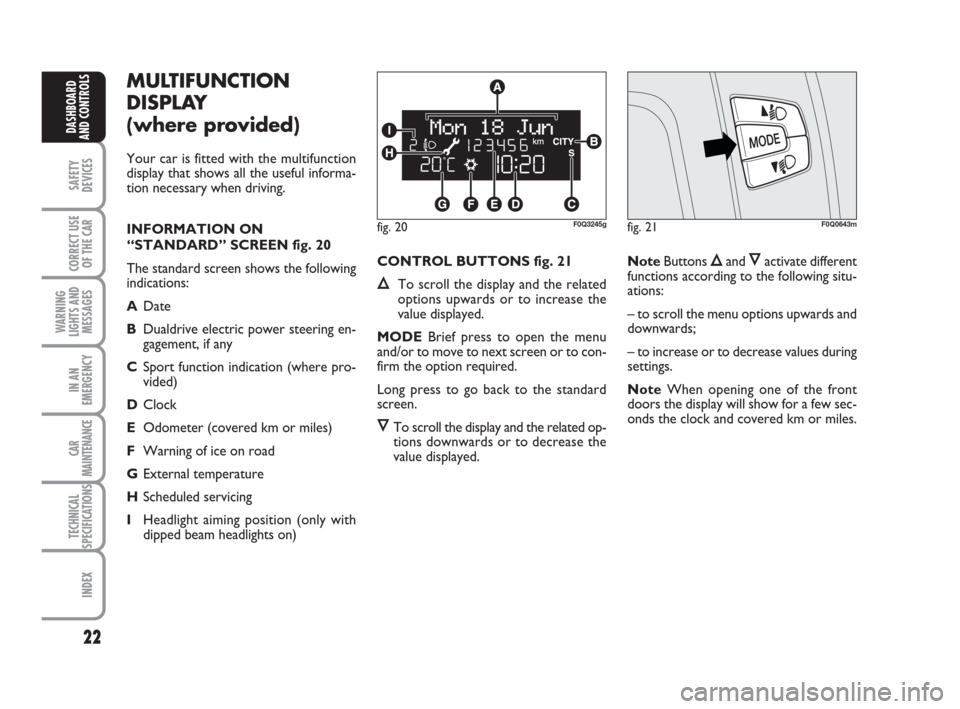

MULTIFUNCTION
DISPLAY
(where provided)
Your car is fitted with the multifunction
display that shows all the useful informa-
tion necessary when driving.
INFORMATION ON
“STANDARD” SCREEN fig. 20
The standard screen shows the following
indications:
ADate
BDualdrive electric power steering en-
gagement, if any
CSport function indication (where pro-
vided)
DClock
EOdometer (covered km or miles)
FWarning of ice on road
GExternal temperature
HScheduled servicing
IHeadlight aiming position (only with
dipped beam headlights on)CONTROL BUTTONS fig. 21
ÕTo scroll the display and the related
options upwards or to increase the
value displayed.
MODEBrief press to open the menu
and/or to move to next screen or to con-
firm the option required.
Long press to go back to the standard
screen.
ÔTo scroll the display and the related op-
tions downwards or to decrease the
value displayed.NoteButtons
Õand Ôactivate different
functions according to the following situ-
ations:
– to scroll the menu options upwards and
downwards;
– to increase or to decrease values during
settings.
NoteWhen opening one of the front
doors the display will show for a few sec-
onds the clock and covered km or miles.
fig. 20F0Q3245gfig. 21F0Q0643m
001-022 BRAVO GB 29-10-2008 12:36 Pagina 22

23
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

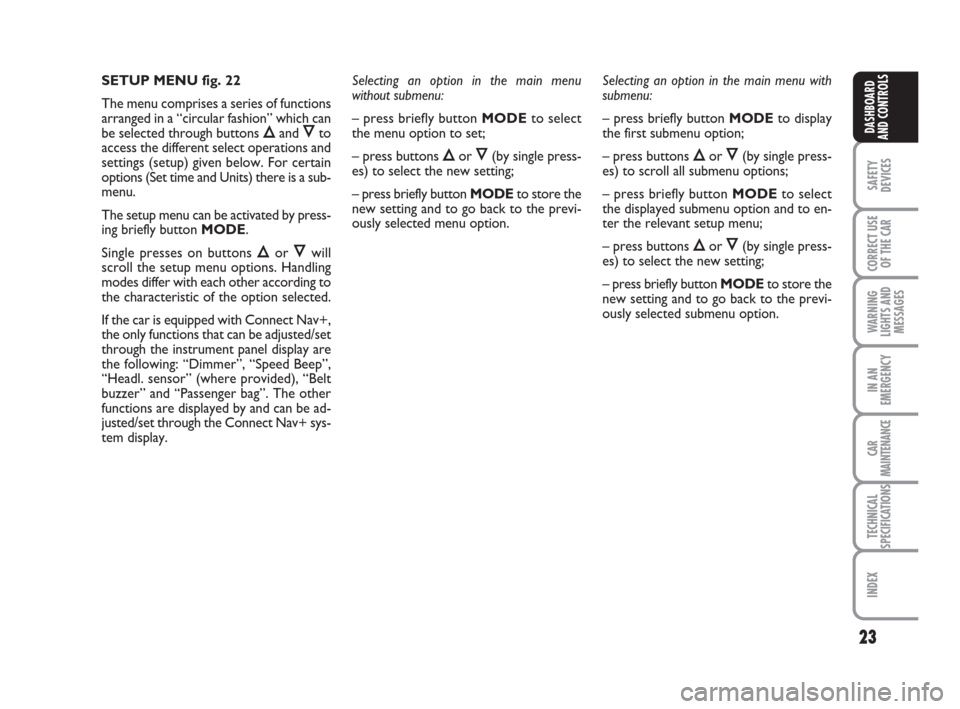

SETUP MENU fig. 22
The menu comprises a series of functions
arranged in a “circular fashion” which can
be selected through buttons
Õand Ôto
access the different select operations and
settings (setup) given below. For certain
options (Set time and Units) there is a sub-
menu.
The setup menu can be activated by press-
ing briefly button MODE.
Single presses on buttons
Õor Ôwill
scroll the setup menu options. Handling
modes differ with each other according to
the characteristic of the option selected.
If the car is equipped with Connect Nav+,
the only functions that can be adjusted/set
through the instrument panel display are
the following: “Dimmer”, “Speed Beep”,
“Headl. sensor” (where provided), “Belt
buzzer” and “Passenger bag”. The other
functions are displayed by and can be ad-
justed/set through the Connect Nav+ sys-
tem display.Selecting an option in the main menu
without submenu:
– press briefly button MODEto select
the menu option to set;
– press buttons
Õor Ô(by single press-
es) to select the new setting;
– press briefly button MODEto store the
new setting and to go back to the previ-
ously selected menu option.Selecting an option in the main menu with
submenu:
– press briefly button MODEto display
the first submenu option;
– press buttons Õor Ô(by single press-
es) to scroll all submenu options;
– press briefly button MODEto select
the displayed submenu option and to en-
ter the relevant setup menu;
– press buttons
Õor Ô(by single press-
es) to select the new setting;
– press briefly button MODEto store the
new setting and to go back to the previ-
ously selected submenu option.
023-036 BRAVO GB 29-10-2008 12:36 Pagina 23

24
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

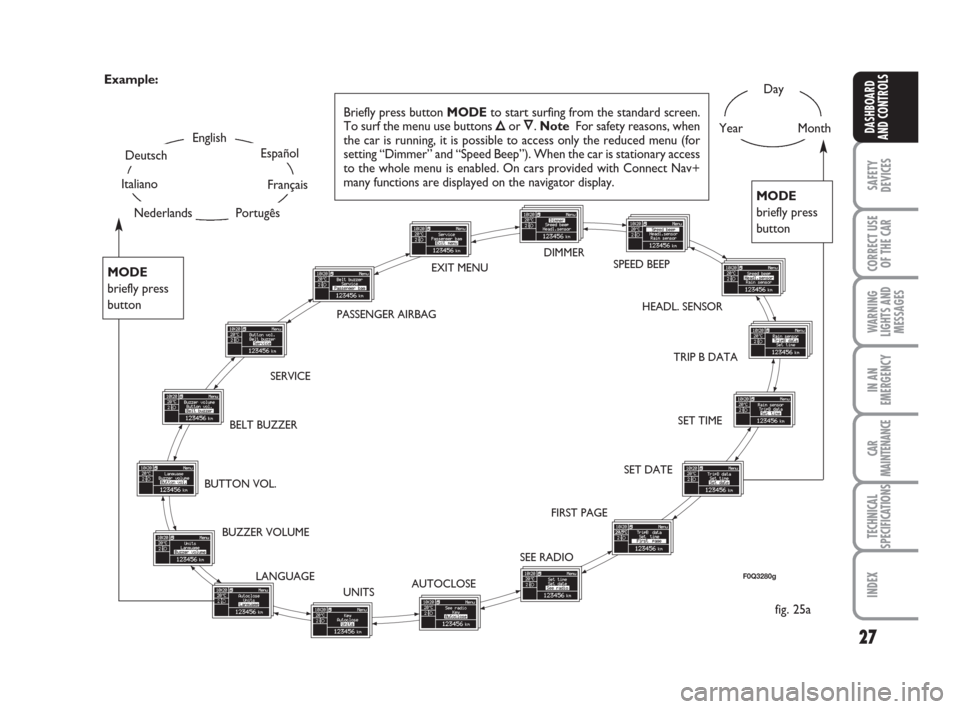

Day
YearMonthEnglish
Portugês
Español
Français
Deutsch
Italiano
BELT BUZZER
HEADL. SENSOR
SET TIME
SET DATE
SEE RADIO
AUTOCLOSE UNITS LANGUAGE BUZZER VOLUMEBUTTON VOL. SERVICE

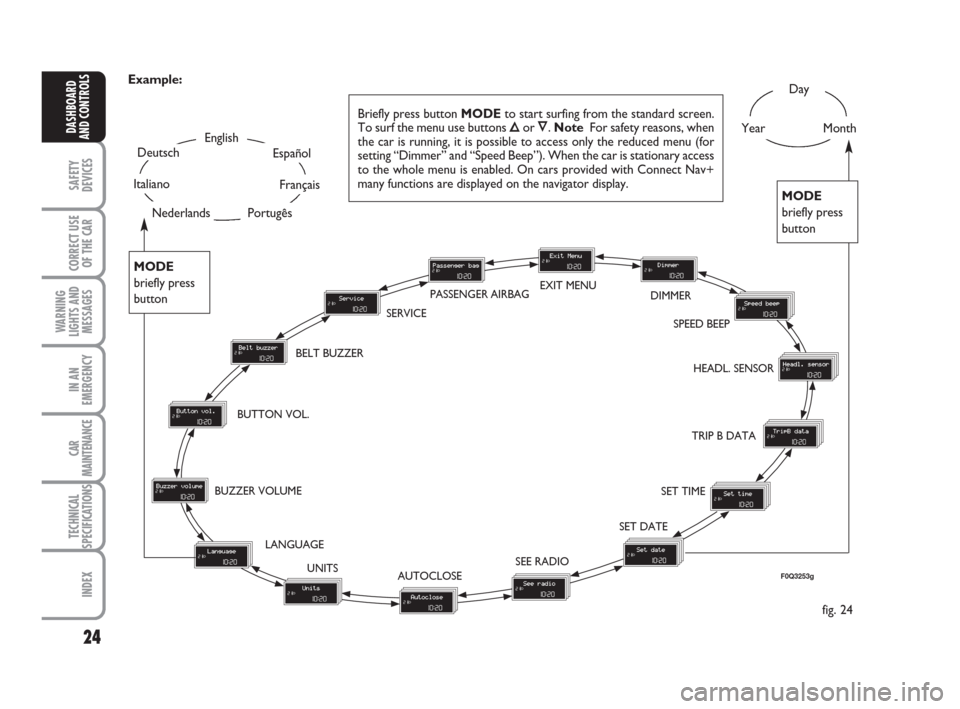

Briefly press button MODEto start surfing from the standard screen.
To surf the menu use buttons Õor Ô. Note For safety reasons, when
the car is running, it is possible to access only the reduced menu (for
setting “Dimmer” and “Speed Beep”). When the car is stationary access
to the whole menu is enabled. On cars provided with Connect Nav+
many functions are displayed on the navigator display.
MODE
briefly press
button
Example:
fig. 24
F0Q3253g
TRIP B DATA SPEED BEEP DIMMER EXIT MENU
Nederlands
MODE
briefly press
button
PASSENGER AIRBAG
023-036 BRAVO GB 29-10-2008 12:36 Pagina 24

25
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
RECONFIGURABLE
MULTIFUNCTION
DISPLAY
(where provided)

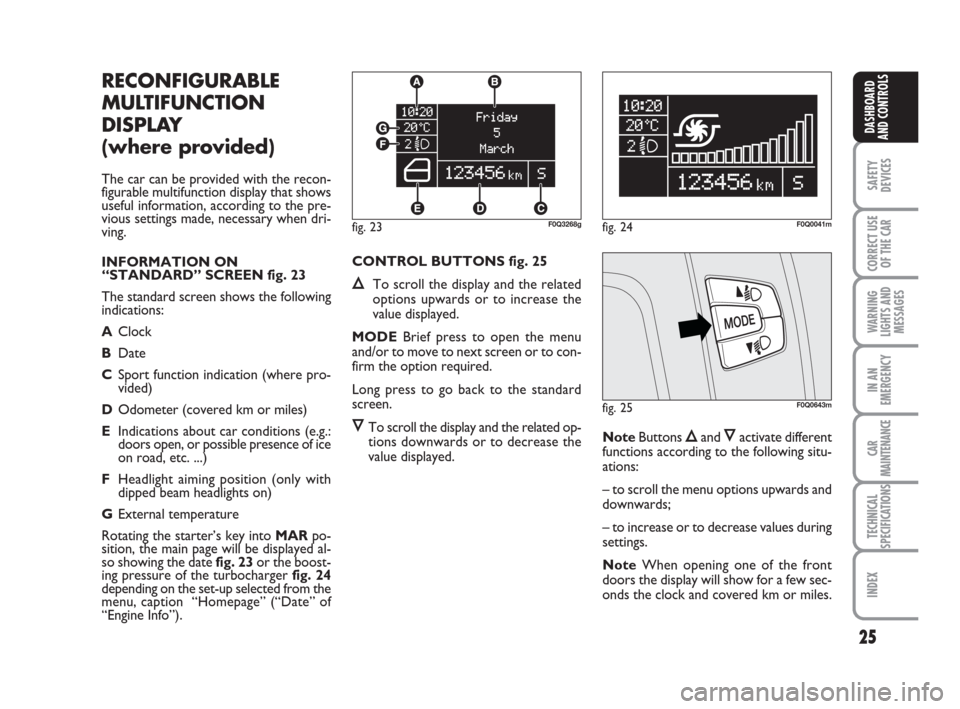

The car can be provided with the recon-
figurable multifunction display that shows
useful information, according to the pre-
vious settings made, necessary when dri-
ving.
INFORMATION ON
“STANDARD” SCREEN fig. 23
The standard screen shows the following
indications:
AClock
BDate
CSport function indication (where pro-
vided)
DOdometer (covered km or miles)
EIndications about car conditions (e.g.:
doors open, or possible presence of ice
on road, etc. ...)
FHeadlight aiming position (only with
dipped beam headlights on)
GExternal temperature
Rotating the starter’s key into MARpo-
sition, the main page will be displayed al-
so showing the date fig. 23or the boost-
ing pressure of the turbocharger fig. 24
depending on the set-up selected from the
menu, caption “Homepage” (“Date” of
“Engine Info”).CONTROL BUTTONS fig. 25
ÕTo scroll the display and the related
options upwards or to increase the
value displayed.
MODEBrief press to open the menu
and/or to move to next screen or to con-
firm the option required.
Long press to go back to the standard
screen.
ÔTo scroll the display and the related op-
tions downwards or to decrease the
value displayed.NoteButtons Õand Ôactivate different
functions according to the following situ-
ations:
– to scroll the menu options upwards and
downwards;
– to increase or to decrease values during
settings.
NoteWhen opening one of the front
doors the display will show for a few sec-
onds the clock and covered km or miles.
fig. 25F0Q0643m
fig. 23F0Q3268gfig. 24F0Q0041m
023-036 BRAVO GB 29-10-2008 12:36 Pagina 25

26
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

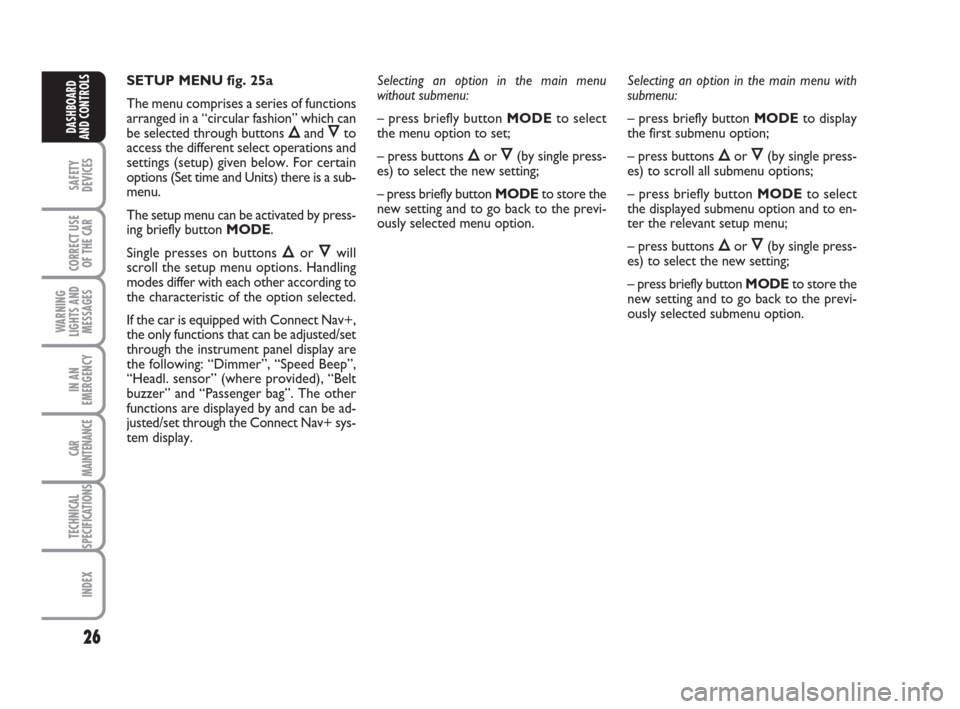

SETUP MENU fig. 25a
The menu comprises a series of functions
arranged in a “circular fashion” which can
be selected through buttons
Õand Ôto
access the different select operations and
settings (setup) given below. For certain
options (Set time and Units) there is a sub-
menu.
The setup menu can be activated by press-
ing briefly button MODE.
Single presses on buttons
Õor Ôwill
scroll the setup menu options. Handling
modes differ with each other according to
the characteristic of the option selected.
If the car is equipped with Connect Nav+,
the only functions that can be adjusted/set
through the instrument panel display are
the following: “Dimmer”, “Speed Beep”,
“Headl. sensor” (where provided), “Belt
buzzer” and “Passenger bag”. The other
functions are displayed by and can be ad-
justed/set through the Connect Nav+ sys-
tem display.Selecting an option in the main menu
without submenu:
– press briefly button MODEto select
the menu option to set;
– press buttons
Õor Ô(by single press-
es) to select the new setting;
– press briefly button MODEto store the
new setting and to go back to the previ-
ously selected menu option.Selecting an option in the main menu with
submenu:
– press briefly button MODEto display
the first submenu option;
– press buttons Õor Ô(by single press-
es) to scroll all submenu options;
– press briefly button MODEto select
the displayed submenu option and to en-
ter the relevant setup menu;
– press buttons
Õor Ô(by single press-
es) to select the new setting;
– press briefly button MODEto store the
new setting and to go back to the previ-
ously selected submenu option.
023-036 BRAVO GB 29-10-2008 12:36 Pagina 26

27
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Example:Day
YearMonthEnglish
Portugês
Español
Français
Deutsch
Italiano
BELT BUZZERSPEED BEEP
HEADL. SENSOR
SET TIME
SET DATE
SEE RADIO
AUTOCLOSE
UNITS LANGUAGE BUZZER VOLUME BUTTON VOL.
MODE
briefly press
button
MODE
briefly press
button
fig. 25a
SERVICE
F0Q3280g
TRIP B DATA DIMMER
EXIT MENU
PASSENGER AIRBAG
NederlandsBriefly press button MODEto start surfing from the standard screen.
To surf the menu use buttons Õor Ô. Note For safety reasons, when
the car is running, it is possible to access only the reduced menu (for
setting “Dimmer” and “Speed Beep”). When the car is stationary access
to the whole menu is enabled. On cars provided with Connect Nav+
many functions are displayed on the navigator display.
FIRST PAGE
023-036 BRAVO GB 29-10-2008 12:36 Pagina 27

28
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

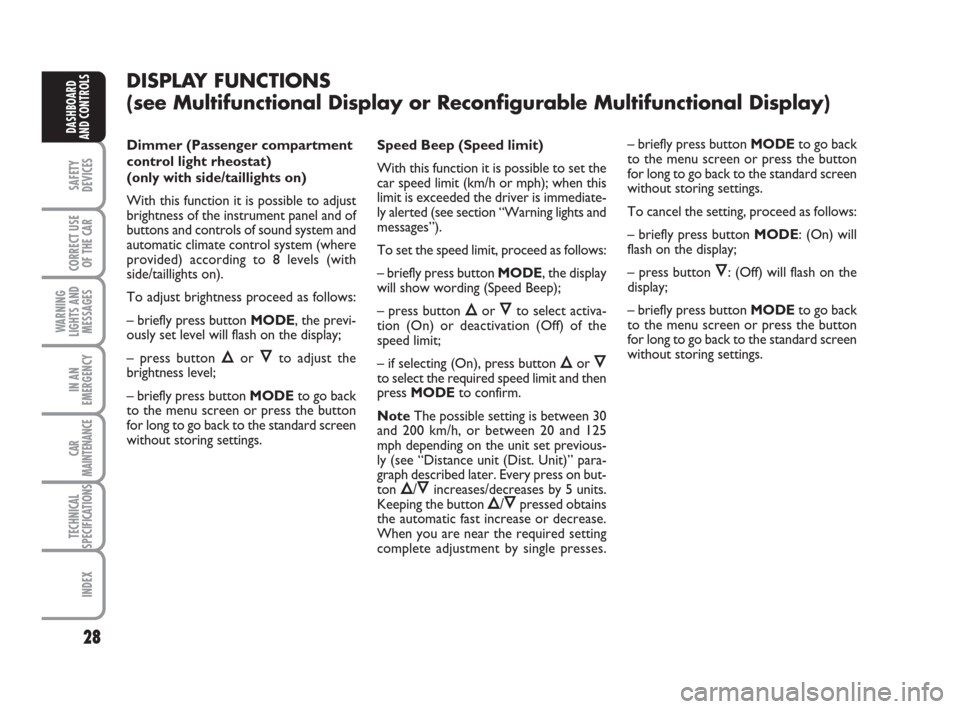

Speed Beep (Speed limit)
With this function it is possible to set the
car speed limit (km/h or mph); when this
limit is exceeded the driver is immediate-
ly alerted (see section “Warning lights and
messages”).
To set the speed limit, proceed as follows:
– briefly press button MODE, the display
will show wording (Speed Beep);
– press button
Õor Ôto select activa-
tion (On) or deactivation (Off) of the
speed limit;
– if selecting (On), press button
Õor Ôto select the required speed limit and then
press MODEto confirm.
NoteThe possible setting is between 30
and 200 km/h, or between 20 and 125
mph depending on the unit set previous-
ly (see “Distance unit (Dist. Unit)” para-
graph described later. Every press on but-
ton
Õ/Ôincreases/decreases by 5 units.
Keeping the button Õ/Ôpressed obtains
the automatic fast increase or decrease.
When you are near the required setting
complete adjustment by single presses.– briefly press button MODEto go back
to the menu screen or press the button
for long to go back to the standard screen
without storing settings.
To cancel the setting, proceed as follows:
– briefly press button MODE: (On) will
flash on the display;
– press button
Ô: (Off) will flash on the
display;
– briefly press button MODEto go back
to the menu screen or press the button
for long to go back to the standard screen
without storing settings. Dimmer (Passenger compartment
control light rheostat)
(only with side/taillights on)
With this function it is possible to adjust
brightness of the instrument panel and of
buttons and controls of sound system and
automatic climate control system (where
provided) according to 8 levels (with
side/taillights on).
To adjust brightness proceed as follows:
– briefly press button MODE, the previ-
ously set level will flash on the display;
– press button
Õor Ôto adjust the
brightness level;
– briefly press button MODEto go back
to the menu screen or press the button
for long to go back to the standard screen
without storing settings.
DISPLAY FUNCTIONS
(see Multifunctional Display or Reconfigurable Multifunctional Display)
023-036 BRAVO GB 29-10-2008 12:36 Pagina 28

29
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

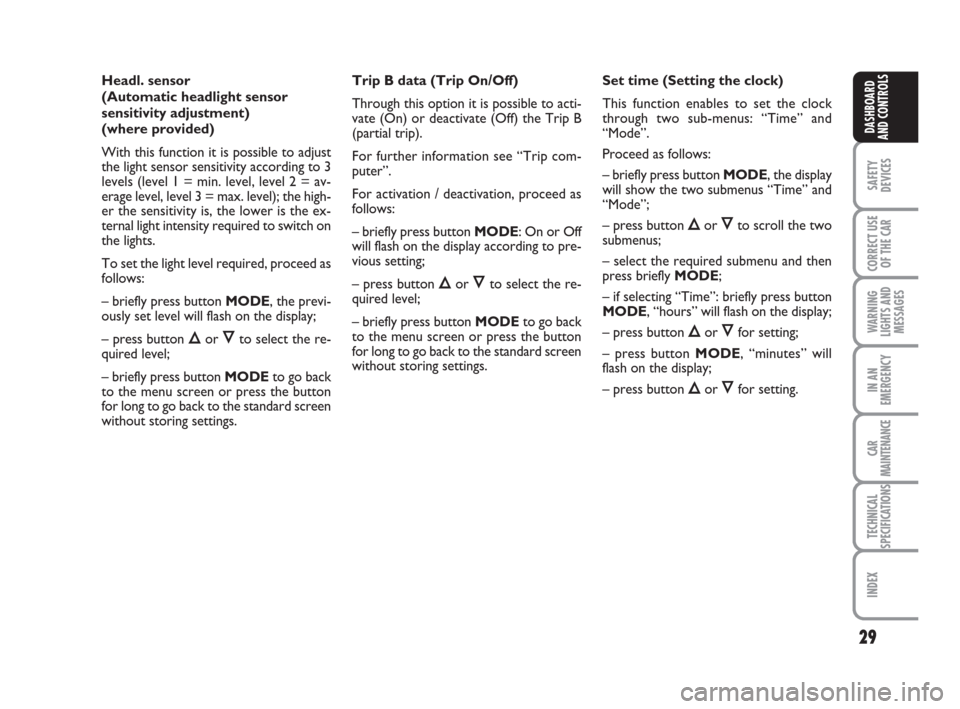

Headl. sensor
(Automatic headlight sensor
sensitivity adjustment)
(where provided)
With this function it is possible to adjust
the light sensor sensitivity according to 3
levels (level 1 = min. level, level 2 = av-
erage level, level 3 = max. level); the high-
er the sensitivity is, the lower is the ex-
ternal light intensity required to switch on
the lights.
To set the light level required, proceed as
follows:
– briefly press button MODE, the previ-
ously set level will flash on the display;
– press button
Õor Ôto select the re-
quired level;
– briefly press button MODEto go back
to the menu screen or press the button
for long to go back to the standard screen
without storing settings.Trip B data (Trip On/Off)
Through this option it is possible to acti-
vate (On) or deactivate (Off) the Trip B
(partial trip).
For further information see “Trip com-
puter”.
For activation / deactivation, proceed as
follows:
– briefly press button MODE: On or Off
will flash on the display according to pre-
vious setting;
– press button
Õor Ôto select the re-
quired level;
– briefly press button MODEto go back
to the menu screen or press the button
for long to go back to the standard screen
without storing settings.Set time (Setting the clock)
This function enables to set the clock
through two sub-menus: “Time” and
“Mode”.
Proceed as follows:
– briefly press button MODE, the display
will show the two submenus “Time” and
“Mode”;
– press button
Õor Ôto scroll the two
submenus;
– select the required submenu and then
press briefly MODE;
– if selecting “Time”: briefly press button
MODE, “hours” will flash on the display;
– press button
Õor Ôfor setting;
– press button MODE, “minutes” will
flash on the display;
– press button
Õor Ôfor setting.
023-036 BRAVO GB 29-10-2008 12:36 Pagina 29
