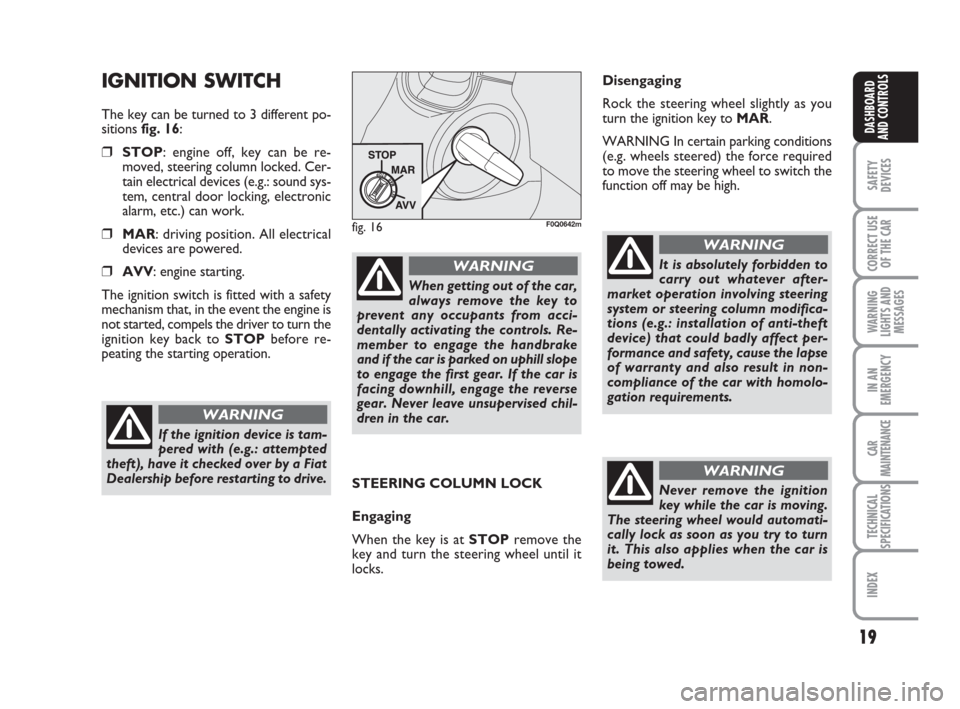

The key can be turned to 3 different po-
sitions fig. 16:
❒STOP: engine off, key can be re-
moved, steering column locked. Cer-
tain electrical devices (e.g.: sound sys-
tem, central door locking, electronic
alarm, etc.) can work.
❒MAR: driving position. All electrical
devices are powered.
❒AVV: engine starting.
The ignition switch is fitted with a safety
mechanism that, in the event the engine is
not started, compels the driver to turn the
ignition key back to STOPbefore re-
peating the starting operation.
STEERING COLUMN LOCK
Engaging
When the key is at STOPremove the
key and turn the steering wheel until it
locks.
fig. 16F0Q0642m
If the ignition device is tam-
pered with (e.g.: attempted
theft), have it checked over by a Fiat
Dealership before restarting to drive.
WARNING
When getting out of the car,
always remove the key to
prevent any occupants from acci-
dentally activating the controls. Re-
member to engage the handbrake
and if the car is parked on uphill slope
to engage the first gear. If the car is
facing downhill, engage the reverse
gear. Never leave unsupervised chil-
dren in the car.
WARNINGIt is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the car with homolo-
gation requirements.
WARNING
Never remove the ignition
key while the car is moving.
The steering wheel would automati-
cally lock as soon as you try to turn
it. This also applies when the car is
being towed.
WARNING
Disengaging
Rock the steering wheel slightly as you
turn the ignition key to MAR.
WARNING In certain parking conditions
(e.g. wheels steered) the force required
to move the steering wheel to switch the
function off may be high.
001-022 BRAVO GB 29-10-2008 12:36 Pagina 19
Page 22 of 246
21
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
If the needle reaches the red
area, stop the engine immedi-
ately and contact a Fiat Deal-
ership.fig. 19F0Q0608m

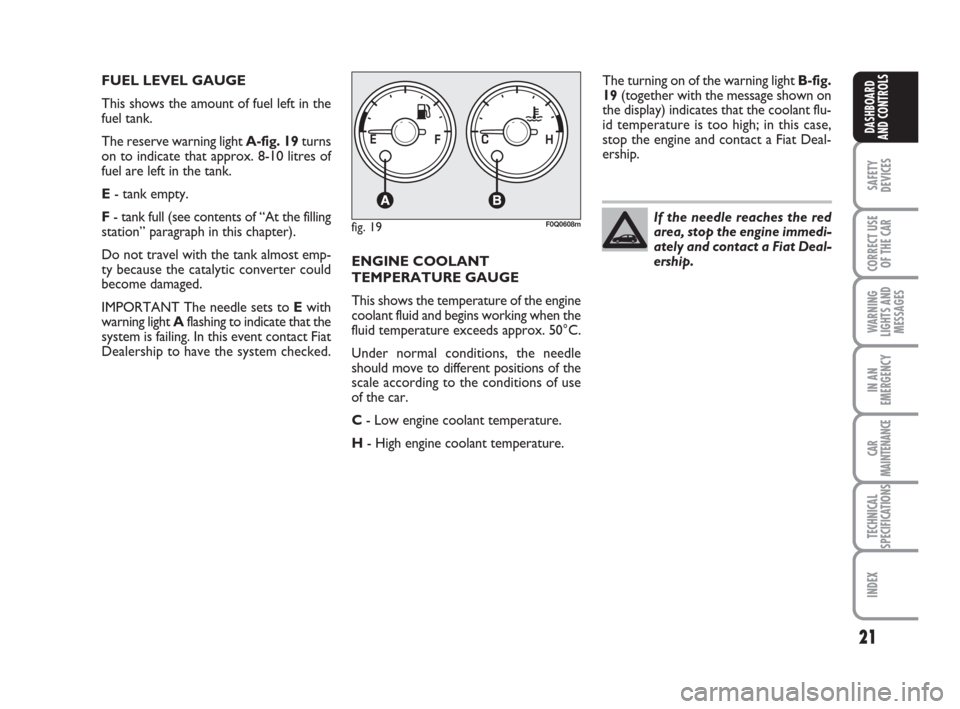

ENGINE COOLANT
TEMPERATURE GAUGE
This shows the temperature of the engine
coolant fluid and begins working when the
fluid temperature exceeds approx. 50°C.
Under normal conditions, the needle
should move to different positions of the
scale according to the conditions of use
of the car.
C- Low engine coolant temperature.
H- High engine coolant temperature.The turning on of the warning light B-fig.
19(together with the message shown on
the display) indicates that the coolant flu-
id temperature is too high; in this case,
stop the engine and contact a Fiat Deal-
ership. FUEL LEVEL GAUGE
This shows the amount of fuel left in the
fuel tank.
The reserve warning light A-fig. 19turns
on to indicate that approx. 8-10 litres of
fuel are left in the tank.
E- tank empty.
F- tank full (see contents of “At the filling
station” paragraph in this chapter).
Do not travel with the tank almost emp-
ty because the catalytic converter could
become damaged.
IMPORTANT The needle sets to Ewith
warning light Aflashing to indicate that the
system is failing. In this event contact Fiat
Dealership to have the system checked.
001-022 BRAVO GB 29-10-2008 12:36 Pagina 21
Page 49 of 246
48
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

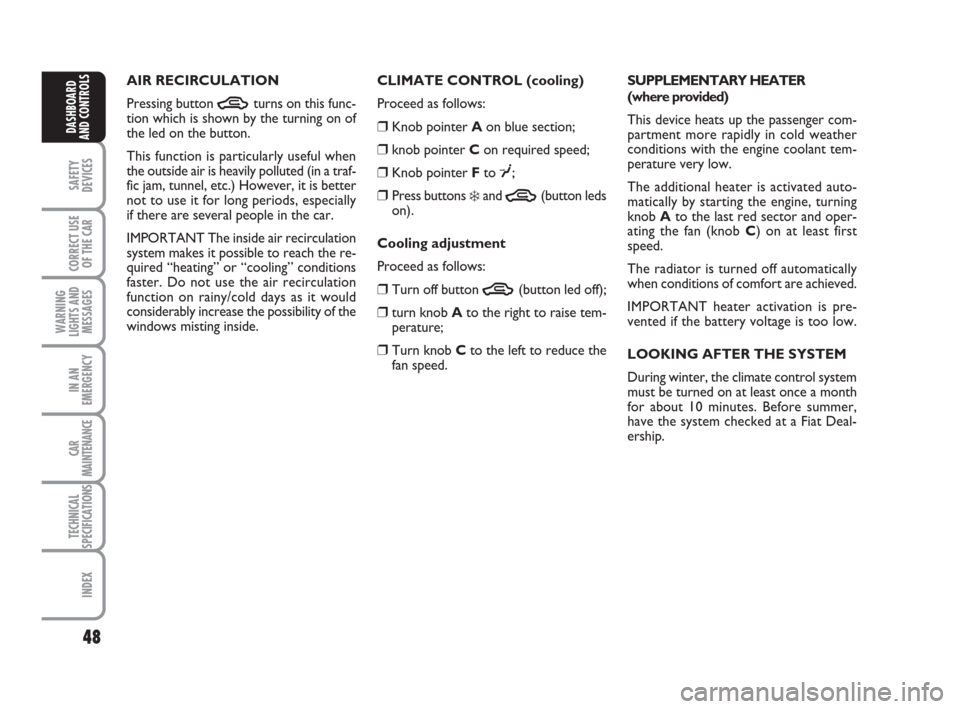

AIR RECIRCULATION
Pressing button
Tturns on this func-
tion which is shown by the turning on of
the led on the button.
This function is particularly useful when
the outside air is heavily polluted (in a traf-
fic jam, tunnel, etc.) However, it is better
not to use it for long periods, especially
if there are several people in the car.
IMPORTANT The inside air recirculation
system makes it possible to reach the re-
quired “heating” or “cooling” conditions
faster. Do not use the air recirculation
function on rainy/cold days as it would
considerably increase the possibility of the
windows misting inside.CLIMATE CONTROL (cooling)
Proceed as follows:
❒Knob pointer Aon blue section;
❒knob pointer Con required speed;
❒Knob pointer Fto ¥;
❒Press buttons ❄and T(button leds
on).
Cooling adjustment
Proceed as follows:
❒Turn off button T(button led off);
❒turn knob Ato the right to raise tem-
perature;
❒Turn knob Cto the left to reduce the
fan speed.SUPPLEMENTARY HEATER
(where provided)
This device heats up the passenger com-
partment more rapidly in cold weather
conditions with the engine coolant tem-
perature very low.
The additional heater is activated auto-
matically by starting the engine, turning
knob Ato the last red sector and oper-
ating the fan (knob C) on at least first
speed.
The radiator is turned off automatically
when conditions of comfort are achieved.
IMPORTANT heater activation is pre-
vented if the battery voltage is too low.
LOOKING AFTER THE SYSTEM
During winter, the climate control system
must be turned on at least once a month
for about 10 minutes. Before summer,
have the system checked at a Fiat Deal-
ership.
037-056 BRAVO GB 29-10-2008 12:37 Pagina 48
Page 84 of 246
83
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
BONNET

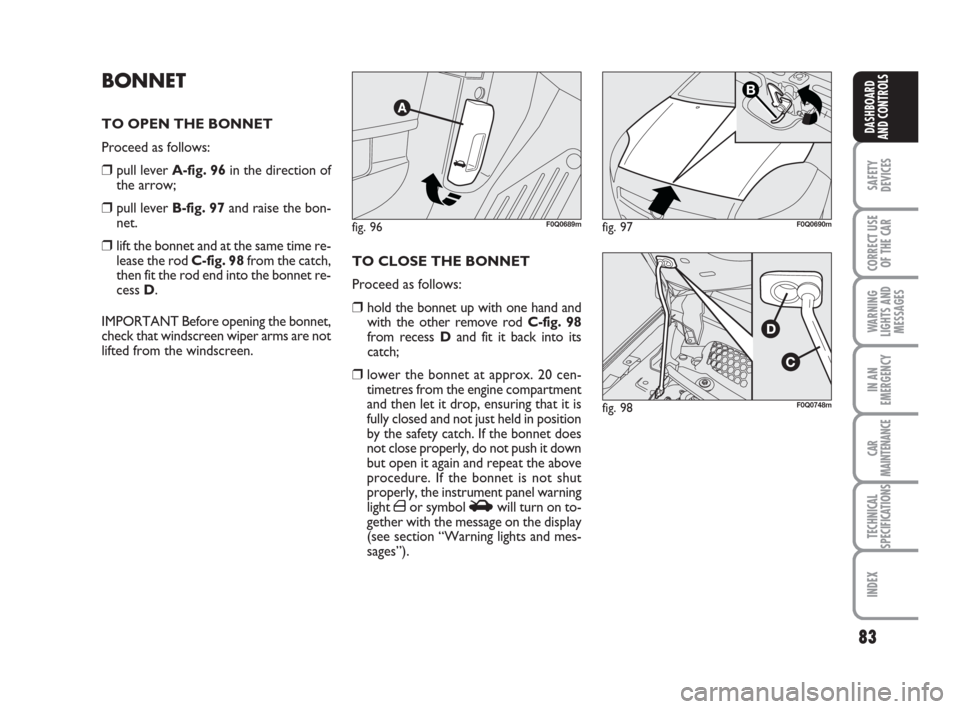

TO OPEN THE BONNET
Proceed as follows:
❒pull lever A-fig. 96in the direction of
the arrow;
❒pull lever B-fig. 97and raise the bon-
net.
❒lift the bonnet and at the same time re-
lease the rod C-fig. 98from the catch,
then fit the rod end into the bonnet re-
cess D.
IMPORTANT Before opening the bonnet,
check that windscreen wiper arms are not
lifted from the windscreen.TO CLOSE THE BONNET
Proceed as follows:
❒hold the bonnet up with one hand and
with the other remove rod C-fig. 98
from recess Dand fit it back into its
catch;
❒lower the bonnet at approx. 20 cen-
timetres from the engine compartment
and then let it drop, ensuring that it is
fully closed and not just held in position
by the safety catch. If the bonnet does
not close properly, do not push it down
but open it again and repeat the above
procedure. If the bonnet is not shut
properly, the instrument panel warning
light ´or symbol Swill turn on to-
gether with the message on the display
(see section “Warning lights and mes-
sages”).
fig. 96F0Q0689mfig. 97
B
F0Q0690m
fig. 98F0Q0748m
083-104 BRAVO GB 29-10-2008 12:37 Pagina 83
Page 92 of 246
91
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

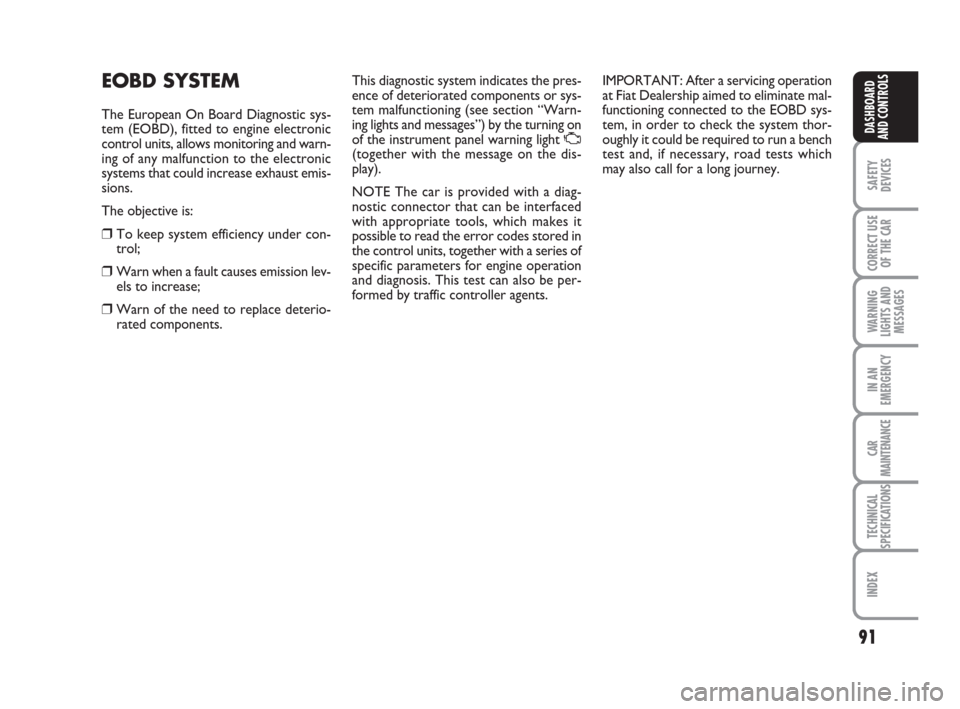

This diagnostic system indicates the pres-
ence of deteriorated components or sys-
tem malfunctioning (see section “Warn-
ing lights and messages”) by the turning on
of the instrument panel warning light U
(together with the message on the dis-
play).
NOTE The car is provided with a diag-
nostic connector that can be interfaced
with appropriate tools, which makes it
possible to read the error codes stored in
the control units, together with a series of
specific parameters for engine operation
and diagnosis. This test can also be per-
formed by traffic controller agents.IMPORTANT: After a servicing operation
at Fiat Dealership aimed to eliminate mal-
functioning connected to the EOBD sys-
tem, in order to check the system thor-
oughly it could be required to run a bench
test and, if necessary, road tests which
may also call for a long journey.EOBD SYSTEM
The European On Board Diagnostic sys-
tem (EOBD), fitted to engine electronic
control units, allows monitoring and warn-
ing of any malfunction to the electronic
systems that could increase exhaust emis-
sions.
The objective is:
❒To keep system efficiency under con-
trol;
❒Warn when a fault causes emission lev-
els to increase;
❒Warn of the need to replace deterio-
rated components.
083-104 BRAVO GB 29-10-2008 12:37 Pagina 91
Page 97 of 246
96
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
TYRE PRESSURE MONITORING SYSTEM (T.P.M.S.)
(where provided)T.P.M.S. cannot indicate sudden tyre pres-
sure drops (e.g.: tyre burst). In this event,
brake the car cautiously and avoid sudden
steering.
Strong radio-frequency disturbances could
inhibit proper TPMS system operation.
This condition will be indicated by the
turning on of warning light nnor symbol
on the instrument panel, together with the
message on the display. This indication will
go off automatically as soon as the radio-
frequency disturbance ceases.
The T.P.M.S. system does
not exempt the driver to
check tyre and spare wheel pressure
at regular intervals (see paragraph
“Wheels” in section “Car mainte-
nance”).
WARNING

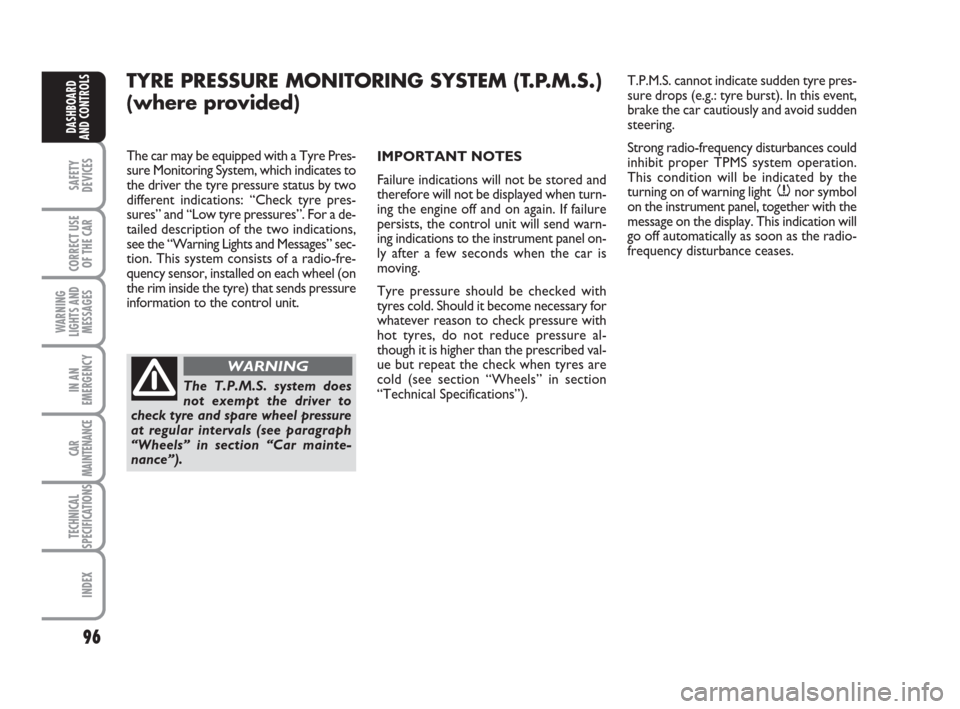

The car may be equipped with a Tyre Pres-
sure Monitoring System, which indicates to
the driver the tyre pressure status by two
different indications: “Check tyre pres-
sures” and “Low tyre pressures”. For a de-
tailed description of the two indications,
see the “Warning Lights and Messages” sec-
tion. This system consists of a radio-fre-
quency sensor, installed on each wheel (on
the rim inside the tyre) that sends pressure
information to the control unit.IMPORTANT NOTES
Failure indications will not be stored and
therefore will not be displayed when turn-
ing the engine off and on again. If failure
persists, the control unit will send warn-
ing indications to the instrument panel on-
ly after a few seconds when the car is
moving.
Tyre pressure should be checked with
tyres cold. Should it become necessary for
whatever reason to check pressure with
hot tyres, do not reduce pressure al-
though it is higher than the prescribed val-
ue but repeat the check when tyres are
cold (see section “Wheels” in section
“Technical Specifications”).
083-104 BRAVO GB 29-10-2008 12:37 Pagina 96
Page 136 of 246
CONTAINING
RUNNING COSTS
Here are some useful tips to save fuel and
minimize polluting emissions of CO
2and
other pollutants (nitric oxide, unburnt hy-
drocarbons, fine dusts etc…).
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out
in accordance with the “Service schedule”.
Tyres

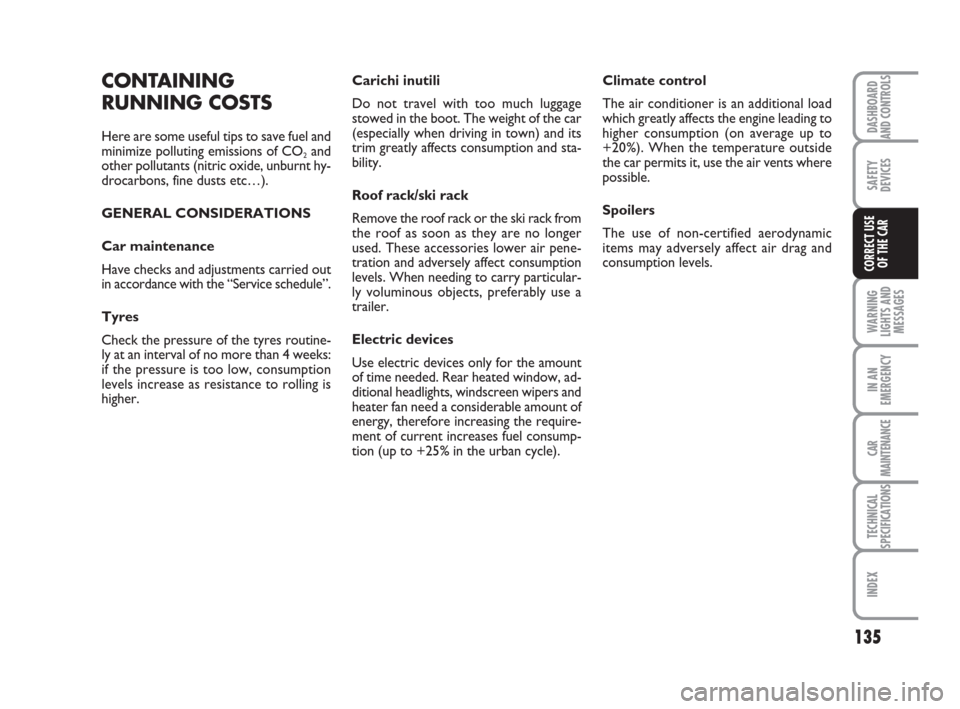

Check the pressure of the tyres routine-
ly at an interval of no more than 4 weeks:
if the pressure is too low, consumption
levels increase as resistance to rolling is
higher.Carichi inutili
Do not travel with too much luggage
stowed in the boot. The weight of the car
(especially when driving in town) and its
trim greatly affects consumption and sta-
bility.
Roof rack/ski rack
Remove the roof rack or the ski rack from
the roof as soon as they are no longer
used. These accessories lower air pene-
tration and adversely affect consumption
levels. When needing to carry particular-
ly voluminous objects, preferably use a
trailer.
Electric devices
Use electric devices only for the amount
of time needed. Rear heated window, ad-
ditional headlights, windscreen wipers and
heater fan need a considerable amount of
energy, therefore increasing the require-
ment of current increases fuel consump-
tion (up to +25% in the urban cycle).Climate control
The air conditioner is an additional load
which greatly affects the engine leading to
higher consumption (on average up to
+20%). When the temperature outside
the car permits it, use the air vents where
possible.
Spoilers
The use of non-certified aerodynamic
items may adversely affect air drag and
consumption levels.
135
DASHBOARD
AND CONTROLS
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SAFETY
DEVICES
CORRECT USE
OF THE CAR
129-140 BRAVO GB 29-10-2008 12:35 Pagina 135
Page 141 of 246
Keep your speed down
when snow chains are
fitted. Do not exceed
50 Km/h. Avoid potholes, steps
and pavements and avoid also to drive
for long distances on roads not covered
with snow to prevent damaging the car
and the roadbed.
140
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATION
INDEX
DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
This way with two normal drive wheels,
snow chains can be fitted to them to solve
an emergency.
IMPORTANT Snow chains may not be
used on tyres type 225/40 R18 92V since
interference can be generated with the

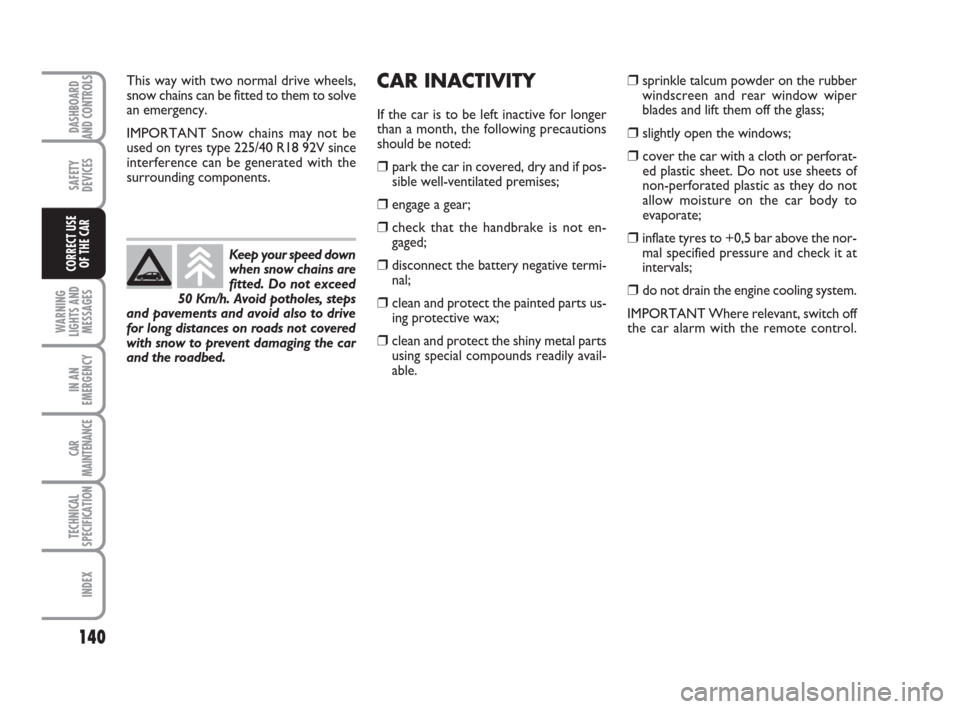

surrounding components.CAR INACTIVITY
If the car is to be left inactive for longer
than a month, the following precautions
should be noted:
❒ park the car in covered, dry and if pos-
sible well-ventilated premises;
❒ engage a gear;
❒ check that the handbrake is not en-
gaged;
❒disconnect the battery negative termi-
nal;
❒ clean and protect the painted parts us-
ing protective wax;
❒clean and protect the shiny metal parts
using special compounds readily avail-
able.
❒sprinkle talcum powder on the rubber
windscreen and rear window wiper
blades and lift them off the glass;
❒ slightly open the windows;
❒ cover the car with a cloth or perforat-
ed plastic sheet. Do not use sheets of
non-perforated plastic as they do not
allow moisture on the car body to
evaporate;
❒inflate tyres to +0,5 bar above the nor-
mal specified pressure and check it at
intervals;
❒ do not drain the engine cooling system.
IMPORTANT Where relevant, switch off
the car alarm with the remote control.
129-140 BRAVO GB 29-10-2008 12:35 Pagina 140
Page 142 of 246
141
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
WARNING
LIGHTS AND
MESSAGES

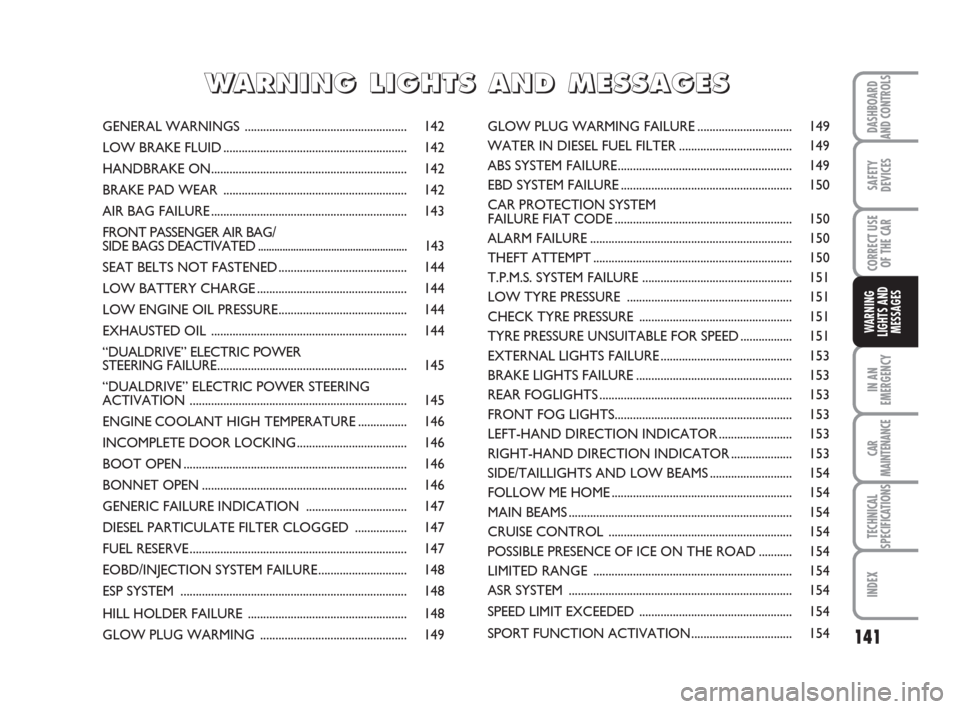

GENERAL WARNINGS ..................................................... 142
LOW BRAKE FLUID............................................................ 142
HANDBRAKE ON................................................................ 142
BRAKE PAD WEAR ............................................................ 142
AIR BAG FAILURE................................................................ 143
FRONT PASSENGER AIR BAG/
SIDE BAGS DEACTIVATED....................................................... 143
SEAT BELTS NOT FASTENED.......................................... 144
LOW BATTERY CHARGE................................................. 144
LOW ENGINE OIL PRESSURE.......................................... 144
EXHAUSTED OIL ................................................................ 144
“DUALDRIVE” ELECTRIC POWER
STEERING FAILURE.............................................................. 145
“DUALDRIVE” ELECTRIC POWER STEERING
ACTIVATION ....................................................................... 145
ENGINE COOLANT HIGH TEMPERATURE................ 146
INCOMPLETE DOOR LOCKING.................................... 146
BOOT OPEN......................................................................... 146
BONNET OPEN................................................................... 146
GENERIC FAILURE INDICATION ................................. 147
DIESEL PARTICULATE FILTER CLOGGED ................. 147
FUEL RESERVE....................................................................... 147
EOBD/INJECTION SYSTEM FAILURE............................. 148
ESP SYSTEM .......................................................................... 148
HILL HOLDER FAILURE .................................................... 148
GLOW PLUG WARMING ................................................ 149GLOW PLUG WARMING FAILURE............................... 149
WATER IN DIESEL FUEL FILTER..................................... 149
ABS SYSTEM FAILURE......................................................... 149
EBD SYSTEM FAILURE........................................................ 150
CAR PROTECTION SYSTEM
FAILURE FIAT CODE.......................................................... 150
ALARM FAILURE.................................................................. 150
THEFT ATTEMPT................................................................. 150
T.P.M.S. SYSTEM FAILURE ................................................. 151
LOW TYRE PRESSURE ...................................................... 151
CHECK TYRE PRESSURE .................................................. 151
TYRE PRESSURE UNSUITABLE FOR SPEED ................. 151
EXTERNAL LIGHTS FAILURE........................................... 153
BRAKE LIGHTS FAILURE................................................... 153
REAR FOGLIGHTS............................................................... 153
FRONT FOG LIGHTS.......................................................... 153
LEFT-HAND DIRECTION INDICATOR........................ 153
RIGHT-HAND DIRECTION INDICATOR.................... 153
SIDE/TAILLIGHTS AND LOW BEAMS ........................... 154
FOLLOW ME HOME........................................................... 154
MAIN BEAMS......................................................................... 154
CRUISE CONTROL ............................................................ 154
POSSIBLE PRESENCE OF ICE ON THE ROAD ........... 154
LIMITED RANGE ................................................................. 154
ASR SYSTEM ......................................................................... 154
SPEED LIMIT EXCEEDED .................................................. 154
SPORT FUNCTION ACTIVATION................................. 154
WW W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S
141-154 BRAVO GB 29-10-2008 12:32 Pagina 141
Page 147 of 246
146
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
WARNING
LIGHTS AND
MESSAGES
ENGINE COOLANT
HIGH TEMPERATURE
(red)
Turning the ignition key to MAR
the warning light turns on, but it should go
off after few seconds.
The warning light turns on when the en-
gine is overheated.
If the warning light comes on, proceed as
follows:
❒normal driving conditions: stop the
car, switch off the engine and check
whether the water level in the reser-
voir is not below the MIN mark. Oth-
erwise wait for few seconds to allow
engine cooling, then open slowly and
carefully the cap, top up coolant and
check whether its level is falling be-
tween MIN and MAX marks in the
reservoir. Check visually any leak and if
when restarting the warning light
comes on again, contact a Fiat Dealer-
ship.
❒Car heavy duty(e.g.: towing trailer
uphill of fully laden car): decrease speed,
if the warning light stays on, stop the
car. Wait for 2 or 3 minutes leaving the
engine on and slightly accelerated to
further activate the circulation of the
coolant fluid, then switch the engine off.
Check proper coolant level as de-
scribed previously.
IMPORTANT Under severe use of the
car, keep the engine on and slightly accel-
erated for few minutes before switching it
off.
The display will show the dedicated mes-
sage.
ç
INCOMPLETE DOOR
LOCKING (red)
The warning light (or the sym-
bol on the display) turns on when
one or more doors are not properly shut.
The buzzer will sound when one or more
doors are open and the car is moving.
´
BOOT OPEN
The symbol (where provided)
on the display turns on when
the boot is not properly shut.
On certain versions the warning light
´turns on instead.
R
BONNET OPEN
The symbol (where provided)
on the display turns on when
the bonnet is not properly shut.
On certain versions the warning light
´
turns on instead.
S
141-154 BRAVO GB 29-10-2008 12:32 Pagina 146
