FIAT BRAVO 2013 2.G Owners Manual

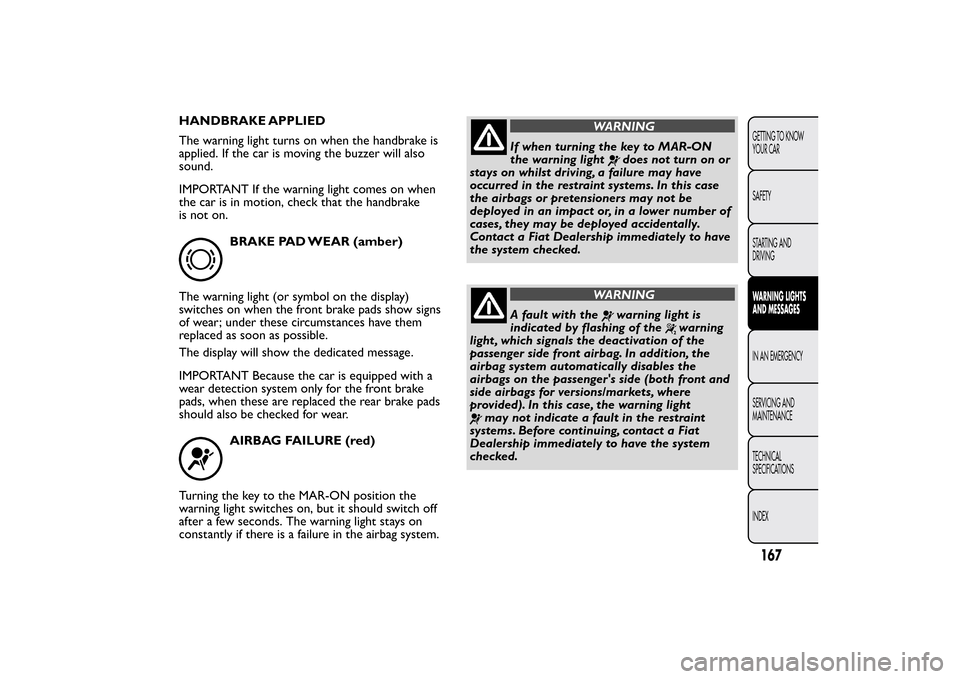

HANDBRAKE APPLIED
The warning light turns on when the handbrake is
applied. If the car is moving the buzzer will also
sound.
IMPORTANT If the warning light comes on when
the car is in motion, check that the handbrake
is not on.
BRAKE PAD WEAR (amber)
The warning light (or symbol on the display)
switches on when the front brake pads show signs
of wear; under these circumstances have them
replaced as soon as possible.
The display will show the dedicated message.
IMPORTANT Because the car is equipped with a
wear detection system only for the front brake
pads, when these are replaced the rear brake pads
should also be checked for wear.AIRBAG FAILURE (red)
Turning the key to the MAR-ON position the
warning light switches on, but it should switch off
after a few seconds. The warning light stays on
constantly if there is a failure in the airbag system.
WARNING
If when turning the key to MAR-ON
the warning light
does not turn on or
stays on whilst driving, a failure may have
occurred in the restraint systems. In this case
the airbags or pretensioners may not be
deployed in an impact or, in a lower number of
cases, they may be deployed accidentally.
Contact a Fiat Dealership immediately to have
the system checked.
WARNING
Afaultwiththe
warning light is
indicated by flashing of the
warning
light , which signals the deactivation of the
passenger side front airbag. In addition, the
airbag system automatically disables the
airbags on the passenger's side (both front and
side airbags for versions/markets, where
provided). In this case, the warning light
may not indicate a fault in the restraint
systems. Before continuing, contact a Fiat
Dealership immediately to have the system
checked.
167GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

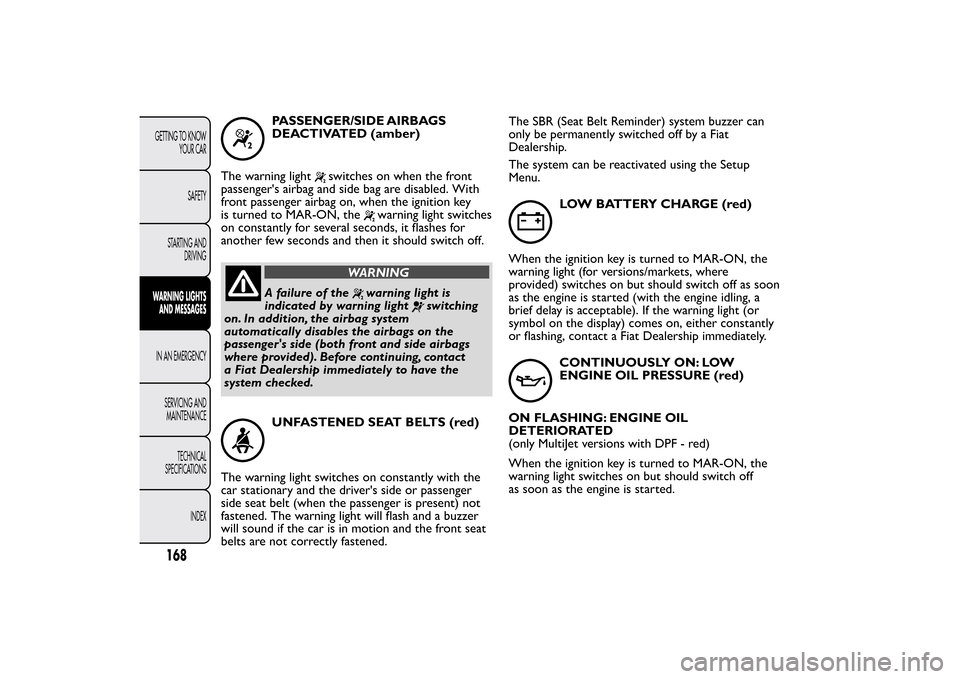

PASSENGER/SIDE AIRBAGS
DEACTIVATED (amber)
The warning light
switches on when the front
passenger's airbag and side bag are disabled. With
front passenger airbag on, when the ignition key
is turned to MAR-ON, the
warning light switches
on constantly for several seconds, it flashes for
another few seconds and then it should switch off.
WARNING
A failure of the
warning light is
indicated by warning light
switching
on. In addition, the airbag system
automatically disables the airbags on the
passenger's side (both front and side airbags
where provided). Before continuing, contact
a Fiat Dealership immediately to have the
system checked.
UNFASTENED SEAT BELTS (red)
The warning light switches on constantly with the
car stationary and the driver's side or passenger
side seat belt (when the passenger is present) not
fastened. The warning light will flash and a buzzer
will sound if the car is in motion and the front seat
belts are not correctly fastened.The SBR (Seat Belt Reminder) system buzzer can
only be permanently switched off by a Fiat
Dealership.
The system can be reactivated using the Setup
Menu.
LOW BATTERY CHARGE (red)
When the ignition key is turned to MAR-ON, the
warning light (for versions/markets, where
provided) switches on but should switch off as soon
as the engine is started (with the engine idling, a
brief delay is acceptable). If the warning light (or
symbol on the display) comes on, either constantly
or flashing, contact a Fiat Dealership immediately.CONTINUOUSLY ON: LOW
ENGINE OIL PRESSURE (red)
ON FLASHING: ENGINE OIL
DETERIORATED
(only MultiJet versions with DPF - red)
When the ignition key is turned to MAR-ON, the
warning light switches on but should switch off
as soon as the engine is started.
168GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

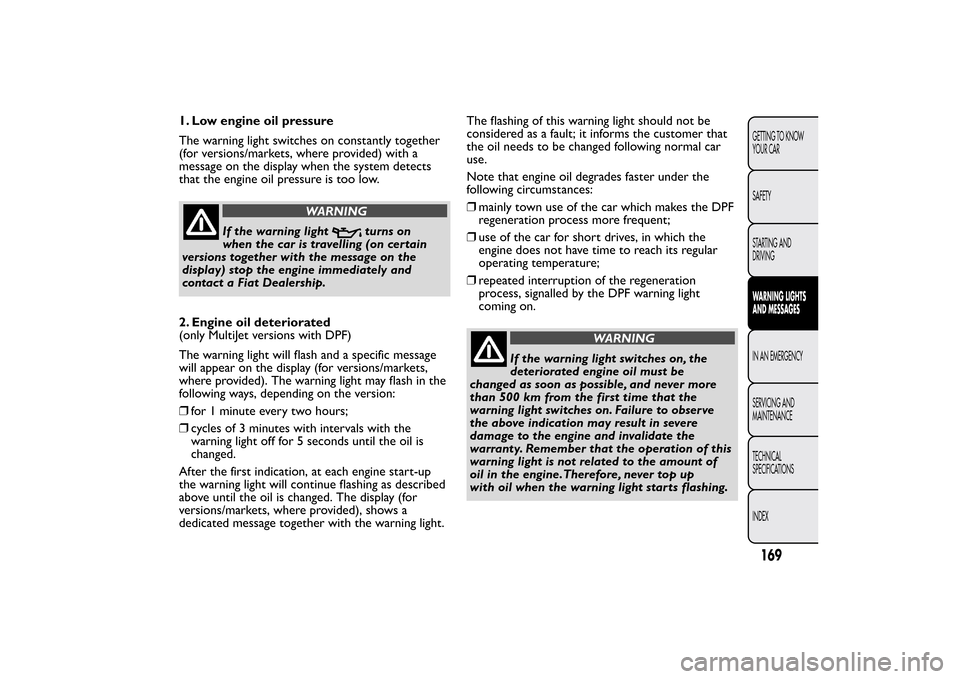

1. Low engine oil pressure
The warning light switches on constantly together
(for versions/markets, where provided) with a
message on the display when the system detects
that the engine oil pressure is too low.
WARNING
If the warning light
turns on
when the car is travelling (on certain
versions together with the message on the
display) stop the engine immediately and
contact a Fiat Dealership.
2. Engine oil deteriorated
(only MultiJet versions with DPF)
The warning light will flash and a specific message
will appear on the display (for versions/markets,
where provided). The warning light may flash in the
following ways, depending on the version:
❒for 1 minute every two hours;
❒cycles of 3 minutes with intervals with the
warning light off for 5 seconds until the oil is
changed.
After the first indication, at each engine start-up
the warning light will continue flashing as described
above until the oil is changed. The display (for
versions/markets, where provided), shows a
dedicated message together with the warning light.The flashing of this warning light should not be
considered as a fault; it informs the customer that
the oil needs to be changed following normal car
use.
Note that engine oil degrades faster under the
following circumstances:
❒mainly town use of the car which makes the DPF
regeneration process more frequent;
❒use of the car for short drives, in which the
engine does not have time to reach its regular
operating temperature;
❒repeated interruption of the regeneration
process, signalled by the DPF warning light
coming on.
WARNING
If the warning light switches on, the
deteriorated engine oil must be
changed as soon as possible, and never more
than 500 km from the first time that the
warning light switches on. Failure to observe
the above indication may result in severe
damage to the engine and invalidate the
warranty. Remember that the operation of this
warning light is not related to the amount of
oil in the engine.Therefore, never top up
with oil when the warning light starts flashing.
169GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

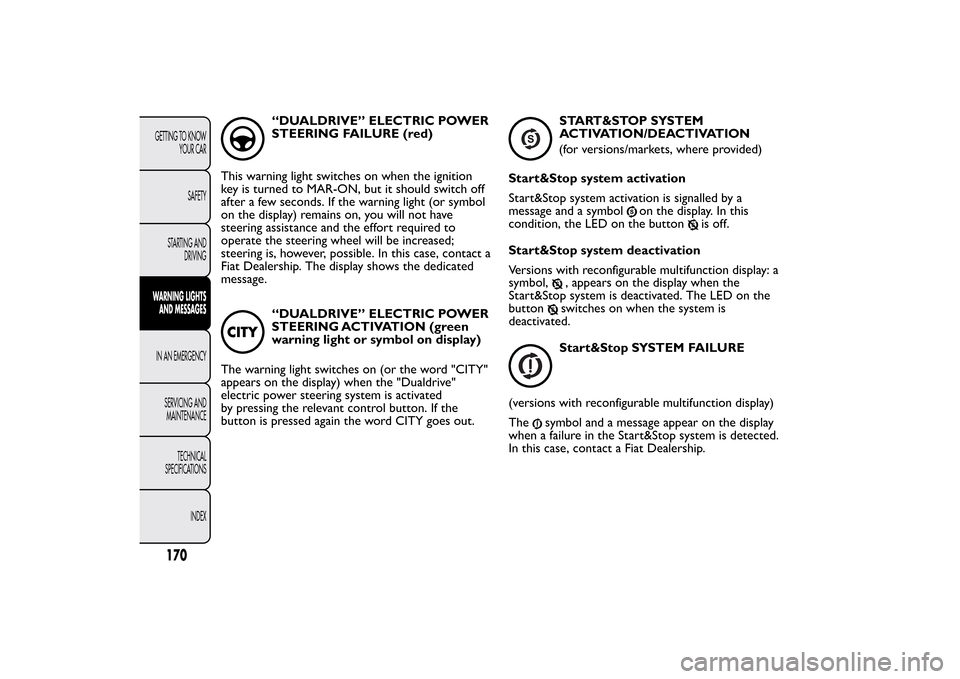

“DUALDRIVE” ELECTRIC POWER
STEERING FAILURE (red)
This warning light switches on when the ignition
key is turned to MAR-ON, but it should switch off
after a few seconds. If the warning light (or symbol
on the display) remains on, you will not have
steering assistance and the effort required to
operate the steering wheel will be increased;
steering is, however, possible. In this case, contact a
Fiat Dealership. The display shows the dedicated
message.“DUALDRIVE” ELECTRIC POWER
STEERING ACTIVATION (green
warning light or symbol on display)
The warning light switches on (or the word "CITY"
appears on the display) when the "Dualdrive"
electric power steering system is activated
by pressing the relevant control button. If the
button is pressed again the word CITY goes out.
START&STOP SYSTEM
ACTIVATION/DEACTIVATION
(for versions/markets, where provided)
Start&Stop system activation
Start&Stop system activation is signalled by a
message and a symbol
on the display. In this
condition, the LED on the button
is off.
Start&Stop system deactivation
Versions with reconfigurable multifunction display: a
symbol,
, appears on the display when the
Start&Stop system is deactivated. The LED on the
buttonswitches on when the system is
deactivated.Start&Stop SYSTEM FAILURE
(versions with reconfigurable multifunction display)
The
symbol and a message appear on the display
when a failure in the Start&Stop system is detected.
In this case, contact a Fiat Dealership.
170GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

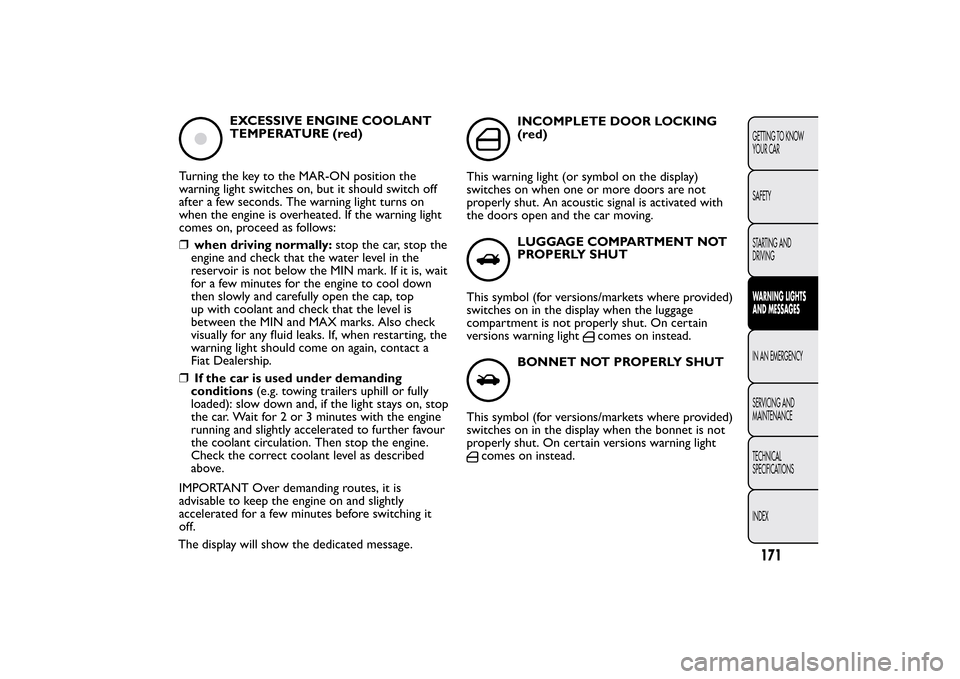

EXCESSIVE ENGINE COOLANT
TEMPERATURE (red)
Turning the key to the MAR-ON position the
warning light switches on, but it should switch off
after a few seconds. The warning light turns on
when the engine is overheated. If the warning light
comes on, proceed as follows:
❒when driving normally:stop the car, stop the
engine and check that the water level in the
reservoir is not below the MIN mark. If it is, wait
for a few minutes for the engine to cool down
then slowly and carefully open the cap, top
up with coolant and check that the level is
between the MIN and MAX marks. Also check
visually for any fluid leaks. If, when restarting, the
warning light should come on again, contact a
Fiat Dealership.
❒If the car is used under demanding
conditions(e.g. towing trailers uphill or fully
loaded): slow down and, if the light stays on, stop
the car. Wait for 2 or 3 minutes with the engine
running and slightly accelerated to further favour
the coolant circulation. Then stop the engine.
Check the correct coolant level as described
above.
IMPORTANT Over demanding routes, it is
advisable to keep the engine on and slightly
accelerated for a few minutes before switching it
off.
The display will show the dedicated message.
INCOMPLETE DOOR LOCKING
(red)
This warning light (or symbol on the display)
switches on when one or more doors are not
properly shut. An acoustic signal is activated with
the doors open and the car moving.LUGGAGE COMPARTMENT NOT
PROPERLY SHUT
This symbol (for versions/markets where provided)
switches on in the display when the luggage
compartment is not properly shut. On certain
versions warning light
comes on instead.
BONNET NOT PROPERLY SHUT
This symbol (for versions/markets where provided)
switches on in the display when the bonnet is not
properly shut. On certain versions warning light
comes on instead.
171GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

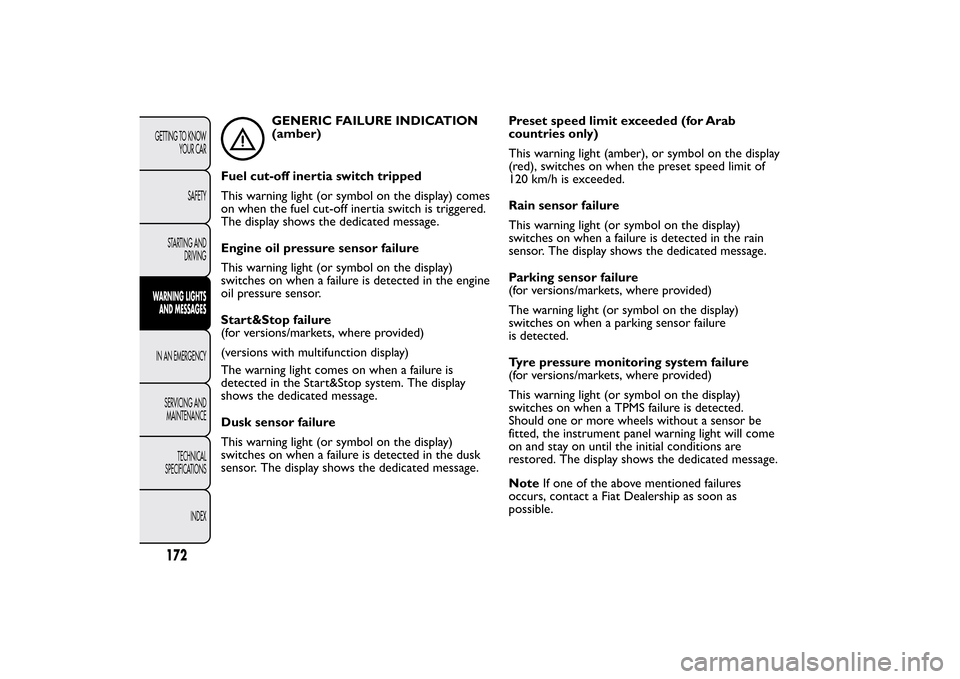

GENERIC FAILURE INDICATION
(amber)
Fuel cut-off inertia switch tripped
This warning light (or symbol on the display) comes
on when the fuel cut-off inertia switch is triggered.
The display shows the dedicated message.
Engine oil pressure sensor failure
This warning light (or symbol on the display)
switches on when a failure is detected in the engine
oil pressure sensor.
Start&Stop failure
(for versions/markets, where provided)
(versions with multifunction display)
The warning light comes on when a failure is
detected in the Start&Stop system. The display
shows the dedicated message.
Dusk sensor failure
This warning light (or symbol on the display)
switches on when a failure is detected in the dusk
sensor. The display shows the dedicated message.Preset speed limit exceeded (for Arab
countries only)
This warning light (amber), or symbol on the display
(red), switches on when the preset speed limit of
120 km/h is exceeded.
Rain sensor failure
This warning light (or symbol on the display)
switches on when a failure is detected in the rain
sensor. The display shows the dedicated message.
Parking sensor failure
(for versions/markets, where provided)
The warning light (or symbol on the display)
switches on when a parking sensor failure
is detected.
Tyre pressure monitoring system failure
(for versions/markets, where provided)
This warning light (or symbol on the display)
switches on when a TPMS failure is detected.
Should one or more wheels without a sensor be
fitted, the instrument panel warning light will come
on and stay on until the initial conditions are
restored. The display shows the dedicated message.
NoteIf one of the above mentioned failures
occurs, contact a Fiat Dealership as soon as
possible.
172GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

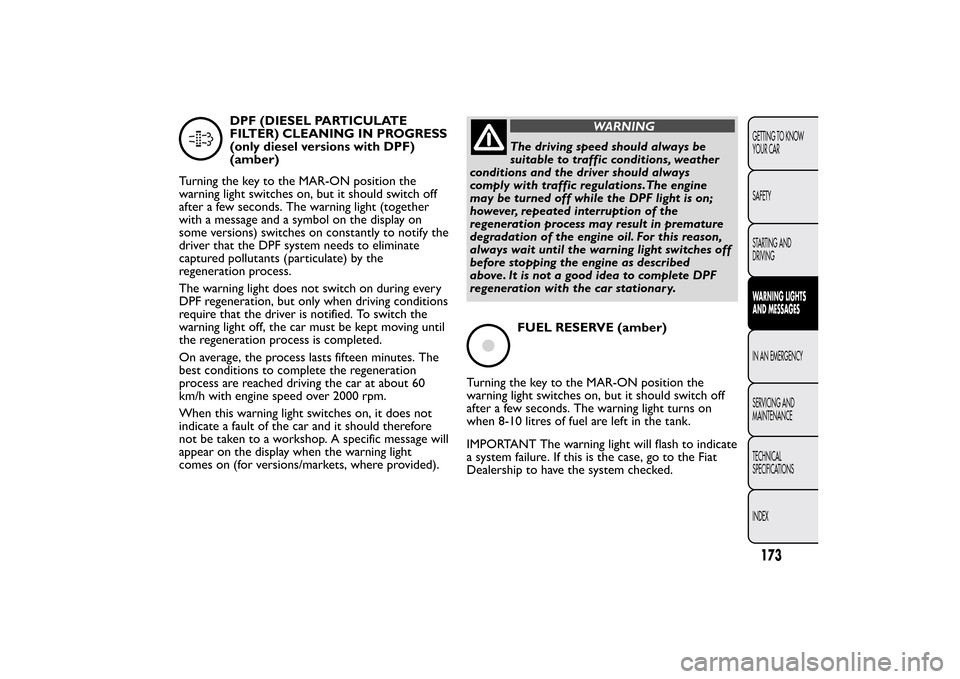

DPF (DIESEL PARTICULATE
FILTER) CLEANING IN PROGRESS
(only diesel versions with DPF)
(amber)
Turning the key to the MAR-ON position the
warning light switches on, but it should switch off
after a few seconds. The warning light (together
with a message and a symbol on the display on
some versions) switches on constantly to notify the
driver that the DPF system needs to eliminate
captured pollutants (particulate) by the
regeneration process.
The warning light does not switch on during every
DPF regeneration, but only when driving conditions
require that the driver is notified. To switch the
warning light off, the car must be kept moving until
the regeneration process is completed.
On average, the process lasts fifteen minutes. The
best conditions to complete the regeneration
process are reached driving the car at about 60
km/h with engine speed over 2000 rpm.
When this warning light switches on, it does not
indicate a fault of the car and it should therefore
not be taken to a workshop. A specific message will
appear on the display when the warning light
comes on (for versions/markets, where provided).
WARNING
The driving speed should always be
suitable to traffic conditions, weather
conditions and the driver should always
comply with traffic regulations.The engine
may be turned off while the DPF light is on;
however, repeated interruption of the
regeneration process may result in premature
degradation of the engine oil. For this reason,
always wait until the warning light switches off
before stopping the engine as described
above. It is not a good idea to complete DPF
regeneration with the car stationar y.FUEL RESERVE (amber)
Turning the key to the MAR-ON position the
warning light switches on, but it should switch off
after a few seconds. The warning light turns on
when 8-10 litres of fuel are left in the tank.
IMPORTANT The warning light will flash to indicate
a system failure. If this is the case, go to the Fiat
Dealership to have the system checked.
173GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

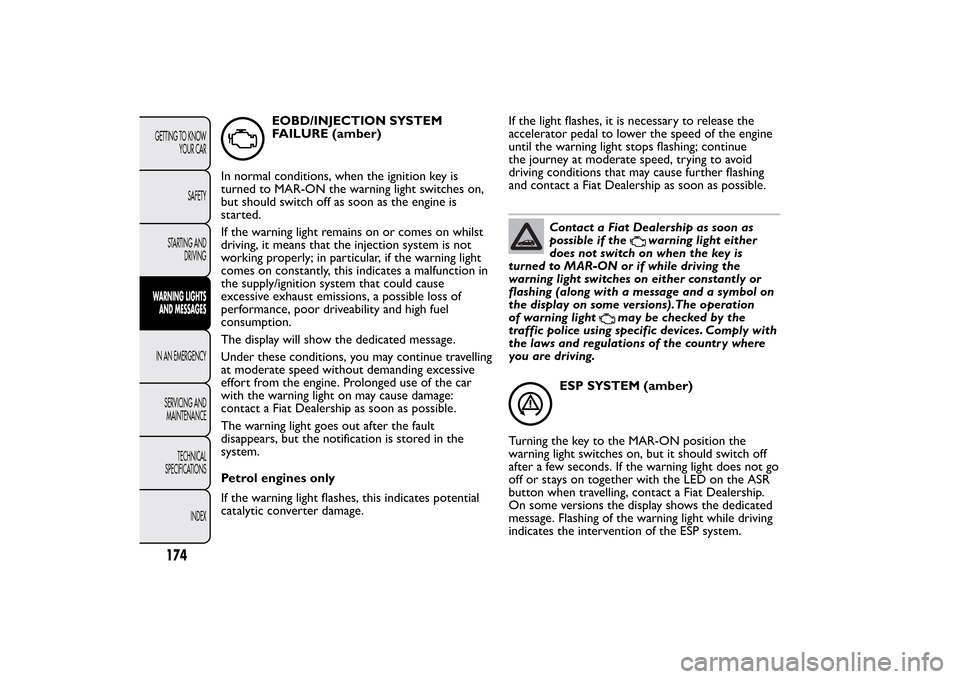

EOBD/INJECTION SYSTEM
FAILURE (amber)
In normal conditions, when the ignition key is
turned to MAR-ON the warning light switches on,
but should switch off as soon as the engine is
started.
If the warning light remains on or comes on whilst
driving, it means that the injection system is not
working properly; in particular, if the warning light
comes on constantly, this indicates a malfunction in
the supply/ignition system that could cause
excessive exhaust emissions, a possible loss of
performance, poor driveability and high fuel
consumption.
The display will show the dedicated message.
Under these conditions, you may continue travelling
at moderate speed without demanding excessive
effort from the engine. Prolonged use of the car
with the warning light on may cause damage:
contact a Fiat Dealership as soon as possible.
The warning light goes out after the fault
disappears, but the notification is stored in the
system.
Petrol engines only
If the warning light flashes, this indicates potential
catalytic converter damage.If the light flashes, it is necessary to release the
accelerator pedal to lower the speed of the engine
until the warning light stops flashing; continue
the journey at moderate speed, trying to avoid
driving conditions that may cause further flashing
and contact a Fiat Dealership as soon as possible.
Contact a Fiat Dealership as soon as
possible if the
warning light either
does not switch on when the key is
turned to MAR-ON or if while driving the
warning light switches on either constantly or
flashing (along with a message and a symbol on
the display on some versions).The operation
of warning light
may be checked by the
traffic police using specific devices. Comply with
the laws and regulations of the country where
you are driving.
ESP SYSTEM (amber)
Turning the key to the MAR-ON position the
warning light switches on, but it should switch off
after a few seconds. If the warning light does not go
off or stays on together with the LED on the ASR
button when travelling, contact a Fiat Dealership.
On some versions the display shows the dedicated
message. Flashing of the warning light while driving
indicates the intervention of the ESP system.
174GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

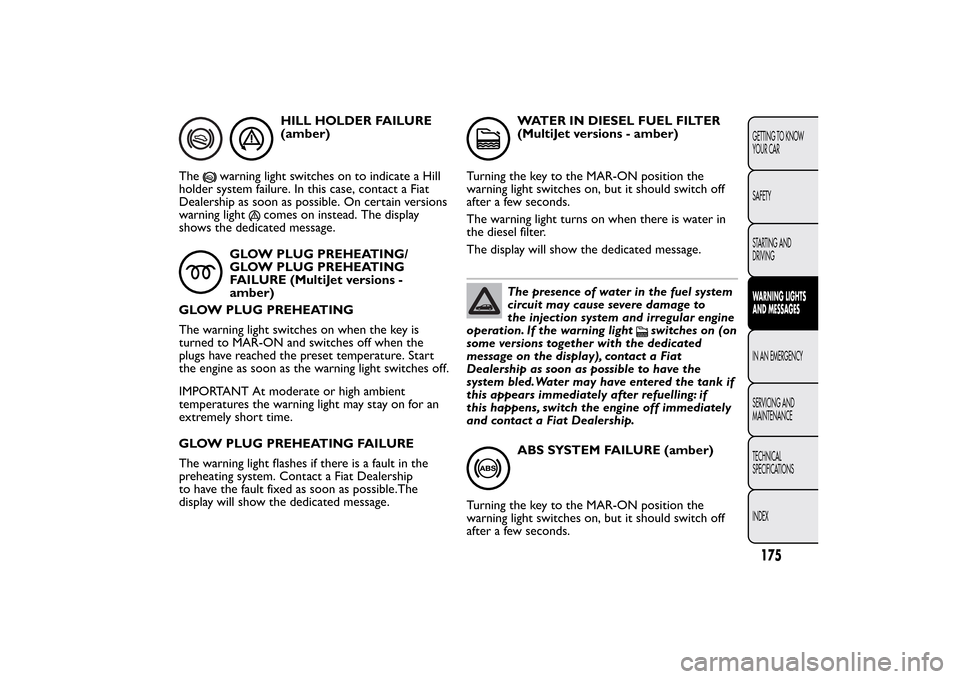

HILL HOLDER FAILURE
(amber)
The
warning light switches on to indicate a Hill
holder system failure. In this case, contact a Fiat
Dealership as soon as possible. On certain versions
warning light
comes on instead. The display
shows the dedicated message.
GLOW PLUG PREHEATING/
GLOW PLUG PREHEATING
FAILURE (MultiJet versions -
amber)
GLOW PLUG PREHEATING
The warning light switches on when the key is
turned to MAR-ON and switches off when the
plugs have reached the preset temperature. Start
the engine as soon as the warning light switches off.
IMPORTANT At moderate or high ambient
temperatures the warning light may stay on for an
extremely short time.
GLOW PLUG PREHEATING FAILURE
The warning light flashes if there is a fault in the
preheating system. Contact a Fiat Dealership
to have the fault fixed as soon as possible.The
display will show the dedicated message.
WATER IN DIESEL FUEL FILTER
(MultiJet versions - amber)
Turning the key to the MAR-ON position the
warning light switches on, but it should switch off
after a few seconds.
The warning light turns on when there is water in
the diesel filter.
The display will show the dedicated message.The presence of water in the fuel system
circuit may cause severe damage to
the injection system and irregular engine
operation. If the warning light
switches on (on
some versions together with the dedicated
message on the display), contact a Fiat
Dealership as soon as possible to have the
system bled.Water may have entered the tank if
this appears immediately after refuelling: if
this happens, switch the engine off immediately
and contact a Fiat Dealership.
ABS SYSTEM FAILURE (amber)
Turning the key to the MAR-ON position the
warning light switches on, but it should switch off
after a few seconds.
175GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

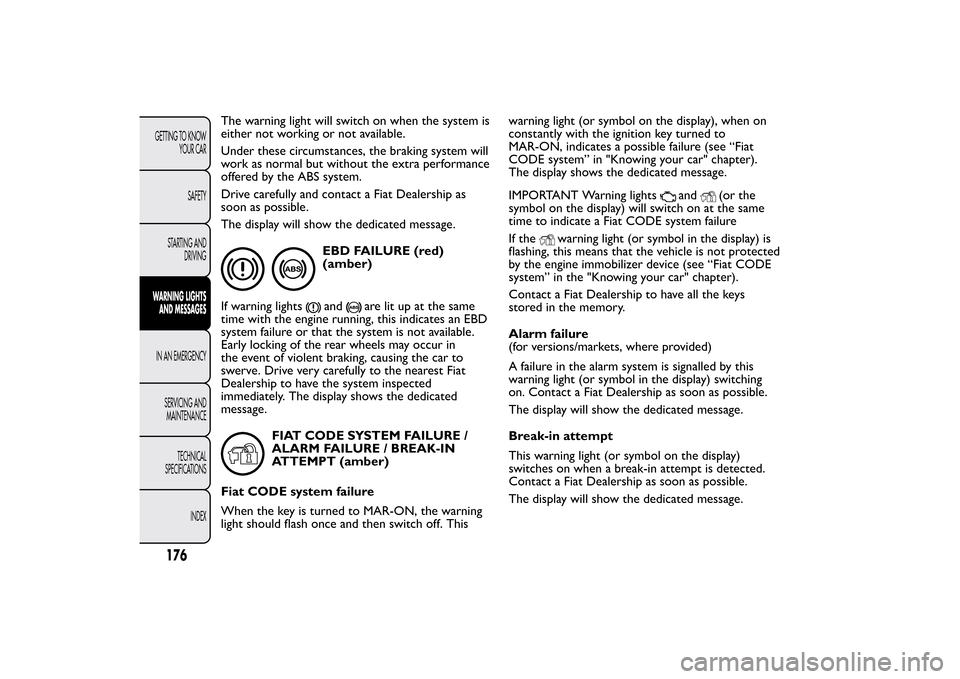

The warning light will switch on when the system is
either not working or not available.
Under these circumstances, the braking system will
work as normal but without the extra performance
offered by the ABS system.
Drive carefully and contact a Fiat Dealership as
soon as possible.
The display will show the dedicated message.
EBD FAILURE (red)
(amber)
If warning lightsand
are lit up at the same
time with the engine running, this indicates an EBD
system failure or that the system is not available.
Early locking of the rear wheels may occur in
the event of violent braking, causing the car to
swerve. Drive very carefully to the nearest Fiat
Dealership to have the system inspected
immediately. The display shows the dedicated
message.
FIAT CODE SYSTEM FAILURE /
ALARM FAILURE / BREAK-IN
ATTEMPT (amber)
Fiat CODE system failure
When the key is turned to MAR-ON, the warning
light should flash once and then switch off. Thiswarning light (or symbol on the display), when on
constantly with the ignition key turned to
MAR-ON, indicates a possible failure (see “Fiat
CODE system” in "Knowing your car" chapter).
The display shows the dedicated message.
IMPORTANT Warning lights
and
(or the
symbol on the display) will switch on at the same
time to indicate a Fiat CODE system failure
If the
warning light (or symbol in the display) is
flashing, this means that the vehicle is not protected
by the engine immobilizer device (see “Fiat CODE
system” in the "Knowing your car" chapter).
Contact a Fiat Dealership to have all the keys
stored in the memory.
Alarm failure
(for versions/markets, where provided)
A failure in the alarm system is signalled by this
warning light (or symbol in the display) switching
on. Contact a Fiat Dealership as soon as possible.
The display will show the dedicated message.
Break-in attempt
This warning light (or symbol on the display)
switches on when a break-in attempt is detected.
Contact a Fiat Dealership as soon as possible.
The display will show the dedicated message.
176GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
