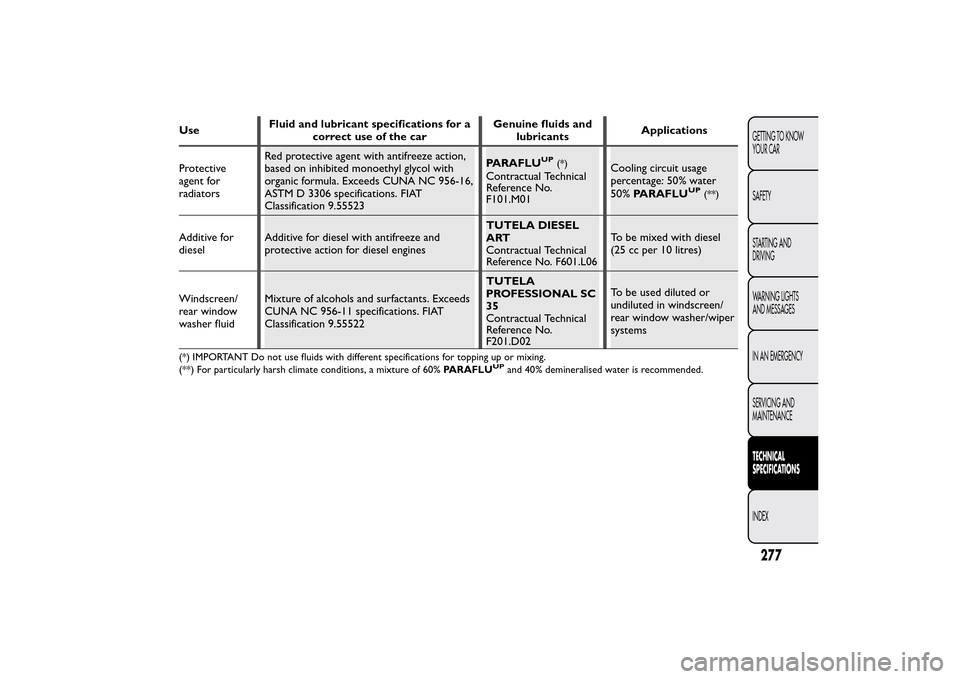

UseFluid and lubricant specifications for a
correct use of the carGenuine fluids and
lubricantsApplications
Protective
agent for
radiatorsRed protective agent with antifreeze action,
based on inhibited monoethyl glycol with
organic formula. Exceeds CUNA NC 956-16,
ASTM D 3306 specifications. FIAT
Classification 9.55523PARAFLU
UP
(*)
Contractual Technical
Reference No.
F101.M01Cooling circuit usage
percentage: 50% water
50%PARAFLU
UP
(**)
Additive for
dieselAdditive for diesel with antifreeze and
protective action for diesel enginesTUTELA DIESEL
ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
(25 cc per 10 litres)
Windscreen/
rear window
washer fluidMixture of alcohols and surfactants. Exceeds
CUNA NC 956-11 specifications. FIAT
Classification 9.55522TUTELA
PROFESSIONAL SC
35
Contractual Technical
Reference No.
F201.D02To be used diluted or
undiluted in windscreen/
rear window washer/wiper
systems(*) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(**) For particularly harsh climate conditions, a mixture of 60%PARAFLU
UP
and 40% demineralised water is recommended.
277GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

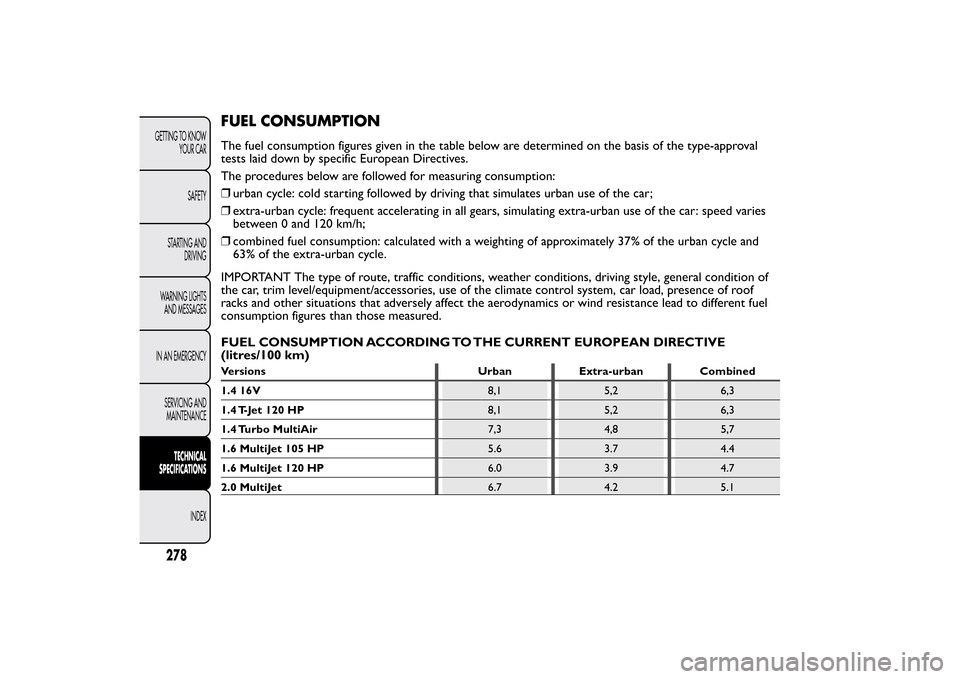

FUEL CONSUMPTIONThe fuel consumption figures given in the table below are determined on the basis of the type-approval tests laid down by specific European Directives. The procedures below are followed for measuring consumption:❒
urban cycle: cold starting followed by driving that simulates urban use of the car;
❒
extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the car: speed varies between 0 and 120 km/h;
❒
combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim level/equipment/accessories, use of the climate control system, car load, presence of roofracks and other situations that adversely affect the aerodynamics or wind resistance lead to different fuelconsumption figures than those measured. FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)Versions Urban Extra-urban Combined 1.4 16V
8,1 5,2 6,3
1.4 T-Jet 120 HP
8,1 5,2 6,3
1.4 Turbo MultiAir
7,3
4,8
,7
1.6 MultiJet 105 HP
5.6 3.7 4.4
1.6 MultiJet 120 HP
6.0 3.9 4.7
2.0 MultiJet
6.7 4.2 5.1
278GETTING TO KNOW
YOUR CAR SAFETY
STARTING AND
DRIVING
WARNING LIGHTS AND MESSAGES IN AN EMERGENCY SERVICING AND MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX
5

CO
2
EMISSIONS

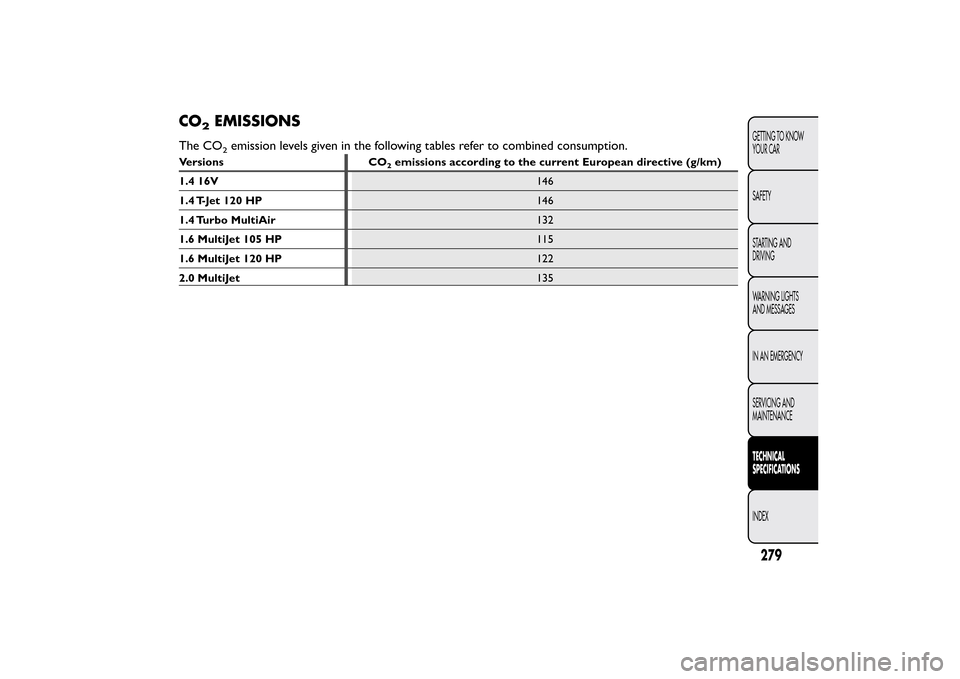

The CO
2emission levels given in the following tables refer to combined consumption.
Versions CO
2emissions according to the current European directive (g/km)
1.4 16V146
1.4 T-Jet 120 HP146
1.4 Turbo MultiAir132
1.6 MultiJet 105 HP115
1.6 MultiJet 120 HP122
2.0 MultiJet135
279GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

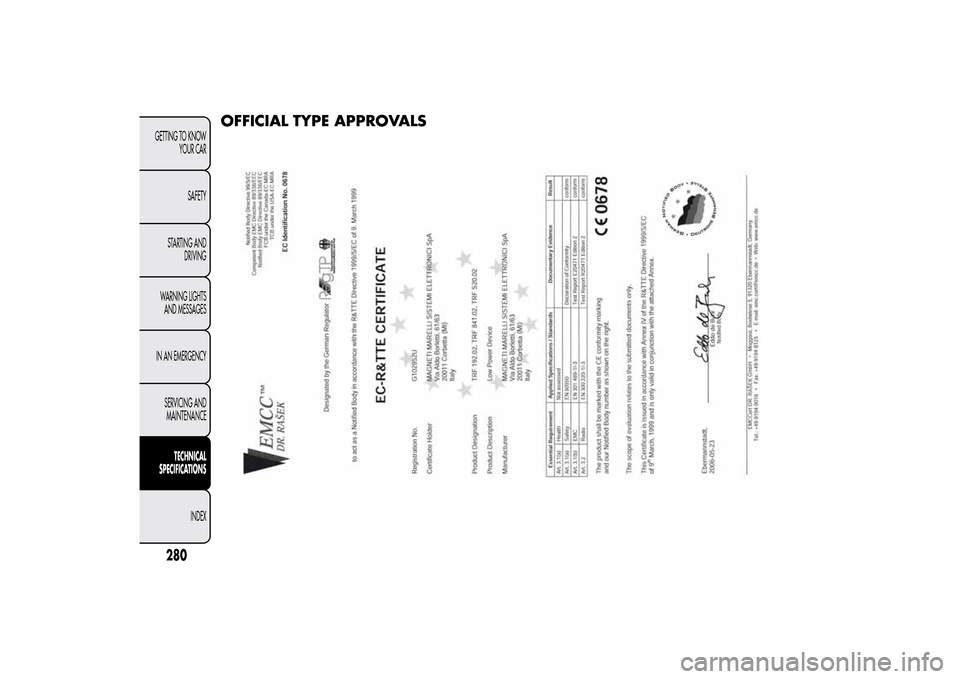

OFFICIAL TYPE APPROVALS
280GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

281GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

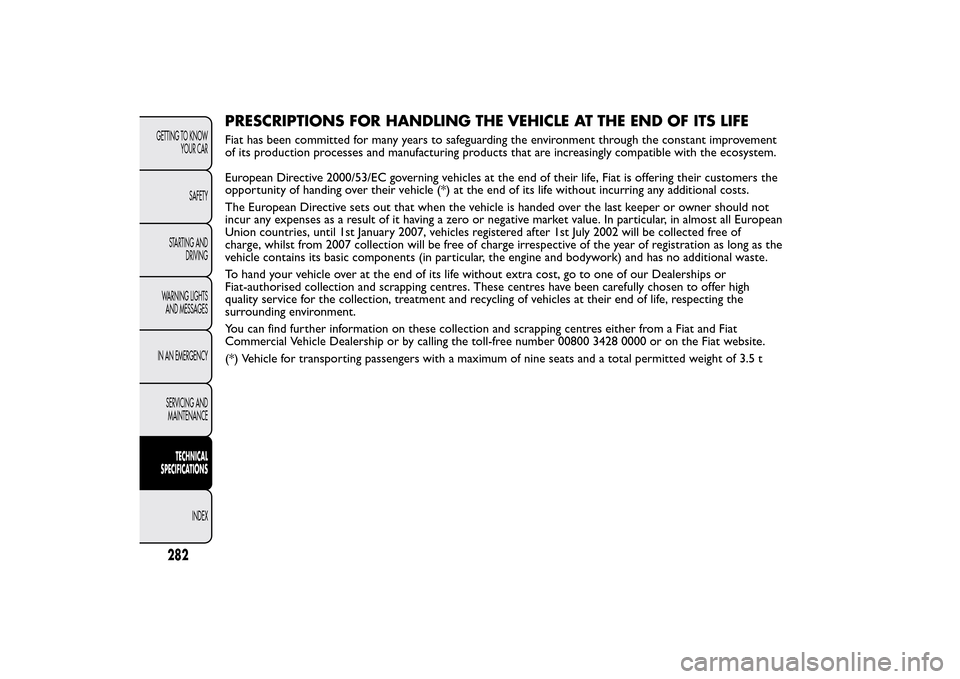

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS LIFEFiat has been committed for many years to safeguarding the environment through the constant improvement
of its production processes and manufacturing products that are increasingly compatible with the ecosystem.
European Directive 2000/53/EC governing vehicles at the end of their life, Fiat is offering their customers the
opportunity of handing over their vehicle (*) at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not
incur any expenses as a result of it having a zero or negative market value. In particular, in almost all European
Union countries, until 1st January 2007, vehicles registered after 1st July 2002 will be collected free of
charge, whilst from 2007 collection will be free of charge irrespective of the year of registration as long as the
vehicle contains its basic components (in particular, the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, go to one of our Dealerships or
Fiat-authorised collection and scrapping centres. These centres have been carefully chosen to offer high
quality service for the collection, treatment and recycling of vehicles at their end of life, respecting the
surrounding environment.
You can find further information on these collection and scrapping centres either from a Fiat and Fiat
Commercial Vehicle Dealership or by calling the toll-free number 00800 3428 0000 or on the Fiat website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
282GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

®
®

285 2
RIGHT HAND DRIVE VERSIONS

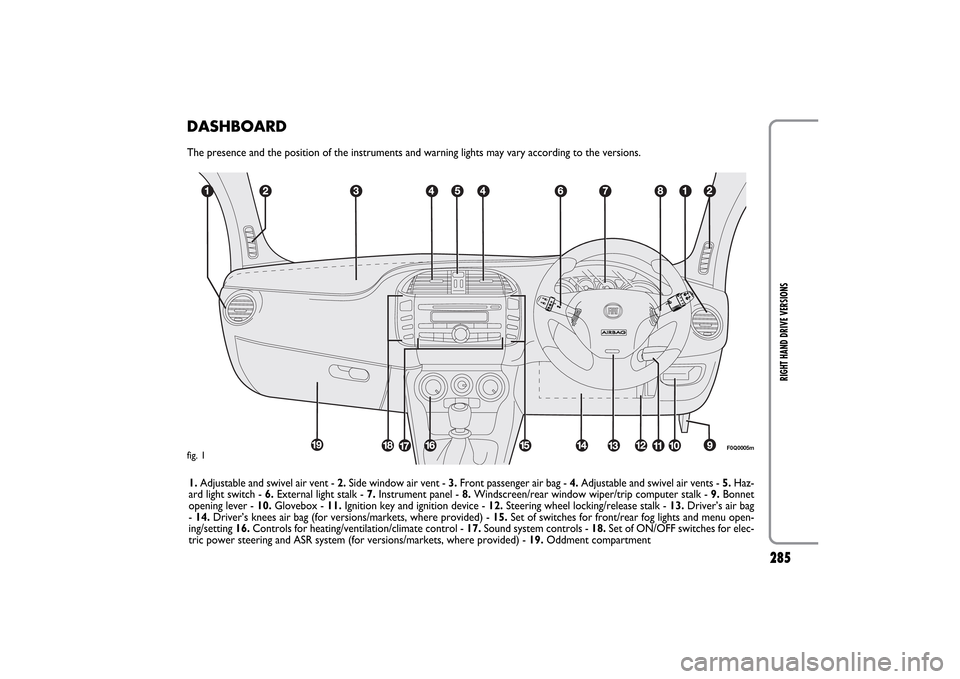

DASHBOARDThe presence and the position of the instruments and warning lights may vary according to the versions.
1.Adjustable and swivel air vent - 2.Side window air vent - 3.Front passenger air bag - 4.Adjustable and swivel air vents - 5.Haz-
ard light switch - 6.External light stalk - 7.Instrument panel - 8.Windscreen/rear window wiper/trip computer stalk - 9.Bonnet
opening lever - 10.Glovebox - 11.Ignition key and ignition device - 12.Steering wheel locking/release stalk - 13.Driver’s air bag
- 14.Driver’s knees air bag (for versions/markets, where provided) - 15.Set of switches for front/rear fog lights and menu open-
ing/setting 16.Controls for heating/ventilation/climate control - 17.Sound system controls - 18.Set of ON/OFF switches for elec-
tric power steering and ASR system (for versions/markets, where provided) - 19.Oddment compartment
F0Q0005m
fig. 1
217-248 BRAVO GB.qxd:213-236 BRAVO GB 11-04-2011 12:04 Pagina 245

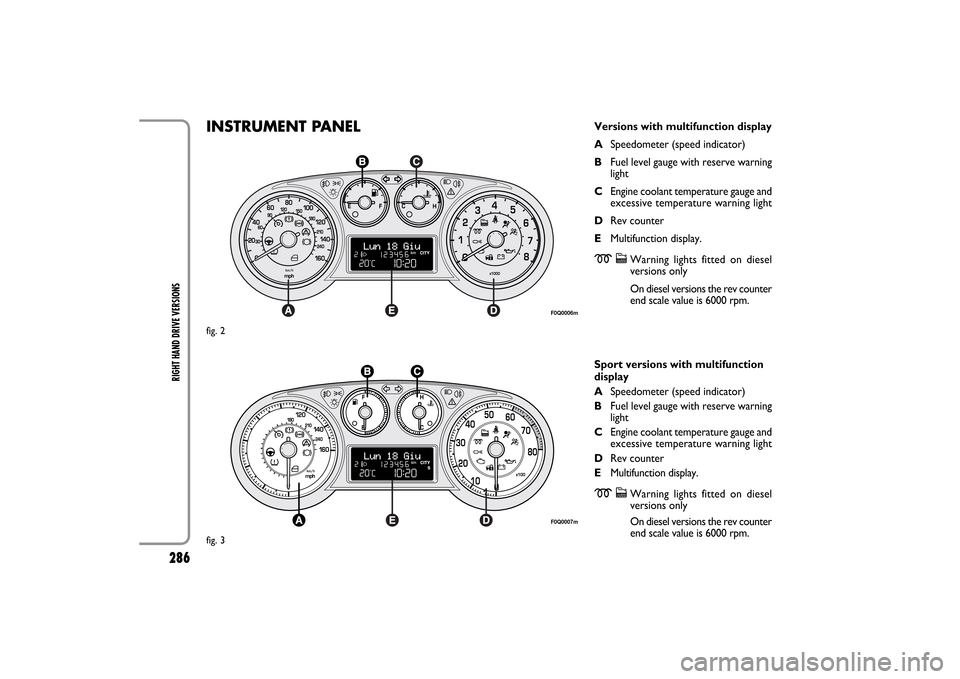

INSTRUMENT PANEL
