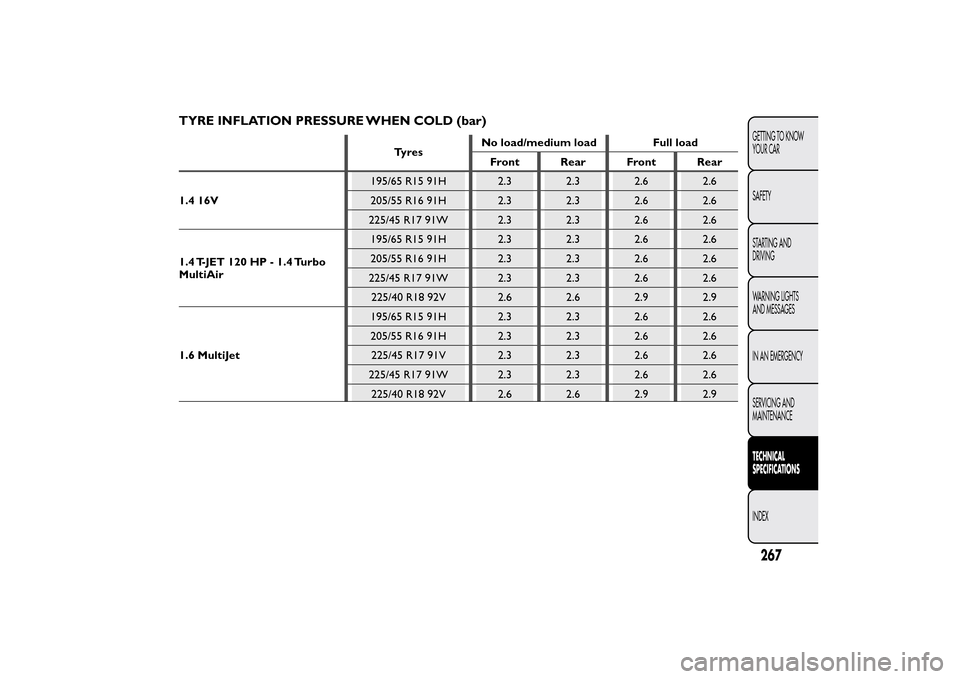

TYRE INFLATION PRESSURE WHEN COLD (bar)
Ty r e sNo load/medium load Full load
Front Rear Front Rear
1.4 16V195/65 R15 91H 2.3 2.3 2.6 2.6
205/55 R16 91H 2.3 2.3 2.6 2.6
225/45 R17 91W 2.3 2.3 2.6 2.6
1.4 T-JET 120 HP - 1.4 Turbo
MultiAir195/65 R15 91H 2.3 2.3 2.6 2.6
205/55 R16 91H 2.3 2.3 2.6 2.6
225/45 R17 91W 2.3 2.3 2.6 2.6
225/40 R18 92V 2.6 2.6 2.9 2.9
1.6 MultiJet195/65 R15 91H 2.3 2.3 2.6 2.6
205/55 R16 91H 2.3 2.3 2.6 2.6
225/45 R17 91V 2.3 2.3 2.6 2.6
225/45 R17 91W 2.3 2.3 2.6 2.6
225/40 R18 92V 2.6 2.6 2.9 2.9
267GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

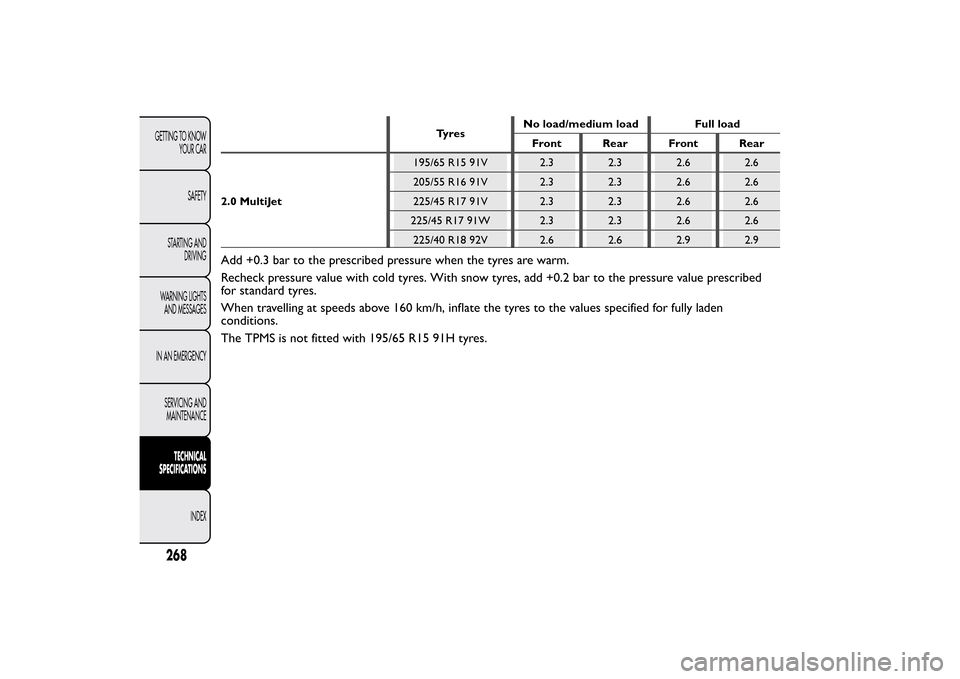

Ty r e sNo load/medium load Full load
Front Rear Front Rear
2.0 MultiJet195/65 R15 91V 2.3 2.3 2.6 2.6
205/55 R16 91V 2.3 2.3 2.6 2.6
225/45 R17 91V 2.3 2.3 2.6 2.6
225/45 R17 91W 2.3 2.3 2.6 2.6
225/40 R18 92V 2.6 2.6 2.9 2.9
Add +0.3 bar to the prescribed pressure when the tyres are warm.
Recheck pressure value with cold tyres. With snow tyres, add +0.2 bar to the pressure value prescribed
for standard tyres.
When travelling at speeds above 160 km/h, inflate the tyres to the values specified for fully laden
conditions.
The TPMS is not fitted with 195/65 R15 91H tyres.
268GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

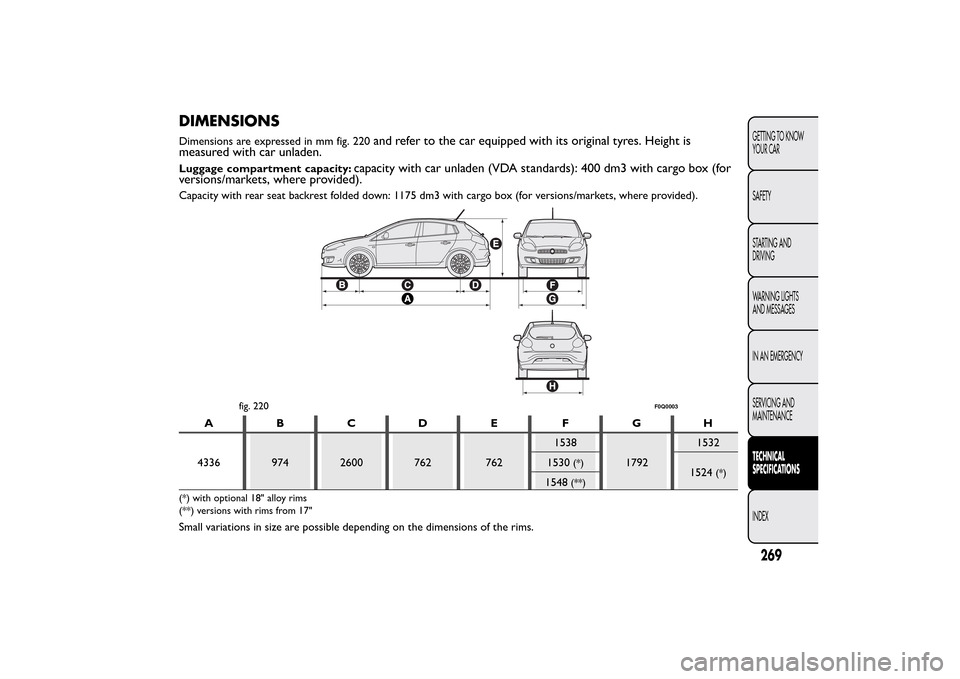

DIMENSIONSDimensions are expressed in mm fig. 220
and refer to the car equipped with its original tyres. Height is
measured with car unladen.
Luggage compartment capacity:
capacity with car unladen (VDA standards): 400 dm3 with cargo box (for
versions/markets, where provided).
Capacity with rear seat backrest folded down: 1175 dm3 with cargo box (for versions/markets, where provided).
ABCDE FGH
4336 974 2600 762 7621538
17921532
1530
(*)
1524
(*)
1548
(**)
(*) with optional 18" alloy rims
(**) versions with rims from 17"
Small variations in size are possible depending on the dimensions of the rims.
fig. 220
F0Q0003
269GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

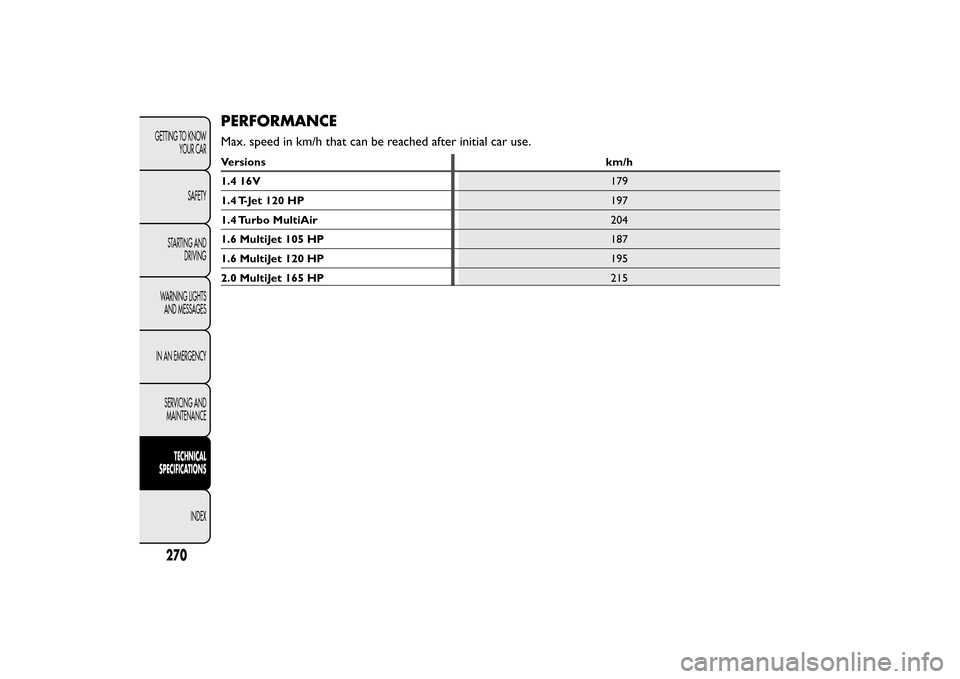

PERFORMANCEMax. speed in km/h that can be reached after initial car use.Versions km/h
1.4 16V179
1.4 T-Jet 120 HP197
1.4 Turbo MultiAir204
1.6 MultiJet 105 HP187
1.6 MultiJet 120 HP195
2.0 MultiJet 165 HP215
270GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

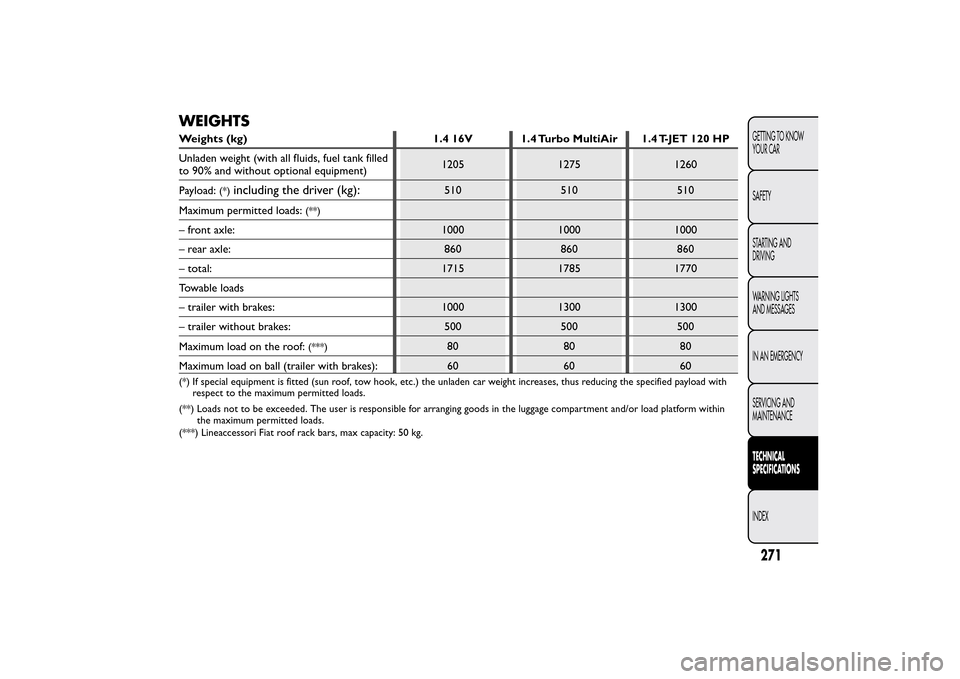

WEIGHTSWeights (kg) 1.4 16V 1.4 Turbo MultiAir 1.4 T-JET 120 HP
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1205 1275 1260
Payload:
(*)
including the driver (kg):
510 510 510
Maximum permitted loads:
(**)
– front axle: 1000 1000 1000
– rear axle: 860 860 860
– total: 1715 1785 1770
Towable loads
– trailer with brakes: 1000 1300 1300
– trailer without brakes: 500 500 500
Maximum load on the roof:
(***)
80 80 80
Maximum load on ball (trailer with brakes): 60 60 60
(*) If special equipment is fitted (sun roof, tow hook, etc.) the unladen car weight increases, thus reducing the specified payload with
respect to the maximum permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
(***) Lineaccessori Fiat roof rack bars, max capacity: 50 kg.
271GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

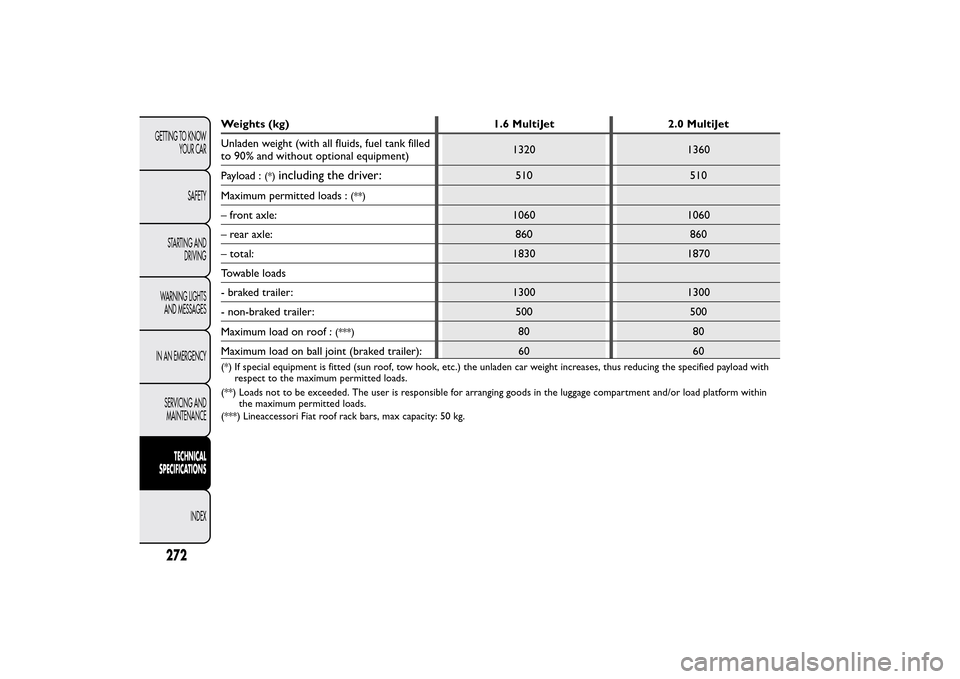

Weights (kg) 1.6 MultiJet 2.0 MultiJet
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1320 1360
Payload :
(*)
including the driver:
510 510
Maximum permitted loads :
(**)
– front axle: 1060 1060
– rear axle: 860 860
– total: 1830 1870
Towable loads
- braked trailer: 1300 1300
- non-braked trailer: 500 500
Maximum load on roof :
(***)
80 80
Maximum load on ball joint (braked trailer): 60 60
(*) If special equipment is fitted (sun roof, tow hook, etc.) the unladen car weight increases, thus reducing the specified payload with
respect to the maximum permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
(***) Lineaccessori Fiat roof rack bars, max capacity: 50 kg.
272GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

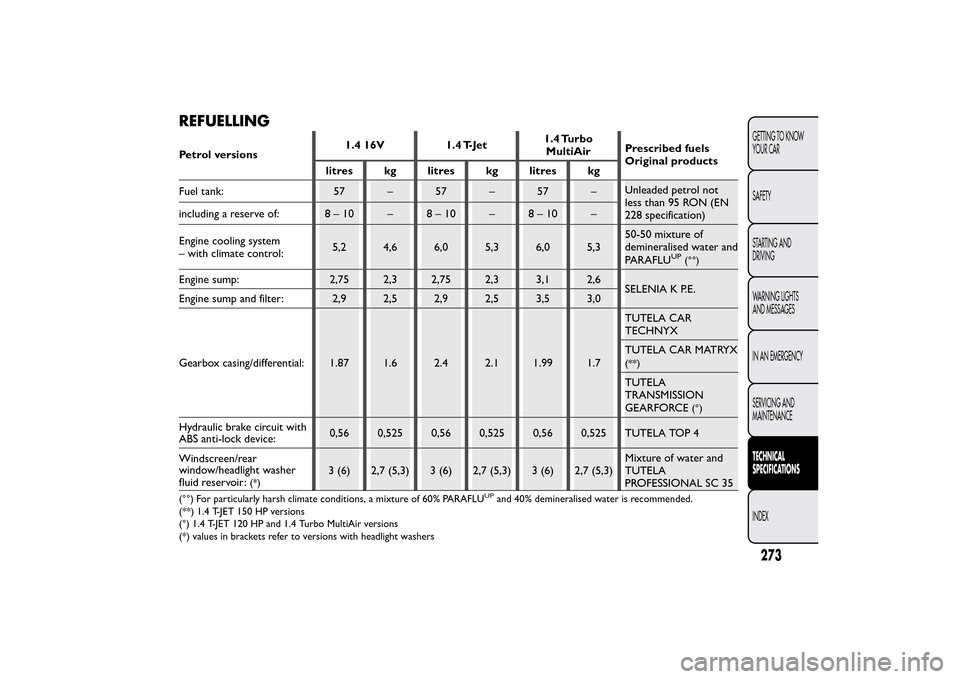

REFUELLINGPetrol versions1.4 16V 1.4 T-Jet1.4 Turbo
MultiAirPrescribed fuels
Original products
litres kg litres kg litres kg
Fuel tank: 57 – 57 – 57 –Unleaded petrol not
less than 95 RON (EN
228 specification) including a reserve of: 8 – 10 – 8 – 10 – 8 – 10 –
Engine cooling system
– with climate control:5,2 4,6 6,0 5,3 6,0 5,350-50 mixture of
demineralised water and
PARAFLU
UP
(°°)
Engine sump: 2,75 2,3 2,75 2,3 3,1 2,6
SELENIA K P.E.
Engine sump and filter: 2,9 2,5 2,9 2,5 3,5 3,0
Gearbox casing/differential: 1.87 1.6 2.4 2.1 1.99 1.7TUTELA CAR
TECHNYX
TUTELA CAR MATRYX
(**)TUTELA
TRANSMISSION
GEARFORCE
(°)
Hydraulic brake circuit with
ABS anti-lock device:0,56 0,525 0,56 0,525 0,56 0,525 TUTELA TOP 4
Windscreen/rear
window/headlight washer
fluid reservoir:
(*)
3 (6) 2,7 (5,3) 3 (6) 2,7 (5,3) 3 (6) 2,7 (5,3)Mixture of water and
TUTELA
PROFESSIONAL SC 35
(°°) For particularly harsh climate conditions, a mixture of 60% PARAFLU
UP
and 40% demineralised water is recommended.
(**) 1.4 T-JET 150 HP versions
(°) 1.4 T-JET 120 HP and 1.4 Turbo MultiAir versions
(*) values in brackets refer to versions with headlight washers
273GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

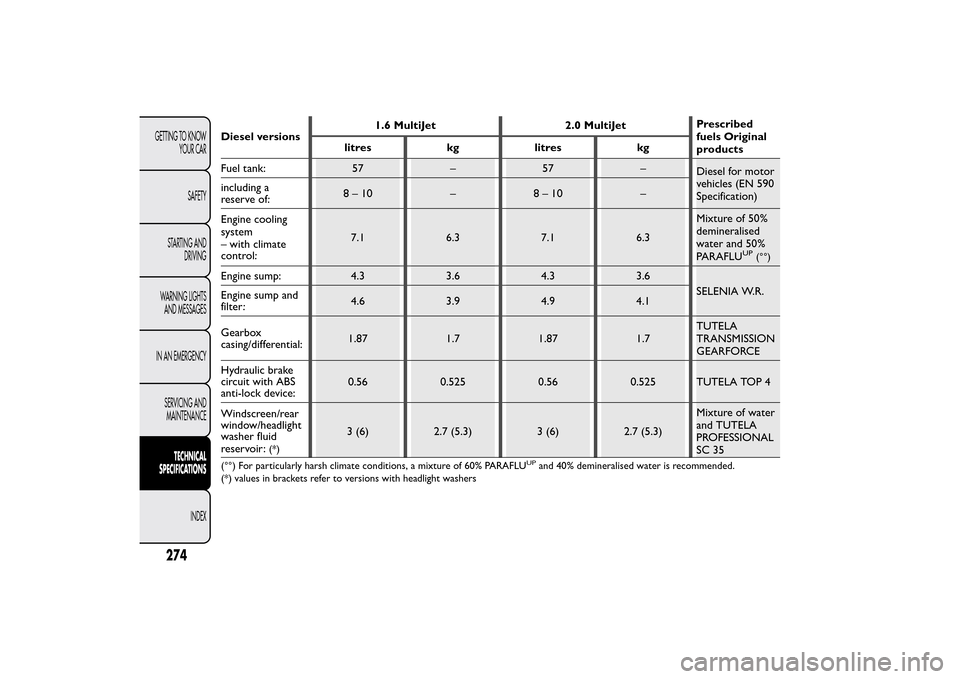

Diesel versions1.6 MultiJet 2.0 MultiJetPrescribed
fuels Original
products litres kg litres kg
Fuel tank: 57 – 57 –
Diesel for motor
vehicles (EN 590
Specification) including a
reserve of:8–10 – 8–10 –
Engine cooling
system
– with climate
control:7.1 6.3 7.1 6.3Mixture of 50%
demineralised
water and 50%
PARAFLU
UP
(°°)
Engine sump: 4.3 3.6 4.3 3.6
SELENIA W.R.
Engine sump and
filter:4.6 3.9 4.9 4.1
Gearbox
casing/differential:1.87 1.7 1.87 1.7TUTELA
TRANSMISSION
GEARFORCE
Hydraulic brake
circuit with ABS
anti-lock device:0.56 0.525 0.56 0.525 TUTELA TOP 4
Windscreen/rear
window/headlight
washer fluid
reservoir:
(*)
3 (6) 2.7 (5.3) 3 (6) 2.7 (5.3)Mixture of water
and TUTELA
PROFESSIONAL
SC 35
(°°) For particularly harsh climate conditions, a mixture of 60% PARAFLU
UP
and 40% demineralised water is recommended.
(*) values in brackets refer to versions with headlight washers
274GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

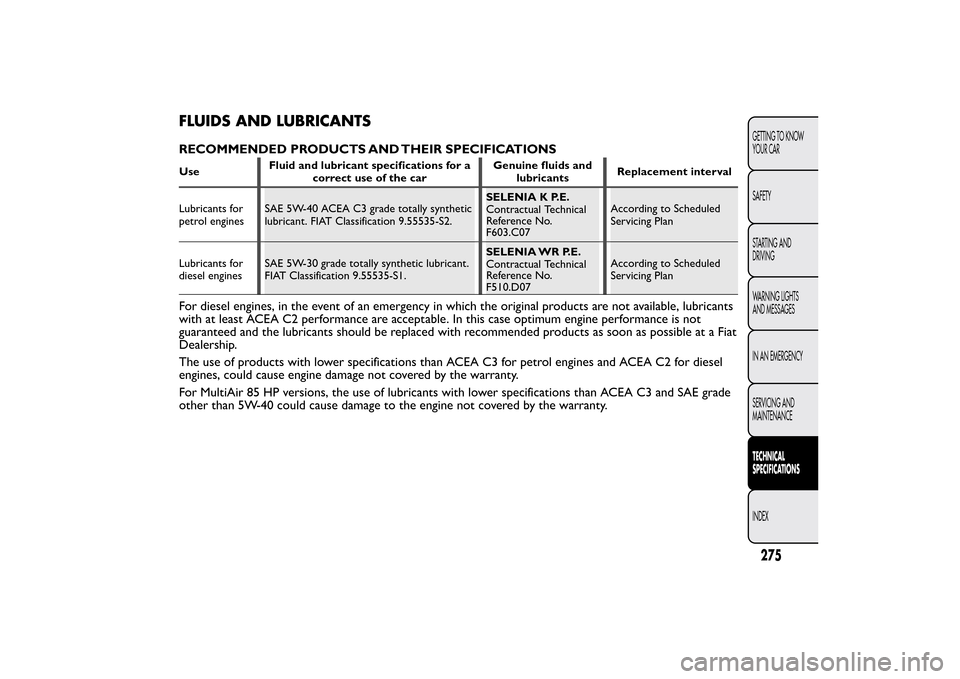

FLUIDS AND LUBRICANTSRECOMMENDED PRODUCTS AND THEIR SPECIFICATIONSUseFluid and lubricant specifications for a
correct use of the carGenuine fluids and
lubricantsReplacement interval
Lubricants for
petrol enginesSAE 5W-40 ACEA C3 grade totally synthetic
lubricant. FIAT Classification 9.55535-S2.SELENIA K P.E.
Contractual Technical
Reference No.
F603.C07According to Scheduled
Servicing Plan
Lubricants for
diesel enginesSAE 5W-30 grade totally synthetic lubricant.
FIAT Classification 9.55535-S1.SELENIA WR P.E.
Contractual Technical
Reference No.
F510.D07According to Scheduled
Servicing PlanFor diesel engines, in the event of an emergency in which the original products are not available, lubricants
with at least ACEA C2 performance are acceptable. In this case optimum engine performance is not
guaranteed and the lubricants should be replaced with recommended products as soon as possible at a Fiat
Dealership.
The use of products with lower specifications than ACEA C3 for petrol engines and ACEA C2 for diesel
engines, could cause engine damage not covered by the warranty.
For MultiAir 85 HP versions, the use of lubricants with lower specifications than ACEA C3 and SAE grade
other than 5W-40 could cause damage to the engine not covered by the warranty.
275GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

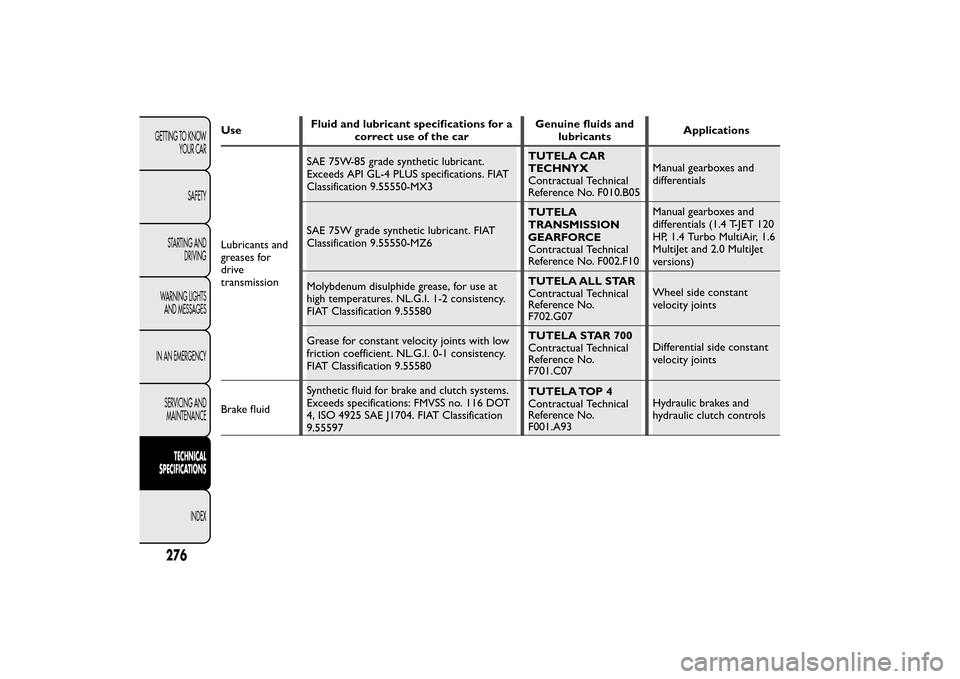

UseFluid and lubricant specifications for a
