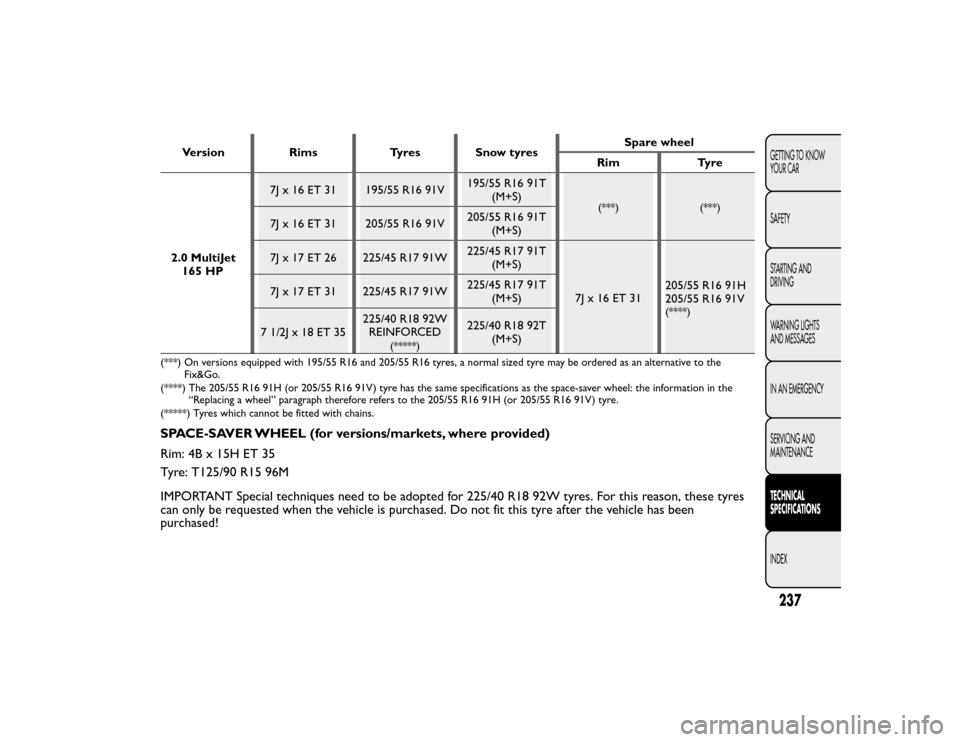

FIAT BRAVO 2015 2.G Owners Manual

VersionRimsTyres Snow tyres Spare wheel
Rim Tyre
2.0 MultiJet 165 HP 7J x 16 ET 31 195/55 R16 91V
195/55 R16 91T
(M+S)
(***) (***)
7J x 16 ET 31 205/55 R16 91V 205/55 R16 91T
(M+S)
7J x 17 ET 26 225/45 R17 91W 225/45 R17 91T
(M+S)
7J x 16 ET 31 205/55 R16 91H
205/55 R16 91V
(****)
7J x 17 ET 31 225/45 R17 91W
225/45 R17 91T
(M+S)
7 1/2J x 18 ET 35 225/40 R18 92W
REINFORCED
(*****)
225/40 R18 92T (M+S)
(***) On versions equipped with 195/55 R16 and 205/55 R16 tyres, a normal sized tyre may be ordered as an alternative to the
Fix&Go.
(****) The 205/55 R16 91H (or 205/55 R16 91V) tyre has the same specifications as the space-saver wheel: the information in the “Replacing a wheel” paragraph therefore refers to the 205/55 R16 91H (or 205/55 R16 91V) tyre.
(*****) Tyres which cannot be fitted with chains.SPACE-SAVER WHEEL (for versions/markets, where provided)
Rim: 4B x 15H ET 35
Tyre: T125/90 R15 96M
IMPORTANT Special techniques need to be adopted for 225/40 R18 92W tyres. For this reason, these tyres
can only be requested when the vehicle is purchased. Do not fit this tyre after the vehicle has been
purchased!
237GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

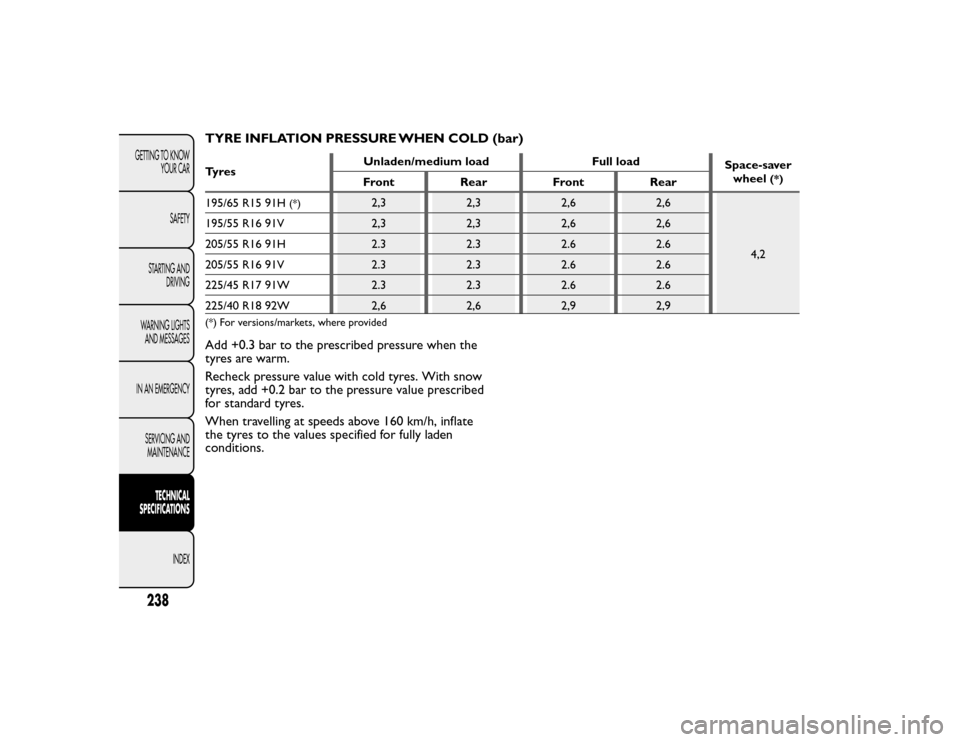

TYRE INFLATION PRESSURE WHEN COLD (bar)TyresUnladen/medium load
Full load
Space-saver
wheel
(*)
Front RearFront Rear
195/65 R15 91H
(*)
2,3 2,32,62,6
4,2
195/55 R16 91V
2,32,32,62,6
205/55 R16 91H 2.32.32.62.6
205/55 R16 91V 2.32.32.62.6
225/45 R17 91W 2.32.32.62.6
225/40 R18 92W 2,62,62,92,9
(*) For versions/markets, where providedAdd +0.3 bar to the prescribed pressure when the
tyres are warm.
Recheck pressure value with cold tyres. With snow
tyres, add +0.2 bar to the pressure value prescribed
for standard tyres.
When travelling at speeds above 160 km/h, inflate
the tyres to the values specified for fully laden
conditions.
238GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

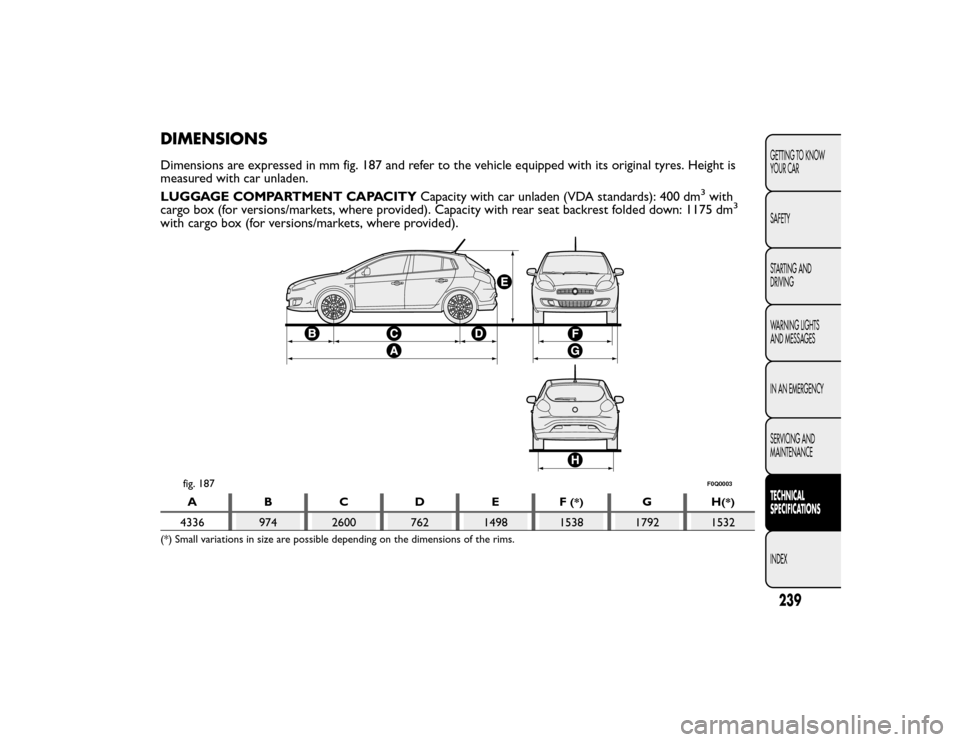

DIMENSIONSDimensions are expressed in mm fig. 187 and refer to the vehicle equipped with its original tyres. Height is
measured with car unladen.
LUGGAGE COMPARTMENT CAPACITYCapacity with car unladen (VDA standards): 400 dm
3with
cargo box (for versions/markets, where provided). Capacity with rear seat backrest folded down: 1175 dm
3
with cargo box (for versions/markets, where provided).
AB CD E F
(*)
GH
(*)
4336 974 2600 762 1498 1538 1792 1532
(*) Small variations in size are possible depending on the dimensions of the rims.
fig. 187
F0Q0003
239GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

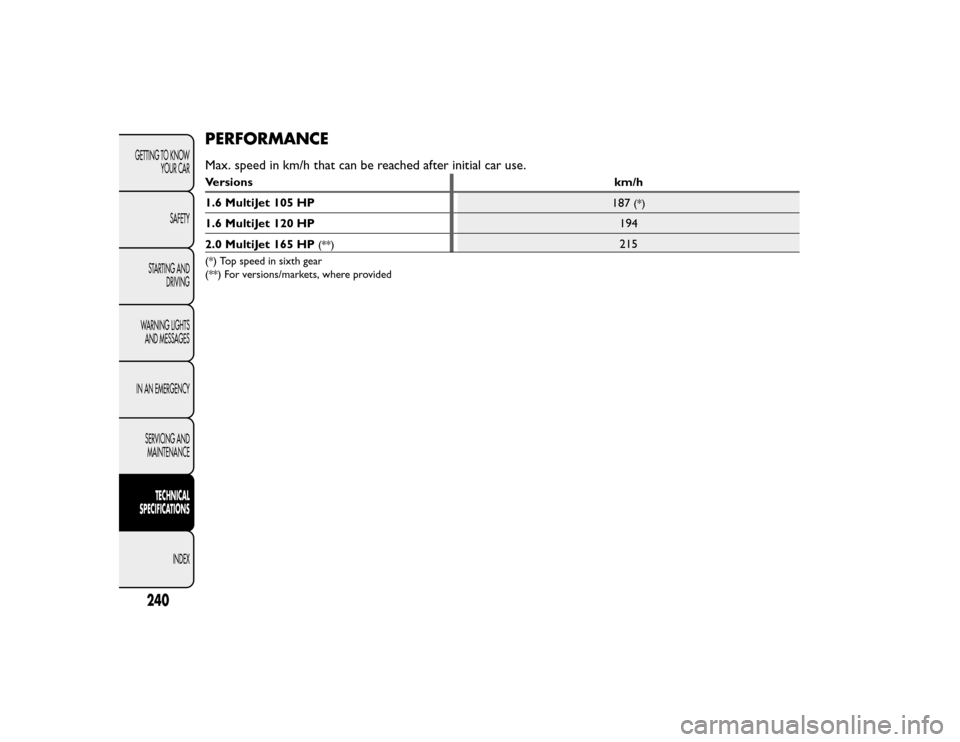

PERFORMANCEMax. speed in km/h that can be reached after initial car use.Versionskm/h
1.6 MultiJet 105 HP 187
(*)
1.6 MultiJet 120 HP 194
2.0 MultiJet 165 HP
(**)
215
(*) Top speed in sixth gear
(**) For versions/markets, where provided
240GETTING TO KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

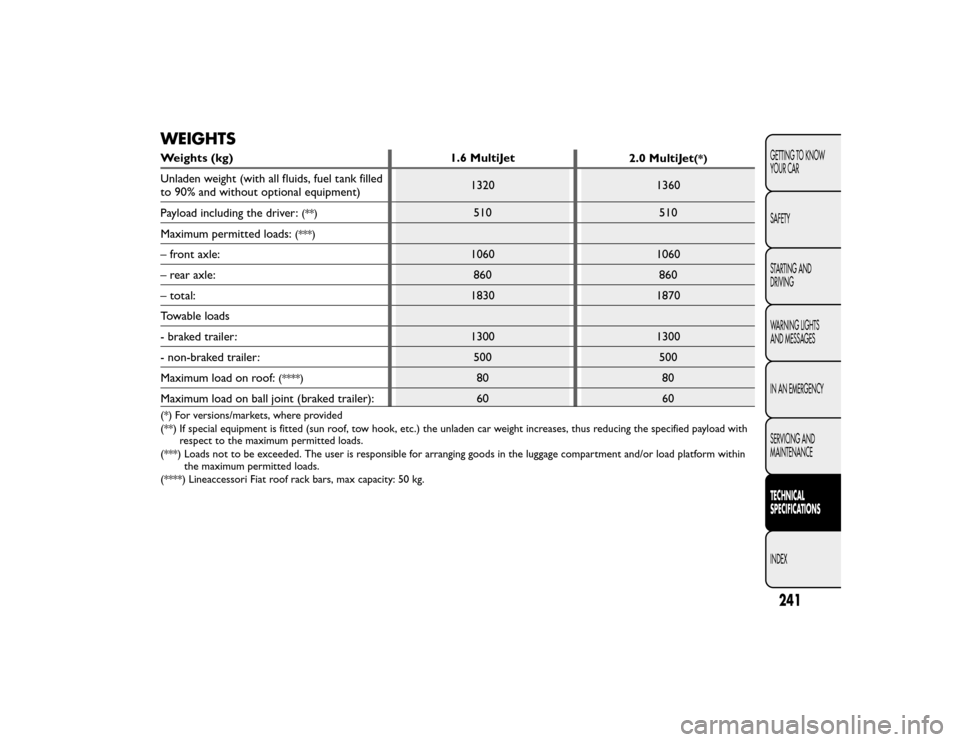

WEIGHTSWeights (kg)1.6 MultiJet
2.0 MultiJet
(*)
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment) 1320
1360
Payload including the driver:
(**)
510 510
Maximum permitted loads:
(***)
– front axle: 10601060
– rear axle: 860860
– total: 18301870
Towable loads
- braked trailer: 13001300
- non-braked trailer: 500500
Maximum load on roof:
(****)
80 80
Maximum load on ball joint (braked trailer): 6060
(*) For versions/markets, where provided
(**) If special equipment is fitted (sun roof, tow hook, etc.) the unladen car weight increases, thus reducing the specified payload with
respect to the maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
(****) Lineaccessori Fiat roof rack bars, max capacity: 50 kg.
241GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

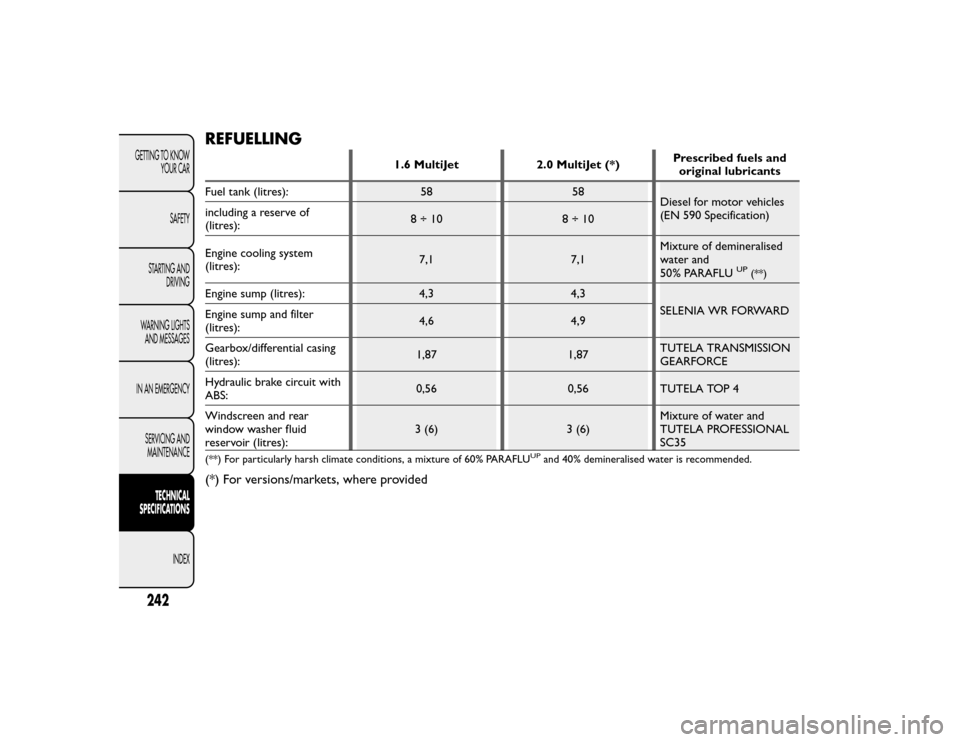

REFUELLING
1.6 MultiJet2.0 MultiJet (*)Prescribed fuels and
original lubricants
Fuel tank (litres): 5858
Diesel for motor vehicles
(EN 590 Specification)
including a reserve of
(litres): 8÷10
8÷10
Engine cooling system
(litres): 7,1
7,1Mixture of demineralised
water and
50% PARAFLU
UP
(**)
Engine sump (litres):
4,34,3
SELENIA WR FORWARD
Engine sump and filter
(litres): 4,6
4,9
Gearbox/differential casing
(litres): 1,87
1,87TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with
ABS: 0,56
0,56TUTELA TOP 4
Windscreen and rear
window washer fluid
reservoir (litres): 3 (6)
3 (6)Mixture of water and
TUTELA PROFESSIONAL
SC35(**) For particularly harsh climate conditions, a mixture of 60% PARAFLU
UP
and 40% demineralised water is recommended.
(*) For versions/markets, where provided
242GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

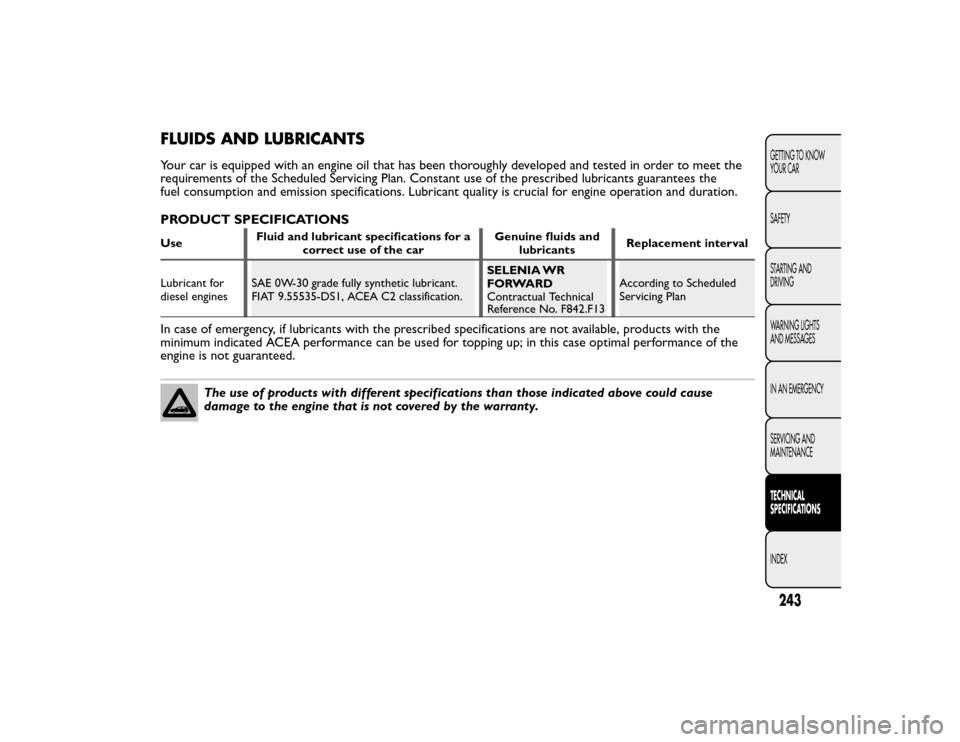

FLUIDS AND LUBRICANTSYour car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the
fuel consumption and emission specifications. Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONSUseFluid and lubricant specifications for a
correct use of the car Genuine fluids and
lubricants Replacement interval
Lubricant for
diesel engines SAE 0W-30 grade fully synthetic lubricant.
FIAT 9.55535-DS1, ACEA C2 classification. SELENIA WR
FORWARD
Contractual Technical
Reference No. F842.F13According to Scheduled
Servicing PlanIn case of emergency, if lubricants with the prescribed specifications are not available, products with the
minimum indicated ACEA performance can be used for topping up; in this case optimal performance of the
engine is not guaranteed.
The use of products with different specifications than those indicated above could cause
damage to the engine that is not covered by the warranty.
243GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

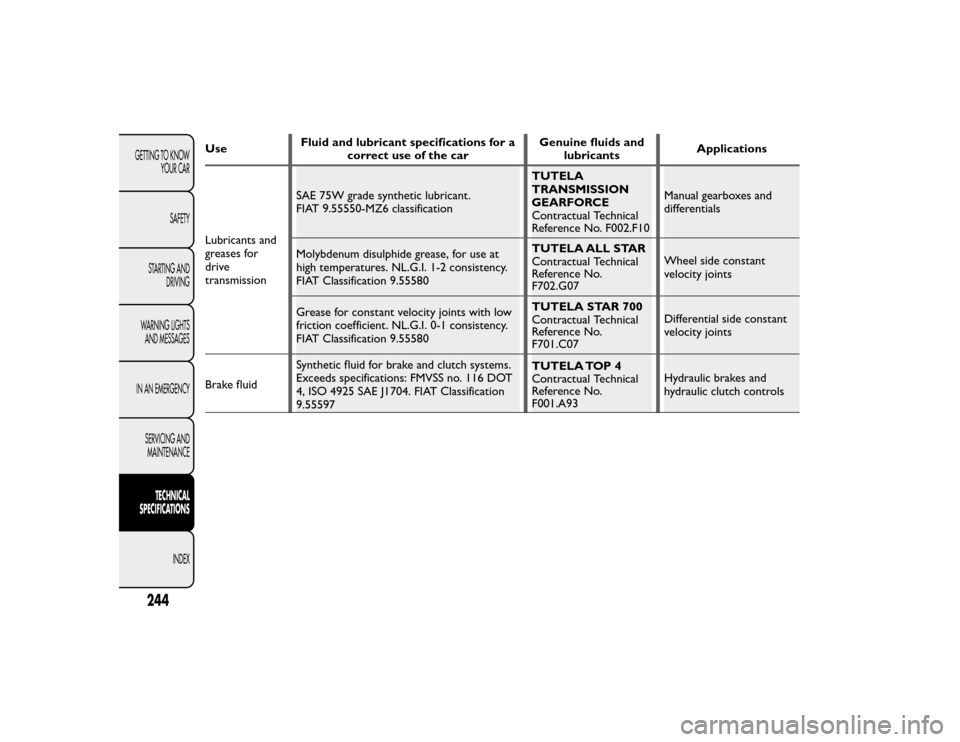

UseFluid and lubricant specifications for a
correct use of the car Genuine fluids and
lubricants Applications
Lubricants and
greases for
drive
transmission SAE 75W grade synthetic lubricant.
FIAT 9.55550-MZ6 classification
TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Manual gearboxes and
differentials
Molybdenum disulphide grease, for use at
high temperatures. NL.G.I. 1-2 consistency.
FIAT Classification 9.55580 TUTELA ALL STAR
Contractual Technical
Reference No.
F702.G07
Wheel side constant
velocity joints
Grease for constant velocity joints with low
friction coefficient. NL.G.I. 0-1 consistency.
FIAT Classification 9.55580 TUTELA STAR 700
Contractual Technical
Reference No.
F701.C07
Differential side constant
velocity joints
Brake fluid Synthetic fluid for brake and clutch systems.
Exceeds specifications: FMVSS no. 116 DOT
4, ISO 4925 SAE J1704. FIAT Classification
9.55597 TUTELA TOP 4
Contractual Technical
Reference No.
F001.A93
Hydraulic brakes and
hydraulic clutch controls
244GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

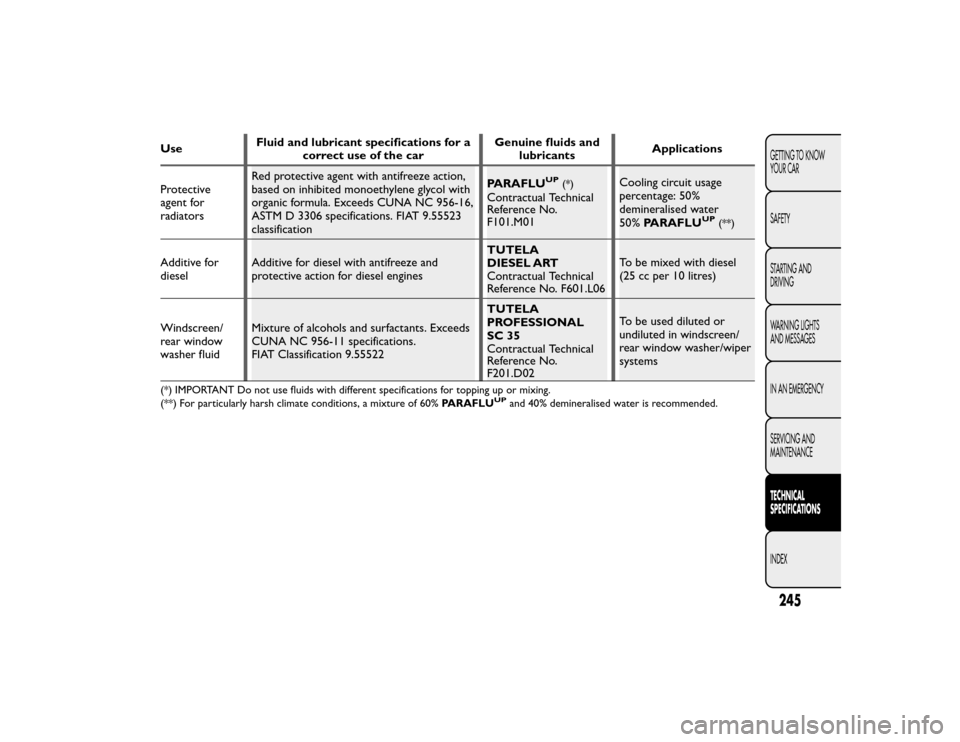

UseFluid and lubricant specifications for a
correct use of the car Genuine fluids and
lubricants Applications
Protective
agent for
radiators Red protective agent with antifreeze action,
based on inhibited monoethylene glycol with
organic formula. Exceeds CUNA NC 956-16,
ASTM D 3306 specifications. FIAT 9.55523
classification PARAFLU
UP
(*)
Contractual Technical
Reference No.
F101.M01
Cooling circuit usage
percentage: 50%
demineralised water
50%
PARAFLU
UP
(**)
Additive for
diesel Additive for diesel with antifreeze and
protective action for diesel engines TUTELA
DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
(25 cc per 10 litres)
Windscreen/
rear window
washer fluid Mixture of alcohols and surfactants. Exceeds
CUNA NC 956-11 specifications.
FIAT Classification 9.55522 TUTELA
PROFESSIONAL
SC 35
Contractual Technical
Reference No.
F201.D02To be used diluted or
undiluted in windscreen/
rear window washer/wiper
systems(*) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(**) For particularly harsh climate conditions, a mixture of 60%
PARAFLU
UP
and 40% demineralised water is recommended.
245GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

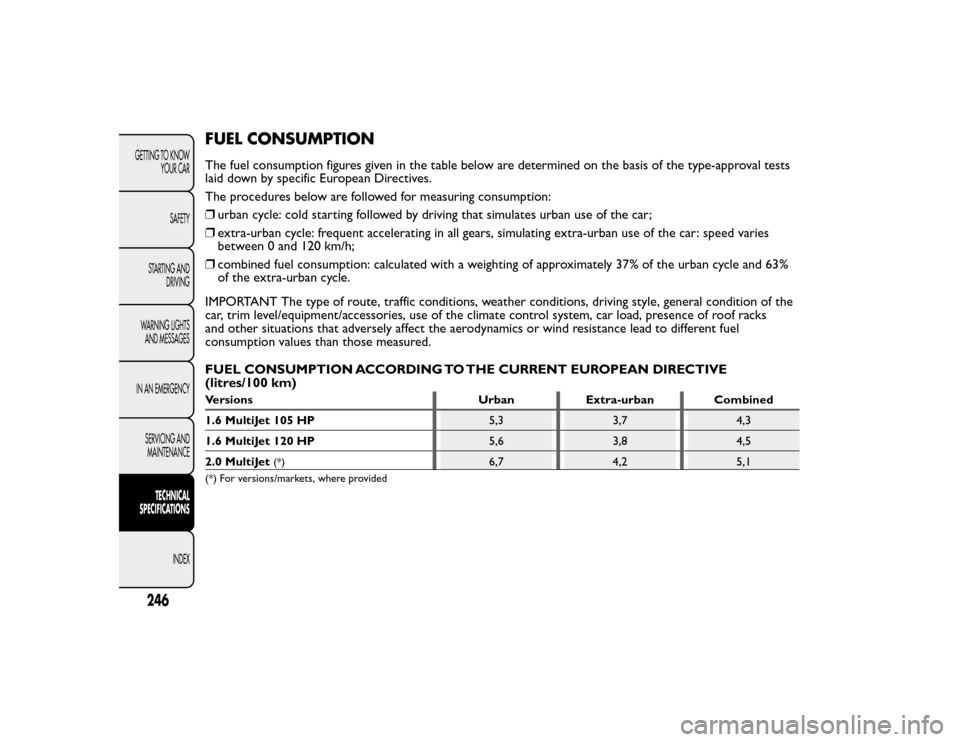

FUEL CONSUMPTIONThe fuel consumption figures given in the table below are determined on the basis of the type-approval tests
laid down by specific European Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒ extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the car: speed varies
between 0 and 120 km/h;
❒ combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63%
of the extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the
car, trim level/equipment/accessories, use of the climate control system, car load, presence of roof racks
and other situations that adversely affect the aerodynamics or wind resistance lead to different fuel
consumption values than those measured.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
(litres/100 km)Versions UrbanExtra-urban Combined
1.6 MultiJet 105 HP 5,33,74,3
1.6 MultiJet 120 HP 5,63,84,5
2.0 MultiJet
(*)
6,7 4,25,1
