dashboard warning lights FIAT CROMA 2006 2.G Repair Manual

64
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

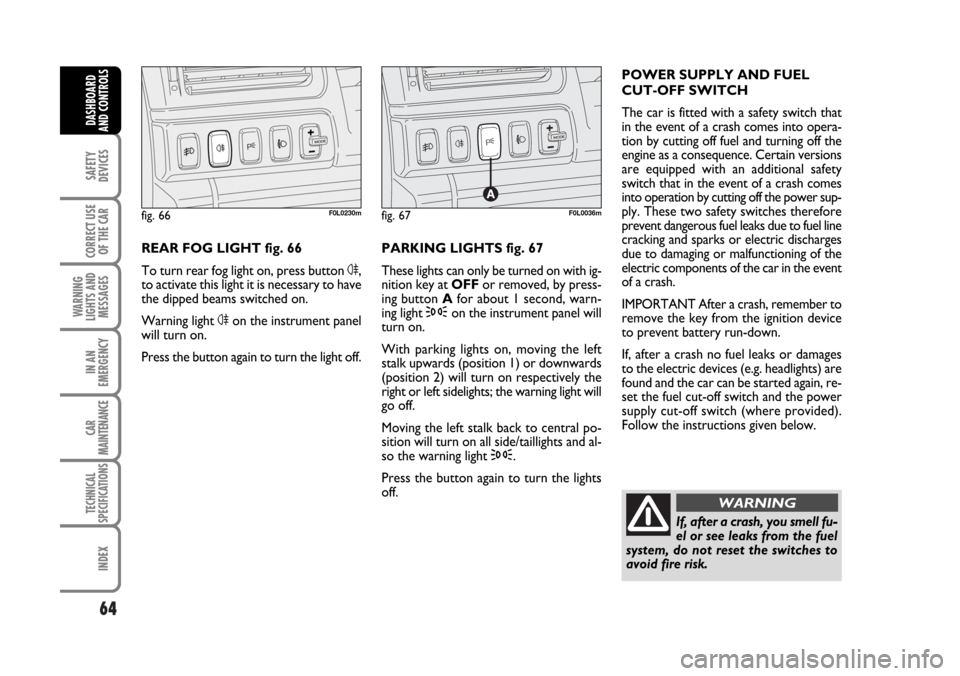

REAR FOG LIGHT fig. 66
To turn rear fog light on, press button 4,
to activate this light it is necessary to have
the dipped beams switched on.
Warning light 4on the instrument panel
will turn on.
Press the button again to turn the light off.PARKING LIGHTS fig. 67
These lights can only be turned on with ig-
nition key at OFFor removed, by press-
ing button Afor about 1 second, warn-
ing light 3on the instrument panel will
turn on.
With parking lights on, moving the left
stalk upwards (position 1) or downwards
(position 2) will turn on respectively the
right or left sidelights; the warning light will
go off.
Moving the left stalk back to central po-
sition will turn on all side/taillights and al-
so the warning light 3.
Press the button again to turn the lights
off. POWER SUPPLY AND FUEL
CUT-OFF SWITCH
The car is fitted with a safety switch that
in the event of a crash comes into opera-
tion by cutting off fuel and turning off the
engine as a consequence. Certain versions
are equipped with an additional safety
switch that in the event of a crash comes
into operation by cutting off the power sup-
ply. These two safety switches therefore
prevent dangerous fuel leaks due to fuel line
cracking and sparks or electric discharges
due to damaging or malfunctioning of the
electric components of the car in the event
of a crash.
IMPORTANT After a crash, remember to
remove the key from the ignition device
to prevent battery run-down.
If, after a crash no fuel leaks or damages
to the electric devices (e.g. headlights) are
found and the car can be started again, re-
set the fuel cut-off switch and the power
supply cut-off switch (where provided).
Follow the instructions given below.
fig. 66F0L0230mfig. 67F0L0036m
If, after a crash, you smell fu-
el or see leaks from the fuel
system, do not reset the switches to
avoid fire risk.
WARNING
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 64

65
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Resetting the fuel cut-off switch
fig. 68
To reset the fuel cut-off switch, press but-
ton A.
Resetting the power supply cut-off
switch (where provided) fig. 69-70
The switch is located inside the fuse box
at battery positive terminal.To reset the power supply cut-off switch,
proceed as follows:
❒press button Ato reset the fuel cut-
off switch;
❒open the bonnet;
❒operate the retaining clips Band re-
move the protection cover C;
❒press button Dto reset the power
supply.
fig. 68F0L0107mfig. 69F0L0308mfig. 70F0L0307m
Before resetting the power
supply cut-off switch care-
fully inspect the car for fuel leaks or
damages to electric devices (e.g.
headlights).
WARNING
Before resetting the fuel cut-
off switch carefully inspect
the car for fuel leaks or damages to
electric devices (e.g. headlights).
WARNING
Sunroof, sun visor (where
provided) and power window
initialisation
After resetting the safety switches, the
sunroof, sun visor and power window op-
eration shall be re-initialised. For the rel-
evant procedures, refer to paragraphs
“Sunroof” and “Power windows”, in this
section.
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 65

66
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
INTERIOR FITTINGS
FRONT ARMREST WITH
ODDMENT COMPARTMENT
AND REFRIGERATED
COMPARTMENT
Press lever A-fig. 71to raise the front
armrest and reach a first oddment/mobile
phone compartment.
Lift cover B-fig. 71to reach a second
compartment that is warmed/cooled by
an air outlet C-fig. 73connected to the
climate control system.Move lever D-fig. 73as shown by the ar-
row to open the outlet and to make
cool/warm air come into the compart-
ment.
If the two-zone climate control system is
fitted, the temperature of this compart-
ment will be the same as that on passen-
ger side.
When the armrest is fully raised, take care
not to press button A-fig. 71, accidentally
to avoid opening the oddment compart-
ment cover and the falling of the objects
contained as a consequence.
fig. 71F0L0155mfig. 72F0L0156m
fig. 73F0L0157m
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 66

67
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

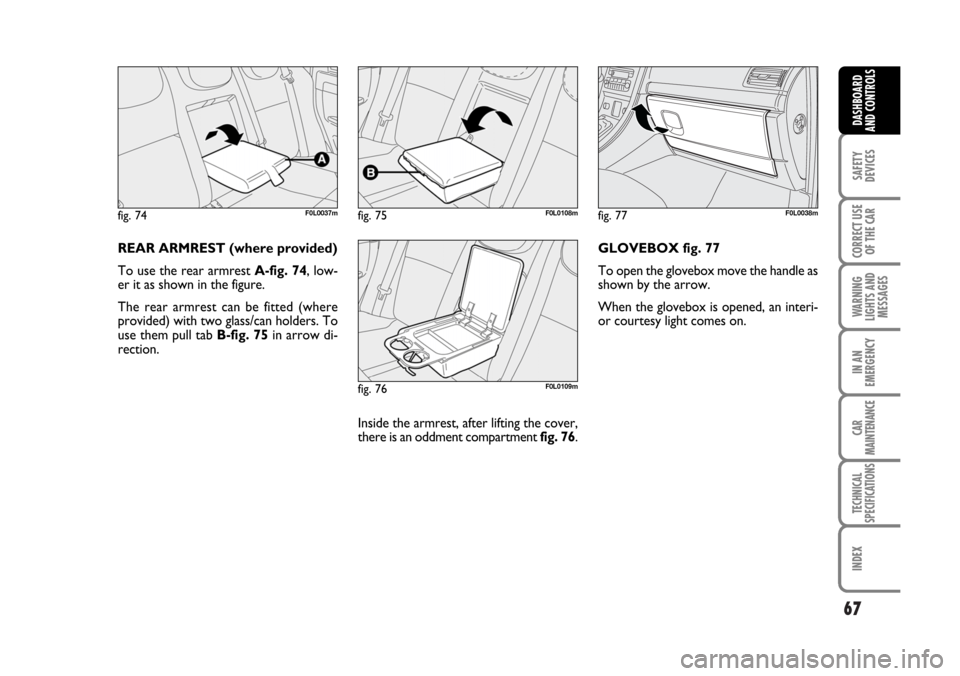

REAR ARMREST (where provided)
To use the rear armrest A-fig. 74, low-
er it as shown in the figure.
The rear armrest can be fitted (where
provided) with two glass/can holders. To
use them pull tab B-fig. 75in arrow di-
rection.
Inside the armrest, after lifting the cover,
there is an oddment compartment fig. 76. GLOVEBOX fig. 77
To open the glovebox move the handle as
shown by the arrow.
When the glovebox is opened, an interi-
or courtesy light comes on.
fig. 74F0L0037mfig. 75F0L0108m
fig. 76F0L0109m
fig. 77F0L0038m
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 67

68
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

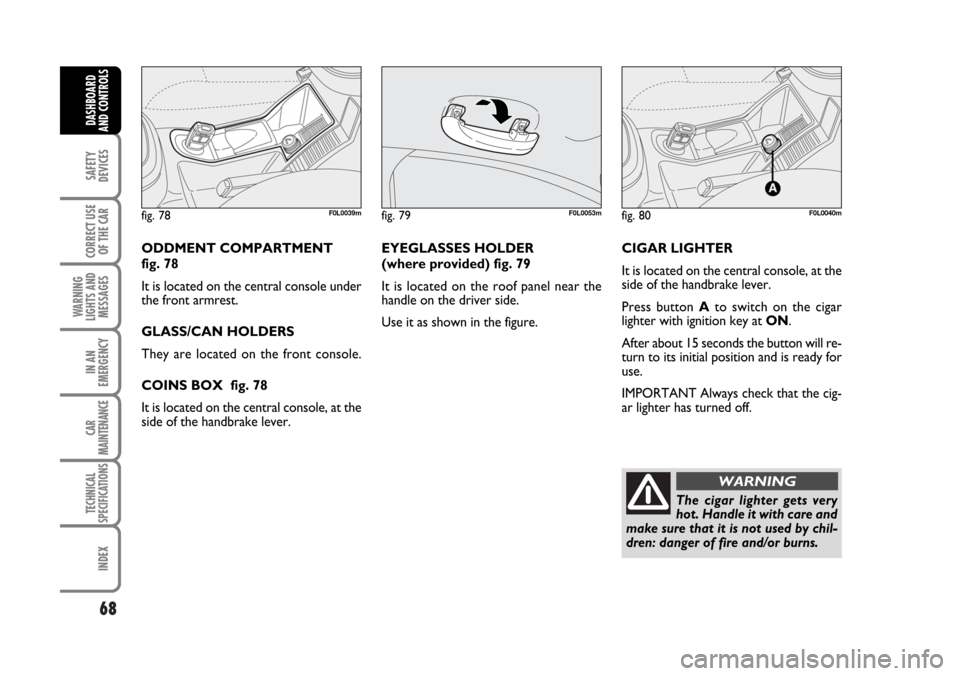

ODDMENT COMPARTMENT
fig. 78
It is located on the central console under
the front armrest.
GLASS/CAN HOLDERS
They are located on the front console.
COINS BOX fig. 78
It is located on the central console, at the
side of the handbrake lever.EYEGLASSES HOLDER
(where provided) fig. 79
It is located on the roof panel near the
handle on the driver side.
Use it as shown in the figure.CIGAR LIGHTER
It is located on the central console, at the
side of the handbrake lever.
Press button Ato switch on the cigar
lighter with ignition key at ON.
After about 15 seconds the button will re-
turn to its initial position and is ready for
use.
IMPORTANT Always check that the cig-
ar lighter has turned off.
fig. 78F0L0039mfig. 79F0L0053mfig. 80F0L0040m
The cigar lighter gets very
hot. Handle it with care and
make sure that it is not used by chil-
dren: danger of fire and/or burns.
WARNING
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 68

69
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ASHTRAY
The central console houses an ashtray,
raise lid A-fig. 81to use it.
To empty the ashtray, remove the inner
box.
Ashtrays are located on passenger’s door
armrests; to use the ashtray raise the cor-
responding lid, to empty them remove the
inner box B-fig. 82.SUN VISORS fig. 83
These are positioned to the sides of the
rear-view mirror. They can swing to the
sides and up or down.
Sun visors (both driver and passenger) are
fitted on the back with a courtesy mirror
and a light which enables to use the mir-
ror also with poor sunlight.
Open cover Ato use the mirror.CURRENT OUTLET fig. 84
The current outlet only works with igni-
tion key at ONand it is located beneath
the central air vents for rear seats.
Open protection cover Ato use it.
fig. 81F0L0110m
fig. 82F0L0111m
fig. 83F0L0041mfig. 84F0L0042m
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 69

70
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

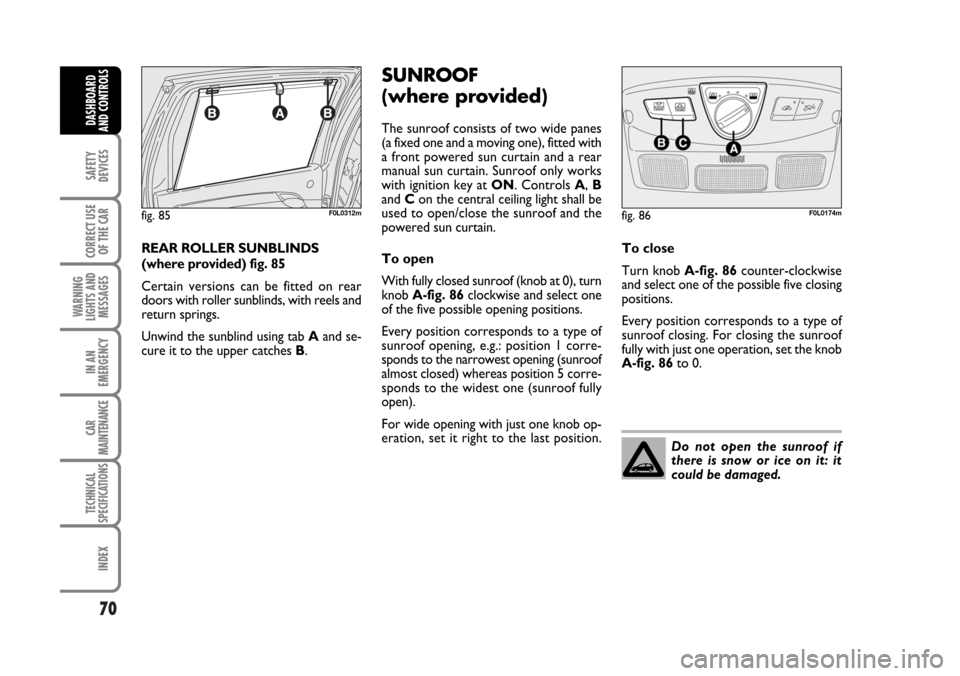

REAR ROLLER SUNBLINDS
(where provided) fig. 85
Certain versions can be fitted on rear
doors with roller sunblinds, with reels and
return springs.
Unwind the sunblind using tab Aand se-
cure it to the upper catches B.
SUNROOF
(where provided)
The sunroof consists of two wide panes
(a fixed one and a moving one), fitted with
a front powered sun curtain and a rear
manual sun curtain. Sunroof only works
with ignition key at ON. Controls A, B
and Con the central ceiling light shall be
used to open/close the sunroof and the
powered sun curtain.
To open
With fully closed sunroof (knob at 0), turn
knob A-fig. 86clockwise and select one
of the five possible opening positions.
Every position corresponds to a type of
sunroof opening, e.g.: position 1 corre-
sponds to the narrowest opening (sunroof
almost closed) whereas position 5 corre-
sponds to the widest one (sunroof fully
open).
For wide opening with just one knob op-
eration, set it right to the last position.To close
Turn knob A-fig. 86counter-clockwise
and select one of the possible five closing
positions.
Every position corresponds to a type of
sunroof closing. For closing the sunroof
fully with just one operation, set the knob
A-fig. 86to 0.
fig. 85F0L0312mfig. 86F0L0174m
Do not open the sunroof if
there is snow or ice on it: it
could be damaged.
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 70

71
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Front sun curtain opening/closing
Press button B-fig. 86to open the sun
curtain fully. Press the button again to stop
it.
To close the sun curtain press button C-
fig. 86. Press the button again to stop it.
Caution: opening the sunroof with the sun
curtain closed will make the sun curtain
open automatically.
Rear sun curtain opening/closing
Rear sun curtain opening/closing is man-
ual.ANTI-CRUSHING SAFETY
SYSTEM
Sunroof is fitted with anti-crushing safety
system that detects the presence of an ob-
stacle during sunroof closing stroke and
that cuts in by stopping and reversing the
sunroof stroke.
The anti-crushing safety system fitted on
the front curtain outline is active along the
whole closing range of the curtain and cuts
into operation when an obstacle is met.
This safety device guarantees the rever-
sal for a short section.
INITIALISATION PROCEDURE
Sunroof and powered sun curtain shall be
re-initialised after disconnecting the bat-
tery or if the relevant protection fuse is
blown.Sunroof initialisation
Proceed as follows:
❒turn the ignition key to ON;
❒turn knob A-fig. 86fully counter-
clockwise;
❒press and keep knob A-fig. 86
pressed until the sunroof locks, then
release it;
❒within 5 seconds, press and keep knob
A pressed; the sunroof will move au-
tomatically, during this stage keep on
pressing the knob;
❒initialisation will end when the sunroof
stops.

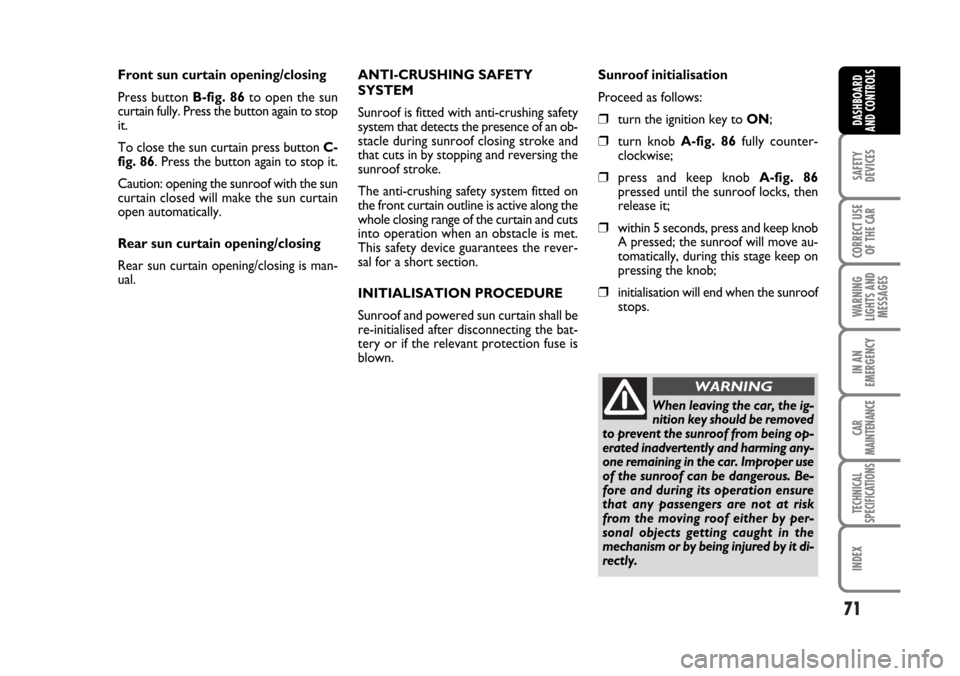

When leaving the car, the ig-
nition key should be removed
to prevent the sunroof from being op-
erated inadvertently and harming any-
one remaining in the car. Improper use
of the sunroof can be dangerous. Be-
fore and during its operation ensure
that any passengers are not at risk
from the moving roof either by per-
sonal objects getting caught in the
mechanism or by being injured by it di-
rectly.
WARNING
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 71

72
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Sun curtain initialisation
Proceed as follows:
❒Close the sunroof completely;
❒turn the ignition key to OFFfor 10
seconds;
❒turn the ignition key to ON;
❒turn the knob to closing position and
keep it pressed until hearing the me-
chanical lock;
❒initialisation ended.ANTI-CRUSHING SYSTEM
INHIBITION
Ice or other foreign matters in the sun-
roof rails could cause anti-crushing re-
peated operation. Therefore make sure
there is no obstacle.
In this case it is possible to inhibit the an-
ti-crushing system by closing the roof
(within 5 seconds from system activation),
turning knob A-fig. 86to 0 and keeping
it pressed upwards until closing.EMERGENCY OPERATION

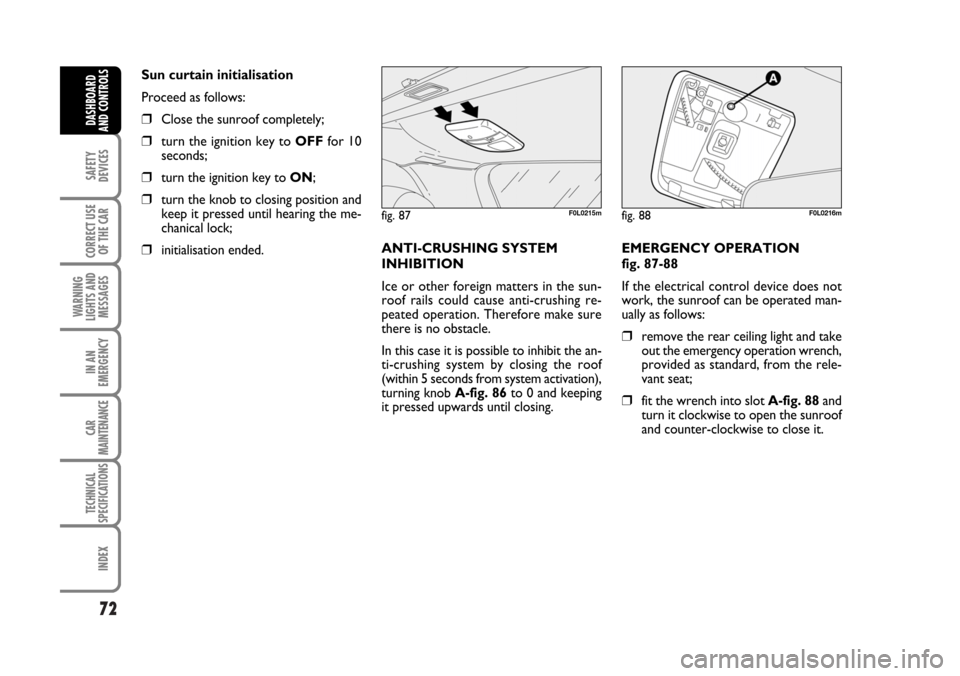

fig. 87-88
If the electrical control device does not
work, the sunroof can be operated man-
ually as follows:
❒remove the rear ceiling light and take
out the emergency operation wrench,
provided as standard, from the rele-
vant seat;
❒fit the wrench into slot A-fig. 88and
turn it clockwise to open the sunroof
and counter-clockwise to close it.
fig. 87F0L0215mfig. 88F0L0216m
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 72

73
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DOORS
CENTRAL DOOR LOCKING
SYSTEM

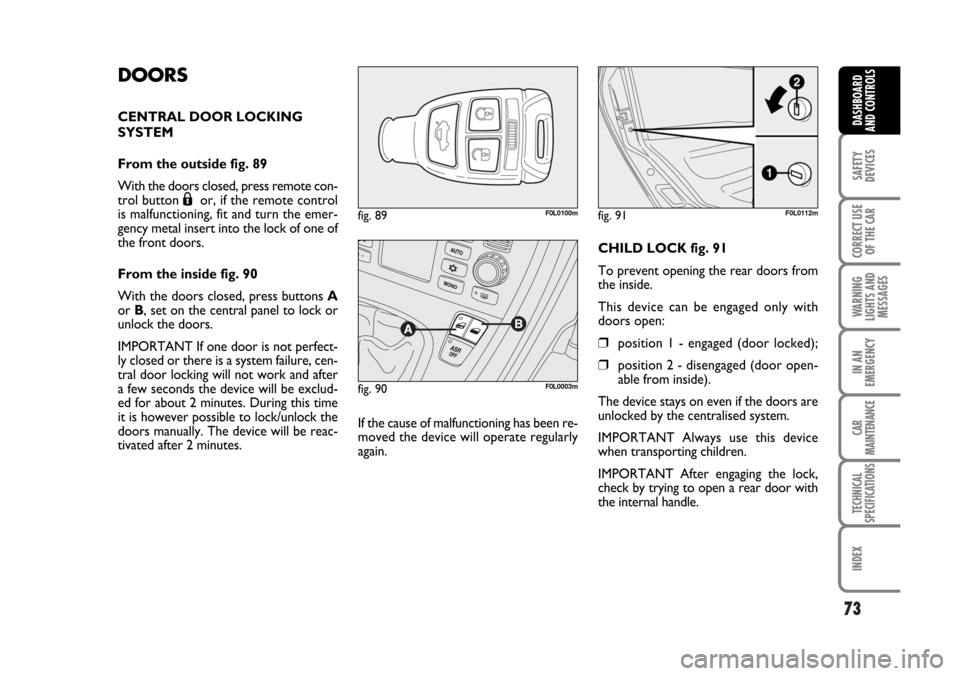

From the outside fig. 89
With the doors closed, press remote con-
trol button
Áor, if the remote control
is malfunctioning, fit and turn the emer-
gency metal insert into the lock of one of
the front doors.
From the inside fig. 90
With the doors closed, press buttons A
or B, set on the central panel to lock or
unlock the doors.
IMPORTANT If one door is not perfect-
ly closed or there is a system failure, cen-
tral door locking will not work and after
a few seconds the device will be exclud-
ed for about 2 minutes. During this time
it is however possible to lock/unlock the
doors manually. The device will be reac-
tivated after 2 minutes.If the cause of malfunctioning has been re-
moved the device will operate regularly
again.CHILD LOCK fig. 91
To prevent opening the rear doors from
the inside.
This device can be engaged only with
doors open:
❒position 1 - engaged (door locked);
❒position 2 - disengaged (door open-
able from inside).
The device stays on even if the doors are
unlocked by the centralised system.
IMPORTANT Always use this device
when transporting children.
IMPORTANT After engaging the lock,
check by trying to open a rear door with
the internal handle.
fig. 89F0L0100m
fig. 90F0L0003m
fig. 91F0L0112m
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 73
