GENERAL WARNINGS
1) The front air bags and/or front and
front side bags (where provided) may be
deployed if the car is subject to heavy
knocks or accidents involving the under-
body area, such as for example violent
shocks, against steps, kerbs or low obsta-
cles, falling of the car in big holes or sags
in the road.
2) When the airbag inflates it emits a small
amount of dusts. These dusts are harm-
less and is not the beginning of a fire; then
the unfold cushion surface and the car in-
teriors can be covered by a dusty remains:
this dust can irritate skin and eyes. In case
of contact, wash yourself using neutral
soap and water.3) Should an accident occur in which any
of the safety devices is activated, take the
car to a Fiat Dealership to have the de-
vices activated replaced and to have the
system checked.
Every control, repair and replacement op-
erations concerning the air bags must on-
ly be carried out c/o Fiat Dealership.
If you are having the car scrapped, have
the air bag system deactivated at a Fiat
Dealership first. If the car changes own-
ership, the new owner must be informed
of the method of use of air bags and the
above warnings and also be given this
“Owner Handbook”.4) The triggering of pretensioners, front
air bags and front side bags is decided in
a differentiated manner, depending on the
type of crash. The failure to deploy one or
more of them does not mean that the sys-
tem is not working properly.
107-126 Croma TRW GB 28-05-2008 16:32 Pagina 124

125
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

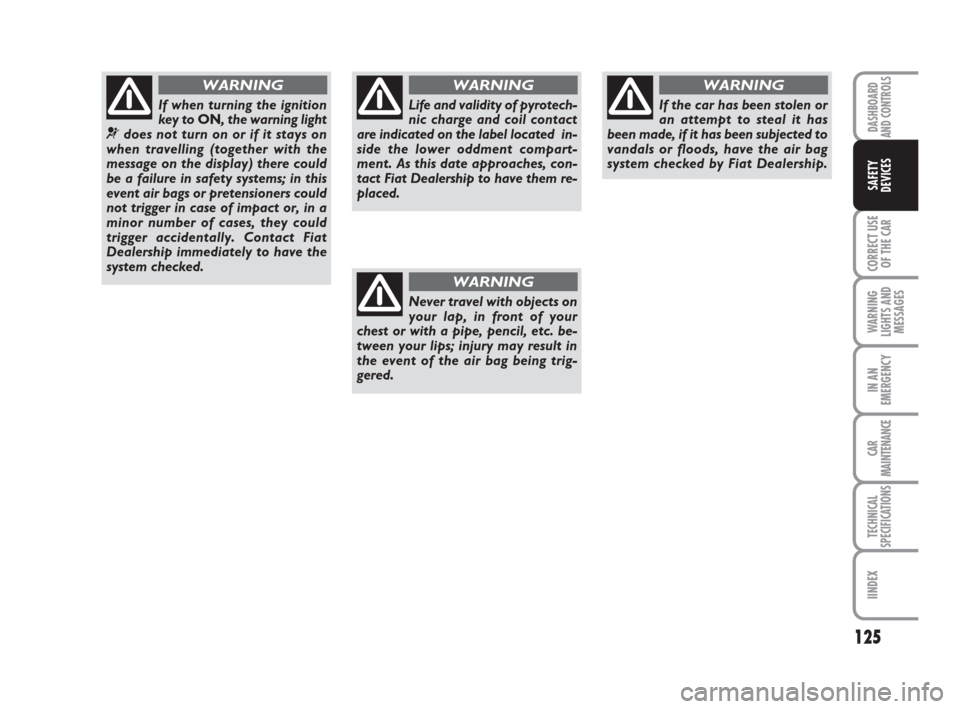

If the car has been stolen or
an attempt to steal it has
been made, if it has been subjected to
vandals or floods, have the air bag
system checked by Fiat Dealership.
WARNING
Never travel with objects on
your lap, in front of your
chest or with a pipe, pencil, etc. be-
tween your lips; injury may result in
the event of the air bag being trig-
gered.
WARNING
Life and validity of pyrotech-
nic charge and coil contact
are indicated on the label located in-
side the lower oddment compart-
ment. As this date approaches, con-
tact Fiat Dealership to have them re-
placed.
WARNING
If when turning the ignition
key to ON, the warning light
¬does not turn on or if it stays on
when travelling (together with the
message on the display) there could
be a failure in safety systems; in this
event air bags or pretensioners could
not trigger in case of impact or, in a
minor number of cases, they could
trigger accidentally. Contact Fiat
Dealership immediately to have the
system checked.
WARNING
107-126 Croma TRW GB 28-05-2008 16:32 Pagina 125

126
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

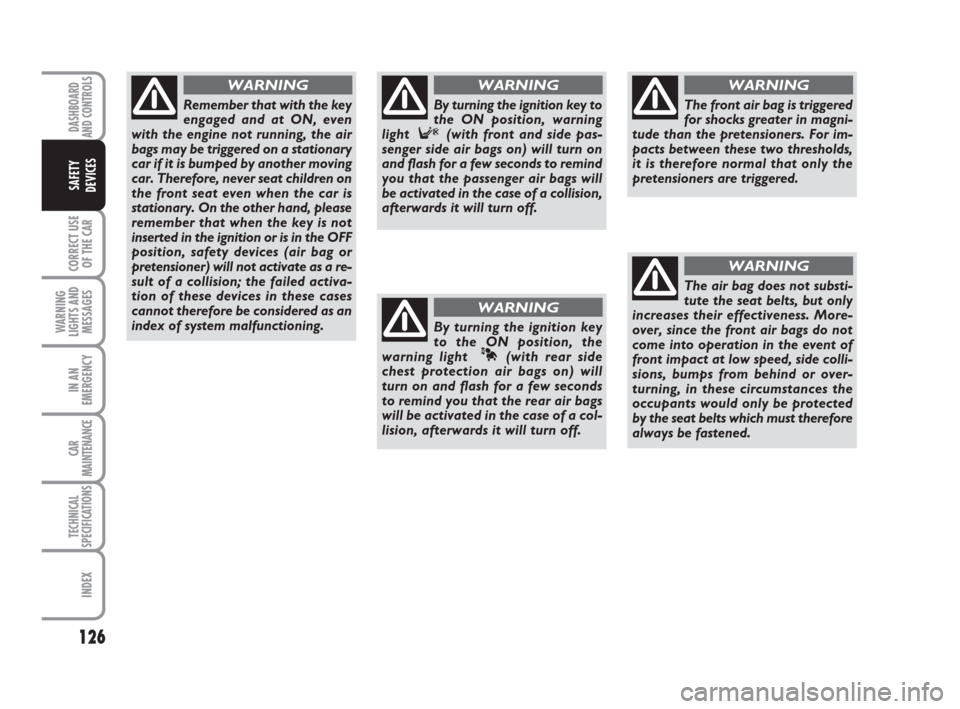

The front air bag is triggered
for shocks greater in magni-
tude than the pretensioners. For im-
pacts between these two thresholds,
it is therefore normal that only the
pretensioners are triggered.
WARNING
By turning the ignition key to
the ON position, warning
light
F(with front and side pas-
senger side air bags on) will turn on
and flash for a few seconds to remind
you that the passenger air bags will
be activated in the case of a collision,
afterwards it will turn off.
WARNING
Remember that with the key
engaged and at ON, even
with the engine not running, the air
bags may be triggered on a stationary
car if it is bumped by another moving
car. Therefore, never seat children on
the front seat even when the car is
stationary. On the other hand, please
remember that when the key is not
inserted in the ignition or is in the OFF
position, safety devices (air bag or
pretensioner) will not activate as a re-
sult of a collision; the failed activa-
tion of these devices in these cases
cannot therefore be considered as an
index of system malfunctioning.
WARNING
The air bag does not substi-
tute the seat belts, but only
increases their effectiveness. More-
over, since the front air bags do not
come into operation in the event of
front impact at low speed, side colli-
sions, bumps from behind or over-
turning, in these circumstances the
occupants would only be protected
by the seat belts which must therefore
always be fastened.
WARNING
By turning the ignition key
to the ON position, the
warning light
À(with rear side
chest protection air bags on) will
turn on and flash for a few seconds
to remind you that the rear air bags
will be activated in the case of a col-
lision, afterwards it will turn off.
WARNING
107-126 Croma TRW GB 28-05-2008 16:32 Pagina 126

127
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
STARTING THE ENGINE ................................................. 128
PARKING................................................................................ 131
MANUAL TRANSMISSION ............................................... 132
ELECTRONIC AUTOMATIC TRANSMISSION ........... 133
CONTAINING RUNNING COSTS................................. 138
TOWING TRAILERS............................................................ 139
SNOW TYRES....................................................................... 142
SNOW CHAINS................................................................... 143
CAR INACTIVITY................................................................. 144
CC C
O O
R R
R R
E E
C C
T T
U U
S S
E E
O O
F F
T T
H H
E E
C C
A A
R R
127-144 Croma TRW GB 28-05-2008 16:32 Pagina 127

STARTING PROCEDURE FOR
PETROL VERSIONS
Proceed as follows:
❒Ensure that the handbrake is up;
❒put the gear lever into neutral (posi-
tions P or N for automatic transmis-
sion);
❒press the clutch pedal (or brake ped-
al with automatic transmission) down
to the floor without pressing the ac-
celerator;
❒turn the ignition key to STARTand
let it go the moment the engine starts.
If the engine does not start at the first at-
tempt, return the ignition key to OFFbe-
fore repeating starting.
IMPORTANT In the event of fast engine
start-up (i.e.: fitting the ignition key and
turning it to ON), any slight jamming is to
be attributed to correct recognition of the
electronic key by the ignition switch.

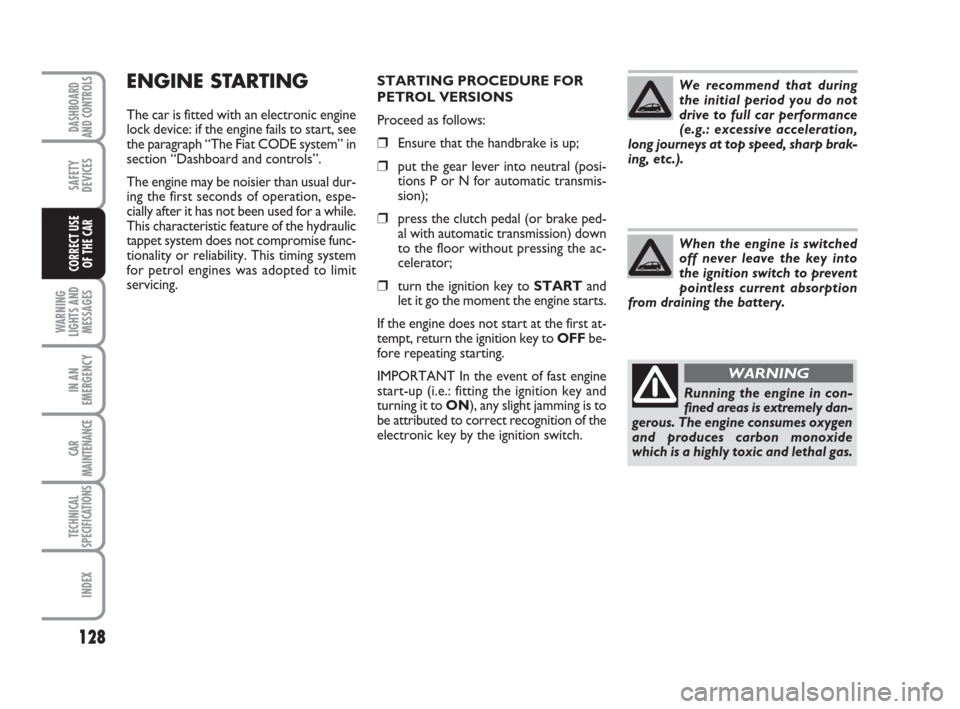

ENGINE STARTING
The car is fitted with an electronic engine
lock device: if the engine fails to start, see
the paragraph “The Fiat CODE system” in
section “Dashboard and controls”.
The engine may be noisier than usual dur-
ing the first seconds of operation, espe-
cially after it has not been used for a while.
This characteristic feature of the hydraulic
tappet system does not compromise func-
tionality or reliability. This timing system
for petrol engines was adopted to limit
servicing.
128
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
We recommend that during
the initial period you do not
drive to full car performance
(e.g.: excessive acceleration,
long journeys at top speed, sharp brak-
ing, etc.).
When the engine is switched
off never leave the key into
the ignition switch to prevent
pointless current absorption
from draining the battery.
Running the engine in con-
fined areas is extremely dan-
gerous. The engine consumes oxygen
and produces carbon monoxide
which is a highly toxic and lethal gas.
WARNING
127-144 Croma TRW GB 28-05-2008 16:32 Pagina 128

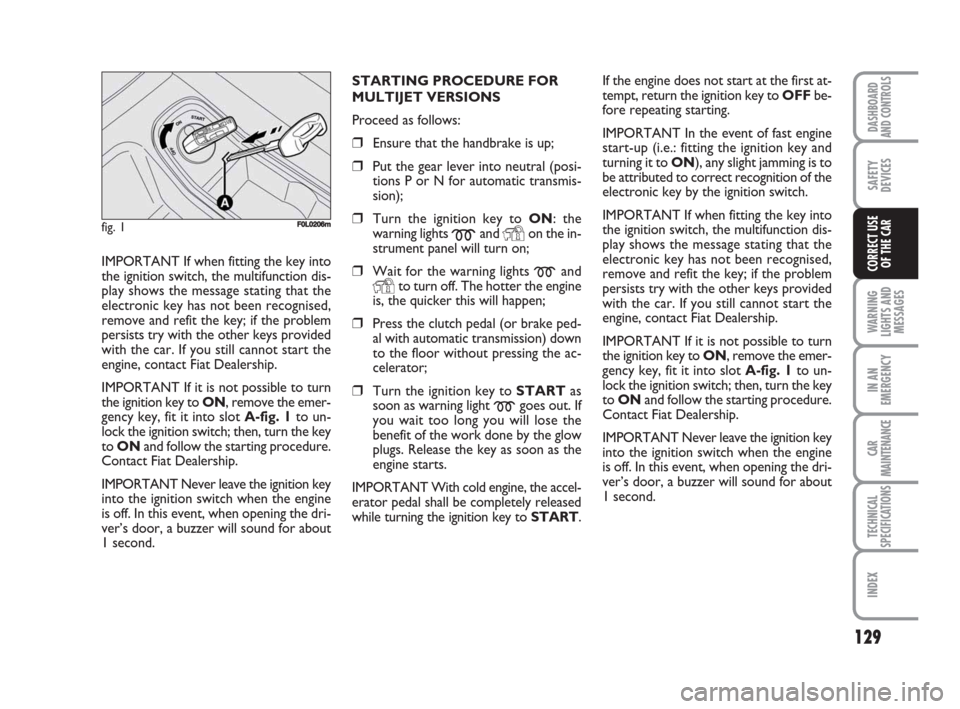

STARTING PROCEDURE FOR

MULTIJET VERSIONS
Proceed as follows:
❒Ensure that the handbrake is up;
❒Put the gear lever into neutral (posi-
tions P or N for automatic transmis-
sion);
❒Turn the ignition key to ON: the
warning lights
mand Yon the in-
strument panel will turn on;
❒Wait for the warning lights mand
Yto turn off. The hotter the engine
is, the quicker this will happen;
❒Press the clutch pedal (or brake ped-
al with automatic transmission) down
to the floor without pressing the ac-
celerator;
❒Turn the ignition key to STARTas
soon as warning light
mgoes out. If
you wait too long you will lose the
benefit of the work done by the glow
plugs. Release the key as soon as the
engine starts.
IMPORTANT With cold engine, the accel-
erator pedal shall be completely released
while turning the ignition key to START.If the engine does not start at the first at-
tempt, return the ignition key to OFFbe-
fore repeating starting.
IMPORTANT In the event of fast engine
start-up (i.e.: fitting the ignition key and
turning it to ON), any slight jamming is to
be attributed to correct recognition of the
electronic key by the ignition switch.
IMPORTANT If when fitting the key into
the ignition switch, the multifunction dis-
play shows the message stating that the
electronic key has not been recognised,
remove and refit the key; if the problem
persists try with the other keys provided
with the car. If you still cannot start the
engine, contact Fiat Dealership.
IMPORTANT If it is not possible to turn
the ignition key to ON, remove the emer-
gency key, fit it into slot A-fig. 1to un-
lock the ignition switch; then, turn the key
to ONand follow the starting procedure.
Contact Fiat Dealership.
IMPORTANT Never leave the ignition key
into the ignition switch when the engine
is off. In this event, when opening the dri-
ver’s door, a buzzer will sound for about
1 second. IMPORTANT If when fitting the key into
the ignition switch, the multifunction dis-
play shows the message stating that the
electronic key has not been recognised,
remove and refit the key; if the problem
persists try with the other keys provided
with the car. If you still cannot start the
engine, contact Fiat Dealership.
IMPORTANT If it is not possible to turn
the ignition key to ON, remove the emer-
gency key, fit it into slot A-fig. 1to un-
lock the ignition switch; then, turn the key
to ONand follow the starting procedure.
Contact Fiat Dealership.
IMPORTANT Never leave the ignition key
into the ignition switch when the engine
is off. In this event, when opening the dri-
ver’s door, a buzzer will sound for about
1 second.
129
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
fig. 1FF0L0206m
127-144 Croma TRW GB 28-05-2008 16:32 Pagina 129

HOW TO WARM UP THE
ENGINE AFTER IT HAS JUST
STARTED (petrol and diesel
engines)
Proceed as follows:
❒Drive off slowly, letting the engine turn
at medium revs. Do not accelerate
abruptly;
❒Do not drive at full performance for
the initial kilometres. Wait until the
coolant temperature gauge starts
moving.
130
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
Never bump start the engine
by pushing, towing or coasting
downhill as this could cause
fuel to flow into the catalytic
exhaust system and damage it beyond
repair.
A quick burst on the acceler-
ator before turning off the en-
gine serves absolutely no prac-
tical purpose, it wastes fuel
and is damaging especially to tur-
bocharged engines.
Remember that the servo-
brake and power steering
are not operational until the engine
has been started, therefore much ef-
fort than usual is required on the
brake pedal and steering wheel.
WARNING
STOPPING THE ENGINE
Turn the ignition key to OFFwhile the
engine is idling.
IMPORTANT After a taxing drive, you
should allow the engine to “catch its
breath” before turning it off by letting it
idle to allow the temperature in the en-
gine compartment to fall.
IMPORTANT If the engine is turned off
while the car is still moving, for safety rea-
sons it will be impossible to remove the
key from the ignition switch. To remove
the key, turn it to ONand then to OFF
with the car stopped without forcing at re-
moval.
127-144 Croma TRW GB 28-05-2008 16:32 Pagina 130

PARKING THE CAR
Proceed as follows:
❒Stop the engine and engage the hand-
brake;
❒Engage a gear (on a slope, engage first
gear if the car is faced uphill or reverse
if it is faced downhill; position P with
automatic transmission) and leave the
wheels steered.
Block the wheels with a wedge or a stone
if the car is parked on a steep slope. Do
not leave the key in the ignition switch to
prevent draining the battery. Always re-
move the key when you leave the car.
Never leave children unattended in the
car. Always remove the ignition key when
leaving the car and take it out with you.HANDBRAKE fig. 3
The handbrake lever is located between
the two front seats.
Pull the handbrake lever upwards until the
car cannot be moved. Four or five clicks
are generally enough when the car is on
level ground while nine or ten may be re-
quired if the car is on a steep slope or
laden.
IMPORTANT If this is not the case, con-
tact Fiat Dealership to have the handbrake
adjusted.
When the handbrake lever is pulled up
and the ignition key is at ONthe instru-
ment panel warning light
xwill come on. IMPORTANT If after turning the engine
off with the car stopped, it is not possi-
ble to remove the key from the ignition
switch, try to turn it to ONand then to
OFF. If the problem persists, remove the
emergency key without forcing and fit it
into the proper slot A-fig. 2in the igni-
tion switch; now it will be possible to turn
the key to OFFand remove it. Contact
Fiat Dealership.
WARNING If you turn the electronic key
to OFFposition, external lights and elec-
tronic safety systems are turned off.
131
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
fig. 2FF0L0207mfig. 3F0L0373m
127-144 Croma TRW GB 28-05-2008 16:32 Pagina 131

MANUAL
TRANSMISSION
To engage the gears, press the clutch ped-
al fully and shift the gear lever into one of
the required positions (the diagram is
shown on the knob).
IMPORTANT The car can only be put in-
to reverse gear when it has stopped mov-
ing completely. With the engine running,
before engaging the reverse, wait at least
2 seconds with the clutch pedal fully down
to prevent damage and grating of the
gears.
To engage reverse (R) from neutral pro-
ceed as follows:
Petrol versions fig. 4
❒shift the lever to the right and then
back;
Multijet versions fig. 5
❒lift the sliding ring Aunder the knob
and shift the lever straight to the left
and then forward. To release the handbrake:
❒slightly lift the handbrake and press re-
lease button A;
❒keep button Apressed and lower the
lever. Warning light xwill turn off.
Press the brake pedal when carrying out
this operation to prevent the car from
moving accidentally.
132
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
fig. 4FF0L0146m
fig. 5F0L0200m
127-144 Croma TRW GB 28-05-2008 16:32 Pagina 132

ELECTRONIC
AUTOMATIC
TRANSMISSION
The car may be fitted with 5-speed (petrol
versions) or 6-speed (Multijet versions)
automatic transmission with electronic
control. Gears are shifted automatically
according to instant car parameters of use
(speed and accelerator pedal position).
Gears can however be shifted manually us-
ing transmission in sequential mode.
IMPORTANT Read carefully the follow-
ing points to learn how to use the elec-
tronic automatic transmission right from
the start.GEAR LEVER fig. 6
PParking
RReverse
NIdle
DDrive, automatic forward gear
+To upshift in sequential mode
–To downshift in sequential mode
133
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
To change gears properly
you must push the clutch
pedal fully down. It is therefore es-
sential that there is nothing under the
pedals: make sure mats are lying flat
and do not get in the way of the ped-
als.
WARNING
Do not drive with your hand
resting on the gear lever as the
force exerted, even if slight,
could lead over time to pre-
mature wear on the gearbox internal
components.
IMPORTANT The clutch pedal must be
used for gear shift only. Never drive with
the foot resting, even if slightly, on the
clutch pedal. For versions / markets where
applicable, the clutch pedal control elec-
tronics can intervene interpreting the
wrong drive style as a fault
fig. 6FF0L0315m
