❒clean and protect the painted parts us-
ing protective wax;
❒clean and protect the shiny metal parts
using special compounds readily avail-
able;
❒sprinkle talcum powder on the rubber
windscreen and rear window wiper
blades and lift them off the glass;
❒slightly open the windows;
❒cover the car with a cloth or perfo-
rated plastic sheet. Do not use sheets
of non-perforated plastic as they do
not allow moisture on the car body to
evaporate;
❒inflate tyres to +0,5 bar above the
normal specified pressure and check it
at intervals;
❒when the battery is not disconnected
from the electric system, if the vehicle
is equipped with a battery with an op-
tical indicator, control its charge sta-
tus every 30 days and if the optical in-
dicator shows a dark colour without
the central green zone, recharge it;
❒do not drain the engine cooling sys-
tem.
IMPORTANT Where relevant, switch off
the car alarm with the remote control.

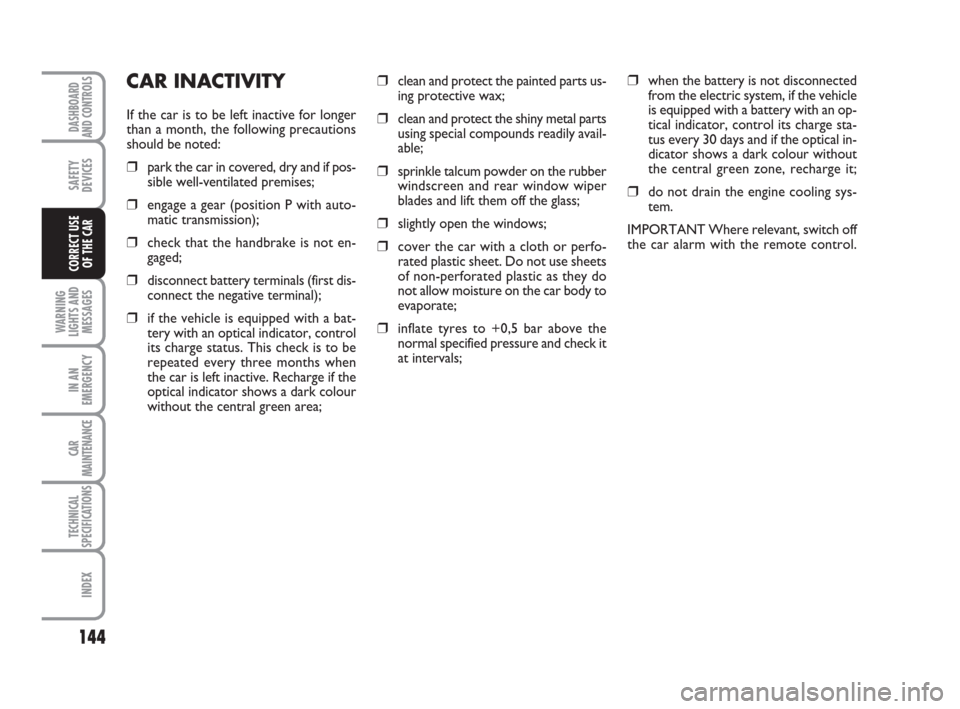

CAR INACTIVITY
If the car is to be left inactive for longer
than a month, the following precautions
should be noted:
❒park the car in covered, dry and if pos-
sible well-ventilated premises;
❒engage a gear (position P with auto-
matic transmission);
❒check that the handbrake is not en-
gaged;
❒disconnect battery terminals (first dis-
connect the negative terminal);
❒if the vehicle is equipped with a bat-
tery with an optical indicator, control
its charge status. This check is to be
repeated every three months when
the car is left inactive. Recharge if the
optical indicator shows a dark colour
without the central green area;
144
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
127-144 Croma TRW GB 28-05-2008 16:33 Pagina 144

145
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES

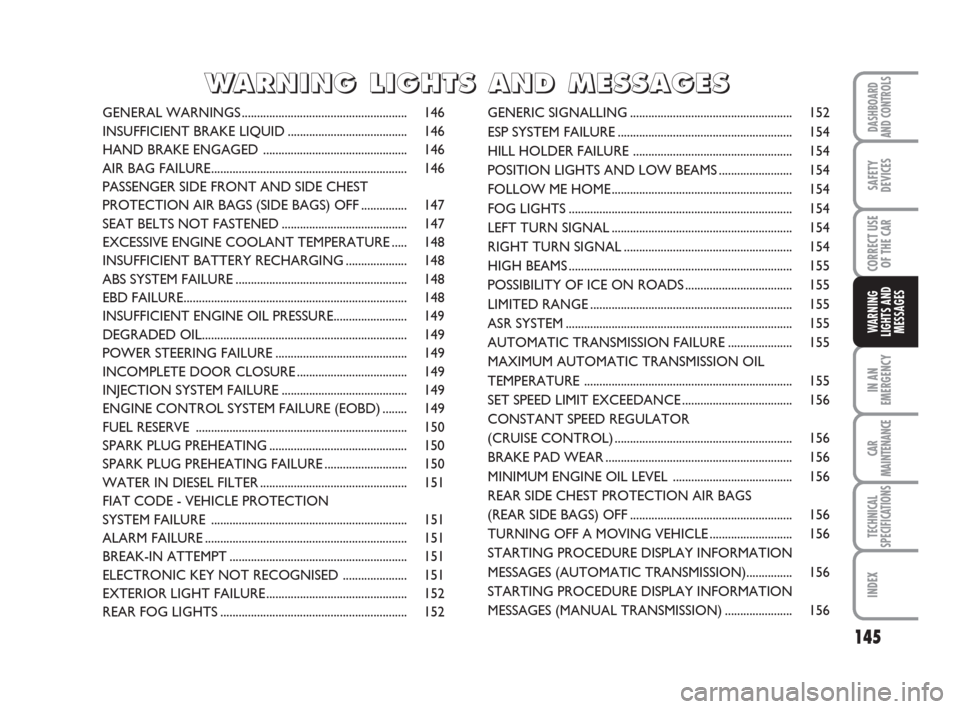

GENERAL WARNINGS ...................................................... 146
INSUFFICIENT BRAKE LIQUID ....................................... 146
HAND BRAKE ENGAGED ............................................... 146
AIR BAG FAILURE................................................................ 146

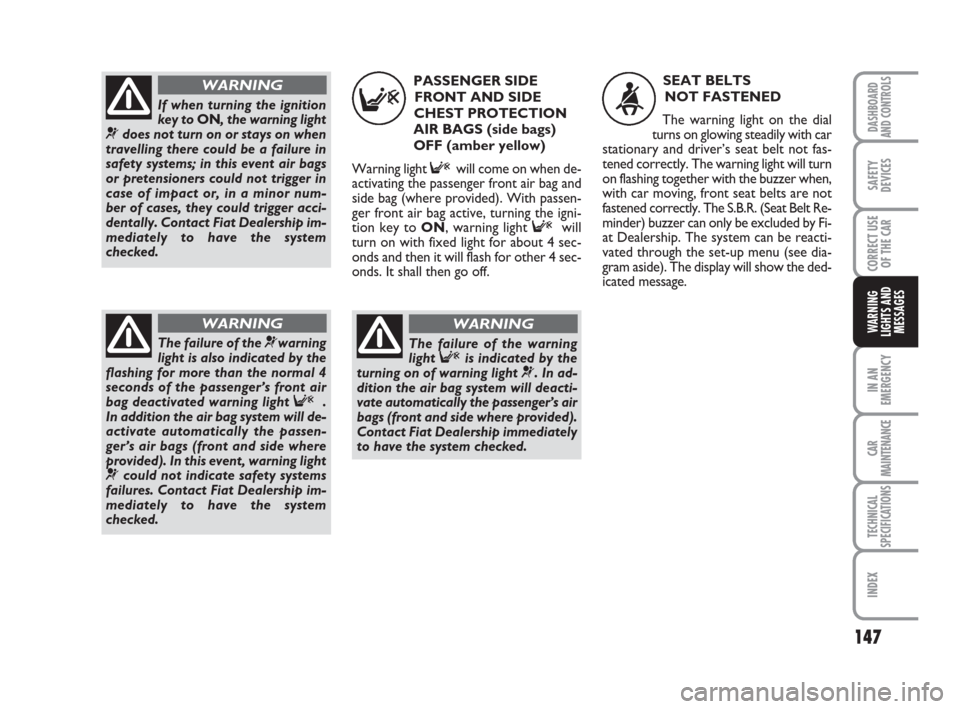

PASSENGER SIDE FRONT AND SIDE CHEST
PROTECTION AIR BAGS (SIDE BAGS) OFF ............... 147
SEAT BELTS NOT FASTENED ......................................... 147
EXCESSIVE ENGINE COOLANT TEMPERATURE ..... 148
INSUFFICIENT BATTERY RECHARGING .................... 148
ABS SYSTEM FAILURE ........................................................ 148
EBD FAILURE......................................................................... 148
INSUFFICIENT ENGINE OIL PRESSURE........................ 149
DEGRADED OIL................................................................... 149
POWER STEERING FAILURE ........................................... 149
INCOMPLETE DOOR CLOSURE .................................... 149
INJECTION SYSTEM FAILURE ......................................... 149
ENGINE CONTROL SYSTEM FAILURE (EOBD) ........ 149
FUEL RESERVE ..................................................................... 150
SPARK PLUG PREHEATING ............................................. 150
SPARK PLUG PREHEATING FAILURE ........................... 150
WATER IN DIESEL FILTER ................................................ 151
FIAT CODE - VEHICLE PROTECTION
SYSTEM FAILURE ................................................................ 151
ALARM FAILURE .................................................................. 151
BREAK-IN ATTEMPT .......................................................... 151
ELECTRONIC KEY NOT RECOGNISED ..................... 151
EXTERIOR LIGHT FAILURE .............................................. 152
REAR FOG LIGHTS ............................................................. 152GENERIC SIGNALLING ..................................................... 152
ESP SYSTEM FAILURE ......................................................... 154
HILL HOLDER FAILURE .................................................... 154
POSITION LIGHTS AND LOW BEAMS ........................ 154
FOLLOW ME HOME ........................................................... 154
FOG LIGHTS ......................................................................... 154
LEFT TURN SIGNAL ........................................................... 154
RIGHT TURN SIGNAL ....................................................... 154
HIGH BEAMS ......................................................................... 155
POSSIBILITY OF ICE ON ROADS ................................... 155
LIMITED RANGE .................................................................. 155
ASR SYSTEM .......................................................................... 155
AUTOMATIC TRANSMISSION FAILURE ..................... 155
MAXIMUM AUTOMATIC TRANSMISSION OIL
TEMPERATURE .................................................................... 155
SET SPEED LIMIT EXCEEDANCE .................................... 156
CONSTANT SPEED REGULATOR
(CRUISE CONTROL) .......................................................... 156
BRAKE PAD WEAR ............................................................. 156
MINIMUM ENGINE OIL LEVEL ....................................... 156
REAR SIDE CHEST PROTECTION AIR BAGS
(REAR SIDE BAGS) OFF ..................................................... 156
TURNING OFF A MOVING VEHICLE ........................... 156
STARTING PROCEDURE DISPLAY INFORMATION
MESSAGES (AUTOMATIC TRANSMISSION)............... 156
STARTING PROCEDURE DISPLAY INFORMATION
MESSAGES (MANUAL TRANSMISSION) ...................... 156

WW W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E E
S S
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 145

146
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
WARNING LIGHTS
AND MESSAGES
GENERAL WARNINGS
Turning on of warning light is accompa-
nied by specific message and/or by buzzer
sound where provided by instrument pan-
el. These indications are concise and
cautionaryand shall not be considered
as exhaustive and/or as an alternative to
the specifications contained in this Own-
er Handbook which shall always be read
through carefully and thoroughly. In case
of failure indication always refer to the
specifications contained in this sec-
tion.
IMPORTANT Failure indications displayed
are divided into two categories: very se-
riousand less seriousfailures.
Very seriousfailures are indicated by a
warning “cycle” repeated until failure is
eliminated.
Less seriousfailures are indicated by a lim-
ited warning “cycle”.
The warning cycle of both failure classes
can be stopped by pressing button
MODE. The instrument panel warning
light will stay on until eliminating the fault.
As concerns messages relevant to the ver-
sions equipped with Dualogic gearbox, see
the attached Supplement.LOW BRAKE FLUID
LEVEL (red)
HANDBRAKE ON (red)
Turning the ignition key to ONthe warn-
ing light turns on, but it should go off af-
ter few seconds.
Low brake fluid level
The warning light turns on when the lev-
el of the brake fluid in the reservoir falls
below the minimum level, due to possi-
ble leak in the circuit.
The display will show the dedicated mes-
sage.
x
If the warning light xturns
on when travelling (on cer-
tain versions together with the mes-
sage on the display) stop the car im-
mediately and contact Fiat Dealer-
ship.
WARNING
Handbrake on
The warning light turns on when the hand-
brake is on.
On certain versions, if the car is moving
the buzzer will also sound.
IMPORTANT If the warning light turns on
when travelling, check that the handbrake
is not engaged.
AIR BAG FAILURE
(red)
Turning the ignition key to ON
the warning light turns on, but it should go
off after few seconds.
The warning light stays on glowing steadi-
ly if there is a failure in the air bag system.
The display will show the dedicated mes-
sage.
¬
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 146

147
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
If when turning the ignition
key to ON, the warning light
¬does not turn on or stays on when
travelling there could be a failure in
safety systems; in this event air bags
or pretensioners could not trigger in
case of impact or, in a minor num-
ber of cases, they could trigger acci-
dentally. Contact Fiat Dealership im-
mediately to have the system
checked.
WARNING
The failure of the ¬warning
light is also indicated by the
flashing for more than the normal 4
seconds of the passenger’s front air
bag deactivated warning light
F.
In addition the air bag system will de-
activate automatically the passen-
ger’s air bags (front and side where
provided). In this event, warning light
¬could not indicate safety systems
failures. Contact Fiat Dealership im-
mediately to have the system
checked.
WARNING
PASSENGER SIDE
FRONT AND SIDE
CHEST PROTECTION
AIR BAGS (side bags)
OFF (amber yellow)
Warning light
Fwill come on when de-
activating the passenger front air bag and
side bag (where provided). With passen-
ger front air bag active, turning the igni-
tion key to ON, warning light
Fwill
turn on with fixed light for about 4 sec-
onds and then it will flash for other 4 sec-
onds. It shall then go off.
F
The failure of the warning
light Fis indicated by the
turning on of warning light ¬. In ad-
dition the air bag system will deacti-
vate automatically the passenger’s air
bags (front and side where provided).
Contact Fiat Dealership immediately
to have the system checked.
WARNING
SEAT BELTS
NOT FASTENED
The warning light on the dial
turns on glowing steadily with car
stationary and driver’s seat belt not fas-
tened correctly. The warning light will turn
on flashing together with the buzzer when,
with car moving, front seat belts are not
fastened correctly. The S.B.R. (Seat Belt Re-
minder) buzzer can only be excluded by Fi-
at Dealership. The system can be reacti-
vated through the set-up menu (see dia-
gram aside). The display will show the ded-
icated message.
<
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 147

148
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
❒Car heavy duty(e.g.: towing trailer
uphill of fully laden car): decrease
speed, if the warning light stays on,
stop the car. Wait for 2 or 3 minutes
leaving the engine on and slightly ac-
celerated to further activate the cir-
culation of the coolant fluid, then
switch the engine off. Check proper
coolant level as described previously.
IMPORTANT Under severe use of the
car, keep the engine on and slightly accel-
erated for few minutes before switching it
off.
The display will show the dedicated mes-
sage.
LOW BATTERY
CHARGE (red)
(where provided)
Turning the key to ONthe warning
light turns on, but it should go out as
soon as the engine is started (with the
engine running at idle speed a brief
delay in going out is allowed).
If the warning light stays on contact im-
mediately Fiat Dealership.
w
INEFFICIENT ABS
SYSTEM (amber)
Turning the key to ONthe
warning light turns on, but it should go off
after few seconds.
The warning light turns on when the sys-
tem is inefficient or unavailable. In this case
the braking system keeps its effectiveness
unchanged, but without the potential of-
fered by the ABS system. Caution is ad-
visable and it is necessary to contact Fiat
Dealership.
The display will show the dedicated mes-
sage.
>
INEFFICIENT
EBD
ELECTRONIC
BRAKING
DISTRIBUTOR (red) (amber)
The turning on at the same time of warn-
ing lights
xand >with the engine run-
ning indicates an EBD system failure or
that the system is unavailable; in this case
heavy braking may cause the rear wheels
to lock before time, with the possibility of
skidding. Drive with the utmost care to
the nearest Fiat Dealership to have the
system checked.
The display will show the dedicated mes-
sage.
x>
HIGH TEMPERATURE
ENGINE COOLANT
FLUID (red)
Turning the ignition key to ONthe warn-
ing light turns on, but it should go off af-
ter few seconds.
The warning light turns on when the en-
gine is overheated.
If the warning light comes on when dri-
ving, proceed as follows:
❒normal driving conditions: stop
the car, switch off the engine and
check whether the water level in the
reservoir is not below the MIN mark.
Otherwise wait for few seconds to al-
low the engine cooling, then open
slowly and carefully the cap, top up
coolant and check whether its level is
falling between MIN and MAX marks
in the reservoir. Check visually any
leak. If, when restarting, the warning
light comes on again, contact a Fiat
Dealership.
ç
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 148

EXHAUST OIL
(Multijet versions)
The warning light with turn on
flashing together with the mes-
sage on the display when the system de-
tects that the engine oil is exhaust.
After the first indication, at each engine
starting the warning light
vwill go on
flashing for 60 seconds and then for 2
hours until oil is changed.If warning light
vflashes,
contact Fiat Dealership im-
mediately to have oil changed
and instrument panel warning light
turned off.
149
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
LOW ENGINE OIL
PRESSURE (red)
Turning the ignition key to ON
the warning light turns on, but it
should go off after few seconds.
The display will show the dedicated mes-
sage.
v
v
If the warning light vturns on when travelling to-
gether with the message on the dis-
play, stop the engine immediately
and contact a Fiat Dealership.
WARNING
INJECTION SYSTEM
FAILURE
(Multijet versions - red)
EOBD ENGINE
CONTROL SYSTEM FAILURE
(petrol versions - amber)
Injection system failure
Turning the ignition key to ONthe warn-
ing light turns on, but it should go off af-
ter few seconds.
If the warning light stays on or turns on
when travelling, means a fault in the sup-
ply/ignition system which could cause high
emissions at the exhaust, possible lack of
performance, poor handling and high con-
sumption levels.
On certain versions the dedicated message
is displayed.
In these conditions it is possible to con-
tinue driving without however requiring
heavy effort or high speed from the en-
gine. In any case, contact Fiat Dealership
as soon as possible.
EOBD ENGINE CONTROL
SYSTEM FAILURE
Under normal conditions, turning the ig-
nition key to ON, the warning light turns
on, but it should go off when the engine has
started. In this case, turning on indicates
proper working of the warning light. If the
U
INCOMPLETE DOOR
LOCKING (red)
(where provided)
The warning light turns on when
one or more doors, the boot or the bon-
net are not properly shut. The dedicated
message will be displayed.
When travelling with door/doors, boot or
bonnet open also a buzzer will sound.
´
POWER STEERING
FAILURE (red)
(where provided)
Turning the ignition key to ONthe warn-
ing light turns on, but it should go off af-
ter few seconds. If the warning light stays
on, you will not have steering assistance
and the effort on the steering wheel will
be increased, steering is however possi-
ble. Contact Fiat Dealership. The dedicat-
ed message will be displayed.
g
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 149

150
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
If when turning ignition key at
ON, the warning light Udoes not turn on or if it turns
on with fixed light or flashing
(on certain versions together with the
message on the display) when the car
is travelling, contact Fiat Dealership as
soon as possible. Warning light
Uop-
eration can by checked by traffic
agents by proper equipment therefore,
comply with laws and regulations in
force in the country where you are dri-
ving.
ç
FUEL RESERVE
(amber)
Turning the ignition key to ON
the warning light comes on but shall go off
after few seconds.
The warning light turns on when about 5
litres fuel are left in the tank.
IMPORTANT The warning light flashes to
indicate a failure, contact Fiat Dealership
as soon as possible to have the system
checked.GLOW PLUG
WARMING
(Multijet versions -
amber)
GLOW PLUG WARMING
FAILURE
(Multijet versions - amber)
Glow plug warming
Turning the ignition key to ONthe warn-
ing light turns on and it will go off when
glow plugs reach the preset temperature.
Start the engine immediately after warn-
ing light turning off.
IMPORTANT With hot ambient temper-
ature, warning light stays on for very short
time.
Glow plug warming failure
The warning light turns on when there is
a failure in the glow plug warming system.
Contact Fiat Dealership as soon as possi-
ble.
The display will show the dedicated mes-
sage.
m
warning light stays on or turns on when
travelling:
❒glowing steadily: means a fault in the
supply/ignition system which could
cause high emissions at the exhaust,
possible lack of performance, poor
handling and high consumption levels.
On certain versions the dedicated mes-
sage is displayed.
In these conditions it is possible to con-
tinue driving without however requiring
heavy effort or high speed from the en-
gine. Prolonged use of the car with the
warning light on may cause damages. Con-
tact Fiat Dealership as soon as possible.
The warning light goes off if the fault dis-
appears, but it is still stored by the system.
❒flashing: indicates the possibility of
damage to the catalyst (see “EOBD
system” in section “Dashboard and
controls”).
If the light flashes, it is necessary to release
the accelerator pedal to lower the speed
of the engine until the warning light stops
flashing; continue the journey at moder-
ate speed, trying to avoid driving condi-
tions that may cause further flashing and
contact Fiat Dealership as soon as possi-
ble.
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 150

151
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
WATER IN DIESEL
FUEL FILTER
(Multijet versions -
amber)
Turning the ignition key to ONthe warn-
ing light turns on, but it should go off af-
ter few seconds.
The warning light
cturns on when there
is water in the diesel fuel filter. On certain
versions warning light
èwill turn on.
The display will show the dedicated mes-
sage.
c
The presence of water in the
fuel circuit may cause serious
damage to the entire injec-
tion system and cause irreg-
ular engine operation. If the warning
light
cturns on (on certain versions to-
gether with the message on the display)
contact Fiat Dealership as soon as pos-
sible to have the system relieved. If the
above indications come on immedi-
ately after refuelling, water has prob-
ably been poured into the tank: turn
the engine off immediately and contact
Fiat Dealership.
CAR PROTECTION
SYSTEM FAILURE -
FIAT CODE
(amber)
(where provided)
Turning the key to ONthe warning
light shall flash only once and then go
off.
If with the ignition key at ONthe warn-
ing light comes on with fixed light, this in-
dicates a possible failure (see “The Fiat
Code system” in section “Dashboard and
controls”).
IMPORTANT The turning on at the same
time of the
Uand Ywarning lights in-
dicates a failure of the Fiat CODE system.
If with the engine running the warning light
Yflashes, this means that the car is not
protected by the engine inhibitor device
(see “Fiat Code system” in section “Dash-
board and controls”).
Contact Fiat Dealership to have all the
keys memorised.ALARM FAILURE
(where provided)
The turning on of the warning
light (together with the message
on the display and the buzzer) indicates
that there is a failure in the electronic
alarm system. Contact Fiat Dealership as
soon as possible.
YY
BREAK-IN ATTEMPT
(where provided)
The turning on of the warning
light (together with the message
on the display), indicates an attempt of
break-in.
ELECTRONIC KEY NOT
RECOGNISED
(where provided)
The turning on of the warning
light (together with the message on the
display and the buzzer) indicates that the
electronic key being used is not enabled.Y
Y
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 151

Warning light vturns on
together with the dedicated
message on the display to in-
dicate that the cleaning pro-
cedure cannot be performed, contact
Fiat Dealership as soon as possible.
152
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
GENERIC FAILURE
INDICATION
(amber)
The warning light turns on in the follow-
ing circumstances.
Engine oil pressure
sensor failure
The warning light comes on when the en-
gine oil pressure sensor is faulty. Contact
Fiat Dealership as soon as possible.
The display will show the dedicated mes-
sage.
è
EXTERNAL LIGHT
FAILURE (amber)
The warning light turns on
when one of the following lights is failing:
– side/taillights
– brake lights (third brake light excluded)
– rear fog lights
– direction indicators
– number plate lights.
The failure referring to these lights could
be: one or more blown bulbs, a blown
protection fuse or an electric connection
cut-off.
The display will show the dedicated mes-
sage.
W
REAR FOG LIGHTS
(amber)
The warning light turns on
when the rear fog lights are turned on.
4
Diesel particulate filter clogged
(Multijet versions)
The warning light turns on together with
the message on the display and the buzzer
when the diesel particulate filter is clogged
and the driving conditions do not enable
to activate automatically the reclaiming
procedure.
To enable the cleaning procedure, keep
the car running until the warning light
turns off.
Inertial fuel cut-off switch
intervened
The warning light turns on together with
the message on the display, when the in-
ertial fuel cut-off switch is triggered.
To reset the fuel cut-off switch, see para-
graph “Power and fuel cut-off switch” in
section “Dashboard and controls”.
Rain sensor failure
The warning light on the dial turns on (on
certain versions together with the mes-
sage on the display) when the rain sensor
is faulty. Contact Fiat Dealership.
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 152

153
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
Parking sensor failure
(where provided)
The warning light on the dial turns on to-
gether with the message on the display
when failure is detected in parking sensors.
Contact Fiat Dealership.
Antipinch system failure
(where provided)
The warning light on the dial turns on to-
gether with the message on the display
when failure is detected in the antipinch
system.
Contact Fiat Dealership.
Twilight sensor failure
(where provided)
The warning light on the dial turns on (to-
gether with the message on the display)
when failure is detected in twilight sen-
sor (adjusting headlight sensitivity).Check tyre pressure
(where provided)
Warning light in the panel comes on (to-
gether with the message in the display)
when the tyre inflation pressure is too
low.
In this case, inflate tyres to the specified
pressure values (see paragraph “Inflating
pressures” in section “Technical Specifi-
cations”).
Flat tyres (where provided)
The warning light on the dial turns on (to-
gether with message on the display and
the buzzer), when there is a pressure drop
in one or more tyres. In this way the
T.P.M.S. system warns the driver that one
or more tyre/s is/are flat (i.e. punctured).
IMPORTANT Stop travelling with one or
more flat tyre/s since road holding could
be jeopardised. Stop the car without brak-
ing or steering sharply. Change immedi-
ately punctured wheel with space-saver
spare wheel (where provided - see sec-
tion “In an emergency”) and contact Fiat
Dealership as soon as possible.Tyre pressure monitoring system
failure (where provided)
The warning light on the dial turns on (to-
gether with the message on the display)
when a failure is detected in the T.P.M.S.
system (where provided).
Contact Fiat Dealership as soon as possi-
ble.
Should one or more wheels without sen-
sor be fitted, the instrument panel warn-
ing light will come on (together with the
message on the display) and stay on until
fitting again the four wheels with sensors.
