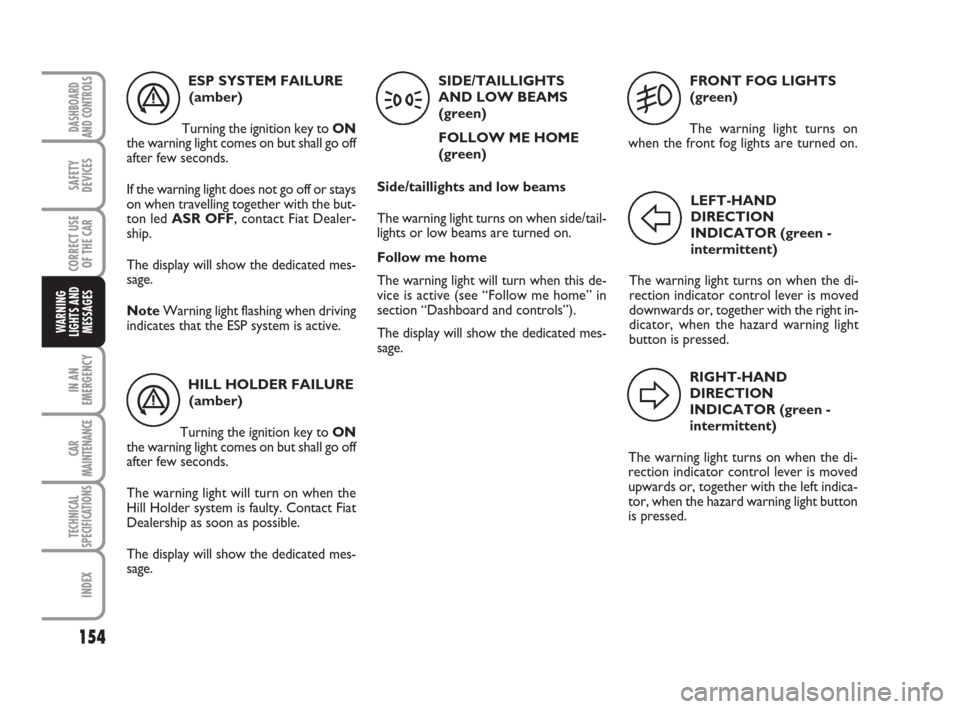

FRONT FOG LIGHTS
(green)
The warning light turns on
when the front fog lights are turned on.
5
LEFT-HAND
DIRECTION
INDICATOR (green -
intermittent)
The warning light turns on when the di-
rection indicator control lever is moved
downwards or, together with the right in-
dicator, when the hazard warning light
button is pressed.
F
RIGHT-HAND
DIRECTION
INDICATOR (green -
intermittent)
The warning light turns on when the di-
rection indicator control lever is moved
upwards or, together with the left indica-
tor, when the hazard warning light button
is pressed.
D
ESP SYSTEM FAILURE
(amber)
Turning the ignition key to ON
the warning light comes on but shall go off
after few seconds.
If the warning light does not go off or stays
on when travelling together with the but-
ton led ASR OFF, contact Fiat Dealer-
ship.
The display will show the dedicated mes-
sage.
NoteWarning light flashing when driving
indicates that the ESP system is active.
á
SIDE/TAILLIGHTS
AND LOW BEAMS
(green)
FOLLOW ME HOME
(green)
Side/taillights and low beams
The warning light turns on when side/tail-
lights or low beams are turned on.
Follow me home
The warning light will turn when this de-
vice is active (see “Follow me home” in
section “Dashboard and controls”).
The display will show the dedicated mes-
sage.
3
HILL HOLDER FAILURE
(amber)
Turning the ignition key to ON
the warning light comes on but shall go off
after few seconds.
The warning light will turn on when the
Hill Holder system is faulty. Contact Fiat
Dealership as soon as possible.
The display will show the dedicated mes-
sage.
á
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 154

HIGH GEARBOX OIL
TEMPERATURE
The warning light comes on
(together with the message o the
display and the warning buzzer) glowing
steadily to indicate that the temperature
of the automatic transmission oil is too
high.Contact immediately Fiat
Dealership in case of trans-
mission failure to have the
system checked.AUTOMATIC
TRANSMISSION
FAILURE
Turning the ignition key to ON,
the warning light on the dial shall turn on
and then go off after a few seconds.
The warning light (together with the mes-
sage o the display and the warning buzzer)
flashes to indicate a transmission failure.
155
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES

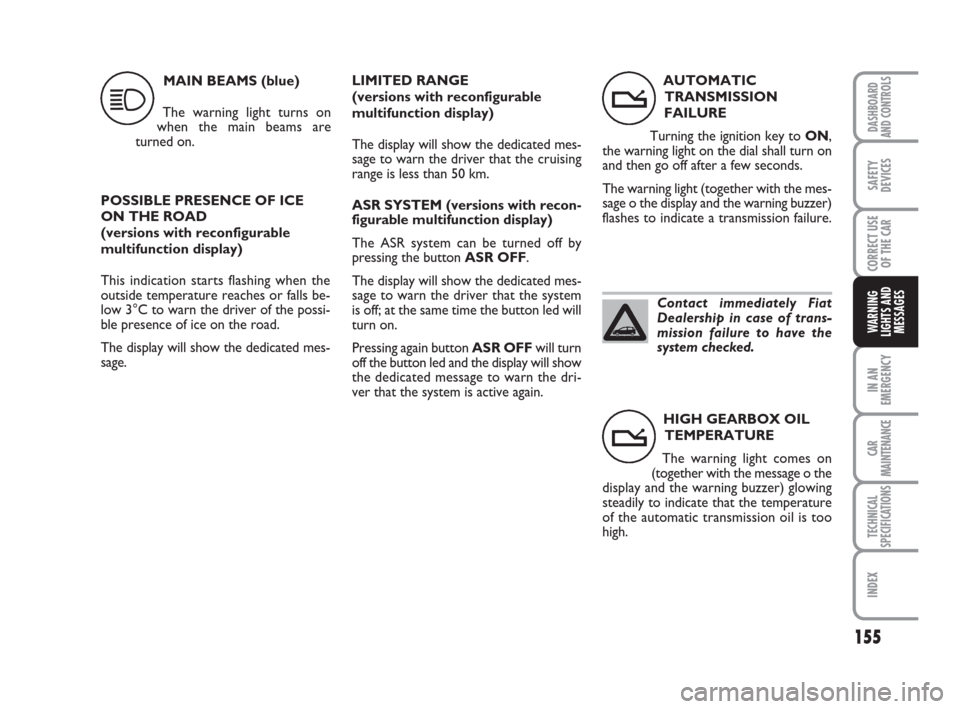

MAIN BEAMS (blue)
The warning light turns on
when the main beams are
turned on.
1
LIMITED RANGE
(versions with reconfigurable
multifunction display)
The display will show the dedicated mes-
sage to warn the driver that the cruising
range is less than 50 km.
ASR SYSTEM (versions with recon-
figurable multifunction display)
The ASR system can be turned off by
pressing the button ASR OFF.
The display will show the dedicated mes-
sage to warn the driver that the system
is off; at the same time the button led will
turn on.
Pressing again button ASR OFFwill turn
off the button led and the display will show
the dedicated message to warn the dri-
ver that the system is active again. POSSIBLE PRESENCE OF ICE
ON THE ROAD
(versions with reconfigurable
multifunction display)
This indication starts flashing when the
outside temperature reaches or falls be-
low 3°C to warn the driver of the possi-
ble presence of ice on the road.
The display will show the dedicated mes-
sage.
t
t
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 155

Should the warning light turn
on glowing steadily, reduce en-
gine perormance and contact
immediately Fiat Dealership.
156
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES

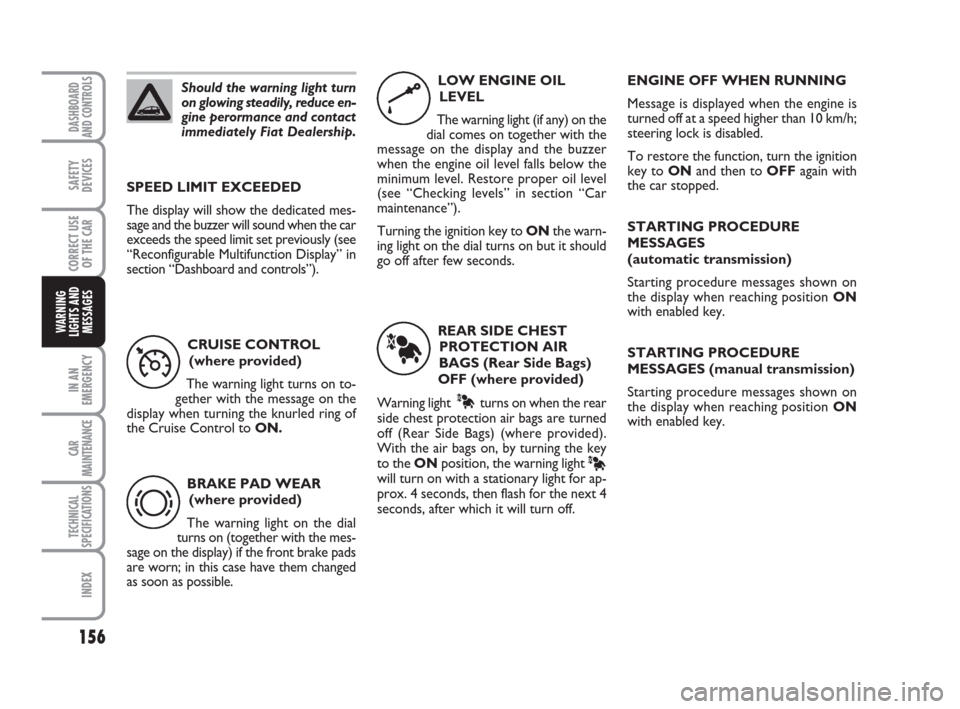

SPEED LIMIT EXCEEDED
The display will show the dedicated mes-
sage and the buzzer will sound when the car
exceeds the speed limit set previously (see
“Reconfigurable Multifunction Display” in
section “Dashboard and controls”).
CRUISE CONTROL
(where provided)
The warning light turns on to-
gether with the message on the
display when turning the knurled ring of
the Cruise Control to ON.
BRAKE PAD WEAR
(where provided)
The warning light on the dial
turns on (together with the mes-
sage on the display) if the front brake pads
are worn; in this case have them changed
as soon as possible.LOW ENGINE OIL
LEVEL
The warning light (if any) on the
dial comes on together with the
message on the display and the buzzer
when the engine oil level falls below the
minimum level. Restore proper oil level
(see “Checking levels” in section “Car
maintenance”).
Turning the ignition key to ONthe warn-
ing light on the dial turns on but it should
go off after few seconds.
k
REAR SIDE CHEST
PROTECTION AIR
BAGS (Rear Side Bags)
OFF (where provided)
Warning light
Àturns on when the rear
side chest protection air bags are turned
off (Rear Side Bags) (where provided).
With the air bags on, by turning the key
to the ONposition, the warning light
Àwill turn on with a stationary light for ap-
prox. 4 seconds, then flash for the next 4
seconds, after which it will turn off.
À
ENGINE OFF WHEN RUNNING
Message is displayed when the engine is
turned off at a speed higher than 10 km/h;
steering lock is disabled.
To restore the function, turn the ignition
key to ONand then to OFFagain with
the car stopped.
STARTING PROCEDURE
MESSAGES
(automatic transmission)
Starting procedure messages shown on
the display when reaching position ON
with enabled key.
STARTING PROCEDURE
MESSAGES (manual transmission)
Starting procedure messages shown on
the display when reaching position ON
with enabled key.
d
Ü
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 156

157
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

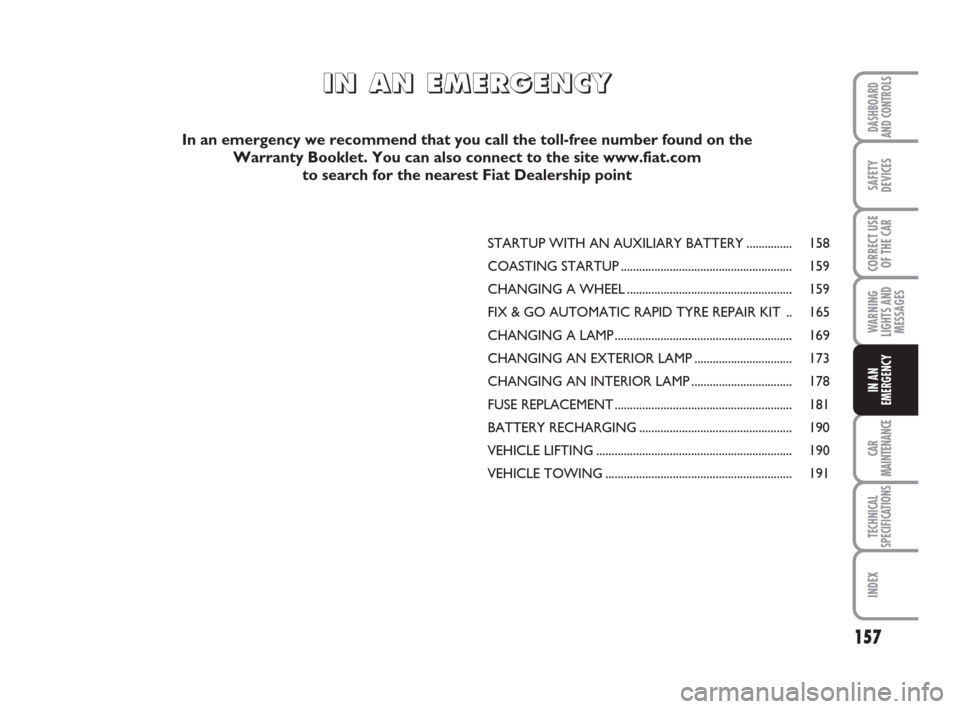

STARTUP WITH AN AUXILIARY BATTERY ............... 158
COASTING STARTUP........................................................ 159
CHANGING A WHEEL...................................................... 159
FIX & GO AUTOMATIC RAPID TYRE REPAIR KIT .. 165
CHANGING A LAMP.......................................................... 169
CHANGING AN EXTERIOR LAMP ................................ 173
CHANGING AN INTERIOR LAMP ................................. 178
FUSE REPLACEMENT.......................................................... 181
BATTERY RECHARGING.................................................. 190
VEHICLE LIFTING................................................................ 190
VEHICLE TOWING............................................................. 191
II I
N N
A A
N N
E E
M M
E E
R R
G G
E E
N N
C C
Y Y
In an emergency we recommend that you call the toll-free number found on the
Warranty Booklet. You can also connect to the site www.fiat.com
to search for the nearest Fiat Dealership point
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 157

158
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
If after a few attempts the engine does not
start, do not insist but contact the near-
est Fiat Dealership.
IMPORTANT Do not directly connect the
negative terminals of the two batteries:
sparks could ignite the flammable gas from
the battery. If the other battery is fitted in
another car, prevent accidental contacts
between the metal parts of the two cars.

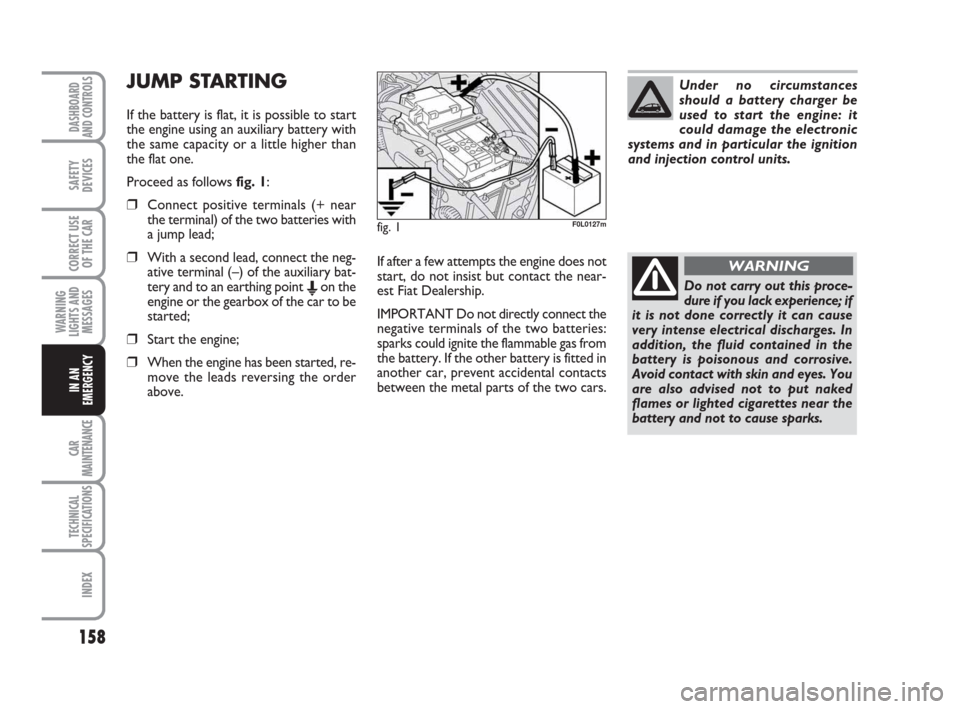

JUMP STARTING
If the battery is flat, it is possible to start
the engine using an auxiliary battery with
the same capacity or a little higher than
the flat one.
Proceed as follows fig. 1:
❒Connect positive terminals (+ near
the terminal) of the two batteries with
a jump lead;
❒With a second lead, connect the neg-
ative terminal (–) of the auxiliary bat-
tery and to an earthing point
Eon the
engine or the gearbox of the car to be
started;
❒Start the engine;
❒When the engine has been started, re-
move the leads reversing the order
above.
fig. 1F0L0127m
Under no circumstances
should a battery charger be
used to start the engine: it
could damage the electronic
systems and in particular the ignition
and injection control units.
Do not carry out this proce-
dure if you lack experience; if
it is not done correctly it can cause
very intense electrical discharges. In
addition, the fluid contained in the
battery is poisonous and corrosive.
Avoid contact with skin and eyes. You
are also advised not to put naked
flames or lighted cigarettes near the
battery and not to cause sparks.
WARNING
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 158

159
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

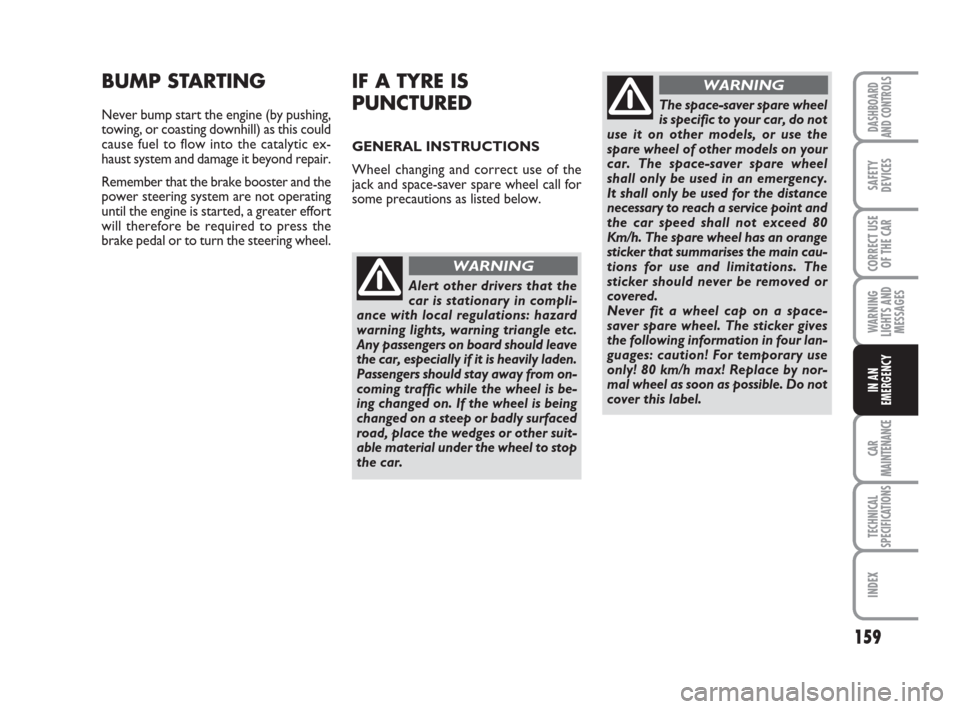

IF A TYRE IS
PUNCTURED
GENERAL INSTRUCTIONS
Wheel changing and correct use of the
jack and space-saver spare wheel call for
some precautions as listed below.
BUMP STARTING
Never bump start the engine (by pushing,
towing, or coasting downhill) as this could
cause fuel to flow into the catalytic ex-
haust system and damage it beyond repair.
Remember that the brake booster and the
power steering system are not operating
until the engine is started, a greater effort
will therefore be required to press the
brake pedal or to turn the steering wheel.
Alert other drivers that the
car is stationary in compli-
ance with local regulations: hazard
warning lights, warning triangle etc.
Any passengers on board should leave
the car, especially if it is heavily laden.
Passengers should stay away from on-
coming traffic while the wheel is be-
ing changed on. If the wheel is being
changed on a steep or badly surfaced
road, place the wedges or other suit-
able material under the wheel to stop
the car.
WARNING
The space-saver spare wheel
is specific to your car, do not
use it on other models, or use the
spare wheel of other models on your
car. The space-saver spare wheel
shall only be used in an emergency.
It shall only be used for the distance
necessary to reach a service point and
the car speed shall not exceed 80
Km/h. The spare wheel has an orange
sticker that summarises the main cau-
tions for use and limitations. The
sticker should never be removed or
covered.
Never fit a wheel cap on a space-
saver spare wheel. The sticker gives
the following information in four lan-
guages: caution! For temporary use
only! 80 km/h max! Replace by nor-
mal wheel as soon as possible. Do not
cover this label.
WARNING
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 159

160
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

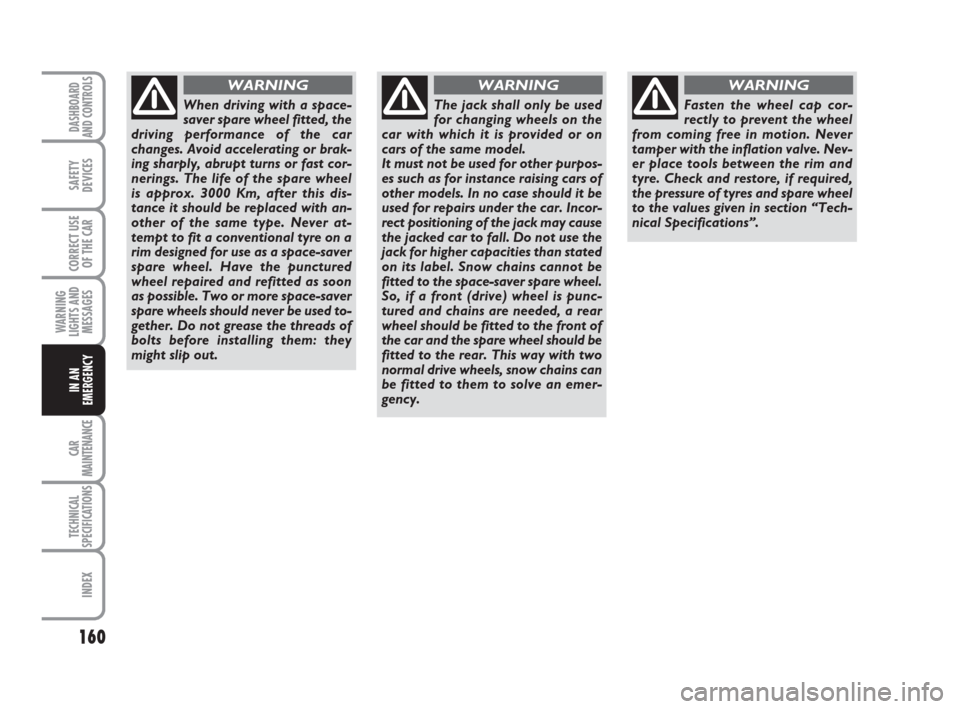

When driving with a space-
saver spare wheel fitted, the
driving performance of the car
changes. Avoid accelerating or brak-
ing sharply, abrupt turns or fast cor-
nerings. The life of the spare wheel
is approx. 3000 Km, after this dis-
tance it should be replaced with an-
other of the same type. Never at-
tempt to fit a conventional tyre on a
rim designed for use as a space-saver
spare wheel. Have the punctured
wheel repaired and refitted as soon
as possible. Two or more space-saver
spare wheels should never be used to-
gether. Do not grease the threads of
bolts before installing them: they
might slip out.
WARNING
The jack shall only be used
for changing wheels on the
car with which it is provided or on
cars of the same model.
It must not be used for other purpos-
es such as for instance raising cars of
other models. In no case should it be
used for repairs under the car. Incor-
rect positioning of the jack may cause
the jacked car to fall. Do not use the
jack for higher capacities than stated
on its label. Snow chains cannot be
fitted to the space-saver spare wheel.
So, if a front (drive) wheel is punc-
tured and chains are needed, a rear
wheel should be fitted to the front of
the car and the spare wheel should be
fitted to the rear. This way with two
normal drive wheels, snow chains can
be fitted to them to solve an emer-
gency.
WARNING
Fasten the wheel cap cor-
rectly to prevent the wheel
from coming free in motion. Never
tamper with the inflation valve. Nev-
er place tools between the rim and
tyre. Check and restore, if required,
the pressure of tyres and spare wheel
to the values given in section “Tech-
nical Specifications”.
WARNING
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 160

161
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

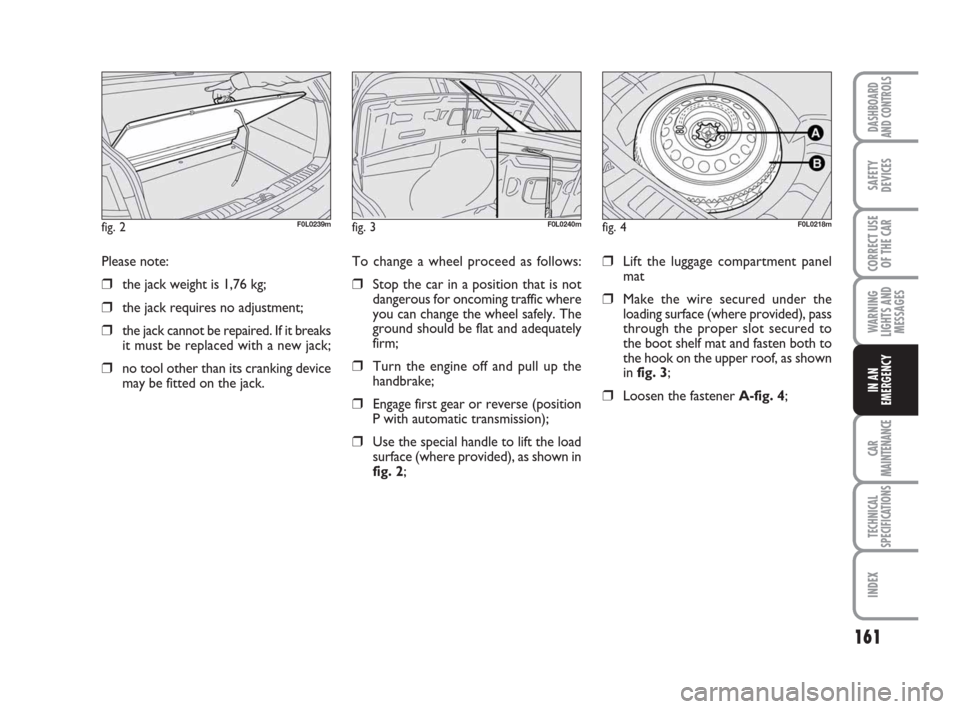

To change a wheel proceed as follows:
❒Stop the car in a position that is not
dangerous for oncoming traffic where
you can change the wheel safely. The
ground should be flat and adequately
firm;
❒Turn the engine off and pull up the
handbrake;
❒Engage first gear or reverse (position
P with automatic transmission);
❒Use the special handle to lift the load
surface (where provided), as shown in
fig. 2;
❒Lift the luggage compartment panel
mat
❒Make the wire secured under the
loading surface (where provided), pass
through the proper slot secured to
the boot shelf mat and fasten both to
the hook on the upper roof, as shown
in fig. 3;
❒Loosen the fastener A-fig. 4; Please note:
❒the jack weight is 1,76 kg;
❒the jack requires no adjustment;
❒the jack cannot be repaired. If it breaks
it must be replaced with a new jack;
❒no tool other than its cranking device
may be fitted on the jack.
fig. 2F0L0239mfig. 3F0L0240mfig. 4F0L0218m
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 161

162
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

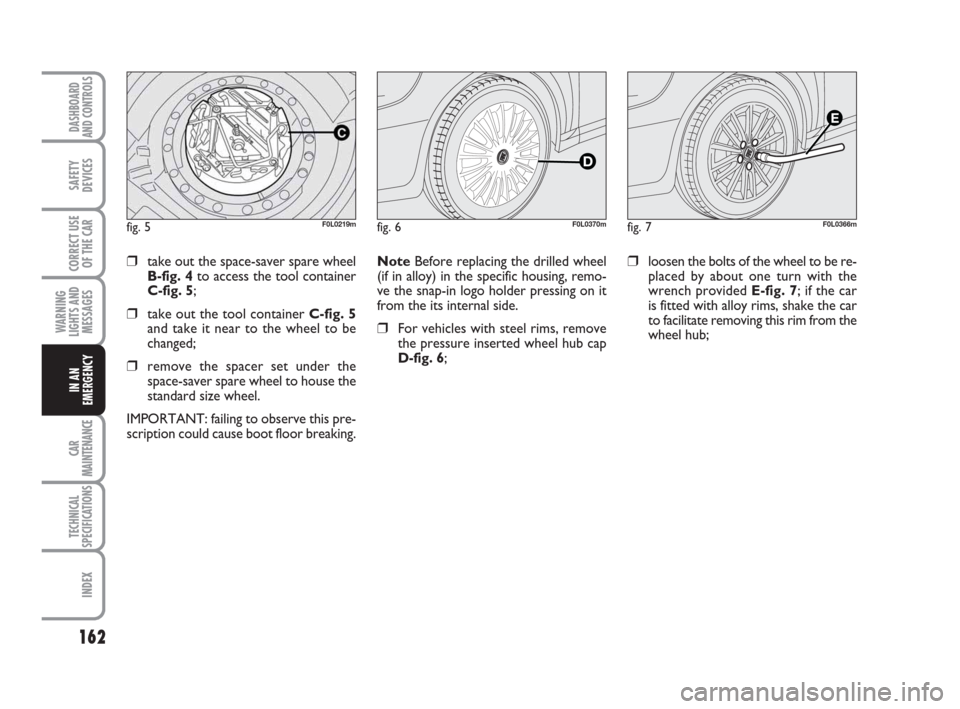

Note Before replacing the drilled wheel
(if in alloy) in the specific housing, remo-
ve the snap-in logo holder pressing on it
from the its internal side.
❒For vehicles with steel rims, remove
the pressure inserted wheel hub cap
D-fig. 6;
❒loosen the bolts of the wheel to be re-
placed by about one turn with the
wrench provided E-fig. 7; if the car
is fitted with alloy rims, shake the car
to facilitate removing this rim from the
wheel hub;❒take out the space-saver spare wheel
B-fig. 4to access the tool container
C-fig. 5;
❒take out the tool container C-fig. 5
and take it near to the wheel to be
changed;
❒remove the spacer set under the
space-saver spare wheel to house the
standard size wheel.
IMPORTANT: failing to observe this pre-
scription could cause boot floor breaking.
fig. 5F0L0219mfig. 7F0L0366mfig. 6
D
F0L0370m
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 162

163
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

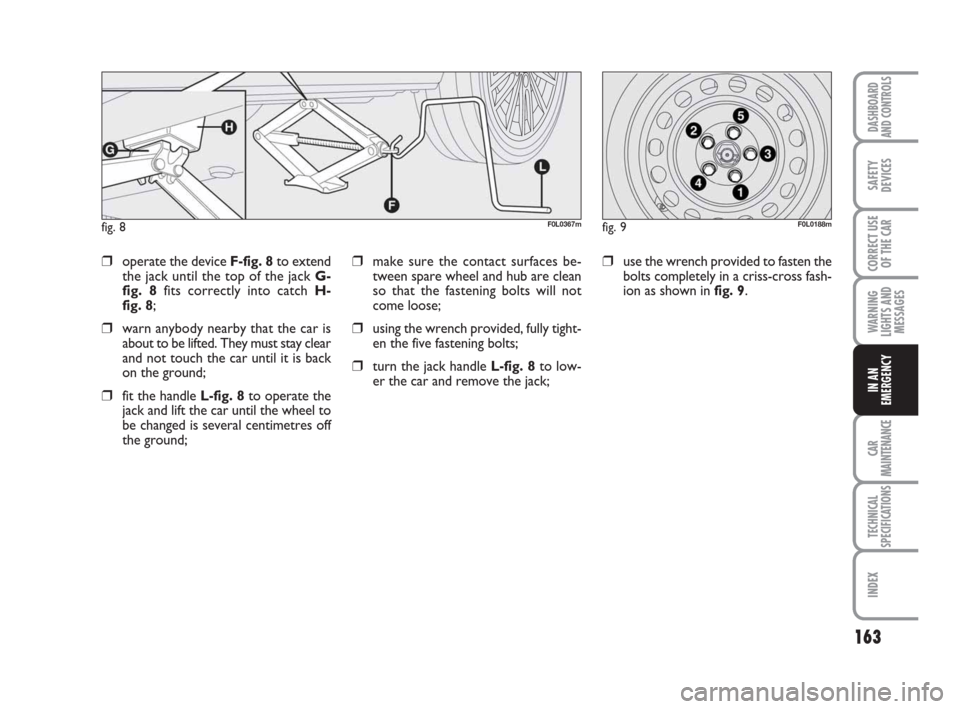

❒make sure the contact surfaces be-
tween spare wheel and hub are clean
so that the fastening bolts will not
come loose;
❒using the wrench provided, fully tight-
en the five fastening bolts;
❒turn the jack handle L-fig. 8to low-
er the car and remove the jack;
❒use the wrench provided to fasten the
bolts completely in a criss-cross fash-
ion as shown in fig. 9.❒operate the device F-fig. 8to extend
the jack until the top of the jack G-
fig. 8fits correctly into catch H-
fig. 8;
❒warn anybody nearby that the car is
about to be lifted. They must stay clear
and not touch the car until it is back
on the ground;
❒fit the handle L-fig. 8to operate the
jack and lift the car until the wheel to
be changed is several centimetres off
the ground;
fig. 8F0L0367mfig. 9F0L0188m
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 163
