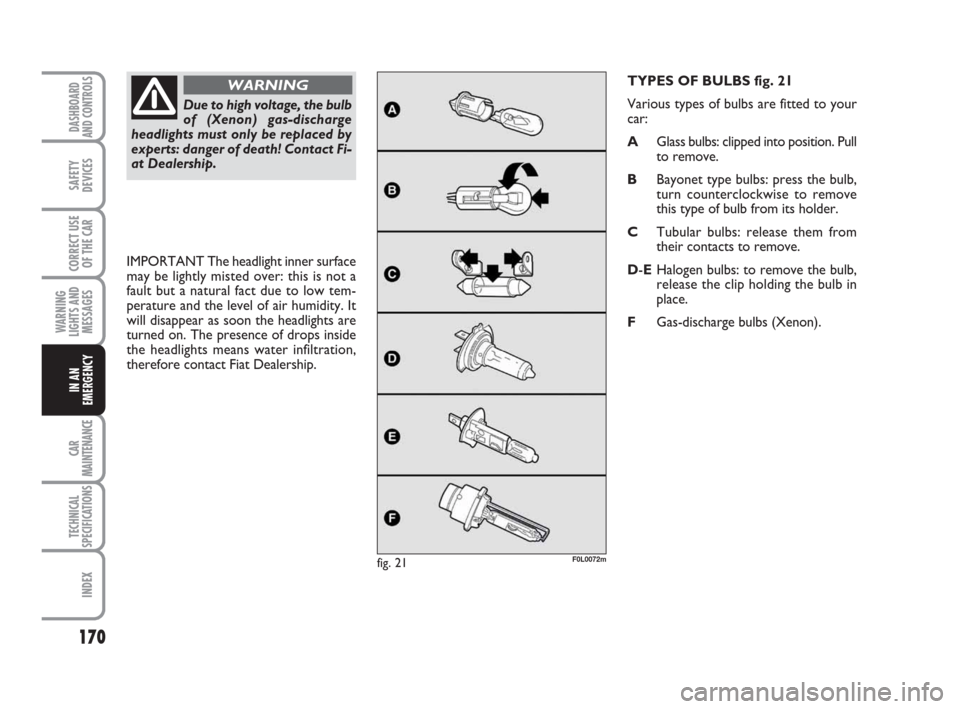

TYPES OF BULBS fig. 21
Various types of bulbs are fitted to your
car:
AGlass bulbs: clipped into position. Pull
to remove.
BBayonet type bulbs: press the bulb,
turn counterclockwise to remove
this type of bulb from its holder.
CTubular bulbs: release them from
their contacts to remove.
D-EHalogen bulbs: to remove the bulb,
release the clip holding the bulb in
place.
FGas-discharge bulbs (Xenon).
F0L0072mfig. 21
Due to high voltage, the bulb
of (Xenon) gas-discharge
headlights must only be replaced by
experts: danger of death! Contact Fi-
at Dealership.
WARNING
IMPORTANT The headlight inner surface
may be lightly misted over: this is not a
fault but a natural fact due to low tem-
perature and the level of air humidity. It
will disappear as soon the headlights are
turned on. The presence of drops inside
the headlights means water infiltration,
therefore contact Fiat Dealership.
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 170

171
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATION
S
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
Bulbs Ref. Figure Type Power
Main beam headlights E H1 55W
Dipped beam headlights Longlife D H1 55W
Gas-discharge dipped beam headlights (where provided) F D1S 35W
Longlife front sidelights (2 per light) A W5W 5W
Front fog lights (where provided) E H11 55W
Front direction indicators B PY24W 24W
Side direction indicators A WY5W 5W
Rear direction indicators B R10W 10W
Taillights/brake lights B P21/5W 21W/5W
Third brake light (additional brake light) A W2,3W 2,3W
157-192 Croma TRW GB 25-11-2008 14:28 Pagina 171

172
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

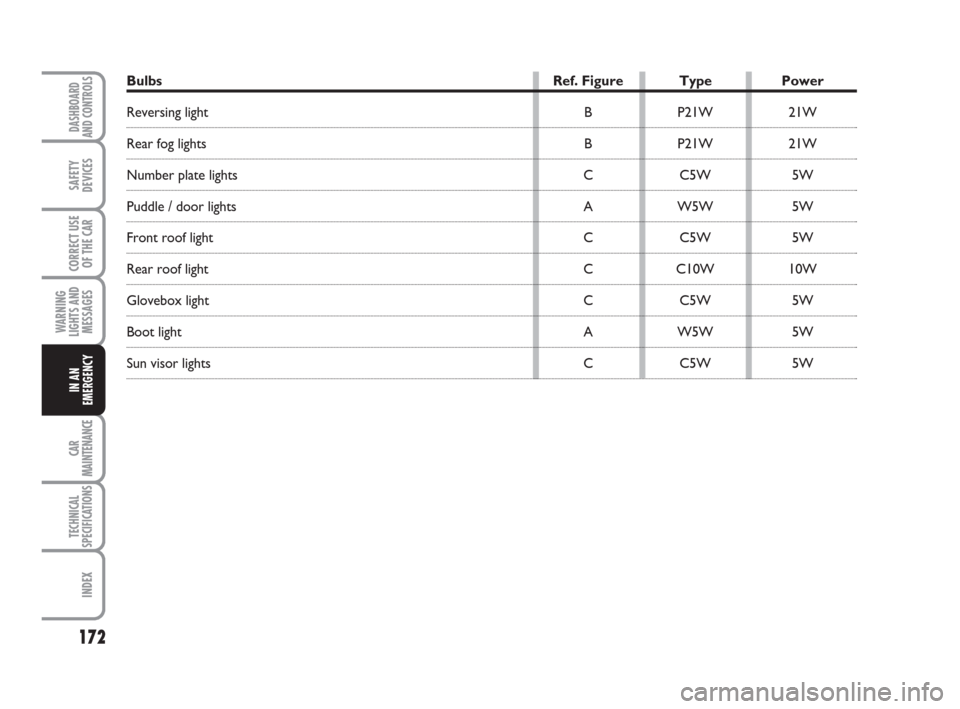

Bulbs Ref. Figure Type Power
Reversing light B P21W 21W
Rear fog lights B P21W 21W
Number plate lights C C5W 5W
Puddle / door lights A W5W 5W
Front roof light C C5W 5W
Rear roof light C C10W 10W
Glovebox light C C5W 5W
Boot light A W5W 5W
Sun visor lights C C5W 5W
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 172

173
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
IF AN EXTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.

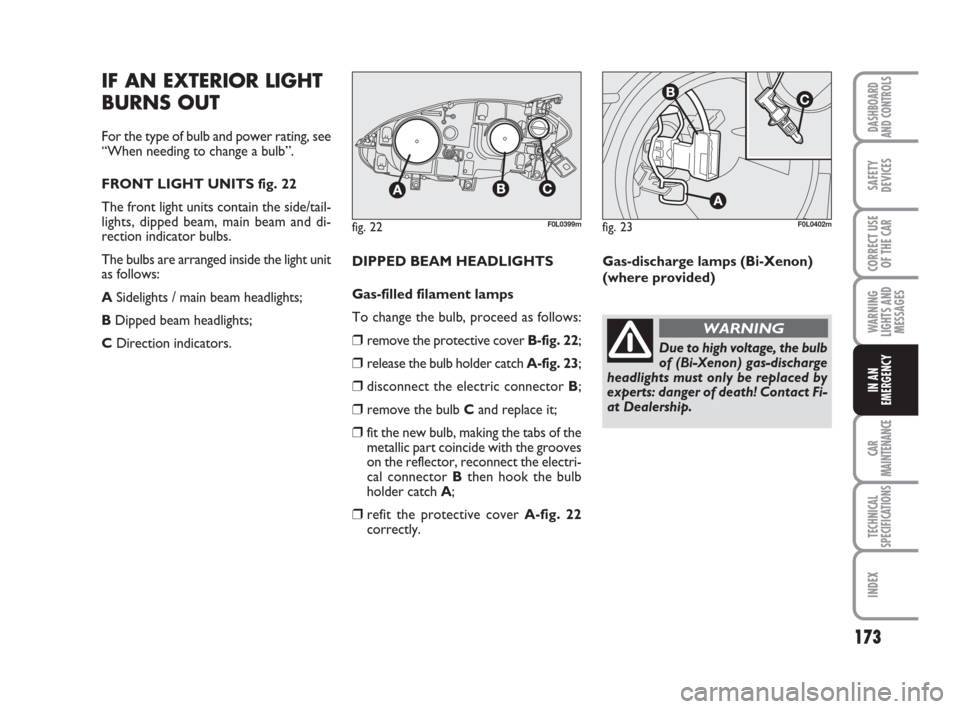

FRONT LIGHT UNITS fig. 22
The front light units contain the side/tail-
lights, dipped beam, main beam and di-
rection indicator bulbs.
The bulbs are arranged inside the light unit
as follows:
ASidelights / main beam headlights;
BDipped beam headlights;
CDirection indicators.DIPPED BEAM HEADLIGHTS
Gas-filled filament lamps
To change the bulb, proceed as follows:
❒remove the protective cover B-fig. 22;
❒release the bulb holder catch A-fig. 23;
❒disconnect the electric connector B;
❒remove the bulb Cand replace it;
❒fit the new bulb, making the tabs of the
metallic part coincide with the grooves
on the reflector, reconnect the electri-
cal connector Bthen hook the bulb
holder catch A;
❒refit the protective cover A-fig. 22
correctly.Gas-discharge lamps (Bi-Xenon)
(where provided)
Due to high voltage, the bulb
of (Bi-Xenon) gas-discharge
headlights must only be replaced by
experts: danger of death! Contact Fi-
at Dealership.
WARNING
fig. 22F0L0399mfig. 23F0L0402m
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 173

174
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

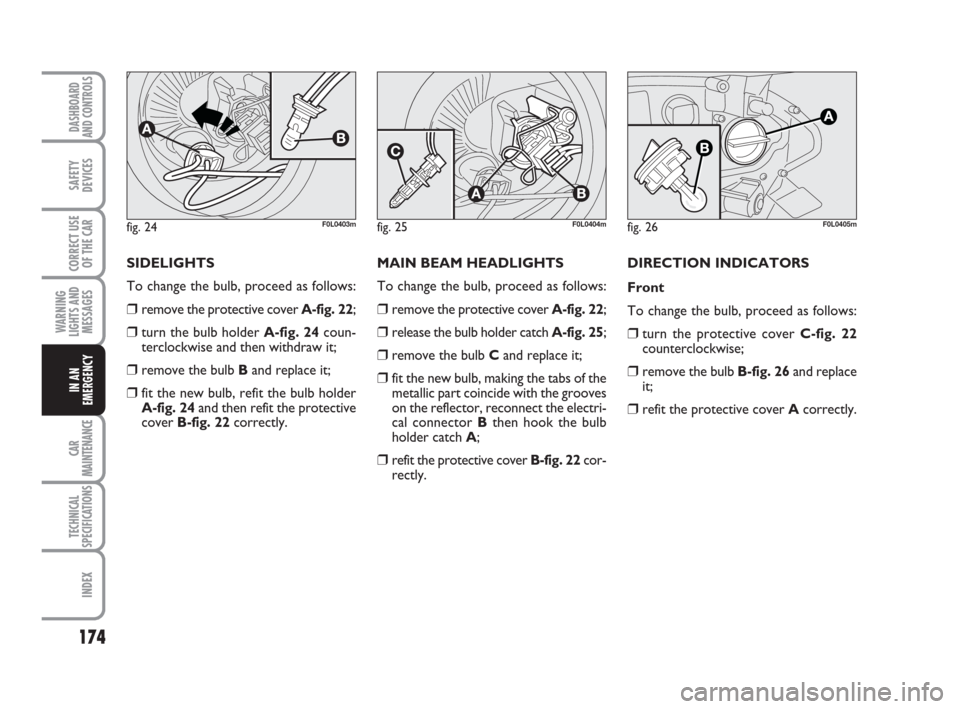

SIDELIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover A-fig. 22;
❒turn the bulb holder A-fig. 24coun-
terclockwise and then withdraw it;
❒remove the bulb Band replace it;
❒fit the new bulb, refit the bulb holder
A-fig. 24 and then refit the protective
coverB-fig. 22correctly.MAIN BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover A-fig. 22;
❒release the bulb holder catch A-fig. 25;
❒remove the bulb Cand replace it;
❒fit the new bulb, making the tabs of the
metallic part coincide with the grooves
on the reflector, reconnect the electri-
cal connector Bthen hook the bulb
holder catch A;
❒refit the protective cover B-fig. 22cor-
rectly.DIRECTION INDICATORS
Front
To change the bulb, proceed as follows:
❒turn the protective cover C-fig. 22
counterclockwise;
❒remove the bulb B-fig. 26and replace
it;
❒refit the protective cover Acorrectly.
fig. 24F0L0403mfig. 26F0L0405mfig. 25F0L0404m
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 174

175
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
Side fig. 19
To change the bulb, proceed as follows:
❒lever in the point shown by the arrow
to compress the catch and remove the
unit A;
❒turn the bulb holder Bcounterclock-
wise, remove the snap-fitted bulb and
replace it;
❒refit the bulb holder Bin the trans-
parent cover, then position the unit
making sure the catch clicks into place.FRONT FOG LIGHTS fig. 28
(where provided)
Contact Fiat Dealership to have front fog
lights replaced.REAR LIGHT UNITS
Tailgate light unit
To change the bulb, proceed as follows:
❒open the tailgate;
❒push down cover A-fig. 29and re-
move electric connectorB-fig. 30;
fig. 29F0L0083mfig. 27F0L0520mfig. 28F0L0534m
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 175

Side fixed light unit
To change the bulb, proceed as follows:
❒open the tailgate;
❒loosen the two screws F-fig. 32and
remove the light unit;
❒remove the electrical connector;
176
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
❒push the bulb holder side tabs C-fig.
31inwards to remove it;
❒remove bulbs slightly pushing them
and turning counterclockwise.The bulbs are arranged inside the light unit
as follows (fig. 31):
Dreversing lights;
Erear fog lights.
fig. 30F0L0084mfig. 31F0L0080mfig. 32F0L0085m
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 176

177
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
❒press the bulb holder tab G-fig. 33to
remove it;
❒remove bulbs slightly pushing them
and turning counterclockwise.
The bulbs are arranged inside the light unit
as follows (fig. 33):
Htaillights / brake lights;
Idirection indicators.ADDITIONAL BRAKING LIGHT
(THIRD STOP)
To change the bulb, proceed as follows:
❒open the tailgate;
❒remove the snap-fitted cover;
❒press catches B-fig. 34and remove
the bulb holder;
fig. 33F0L0081m
❒remove the snap-fitted bulbs and
change them;
❒refit the bulb holder making sure
catches B-fig. 34click into place.
fig. 34F0L0190m
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 177

178
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
NUMBER PLATE LIGHT fig. 36
To change the bulb, proceed as follows:
❒work in the point shown by the arrow
and remove lens A;
❒change the bulb Breleasing it from the
side contacts and making sure the new
bulb is correctly fastened between the
contacts;
❒refit the lens.
IF AN INTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
fig. 36F0L0079mfig. 37F0L0086m
FRONT CEILING LIGHT
fig. 37-38
To change the bulb, proceed as follows:
❒work in the points shown by the ar-
rows and remove cover A;
❒turn the 2 bulb holders Bcounter-
clockwise, remove and replace bulbs;
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 178

179
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
COURTESY MIRROR LIGHT
fig. 39
To change the bulb, proceed as follows:
❒open the mirror cover A;
❒remove the bulb Blevering in the
points shown by the arrows;
❒replace the bulb releasing it from the
side contacts making sure that the new
bulb is correctly clamped between the
contacts.GLOVEBOX LIGHT fig. 40
To change the bulb, proceed as follows:
❒open the glovebox, remove the light
unit Alevering in the point shown by
the arrow;
❒replace the bulb releasing it from the
side contacts making sure that the new
bulb is correctly clamped between the
contacts.
❒to replace the bulb C, release it from
the side contacts making sure that the
new bulb is correctly clamped be-
tween the contacts.
fig. 38F0L0087mfig. 39F0L0088mfig. 40F0L0202m
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 179
