technical specifications FIAT CROMA 2008 2.G Owners Manual

215
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

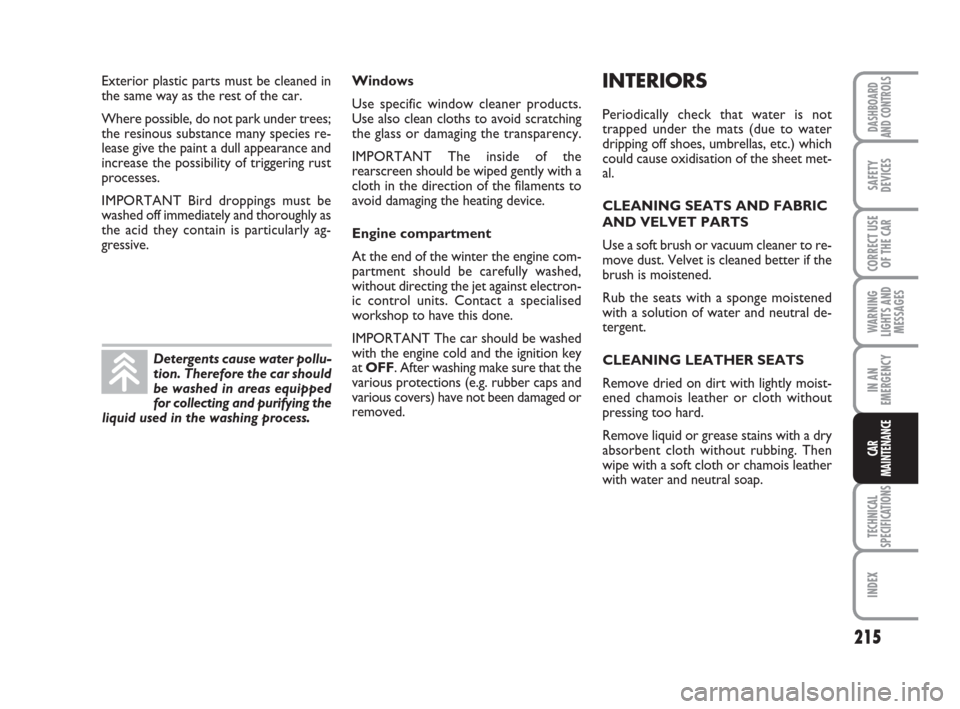

Windows
Use specific window cleaner products.
Use also clean cloths to avoid scratching
the glass or damaging the transparency.
IMPORTANT The inside of the
rearscreen should be wiped gently with a
cloth in the direction of the filaments to
avoid damaging the heating device.
Engine compartment
At the end of the winter the engine com-
partment should be carefully washed,
without directing the jet against electron-
ic control units. Contact a specialised
workshop to have this done.
IMPORTANT The car should be washed
with the engine cold and the ignition key
at OFF. After washing make sure that the
various protections (e.g. rubber caps and
various covers) have not been damaged or
removed.INTERIORS
Periodically check that water is not
trapped under the mats (due to water
dripping off shoes, umbrellas, etc.) which
could cause oxidisation of the sheet met-
al.
CLEANING SEATS AND FABRIC
AND VELVET PARTS
Use a soft brush or vacuum cleaner to re-
move dust. Velvet is cleaned better if the
brush is moistened.
Rub the seats with a sponge moistened
with a solution of water and neutral de-
tergent.
CLEANING LEATHER SEATS
Remove dried on dirt with lightly moist-
ened chamois leather or cloth without
pressing too hard.
Remove liquid or grease stains with a dry
absorbent cloth without rubbing. Then
wipe with a soft cloth or chamois leather
with water and neutral soap. Exterior plastic parts must be cleaned in
the same way as the rest of the car.
Where possible, do not park under trees;
the resinous substance many species re-
lease give the paint a dull appearance and
increase the possibility of triggering rust
processes.
IMPORTANT Bird droppings must be
washed off immediately and thoroughly as
the acid they contain is particularly ag-
gressive.
Detergents cause water pollu-
tion. Therefore the car should
be washed in areas equipped
for collecting and purifying the
liquid used in the washing process.
193-216 Croma TRW GB 28-05-2008 15:19 Pagina 215

216
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

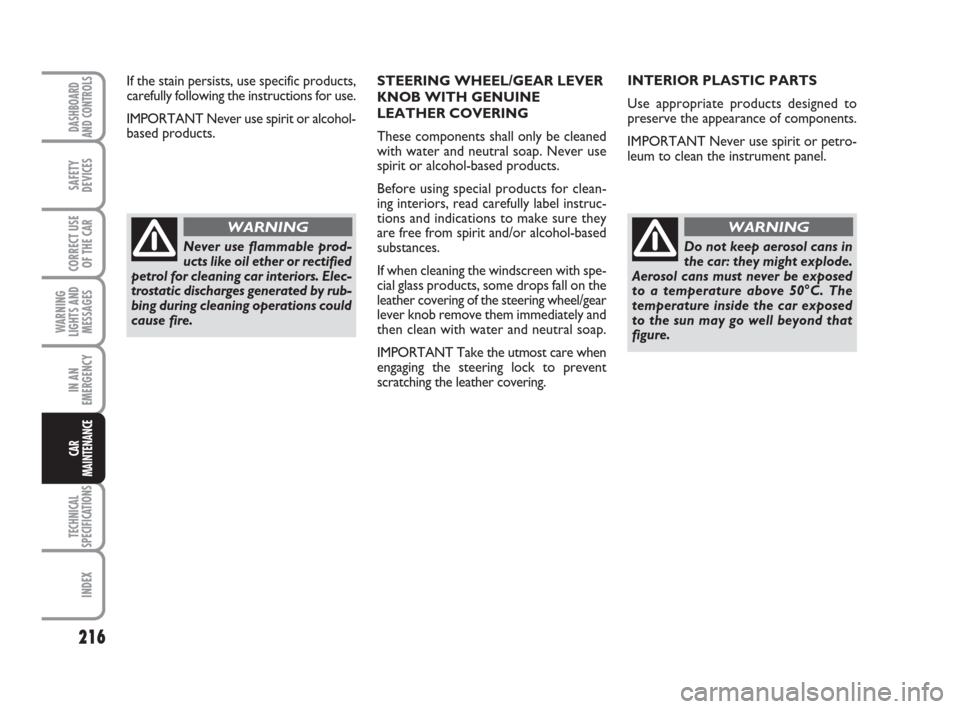

STEERING WHEEL/GEAR LEVER
KNOB WITH GENUINE
LEATHER COVERING
These components shall only be cleaned
with water and neutral soap. Never use
spirit or alcohol-based products.
Before using special products for clean-
ing interiors, read carefully label instruc-
tions and indications to make sure they
are free from spirit and/or alcohol-based
substances.
If when cleaning the windscreen with spe-
cial glass products, some drops fall on the
leather covering of the steering wheel/gear
lever knob remove them immediately and
then clean with water and neutral soap.
IMPORTANT Take the utmost care when
engaging the steering lock to prevent
scratching the leather covering.INTERIOR PLASTIC PARTS
Use appropriate products designed to
preserve the appearance of components.
IMPORTANT Never use spirit or petro-
leum to clean the instrument panel. If the stain persists, use specific products,
carefully following the instructions for use.
IMPORTANT Never use spirit or alcohol-
based products.
Never use flammable prod-
ucts like oil ether or rectified
petrol for cleaning car interiors. Elec-
trostatic discharges generated by rub-
bing during cleaning operations could
cause fire.
WARNING
Do not keep aerosol cans in
the car: they might explode.
Aerosol cans must never be exposed
to a temperature above 50°C. The
temperature inside the car exposed
to the sun may go well beyond that
figure.
WARNING
193-216 Croma TRW GB 28-05-2008 15:19 Pagina 216

217
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IDENTIFICATION DATA ................................................. 218
ENGINE CODES - BODYWORK VERSIONS............... 220
ENGINE .................................................................................. 221

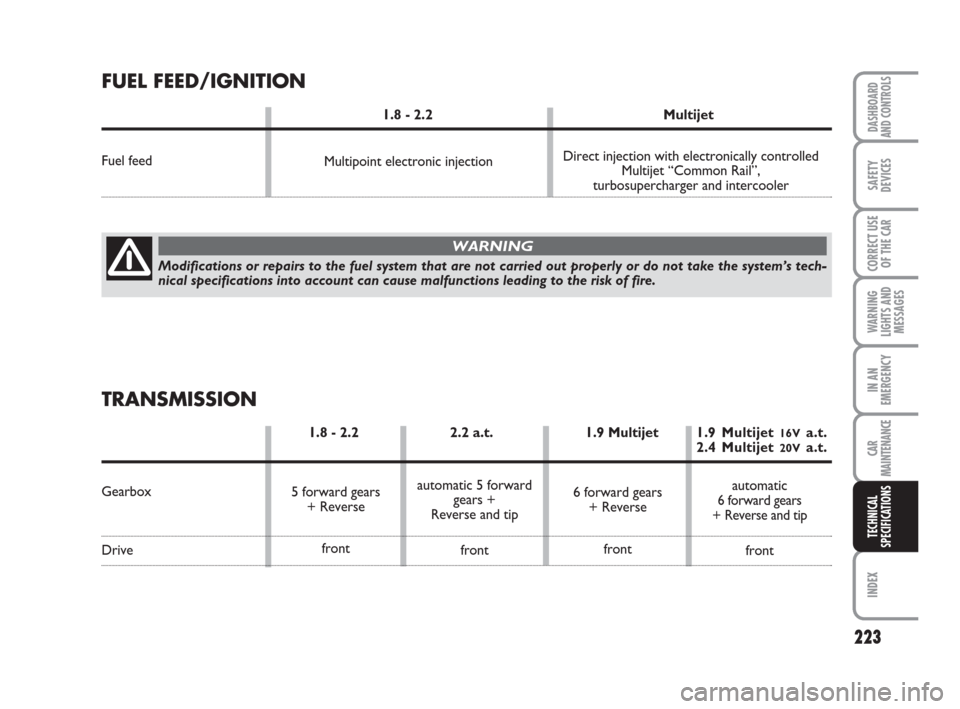

FUEL FEED/IGNITION ....................................................... 223
TRANSMISSION .................................................................. 223

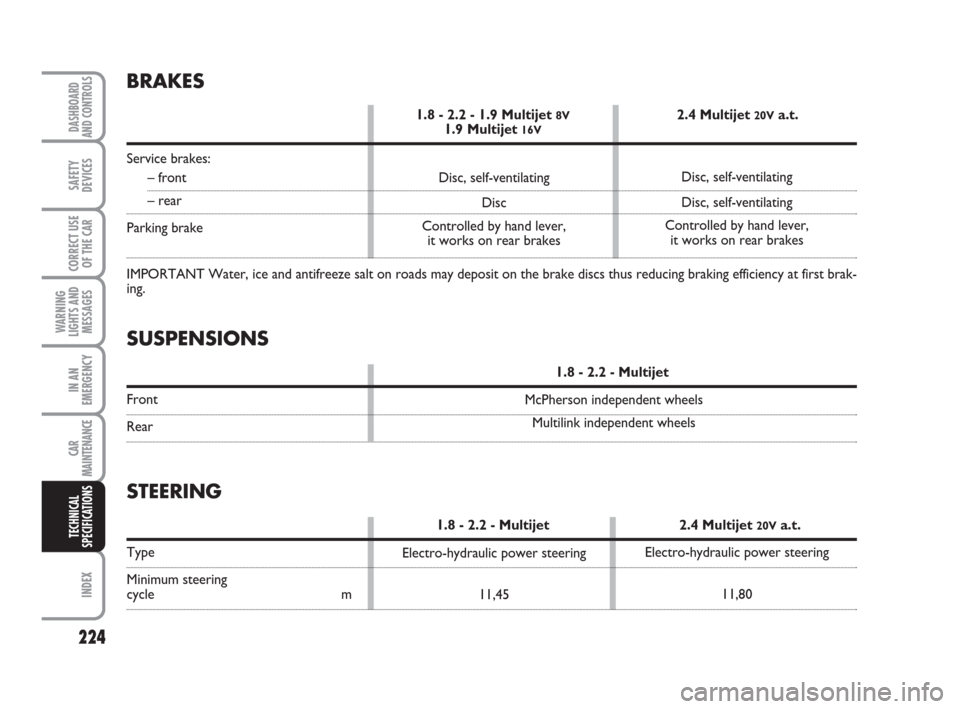

BRAKES................................................................................... 224
SUSPENSIONS....................................................................... 224
STEERING............................................................................... 224
WHEELS.................................................................................. 225
DIMENSIONS......................................................................... 230
PERFORMANCE................................................................... 231
WEIGHTS............................................................................... 232
CAPACITIES........................................................................... 234
FLUIDS AND LUBRICANTS.............................................. 236
FUEL CONSUMPTION....................................................... 238
CO
2EMISSIONS .................................................................. 240
RADIO FREQUENCY REMOTE CONTROL:
MINISTERIAL CERTIFICATIONS .................................... 241
TT T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 217

IEngine type.
LBody version code.
MSpare part code.
NSmoke opacity index (for diesel en-
gines).
IDENTIFICATION DATA
You are advised to note the identification
codes. The identification data stamped and
given on the plates and their position are
the following:
❒Model plate
❒Chassis marking
❒Bodywork paint identification plate
❒Engine marking.
218
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
MODEL PLATE fig. 1
This is mounted on the left in the engine
compartment and states the following
identification data:
BHomologation number.
CVehicle type code.
DChassis number.
EMaximum vehicle weight fully loaded.
FMaximum vehicle weight fully loaded
with trailer.
GMaximum vehicle weight on front axle.
HMaximum vehicle weight on rear axle.
fig. 1F0L0415m
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 218

CHASSIS MARKING fig. 2
It is printed on the passenger compart-
ment floor, near the right-hand front seat.
It can be reached by lifting the special flap
in the carpeting and includes the following
data:
❒car model;
❒chassis number.ENGINE MARKING
Engine marking is stamped on the cylinder
block and includes the model and the
chassis number.
BODYWORK PAINT
IDENTIFICATION PLATE fig. 3
The plate is applied inside the bonnet and
it bears the following data:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
219
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
fig. 2F0L0204mfig. 3F0L0161m
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 219

220
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

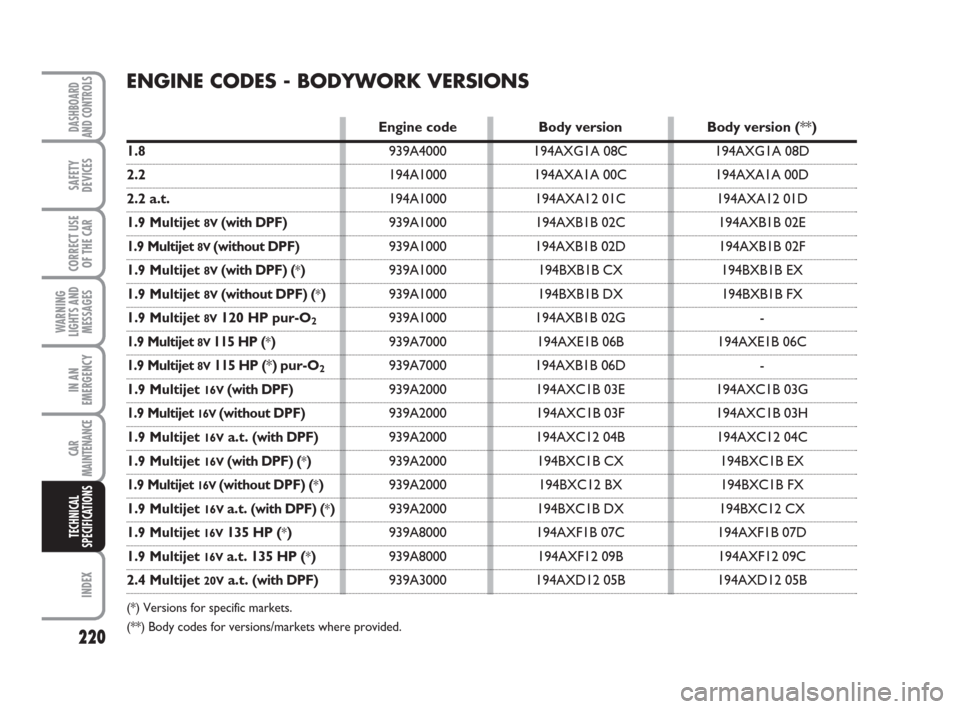

ENGINE CODES - BODYWORK VERSIONS
Engine code Body version Body version (**)
1.8939A4000 194AXG1A 08C 194AXG1A 08D
2.2194A1000 194AXA1A 00C 194AXA1A 00D
2.2 a.t.194A1000 194AXA12 01C 194AXA12 01D
1.9 Multijet 8V (with DPF)939A1000 194AXB1B 02C 194AXB1B 02E
1.9 Multijet 8V (without DPF)939A1000 194AXB1B 02D 194AXB1B 02F
1.9 Multijet 8V (with DPF) (*)939A1000 194BXB1B CX 194BXB1B EX
1.9 Multijet 8V (without DPF) (*)939A1000 194BXB1B DX 194BXB1B FX
1.9 Multijet 8V120 HP pur-O2939A1000 194AXB1B 02G -
1.9 Multijet 8V 115 HP (*)939A7000 194AXE1B 06B 194AXE1B 06C
1.9 Multijet 8V115 HP (*) pur-O2939A7000 194AXB1B 06D -
1.9 Multijet 16V (with DPF)939A2000 194AXC1B 03E 194AXC1B 03G
1.9 Multijet 16V (without DPF)939A2000 194AXC1B 03F 194AXC1B 03H
1.9 Multijet 16Va.t. (with DPF)939A2000 194AXC12 04B 194AXC12 04C
1.9 Multijet 16V (with DPF) (*)939A2000 194BXC1B CX 194BXC1B EX
1.9 Multijet 16V (without DPF) (*)939A2000 194BXC12 BX 194BXC1B FX
1.9 Multijet 16V a.t.(with DPF) (*)939A2000 194BXC1B DX 194BXC12 CX
1.9 Multijet16V135 HP (*)939A8000 194AXF1B 07C 194AXF1B 07D
1.9 Multijet16Va.t.135 HP (*)939A8000 194AXF12 09B 194AXF12 09C
2.4 Multijet 20Va.t. (with DPF)939A3000 194AXD12 05B 194AXD12 05B
(*) Versions for specific markets.
(**) Body codes for versions/markets where provided.
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 220

221
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

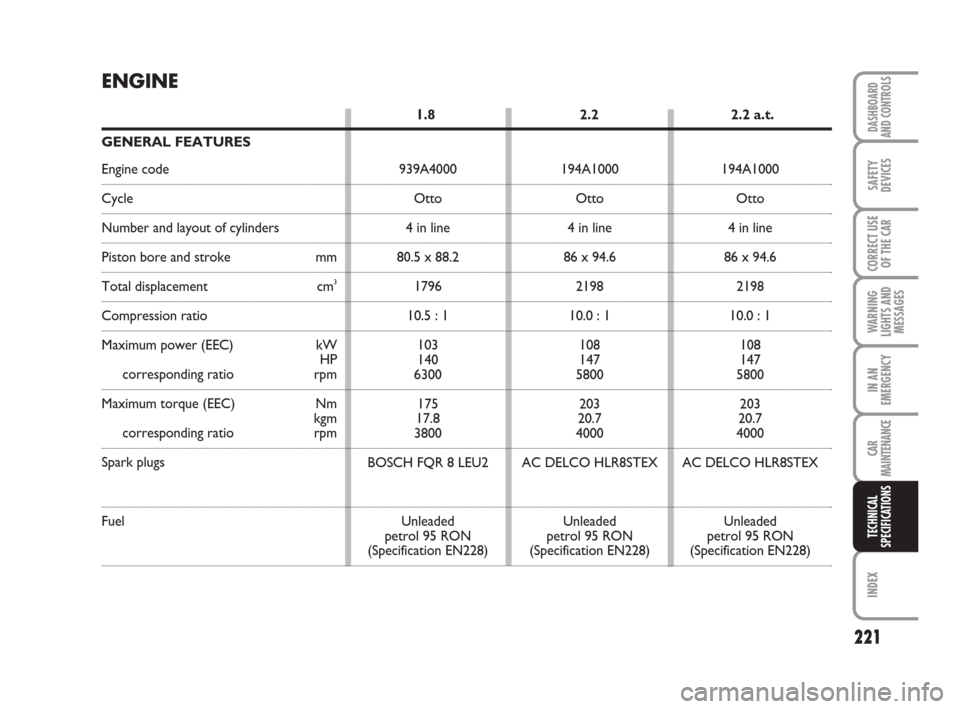

ENGINE
1.8 2.2 2.2 a.t.
GENERAL FEATURES
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Spark plugs
Fuel
939A4000
Otto
4 in line
80.5 x 88.2
1796
10.5 : 1
103
140
6300
175
17.8
3800
BOSCH FQR 8 LEU2
Unleaded
petrol 95 RON
(Specification EN228)194A1000
Otto
4 in line
86 x 94.6
2198
10.0 : 1
108
147
5800
203
20.7
4000
AC DELCO HLR8STEX
Unleaded
petrol 95 RON
(Specification EN228)194A1000
Otto
4 in line
86 x 94.6
2198
10.0 : 1
108
147
5800
203
20.7
4000
AC DELCO HLR8STEX
Unleaded
petrol 95 RON
(Specification EN228)
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 221

222
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

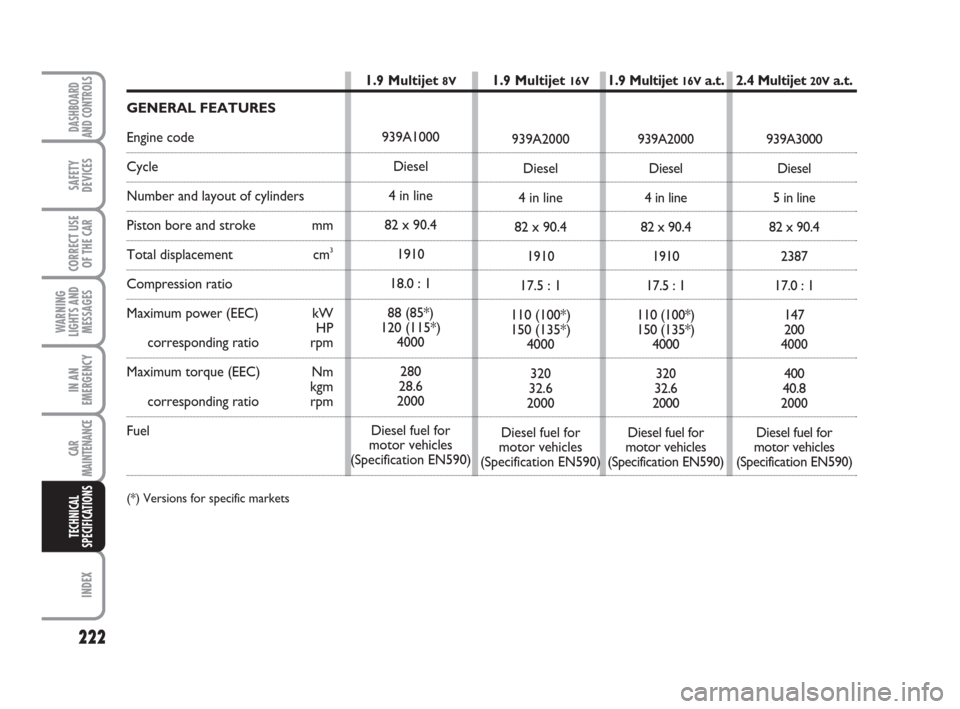

GENERAL FEATURES
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Fuel
(*) Versions for specific markets
1.9 Multijet 8V
939A1000
Diesel
4 in line
82 x 90.4
1910
18.0 : 1
88 (85*)
120 (115*)
4000
280
28.6
2000
Diesel fuel for
motor vehicles
(Specification EN590)1.9 Multijet
16V
939A2000
Diesel
4 in line
82 x 90.4
1910
17.5 : 1
110 (100*)
150 (135*)
4000
320
32.6
2000
Diesel fuel for
motor vehicles
(Specification EN590)1.9 Multijet
16Va.t.
939A2000
Diesel
4 in line
82 x 90.4
1910
17.5 : 1
110 (100*)
150 (135*)
4000
320
32.6
2000
Diesel fuel for
motor vehicles
(Specification EN590)2.4 Multijet 20Va.t.
939A3000
Diesel
5 in line
82 x 90.4
2387
17.0 : 1
147
200
4000
400
40.8
2000
Diesel fuel for
motor vehicles
(Specification EN590)
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 222

223
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Multipoint electronic injectionDirect injection with electronically controlled
Multijet “Common Rail”,
turbosupercharger and intercooler
Modifications or repairs to the fuel system that are not carried out properly or do not take the system’s tech-
nical specifications into account can cause malfunctions leading to the risk of fire.
WARNING
TRANSMISSION
1.8 - 2.2 2.2 a.t. 1.9 Multijet1.9 Multijet 16Va.t.2.4 Multijet 20Va.t.
Gearbox
Drive5 forward gears
+ Reverse
frontautomatic 5 forward
gears +
Reverse and tip
front6 forward gears
+ Reverse
frontautomatic
6 forward gears
+ Reverse and tip
front
FUEL FEED/IGNITION
1.8 - 2.2 Multijet
Fuel feed
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 223

224
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Disc, self-ventilating
Disc, self-ventilating
Controlled by hand lever,
it works on rear brakes
BRAKES
1.8 - 2.2 - 1.9 Multijet 8V2.4 Multijet 20Va.t.1.9 Multijet 16V
Service brakes:
– front
– rear
Parking brake
IMPORTANT Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency at first brak-
ing.
SUSPENSIONS
1.8 - 2.2 - Multijet
Front
RearMcPherson independent wheels
Multilink independent wheels Disc, self-ventilating
Disc
Controlled by hand lever,
it works on rear brakes
STEERING
1.8 - 2.2 - Multijet 2.4 Multijet 20Va.t.
Type
Minimum steering
cycle mElectro-hydraulic power steering
11,45Electro-hydraulic power steering
11,80
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 224
