SPACE-SAVER SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
In order to guarantee the correct regula-
tion and stability of the vehicle, please con-
tact the Fiat Assistance Network.

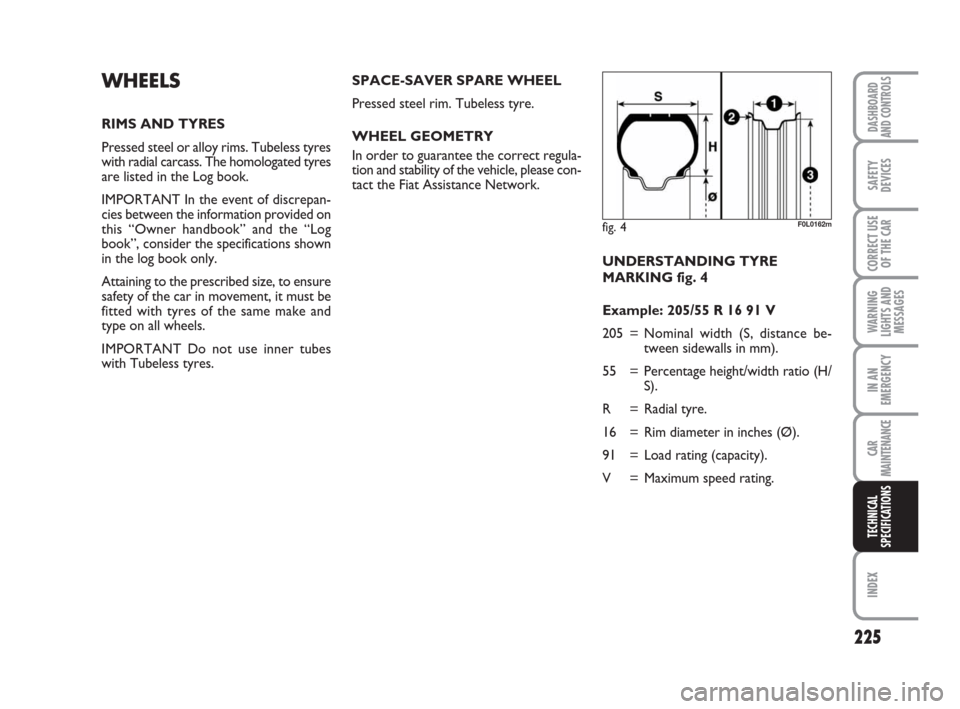

UNDERSTANDING TYRE
MARKING fig. 4
Example: 205/55 R 16 91 V
205 = Nominal width (S, distance be-
tween sidewalls in mm).
55 = Percentage height/width ratio (H/
S).
R = Radial tyre.
16 = Rim diameter in inches (Ø).
91 = Load rating (capacity).
V = Maximum speed rating.WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless tyres
with radial carcass. The homologated tyres
are listed in the Log book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Attaining to the prescribed size, to ensure
safety of the car in movement, it must be
fitted with tyres of the same make and
type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
225
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
fig. 4F0L0162m
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 225

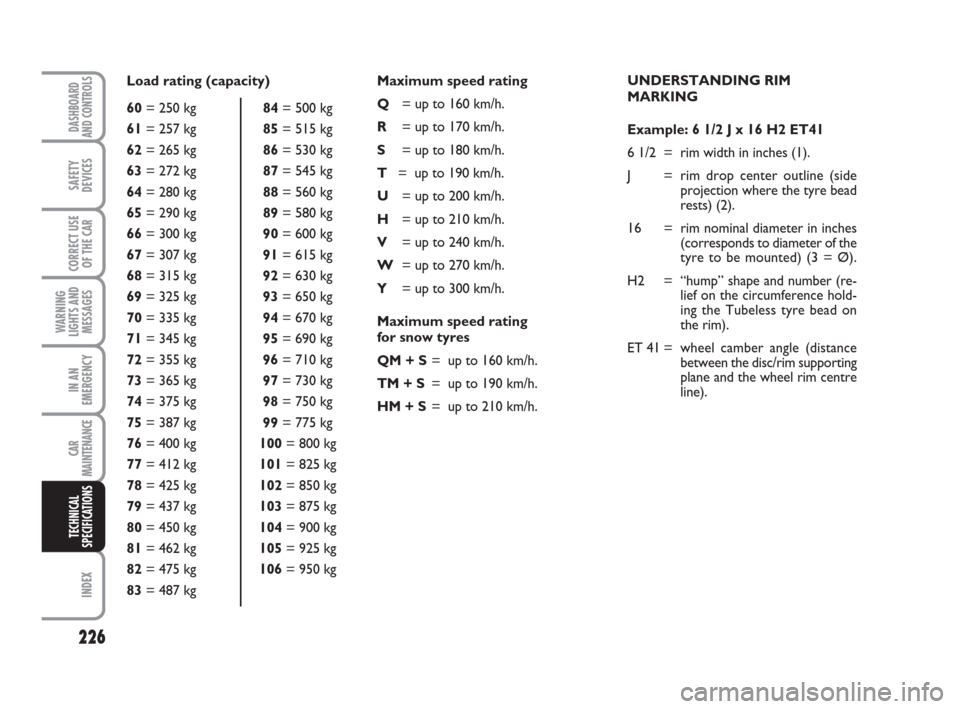

Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
W= up to 270 km/h.
Y= up to 300 km/h.
Maximum speed rating
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.UNDERSTANDING RIM
MARKING
Example: 6 1/2 J x 16 H2 ET41
6 1/2 = rim width in inches (1).
J = rim drop center outline (side
projection where the tyre bead
rests) (2).
16 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) (3 = Ø).
H2 = “hump” shape and number (re-
lief on the circumference hold-
ing the Tubeless tyre bead on
the rim).
ET 41 = wheel camber angle (distance
between the disc/rim supporting
plane and the wheel rim centre
line). Load rating (capacity)
60= 250 kg 84= 500 kg
61= 257 kg 85= 515 kg
62= 265 kg 86 = 530 kg
63= 272 kg 87= 545 kg
64= 280 kg 88= 560 kg
65= 290 kg 89= 580 kg
66= 300 kg 90= 600 kg
67 = 307 kg 91= 615 kg
68= 315 kg 92= 630 kg
69 = 325 kg 93 = 650 kg
70 = 335 kg 94= 670 kg
71 = 345 kg 95= 690 kg
72= 355 kg 96 = 710 kg
73= 365 kg 97= 730 kg
74 = 375 kg 98= 750 kg
75= 387 kg
99= 775 kg
76 = 400 kg 100= 800 kg
77= 412 kg 101= 825 kg
78= 425 kg 102= 850 kg
79= 437 kg 103= 875 kg
80= 450 kg 104= 900 kg
81= 462 kg 105= 925 kg
82= 475 kg 106 = 950 kg
83= 487 kg
226
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 226

227
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
VERSIONS RIMS (*) TYRES Space-saver spare wheel
Standard tyres Snow tyres Rim Tyre
1.86.5J x 16” - ET 36/41 205/55 R16 91V 205/55 R16 91 H (M+S)
6.5J x 16” - ET 36/41 215/55 R16 93W 215/55 R16 93 H (M+S) 4J 16 - 41115/70 R16 92M
7J x 17” - ET 36/41 215/50 R17 91W 215/50 R17 91 H (M+S)
2.2-2.2 a.t.6.5J x 16” - ET 36/41 205/55 R16 91V 205/55 R16 91 H (M+S)
6.5J x 16” - ET 36/41 215/55 R16 93W 215/55 R16 93 H (M+S)
7J x 17” - ET 36/41 215/50 R17 91W 215/50 R17 91 H (M+S)4J 16 - 41 115/70 R16 92M
7.5J x 18” - ET 36/41 225/45 R18 95W (Ô) 225/45 R18 95 H (M+S)
1.9 Multijet
8V6.5J x 16” - ET 36/41 205/55 R16 91V 205/55 R16 91 H (M+S)
1.9 Multijet 16V6.5J x 16” - ET 36/41 215/55 R16 93W 215/55 R16 93 H (M+S)1.9 Multijet 16Va.t.7J x 17” - ET 36/41 215/50 R17 91W 215/50 R17 91 H (M+S)4J 16 - 41 115/70 R16 92M7.5J x 18” - ET 36/41 225/45 R18 95W (Ô) 225/45 R18 95 H (M+S)
1.9 Multijet
8V6,5J x 16” - ET 36/41 205/55 R16 91V 205/55 R16 91 H (M+S) 4J 16-41115/70 R16 92Mpur-O2 (**)
2.4 Multijet 20Va.t.7J x 17” - ET 36/41 215/50 R17 95W 215/50 R17 91 H (M+S)
4J 16 - 41 115/70 R16 92M7.5J x 18” - ET 36/41 225/45 R18 95W (Ô) 225/45 R18 95 H (M+S)
(Ô) Tyres that cannot be fitted with snow chains
(*) ET 41 value referred to the rims available on the accessory line.
(**) Other size tyres are not type approved for these versions.
Note: rims with the same ET are to be used on the vehicle.
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 227

228
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

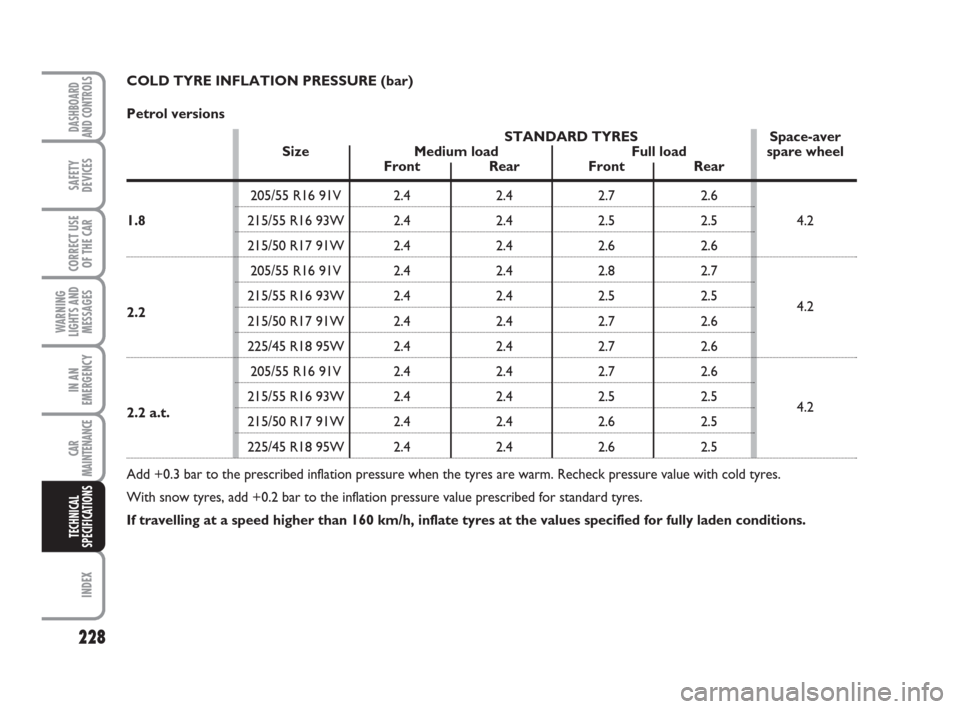

COLD TYRE INFLATION PRESSURE (bar)
Petrol versions
STANDARD TYRES Space-aver
Size Medium load Full load spare wheel
Front Rear Front Rear
205/55 R16 91V 2.4 2.4 2.7 2.6
1.8215/55 R16 93W 2.4 2.4 2.5 2.5 4.2
215/50 R17 91W 2.4 2.4 2.6 2.6
205/55 R16 91V 2.4 2.4 2.8 2.7
215/55 R16 93W 2.4 2.4 2.5 2.5
2.2
215/50 R17 91W 2.4 2.4 2.7 2.64.2
225/45 R18 95W 2.4 2.4 2.7 2.6
205/55 R16 91V 2.4 2.4 2.7 2.6
215/55 R16 93W 2.4 2.4 2.5 2.5
2.2 a.t.
215/50 R17 91W 2.4 2.4 2.6 2.54.2
225/45 R18 95W 2.4 2.4 2.6 2.5
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
If travelling at a speed higher than 160 km/h, inflate tyres at the values specified for fully laden conditions.
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 228

229
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

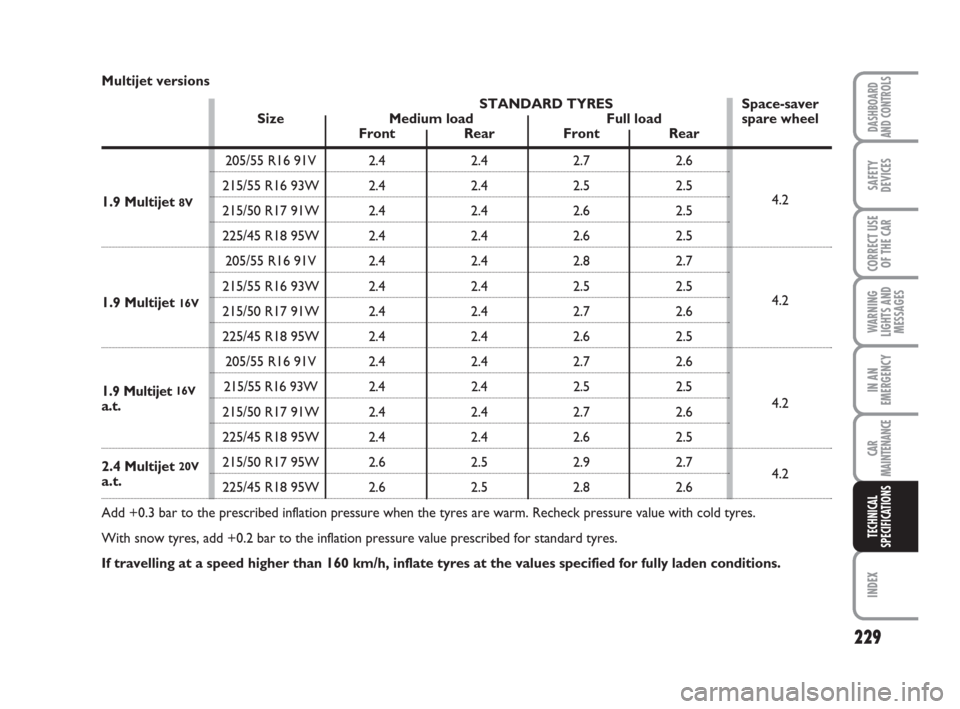

Multijet versions
STANDARD TYRES Space-saver
Size Medium load Full load spare wheel
Front Rear Front Rear
205/55 R16 91V 2.4 2.4 2.7 2.6
215/55 R16 93W 2.4 2.4 2.5 2.5
1.9 Multijet 8V215/50 R17 91W 2.4 2.4 2.6 2.54.2
225/45 R18 95W 2.4 2.4 2.6 2.5
205/55 R16 91V 2.4 2.4 2.8 2.7
215/55 R16 93W 2.4 2.4 2.5 2.5
1.9 Multijet 16V215/50 R17 91W 2.4 2.4 2.7 2.64.2
225/45 R18 95W 2.4 2.4 2.6 2.5
205/55 R16 91V 2.4 2.4 2.7 2.6
1.9 Multijet 16V215/55 R16 93W 2.4 2.4 2.5 2.5
a.t.
215/50 R17 91W 2.4 2.4 2.7 2.64.2
225/45 R18 95W 2.4 2.4 2.6 2.5
2.4 Multijet 20V215/50 R17 95W 2.6 2.5 2.9 2.7
4.2
a.t.
225/45 R18 95W 2.6 2.5 2.8 2.6
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
If travelling at a speed higher than 160 km/h, inflate tyres at the values specified for fully laden conditions.
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 229

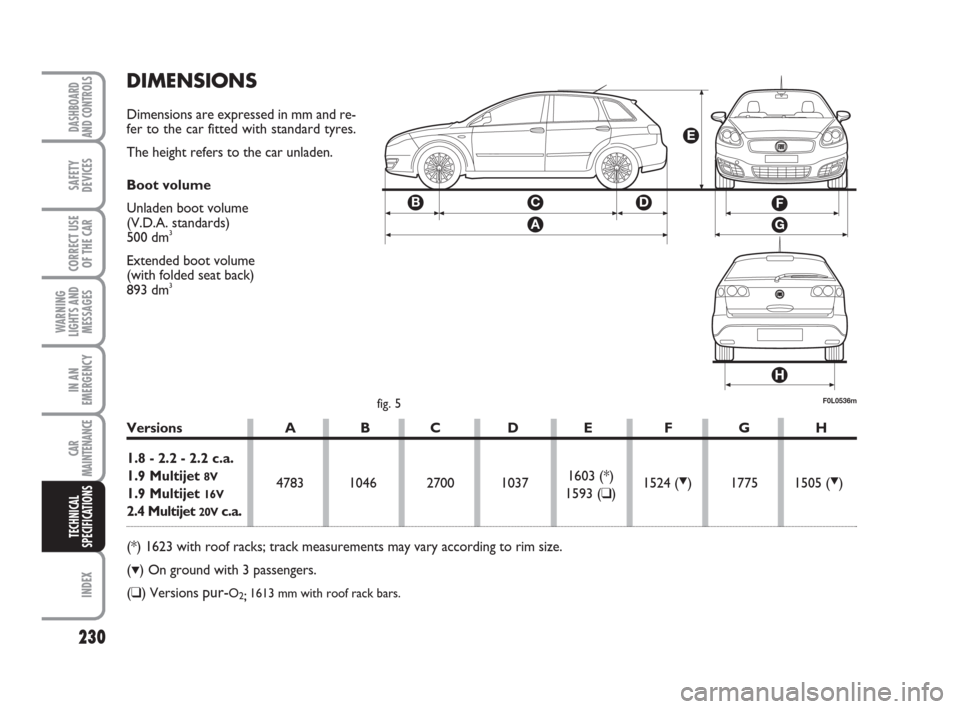

DIMENSIONS
Dimensions are expressed in mm and re-
fer to the car fitted with standard tyres.
The height refers to the car unladen.
Boot volume
Unladen boot volume
(V.D.A. standards)
500 dm
3
Extended boot volume
(with folded seat back)
893 dm
3
230
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Versions A B C D E F G H
1.8 - 2.2 - 2.2 c.a.
1.9 Multijet
8V4783 1046 2700 10371603 (*)
1524 (▼) 1775 1505 (▼)
1.9 Multijet 16V1593 (❑)
2.4 Multijet 20Vc.a.
(*) 1623 with roof racks; track measurements may vary according to rim size.
(
▼) On ground with 3 passengers.
(❑) Versions
pur-O2;1613 mm with roof rack bars.
A
CBD
E
F
G
H
fig. 5F0L0536m
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 230

231
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

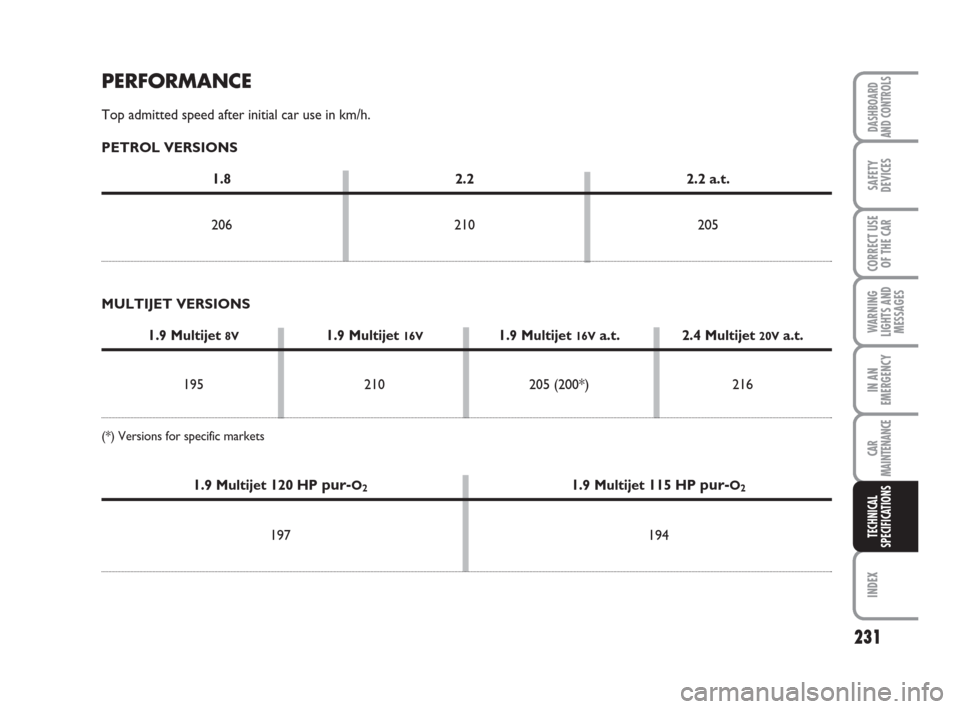

PERFORMANCE
Top admitted speed after initial car use in km/h.
PETROL VERSIONS
1.8 2.2 2.2 a.t.
206 210 205
MULTIJET VERSIONS
1.9 Multijet 8V1.9 Multijet 16V1.9 Multijet 16Va.t. 2.4 Multijet 20Va.t.
195 210 205 (200*) 216
(*) Versions for specific markets
1.9 Multijet 120 HP pur-O21.9 Multijet 115 HP pur-O2
197 194
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 231

232
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
1.8
1430
520
1100
1030
1950
1500
700
80
702.2
1510
520
1100
1030
2030
1500
700
80
702.2 a.t.
1530
520
1100
1030
2050
1500
700
80
70

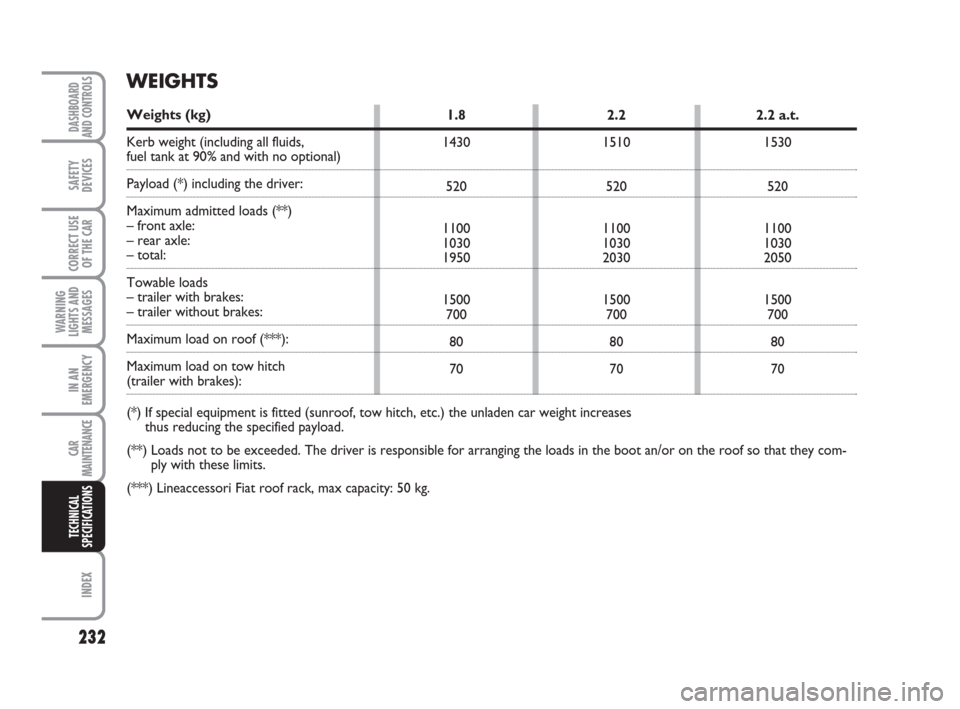

WEIGHTS
Weights (kg)
Kerb weight (including all fluids,
fuel tank at 90% and with no optional)
Payload (*) including the driver:
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof (***):
Maximum load on tow hitch
(trailer with brakes):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases
thus reducing the specified payload.
(**) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot an/or on the roof so that they com-
ply with these limits.
(***) Lineaccessori Fiat roof rack, max capacity: 50 kg.
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 232

233
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
1.9 Multijet 8V
1520
520
1150
1030
2040
1500
700
80
701.9 Multijet
16V
1530
520
1150
1030
2050
1500
700
80
701.9 Multijet
16Va.t.
1540
520
1150
1030
2060
1500
700
80
702.4 Multijet 20Va.t.
1650
520
1200
1030
2170
1500
700
80

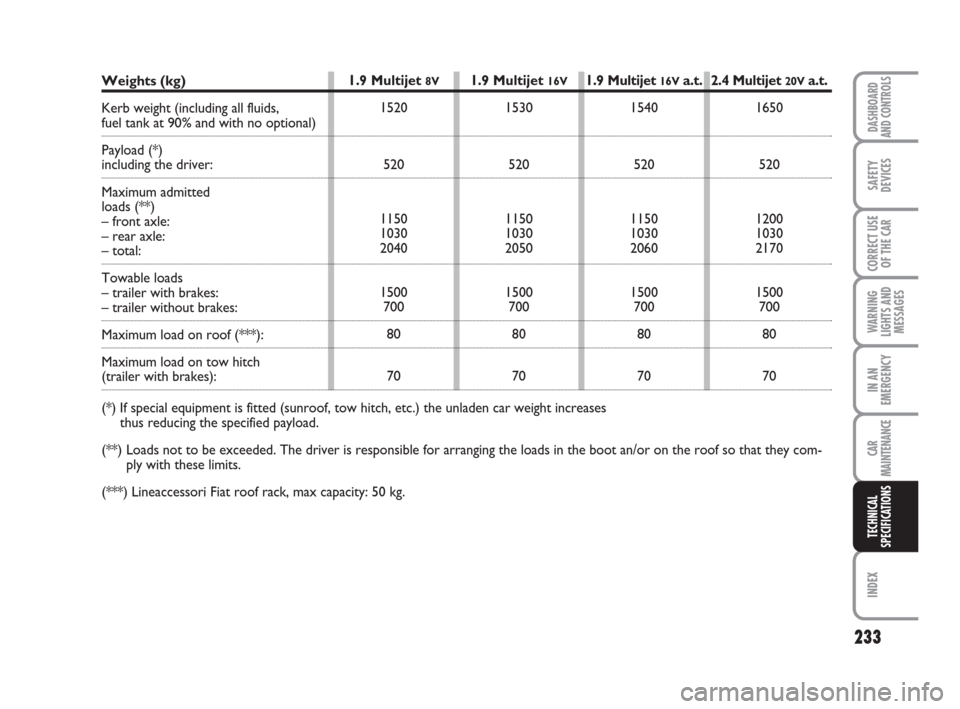

70Weights (kg)
Kerb weight (including all fluids,
fuel tank at 90% and with no optional)
Payload (*)
including the driver:
Maximum admitted
loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof (***):
Maximum load on tow hitch
(trailer with brakes):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases
thus reducing the specified payload.
(**) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot an/or on the roof so that they com-
ply with these limits.
(***) Lineaccessori Fiat roof rack, max capacity: 50 kg.
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 233

234
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

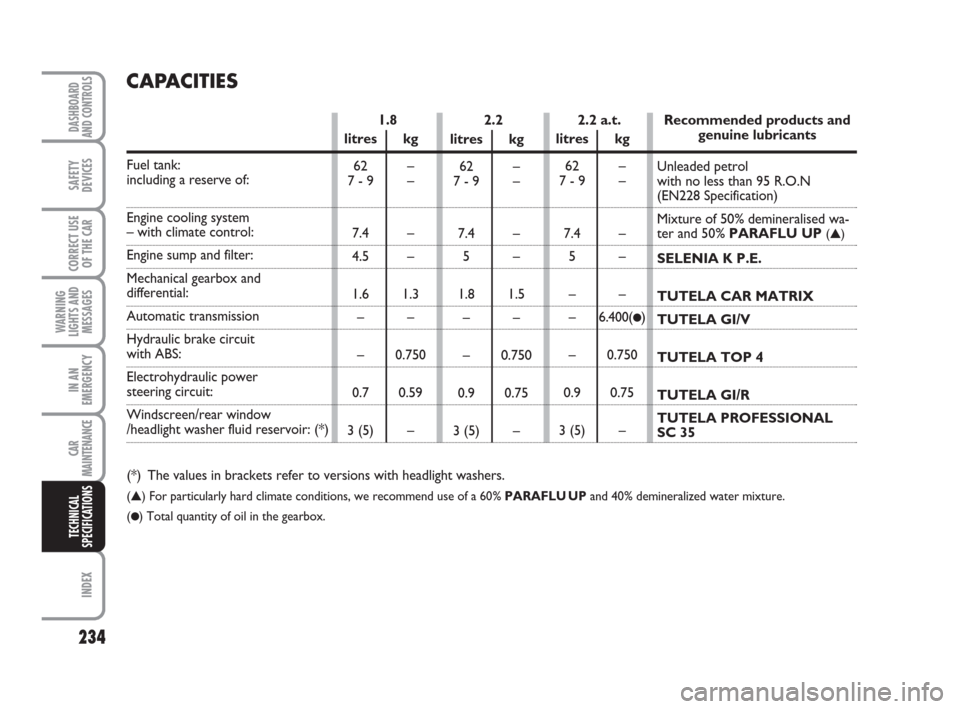

CAPACITIES
Fuel tank:
including a reserve of:
Engine cooling system– with climate control:
Engine sump and filter:
Mechanical gearbox and
differential:
Automatic transmission
Hydraulic brake circuit
with ABS:
Electrohydraulic power
steering circuit:
Windscreen/rear window
/headlight washer fluid reservoir: (*)
(*) The values in brackets refer to versions with headlight washers.
(▲) For particularly hard climate conditions, we recommend use of a 60% PARAFLU UPand 40% demineralized water mixture.
(
●) Total quantity of oil in the gearbox.
1.8
litres kg
62 –
7 - 9 –
7.4 –
4.5 –
1.6 1.3
––
– 0.750
0.7 0.59
3 (5) –2.2
litres kg
62 –
7 - 9 –
7.4 –
5–
1.8 1.5
––
– 0.750
0.9 0.75
3 (5) –2.2 a.t.
litres kg
62 –
7 - 9 –
7.4 –
5–
––
– 6.400(
●)
– 0.750
0.9 0.75
3 (5) –Recommended products and
genuine lubricants
Unleaded petrol
with no less than 95 R.O.N
(EN228 Specification)
Mixture of 50% demineralised wa-
ter and 50% PARAFLU UP
(▲)
SELENIA K P.E.
TUTELA CAR MATRIX
TUTELA GI/V
TUTELA TOP 4
TUTELA GI/R
TUTELA PROFESSIONAL
SC 35
217-242 Croma TRW GB 10-11-2008 13:16 Pagina 234
