technical specifications FIAT CROMA 2008 2.G Owners Manual

185
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

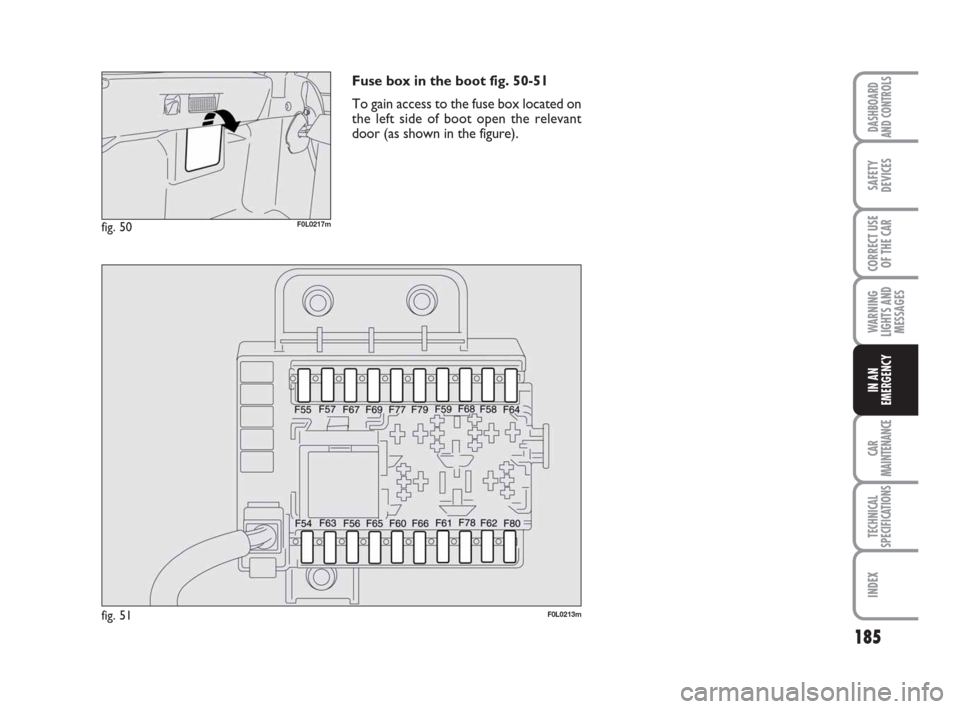

Fuse box in the boot fig. 50-51
To gain access to the fuse box located on
the left side of boot open the relevant
door (as shown in the figure).
fig. 50
fig. 51F0L0217m
F0L0213m
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 185

186
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
F 12
F 13
F 31
F 32
F 33
F 34
F 35
F 36
F 37
F 38
F 39
F 40
F 41
F 42
F 43
F 4415
15
7.5
15
20
20
7.5
20
10
15
10
30
7.5
7.5/15 (*)
30
20 FUSE SUMMARY TABLE
Fuse box on dashboard
USERSFUSE AMPERE
RH low beam
LH low beam - Light stability corrector
+15 excluded during ignition for dashboard control unit relay coils / engine
compartment and Body computer
+30 nodes front driver and passenger doors (door lock), TEG reader
Boot compartment node power supply (rear left power window)
Boot compartment node power supply (rear right power window)
+15 backing lights, supplementary heater control unit, flow gauge, water in diesel fuel
sensor, NC switch on brake pedal
+30 boot compartment node (rear door locks)
+15 instrument panel, control unit on gas discharge headlamps, NA switch on brake
pedal, supplementary stop light
Boot opening actuator
+30 EOBD diagnostic socket , central front ceiling light, rear side ceiling lights, siren
and volumetric sensor control unit for the antitheft system, tyre pressure control unit,
air conditioning control unit, Blue-tooth control unit
Heated rear window
Windscreen / rear window washer nozzle demisters
+15 ABS / ESP control unit, electrohydraulic driving node, yaw sensor , steering
angle sensor
+15 excluded during ignition for electronic column switch module (windscreen wipers,
windscreen / rear window washer pump)
+15 excluded during ignition for cigar lighter, current outlet on tunnel
(*) Depending on the version
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 186

187
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
F 45
F 46
F 47
F 48
F 49
F 50
F 51
F 52
F 5320
20
20
20
7.5
7.5
7.5
15
10
USERSFUSE AMPERE
Sun roof engine control unit power supply
Sun roof visor engine control unit power supply
Front driver door node power supply (front driver power window)
Front passenger door node power supply (front passenger power window)
+15 volumetric sensor control unit for antitheft device, emergency control display
plaque lights / Blue-tooth and roof visor on roof panel / driver and passenger front
seat console, driver side control dashboard lights / tunnel, DVD player presetting,
electrochromic mirror, air conditioning
+15 airbag control unit
+15 Connect, Blue-tooth control unit, after market radio presetting, pneumatic
pressure control unit, cruise control, rain / twilight sensor control unit, parking
sensor control unit, AQS sensor
+15 excluded during ignition for electronic column switch module (rear window
wiper), relay coil on boot compartment control unit
+30 instrument panel
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 187

188
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
F 9
F 10
F 11
F 14
F 15
F 16
F 17
F 18
F 19
F 20
F 21
F 22
F 23
F 24
F 307.5
15
15
7.5
7.5
7.5
10
7.5
7.5
20
15
20
20
15
7.5 Fuse box in engine compartment
USERSFUSE AMPERE
Left fog light / cornering light
Buzzers
Engine control system power supply
RH high beam
LH high beam
+15 engine control unit
Engine control system power supply
+30 engine control unit
Conditioner compressor
Headlamp washer pump
Fuel pump
Engine control system power supply
+30 radio / Connect, supplementary heater control unit
+15 automatic transmission control unit, automatic transmission switch
Right fog light / cornering light
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 188

F 54
F 55
F 56
F 57
F 58
F 59
F 60
F 61
F 62
F 63
F 64
F 65
F 66
F 67
F 68
F 69
F 77
F 78
F 79
F 8025
–
25
7.5
–
–
25
–
–
–
–
–
–
7.5
–
–
–
–
–
–
189
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
Fuse box in the boot
USERSFUSE AMPERE
+30 Hi-Fi audio amplifier
Free
+30 front driver seat regulation control unit
+15 excluded during ignition for front driver seat heating
Free
Free
+30 front passenger seat regulation control unit
Free
Free
Free
Free
Free
Free
+15 excluded during ignition for front driver seat heating
Free
Free
Free
Free
Free
Free
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 189

190
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

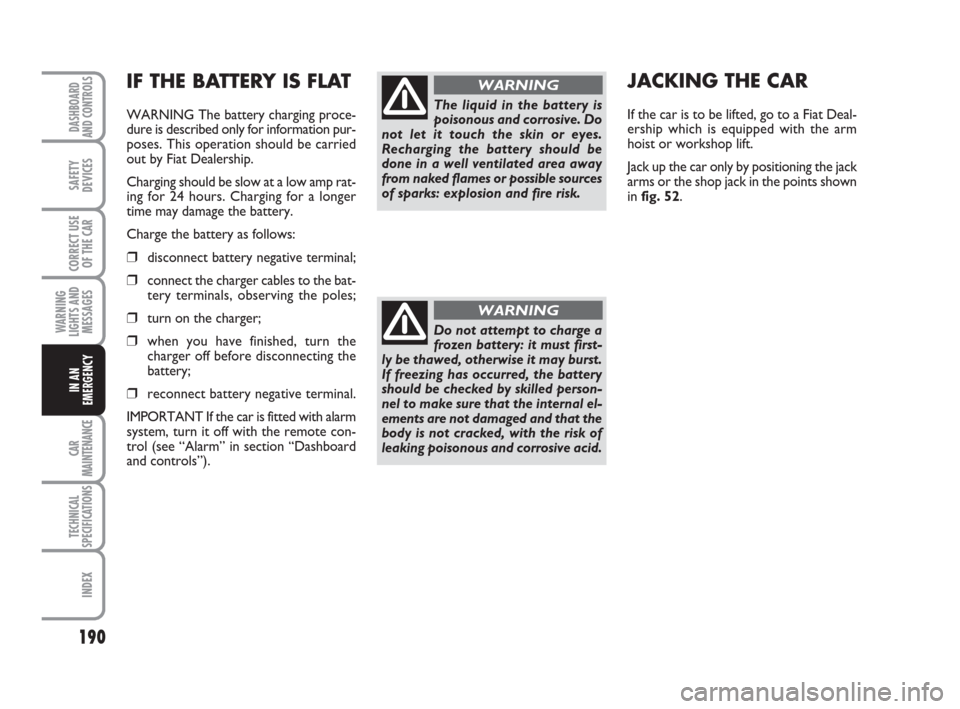

IF THE BATTERY IS FLAT
WARNING The battery charging proce-
dure is described only for information pur-
poses. This operation should be carried
out by Fiat Dealership.
Charging should be slow at a low amp rat-
ing for 24 hours. Charging for a longer
time may damage the battery.
Charge the battery as follows:
❒disconnect battery negative terminal;
❒connect the charger cables to the bat-
tery terminals, observing the poles;
❒turn on the charger;
❒when you have finished, turn the
charger off before disconnecting the
battery;
❒reconnect battery negative terminal.
IMPORTANT If the car is fitted with alarm
system, turn it off with the remote con-
trol (see “Alarm” in section “Dashboard
and controls”).
The liquid in the battery is
poisonous and corrosive. Do
not let it touch the skin or eyes.
Recharging the battery should be
done in a well ventilated area away
from naked flames or possible sources
of sparks: explosion and fire risk.
WARNING
Do not attempt to charge a
frozen battery: it must first-
ly be thawed, otherwise it may burst.
If freezing has occurred, the battery
should be checked by skilled person-
nel to make sure that the internal el-
ements are not damaged and that the
body is not cracked, with the risk of
leaking poisonous and corrosive acid.
WARNING
JACKING THE CAR
If the car is to be lifted, go to a Fiat Deal-
ership which is equipped with the arm
hoist or workshop lift.
Jack up the car only by positioning the jack
arms or the shop jack in the points shown
in fig. 52.
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 190

191
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

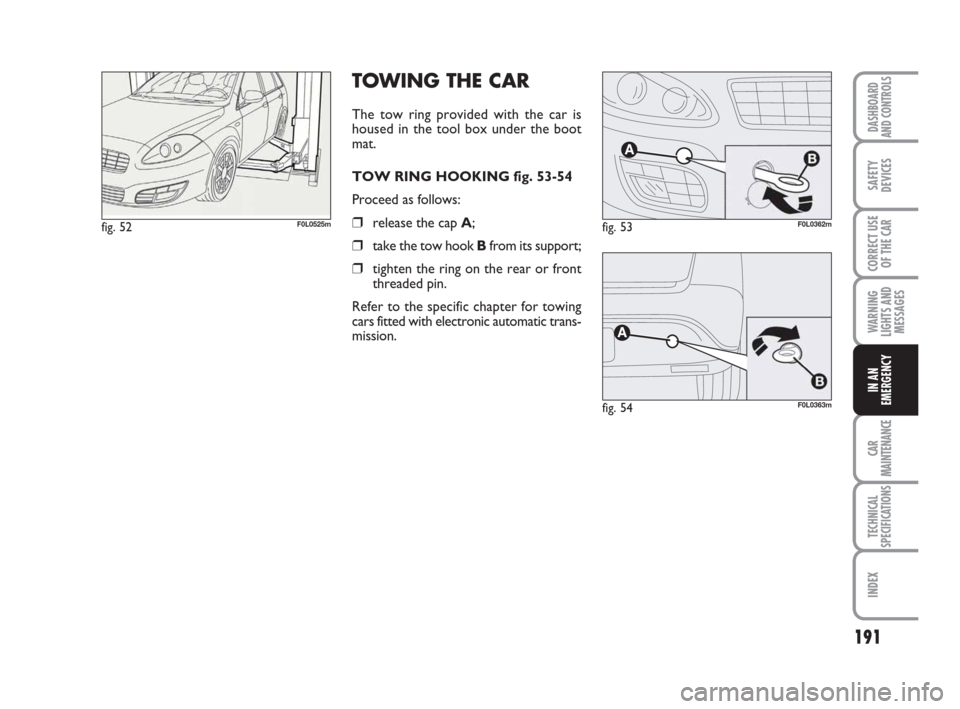

TOWING THE CAR
The tow ring provided with the car is
housed in the tool box under the boot
mat.
TOW RING HOOKING fig. 53-54
Proceed as follows:
❒release the cap A;
❒take the tow hook Bfrom its support;
❒tighten the ring on the rear or front
threaded pin.
Refer to the specific chapter for towing
cars fitted with electronic automatic trans-
mission.
fig. 53
A
F0L0362m
fig. 54
A
F0L0363m
fig. 52F0L0525m
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 191

192
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

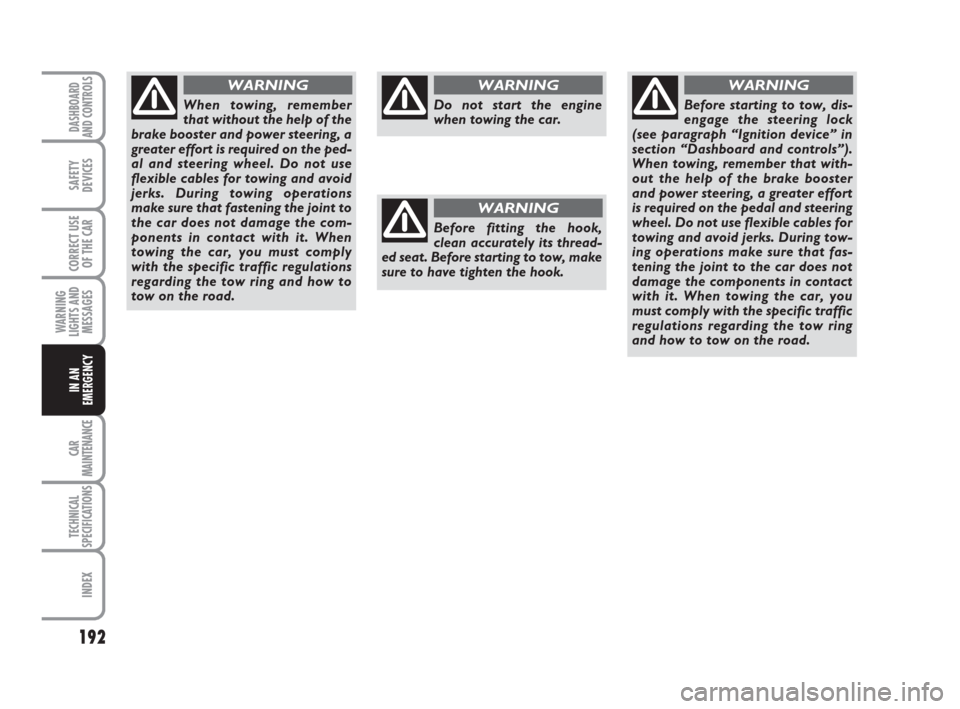

When towing, remember
that without the help of the
brake booster and power steering, a
greater effort is required on the ped-
al and steering wheel. Do not use
flexible cables for towing and avoid
jerks. During towing operations
make sure that fastening the joint to
the car does not damage the com-
ponents in contact with it. When
towing the car, you must comply
with the specific traffic regulations
regarding the tow ring and how to
tow on the road.
WARNING
Do not start the engine
when towing the car.
WARNING
Before starting to tow, dis-
engage the steering lock
(see paragraph “Ignition device” in
section “Dashboard and controls”).
When towing, remember that with-
out the help of the brake booster
and power steering, a greater effort
is required on the pedal and steering
wheel. Do not use flexible cables for
towing and avoid jerks. During tow-
ing operations make sure that fas-
tening the joint to the car does not
damage the components in contact
with it. When towing the car, you
must comply with the specific traffic
regulations regarding the tow ring
and how to tow on the road.
WARNING
Before fitting the hook,
clean accurately its thread-
ed seat. Before starting to tow, make
sure to have tighten the hook.
WARNING
157-192 Croma TRW GB 10-11-2008 13:15 Pagina 192

193
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

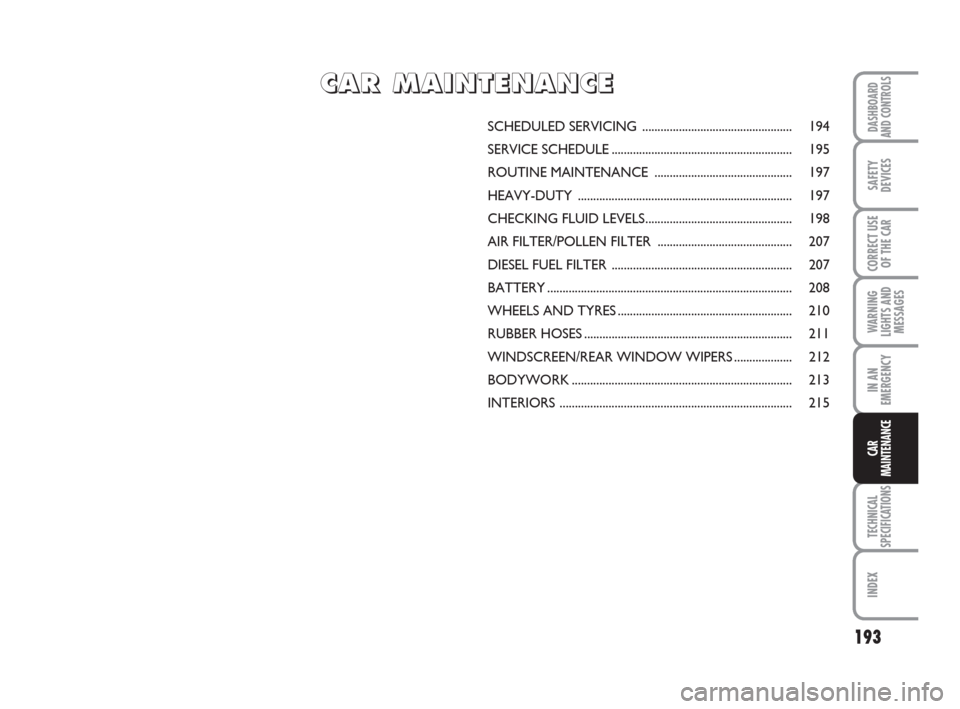

SCHEDULED SERVICING ................................................. 194
SERVICE SCHEDULE........................................................... 195
ROUTINE MAINTENANCE ............................................. 197
HEAVY-DUTY ...................................................................... 197
CHECKING FLUID LEVELS................................................ 198
AIR FILTER/POLLEN FILTER ............................................ 207
DIESEL FUEL FILTER ........................................................... 207
BATTERY................................................................................ 208
WHEELS AND TYRES......................................................... 210
RUBBER HOSES.................................................................... 211
WINDSCREEN/REAR WINDOW WIPERS................... 212
BODYWORK........................................................................ 213
INTERIORS ............................................................................ 215
CC C
A A
R R
M M
A A
I I
N N
T T
E E
N N
A A
N N
C C
E E
193-216 Croma TRW GB 28-05-2008 15:19 Pagina 193

194
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
IMPORTANT The Programmed Mainte-
nance coupons are specified by the Man-
ufacturer- The failure to have them car-
ried out may invalidate the warranty.
Scheduled Servicing is performed by all Fi-
at Dealership, at pre-established times.
If during each operation, in addition to the
ones programmed, the need arises for fur-
ther replacements or repairs, these may
be carried out only with the explicit agree-
ment of the Customer.IMPORTANT You are advised to contact
Fiat Dealership in the event of any minor
operating faults, without waiting for the
next service coupon.
If your car is used frequently for towing,
the interval between one service coupon
and the other must be reduced.SCHEDULED SERVICING
Correct maintenance is essential for en-
suring long car life under the best condi-
tions.
This is why Fiat has programmed a series
of checks and maintenance operations
every 30.000 km.
It is however important to remember that
scheduled servicing does not completely
cover all the car’s requirements: also in
the initial period before 30.000 km service
coupon and later, between one coupon
and another, ordinary care is still required
such as for example routine check and
topping up the level of fluids, tyre pressure
check, etc...
193-216 Croma TRW GB 28-05-2008 15:19 Pagina 194
