audio FIAT CROMA 2009 2.G Blue And Me Instant Navigation Manual

I I
N N
D D
E E
X X
GENERAL INFORMATION
Hands free .......................................................................................... 5
SMS text message reader................................................................ 7
Multimedia player ............................................................................ 8
Road safety ........................................................................................ 9
DISPLAY AND CONTROLS ON
THE STEERING WHEEL....................................................... 11
HANDS FREE QUICK GUIDE.............................................. 15
Preparing your mobile phone list ................................................. 15
Knowing the voice commands ......................................................16
Registering your mobile phone...................................................... 16
Making a call ...................................................................................... 17
SMS TEXT MESSAGE READER QUICK GUIDE ....... 19
MULTIMEDIA PLAYER QUICK GUIDE ........................ 21
USING THE SYSTEM .............................................................. 23
Steering wheel controls ................................................................. 23
Instant Nav controls........................................................................ 23
Voice commands ............................................................................. 23
Display ............................................................................................... 26
Audio .................................................................................................. 27
System functions menu.................................................................... 27
Instant Nav menu functions .......................................................... 28HANDS FREE FUNCTIONS................................................. 29
Making a call ...................................................................................... 29
Managing an incoming call ..............................................................33
Managing a call in progress ............................................................33
Telephone conference function ...................................................34
SMS TEXT MESSAGE READER FUNCTIONS............ 35
Reading last message received ......................................................35
Message list ....................................................................................... 36
Management of SMS text messages ............................................. 36
Deleting all messages ...................................................................... 37
Notification settings ........................................................................ 37
MULTIMEDIA PLAYER FUNCTIONS............................ 39
Connecting the USB device to the system ................................ 39
Managing a multimedia library ......................................................40
- Selection by folder ........................................................................ 40
- Selection by artist ......................................................................... 40
- Selection by music genre ............................................................. 41
- Selection by album ........................................................................ 41
- Selection by playlist ...................................................................... 42
Listening to audio tracks ................................................................42
- Random play for the entire multimedia library ...................... 42
- Playing audio .................................................................................. 42
- Pause ................................................................................................ 43
- Resume ........................................................................................... 43
- Next track ...................................................................................... 43
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 3

- Previous track ................................................................................ 43
- Changing audio source ................................................................ 43
Multimedia player settings .............................................................44
- Automatic play .............................................................................. 44
- Random play .................................................................................. 45
- Track repeat .................................................................................. 45
Exit from menu settings ................................................................. 45
Suggestions for the use of the multimedia player ..................... 45
- Scrolling ........................................................................................... 45
- Organizing multimedia files .........................................................45
- Creating a multimedia library .....................................................46
- Creating a playlist ......................................................................... 46
SETTING FUNCTIONS.......................................................... 47
Registering a mobile phone ........................................................... 47
Managing user data .......................................................................... 50
Privacy function management......................................................... 53
Advanced options ............................................................................ 53
- Access to system code ................................................................ 53
- Changing the GPRS connection code ...................................... 54
Exit from Settings menu ................................................................. 54TECHNOLOGY COMPATIBLE WITH
THE SYSTEM............................................................................... 55
Mobile phones with Bluetooth
®.................................................. 55
- Mobile phones with directory management ........................... 55
- Mobile phones with management of individual contacts ...... 56
- Mobile phones with management of SMS text messages...... 56
Comptabile USB memory devices ...............................................56
- USB memory devices ................................................................... 56
- iPod .................................................................................................. 56
- Compatible digital audio files ..................................................... 57
- Compatible playlist formats .........................................................58
LIST OF AVAILABLE VOICE COMMANDS............... 59
Table of voice commands always available.................................. 59
Table of hands free voice commands ........................................... 60
Table of SMS text message reader voice commands................ 62
Table of voice commands for setting functions......................... 63
PROBLEM SOLVING................................................................ 65
Hands free ......................................................................................... 65
- General cases ................................................................................. 65
SMS text message reader................................................................ 73
Multimedia player............................................................................. 75
iPod ...................................................................................................... 79
PERSONAL DATA PROTECTION.................................. 81
WARNINGS ON THE USE OF
SYSTEM SOFTWARE............................................................. 82
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 4

7
BLUE&ME
™
in conjunction with Instant Nav
–Call notification- whilst you are
having a phone conversation, you can re-
ceive notification of another incoming call,
answer the incoming call and switch from
one call to another. (This call notification
function is only supported by some com-
patible mobile phones).
With the mobile phone in the car, after
having registered it on the system, you can
make phone calls through voice com-
mands or using the controls on the steer-
ing wheel. When using the hands free sys-
tem, the telephone conversation audio is
broadcast via the car speakers.THE SMS TEXT MESSAGE
READER
(Function only available with
compatible mobile phones)
The SMS text message reader integrat-
ed in the system makes it possible,
through voice synthesis technology, to au-
tomatically read incoming messages on
your mobile phone with Bluetooth
®
technology via your vehicle’s audio system
and it can even interpret any abbreviations
and emoticons in the text message.
The SMS text message reader functions
are managed through the controls on the
steering wheel or the system voice con-
trols.The system SMS message reader makes
it possible to:
– Be informed, by means of a warning
message in the instrument panel multi-
function display, of a new incoming SMS
text message on your mobile phone with
Bluetooth
®, with the number/name of
the sender displayed and the system will
also suggest reading the message to you.
– Manage the list of SMS text messages
received on your mobile phone connect-
ed to the system.
– Re-read SMS text messages already re-
ceived and saved.
– Make a voice call, using the controls
on the steering wheel or voice commands,
to the sender of the SMS text message re-
ceived
– Delete individual SMS text messages
or the entire list of SMS text messages re-
ceived using the controls on the steering
wheel or voice commands.
The system is also capable of recogniz-
ing and reading any abbreviations (for ex-
ample, “TVB” will be read as “Ti voglio
bene” - I love you) and interpreting the
most frequently used symbols (e.g. :-) will
be read as “Smile”) in text messages.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 7

8
BLUE&ME
™
in conjunction with Instant Nav
THE MULTIMEDIA PLAYER
The multimedia player allows you to play
digital audio stored on a USB device, via
your car’s audio system, by simply con-
necting it to the USB port in your car.
You can listen to your personal music
collection through the multimedia player
whilst you are driving.
–iPod player- see dedicated para-
graph.The following operations can be carried
out using the multimedia player:
–Playing digital audio- you can play
all your digital audio files (.mp3, .wma, .
aac,, .wav) or a personal playlist (in .m3u
or .wplformat).
–Selecting audio according to cat-
egory- you can play all digital audio be-
longing to a certain category, for exam-
ple an album, artist or music genre.
–Using playing functions- whilst
playing tracks you can use several func-
tions such as Play, Stop, Next track, Pre-
vious track, Random and Track repeat.Note
The multimedia player does not support
compressed audio files with other formats
and protected audio files DRM (Digital
Right Management). If there are audio files
on the USB device that are not support-
ed, they will be ignored.
To use the multimedia player, simply
connect your USB device (directly or with
the help of an extension) to the USB port
in the car. When the ignition key is turned
to the MAR position the system will start
to create your multimedia library index.
At the end of the operation you can nav-
igate throughout the entire library and
scroll through the categories using the
controls on the steering wheel, voice
commands or the radio controls. After
you have chosen what you want to listen
to the system will play it through the car’s
audio system.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 8

13
BLUE&ME
™
in conjunction with Instant Nav
Button
÷/˜
Q
/Z
OK
SRC
Notes
–
For many tasks, the steering wheel buttons OKand ßcan be used interchangeably, and you can use the key that is more convenient for you to press.
– For both operating modes of steering wheel buttons (short or long press), the function chosen will be activated when you release the button.
(
■) The SMS Messages Reader function may not be available upon purchasing the vehicle; in order to obtain information regarding the availability and the
updating of the system, please seek advice from the Fiat Dealership or consult the relevant area on www.fiat.com.
Short press
(less than 1 second)
–
Select media player tracks
– Scroll Blue&Me™ menu items
– Scroll inbox messages
(■)
– Confirm manually selected menu option
– Switch phone conversation from the hands-free phone to your mobile phone and vice
versa
– Select displayed message
(■)
– Select audio sources (Radio, CD, CD Changer, Media Player)
Long press
(more than 1 second)
–
–
–
–
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 13

14
BLUE&ME
™
in conjunction with Instant Nav
Button
NO
¯˙
&
TEL
MEDIA
INSTANT NAV CONTROLS
Short press
(less than 1 second)
– Selection of previous/next folder/artist/genre/album depending on the selection mode
activated
– Play previous/next track
– Resetting the volume of the call tone for the incoming phone call
– Activation/deactivation of Audio function
– Access to the telephone call information screen
– Selection of audio sources (CD and Multi Media Player)
Long press
(more than 1 second)
–
–
–
–
–
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 14

21
BLUE&ME
™
in conjunction with Instant Nav
To get familiar with all the functions and
the capabilities of the multimedia player,
refer to the MULTIMEDIA PLAYER
FUNCTIONS chapter.
If you have any difficulties using the
multimedia player, consult the “PROBLEM
SOLVING - MULTIMEDIA PLAYER”
chapter. To start playing digital audio saved on
your USB device, proceed as follows:
– Copy the tracks on your USB device
(the system recognizes the following for-
mats .wma, .mp3, .wav, .aacfor the audio
files and .wpl and .m3ufor the playlists).
– For USB devices without a USB lead,
simply connect the device to the USB port
in the car (directly or with the help of an
extension) (see fig. 1).
– For USB devices with a lead, connect
one end to your USB device and the oth-
er to the USB port in the car (see fig. 1).– Turn the ignition key to MAR. The sys-
tem will automatically start playing your
digital tracks (if the AUTO PLAY option
is activated), selecting them from a library
that is created when the UBS device is
connected.
– After the system has created a library
of your digital audio files, you can select
and listen to tracks, albums, artists and
playlists interacting manually or vocally. If
your USB device contains a lot of files it
may take a few minutes to create the li-
brary.
– iPod player - see dedicated paragraph.
– You can decide whether the playing of
the audio files should start automatically
when the USB device is inserted or
whether it should only start when you give
the command.
M M
U U
L L
T T
I I
M M
E E
D D
I I
A A

P P
L L
A A
Y Y
E E
R R

Q Q
U U
I I
C C
K K

G G
U U
I I
D D
E E
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 21

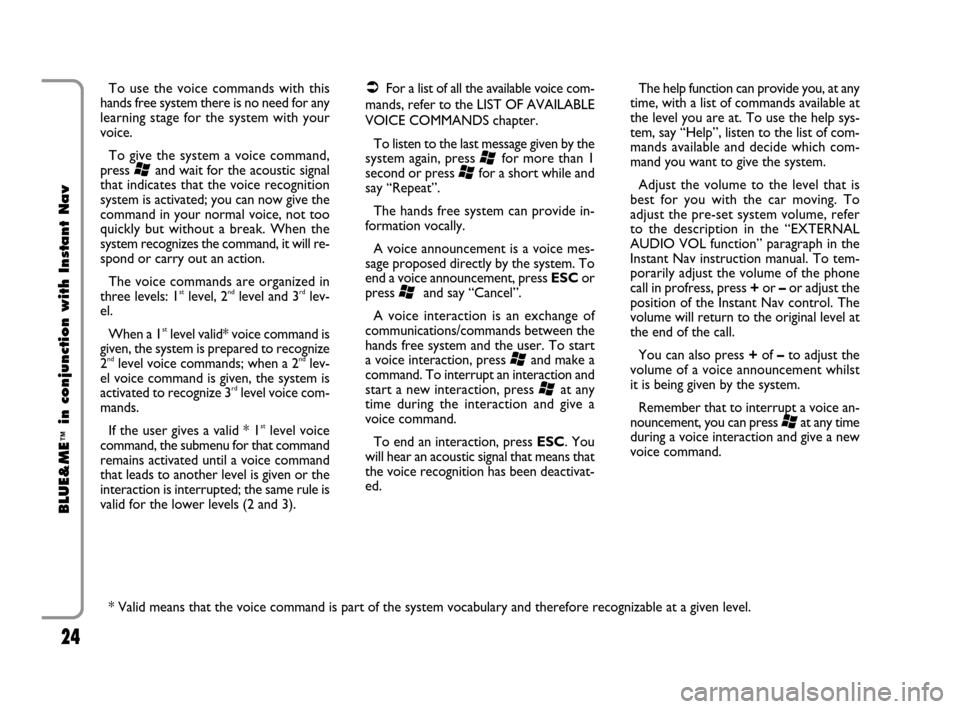

24
BLUE&ME
™
in conjunction with Instant Nav
To use the voice commands with this
hands free system there is no need for any
learning stage for the system with your
voice.
To give the system a voice command,
press
‘and wait for the acoustic signal
that indicates that the voice recognition
system is activated; you can now give the
command in your normal voice, not too
quickly but without a break. When the
system recognizes the command, it will re-
spond or carry out an action.
The voice commands are organized in
three levels: 1
stlevel, 2ndlevel and 3rdlev-
el.
When a 1
stlevel valid* voice command is
given, the system is prepared to recognize
2
ndlevel voice commands; when a 2ndlev-
el voice command is given, the system is
activated to recognize 3
rdlevel voice com-
mands.
If the user gives a valid * 1
stlevel voice
command, the submenu for that command
remains activated until a voice command
that leads to another level is given or the
interaction is interrupted; the same rule is
valid for the lower levels (2 and 3).
For a list of all the available voice com-
mands, refer to the LIST OF AVAILABLE
VOICE COMMANDS chapter.
To listen to the last message given by the
system again, press
‘for more than 1
second or press
‘for a short while and
say “Repeat”.
The hands free system can provide in-
formation vocally.
A voice announcement is a voice mes-
sage proposed directly by the system. To
end a voice announcement, press ESCor
press
‘and say “Cancel”.
A voice interaction is an exchange of
communications/commands between the
hands free system and the user. To start
a voice interaction, press
‘and make a
command. To interrupt an interaction and
start a new interaction, press
‘at any
time during the interaction and give a
voice command.
To end an interaction, press ESC. You
will hear an acoustic signal that means that
the voice recognition has been deactivat-
ed.The help function can provide you, at any
time, with a list of commands available at
the level you are at. To use the help sys-
tem, say “Help”, listen to the list of com-
mands available and decide which com-
mand you want to give the system.
Adjust the volume to the level that is
best for you with the car moving. To
adjust the pre-set system volume, refer
to the description in the “EXTERNAL
AUDIO VOL function” paragraph in the
Instant Nav instruction manual. To tem-
porarily adjust the volume of the phone
call in profress, press +or –or adjust the
position of the Instant Nav control. The
volume will return to the original level at
the end of the call.
You can also press +of –to adjust the
volume of a voice announcement whilst
it is being given by the system.
Remember that to interrupt a voice an-
nouncement, you can press
‘at any time
during a voice interaction and give a new
voice command.
* Valid means that the voice command is part of the system vocabulary and therefore recognizable at a given level.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 24

26
BLUE&ME
™
in conjunction with Instant Nav
DISPLAY
Various functions are shown on the con-
trol panel and the Instant Nav (see fig. 1).The control panel display shows various
types of information (fig. 2 and fig. 3):
– Information on the status of the mo-
bile phone connected via Bluetooth
®:
–
;this means that the system is con-
nected to a mobile phone with Blue-
tooth
®
– NO BLUETOOTH - indicates that the
connection with the mobile phone is in-
terrupted (versions with multifunction dis-
play)
– If there is no symbol
;this indicates
that the connection with the mobile
phone is interrupted (versions with re-
configurable multifunction display)
– The symbol
Ãindicates that the call
activated is the first one answered, this
symbol is only present in the case of call
waiting (versions with reconfigurable mul-
tifunction display).
– The symbol
Àindicates that the
call activated is the second one answered,
this symbol is only present in the case of
call waiting (versions with reconfigurable
multifunction display).–The
‰symbol means that a Tele-
phone Conference is activated (versions
with reconfigurable multifunction display).
– Name of the telephone operator ac-
tive on your mobile phone (if not available,
“- - - - - ” is displayed)
– Information relating to an SMS text
message having been received, the tele-
phone number or the contact name (if
stored in the directory) of the SMS mes-
sage sender.
– Information relating to the system
function activated or the menu option se-
lected (see figs. 2 and 3).
– The Instant Nav display will show the
following information relating to:
– the TEL function
– the incoming/outgoing calls (only if
the Privacy function is deactivated)
– the audio tracks
– the Multi Media Player settings.
For more information, see the de-
scription in the Instant Nav manual.
fig. 3F0L5402g
fig. 2F0L5401g
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 26

27
BLUE&ME
™
in conjunction with Instant Nav
AUDIO
The system audio function (hands free,
multimedia player, voice announcements,
acoustic signals) is played via the audio sys-
tem installed on your car. For this reason
any Instant Nav audio source activated is
interrupted for the time required.
The audio volume can always be adjust-
ed using the Instant Nav controls. SYSTEM FUNCTIONS MENU
The system Main Menu shows the op-
tions in a list which is shown on the con-
trol panel multifunction display. The sys-
tem settings can be changed or the func-
tions activated using the available options.
Note
The settings menu can only be navigated
using the controls on the steering wheel
when the car is stationary.The Main Menu includes the following
options:
– LAST CALLS. - a list of recent calls,
made or received, can be viewed through
this submenu. This list is downloaded from
your mobile phone memory, udated when
the hands free is used or it is obtained
from both operations.
– DIRECTORY - this submenu allows
you to see the telephone numbers in your
phone list and to select one to make a call.
If your phone list contains a lot of names,
they will be grouped in alphabetic sub-
menus. The number of people within a
submenu depends on the number of
names in your phone directory.
– SMS TEXT message reader (Function
only available with compatible mobile
phones). This submenu allows you to read
the last SMS text message received, call
the sender of the SMS text message or
delete the last SMS text message received.
Up to 20 SMS text messages can be stored
in a dedicated list and listened to later on,
the sender called or they can be deleted.
It is also possible to choose the way of re-
ceiving notification of SMS text messages
received.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 27
