bluetooth FIAT CROMA 2009 2.G Blue And Me Instant Navigation Manual

in conjunction with Instant Nav
The Innovative Telematic Solution for cars
based on Windows Mobile™
Hands-free kit with Bluetooth
®, wireless technology,
message reader, media player and navigation system
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 1

- Previous track ................................................................................ 43
- Changing audio source ................................................................ 43
Multimedia player settings .............................................................44
- Automatic play .............................................................................. 44
- Random play .................................................................................. 45
- Track repeat .................................................................................. 45
Exit from menu settings ................................................................. 45
Suggestions for the use of the multimedia player ..................... 45
- Scrolling ........................................................................................... 45
- Organizing multimedia files .........................................................45
- Creating a multimedia library .....................................................46
- Creating a playlist ......................................................................... 46
SETTING FUNCTIONS.......................................................... 47
Registering a mobile phone ........................................................... 47
Managing user data .......................................................................... 50
Privacy function management......................................................... 53
Advanced options ............................................................................ 53
- Access to system code ................................................................ 53
- Changing the GPRS connection code ...................................... 54
Exit from Settings menu ................................................................. 54TECHNOLOGY COMPATIBLE WITH
THE SYSTEM............................................................................... 55
Mobile phones with Bluetooth
®.................................................. 55
- Mobile phones with directory management ........................... 55
- Mobile phones with management of individual contacts ...... 56
- Mobile phones with management of SMS text messages...... 56
Comptabile USB memory devices ...............................................56
- USB memory devices ................................................................... 56
- iPod .................................................................................................. 56
- Compatible digital audio files ..................................................... 57
- Compatible playlist formats .........................................................58
LIST OF AVAILABLE VOICE COMMANDS............... 59
Table of voice commands always available.................................. 59
Table of hands free voice commands ........................................... 60
Table of SMS text message reader voice commands................ 62
Table of voice commands for setting functions......................... 63
PROBLEM SOLVING................................................................ 65
Hands free ......................................................................................... 65
- General cases ................................................................................. 65
SMS text message reader................................................................ 73
Multimedia player............................................................................. 75
iPod ...................................................................................................... 79
PERSONAL DATA PROTECTION.................................. 81
WARNINGS ON THE USE OF
SYSTEM SOFTWARE............................................................. 82
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 4

5
BLUE&ME
™
in conjunction with Instant Nav
Blue&MeTMbased on Windows Mo-
bile™, is a personal telematic system that
allows for the use of applications for com-
munication and entertainment, specially
designed for use in vehicles. The system
fitted on your vehicle has the following
functions: hands free, SMS text reader (not
all mobile phones support this function),
multimedia player and navigator; it is also
prepared for additional services that will
become available in the course of time.
The system makes a whole range of func-
tions available, however it is useful to
know that:
– not all mobile phones support them
fully, such as, for example listening to an
incoming SMS message or automatic
downloading of the directory.
– certain improvements are required for
using an iPod (see dedicated paragraph).Thanks to its complete integration with
the voice commands, the controls on the
steering wheel, Instant Nav controls and
the information in the on-board multi-
function display, the system allows cus-
tomers who have a mobile phone with
Bluetooth
®, to use it even if it is in their
jacket pocket or handbag without ever
having to take their hands off the steer-
ing wheel. In order to use the voice com-
mands the voice recognition system does
not require any preparation process. The
system is capable of recognizing the voice
commands given, irrespective of gender,
by the tone of voice and intonation of the
person giving the instructions. It is possi-
ble to listen to music stored on a USB de-
vice, selecting the tracks and play modes
using either the controls on the steering
wheel or voice commands.HANDS FREE
The basic feature of this function is hands
free telephone communication with voice
recognition and Bluetooth
®. technology.
This system allows you to make and re-
ceive phone calls through voice commands
or using the manual controls on the steer-
ing wheel in complete safety, freedom and
comfort whilst driving in accordance with
the highway code.
Bluetooth
®technology makes it pos-
sible to use your mobile phone through
the hands free system on the car without
the need for connections.
To use the hands free function you need
a mobile phone with Bluetooth
®. This
function also offers you the opportunity
of speaking on the phone whilst driving
even if your mobile phone does not pos-
sess this capability. You can interact man-
ually and visually with your mobile phone
using the manual controls on the steer-
ing wheel and in the on board multifunc-
tion display.
G G
E E
N N
E E
R R
A A
L L

I I
N N
F F
O O
R R
M M
A A
T T
I I
O O
N N
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 5

6
BLUE&ME
™
in conjunction with Instant Nav
For further information on mobile
phones compatible with the system, re-
fer to the COMPATIBLE TECHNOLO-
GY chapter.
To start using the hands free function
with voice recognition, simply register
your mobile phone with Bluetooth
®on
the system.
You only hve to register your mobile
phone in the system once.
Note
Whilst registering a new mobile phone,
the system will search for a mobile phone
with Bluetooth
®in its operating range.
When it finds it, it will establish the con-
nection using a PIN (Personal Identifica-
tion Number).
Once the mobile phone has been regis-
tered, you can transfer the names in your
phonelist onto the system, make a call us-
ing the directory or by saying the phone
number directly, accept a call and answer
a second incoming call.You can use both the controls on the
steering wheel and voice recognition to
interact with the system. You can activate
the system functions using voice recogni-
tion by giving specific voice commands that
are recognized by the system. When the
system recognizes a voice command it will
respond with the appropriate action.
Voice recognition is an easy, practical way
of using the system.
All the system functions are accessible
via the system Main Menu. You can navi-
gate the menu using either the controls on
the steering wheel or voice commands
with the car stationary.
When the car is moving, you can only in-
teract with the system using the controls
on the steering wheel or voice commands
for functions relating to the telephone
(LAST CALLS and PHONEBOOK) and
the multimedia player. Only voice com-
mands can be used whilst driving to acti-
vate setting functions.The following operations can be carried
out using the hands free function:
–Calling someone in the phone di-
rectory using voice commands- you
can call someone in your mobile phone
book using your voice. You can also phone
someone in your phone book by selecting
them from the names that appear in the
control panel display.
(This function requires your phone book
to be copied onto the car’s hands free sys-
tem).
–Calling a phone number through
voice commands- you can dial a phone
number by saying the digits.
–Making a phone call to the sender
of an SMS- text message you can call the
phone number of the last person who sent
you a text message or a message received
earlier and saved in the system message
list.
–Taking a call- you can take an in-
coming phone call by simply pressing a
button on the steering wheel.
–Conference call- you can make a
phone call to a third person which a phone
call is already activated (with Bluetooth
®
phones connected that support this func-
tion)
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 6

7
BLUE&ME
™
in conjunction with Instant Nav
–Call notification- whilst you are
having a phone conversation, you can re-
ceive notification of another incoming call,
answer the incoming call and switch from
one call to another. (This call notification
function is only supported by some com-
patible mobile phones).
With the mobile phone in the car, after
having registered it on the system, you can
make phone calls through voice com-
mands or using the controls on the steer-
ing wheel. When using the hands free sys-
tem, the telephone conversation audio is
broadcast via the car speakers.THE SMS TEXT MESSAGE
READER
(Function only available with
compatible mobile phones)
The SMS text message reader integrat-
ed in the system makes it possible,
through voice synthesis technology, to au-
tomatically read incoming messages on
your mobile phone with Bluetooth
®
technology via your vehicle’s audio system
and it can even interpret any abbreviations
and emoticons in the text message.
The SMS text message reader functions
are managed through the controls on the
steering wheel or the system voice con-
trols.The system SMS message reader makes
it possible to:
– Be informed, by means of a warning
message in the instrument panel multi-
function display, of a new incoming SMS
text message on your mobile phone with
Bluetooth
®, with the number/name of
the sender displayed and the system will
also suggest reading the message to you.
– Manage the list of SMS text messages
received on your mobile phone connect-
ed to the system.
– Re-read SMS text messages already re-
ceived and saved.
– Make a voice call, using the controls
on the steering wheel or voice commands,
to the sender of the SMS text message re-
ceived
– Delete individual SMS text messages
or the entire list of SMS text messages re-
ceived using the controls on the steering
wheel or voice commands.
The system is also capable of recogniz-
ing and reading any abbreviations (for ex-
ample, “TVB” will be read as “Ti voglio
bene” - I love you) and interpreting the
most frequently used symbols (e.g. :-) will
be read as “Smile”) in text messages.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 7

16
BLUE&ME
™
in conjunction with Instant Nav
BEING FAMILIAR WITH THE
VOICE COMMANDS
Whilst conversing with the system you
can simply use the voice command “Help”
for detailed instructions on the voice com-
mands available at all stages.
To practise the “Help” command, pro-
ceed as follows:
– Press the
‘control on the steering
wheel.
– After the system has given an acoustic
signal to indicate that the voice recogni-
tion is activated, say “Help”. The system
will give the list of voice commands avail-
able.
– At the end of the help message, say
“Settings” and, at the end of the message,
“Help”. The system will give the list of
voice commands available for the Settings
menu.
– You can now say one of the com-
mands available and proceed with the di-
alogue as you wish.
– If you need further help press
‘and
say “Help”.REGISTERING YOUR MOBILE
PHONE
IMPORTANT This operation should on-
ly be carried out with the car stationary.
To register your mobile phone, proceed
as follows:
– Press
‘and say “Settings” and then,
at the end of the message from the sys-
tem say “Register user”.
– The system will show a PIN number
on the panel multifunction display to be
used for the registration. Consult your
mobile phone manual for the next two
stages looking at the chapters on regis-
tering and connecting mobile phones with
Bluetooth
®.
– Look for devices with Bluetooth
®on
your mobile phone (the setting on your
mobile phone may be called Discover or
New Device). Find “Blue&Me” in this list
(the name that identifies the system for
your car): select it.
– When the mobile phone asks for it,
enter the PIN number shown in the pan-
el display using your mobile phone keypad.
If the registration has been successful, the
system will say “Connection in progress”
and at the end will show the number of
the mobile phone registered on the dis-
play as confirmation.It is important to wait for this confirma-
tion message, if you press
ßor ESCbe-
fore this message appears you risk can-
celling the registration process. If the reg-
istration fails, an error message will ap-
pear: in this case the procedure will have
to be repeated.
– After registering your mobile phone,
the first time you connect the system will
say “Welcome”. During subsequent reg-
istration procedures or connections with
the same telephone, this message will no
longer be given.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 16

19
BLUE&ME
™
in conjunction with Instant Nav
If your Bluetooth®phone supports this
function, when you receive a new SMS
text message, the system will notify you
through an acoustic signal and ask if you
want to read it.
– say “Yes” or press the
ßor OKbut-
ton and the system will read the last mes-
sage received
– say “No” or press the ESCbutton
and the system will store the message and
you can read it another time
S S
M M
S S

T T
E E
X X
T T

M M
E E
S S
S S
A A
G G
E E

R R
E E
A A
D D
E E
R R

Q Q
U U
I I
C C
K K

G G
U U
I I
D D
E E
( (
o o
n n
l l
y y

w w
i i
t t
h h

c c
o o
m m
p p
a
a
t t
i i
b b
l l
e e

m m
o o
b b
i i
l l
e e

p p
h h
o o
n n
e e
s s
) )
To get familiar with all the functions and
the capabilities of the SMS message read-
er, refer to the “SMS TEXT MESSAGE
READER FUNCTIONS” chapter.
If you have any difficulties using the
SMS text message reader, consult the
“PROBLEM SOLVING - SMS TEXT MES-
SAGE READER” chapter.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 19

26
BLUE&ME
™
in conjunction with Instant Nav
DISPLAY
Various functions are shown on the con-
trol panel and the Instant Nav (see fig. 1).The control panel display shows various
types of information (fig. 2 and fig. 3):
– Information on the status of the mo-
bile phone connected via Bluetooth
®:
–
;this means that the system is con-
nected to a mobile phone with Blue-
tooth
®
– NO BLUETOOTH - indicates that the
connection with the mobile phone is in-
terrupted (versions with multifunction dis-
play)
– If there is no symbol
;this indicates
that the connection with the mobile
phone is interrupted (versions with re-
configurable multifunction display)
– The symbol
Ãindicates that the call
activated is the first one answered, this
symbol is only present in the case of call
waiting (versions with reconfigurable mul-
tifunction display).
– The symbol
Àindicates that the
call activated is the second one answered,
this symbol is only present in the case of
call waiting (versions with reconfigurable
multifunction display).–The
‰symbol means that a Tele-
phone Conference is activated (versions
with reconfigurable multifunction display).
– Name of the telephone operator ac-
tive on your mobile phone (if not available,
“- - - - - ” is displayed)
– Information relating to an SMS text
message having been received, the tele-
phone number or the contact name (if
stored in the directory) of the SMS mes-
sage sender.
– Information relating to the system
function activated or the menu option se-
lected (see figs. 2 and 3).
– The Instant Nav display will show the
following information relating to:
– the TEL function
– the incoming/outgoing calls (only if
the Privacy function is deactivated)
– the audio tracks
– the Multi Media Player settings.
For more information, see the de-
scription in the Instant Nav manual.
fig. 3F0L5402g
fig. 2F0L5401g
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 26

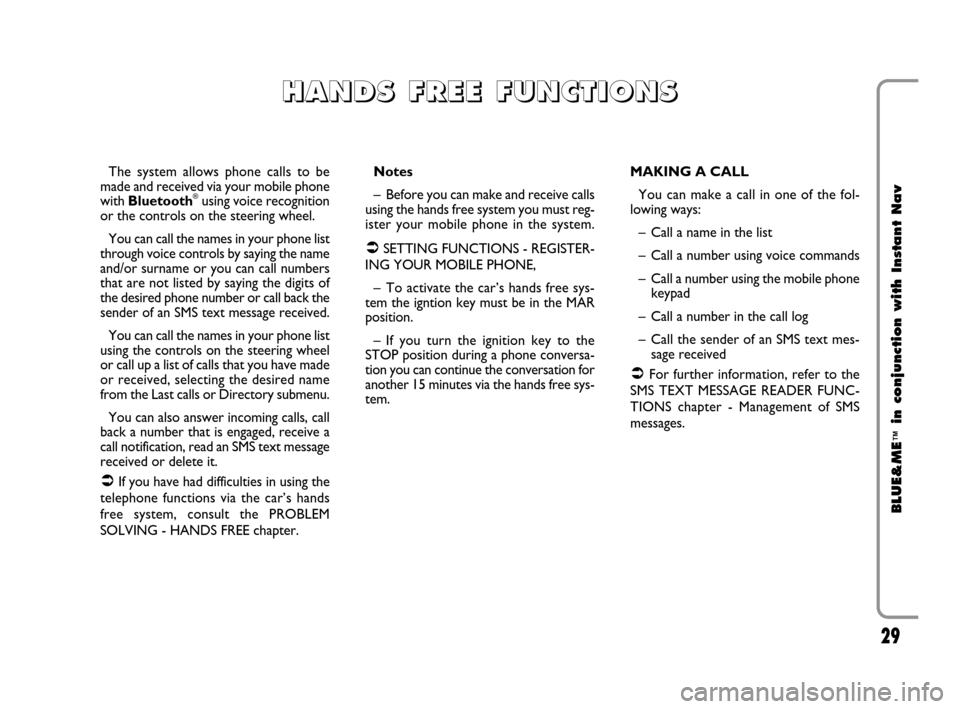

29
BLUE&ME
™
in conjunction with Instant Nav
The system allows phone calls to be
made and received via your mobile phone
with Bluetooth
®using voice recognition
or the controls on the steering wheel.
You can call the names in your phone list
through voice controls by saying the name
and/or surname or you can call numbers
that are not listed by saying the digits of
the desired phone number or call back the
sender of an SMS text message received.
You can call the names in your phone list
using the controls on the steering wheel
or call up a list of calls that you have made
or received, selecting the desired name
from the Last calls or Directory submenu.
You can also answer incoming calls, call
back a number that is engaged, receive a
call notification, read an SMS text message
received or delete it.
If you have had difficulties in using the
telephone functions via the car’s hands
free system, consult the PROBLEM
SOLVING - HANDS FREE chapter. Notes
– Before you can make and receive calls
using the hands free system you must reg-
ister your mobile phone in the system.
SETTING FUNCTIONS - REGISTER-
ING YOUR MOBILE PHONE,
– To activate the car’s hands free sys-
tem the igntion key must be in the MAR
position.
– If you turn the ignition key to the
STOP position during a phone conversa-
tion you can continue the conversation for
another 15 minutes via the hands free sys-
tem.MAKING A CALL
You can make a call in one of the fol-
lowing ways:
– Call a name in the list
– Call a number using voice commands
– Call a number using the mobile phone
keypad
– Call a number in the call log
– Call the sender of an SMS text mes-
sage received
For further information, refer to the
SMS TEXT MESSAGE READER FUNC-
TIONS chapter - Management of SMS
messages.
H H
A A
N N
D D
S S

F F
R R
E E
E E

F F
U U
N N
C C
T T
I I
O O
N N
S S
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 29

34
BLUE&ME
™
in conjunction with Instant Nav
Transferring the call from the
hands free to the mobile phone
To transfer a phone conversation from
the hands free system to your mobile
phone, press OKor select the corre-
sponding item in the Instant Nav TEL
menu.
You can speak on your mobile phone
and continue to use the controls on the
steering wheel.
In particular, if there is more than one
conversation activated, you can press
ßto move from one phone call to another
or select the corresponding item in the In-
stant Nav TEL menu.Placing the call in progress on hold
To place a call in progress on hold and
disable the microphone in order to be able
to talk without being heard by the per-
son you are speaking to, press ESCor
select the corresponding item in the
Instant Nav TEL menu. Telephone Conference function
(only for telephones with
Bluetooth
®that support this
function)
The telephone conference function
makes it possible to make a phone call to
a third person during a call in progress.
This function allows you to talk to both
the other people at the same time.
To activate a Conference, make the new
phone call whilst you aready have a call
in progress, following the procedure de-
scribed in the MAKE A CALL section.
When the Telephone Conference function
is activated, the display will show “CONFER-
ENCE” and the symbol will appear on
the Instant Nav display.
Once the conference is activated, press-
ing the
ßbutton for a while or
selecting the corresponding item in the
Instant Nav TEL menu, will lead to end-
ing both calls.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 34
