ESP FIAT CROMA 2009 2.G Instant Navigation Manual

22
INSTANT NAV

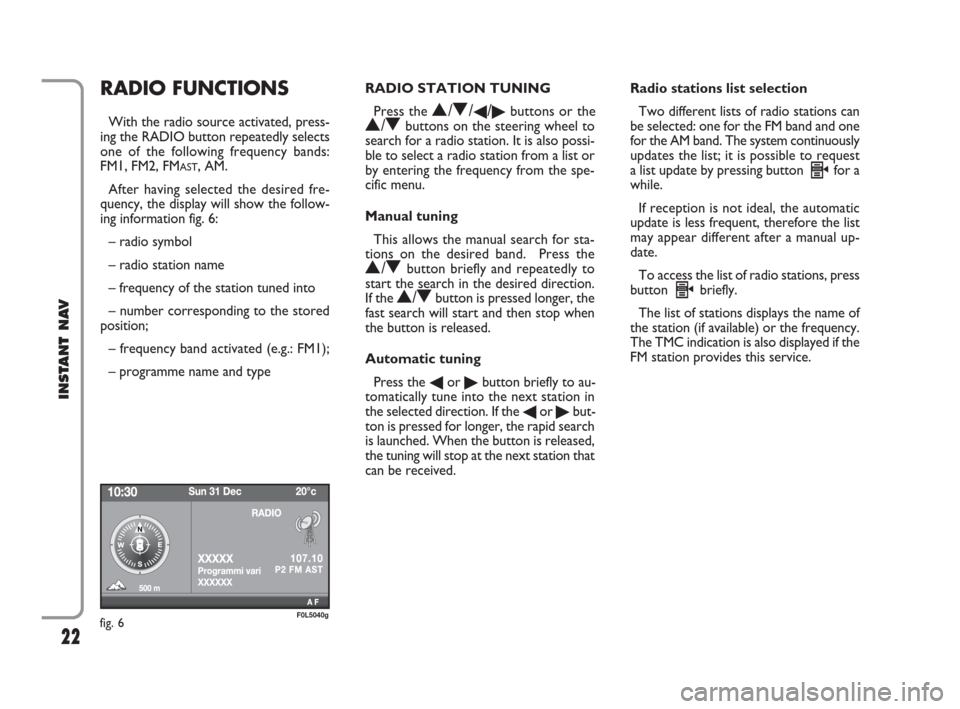

RADIO FUNCTIONS
With the radio source activated, press-
ing the RADIO button repeatedly selects
one of the following frequency bands:
FM1, FM2, FM
AST, AM.
After having selected the desired fre-
quency, the display will show the follow-
ing information fig. 6:
– radio symbol
– radio station name
– frequency of the station tuned into
– number corresponding to the stored
position;
– frequency band activated (e.g.: FM1);
– programme name and typeRADIO STATION TUNING
Press the
N/O/
/buttons or theN/Obuttons on the steering wheel to
search for a radio station. It is also possi-
ble to select a radio station from a list or
by entering the frequency from the spe-
cific menu.
Manual tuning
This allows the manual search for sta-
tions on the desired band. Press the
N/Obutton briefly and repeatedly to
start the search in the desired direction.
If the
N/Obutton is pressed longer, the
fast search will start and then stop when
the button is released.
Automatic tuning
Press the

or button briefly to au-
tomatically tune into the next station in
the selected direction. If the

or but-
ton is pressed for longer, the rapid search
is launched. When the button is released,
the tuning will stop at the next station that
can be received.Radio stations list selection
Two different lists of radio stations can
be selected: one for the FM band and one
for the AM band. The system continuously
updates the list; it is possible to request
a list update by pressing button
h for a
while.
If reception is not ideal, the automatic
update is less frequent, therefore the list
may appear different after a manual up-
date.
To access the list of radio stations, press
button
h briefly.
The list of stations displays the name of
the station (if available) or the frequency.
The TMC indication is also displayed if the
FM station provides this service.
fig. 6F0L5040g
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 22

30
INSTANT NAV

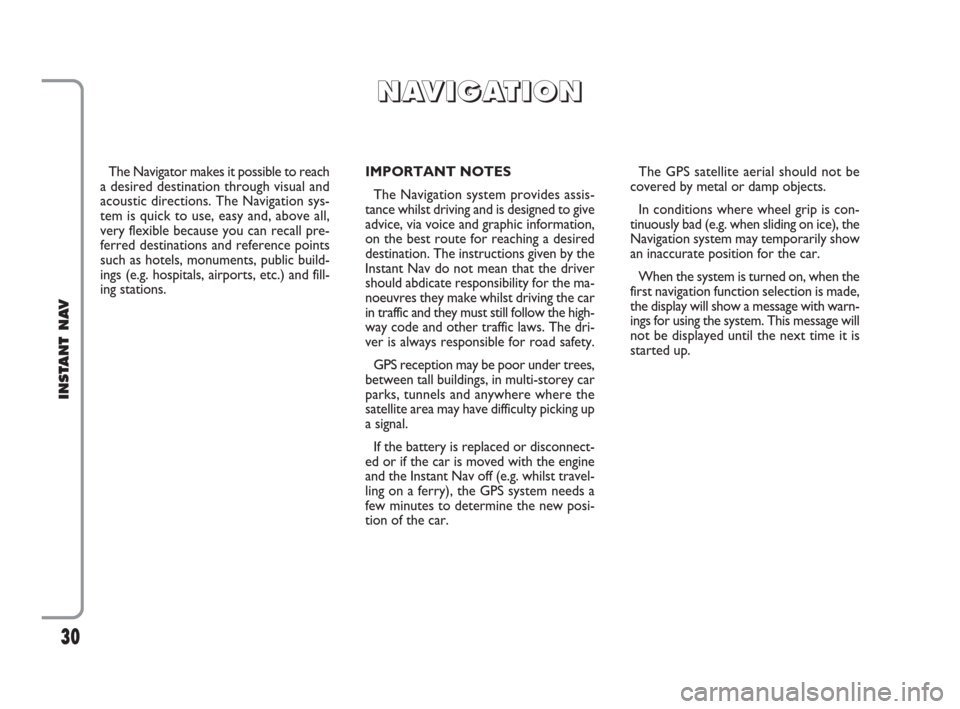

The Navigator makes it possible to reach
a desired destination through visual and
acoustic directions. The Navigation sys-
tem is quick to use, easy and, above all,
very flexible because you can recall pre-
ferred destinations and reference points
such as hotels, monuments, public build-
ings (e.g. hospitals, airports, etc.) and fill-
ing stations.IMPORTANT NOTES
The Navigation system provides assis-
tance whilst driving and is designed to give
advice, via voice and graphic information,
on the best route for reaching a desired
destination. The instructions given by the
Instant Nav do not mean that the driver
should abdicate responsibility for the ma-
noeuvres they make whilst driving the car
in traffic and they must still follow the high-
way code and other traffic laws. The dri-
ver is always responsible for road safety.
GPS reception may be poor under trees,
between tall buildings, in multi-storey car
parks, tunnels and anywhere where the
satellite area may have difficulty picking up
a signal.
If the battery is replaced or disconnect-
ed or if the car is moved with the engine
and the Instant Nav off (e.g. whilst travel-
ling on a ferry), the GPS system needs a
few minutes to determine the new posi-
tion of the car.The GPS satellite aerial should not be
covered by metal or damp objects.
In conditions where wheel grip is con-
tinuously bad (e.g. when sliding on ice), the
Navigation system may temporarily show
an inaccurate position for the car.
When the system is turned on, when the
first navigation function selection is made,
the display will show a message with warn-
ings for using the system. This message will
not be displayed until the next time it is
started up.
N N
A A
V V
I I
G G
A A
T T
I I
O O
N N
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 30

31
INSTANT NAV

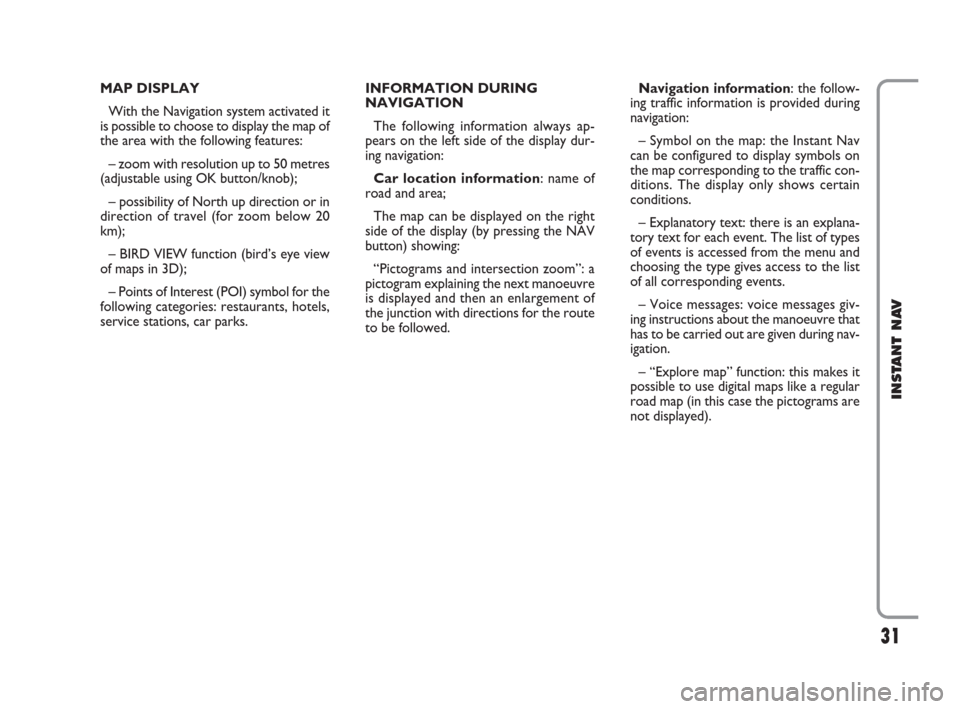

MAP DISPLAY
With the Navigation system activated it
is possible to choose to display the map of
the area with the following features:
– zoom with resolution up to 50 metres
(adjustable using OK button/knob);
– possibility of North up direction or in
direction of travel (for zoom below 20
km);
– BIRD VIEW function (bird’s eye view
of maps in 3D);
– Points of Interest (POI) symbol for the
following categories: restaurants, hotels,
service stations, car parks.INFORMATION DURING
NAVIGATION
The following information always ap-
pears on the left side of the display dur-
ing navigation:
Car location information: name of
road and area;
The map can be displayed on the right
side of the display (by pressing the NAV
button) showing:
“Pictograms and intersection zoom”: a
pictogram explaining the next manoeuvre
is displayed and then an enlargement of
the junction with directions for the route
to be followed.Navigation information: the follow-
ing traffic information is provided during
navigation:
– Symbol on the map: the Instant Nav
can be configured to display symbols on
the map corresponding to the traffic con-
ditions. The display only shows certain
conditions.
– Explanatory text: there is an explana-
tory text for each event. The list of types
of events is accessed from the menu and
choosing the type gives access to the list
of all corresponding events.
– Voice messages: voice messages giv-
ing instructions about the manoeuvre that
has to be carried out are given during nav-
igation.
– “Explore map” function: this makes it
possible to use digital maps like a regular
road map (in this case the pictograms are
not displayed).
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 31

35
INSTANT NAV

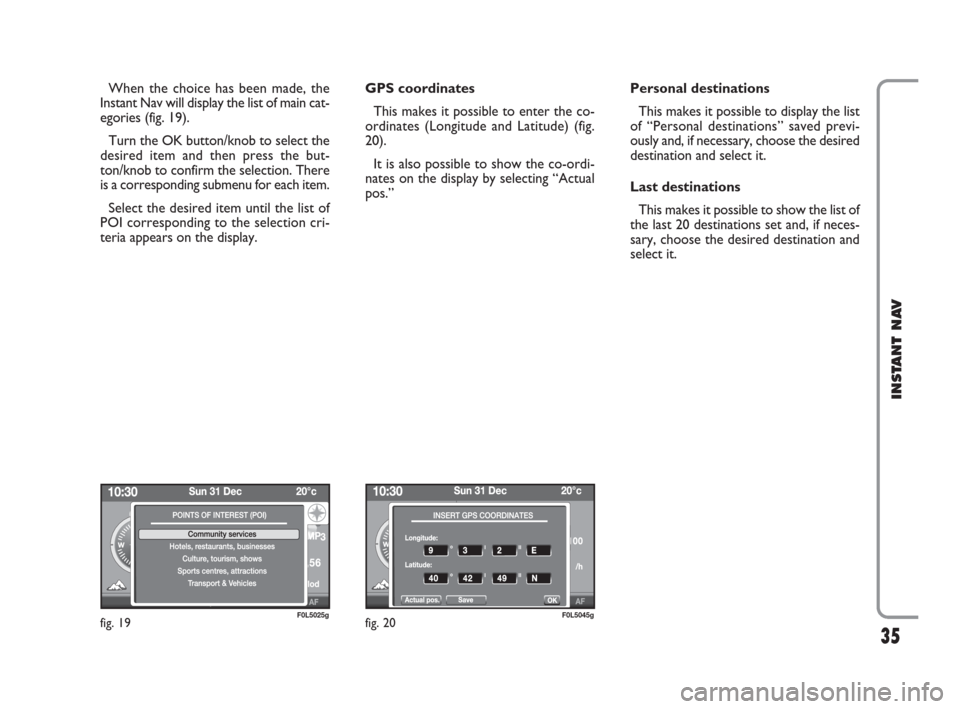

When the choice has been made, the
Instant Nav will display the list of main cat-
egories (fig. 19).
Turn the OK button/knob to select the
desired item and then press the but-
ton/knob to confirm the selection. There
is a corresponding submenu for each item.
Select the desired item until the list of
POI corresponding to the selection cri-
teria appears on the display.GPS coordinates
This makes it possible to enter the co-
ordinates (Longitude and Latitude) (fig.
20).
It is also possible to show the co-ordi-
nates on the display by selecting “Actual
pos.” Personal destinations
This makes it possible to display the list
of “Personal destinations” saved previ-
ously and, if necessary, choose the desired
destination and select it.
Last destinations
This makes it possible to show the list of
the last 20 destinations set and, if neces-
sary, choose the desired destination and
select it.
fig. 19F0L5025gfig. 20F0L5045g
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 35

42
INSTANT NAV

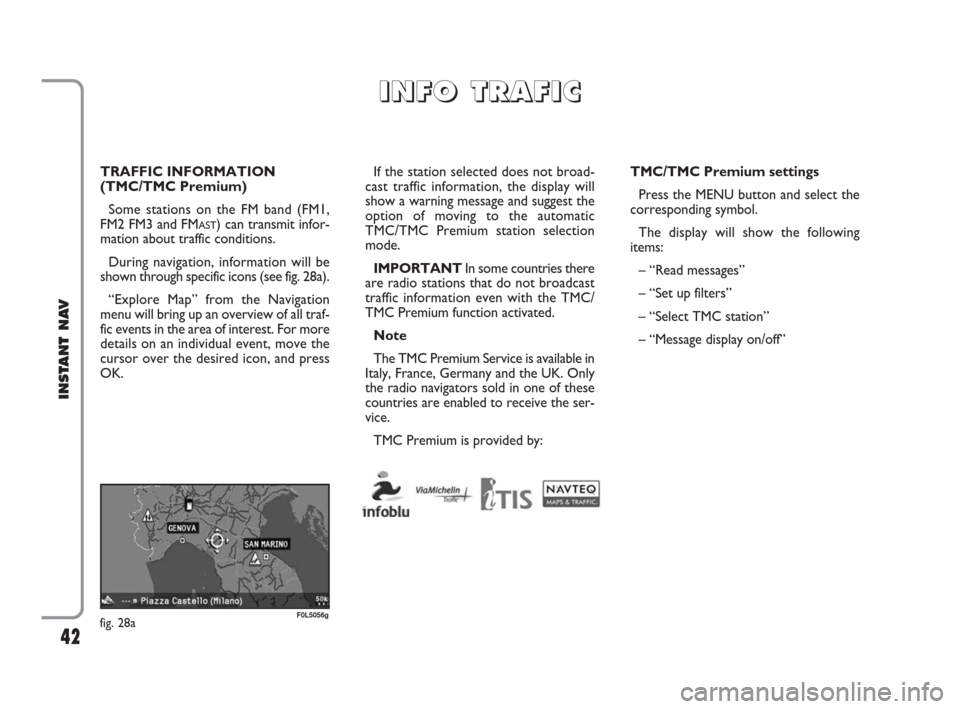

TRAFFIC INFORMATION
(TMC/TMC Premium)
Some stations on the FM band (FM1,
FM2 FM3 and FM
AST) can transmit infor-
mation about traffic conditions.
During navigation, information will be
shown through specific icons (see fig. 28a).
“Explore Map” from the Navigation
menu will bring up an overview of all traf-
fic events in the area of interest. For more
details on an individual event, move the
cursor over the desired icon, and press
OK.If the station selected does not broad-
cast traffic information, the display will
show a warning message and suggest the
option of moving to the automatic
TMC/TMC Premium station selection
mode.
IMPORTANTIn some countries there
are radio stations that do not broadcast
traffic information even with the TMC/
TMC Premium function activated.
Note
The TMC Premium Service is available in
Italy, France, Germany and the UK. Only
the radio navigators sold in one of these
countries are enabled to receive the ser-
vice.
TMC Premium is provided by:TMC/TMC Premium settings
Press the MENU button and select the
corresponding symbol.
The display will show the following
items:
– “Read messages”
– “Set up filters”
– “Select TMC station”
– “Message display on/off”
I I
N N
F F
O O
T T
R R
A A
F F
I I
C C
fig. 28aF0L5056g
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 42

47
INSTANT NAV
TELEPHONE INFORMATION
DISPLAY
To access the Telephone information,
press the TEL button. Depending on the
mobile phone Bluetooth
®system, the
display will show a series of information
depending on the status of the telephone
connected:
– no phone call in progress;
– phone call in progress;
– conference mode activated;
– outgoing phone call.
Depending on the mobile phone Blue-
tooth
®system, a series of information will
be shown on the top part of the display. No phone call in progress
The display will only show the mobile
phone logo, the name of the service
providers and the privacy activa-
tion/deactivation (see Blue&Me
TMsup-
plement).
Phone call in progress and
conference mode
(With the privacy function deactivated)
the display will show the name/number of
the person calling or who is being called.
If there are two phone calls simultane-
ously (conference) or alternately, the dis-
play will show the corresponding symbol.Outgoing phone call
The display will show the name/number
of the person being called. To remove the
display of information from the display
press the Nbutton. To interrupt the call,
see the description in the “Specific tele-
phone menu” paragraph.
T T
E E
L L
E E
P P
H H
O O
N N
E E
S S
Y Y
S S
T T
E E
M M
( (
o o
n n
l l
y y
i i
n n
t t
h h
e e
p p
r r
e e
s s
e e
n n
c c
e e
o o
f f
B B
l l
u u
e e
& &
M M
e e
T T
M M) )
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 47

49
INSTANT NAV
SPOT MESSAGES MENU (only
with privacy function deactivated)
There are four different types of spot
messages that appear on the display when
a situation occurs:
– Incoming calls;
– Outgoing calls;
– Signalling of new incoming messages;
– Option of reading new incoming mes-
sages.Incoming calls
The display will show the following in-
formation:
– name/number of the caller;
– name of the person called (if stored
in the directory);
– option of accepting/refusing the call.
To accept/refuse the call, select the cor-
responding item and confirm by pressing
the OK button/knob.
Outgoing calls
Refer to the description in the “Outgo-
ing phone call” paragraph. Signalling of new incoming
messages
The display will show the following in-
formation:
– signalling of new incoming SMS text
message;
– name and phone number of the per-
son who has sent the message.
Press the
Nbutton to remove the dis-
play.
Option of reading new incoming
messages
The display will show the following in-
formation:
– signalling of new incoming SMS text
message;
– name and phone number of the per-
son who has sent the message;
– option of reading the new SMS text
message.
Select “Read messages” if you want to
read the message or “Ignore” not to read
it.
Press the
Nbutton to remove the dis-
play.
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 49

56
INSTANT NAV
The Instant Nav is capable of detecting
and solving both operating faults within the
system and overheating problems.OPERATING FAULTS
If an internal fault is detected, the system
“freezes” the last screen available and
launches a diagnostic search.
The system checks the module con-
cerned for a few moments to detect the
type of fault; if the preset time is exceed-
ed and the fault persists, the best solu-
tion is adopted (for example, resetting the
hardware for the module involved).
If the Instant Nav no longer responds to
the commands, it is possible to restart it
manually by pressing the
Nbutton for
more than 8 seconds.PROBLEMS DUE TO
OVERHEATING
If the temperature of a Instant Nav hard-
ware module (audio, CD player, etc.) ex-
ceeds the maximum set limit, the module
signals that the temperature is too high;
the display will show a dedicated message.
The module involved is automatically
limited or disabled. In extreme cases the
system is automatically turned off until
normal operating temperature is resumed;
the display shows a dedicated message.
The system will only return to normal
operation when the temperature operat-
ing conditions are normal once again.
O O
P P
E E
R R
A A
T T
I I
N N
G G
P P
R R
O O
B B
L L
E E
M M
S S
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 56
