Page 5 of 258
4
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLSINSTRUMENT DASHBOARD........................................... 5
INSTRUMENT PANEL......................................................... 6
SYMBOLS................................................................................ 8
THE FIAT CODE SYSTEM.................................................. 9
THE KEYS............................................................................... 10
ALARM.................................................................................... 14
DEAD LOCK DEVICE......................................................... 16
IGNITION DEVICE.............................................................. 19
ON BOARD INSTRUMENTS............................................ 20
MULTIFUNCTIONAL DISPLAY ...................................... 22
RECONFIGURABLE MULTIFUNCTIONAL DISPLAY .. 25
DISPLAY FUNCTIONS........................................................ 28
TRIP COMPUTER................................................................. 36
SEATS....................................................................................... 39
HEAD RESTS.......................................................................... 42
STEERING WHEEL............................................................... 43
REAR VIEW MIRRORS ....................................................... 44
HEATING/AIR CONDITIONING SYSTEM................... 47
MANUAL AIR CONDITIONER........................................ 49
AUTOMATIC AIR CONDITIONER................................ 52
EXTERIOR LIGHTS.............................................................. 62
WINDOW CLEANING...................................................... 65CRUISE CONTROL............................................................. 68
CEILING LIGHTS.................................................................. 70
CONTROLS........................................................................... 71
INTERIOR EQUIPMENT..................................................... 74
SUN ROOF............................................................................. 78
DOORS................................................................................... 81
ELECTRIC WINDOW REGULATORS........................... 82
BOOT ...................................................................................... 84
ENGINE HOOD................................................................... 90
ROOF RACK/SKI RACK..................................................... 92
HEADLAMPS.......................................................................... 93
ABS SYSTEM........................................................................... 94
ESP SYSTEM............................................................................ 96
ASR SYSTEM.......................................................................... 97
EOBD SYSTEM...................................................................... 98
T.P.M.S. SYSTEM.................................................................... 99
CAR RADIO........................................................................... 100
USER PURCHASED ACCESSORIES................................. 101
PARKING SENSORS............................................................ 102
VEHICLE REFUELLING........................................................ 104
ENVIRONMENTAL PROTECTION................................. 105
DD D
A A
S S
H H
B B
O O
A A
R R
D D
A A
N N
D D
C C
O O
N N
T T
R R
O O
L L
S S
001-038 Croma TRW GB 28-05-2008 16:29 Pagina 4
Page 26 of 258
25
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

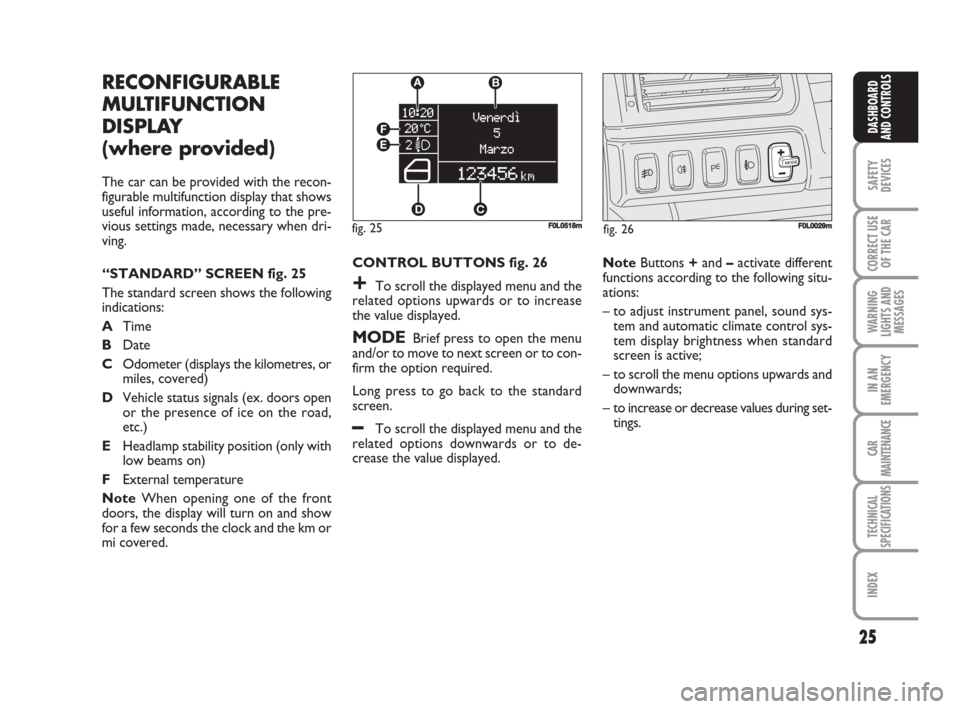

RECONFIGURABLE
MULTIFUNCTION
DISPLAY
(where provided)
The car can be provided with the recon-
figurable multifunction display that shows
useful information, according to the pre-
vious settings made, necessary when dri-
ving.
“STANDARD” SCREEN fig. 25
The standard screen shows the following
indications:
ATime
BDate
COdometer (displays the kilometres, or
miles, covered)
DVehicle status signals (ex. doors open
or the presence of ice on the road,
etc.)
EHeadlamp stability position (only with
low beams on)
FExternal temperature
NoteWhen opening one of the front
doors, the display will turn on and show
for a few seconds the clock and the km or
mi covered.CONTROL BUTTONS fig. 26
+To scroll the displayed menu and the
related options upwards or to increase
the value displayed.
MODEBrief press to open the menu
and/or to move to next screen or to con-
firm the option required.
Long press to go back to the standard
screen.
–To scroll the displayed menu and the
related options downwards or to de-
crease the value displayed.NoteButtons +and –activate different
functions according to the following situ-
ations:
– to adjust instrument panel, sound sys-
tem and automatic climate control sys-
tem display brightness when standard
screen is active;
– to scroll the menu options upwards and
downwards;
– to increase or decrease values during set-
tings.
F0L0029mfig. 26 fig. 25
EF
DC A
B
F0L0518m
001-038 Croma TRW GB 28-05-2008 16:30 Pagina 25
Page 28 of 258
27
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Day
YearMonthEnglish
Portugês
Español
Français
Deutsch
Italiano
SEAT BELT BUZZERTRIP B DATA
SET DATE
SEE RADIO
KEY
AUTOCLOSE
UNITS LANGUAGE BUZZER VOLUME BUTTON VOLUMESERVICE
Briefly press button MODEto start surfing from the standard
screen. To surf the menu use buttons +or -. Note For safe-
ty reasons, when the car is running, it is possible to access on-
ly the reduced menu (for setting “Dimmer” and “Speed Beep”).
When the car is stationary access to the whole menu is enabled.
On cars provided with Connect Nav+ many functions are dis-
played on the navigator display. Example:
fig. 27
FF0L4023g
SET TIME HEADLAMP SENSORSPEED BEEP EXIT MENU
Nederlands
PASSENGER AIRBAG
Turkçe
Brasilian
MODE
briefly press
button
MODE
briefly press
button
REAR SIDEBAGSMENU
001-038 Croma TRW GB 28-05-2008 16:30 Pagina 27
Page 30 of 258
29
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Headlamp sensor
(Automatic headlight sensor
sensitivity adjustment)
(where provided)
With this function it is possible to adjust
the light sensor sensitivity according to 3
levels (level 1 = min. level, level 2 = av-
erage level, level 3 = max. level); the high-
er the sensitivity is, the lower is the ex-
ternal light intensity required to switch on
the lights.
To set the light level required, proceed as
follows:
– briefly press button MODE, the previ-
ously set level will flash on the display;
– press button +or –to select the re-
quired level;
– briefly press button MODEto go back
to the menu screen or press the button
for long to go back to the standard screen
without storing settings.Trip B data (Trip On/Off)
Through this option it is possible to acti-
vate (On) or deactivate (Off) the Trip B
(partial trip).
For further information see “Trip com-
puter”.
For activation / deactivation, proceed as
follows:
– briefly press button MODE: On or Off
will flash on the display according to pre-
vious setting;
– press button +or –to select the re-
quired level;
– briefly press button MODEto go back
to the menu screen or press the button
for long to go back to the standard screen
without storing settings.Set time (Setting the clock)
This function enables to set the clock
through two sub-menus: “Time” and
“Mode”.
Proceed as follows:
– briefly press button MODE, the display
will show the two submenus “Time” and
“Mode”;
– press button +or –to scroll the two
submenus;
– select the required submenu and then
press briefly MODE;
– if selecting “Time”: briefly press button
MODE, “hours” will flash on the display;
– press button +or –for setting;
– press button MODE, “minutes” will
flash on the display;
– press button +or –for setting.
001-038 Croma TRW GB 28-05-2008 16:30 Pagina 29
Page 187 of 258
186
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
F 12
F 13
F 31
F 32
F 33
F 34
F 35
F 36
F 37
F 38
F 39
F 40
F 41
F 42
F 43
F 4415
15
7.5
15
20
20
7.5
20
10
15
10
30
7.5
7.5/15 (*)
30
20 FUSE SUMMARY TABLE
Fuse box on dashboard
USERSFUSE AMPERE
RH low beam
LH low beam - Light stability corrector
+15 excluded during ignition for dashboard control unit relay coils / engine
compartment and Body computer
+30 nodes front driver and passenger doors (door lock), TEG reader
Boot compartment node power supply (rear left power window)
Boot compartment node power supply (rear right power window)
+15 backing lights, supplementary heater control unit, flow gauge, water in diesel fuel
sensor, NC switch on brake pedal
+30 boot compartment node (rear door locks)
+15 instrument panel, control unit on gas discharge headlamps, NA switch on brake
pedal, supplementary stop light
Boot opening actuator
+30 EOBD diagnostic socket , central front ceiling light, rear side ceiling lights, siren
and volumetric sensor control unit for the antitheft system, tyre pressure control unit,
air conditioning control unit, Blue-tooth control unit
Heated rear window
Windscreen / rear window washer nozzle demisters
+15 ABS / ESP control unit, electrohydraulic driving node, yaw sensor , steering
angle sensor
+15 excluded during ignition for electronic column switch module (windscreen wipers,
windscreen / rear window washer pump)
+15 excluded during ignition for cigar lighter, current outlet on tunnel
(*) Depending on the version
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 186
Page 189 of 258
188
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
F 9
F 10
F 11
F 14
F 15
F 16
F 17
F 18
F 19
F 20
F 21
F 22
F 23
F 24
F 307.5
15
15
7.5
7.5
7.5
10
7.5
7.5
20
15
20
20
15

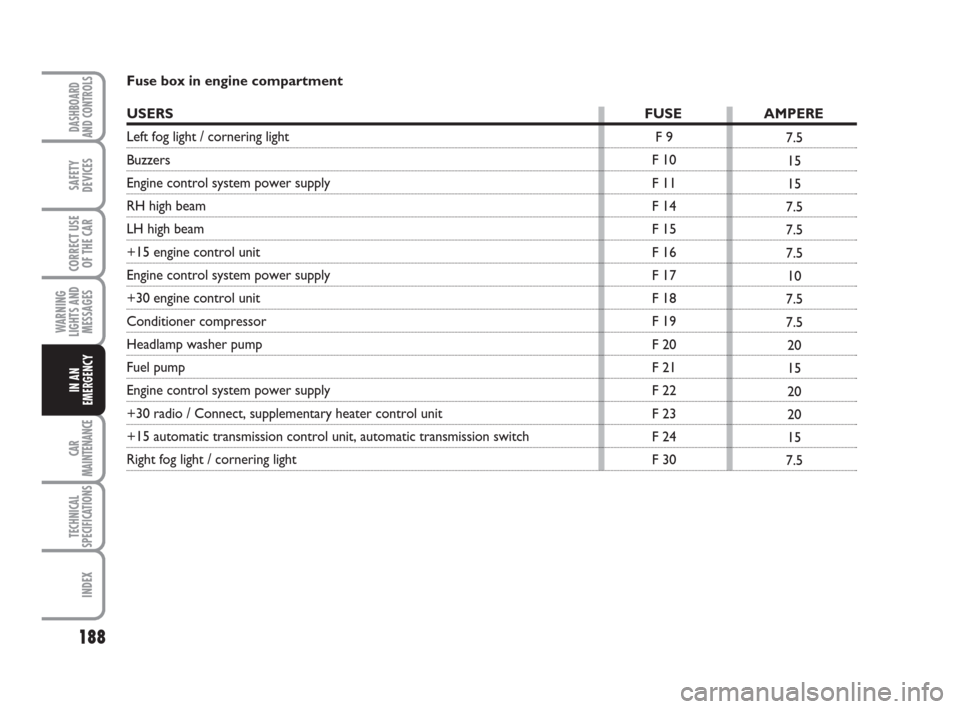

7.5 Fuse box in engine compartment
USERSFUSE AMPERE
Left fog light / cornering light
Buzzers
Engine control system power supply
RH high beam
LH high beam
+15 engine control unit
Engine control system power supply
+30 engine control unit
Conditioner compressor
Headlamp washer pump
Fuel pump
Engine control system power supply
+30 radio / Connect, supplementary heater control unit
+15 automatic transmission control unit, automatic transmission switch
Right fog light / cornering light
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 188
Page 244 of 258
243
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
Boot hatch............................................. 84
– emergency opening....................... 85
Boot light............................................... 180
Boot ........................................................ 84
– baggage cover shade ..................... 87
– double load compartment........... 88
– emergency opening....................... 85
– enlargement.................................... 85
– load anchoring................................ 89
– opening and closing....................... 84
– repositioning the rear seat .......... 88
Brake Assist (emergency braking
assistance) .......................................... 87
Brake fluid
– insufficient brake liquid warning
light................................................... 146
– level check....................................... 206
Brakes
– brake pad wear warning light...... 156
– characteristics................................ 224
– Hill Holder failure warning light . 154
– liquid level....................................... 206
Car radio.............................................. 100
– antenna ........................................... 101
– audio system .................................. 100
– Hi-Fi system ................................... 101
Car seats (suitability of use) .............. 115
Ceiling lights
– boot ceiling light lamp
replacement.................................... 180
– central light..................................... 70– courtesy lights................................ 70
– courtesy mirror ceiling light lamp
replacement.................................... 179
– door clearance/puddle ceiling
light lamp replacement................. 180
– front................................................. 70
– front ceiling light lamp
replacement.................................... 178
– glove compartment ceiling light
lamp replacement.......................... 179
– rear .................................................. 70
– side rear ceiling light lamp
replacement.................................... 181
Changing a lamp................................... 169
Changing a wheel................................. 159
Chassis (marking)................................. 219
Child safety device............................... 81
Cigar lighter.......................................... 76
CO
2emissions..................................... 240
Code Card............................................ 10
Constant speed regulator
(Cruise Control) .............................. 68
Consumption
– engine oil......................................... 204
– fuel...........................................238-239
Courtesy mirror
– ceiling light lamp replacement..... 179
Courtesy mirror ceiling lights ........... 179
Cruise Control (constant speed
regulator) ........................................... 68
– constant speed regulator warning
light (Cruise Control) ................. 156
ABS ...................................................... 94
– ABS system failure warning light 148
ABS system........................................... 94
Additional heater................................. 61
Air bag
– air bag failure warning light.......... 146
Air filter (replacement)...................... 207
Alarm...................................................... 14
– alarm failure warning light ........... 151
– break-in attempt warning light ... 151
Antenna ................................................ 101
Antilifting (protection)........................ 15
Ashtray (front/rear)............................ 77
ASR system........................................... 97
ASR ......................................................... 97
Automatic air conditioner................. 52
Automatic headlamp sensor
(twilight sensor)................................ 64
Backing light......................................... 176
Battery
– battery recharging......................... 190
– checking the charge status........... 208
– insufficient battery recharge
warning light................................... 148
– replacing the battery..................... 208
– startup with an auxiliary battery 158
– useful advice for extending
battery life....................................... 209
Body
– maintenance.................................... 213
– version codes................................. 220
II I
N N
D D
E E
X X
243-256 Croma TRW GB 28-07-2009 12:15 Pagina 243
Page 246 of 258
245
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
Identification data................................ 218
Ignition device....................................... 19
In an emergency................................... 157
Injection system
– EOBD engine control system
failure warning light....................... 149
– injection system failure warning
light................................................... 149
Instrument dashboard......................... 5
Instrument panel.................................. 6
Interior equipment.............................. 74
Interiors
– maintenance.................................... 215
Isofix Universal (car seat) .................. 117
“Isofix Universale” car seat ............... 117
– installation presetting.................... 117
– suitability of use ............................. 118
Keys ....................................................... 10
– emergency key.................................. 13
– key with remote control................ 11
Lamps (replacement)
– exterior lamp replacement.......... 173
– general information....................... 169
– interior lamp replacement........... 178
– lamp types....................................... 170
Level checks.......................................... 198
Levels
– level checks..................................... 198
License plate lights
– lamp replacement.......................... 178
3rd stop lights....................................... 177
Liquids and lubricants......................... 236Load (anchoring).................................. 89
Long vehicle inactivity......................... 144
Low beams
– control............................................. 62
– Follow Me Home........................... 154
– lamp replacement.......................... 173
– low beam light warning light ....... 154
Lubricants.............................................. 236
Maintenance and care
– Demanding vehicle use................. 197
– periodical checks........................... 197
– planned maintenance.................... 194
– Scheduled Maintenance Plan ....... 195
Manual air conditioner........................ 49
Maximum speed................................... 231
Money holder....................................... 76
Multifunctional display ....................... 22
– control buttons.............................. 22
– display functions............................. 28
– setup menu .................................... 23
– standard screen.............................. 22
On board instruments....................... 20
Paint (maintenance)........................... 214
Parking brake........................................ 131
– parking brake engaged warning
light-.................................................. 146
Parking lights......................................... 72
Parking sensors.................................... 102
Parking.................................................... 131
– parking brake.................................. 131
Passenger compartment air
diffusers............................................... 48 Fuel level indicator.............................. 21
Fuel reserve
– fuel reserve warning light ........... 150
Fuel tank plug........................................ 104
Fuses
– fuse replacement........................... 181
– fuse table......................................... 186
Generic warning light........................ 152
Glasses holder...................................... 76
Glove compartment light................... 179
Glove compartment............................ 75
– ceiling light lamp replacement..... 179
Head rests
– front................................................. 42
– rear .................................................. 42
Headlamps............................................. 93
– headlamp adjustment overseas... 94
– headlamp stability corrector ....... 93
– light beam orientation.................. 93
Headlight washer-wiper
– control............................................. 67
– liquid level....................................... 205
Heated rear window
– heated rear window warning
light................................................... 151
Heating and air conditioning............. 47
Heating/air conditioning system....... 47
High-beam headlights
– control............................................. 62
– flashing............................................. 63
– high beam light warning light....... 155
– lamp replacement.......................... 174
243-256 Croma TRW GB 28-07-2009 12:15 Pagina 245
