jacking FIAT DOBLO 2007 1.G Owners Manual

145IN AN EMERGENCY

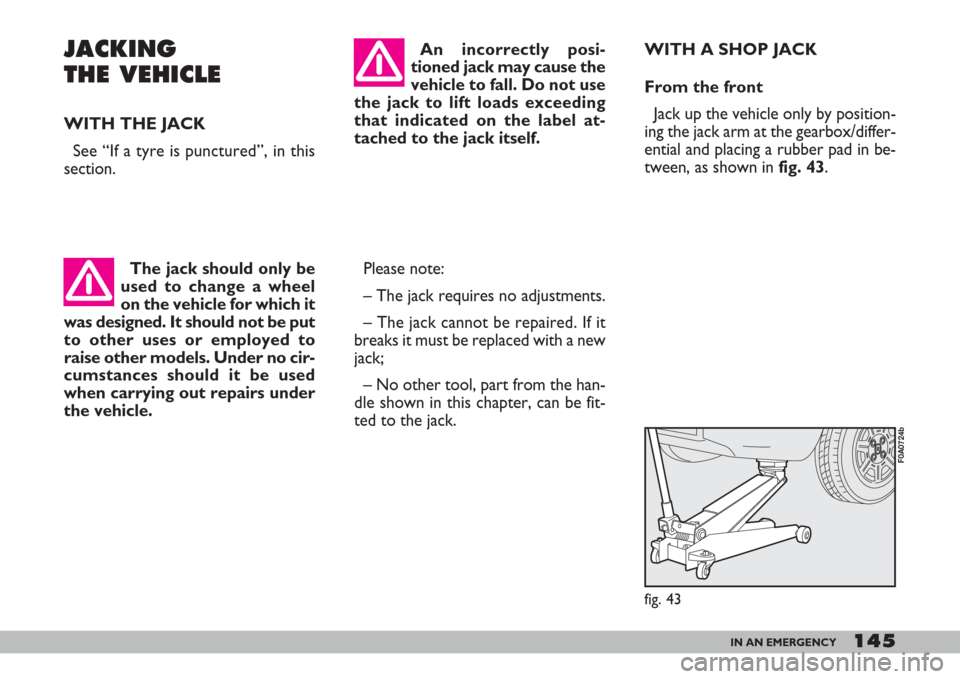

JACKING
THE VEHICLE
WITH THE JACK
See “If a tyre is punctured”, in this
section.
Please note:
– The jack requires no adjustments.
– The jack cannot be repaired. If it
breaks it must be replaced with a new
jack;
– No other tool, part from the han-
dle shown in this chapter, can be fit-
ted to the jack.WITH A SHOP JACK
From the front
Jack up the vehicle only by position-
ing the jack arm at the gearbox/differ-
ential and placing a rubber pad in be-
tween, as shown in fig. 43.
fig. 43
F0A0724b
The jack should only be
used to change a wheel
on the vehicle for which it
was designed. It should not be put
to other uses or employed to
raise other models. Under no cir-
cumstances should it be used
when carrying out repairs under
the vehicle.
An incorrectly posi-
tioned jack may cause the
vehicle to fall. Do not use
the jack to lift loads exceeding
that indicated on the label at-
tached to the jack itself.

210INDEX
- front ........................................... 53
- rear ............................................. 54
Heated rear window ................... 68
Heating............................................ 57
Hydraulic power steering
- fluid level ................................... 160
Identification data ....................... 174
If an accident occurs .................... 147
- first aid kit ................................. 148
- if anyone is injured.................. 148
Ignition switch ............................... 20
In an emergency ........................... 119
Individual settings ......................... 48
Instrument panel .......................... 22
Instruments.................................... 23
Interior equipment....................... 69
Interiors.......................................... 173
- cleaning seats
and plastic parts....................... 173
Jack................................................ 122
Jacking the vehicle ........................ 145
Keys.............................................. 6
- duplicate copies ....................... 8
Lambda sensors .......................... 104
Levels
- checking..................................... 154
Loading ramps .............................. 87
Lubricants....................................... 202
Main beam headlights
- bulb replacement ...................... 131
- control ......................................... 64
- flashing ........................................... 64
Manual climate control system
- air distribution ............................ 59
- climatic comfort ......................... 62
- controls ....................................... 61
- cooling .......................................... 61
- maintenance ............................... 63
Model plate ....................................... 174
Number plate light .................... 136
Paint ............................................ 171
Parking ............................................ 107
Parking sensors ............................. 101
Partitions ....................................... 51
- double ladder ........................... 51
- driver’s protection ladder ..... 51
- fixed panelled partition .......... 50- fixed partition with window . 51
Performance ............................... 186
Pollen filter .................................... 161
Power steering fluid level ........... 160
Pretensioners ............................... 11
Prolonged vehicle inactivity ....... 117
Protecting the environment ...... 104
Radio transmitters .................... 100
Radio-frequency
remote control ............................. 8
- battery replacement ............... 9
- homologation numbers.......... 206
Rear double doors ....................... 77
Rear foglight
- bulb replacement ................... 134
- control button ......................... 68
Rear side windows ....................... 72
Rear window shelf ....................... 71
Rear window washer
- control ...................................... 65
- fluid level ................................... 159
Rear window wiper
- blade ........................................... 169
- control ...................................... 65
- nozzle......................................... 170
- smart wash ............................... 66
