Page 36 of 218
35GETTING TO KNOW YOUR VEHICLE
vice schedule, see section “Vehicle
maintenance”. Service indications will
be displayed km or mi according to
previous unit setting. When a pro-
grammed maintenance interval
(coupon) is near to come, turning the
ignition key to MAR, the display will
show the message “Service” followed
by the number of km/mi to go before
vehicle servicing. “Scheduled servicing”
message is displayed in km/mi or days
according to the approaching service
interval. Contact Fiat Dealershipto
carry out any service operation pro-
vided by the “Service schedule” or
“Annual inspection schedule”, and to
reset the display. Scheduled Servicing (Service)
Through this function it is possible to
display information connected to
proper vehicle servicing.
Proceed as follows:
– briefly press button MODE: ser-
vice in km or mi, according to previ-
ous setting, will be displayed (see para-
graph “Distance unit”);
– press button +or –to select dis-
playing in days;
– briefly press button MODEto go
back to the menu screen or press the
button for long to go back to the stan-
dard screen.
NoteThe “Service schedule” in-
cludes vehicle maintenance every
20,000 km (or 12,000 mi) or every
year; this is shown automatically, with
the ignition key at MAR, starting from
2,000 km (or 1,240 mi) or 30 days
from this deadline and it is shown again
every 200 km (or 124 mi) or 3 days.
Below 200 km servicing indications are
displayed more frequently. As con-
cerns 1.3 Multijet versions, change air
cleaner, engine oil and engine oil fil-
ter at the intervals specified in the Ser-Exit Menu
This is the last function that closes
the circular setting cycle listed in the
initial menu screen.
Briefly press button MODEto go
back to the standard screen.
Press button – to return to the first
menu option (Speed Beep).

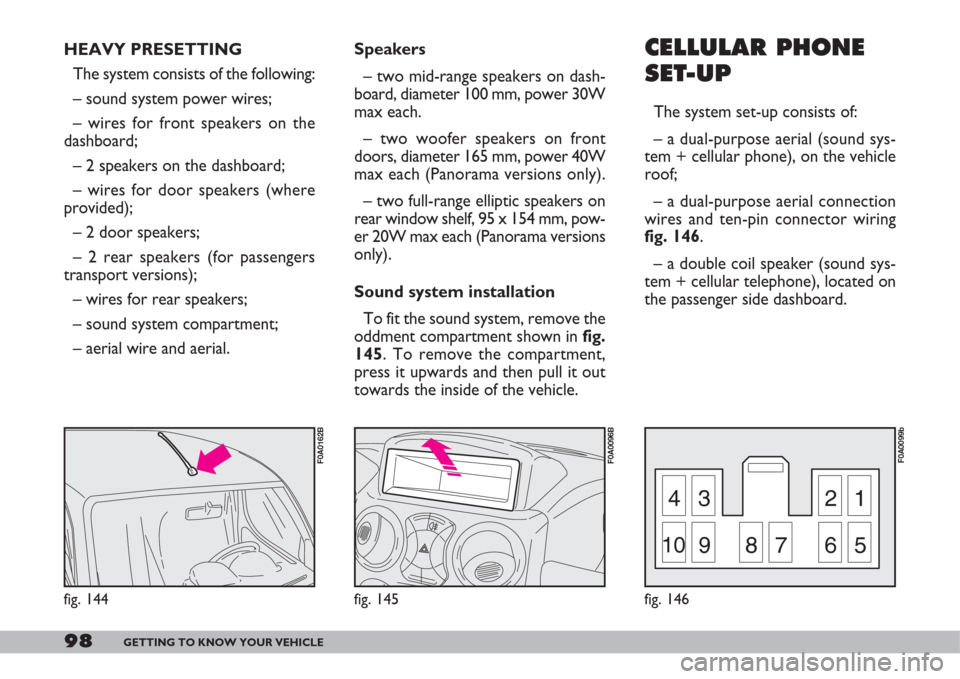

Page 99 of 218
98GETTING TO KNOW YOUR VEHICLE
43 21
10987 65
fig. 146
F0A0099b
fig. 145
F0A0096B
CELLULAR PHONE
SET-UP
The system set-up consists of:
– a dual-purpose aerial (sound sys-
tem + cellular phone), on the vehicle
roof;
– a dual-purpose aerial connection
wires and ten-pin connector wiring
fig. 146.
– a double coil speaker (sound sys-
tem + cellular telephone), located on
the passenger side dashboard. HEAVY PRESETTING
The system consists of the following:
– sound system power wires;
– wires for front speakers on the
dashboard;
– 2 speakers on the dashboard;
– wires for door speakers (where
provided);
– 2 door speakers;
– 2 rear speakers (for passengers
transport versions);
– wires for rear speakers;
– sound system compartment;
– aerial wire and aerial.Speakers
– two mid-range speakers on dash-
board, diameter 100 mm, power 30W
max each.
– two woofer speakers on front
doors, diameter 165 mm, power 40W
max each (Panorama versions only).
– two full-range elliptic speakers on
rear window shelf, 95 x 154 mm, pow-
er 20W max each (Panorama versions
only).
Sound system installation
To fit the sound system, remove the
oddment compartment shown in fig.
145. To remove the compartment,
press it upwards and then pull it out
towards the inside of the vehicle.
fig. 144
F0A0162B
