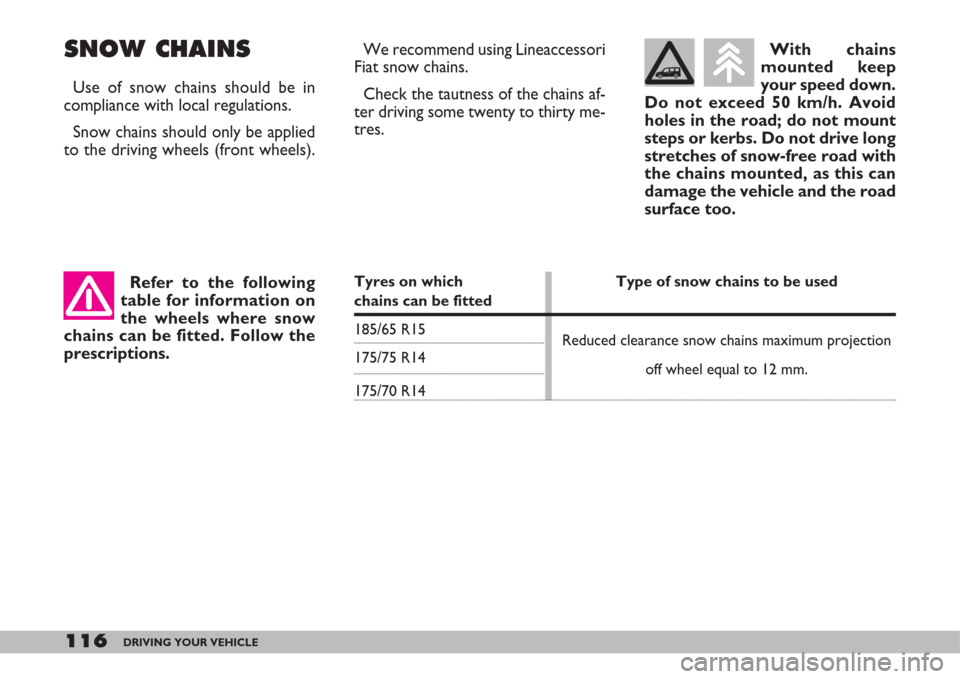

Page 117 of 218
116DRIVING YOUR VEHICLE
SNOW CHAINS
Use of snow chains should be in
compliance with local regulations.
Snow chains should only be applied
to the driving wheels (front wheels).We recommend using Lineaccessori
Fiat snow chains.
Check the tautness of the chains af-
ter driving some twenty to thirty me-
tres.
Refer to the following
table for information on
the wheels where snow
chains can be fitted. Follow the
prescriptions.
With chains
mounted keep
your speed down.
Do not exceed 50 km/h. Avoid
holes in the road; do not mount
steps or kerbs. Do not drive long
stretches of snow-free road with
the chains mounted, as this can
damage the vehicle and the road
surface too.
Type of snow chains to be used
Reduced clearance snow chains maximum projection
off wheel equal to 12 mm. Tyres on which
chains can be fitted
185/65 R15
175/75 R14
175/70 R14

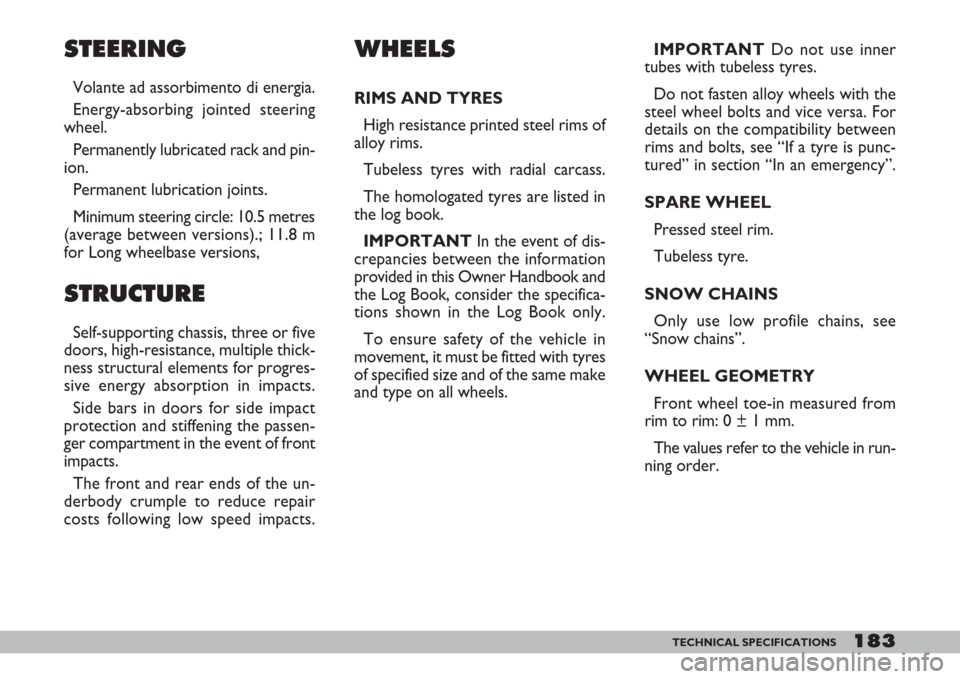

Page 184 of 218
183TECHNICAL SPECIFICATIONS
STEERING
Volante ad assorbimento di energia.
Energy-absorbing jointed steering
wheel.
Permanently lubricated rack and pin-
ion.
Permanent lubrication joints.
Minimum steering circle: 10.5 metres
(average between versions).; 11.8 m
for Long wheelbase versions,
STRUCTURE
Self-supporting chassis, three or five
doors, high-resistance, multiple thick-
ness structural elements for progres-
sive energy absorption in impacts.
Side bars in doors for side impact
protection and stiffening the passen-
ger compartment in the event of front
impacts.
The front and rear ends of the un-
derbody crumple to reduce repair
costs following low speed impacts.
WHEELS
RIMS AND TYRES
High resistance printed steel rims of
alloy rims.
Tubeless tyres with radial carcass.
The homologated tyres are listed in
the log book.
IMPORTANT In the event of dis-
crepancies between the information
provided in this Owner Handbook and
the Log Book, consider the specifica-
tions shown in the Log Book only.
To ensure safety of the vehicle in
movement, it must be fitted with tyres
of specified size and of the same make
and type on all wheels.IMPORTANT Do not use inner
tubes with tubeless tyres.
Do not fasten alloy wheels with the
steel wheel bolts and vice versa. For
details on the compatibility between
rims and bolts, see “If a tyre is punc-
tured” in section “In an emergency”.
SPARE WHEEL
Pressed steel rim.
Tubeless tyre.
SNOW CHAINS
Only use low profile chains, see
“Snow chains”.
WHEEL GEOMETRY
Front wheel toe-in measured from
rim to rim: 0 ± 1 mm.
The values refer to the vehicle in run-
ning order.
Page 212 of 218
211INDEX
Rearview mirrors
- electric ....................................... 56
- exterior ..................................... 55
- interior ...................................... 55
Rev counter .................................. 24
Reversing light ............................... 134
Rims ........................................ 183-185
Roof bars
- fasteners presetting ................ 86
Rubber tubing................................ 168
SBR system ................................. 10
Seat adjustment ............................ 48
Seat belts
- general warnings...................... 13
- height adjustment.................... 11
- maintenance ............................ 14
- use .............................................. 9
Seats
- accessing the rear seat........... 52
- adjustments .............................. 48
- cleaning ...................................... 173
- electrically heated ................... 49
- passenger folding seat ............ 50
Side doors ...................................... 75
Side/taillights
- control ...................................... 63- front bulb replacement .......... 133
- rear bulb replacement ........... 134
Snow chains ................................... 116
Snow tyres .................................... 117
Sound system ............................... 97
- setup system ............................ 97
- sound system installation ...... 98
Spark plugs
- maintenance ............................. 181
- type............................................. 179
Starting the engine ....................... 105
- bump starting ........................... 121
- diesel versions ......................... 107
- emergency startup ......... 107-119
- ignition switch .......................... 20
- jump starting ............................ 120
- petrol versions......................... 106
- stopping the engine ................ 108
- warming up the engine .......... 107
Steering column lock ................... 20
Steering column stalks
- left-hand stalk ......................... 63
- right-hand stalk ........................ 64
Steering wheel adjustment ......... 55
Steering........................................... 183
Stopping the engine ..................... 107
Storing the vehicle ....................... 118Structure ........................................ 183
Sun visors ....................................... 71
Suspensions .................................. 182
Symbols........................................... 6
Tailgate.......................................... 79
Technical characteristics ............ 174
Third brake lights ........................ 136
Tools ............................................... 121
Top speed ...................................... 186
Towing a trailer
- assembly diagram .................... 114
- tow hitch installation .............. 114
- warnings ................................... 113
Towing the vehicle ....................... 146
Transmission ................................ 182
Transporting children in safety . 15
Trip computer .............................. 36
Tyre pressure................................ 185
Tyres
- if a tyre is punctured .............. 121
- inflation pressure .................... 184
- reading ....................................... 184
- standard..................................... 185
Using the gearbox ..................... 109
