FIAT DOBLO 2007 1.G Radio CD MP3 Manual

QUICK
GUIDE
10
RADIO
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS

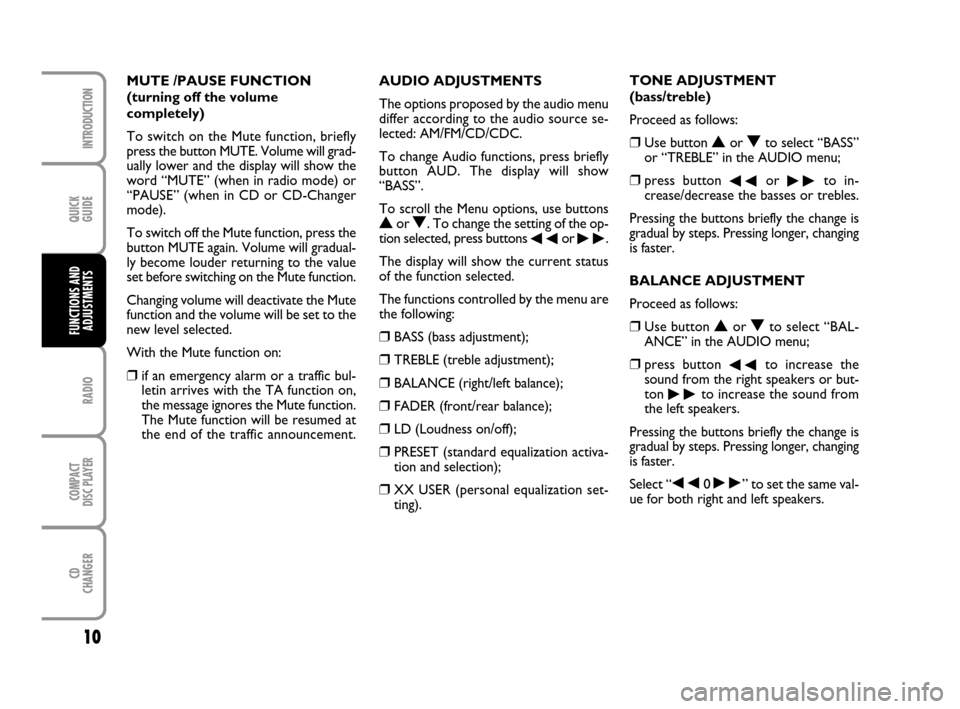

AUDIO ADJUSTMENTS
The options proposed by the audio menu
differ according to the audio source se-
lected: AM/FM/CD/CDC.
To change Audio functions, press briefly
button AUD. The display will show
“BASS”.
To scroll the Menu options, use buttons
Nor O. To change the setting of the op-
tion selected, press buttons
÷or ˜.
The display will show the current status
of the function selected.
The functions controlled by the menu are
the following:
❒BASS (bass adjustment);
❒TREBLE (treble adjustment);
❒BALANCE (right/left balance);
❒FADER (front/rear balance);
❒LD (Loudness on/off);
❒PRESET (standard equalization activa-
tion and selection);
❒XX USER (personal equalization set-
ting).TONE ADJUSTMENT
(bass/treble)
Proceed as follows:
❒Use button Nor Oto select “BASS”
or “TREBLE” in the AUDIO menu;
❒press button ÷or ˜to in-
crease/decrease the basses or trebles.
Pressing the buttons briefly the change is
gradual by steps. Pressing longer, changing
is faster.
BALANCE ADJUSTMENT
Proceed as follows:
❒Use button Nor Oto select “BAL-
ANCE” in the AUDIO menu;
❒press button ÷to increase the
sound from the right speakers or but-
ton
˜to increase the sound from
the left speakers.
Pressing the buttons briefly the change is
gradual by steps. Pressing longer, changing
is faster.
Select “
÷0 ˜” to set the same val-
ue for both right and left speakers. MUTE /PAUSE FUNCTION
(turning off the volume
completely)
To switch on the Mute function, briefly
press the button MUTE. Volume will grad-
ually lower and the display will show the
word “MUTE” (when in radio mode) or
“PAUSE” (when in CD or CD-Changer
mode).
To switch off the Mute function, press the
button MUTE again. Volume will gradual-
ly become louder returning to the value
set before switching on the Mute function.
Changing volume will deactivate the Mute
function and the volume will be set to the
new level selected.
With the Mute function on:
❒if an emergency alarm or a traffic bul-
letin arrives with the TA function on,
the message ignores the Mute function.
The Mute function will be resumed at
the end of the traffic announcement.
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 10

11
QUICK
GUIDE
RADIO
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS

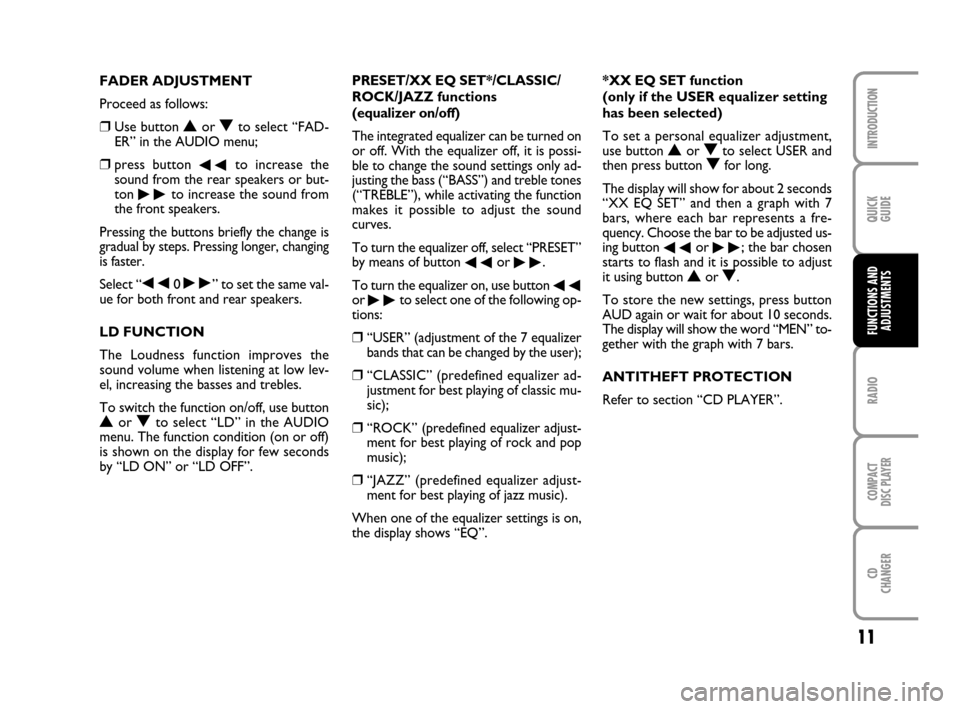

PRESET/XX EQ SET*/CLASSIC/
ROCK/JAZZ functions
(equalizer on/off)
The integrated equalizer can be turned on
or off. With the equalizer off, it is possi-
ble to change the sound settings only ad-
justing the bass (“BASS”) and treble tones
(“TREBLE”), while activating the function
makes it possible to adjust the sound
curves.
To turn the equalizer off, select “PRESET”
by means of button
÷or ˜.
To turn the equalizer on, use button
÷or ˜to select one of the following op-
tions:
❒“USER” (adjustment of the 7 equalizer
bands that can be changed by the user);
❒“CLASSIC” (predefined equalizer ad-
justment for best playing of classic mu-
sic);
❒“ROCK” (predefined equalizer adjust-
ment for best playing of rock and pop
music);
❒“JAZZ” (predefined equalizer adjust-
ment for best playing of jazz music).
When one of the equalizer settings is on,
the display shows “EQ”.*XX EQ SET function
(only if the USER equalizer setting
has been selected)
To set a personal equalizer adjustment,
use button
Nor Oto select USER and
then press button Ofor long.
The display will show for about 2 seconds
“XX EQ SET” and then a graph with 7
bars, where each bar represents a fre-
quency. Choose the bar to be adjusted us-
ing button
÷or ˜; the bar chosen
starts to flash and it is possible to adjust
it using button
Nor O.
To store the new settings, press button
AUD again or wait for about 10 seconds.
The display will show the word “MEN” to-
gether with the graph with 7 bars.
ANTITHEFT PROTECTION
Refer to section “CD PLAYER”. FADER ADJUSTMENT
Proceed as follows:
❒Use button Nor Oto select “FAD-
ER” in the AUDIO menu;
❒press button ÷to increase the
sound from the rear speakers or but-
ton
˜to increase the sound from
the front speakers.
Pressing the buttons briefly the change is
gradual by steps. Pressing longer, changing
is faster.
Select “
÷0 ˜” to set the same val-
ue for both front and rear speakers.
LD FUNCTION
The Loudness function improves the
sound volume when listening at low lev-
el, increasing the basses and trebles.
To switch the function on/off, use button
Nor Oto select “LD” in the AUDIO
menu. The function condition (on or off)
is shown on the display for few seconds
by “LD ON” or “LD OFF”.
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 11

QUICK
GUIDE
12
FUNCTIONS AND
ADJUSTMENTS
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
RADIO
Each band is shown by the respective
wording on the display.
The last station selected in the respective
frequency band will be tuned.
The FM band is divided into sections: FM1,
FM2 and FMT. The FMT reception band is
reserved to the stations stored automati-
cally with the Autostore function.
PRESETTING BUTTONS
The buttons with symbols from 1 to 6
make it possible to set the following pre-
settings:
❒18 in the FM band (6 in FM1, 6 in FM2,
6 in FMT);
❒6 in the MW band;
❒6 in the LW band;
To call a preset station, choose the re-
quired frequency band and then press
briefly the corresponding preset button
(from 1 to 6).Pressing the respective preset button for
longer than 2 seconds will store the tuned
station. Storing is confirmed by a beep.
STORING THE LAST STATION
HEARD
The radio automatically keeps in storage
the last station heard for each reception
band, which is then tuned when the ra-
dio is turned on or the reception band is
changed.

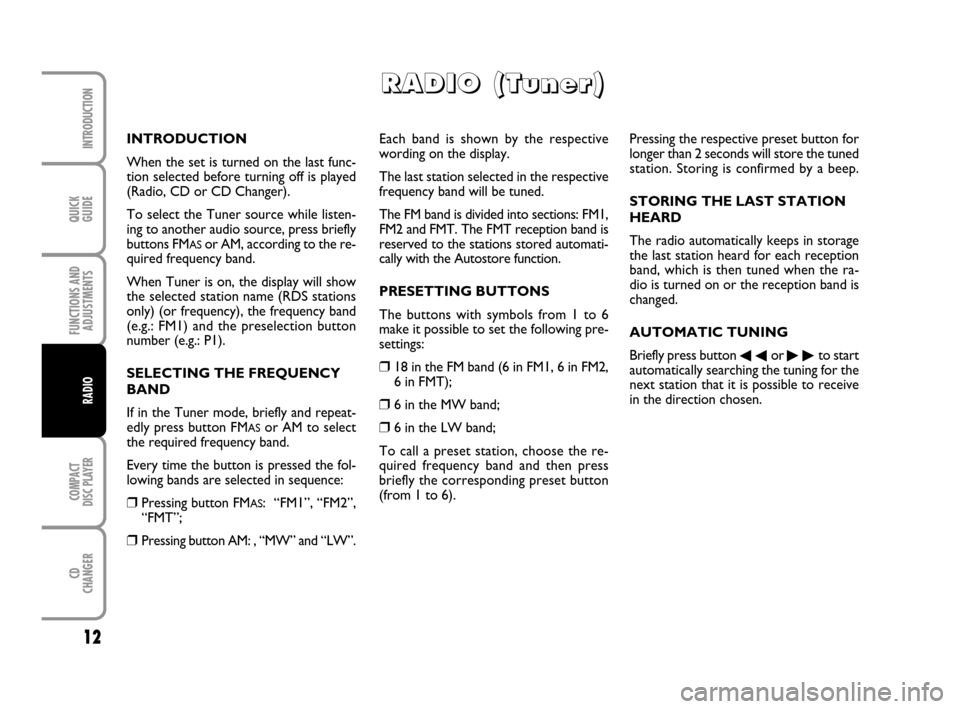

AUTOMATIC TUNING
Briefly press button
÷or ˜to start
automatically searching the tuning for the
next station that it is possible to receive
in the direction chosen. INTRODUCTION
When the set is turned on the last func-
tion selected before turning off is played
(Radio, CD or CD Changer).
To select the Tuner source while listen-
ing to another audio source, press briefly
buttons FM
ASor AM, according to the re-
quired frequency band.
When Tuner is on, the display will show
the selected station name (RDS stations
only) (or frequency), the frequency band
(e.g.: FM1) and the preselection button
number (e.g.: P1).
SELECTING THE FREQUENCY
BAND
If in the Tuner mode, briefly and repeat-
edly press button FM
ASor AM to select
the required frequency band.
Every time the button is pressed the fol-
lowing bands are selected in sequence:
❒Pressing button FMAS: “FM1”, “FM2”,
“FMT”;
❒Pressing button AM: , “MW” and “LW”.
R R R R
A A A A
D D D D
I I I I
O O O O

( ( ( (
T T T T
u u u u
n n n n
e e e e
r r r r
) ) ) )
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 12

13
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
RADIO

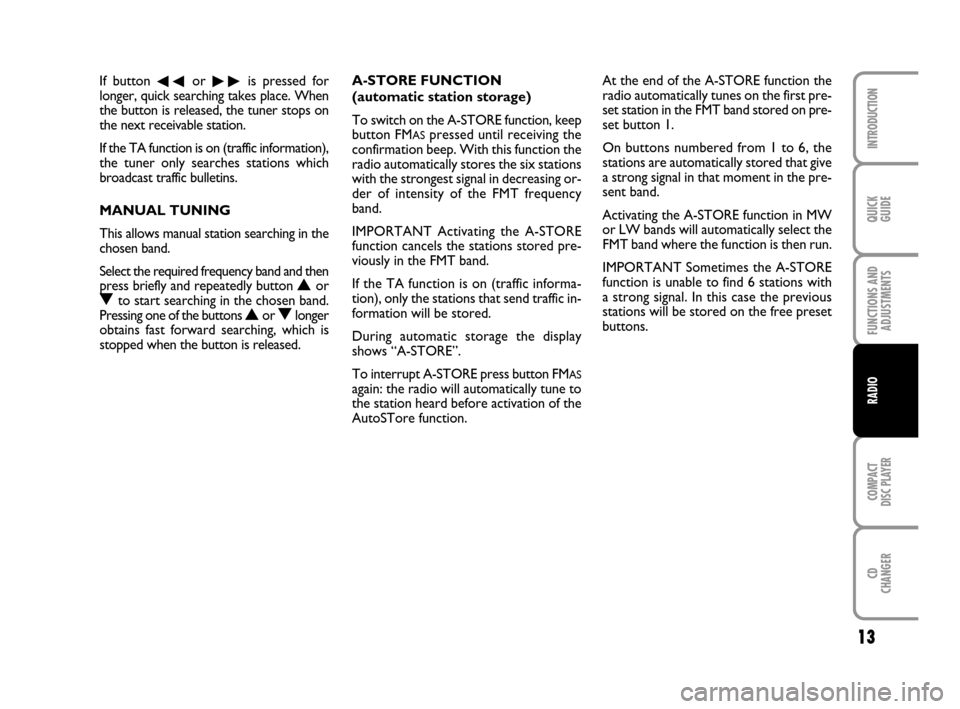

A-STORE FUNCTION
(automatic station storage)
To switch on the A-STORE function, keep
button FM
ASpressed until receiving the
confirmation beep. With this function the
radio automatically stores the six stations
with the strongest signal in decreasing or-
der of intensity of the FMT frequency
band.
IMPORTANT Activating the A-STORE
function cancels the stations stored pre-
viously in the FMT band.
If the TA function is on (traffic informa-
tion), only the stations that send traffic in-
formation will be stored.
During automatic storage the display
shows “A-STORE”.
To interrupt A-STORE press button FM
ASagain: the radio will automatically tune to
the station heard before activation of the
AutoSTore function.At the end of the A-STORE function the
radio automatically tunes on the first pre-
set station in the FMT band stored on pre-
set button 1.
On buttons numbered from 1 to 6, the
stations are automatically stored that give
a strong signal in that moment in the pre-
sent band.
Activating the A-STORE function in MW
or LW bands will automatically select the
FMT band where the function is then run.
IMPORTANT Sometimes the A-STORE
function is unable to find 6 stations with
a strong signal. In this case the previous
stations will be stored on the free preset
buttons. If button
÷or ˜is pressed for
longer, quick searching takes place. When
the button is released, the tuner stops on
the next receivable station.
If the TA function is on (traffic information),
the tuner only searches stations which
broadcast traffic bulletins.
MANUAL TUNING
This allows manual station searching in the
chosen band.
Select the required frequency band and then
press briefly and repeatedly button
NorOto start searching in the chosen band.
Pressing one of the buttons Nor Olonger
obtains fast forward searching, which is
stopped when the button is released.
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 13

QUICK
GUIDE
14
FUNCTIONS AND
ADJUSTMENTS
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
RADIO

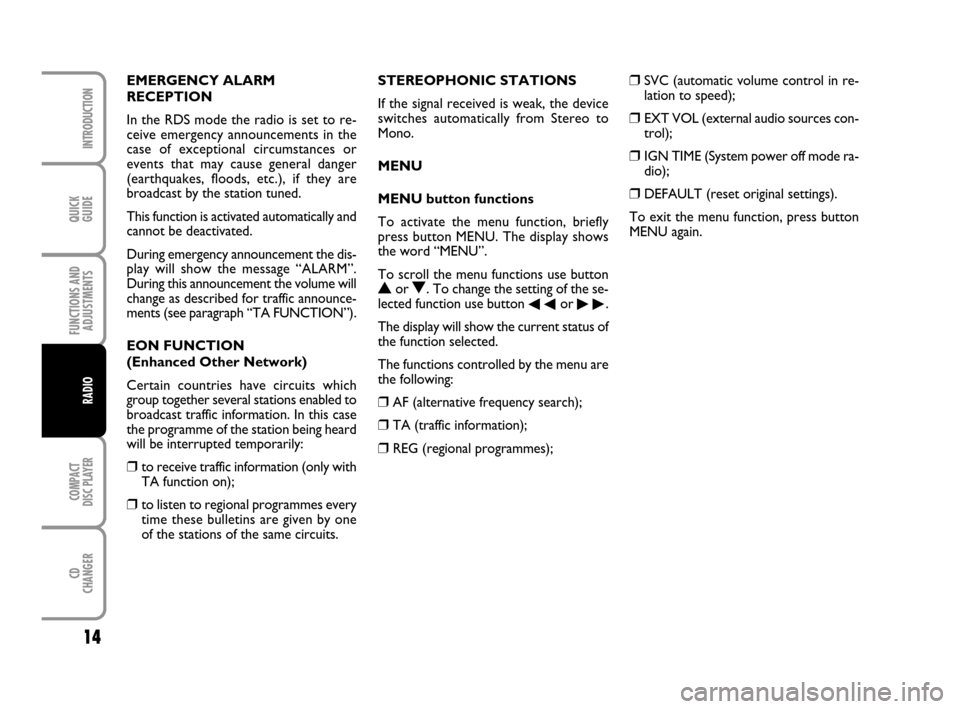

EMERGENCY ALARM
RECEPTION
In the RDS mode the radio is set to re-
ceive emergency announcements in the
case of exceptional circumstances or
events that may cause general danger
(earthquakes, floods, etc.), if they are
broadcast by the station tuned.
This function is activated automatically and
cannot be deactivated.
During emergency announcement the dis-
play will show the message “ALARM”.
During this announcement the volume will
change as described for traffic announce-
ments (see paragraph “TA FUNCTION”).
EON FUNCTION
(Enhanced Other Network)
Certain countries have circuits which
group together several stations enabled to
broadcast traffic information. In this case
the programme of the station being heard
will be interrupted temporarily:
❒to receive traffic information (only with
TA function on);
❒to listen to regional programmes every
time these bulletins are given by one
of the stations of the same circuits.STEREOPHONIC STATIONS
If the signal received is weak, the device
switches automatically from Stereo to
Mono.
MENU
MENU button functions
To activate the menu function, briefly
press button MENU. The display shows
the word “MENU”.
To scroll the menu functions use button
Nor O. To change the setting of the se-
lected function use button
÷or ˜.
The display will show the current status of
the function selected.
The functions controlled by the menu are
the following:
❒AF (alternative frequency search);
❒TA (traffic information);
❒REG (regional programmes);
❒SVC (automatic volume control in re-
lation to speed);
❒EXT VOL (external audio sources con-
trol);
❒IGN TIME (System power off mode ra-
dio);
❒DEFAULT (reset original settings).
To exit the menu function, press button
MENU again.
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 14

15
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
RADIO

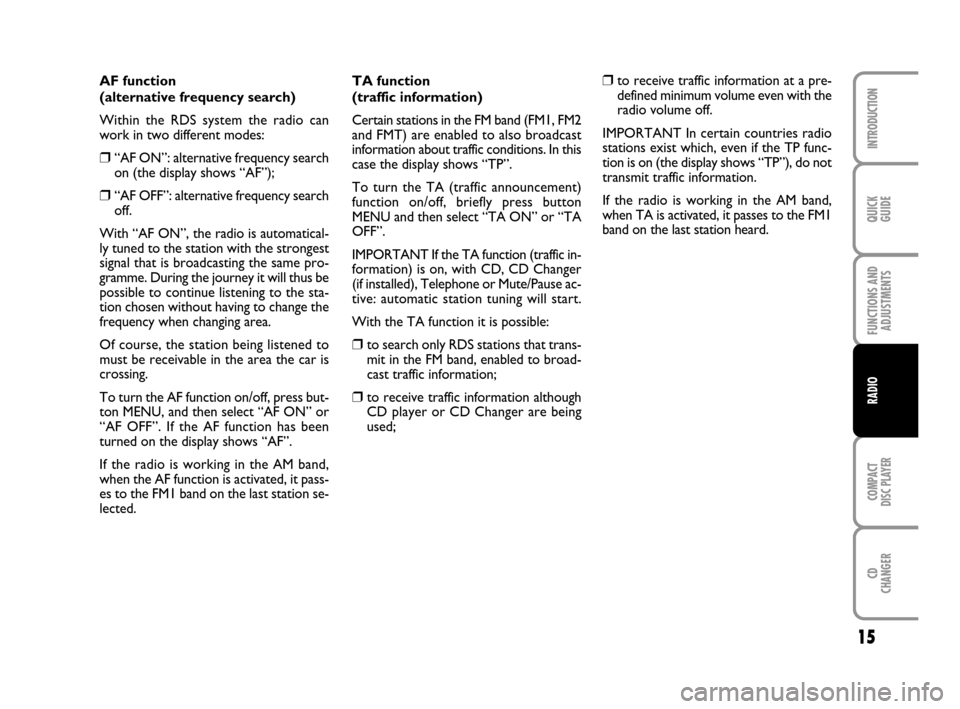

TA function
(traffic information)
Certain stations in the FM band (FM1, FM2
and FMT) are enabled to also broadcast
information about traffic conditions. In this
case the display shows “TP”.
To turn the TA (traffic announcement)
function on/off, briefly press button
MENU and then select “TA ON” or “TA
OFF”.
IMPORTANT If the TA function (traffic in-
formation) is on, with CD, CD Changer
(if installed), Telephone or Mute/Pause ac-
tive: automatic station tuning will start.
With the TA function it is possible:
❒to search only RDS stations that trans-
mit in the FM band, enabled to broad-
cast traffic information;
❒to receive traffic information although
CD player or CD Changer are being
used;
❒to receive traffic information at a pre-
defined minimum volume even with the
radio volume off.
IMPORTANT In certain countries radio
stations exist which, even if the TP func-
tion is on (the display shows “TP”), do not
transmit traffic information.
If the radio is working in the AM band,
when TA is activated, it passes to the FM1
band on the last station heard. AF function
(alternative frequency search)
Within the RDS system the radio can
work in two different modes:
❒“AF ON”: alternative frequency search
on (the display shows “AF”);
❒“AF OFF”: alternative frequency search
off.
With “AF ON”, the radio is automatical-
ly tuned to the station with the strongest
signal that is broadcasting the same pro-
gramme. During the journey it will thus be
possible to continue listening to the sta-
tion chosen without having to change the
frequency when changing area.
Of course, the station being listened to
must be receivable in the area the car is
crossing.
To turn the AF function on/off, press but-
ton MENU, and then select “AF ON” or
“AF OFF”. If the AF function has been
turned on the display shows “AF”.
If the radio is working in the AM band,
when the AF function is activated, it pass-
es to the FM1 band on the last station se-
lected.
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 15

QUICK
GUIDE
16
FUNCTIONS AND
ADJUSTMENTS
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
RADIO

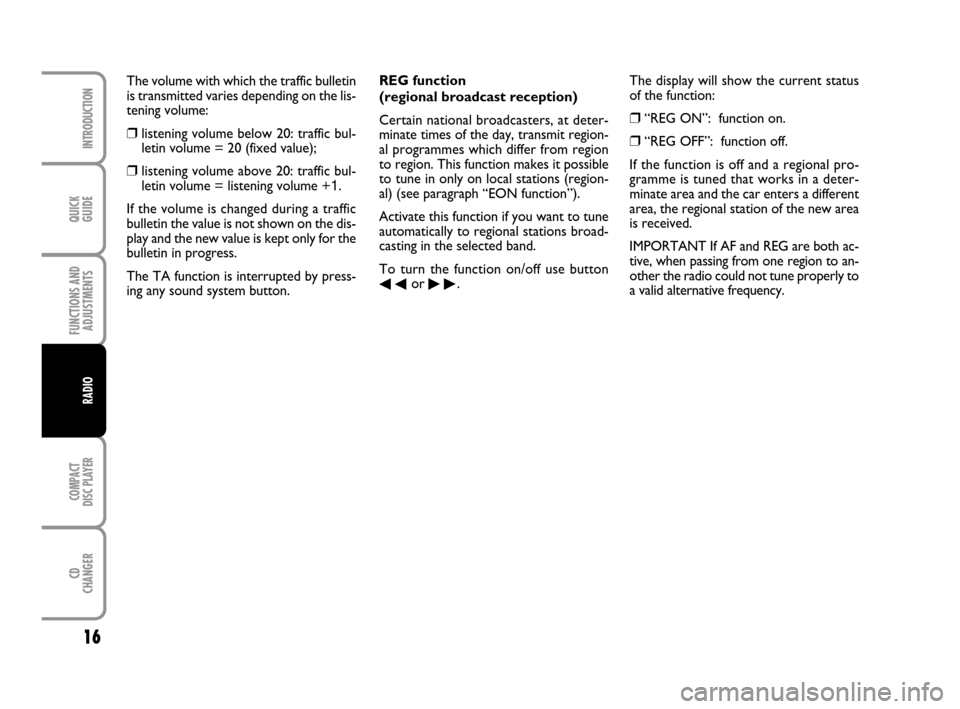

REG function
(regional broadcast reception)
Certain national broadcasters, at deter-
minate times of the day, transmit region-
al programmes which differ from region
to region. This function makes it possible
to tune in only on local stations (region-
al) (see paragraph “EON function”).
Activate this function if you want to tune
automatically to regional stations broad-
casting in the selected band.
To turn the function on/off use button
÷or ˜.The display will show the current status
of the function:
❒“REG ON”: function on.
❒“REG OFF”: function off.
If the function is off and a regional pro-
gramme is tuned that works in a deter-
minate area and the car enters a different
area, the regional station of the new area
is received.
IMPORTANT If AF and REG are both ac-
tive, when passing from one region to an-
other the radio could not tune properly to
a valid alternative frequency. The volume with which the traffic bulletin
is transmitted varies depending on the lis-
tening volume:❒listening volume below 20: traffic bul-
letin volume = 20 (fixed value);
❒listening volume above 20: traffic bul-
letin volume = listening volume +1.
If the volume is changed during a traffic
bulletin the value is not shown on the dis-
play and the new value is kept only for the
bulletin in progress.
The TA function is interrupted by press-
ing any sound system button.
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 16

17
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
RADIO

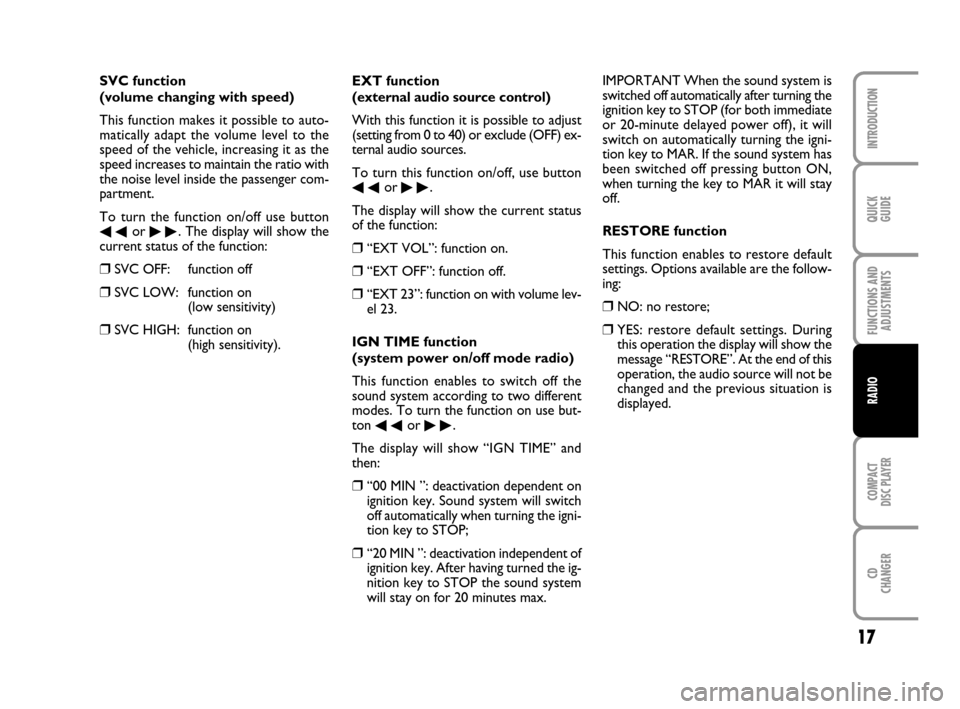

EXT function
(external audio source control)
With this function it is possible to adjust
(setting from 0 to 40) or exclude (OFF) ex-
ternal audio sources.
To turn this function on/off, use button
÷or ˜.
The display will show the current status
of the function:
❒“EXT VOL”: function on.
❒“EXT OFF”: function off.
❒“EXT 23”: function on with volume lev-
el 23.
IGN TIME function
(system power on/off mode radio)
This function enables to switch off the
sound system according to two different
modes. To turn the function on use but-
ton
÷or ˜.
The display will show “IGN TIME” and
then:
❒“00 MIN ”: deactivation dependent on
ignition key. Sound system will switch
off automatically when turning the igni-
tion key to STOP;
❒“20 MIN ”: deactivation independent of
ignition key. After having turned the ig-
nition key to STOP the sound system
will stay on for 20 minutes max.IMPORTANT When the sound system is
switched off automatically after turning the
ignition key to STOP (for both immediate
or 20-minute delayed power off), it will
switch on automatically turning the igni-
tion key to MAR. If the sound system has
been switched off pressing button ON,
when turning the key to MAR it will stay
off.
RESTORE function
This function enables to restore default
settings. Options available are the follow-
ing:
❒NO: no restore;
❒YES: restore default settings. During
this operation the display will show the
message “RESTORE”. At the end of this
operation, the audio source will not be
changed and the previous situation is
displayed. SVC function
(volume changing with speed)
This function makes it possible to auto-
matically adapt the volume level to the
speed of the vehicle, increasing it as the
speed increases to maintain the ratio with
the noise level inside the passenger com-
partment.
To turn the function on/off use button
÷or ˜. The display will show the
current status of the function:
❒SVC OFF: function off
❒SVC LOW: function on
(low sensitivity)
❒SVC HIGH: function on
(high sensitivity).
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 17

QUICK
GUIDE
18
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD
CHANGER
INTRODUCTION
COMPACT
DISC PLAYER

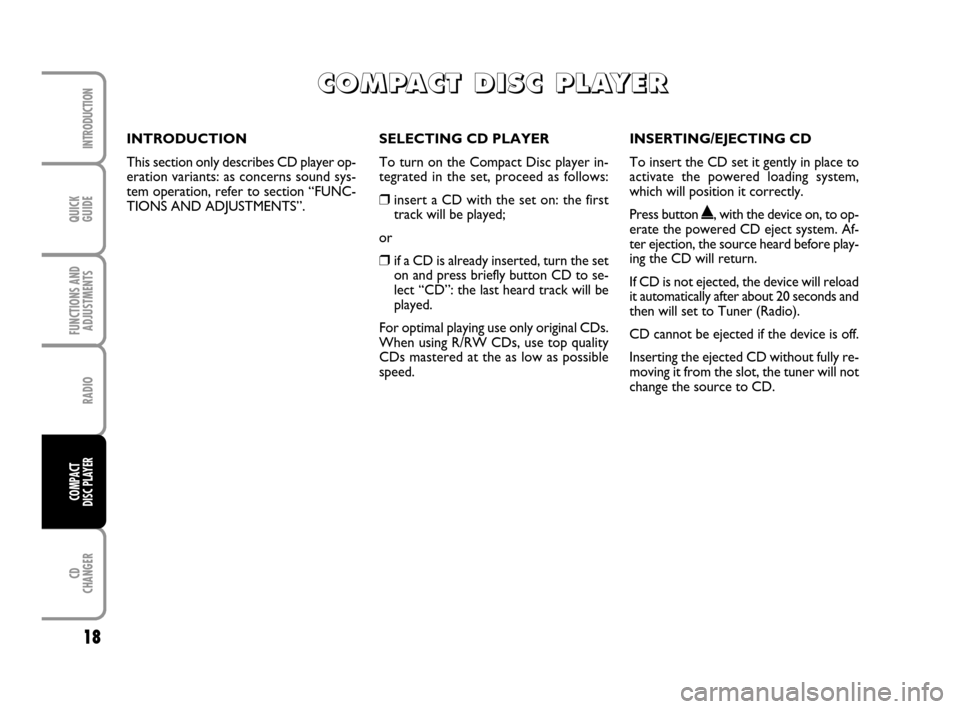

SELECTING CD PLAYER
To turn on the Compact Disc player in-
tegrated in the set, proceed as follows:
❒insert a CD with the set on: the first
track will be played;
or
❒if a CD is already inserted, turn the set
on and press briefly button CD to se-
lect “CD”: the last heard track will be
played.
For optimal playing use only original CDs.
When using R/RW CDs, use top quality
CDs mastered at the as low as possible
speed.INSERTING/EJECTING CD
To insert the CD set it gently in place to
activate the powered loading system,
which will position it correctly.
Press button
˚, with the device on, to op-
erate the powered CD eject system. Af-
ter ejection, the source heard before play-
ing the CD will return.
If CD is not ejected, the device will reload
it automatically after about 20 seconds and
then will set to Tuner (Radio).
CD cannot be ejected if the device is off.
Inserting the ejected CD without fully re-
moving it from the slot, the tuner will not
change the source to CD. INTRODUCTION
This section only describes CD player op-
eration variants: as concerns sound sys-
tem operation, refer to section “FUNC-
TIONS AND ADJUSTMENTS”.
C C C C
O O O O
M M M M
P P P P
A A A A
C C C C
T T T T

D D D D
I I I I
S S S S
C C C C

P P P P
L L L L
A A A A
Y Y Y Y
E E E E
R R R R
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 18

19
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD
CHANGER
INTRODUCTION
COMPACT
DISC PLAYER

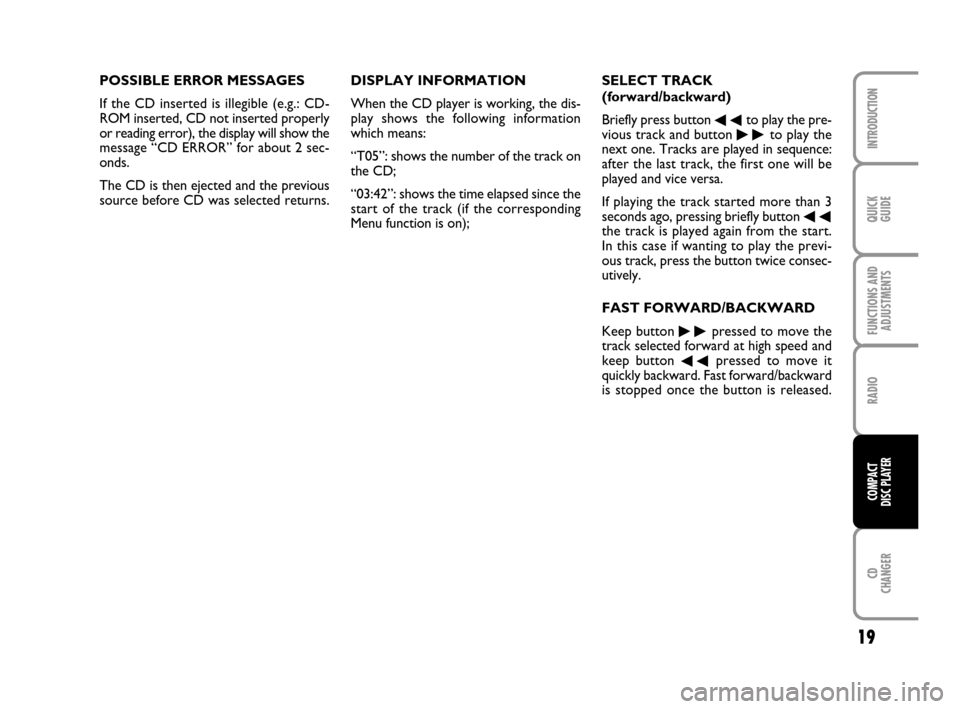

POSSIBLE ERROR MESSAGES
If the CD inserted is illegible (e.g.: CD-
ROM inserted, CD not inserted properly
or reading error), the display will show the
message “CD ERROR” for about 2 sec-
onds.
The CD is then ejected and the previous
source before CD was selected returns.DISPLAY INFORMATION
When the CD player is working, the dis-
play shows the following information
which means:
“T05”: shows the number of the track on
the CD;
“03:42”: shows the time elapsed since the
start of the track (if the corresponding
Menu function is on);SELECT TRACK
(forward/backward)
Briefly press button
÷to play the pre-
vious track and button
˜to play the
next one. Tracks are played in sequence:
after the last track, the first one will be
played and vice versa.
If playing the track started more than 3
seconds ago, pressing briefly button
÷the track is played again from the start.
In this case if wanting to play the previ-
ous track, press the button twice consec-
utively.
FAST FORWARD/BACKWARD
Keep button
˜pressed to move the
track selected forward at high speed and
keep button
÷pressed to move it
quickly backward. Fast forward/backward
is stopped once the button is released.
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 19
