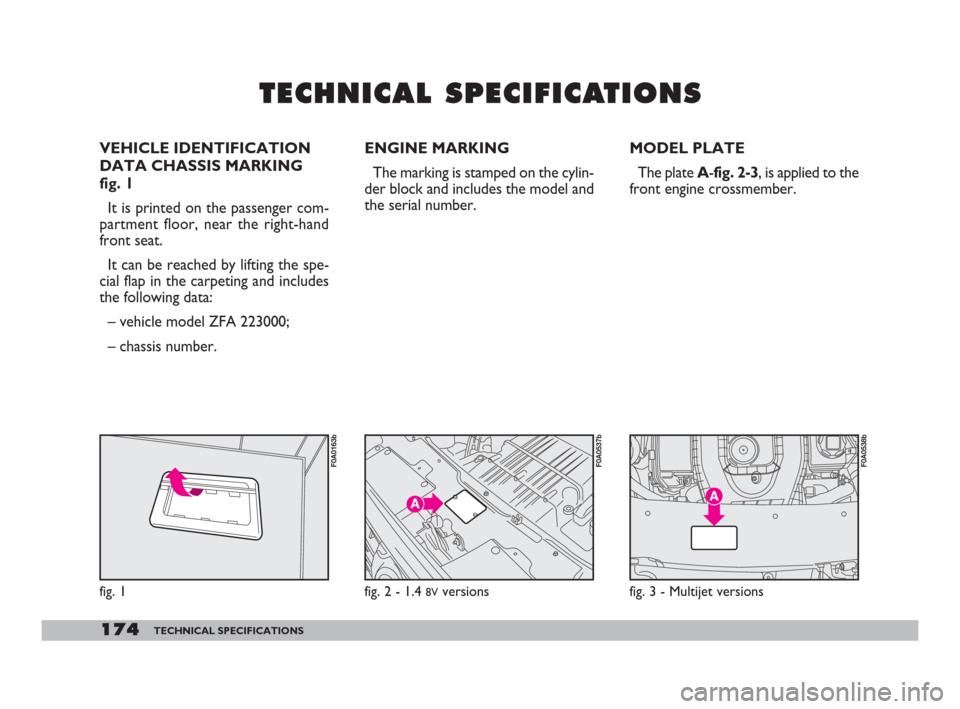

174TECHNICAL SPECIFICATIONS
VEHICLE IDENTIFICATION
DATA CHASSIS MARKING
fig. 1
It is printed on the passenger com-
partment floor, near the right-hand
front seat.
It can be reached by lifting the spe-
cial flap in the carpeting and includes
the following data:
– vehicle model ZFA 223000;
– chassis number.MODEL PLATE
The plate A-fig. 2-3, is applied to the
front engine crossmember.
T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
fig. 1
F0A0163b
fig. 2 - 1.4 8Vversions
F0A0537b
fig. 3 - Multijet versions
F0A0538b
ENGINE MARKING
The marking is stamped on the cylin-
der block and includes the model and
the serial number.
174-211 Doblo GB 16-12-2008 14:26 Pagina 174
Page 176 of 222

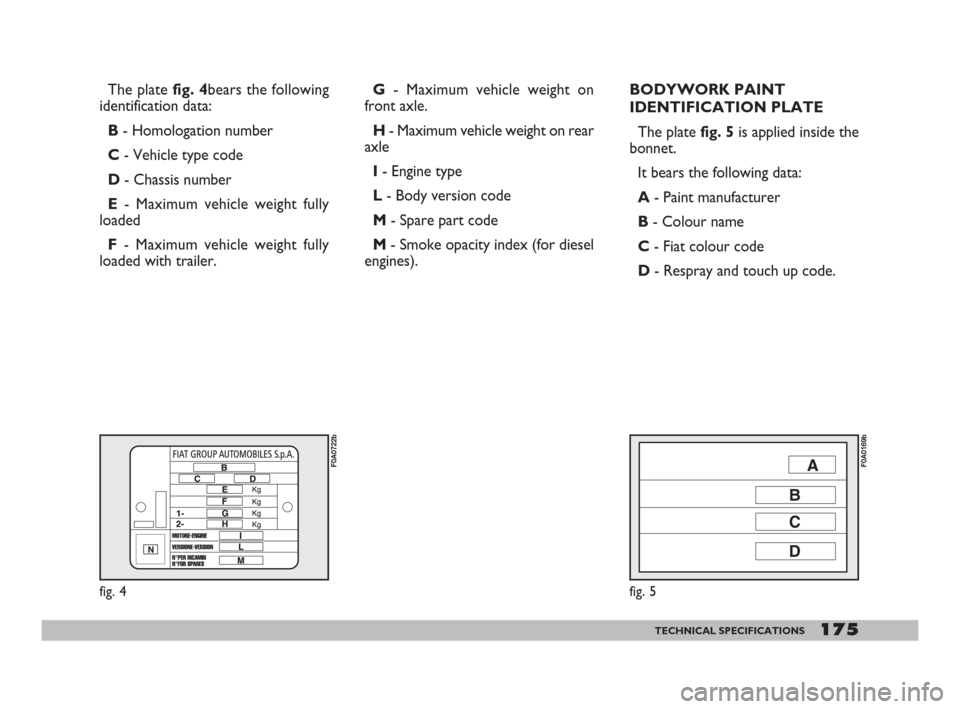

The plate fig. 4bears the following
identification data:
B - Homologation number
C - Vehicle type code
D - Chassis number
E - Maximum vehicle weight fully
loaded
F- Maximum vehicle weight fully
loaded with trailer.G- Maximum vehicle weight on
front axle.
H - Maximum vehicle weight on rear
axle
I - Engine type
L - Body version code
M - Spare part code
M - Smoke opacity index (for diesel
engines).BODYWORK PAINT
IDENTIFICATION PLATE
The plate fig. 5is applied inside the
bonnet.
It bears the following data:
A - Paint manufacturer
B - Colour name
C - Fiat colour code
D- Respray and touch up code.
fig. 4
F0A0722bA
B
C
D
fig. 5
F0A0169b
