REAR VIEW MIRRORS
INTERIOR REAR VIEW MIRROR fig. 35
(for versions/markets where available)
The mirror is fitted with a safety device that causes its re-
lease in the event of a violent impact with the passenger.
Lever A can be used to move the mirror to two different
positions: normal or antiglare.
When driving, the mirrors should always
be in position A-fig. 36.
Because the door mirrors are curved, they slight-
ly alter the perception of distance.
WARNING
DOOR MIRRORS
Manual mirror folding
When required (for example when the shape causes dif-
ficulty in narrow spaces), it is possible to fold the mirrors
by moving them from position A-fig. 36 to position B.

41
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Manual adjustment
From inside the vehicle, use device A-fig. 37.
Electrical adjustment
(for versions/markets where provided)
You can only adjust the door mirrors electrically when the
ignition key is turned to MAR.
Proceed as follows:
❒use switch A-fig. 38 to select the desired door mirror
(left or right);
❒move switch A to position B and manipulate it to ad-
just the left door mirror;
❒move switch A to position D and manipulate it to ad-
just the right door mirror.
Once you have finished the adjustment, return switch A
to intermediate locking position C.
F0V0120mfig. 37F0V0015mfig. 38

42
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
fig. 39F0V0016m
HEATING AND VENTILATION SYSTEM
1. Upper fixed diffuser – 2. Adjustable central diffusers – 3. Fixed side diffusers – 4. Adjustable side diffusers
– 5. Footwell diffusers.

43
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0017mfig. 40 – vent openF0V0018mfig. 41 – vent closed
ADJUSTABLE CENTRAL AND SIDE
DIFFUSERS figs. 40-41
Use tab A to adjust the diffusers as required. To close the vents, slide tab A sideways from position
1-fig. 40 to position 2-fig. 41.

44
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

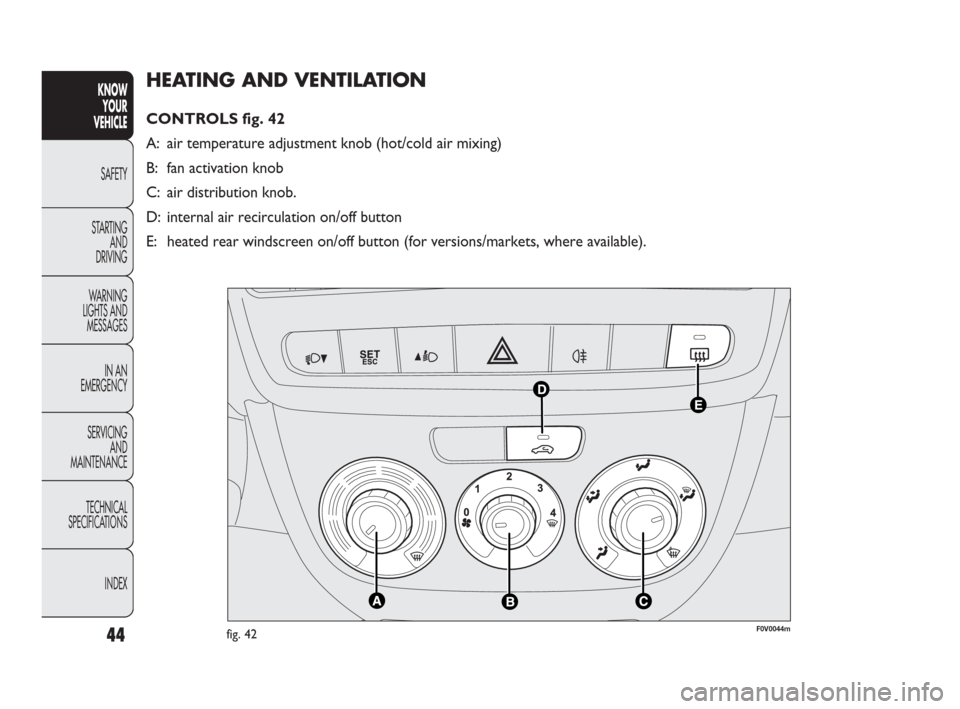

HEATING AND VENTILATION
CONTROLS fig. 42
A: air temperature adjustment knob (hot/cold air mixing)
B: fan activation knob
C: air distribution knob.
D: internal air recirculation on/off button
E: heated rear windscreen on/off button (for versions/markets, where available).
F0V0044mfig. 42

45
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
FAST HEATING
Proceed as follows:
❒close all the diffusers in the dashboard;
❒turn knob A to -;
❒turn knob B to 4 -;
❒turn knob C to ©.
RAPID WINDSCREEN AND FRONT SIDE
WINDOWS DEMISTING/
DEFROSTING
(MAX-DEF function)
Proceed as follows:
❒turn knob A to -;
❒turn knob B to 4 -;
❒turn knob C to -;
❒turn off internal air recirculation (button D LED off).
After demisting/defrosting, operate the controls as nor-
mal to restore the required comfort. TEMPERATURE COMFORT
Knob C enables the air introduced into the vehicle to reach
all parts of the passenger compartment through five dis-
tribution options:
¶delivers air from central and side diffusers;
ßwarms the feet and keeps the face cool (bi-level func-
tion)
©warms up the passenger compartment more quickly;
®warms up the passenger compartment and, at the same
time, demists the windscreen;
-demists and defrosts the windscreen and front side win-
dows.
HEATING
Proceed as follows:
❒turn knob A fully to the right (to -);
❒turn knob B to the required speed;
❒turn knob C to:
®to warm the feet and, at the same time, demist the
windscreen;
ßto send air to the feet and introduce fresher air
from the central and dashboard diffusers;
©to warm up quickly.

46
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
INTERNAL AIR RECIRCULATION
ACTIVATION
Press button D: when the function is on, the button LED
lights up.
It is advisable to switch the internal air recirculation on
while standing in queues or in tunnels to prevent the in-
troduction of polluted air.
Do not use the function for a long time, particularly if there
are several passengers on board, to prevent the windows
from steaming up.
WARNING The air recirculation system makes it possi-
ble to reach the required heating or cooling conditions
faster. Do not use the air recirculation function on
rainy/cold days as it would considerably increase the pos-
sibility of the windows misting up.
HEATED REAR WINDSCREEN AND DOOR
MIRRORS DEMISTING/DEFROSTING
(for versions/markets where provided)
Press button E
(to activate this function. The LED on
the button comes on to indicate activation.
Press button E
(again to disable the function.
WARNING Do not apply stickers to the inside of the heat-
ed rear windscreen over the heating filaments to avoid
damage that might cause it to stop working properly. Window demisting
In the event of considerable external moisture and/or rain
and/or large differences in temperature inside and outside
the passenger compartment, perform the following pre-
ventive window demisting procedure:
❒turn off internal air recirculation (button D LED off);
❒turn knob A to -;
❒turn knob B to 2;
❒turn knob C to -with the option of moving to posi-
tion
®if there is no sign of the windows steaming up.
REGULATING THE FAN SPEED
To ventilate the passenger compartment properly, pro-
ceed as follows:
❒fully open the central and side air diffusers;
❒turn knob A to the blue section;
❒turn knob B to the required speed;
❒turn knob C to ¶;
❒turn off internal air recirculation (button D LED off).

47
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

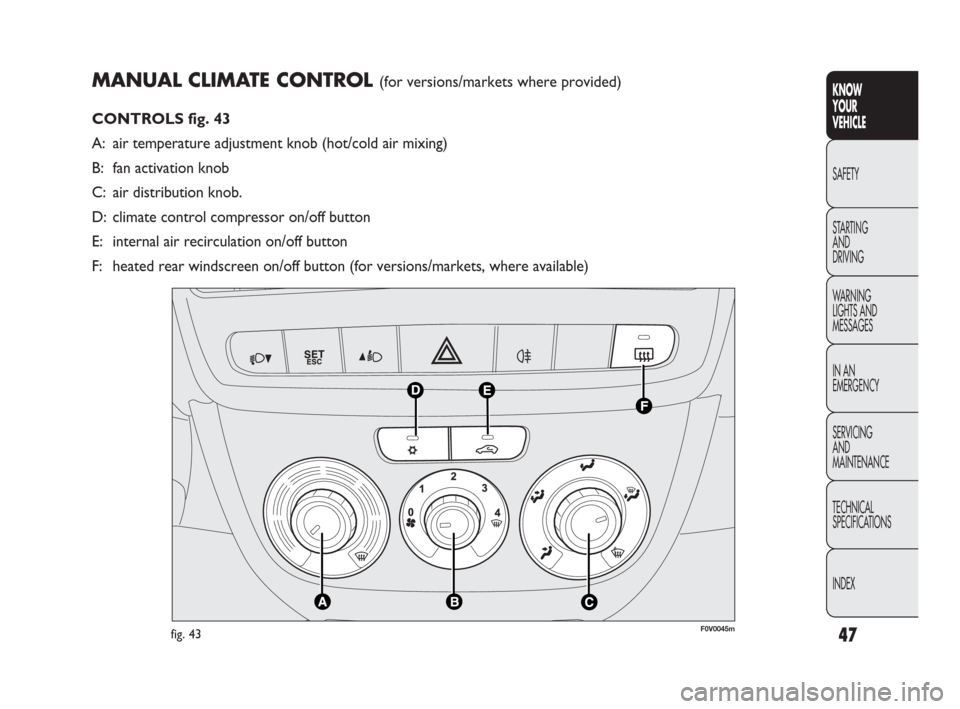

MANUAL CLIMATE CONTROL (for versions/markets where provided)
CONTROLS fig. 43
A: air temperature adjustment knob (hot/cold air mixing)
B: fan activation knob
C: air distribution knob.
D: climate control compressor on/off button
E: internal air recirculation on/off button
F: heated rear windscreen on/off button (for versions/markets, where available)
F0V0045mfig. 43

48
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Once the demisting/defrosting is complete, use the con-
trols as normal to maintain optimum visibility.
Window demisting
In the event of considerable external moisture and/or rain
and/or large differences in temperature inside and outside
the passenger compartment, perform the following pre-
ventive window demisting procedure:
❒press button ❄;
❒turn off internal air recirculation (button E LED off);
❒turn knob A to the red section;
❒turn knob B to the second speed level;
❒turn knob C to -or to ®if there is no sign of the
windows steaming up.
The climate control system is very useful for demisting the
windows more quickly: just carry out the above procedure
and activate the system by pressing

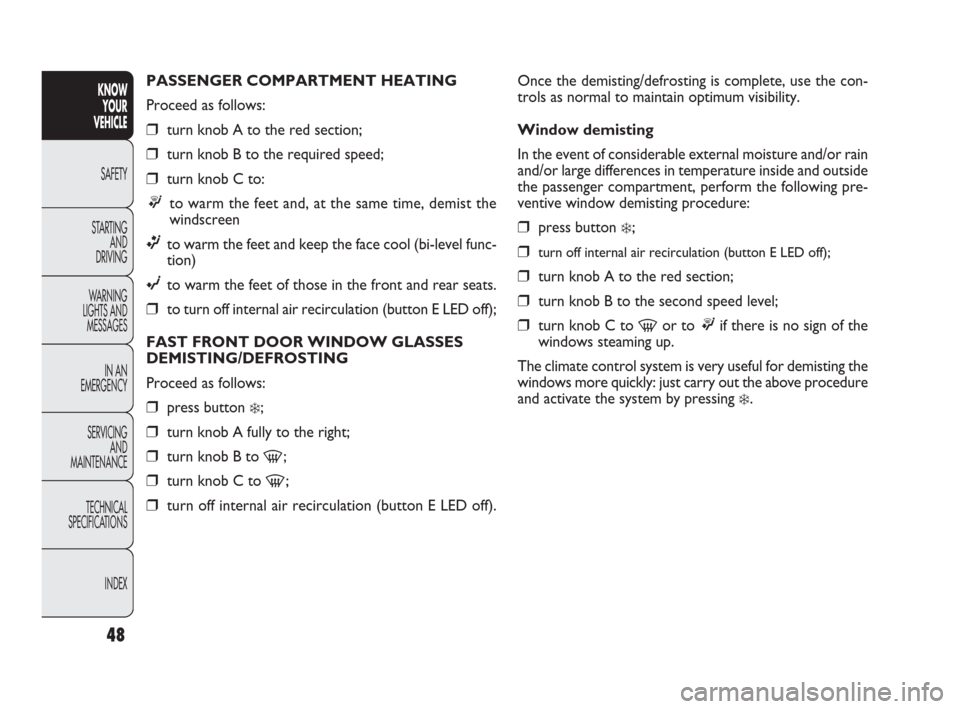

❄. PASSENGER COMPARTMENT HEATING
Proceed as follows:
❒turn knob A to the red section;
❒turn knob B to the required speed;
❒turn knob C to:
®to warm the feet and, at the same time, demist the
windscreen
ßto warm the feet and keep the face cool (bi-level func-
tion)
©to warm the feet of those in the front and rear seats.
❒to turn off internal air recirculation (button E LED off);
FAST FRONT DOOR WINDOW GLASSES
DEMISTING/DEFROSTING
Proceed as follows:
❒press button ❄;
❒turn knob A fully to the right;
❒turn knob B to -;
❒turn knob C to -;
❒turn off internal air recirculation (button E LED off).

49
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
INTERNAL AIR RECIRCULATION
ACTIVATION
Press button E: when the function is on, the button LED
lights up.
It is advisable to switch the internal air recirculation on
while standing in queues or in tunnels to prevent the in-
troduction of polluted air. Do not use the function for a
long time, particularly if there are many passengers on
board, to prevent the windows from misting up.
WARNING The air recirculation system makes it possi-
ble to reach the required heating or cooling conditions
faster. It is not advisable to switch the air recirculation
on when it is rainy/cold or the windows might steam up,
especially if the climate control system is not turned on.
CLIMATE CONTROL (cooling)
Proceed as follows:
❒turn knob A to the blue section;
❒turn knob B to the required speed;
❒turn knob C to ¶;
❒press buttons ❄and E (button LEDs on). HEATED REAR WINDSCREEN AND DOOR
MIRRORS DEMISTING/DEFROSTING
(for versions/markets where provided)
Press button F (to activate; when this function is on, the
LED on button F (lights up.
This function is timed and will turn off automatically after
20 minutes. Press button F (again to switch it off before
20 minutes elapse.
WARNING Do not apply stickers to the inside of the heat-
ed rear windscreen over the heating filaments to avoid
damage that might cause it to stop working properly.
REGULATING THE FAN SPEED
To ventilate the passenger compartment properly, pro-
ceed as follows:
❒fully open the central and side air diffusers;
❒turn knob A to the blue section;
❒turn knob B to the required speed;
❒turn knob C to ¶;
❒turn off internal air recirculation (button E LED off).
