INTRODUCTION .................................................................. 3
Suggestions ............................................................................... 3
Technical specifications .......................................................... 5
QUICK GUIDE ........................................................................ 6
Steering wheel controls ......................................................... 9
General information ............................................................... 10
FUNCTIONS AND ADJUSTMENTS ................................. 12
Turning the car radio on ....................................................... 12
Turning the car radio off .......................................................12
Selecting the Radio functions ................................................ 12
Selecting the CD function .....................................................12
Audio source memory function ........................................... 12
Volume adjustment ................................................................. 12
Mute/Pause function ............................................................... 12
Audio adjustments .................................................................. 13
Tone adjustment ..................................................................... 13
Balance adjustment ................................................................. 13
Fader adjustment ..................................................................... 14
Loudness adjustment .............................................................. 14
Menu .......................................................................................... 15
Telephone preparation .......................................................... 19
Antitheft protection ............................................................... 20
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 1
Page 3 of 34
Display readings ....................................................................... 29
Selecting the next/
previous folder with hybrid discs ......................................... 29
Structure of the folders ......................................................... 29TROUBLESHOOTING ......................................................... 30
General ...................................................................................... 30
CD player ................................................................................. 30
MP3 File reading ...................................................................... 30
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 2
Page 4 of 34
3

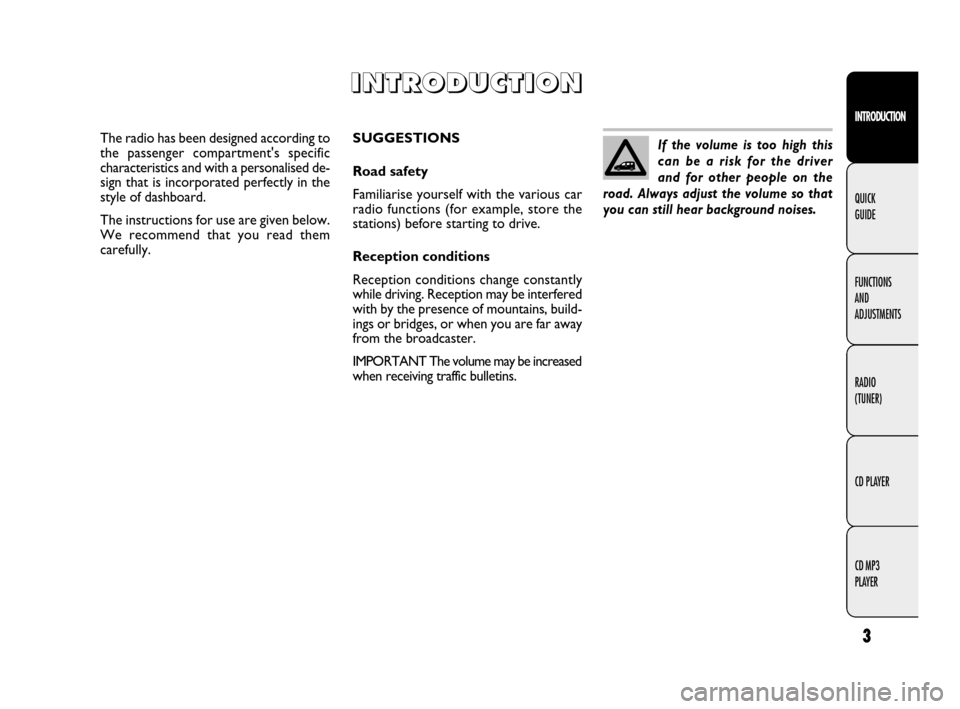

INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER QUICK
GUIDE
SUGGESTIONS
Road safety
Familiarise yourself with the various car
radio functions (for example, store the
stations) before starting to drive.
Reception conditions
Reception conditions change constantly
while driving. Reception may be interfered
with by the presence of mountains, build-
ings or bridges, or when you are far away
from the broadcaster.
IMPORTANT The volume may be increased
when receiving traffic bulletins.
I I
N N
T T
R R
O O
D D
U U
C C
T T
I I
O O
N N
The radio has been designed according to
the passenger compartment's specific
characteristics and with a personalised de-
sign that is incorporated perfectly in the
style of dashboard.
The instructions for use are given below.
We recommend that you read them
carefully.If the volume is too high this
can be a risk for the driver
and for other people on the
road. Always adjust the volume so that
you can still hear background noises.
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 3
Page 5 of 34
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
4
QUICK
GUIDE
❒clean every CD thoroughly removing
any fingermarks or dust using a soft
cloth. Hold CDs by the outside and
clean them from the middle outwards;
❒never use chemical products (e.g. anti-
statics or thinners or sprays) for clean-
ing as they could damage the surface
of the CDs;
❒after listening to them place CDs back
in their casings to avoid damage to them;
❒do not expose CDs to direct sunlight,
high temperatures or dampness for long
periods;
❒do not stick labels on the surface of the
CD and do not write on the recorded
surface using pens or pencils;
❒do not use CDs that are very scratched,
flawed, distorted, etc. Using discs like this
will result in malfunctions or damage to
the player;
❒the use of original CD supports is re-
quired for the best quality audio pro-
duction. If CD-R/RWs that have not been
correctly mastered and/or with a maxi-
mum capacity above 650 MB are used,
correct operation is not guaranteed;
❒do not use the protective sleeves sold
for CDs or discs with stabilizers, etc.
because they could get stuck in the in-

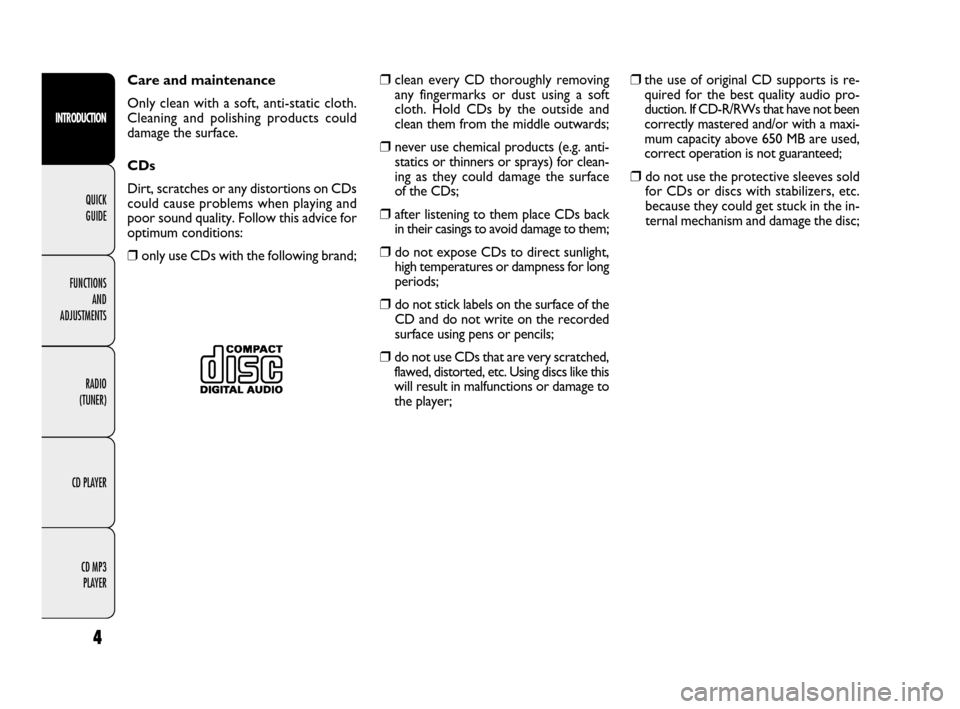

ternal mechanism and damage the disc; Care and maintenance
Only clean with a soft, anti-static cloth.
Cleaning and polishing products could
damage the surface.
CDs
Dirt, scratches or any distortions on CDs
could cause problems when playing and
poor sound quality. Follow this advice for
optimum conditions:
❒only use CDs with the following brand;
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 4
Page 6 of 34
5
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER QUICK
GUIDE
❒ The CD player is capable of reading
most compression systems currently
in use (e.g.: LAME, BLADE, XING,
FRAUNHOFER) but, following the de-
velopment of these systems, the read-
ing of all compression formats is not
guaranteed. ❒ if copy protected CDs are used, it may
take a few seconds before the system
starts playing them. The CD player can-
not be guaranteed to play all protected
discs. The fact that the CD is protected
from being copied is often shown in very
small letters or is difficult to read on the
actual CD cover where it may be, for ex-
ample, “COPY CONTROL”, “COPY
PROTECTED”, “THIS CD CANNOT
BE PLAYED ON A PC/MAC”, or it may
be identified through the use of symbols,

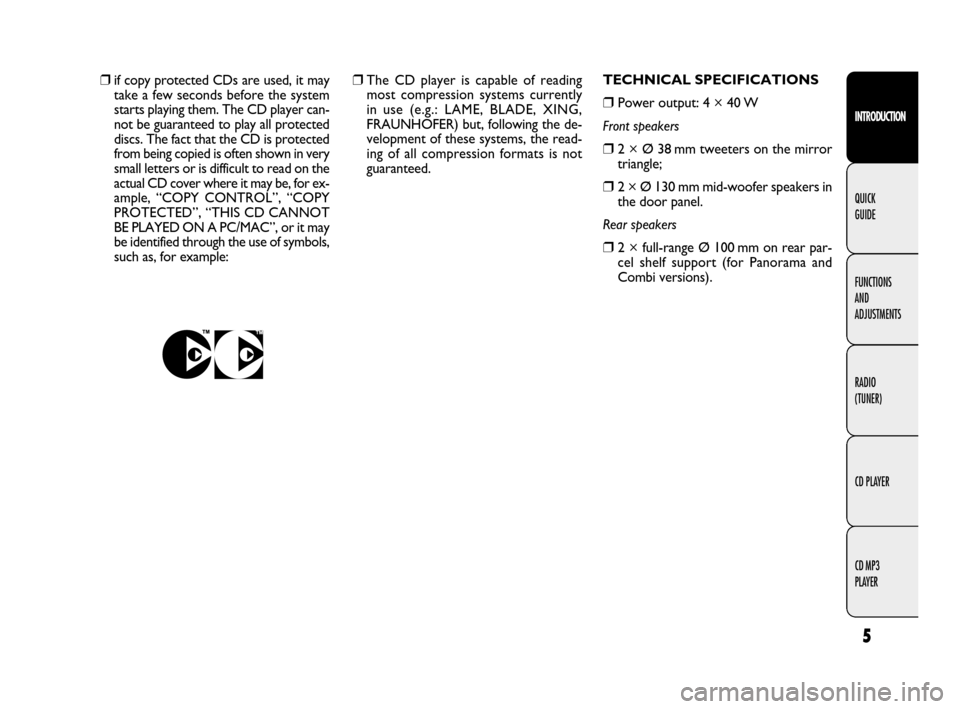

such as, for example:TECHNICAL SPECIFICATIONS
❒Power output: 4 × 40 W
Front speakers
❒2 × Ø 38 mm tweeters on the mirror
triangle;
❒2 × Ø 130 mm mid-woofer speakers in
the door panel.
Rear speakers
❒2 × full-range Ø 100 mm on rear par-
cel shelf support (for Panorama and
Combi versions).
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 5
Page 7 of 34
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
6
QUICK
GUIDE
Q Q
U U
I I
C C
K K
G G
U U
I I
D D
E E
Button
FM AS
AM

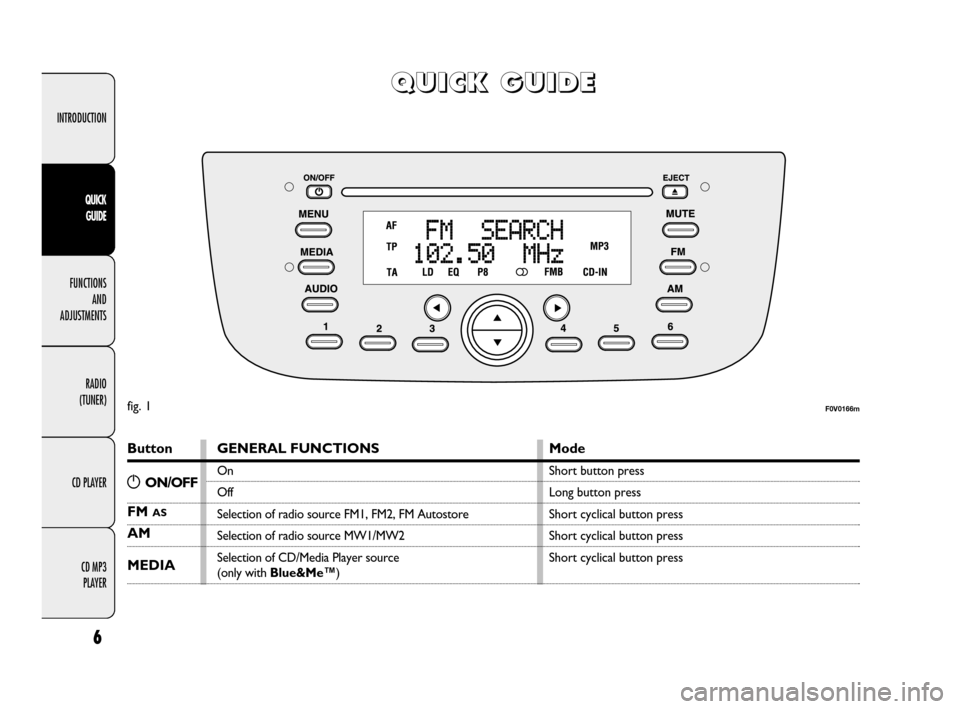

MEDIA
GENERAL FUNCTIONS
On
Off
Selection of radio source FM1, FM2, FM Autostore
Selection of radio source MW1/MW2
Selection of CD/Media Player source
(only with Blue&Me™)
Mode
Short button press
Long button press
Short cyclical button press
Short cyclical button press
Short cyclical button press
F0V0166m
gON/OFF
fig. 1
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 6
Page 8 of 34
Button
▲
¯˙▼
1 2 3 4 5 6
RADIO FUNCTIONS
Radio station search:
– Automatic search
– Manual search
Programming current radio station
Stored station recall
Mode
Automatic search: pressing buttons ¯or ˙
(long press for fast forward)
Manual search: pressing buttons ▲or ▼
(long press for fast forward)
Long button press for memory preset 1 to 6
Short button press for
memory preset 1 to 6
7
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
QUICK
GUIDE
Button
MUTE
AUDIO
MENU

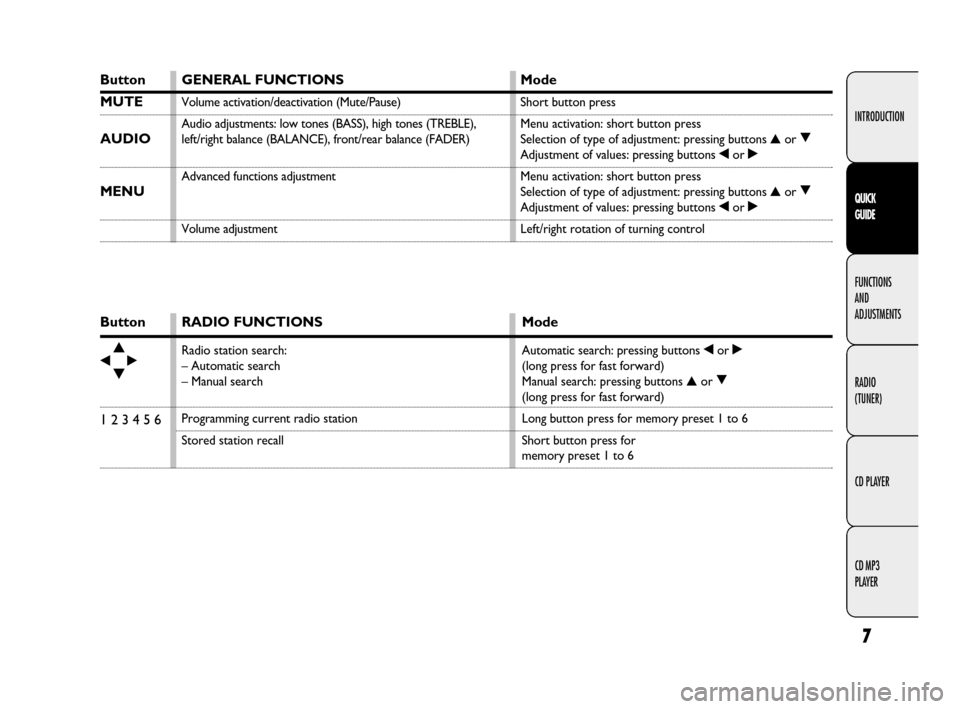

GENERAL FUNCTIONS
Volume activation/deactivation (Mute/Pause)
Audio adjustments: low tones (BASS), high tones (TREBLE),
left/right balance (BALANCE), front/rear balance (FADER)
Advanced functions adjustment
Volume adjustment
Mode
Short button press
Menu activation: short button press
Selection of type of adjustment: pressing buttons ▲or ▼
Adjustment of values: pressing buttons ¯or ˙
Menu activation: short button press
Selection of type of adjustment: pressing buttons ▲or ▼
Adjustment of values: pressing buttons ¯or ˙
Left/right rotation of turning control
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 7
Page 9 of 34
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
8
QUICK
GUIDE

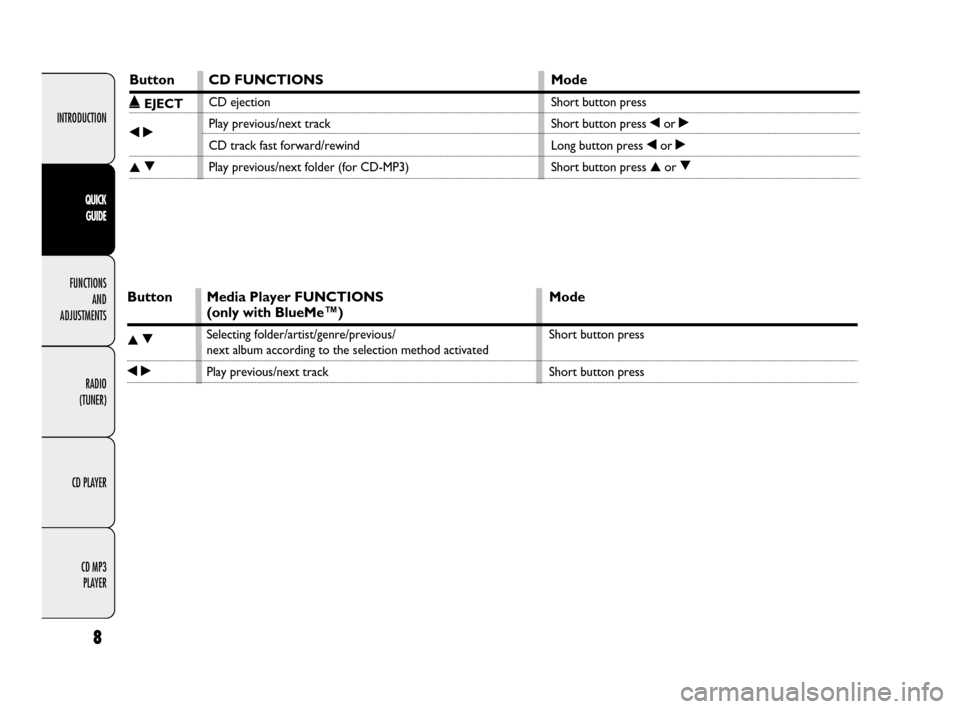

Button
˚EJECT
¯˙
▲▼
CD FUNCTIONS
CD ejection
Play previous/next track
CD track fast forward/rewind
Play previous/next folder (for CD-MP3)
Mode
Short button press
Short button press ¯or ˙
Long button press ¯or ˙
Short button press ▲or ▼
Button
▲▼
¯˙
Media Player FUNCTIONS
(only with BlueMe™)
Selecting folder/artist/genre/previous/
next album according to the selection method activated
Play previous/next track
Mode
Short button press
Short button press
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 8
Page 10 of 34
9
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
QUICK
GUIDE

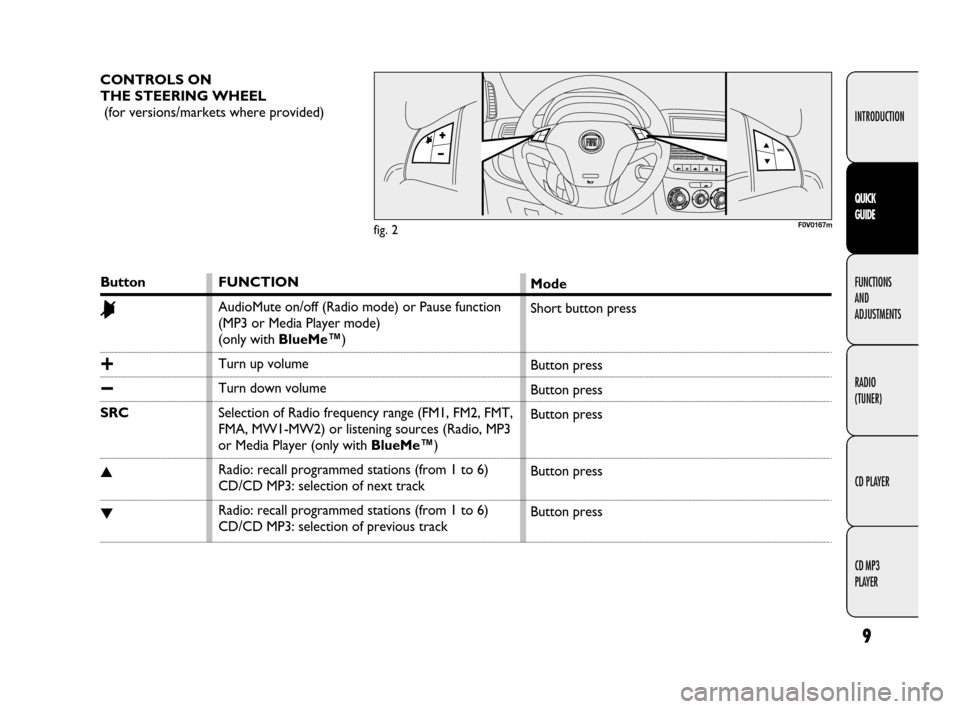

CONTROLS ON
THE STEERING WHEEL
(for versions/markets where provided)
F0V0167m
Button
&
+
−
SRC
▲
▼
FUNCTION
AudioMute on/off (Radio mode) or Pause function
(MP3 or Media Player mode)
(only with BlueMe™)
Turn up volume
Turn down volume
Selection of Radio frequency range (FM1, FM2, FMT,
FMA, MW1-MW2) or listening sources (Radio, MP3
or Media Player (only with BlueMe™)
Radio: recall programmed stations (from 1 to 6)
CD/CD MP3: selection of next track
Radio: recall programmed stations (from 1 to 6)
CD/CD MP3: selection of previous trackMode
Short button press
Button press
Button press
Button press
Button press
Button press
fig. 2
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 9
