F0V0003mfig. 3F0V0004mfig. 4
To re-house it, proceed as follows:
❒hold down button B and move the metal insert A;
❒release button B and turn the metal insert A until you
hear the proper locking click. MECHANICAL KEY fig. 3
The metal insert A operates:❒the starting device;
❒the door locks;
❒opening and closing the fuel plug.
KEY WITH REMOTE CONTROL fig. 4
(for versions/markets where provided)
The metal insert A operates:
❒the starting device;
❒the door locks;
❒opening and closing the fuel tank plug.
To extract the metal insert, press button B.
6
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Only press button B with the key away
from your body, specifically from your
eyes and from objects which could get damaged
(e.g. your clothes). Do not leave the key unat-
tended to avoid the button being accidentally
pressed while it is being handled, e.g. by a child.
WARNING

7
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0022mfig. 5F0V0005mfig. 6
Replacing the battery of the key with remote
control fig. 6
To replace the battery, proceed as follows:
❒press button A and bring the metal insert B to the open
position;
❒turn the screw C to :using a fine screwdriver;
❒take out the battery case D and replace the battery E,
respecting its polarity;
❒refit the battery case D inside the key and lock it by
turning the screw C to
Á. Button
Qunlocks all the doors (including the tailgate,
the rear swing doors and the sliding side doors for ver-
sions/markets where provided).
Button Álocks all the doors;
Button Punlocks the boot, the rear swing doors and the
sliding side doors (depending on the version).
Unlocking the load compartment from inside the
vehicle (Cargo versions)
Pressing button A-fig. 5 unlocks the loading area (rear
swing doors/boot and sliding side doors) from inside the
vehicle. If the LED is on, the load compartment is locked.
Used batteries are harmful to the environ-
ment. You can dispose of them either in the
correct containers as specified by law or
by taking them to the Fiat Service Network, who
will deal with their disposal.

Switching the device on
The system is automatically enabled on all the doors by
pressing button
Átwice on the key with remote control.
The direction indicators flash twice to let you know that
the device is active.
If one or more of the doors is not perfectly shut, the dead
lock device will not be activated, thus preventing a per-
son getting into the vehicle through the open door and,
on shutting, it, remaining stuck inside the passenger com-
partment.
Switching the device off
The system is disabled automatically on every door when:
❒unlocking the doors;
❒turning the ignition key to MAR. Requesting additional remote controls
The system acknowledges up to 8 remote controls. Should
a new remote control be necessary, contact the Fiat Ser-
vice Network and be ready to present the CODE card, a
personal identity document and the vehicle ownership
documents.
DEAD LOCK
(for versions/markets where provided)
This safety device prevents the opening of the doors from
inside the passenger compartment if there has been a break
in attempt (e.g. a window has been broken).
The dead lock device therefore offers the best possible
protection against break in attempts. We recommend en-
gaging it whenever the vehicle is parked and left unat-
tended.
8
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Once the dead lock system is engaged it
is impossible to open the doors from in-
side the vehicle. Before engaging the system please
therefore check that there is no one left on board.
WARNING
If the remote control battery is flat, the
system can only be turned on by inserting
the metal key in the door lock: in this case, the
device remains active for the rear doors only.
WARNING

77
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0046mfig. 72F0V0022mfig. 73

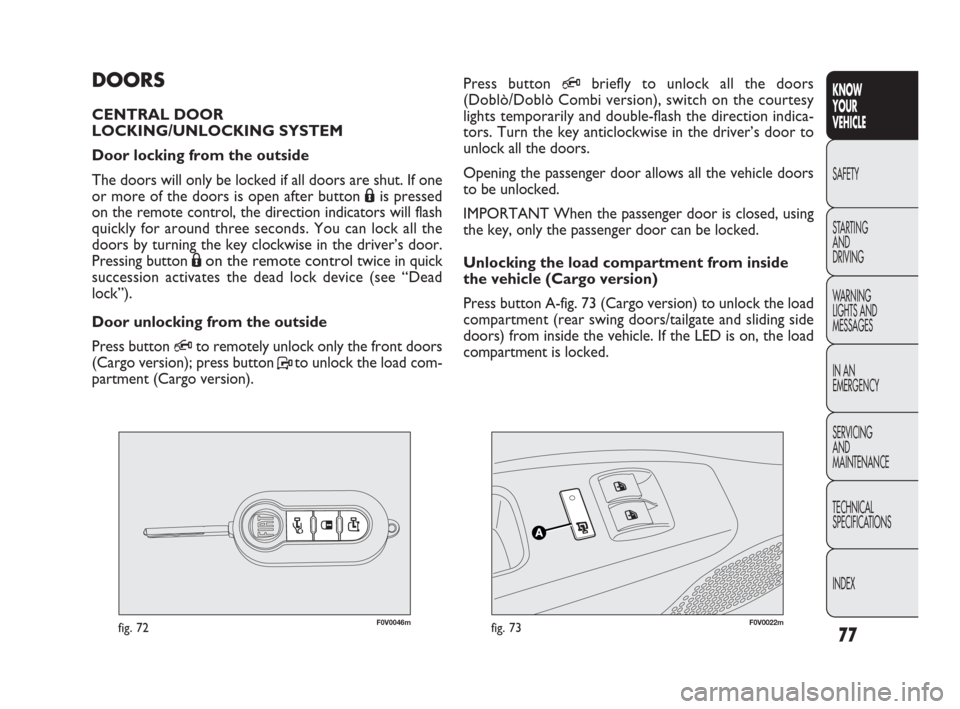

Press button Qbriefly to unlock all the doors
(Doblò/Doblò Combi version), switch on the courtesy
lights temporarily and double-flash the direction indica-
tors. Turn the key anticlockwise in the driver’s door to
unlock all the doors.
Opening the passenger door allows all the vehicle doors
to be unlocked.
IMPORTANT When the passenger door is closed, using
the key, only the passenger door can be locked.
Unlocking the load compartment from inside
the vehicle (Cargo version)
Press button A-fig. 73 (Cargo version) to unlock the load
compartment (rear swing doors/tailgate and sliding side
doors) from inside the vehicle. If the LED is on, the load
compartment is locked.DOORS
CENTRAL DOOR
LOCKING/UNLOCKING SYSTEM
Door locking from the outside
The doors will only be locked if all doors are shut. If one
or more of the doors is open after button Áis pressed
on the remote control, the direction indicators will flash
quickly for around three seconds. You can lock all the
doors by turning the key clockwise in the driver’s door.
Pressing button Á
on the remote controltwice in quick
succession activates the dead lock device (see “Dead
lock”).
Door unlocking from the outside
Press button
Qto remotely unlock only the front doors
(Cargo version); press button Pto unlock the load com-
partment (Cargo version).

80
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0066mfig. 76F0V0186mfig. 77
The device remains engaged even if the doors are unlocked

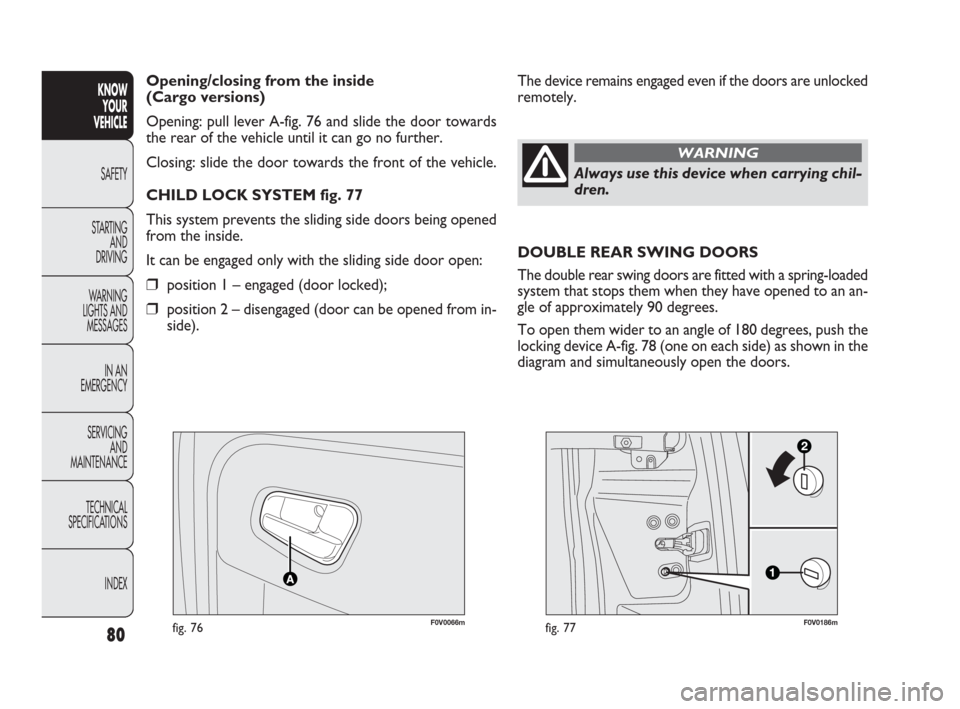

remotely. Opening/closing from the inside
(Cargo versions)
Opening: pull lever A-fig. 76 and slide the door towards
the rear of the vehicle until it can go no further.
Closing: slide the door towards the front of the vehicle.
CHILD LOCK SYSTEM fig. 77
This system prevents the sliding side doors being opened
from the inside.
It can be engaged only with the sliding side door open:
❒position 1 – engaged (door locked);
❒position 2 – disengaged (door can be opened from in-
side).
Always use this device when carrying chil-
dren.
WARNING
DOUBLE REAR SWING DOORS
The double rear swing doors are fitted with a spring-loaded
system that stops them when they have opened to an an-
gle of approximately 90 degrees.
To open them wider to an angle of 180 degrees, push the
locking device A-fig. 78 (one on each side) as shown in the
diagram and simultaneously open the doors.

81
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0067mfig. 78F0V0079mfig. 79

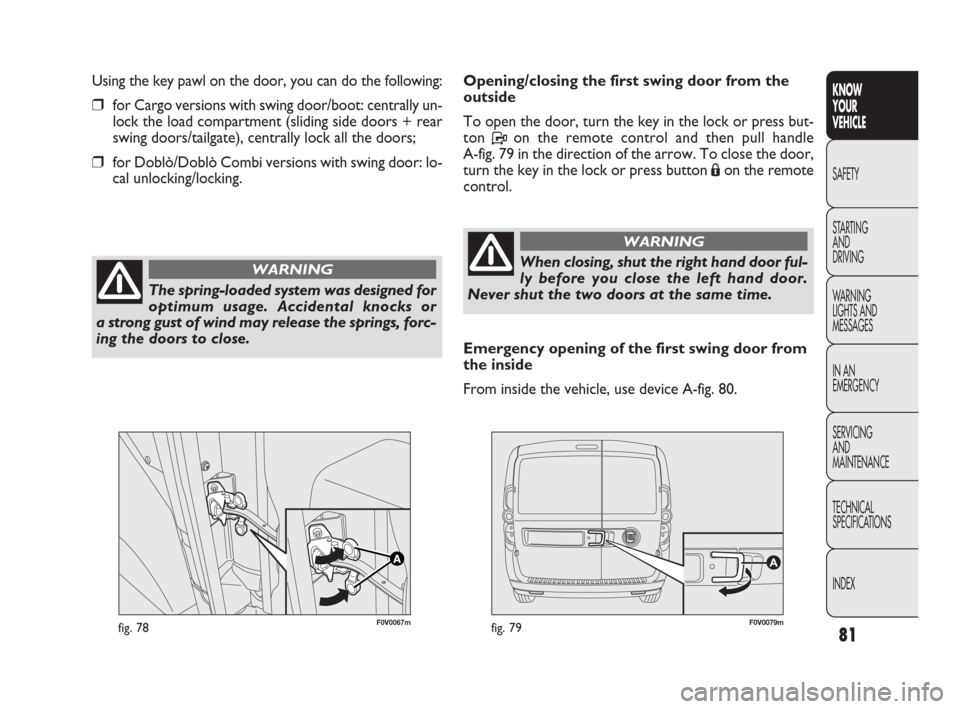

Opening/closing the first swing door from the
outside
To open the door, turn the key in the lock or press but-
ton Pon the remote control and then pull handle
A-fig. 79 in the direction of the arrow. To close the door,
turn the key in the lock or press button
Áon the remote
control. Using the key pawl on the door, you can do the following:
❒for Cargo versions with swing door/boot: centrally un-
lock the load compartment (sliding side doors + rear
swing doors/tailgate), centrally lock all the doors;
❒for Doblò/Doblò Combi versions with swing door: lo-
cal unlocking/locking.
The spring-loaded system was designed for
optimum usage. Accidental knocks or
a strong gust of wind may release the springs, forc-
ing the doors to close.
WARNINGWhen closing, shut the right hand door ful-
ly before you close the left hand door.
Never shut the two doors at the same time.
WARNING
Emergency opening of the first swing door from
the inside
From inside the vehicle, use device A-fig. 80.

85
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0134mfig. 84F0V0135mfig. 85

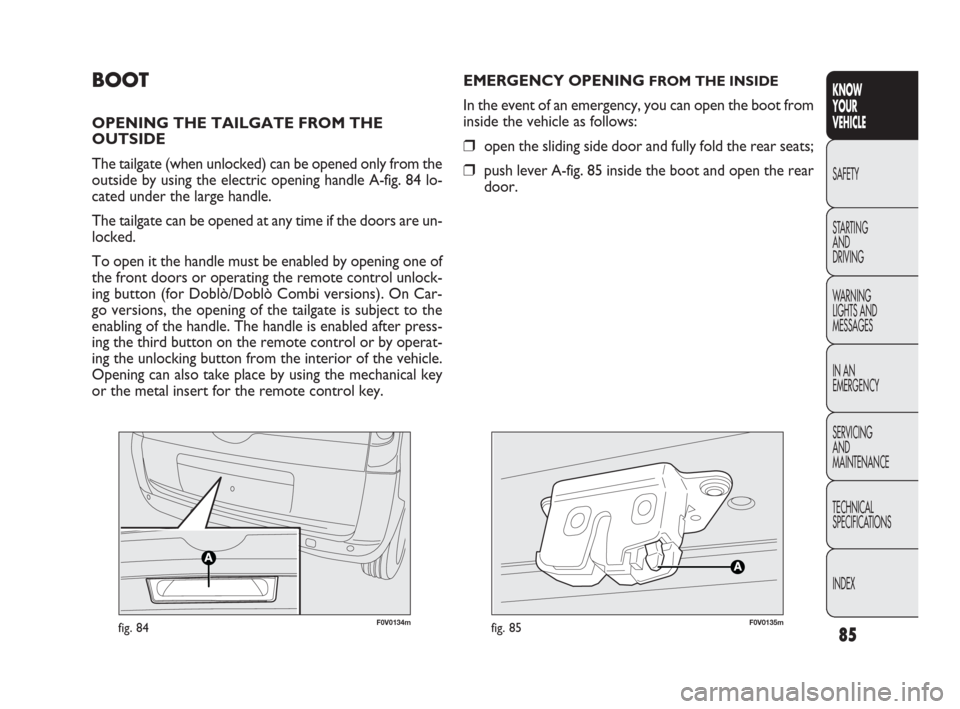

EMERGENCY OPENING FROM THE INSIDE
In the event of an emergency, you can open the boot from
inside the vehicle as follows:
❒open the sliding side door and fully fold the rear seats;
❒push lever A-fig. 85 inside the boot and open the rear
door.
BOOT
OPENING THE TAILGATE FROM THE
OUTSIDE
The tailgate (when unlocked) can be opened only from the
outside by using the electric opening handle A-fig. 84 lo-
cated under the large handle.
The tailgate can be opened at any time if the doors are un-
locked.
To open it the handle must be enabled by opening one of
the front doors or operating the remote control unlock-
ing button (for Doblò/Doblò Combi versions). On Car-
go versions, the opening of the tailgate is subject to the
enabling of the handle. The handle is enabled after press-
ing the third button on the remote control or by operat-
ing the unlocking button from the interior of the vehicle.
Opening can also take place by using the mechanical key
or the metal insert for the remote control key.

183
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEXPROTECTED DEVICE FUSE AMPS FIGURE
BCM – Body Computer Control Unit F01 60 175
Rear window winder driver’s side manual gearbox
(Doblò/Doblò Combi versions) F02 20 175
Ignition switch F03 20 175
BSM Braking system control unit (electropump) F04 40 175
Additional heater PTC2 (diesel engines) F05 50 175
Radiator fan (low speed) F06 30 175
Radiator fan (high speed, 187/300/350W) F07 40 175
Radiator fan (high speed, 500W) F07 60 175
Passenger compartment fan F08 40 175
Remote control switch for opening swing door (Cargo version) F09 10 175
Single tone horn F10 10 175
Engine control system secondary loads F11 10 175
Main beams F14 15 175
Additional heater PTC1 (diesel engines) F15 30 175
ECM Engine management control unit, ignition management relay 1
with Start&Stop system F16 7,5 175

256
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

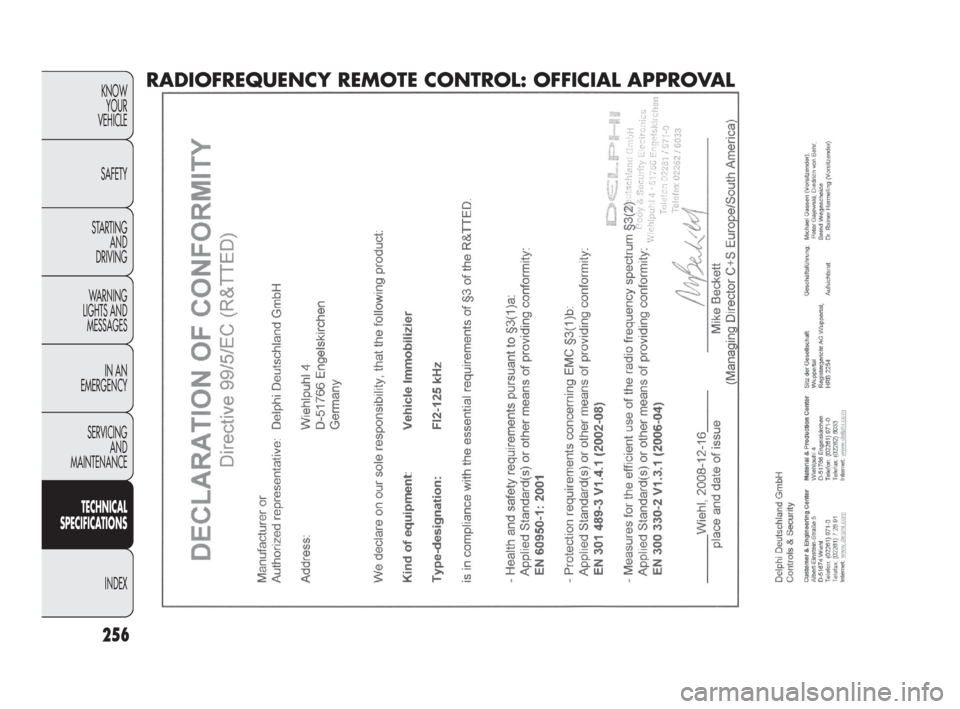

RADIOFREQUENCY REMOTE CONTROL: OFFICIAL APPROVAL

261
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

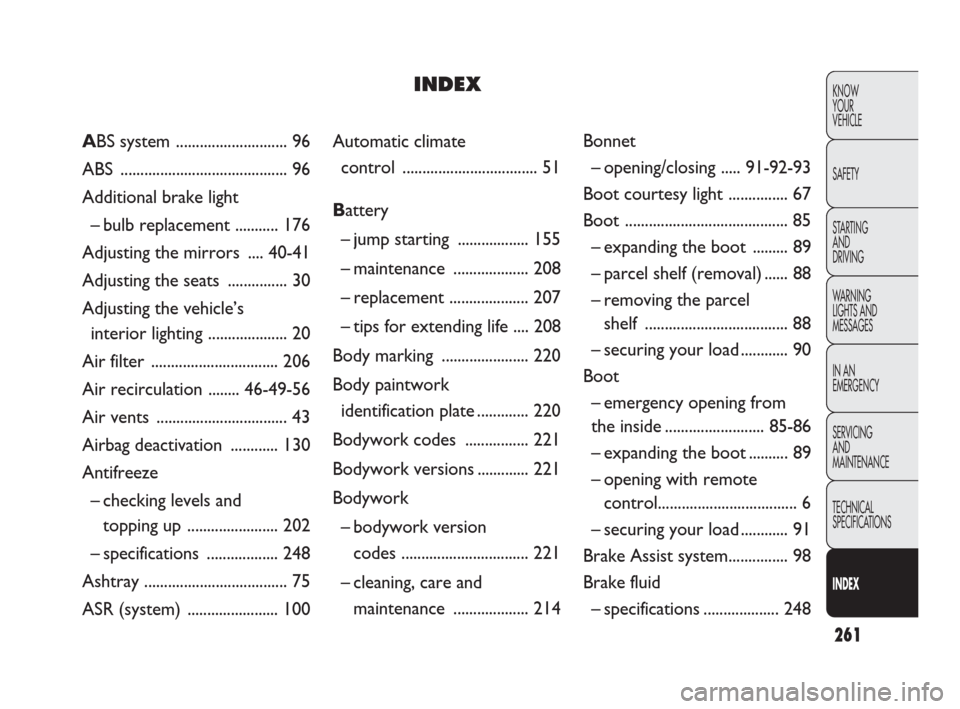

Automatic climate
control .................................. 51
Battery
– jump starting .................. 155
– maintenance ................... 208
– replacement .................... 207
– tips for extending life .... 208
Body marking ...................... 220
Body paintwork
identification plate............. 220
Bodywork codes ................ 221
Bodywork versions ............. 221
Bodywork
– bodywork version
codes ................................ 221
– cleaning, care and
maintenance ................... 214Bonnet
– opening/closing ..... 91-92-93
Boot courtesy light ............... 67
Boot ......................................... 85
– expanding the boot ......... 89
– parcel shelf (removal) ...... 88
– removing the parcel
shelf .................................... 88
– securing your load ............ 90
Boot
– emergency opening from
the inside.........................85-86
– expanding the boot .......... 89
– opening with remote
control................................... 6
– securing your load ............ 91
Brake Assist system............... 98
Brake fluid
– specifications................... 248 ABS system ............................ 96
ABS .......................................... 96
Additional brake light
– bulb replacement ........... 176
Adjusting the mirrors .... 40-41
Adjusting the seats ............... 30
Adjusting the vehicle’s
interior lighting .................... 20
Air filter ................................ 206
Air recirculation ........ 46-49-56
Air vents ................................. 43
Airbag deactivation ............ 130
Antifreeze
– checking levels and
topping up ....................... 202
– specifications .................. 248
Ashtray .................................... 75
ASR (system) ....................... 100
INDEX
