8
QUICK
REFERENCE
GUIDE
Compact Disc section
❒Direct disc selection;
❒Track selection (forward/backward);
❒Fast forward/backward;
❒Mute function;
❒CD Playback function: displaying track
number and time elapsed from start of
track;
❒Playing audio CDs and R/RW CDs. GENERAL
The set possesses the following functions:
Radio section
❒PLL tuning with FM/AM frequency
bands;
❒RDS (Radio Data System) with TA
(traffic announcements) - EON (En-
hanced Other Network) - REG (Re-
gional programmes);
❒HICUT function
❒AF: alternative frequency search selec-
tion in RDS mode;
❒emergency alarm presetting;
❒automatic/manual station tuning;
❒FM Multipath detector;
❒manual storage of 24 stations: 18 in the
FM band (6 in FM1, 6 in FM2, 6 in FMT),
6 in the AM band;
❒automatic storage (Autostore function)
of 6 stations in FM band;
❒automatic Stereo/Mono switching.
On multimedia CDs in addi-
tion to sound tracks also da-
ta tracks are recorded. Play-
ing one of these CDs may
cause rustling and such a volume as to
compromise road safety, as well as
causing damage to the final stages and
speakers.
Audio section
❒Mute/Pause function;
❒Loudness function;
❒Separate bass/treble adjustment;
❒Right/left channel balancing;
❒Front/rear channel balancing;
604_39_192 Radio Fun Doblo GB 17-09-2009 11:16 Pagina 8

INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
COMPACT DISC
PLAYER
10
QUICK
REFERENCE
GUIDE
AUDIO ADJUSTMENTS
The options proposed by the audio menu
differ according to the audio source se-
lected: AM/FM/CD.
To change Audio functions, press briefly
the AUDIO button. The display will show
“BASS”.
To scroll the Menu options press the AU-
DIO button. To change the setting of the
option selected, press buttons ¯or ˙.
The display will show the current status
of the function selected.
The functions controlled by the menu are
the following:
❒BASS (bass adjustment);
❒TREBLE (treble adjustment);
❒BALAN (right/left balance);
❒FADER (front/rear balance);
❒LOUD (Loudness on/off).TONE ADJUSTMENT
(bass/treble)
Proceed as follows:
❒Use button AUDIO to select “BASS”
or “TREBLE” in the AUDIO menu;
❒press button ˙or ¯to in-
crease/decrease the basses or trebles.
Pressing the buttons briefly the change is
gradual by steps. Pressing longer, changing
is faster. MUTE /PAUSE FUNCTION
(turning off the volume
completely)
To switch the Mute function on, briefly
press the button/knob ON/OFF. Volume
will gradually lower and the display will
show the word “MUTE” (when in radio
mode) or “PAUSE” (when in CD mode).
To switch the Mute function off, briefly
press the button/knob ON/OFF. Volume
will gradually become louder returning to
the value set before switching on the Mute
function.
Changing volume will deactivate the Mute
function and the volume will be set to the
new level selected.
With the Mute function on, if an emer-
gency alarm or a traffic bulletin arrives (if
the TA function on) the Mute function is
ignored. The Mute function will be re-
sumed at the end of the traffic announce-
ment.
604_39_192 Radio Fun Doblo GB 17-09-2009 11:16 Pagina 10

INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
COMPACT DISC
PLAYER
12
QUICK
REFERENCE
GUIDE
SELECTING THE
FREQUENCY BAND
If in the Tuner mode, briefly and repeat-
edly press button BAND to select the re-
quired frequency band.
Every time the button is pressed the fol-
lowing bands are selected in sequence:
“FM1”, “FM2”, “FMT” and “AM”.
Each band is shown by the respective
wording on the display.
The last station selected in the respective
frequency band will be tuned.
The FM band is divided into sections: FM1,
FM2 and FMT; the FMT reception band is
reserved to the stations stored automati-
cally with the Autostore function.PRESETTING BUTTONS
The buttons with symbols from 1 to 6
make it possible to set the following pre-
settings:
❒18 in the FM band (6 in FM1, 6 in FM2,
6 in FMT);
❒6 in the AM band;
To call a preset station, choose the re-
quired frequency band and then press
briefly the corresponding preset button
(from 1 to 6).
Pressing the respective preset button for
longer than 2 seconds will store the tuned
station. Storing is confirmed by a beep.
STORING THE LAST STATION
HEARD
The radio automatically keeps in storage
the last station heard for each reception
band, which is then tuned when the ra-
dio is turned on or the reception band is
changed. INTRODUCTION
When the set is turned on the last func-
tion selected before turning off is played
(Radio or CD).
To select the Tuner source while listen-
ing to the CD player, press briefly button
SRC.
When Tuner is on, the display will show
the selected station name (RDS stations
only) or frequency, the frequency band
(e.g.: FM1) and the presetting button num-
ber (e.g.: P1).
R R
A A
D D
I I
O O
( (
T T
u u
n n
e e
r r
) )
604_39_192 Radio Fun Doblo GB 17-09-2009 11:16 Pagina 12

17
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
COMPACT DISC
PLAYER
QUICK
REFERENCE
GUIDE

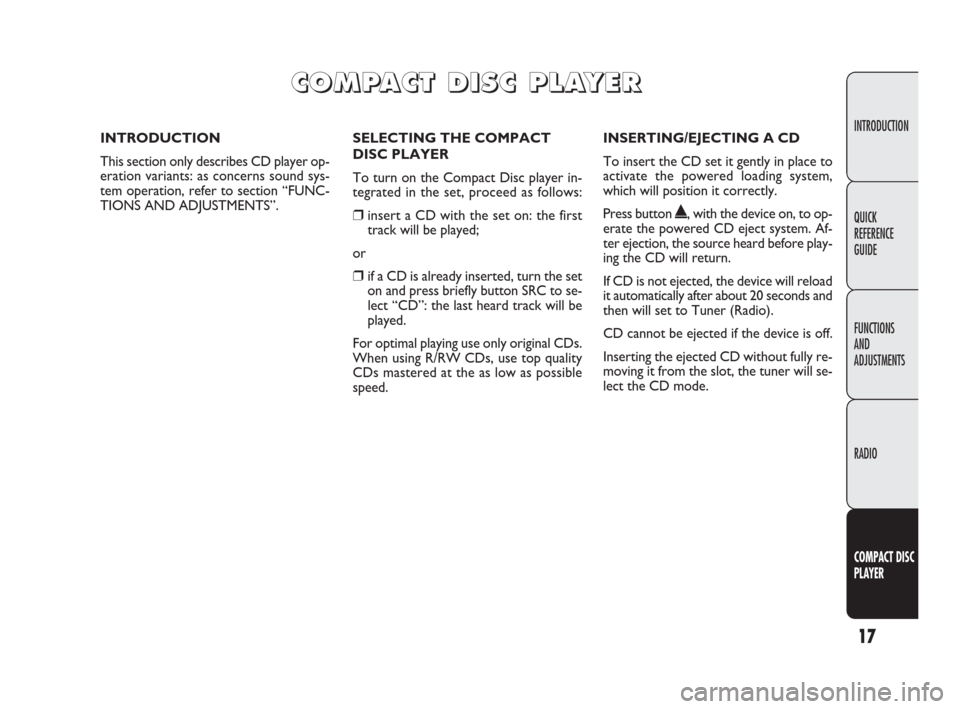

SELECTING THE COMPACT
DISC PLAYER
To turn on the Compact Disc player in-
tegrated in the set, proceed as follows:
❒insert a CD with the set on: the first
track will be played;
or
❒if a CD is already inserted, turn the set
on and press briefly button SRC to se-
lect “CD”: the last heard track will be
played.
For optimal playing use only original CDs.
When using R/RW CDs, use top quality
CDs mastered at the as low as possible
speed.INSERTING/EJECTING A CD
To insert the CD set it gently in place to
activate the powered loading system,
which will position it correctly.
Press button
˚, with the device on, to op-
erate the powered CD eject system. Af-
ter ejection, the source heard before play-
ing the CD will return.
If CD is not ejected, the device will reload
it automatically after about 20 seconds and
then will set to Tuner (Radio).
CD cannot be ejected if the device is off.
Inserting the ejected CD without fully re-
moving it from the slot, the tuner will se-
lect the CD mode. INTRODUCTION
This section only describes CD player op-
eration variants: as concerns sound sys-
tem operation, refer to section “FUNC-
TIONS AND ADJUSTMENTS”.
C C
O O
M M
P P
A A
C C
T T
D D
I I
S S
C C
P P
L L
A A
Y Y
E E
R R
604_39_192 Radio Fun Doblo GB 17-09-2009 11:16 Pagina 17

INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
COMPACT DISC
PLAYER
18
QUICK
REFERENCE
GUIDE

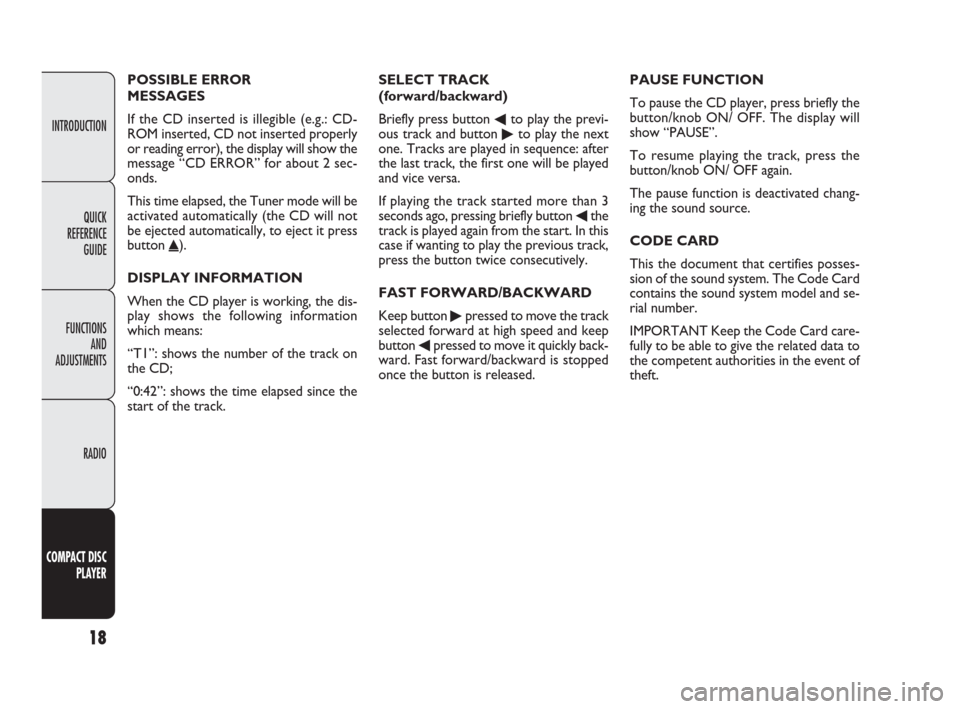

POSSIBLE ERROR
