FIAT DOBLO 2009 2.G Radio CD MP3 Manual

INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
10
QUICK
GUIDE

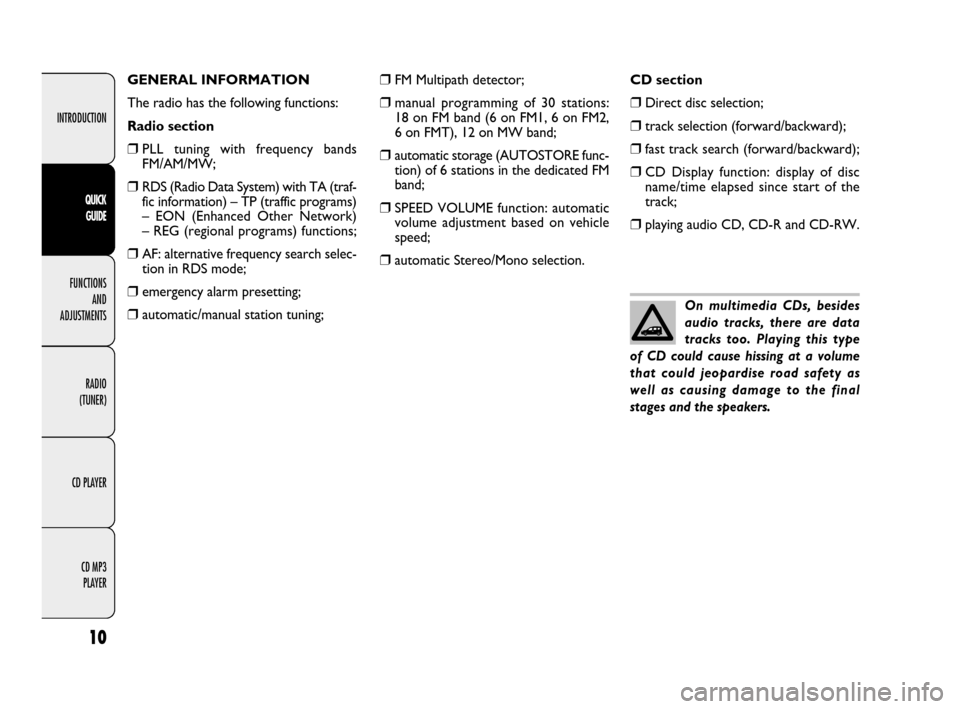

❒FM Multipath detector;
❒manual programming of 30 stations:
18 on FM band (6 on FM1, 6 on FM2,
6 on FMT), 12 on MW band;
❒automatic storage (AUTOSTORE func-
tion) of 6 stations in the dedicated FM
band;
❒SPEED VOLUME function: automatic
volume adjustment based on vehicle
speed;
❒automatic Stereo/Mono selection.CD section
❒Direct disc selection;
❒track selection (forward/backward);
❒fast track search (forward/backward);
❒CD Display function: display of disc
name/time elapsed since start of the
track;
❒playing audio CD, CD-R and CD-RW. GENERAL INFORMATION
The radio has the following functions:
Radio section
❒PLL tuning with frequency bands
FM/AM/MW;
❒RDS (Radio Data System) with TA (traf-
fic information) – TP (traffic programs)
– EON (Enhanced Other Network)
– REG (regional programs) functions;
❒AF: alternative frequency search selec-
tion in RDS mode;
❒emergency alarm presetting;
❒automatic/manual station tuning;On multimedia CDs, besides
audio tracks, there are data
tracks too. Playing this type
of CD could cause hissing at a volume
that could jeopardise road safety as
well as causing damage to the final
stages and the speakers.
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 10

11
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
QUICK
GUIDE

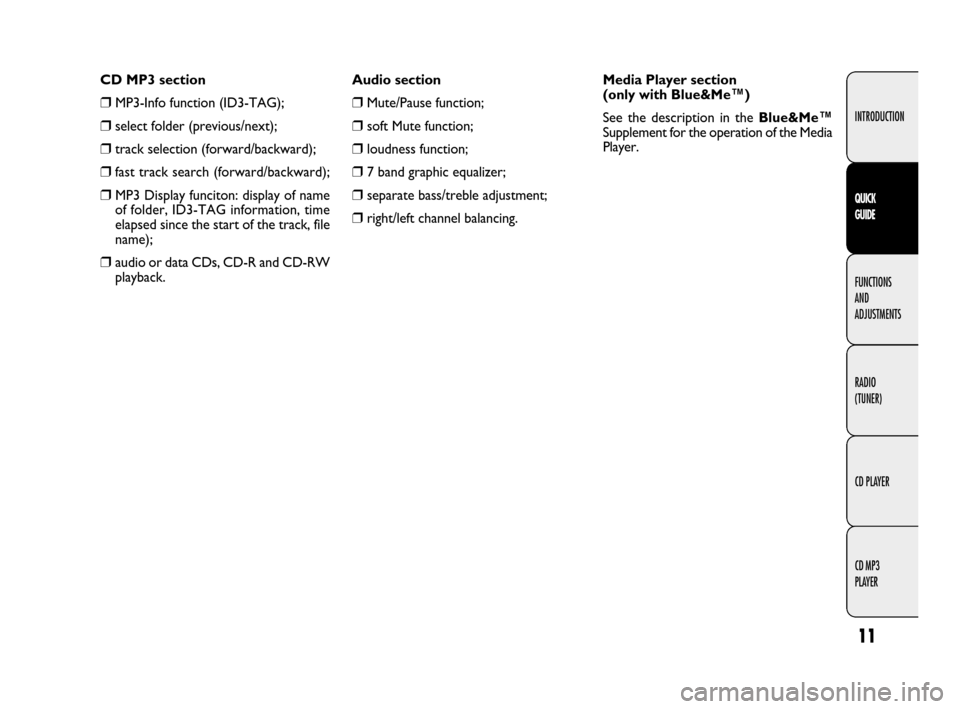

Audio section
❒Mute/Pause function;
❒soft Mute function;
❒loudness function;
❒7 band graphic equalizer;
❒separate bass/treble adjustment;
❒right/left channel balancing. CD MP3 section
❒MP3-Info function (ID3-TAG);
❒select folder (previous/next);
❒track selection (forward/backward);
❒fast track search (forward/backward);
❒MP3 Display funciton: display of name
of folder, ID3-TAG information, time
elapsed since the start of the track, file
name);
❒audio or data CDs, CD-R and CD-RW
playback.Media Player section
(only with Blue&Me™)
See the description in the Blue&Me™
Supplement for the operation of the Media
Player.
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 11

INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
12
QUICK
GUIDE

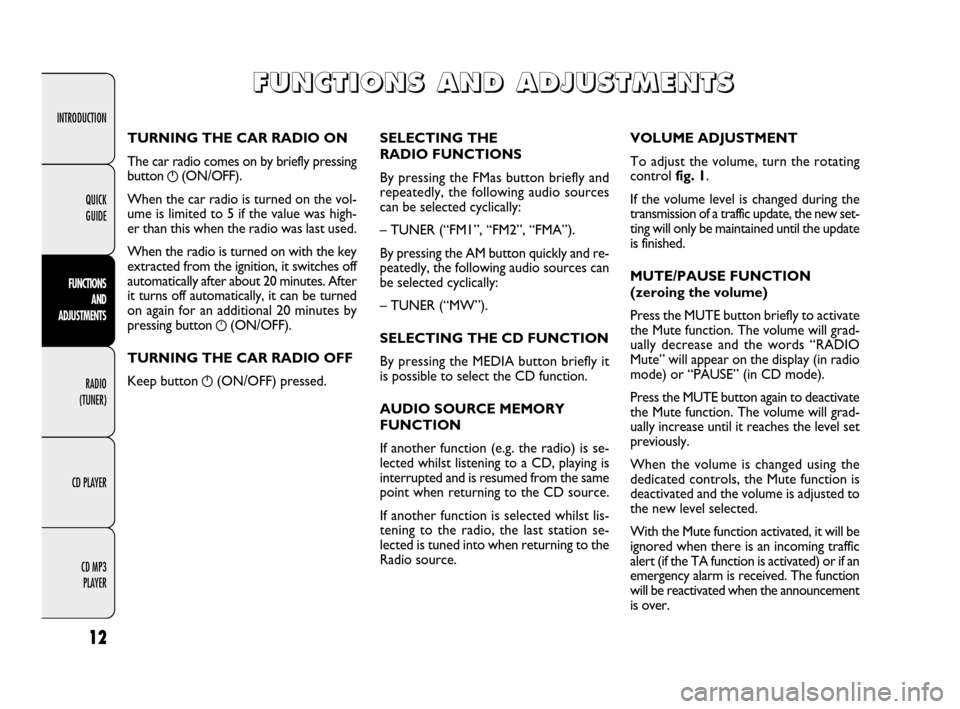

SELECTING THE
RADIO FUNCTIONS
By pressing the FMas button briefly and
repeatedly, the following audio sources
can be selected cyclically:
– TUNER (“FM1”, “FM2”, “FMA”).
By pressing the AM button quickly and re-
peatedly, the following audio sources can
be selected cyclically:
– TUNER (“MW”).
SELECTING THE CD FUNCTION
By pressing the MEDIA button briefly it
is possible to select the CD function.
AUDIO SOURCE MEMORY
FUNCTION
If another function (e.g. the radio) is se-
lected whilst listening to a CD, playing is
interrupted and is resumed from the same
point when returning to the CD source.
If another function is selected whilst lis-
tening to the radio, the last station se-
lected is tuned into when returning to the
Radio source.VOLUME ADJUSTMENT
To adjust the volume, turn the rotating
control fig. 1.
If the volume level is changed during the
transmission of a traffic update, the new set-
ting will only be maintained until the update
is finished.
MUTE/PAUSE FUNCTION
(zeroing the volume)
Press the MUTE button briefly to activate
the Mute function. The volume will grad-
ually decrease and the words “RADIO
Mute” will appear on the display (in radio
mode) or “PAUSE” (in CD mode).
Press the MUTE button again to deactivate
the Mute function. The volume will grad-
ually increase until it reaches the level set
previously.
When the volume is changed using the
dedicated controls, the Mute function is
deactivated and the volume is adjusted to
the new level selected.
With the Mute function activated, it will be
ignored when there is an incoming traffic
alert (if the TA function is activated) or if an
emergency alarm is received. The function
will be reactivated when the announcement
is over. TURNING THE CAR RADIO ON
The car radio comes on by briefly pressing
button
g(ON/OFF).
When the car radio is turned on the vol-
ume is limited to 5 if the value was high-
er than this when the radio was last used.
When the radio is turned on with the key
extracted from the ignition, it switches off
automatically after about 20 minutes. After
it turns off automatically, it can be turned
on again for an additional 20 minutes by
pressing button
g(ON/OFF).
TURNING THE CAR RADIO OFF
Keep button
g(ON/OFF) pressed.
F F
U U
N N
C C
T T
I I
O O
N N
S S

A A
N N
D D

A A
D D
J J
U U
S S
T T
M M
E E
N N
T T
S S
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 12

13
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER QUICK
GUIDE

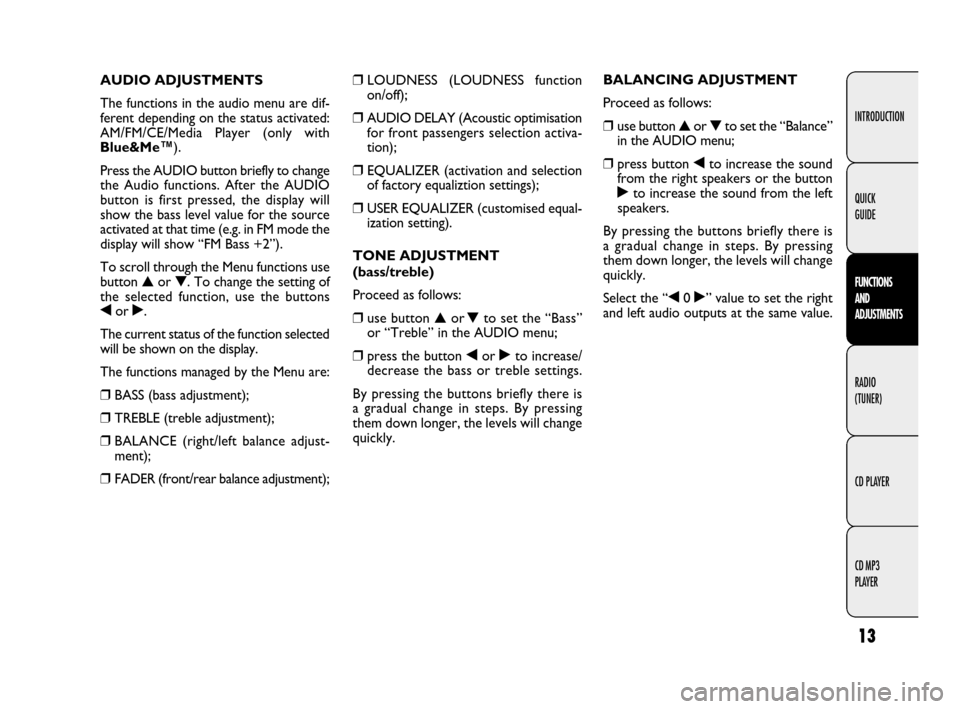

❒LOUDNESS (LOUDNESS function
on/off);
❒AUDIO DELAY (Acoustic optimisation
for front passengers selection activa-
tion);
❒EQUALIZER (activation and selection
of factory equaliztion settings);
❒USER EQUALIZER (customised equal-
ization setting).
TONE ADJUSTMENT
(bass/treble)
Proceed as follows:
❒use button ▲or▼to set the “Bass”
or “Treble” in the AUDIO menu;
❒press the button ¯or ˙to increase/
decrease the bass or treble settings.
By pressing the buttons briefly there is
a gradual change in steps. By pressing
them down longer, the levels will change
quickly.BALANCING ADJUSTMENT
Proceed as follows:
❒use button ▲or ▼to set the “Balance”
in the AUDIO menu;
❒press button ¯to increase the sound
from the right speakers or the button
˙to increase the sound from the left
speakers.
By pressing the buttons briefly there is
a gradual change in steps. By pressing
them down longer, the levels will change
quickly.
Select the “¯0 ˙” value to set the right
and left audio outputs at the same value. AUDIO ADJUSTMENTS
The functions in the audio menu are dif-
ferent depending on the status activated:
AM/FM/CE/Media Player (only with
Blue&Me™).
Press the AUDIO button briefly to change
the Audio functions. After the AUDIO
button is first pressed, the display will
show the bass level value for the source
activated at that time (e.g. in FM mode the
display will show “FM Bass +2”).
To scroll through the Menu functions use
button ▲or ▼. To change the setting of
the selected function, use the buttons
¯or ˙.
The current status of the function selected
will be shown on the display.
The functions managed by the Menu are:
❒BASS (bass adjustment);
❒TREBLE (treble adjustment);
❒BALANCE (right/left balance adjust-
ment);
❒FADER (front/rear balance adjustment);
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 13

INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
14
QUICK
GUIDE

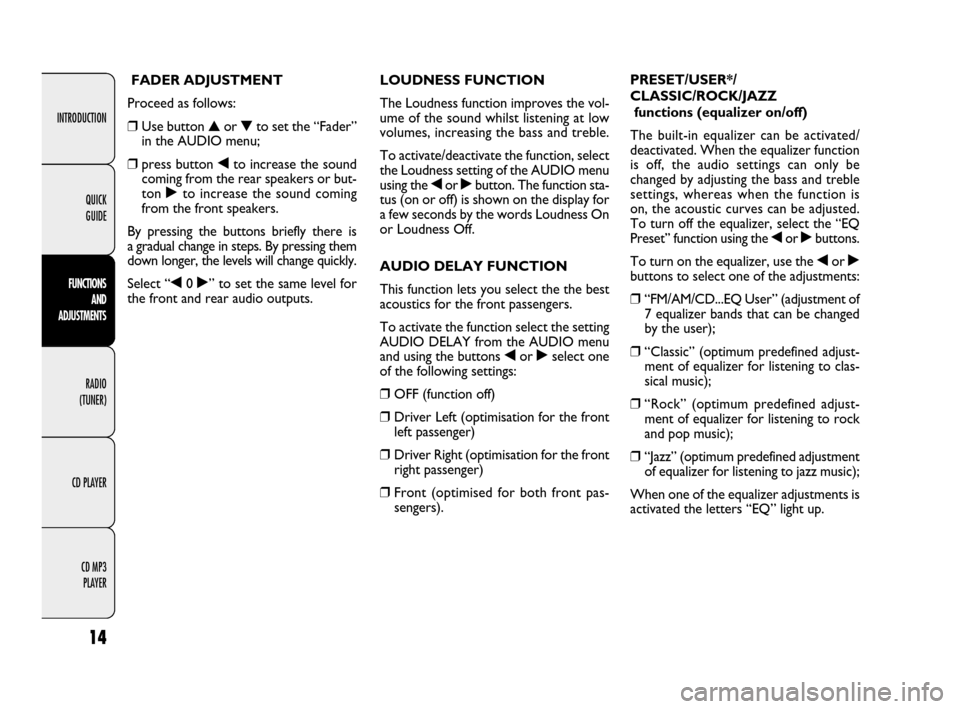

LOUDNESS FUNCTION
The Loudness function improves the vol-
ume of the sound whilst listening at low
volumes, increasing the bass and treble.
To activate/deactivate the function, select
the Loudness setting of the AUDIO menu
using the ¯or ˙button. The function sta-
tus (on or off) is shown on the display for
a few seconds by the words Loudness On
or Loudness Off.
AUDIO DELAY FUNCTION
This function lets you select the the best
acoustics for the front passengers.
To activate the function select the setting
AUDIO DELAY from the AUDIO menu
and using the buttons ¯or ˙select one
of the following settings:
❒ OFF (function off)
❒ Driver Left (optimisation for the front
left passenger)
❒ Driver Right (optimisation for the front
right passenger)
❒ Front (optimised for both front pas-
sengers).PRESET/USER*/
CLASSIC/ROCK/JAZZ
functions (equalizer on/off)
The built-in equalizer can be activated/
deactivated. When the equalizer function
is off, the audio settings can only be
changed by adjusting the bass and treble
settings, whereas when the function is
on, the acoustic curves can be adjusted.
To turn off the equalizer, select the “EQ
Preset” function using the ¯or ˙buttons.
To turn on the equalizer, use the ¯or ˙
buttons to select one of the adjustments:
❒ “FM/AM/CD...EQ User” (adjustment of
7 equalizer bands that can be changed
by the user);
❒“Classic” (optimum predefined adjust-
ment of equalizer for listening to clas-
sical music);
❒“Rock” (optimum predefined adjust-
ment of equalizer for listening to rock
and pop music);
❒“Jazz” (optimum predefined adjustment
of equalizer for listening to jazz music);
When one of the equalizer adjustments is
activated the letters “EQ” light up. FADER ADJUSTMENT
Proceed as follows:
❒ Use button ▲or ▼to set the “Fader”
in the AUDIO menu;
❒ press button ¯to increase the sound
coming from the rear speakers or but-
ton ˙to increase the sound coming
from the front speakers.
By pressing the buttons briefly there is
a gradual change in steps. By pressing them
down longer, the levels will change quickly.
Select “¯0 ˙” to set the same level for
the front and rear audio outputs.
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 14

15
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER QUICK
GUIDE

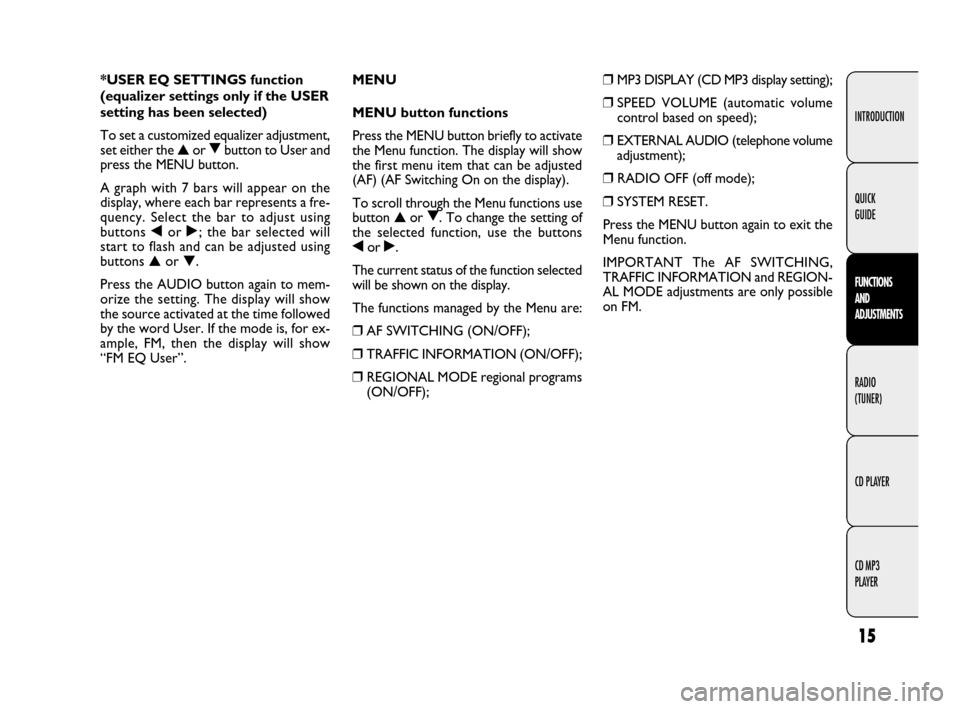

*USER EQ SETTINGS function
(equalizer settings only if the USER
setting has been selected)
To set a customized equalizer adjustment,
set either the ▲or ▼
button to User and
press the MENU button.
A graph with 7 bars will appear on the
display, where each bar represents a fre-
quency. Select the bar to adjust using
buttons ¯or ˙; the bar selected will
start to flash and can be adjusted using
buttons ▲or ▼.
Press the AUDIO button again to mem-
orize the setting. The display will show
the source activated at the time followed
by the word User. If the mode is, for ex-
ample, FM, then the display will show
“FM EQ User”.MENU
MENU button functions
Press the MENU button briefly to activate
the Menu function. The display will show
the first menu item that can be adjusted
(AF) (AF Switching On on the display).
To scroll through the Menu functions use
button ▲or ▼
. To change the setting of
the selected function, use the buttons
¯or ˙.
The current status of the function selected
will be shown on the display.
The functions managed by the Menu are:
❒AF SWITCHING (ON/OFF);
❒TRAFFIC INFORMATION (ON/OFF);

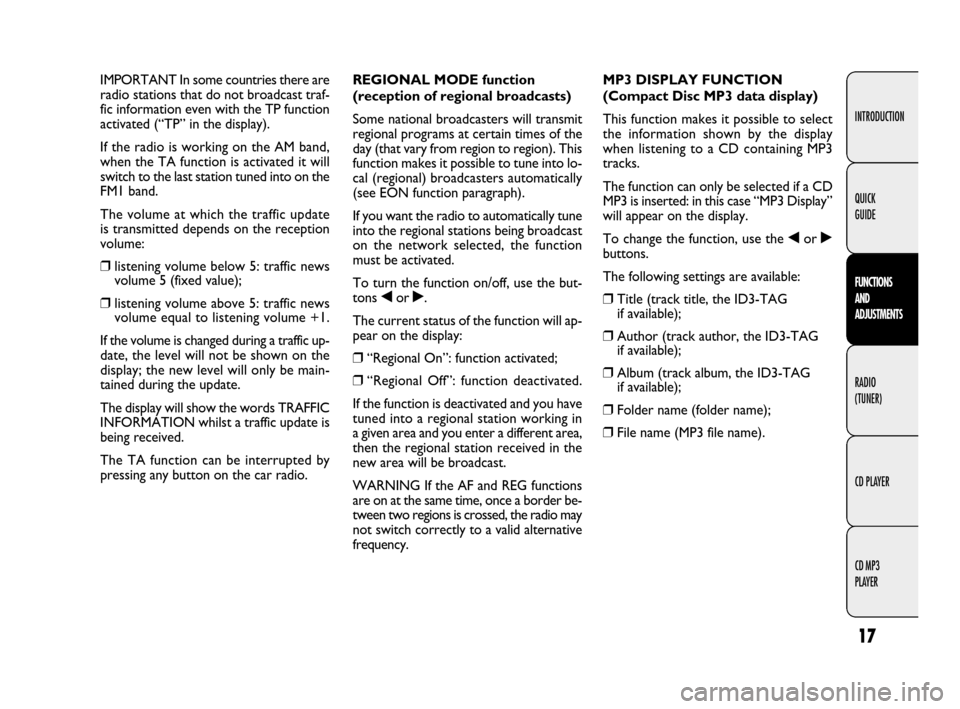

❒REGIONAL MODE regional programs
(ON/OFF);❒MP3 DISPLAY (CD MP3 display setting);

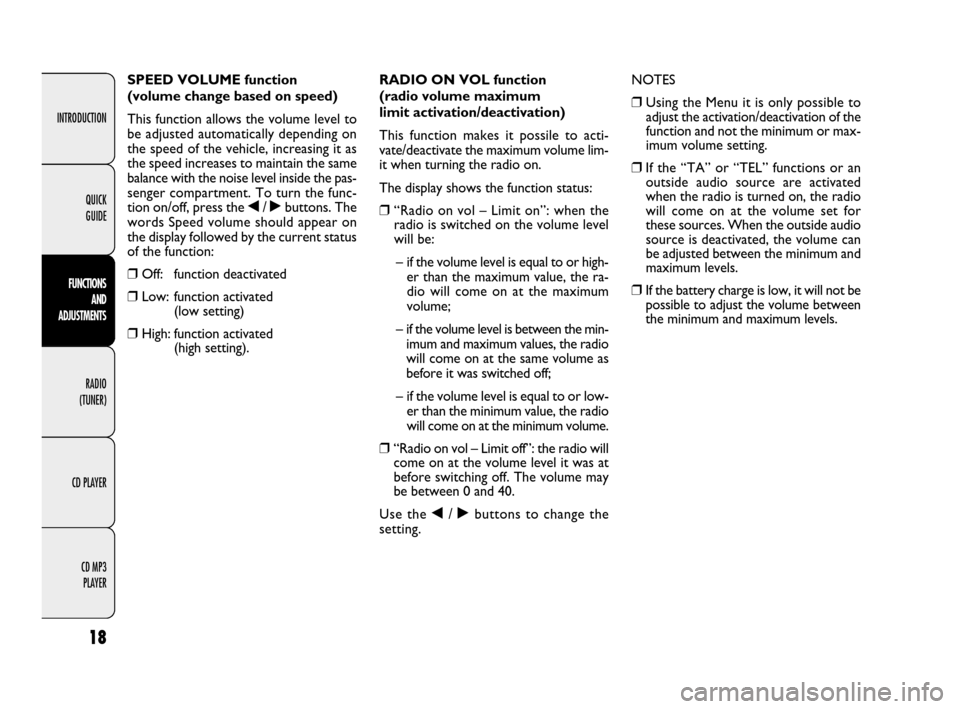

❒SPEED VOLUME (automatic volume
control based on speed);

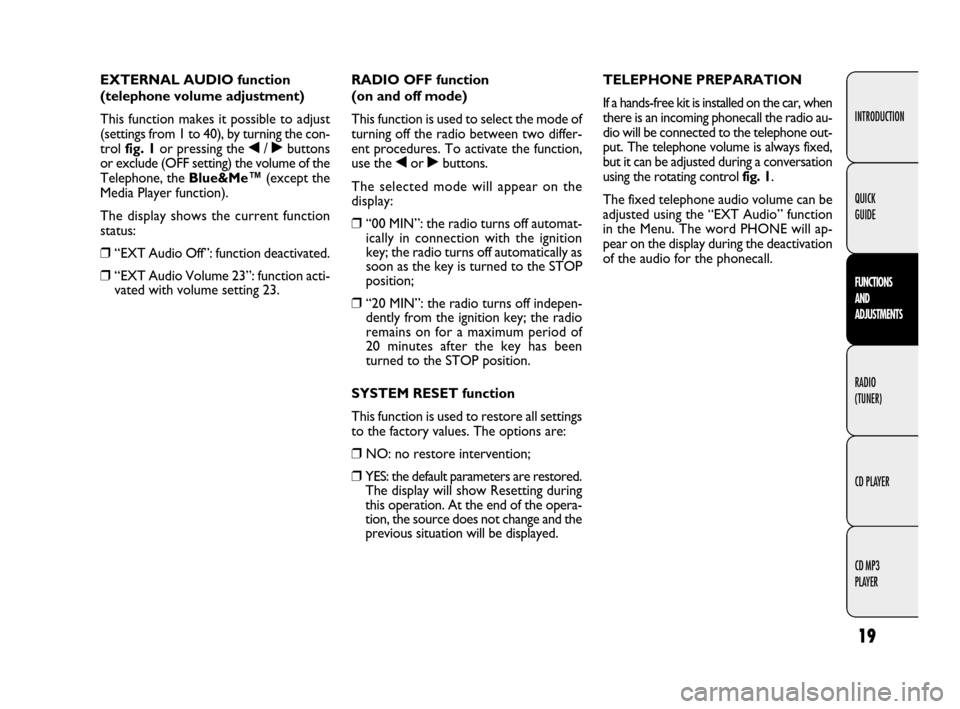

❒EXTERNAL AUDIO (telephone volume
adjustment);
❒RADIO OFF (off mode);
❒SYSTEM RESET.
Press the MENU button again to exit the
Menu function.
IMPORTANT The AF SWITCHING,
TRAFFIC INFORMATION and REGION-
AL MODE adjustments are only possible
on FM.
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 15

INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
16
QUICK
GUIDE

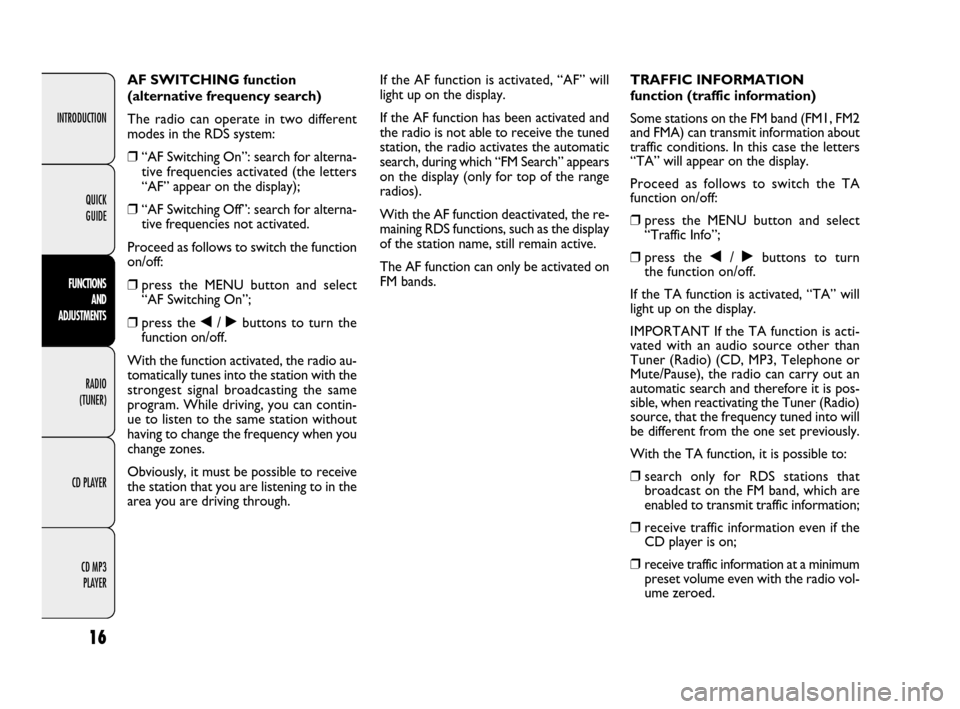

AF SWITCHING function
(alternative frequency search)
The radio can operate in two different
modes in the RDS system:
❒“AF Switching On”: search for alterna-
tive frequencies activated (the letters
“AF” appear on the display);
❒“AF Switching Off”: search for alterna-
tive frequencies not activated.
Proceed as follows to switch the function
on/off:
❒press the MENU button and select
“AF Switching On”;
❒press the ¯/ ˙buttons to turn the
function on/off.
With the function activated, the radio au-
tomatically tunes into the station with the
strongest signal broadcasting the same
program. While driving, you can contin-
ue to listen to the same station without
having to change the frequency when you
change zones.
Obviously, it must be possible to receive
the station that you are listening to in the
area you are driving through.If the AF function is activated, “AF” will
light up on the display.
If the AF function has been activated and
the radio is not able to receive the tuned
station, the radio activates the automatic
search, during which “FM Search” appears
on the display (only for top of the range
radios).
With the AF function deactivated, the re-
maining RDS functions, such as the display
of the station name, still remain active.
The AF function can only be activated on
FM bands.TRAFFIC INFORMATION
function (traffic information)
Some stations on the FM band (FM1, FM2
and FMA) can transmit information about
traffic conditions. In this case the letters
“TA” will appear on the display.
Proceed as follows to switch the TA
function on/off:
❒press the MENU button and select
“Traffic Info”;
❒press the ¯/ ˙buttons to turn
the function on/off.
If the TA function is activated, “TA” will
light up on the display.
IMPORTANT If the TA function is acti-
vated with an audio source other than
Tuner (Radio) (CD, MP3, Telephone or
Mute/Pause), the radio can carry out an
automatic search and therefore it is pos-
sible, when reactivating the Tuner (Radio)
source, that the frequency tuned into will
be different from the one set previously.
With the TA function, it is possible to:
❒search only for RDS stations that
broadcast on the FM band, which are
enabled to transmit traffic information;
❒receive traffic information even if the
CD player is on;
❒receive traffic information at a minimum
preset volume even with the radio vol-
ume zeroed.
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 16

17
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER QUICK
GUIDE
IMPORTANT In some countries there are
radio stations that do not broadcast traf-
fic information even with the TP function
activated (“TP” in the display).
If the radio is working on the AM band,
when the TA function is activated it will
switch to the last station tuned into on the
FM1 band.
The volume at which the traffic update
is transmitted depends on the reception
volume:
❒listening volume below 5: traffic news
volume 5 (fixed value);
❒listening volume above 5: traffic news
volume equal to listening volume +1.
If the volume is changed during a traffic up-
date, the level will not be shown on the
display; the new level will only be main-
tained during the update.
The display will show the words TRAFFIC
INFORMATION whilst a traffic update is
being received.
The TA function can be interrupted by
pressing any button on the car radio.REGIONAL MODE function
(reception of regional broadcasts)
Some national broadcasters will transmit
regional programs at certain times of the
day (that vary from region to region). This
function makes it possible to tune into lo-
cal (regional) broadcasters automatically
(see EON function paragraph).
If you want the radio to automatically tune
into the regional stations being broadcast
on the network selected, the function
must be activated.
To turn the function on/off, use the but-
tons ¯or ˙.
The current status of the function will ap-
pear on the display:
❒“Regional On”: function activated;
❒“Regional Off”: function deactivated.
If the function is deactivated and you have
tuned into a regional station working in
a given area and you enter a different area,
then the regional station received in the
new area will be broadcast.
WARNING If the AF and REG functions
are on at the same time, once a border be-
tween two regions is crossed, the radio may
not switch correctly to a valid alternative
frequency.MP3 DISPLAY FUNCTION
(Compact Disc MP3 data display)
This function makes it possible to select
the information shown by the display
when listening to a CD containing MP3
tracks.
The function can only be selected if a CD
MP3 is inserted: in this case “MP3 Display”
will appear on the display.
To change the function, use the ¯or ˙
buttons.
The following settings are available:
❒Title (track title, the ID3-TAG
if available);
❒Author (track author, the ID3-TAG
if available);
❒Album (track album, the ID3-TAG
if available);
❒Folder name (folder name);
❒File name (MP3 file name).
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 17

INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
18
QUICK
GUIDE
SPEED VOLUME function
(volume change based on speed)
This function allows the volume level to
be adjusted automatically depending on
the speed of the vehicle, increasing it as
the speed increases to maintain the same
balance with the noise level inside the pas-
senger compartment. To turn the func-
tion on/off, press the ¯/ ˙buttons. The
words Speed volume should appear on
the display followed by the current status
of the function:
❒Off: function deactivated
❒Low: function activated
(low setting)
❒High: function activated
(high setting).RADIO ON VOL function
(radio volume maximum
limit activation/deactivation)
This function makes it possile to acti-
vate/deactivate the maximum volume lim-
it when turning the radio on.
The display shows the function status:
❒“Radio on vol – Limit on”: when the
radio is switched on the volume level
will be:
– if the volume level is equal to or high-
er than the maximum value, the ra-
dio will come on at the maximum
volume;
– if the volume level is between the min-
imum and maximum values, the radio
will come on at the same volume as
before it was switched off;
– if the volume level is equal to or low-
er than the minimum value, the radio
will come on at the minimum volume.
❒“Radio on vol – Limit off”: the radio will
come on at the volume level it was at
before switching off. The volume may
be between 0 and 40.
Use the ¯/ ˙buttons to change the
setting.NOTES
❒Using the Menu it is only possible to
adjust the activation/deactivation of the
function and not the minimum or max-
imum volume setting.
❒If the “TA” or “TEL” functions or an
outside audio source are activated
when the radio is turned on, the radio
will come on at the volume set for
these sources. When the outside audio
source is deactivated, the volume can
be adjusted between the minimum and
maximum levels.
❒If the battery charge is low, it will not be
possible to adjust the volume between
the minimum and maximum levels.
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 18

19
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER QUICK
GUIDE
EXTERNAL AUDIO function
(telephone volume adjustment)
This function makes it possible to adjust
(settings from 1 to 40), by turning the con-
trol fig. 1or pressing the ¯/ ˙buttons
or exclude (OFF setting) the volume of the
Telephone, the Blue&Me™(except the
Media Player function).
The display shows the current function
status:
❒“EXT Audio Off”: function deactivated.
❒“EXT Audio Volume 23”: function acti-
vated with volume setting 23.RADIO OFF function
(on and off mode)
This function is used to select the mode of
turning off the radio between two differ-
ent procedures. To activate the function,
use the ¯or ˙buttons.
The selected mode will appear on the
display:
❒“00 MIN”: the radio turns off automat-
ically in connection with the ignition
key; the radio turns off automatically as
soon as the key is turned to the STOP
position;
❒“20 MIN”: the radio turns off indepen-
dently from the ignition key; the radio
remains on for a maximum period of
20 minutes after the key has been
turned to the STOP position.
SYSTEM RESET function
This function is used to restore all settings
to the factory values. The options are:
❒NO: no restore intervention;
❒YES: the default parameters are restored.
The display will show Resetting during
this operation. At the end of the opera-
tion, the source does not change and the
previous situation will be displayed.TELEPHONE PREPARATION
If a hands-free kit is installed on the car, when
there is an incoming phonecall the radio au-
dio will be connected to the telephone out-
put. The telephone volume is always fixed,
but it can be adjusted during a conversation
using the rotating control fig. 1.
The fixed telephone audio volume can be
adjusted using the “EXT Audio” function
in the Menu. The word PHONE will ap-
pear on the display during the deactivation
of the audio for the phonecall.
604_39_199 Radio Doblo GB 1ed 17-09-2009 11:51 Pagina 19
