FIAT DOBLO COMBI 2010 Owner handbook (in English)

170
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0027mfig. 149

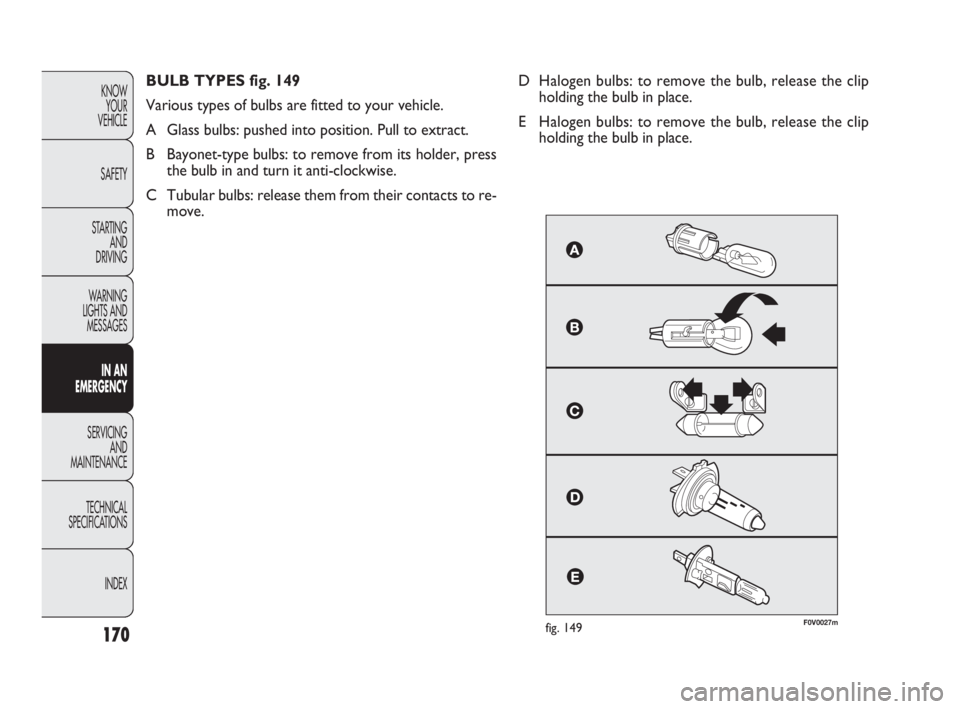

BULB TYPES fig. 149
Various types of bulbs are fitted to your vehicle.
A Glass bulbs: pushed into position. Pull to extract.
B Bayonet-type bulbs: to remove from its holder, press
the bulb in and turn it anti-clockwise.
C Tubular bulbs: release them from their contacts to re-
move.D Halogen bulbs: to remove the bulb, release the clip
holding the bulb in place.
E Halogen bulbs: to remove the bulb, release the clip
holding the bulb in place.
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 170

171
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

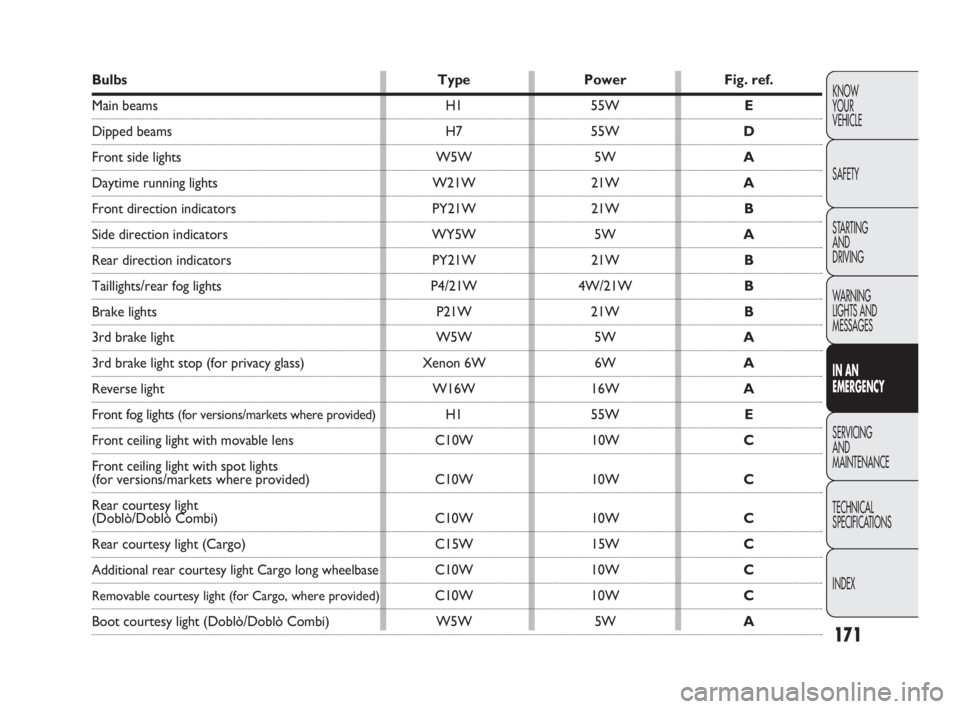

Bulbs Type Power Fig. ref.
Main beams H1 55W E
Dipped beams H7 55WD
Front side lights W5W 5WA
Daytime running lights W21W 21WA
Front direction indicators PY21W 21WB
Side direction indicators WY5W 5WA
Rear direction indicators PY21W 21WB
Taillights/rear fog lights P4/21W 4W/21WB
Brake lights P21W 21WB
3rd brake light W5W 5WA
3rd brake light stop (for privacy glass) Xenon 6W 6WA
Reverse light W16W 16WA
Front fog lights (for versions/markets where provided)H1 55WE
Front ceiling light with movable lens C10W 10WC
Front ceiling light with spot lights
(for versions/markets where provided) C10W 10WC
Rear courtesy light
(Doblò/Doblò Combi) C10W 10WC
Rear courtesy light (Cargo) C15W 15WC
Additional rear courtesy light Cargo long wheelbaseC10W 10WC
Removable courtesy light (for Cargo, where provided)C10W 10WC
Boot courtesy light (Doblò/Doblò Combi) W5W 5WA
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 171

172
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0028mfig. 150F0V0029mfig. 151

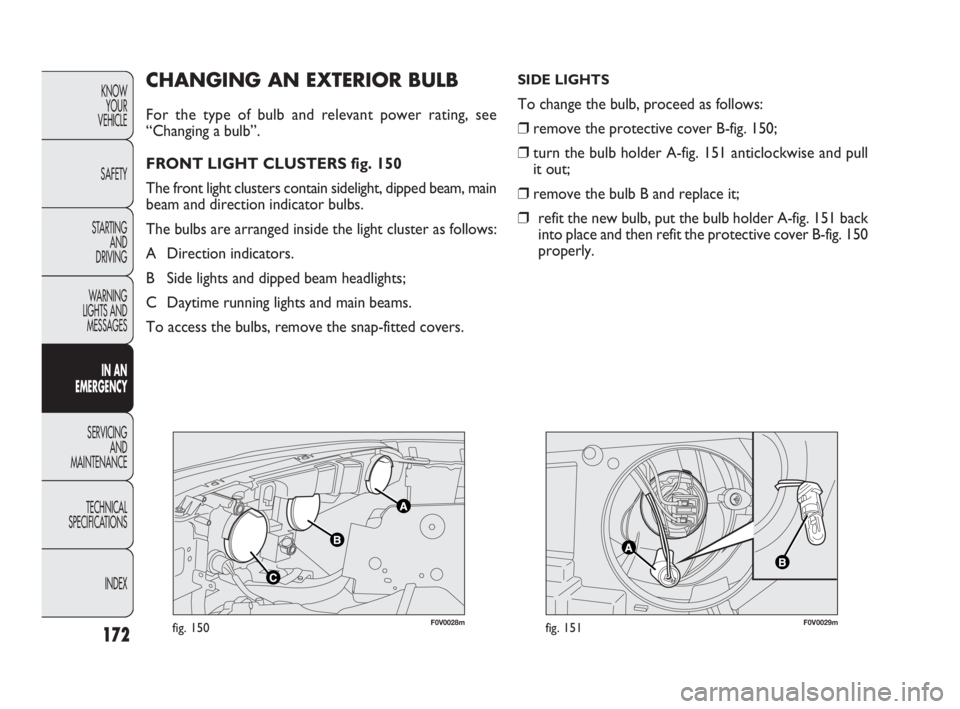

CHANGING AN EXTERIOR BULB
For the type of bulb and relevant power rating, see
“Changing a bulb”.
FRONT LIGHT CLUSTERS fig. 150
The front light clusters contain sidelight, dipped beam, main
beam and direction indicator bulbs.
The bulbs are arranged inside the light cluster as follows:
A Direction indicators.
B Side lights and dipped beam headlights;
C Daytime running lights and main beams.
To access the bulbs, remove the snap-fitted covers.
SIDE LIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover B-fig. 150;
❒turn the bulb holder A-fig. 151 anticlockwise and pull
it out;
❒remove the bulb B and replace it;
❒refit the new bulb, put the bulb holder A-fig. 151 back
into place and then refit the protective cover B-fig. 150
properly.
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 172

173
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0030mfig. 152F0V0031mfig. 153
DIRECTION INDICATORS
Front
To change the bulb, proceed as follows:
❒remove the protective cover A-fig. 150;
❒turn the bulb holder C-fig. 153 anticlockwise and pull
it out;
❒remove the bulb B-fig. 153 by pushing it in slightly and
turning it anticlockwise;
❒replace the bulb and refit the bulb holder C by turning
it clockwise and locking it properly into place;
❒reattach the protective cover A-fig. 150;
Side
IMPORTANT Go to a Fiat Dealership to have bulbs for
the side direction indicators replaced, because they are lo-
cated inside the wing mirror. DIPPED BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover B-fig. 150;
❒disconnect the electric connector;
❒release the bulb holding clips A-fig. 152;
❒remove the bulb B-fig. 152 and replace it;
❒fit the new bulb, ensuring that the outline of the metal
part lines up with the grooves on the headlight parabo-
la. Then reconnect the electrical connector and reat-
tach the bulb holding clips A;
❒refit the protective cover B-fig. 150 correctly.
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 173

174
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0032mfig. 154F0V0033mfig. 155

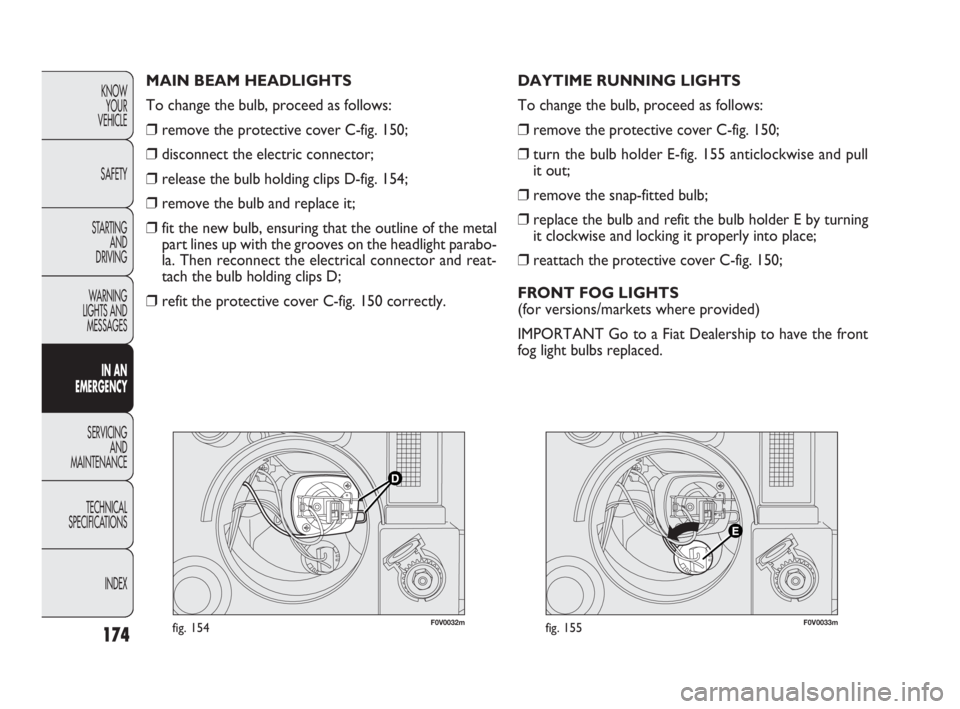

DAYTIME RUNNING LIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover C-fig. 150;
❒turn the bulb holder E-fig. 155 anticlockwise and pull
it out;
❒remove the snap-fitted bulb;
❒replace the bulb and refit the bulb holder E by turning
it clockwise and locking it properly into place;
❒reattach the protective cover C-fig. 150;
FRONT FOG LIGHTS
(for versions/markets where provided)
IMPORTANT Go to a Fiat Dealership to have the front
fog light bulbs replaced. MAIN BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover C-fig. 150;
❒disconnect the electric connector;
❒release the bulb holding clips D-fig. 154;
❒remove the bulb and replace it;
❒fit the new bulb, ensuring that the outline of the metal
part lines up with the grooves on the headlight parabo-
la. Then reconnect the electrical connector and reat-
tach the bulb holding clips D;
❒refit the protective cover C-fig. 150 correctly.
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 174

175
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
To access bulbs A – B – D – F, loosen the four fastening
screws E-fig. 157 and extract the bulb holder. To change
the bulb, push it in gently and turn it anticlockwise (“bay-

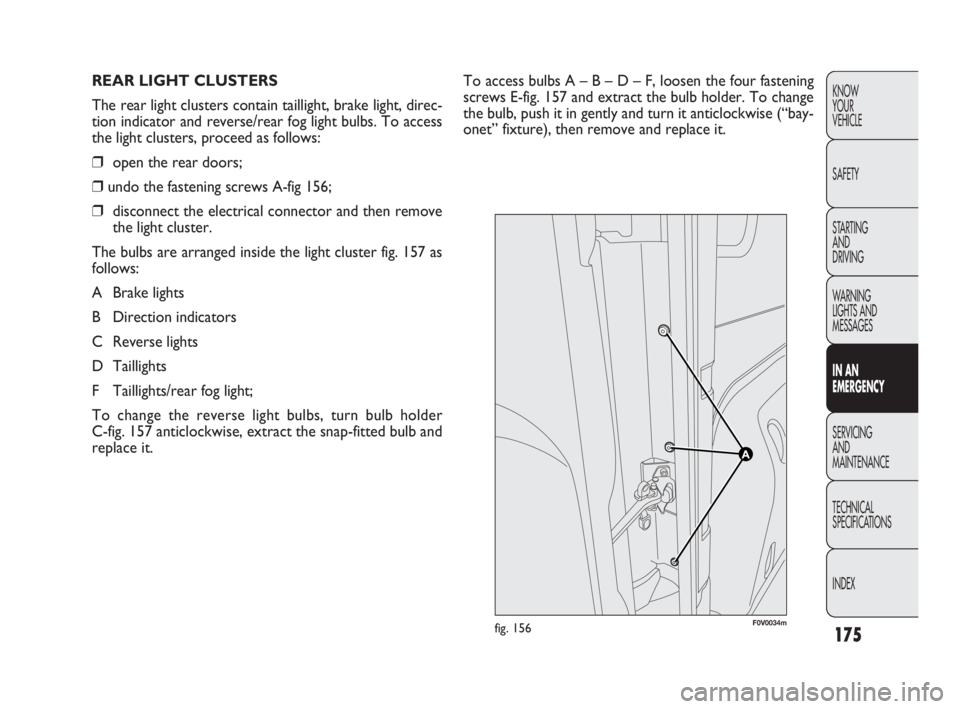

onet” fixture), then remove and replace it. REAR LIGHT CLUSTERS
The rear light clusters contain taillight, brake light, direc-
tion indicator and reverse/rear fog light bulbs. To access
the light clusters, proceed as follows:
❒open the rear doors;
❒undo the fastening screws A-fig 156;
❒disconnect the electrical connector and then remove
the light cluster.
The bulbs are arranged inside the light cluster fig. 157 as
follows:
A Brake lights
B Direction indicators
C Reverse lights
D Taillights
F Taillights/rear fog light;
To change the reverse light bulbs, turn bulb holder
C-fig. 157 anticlockwise, extract the snap-fitted bulb and
replace it.
F0V0034mfig. 156
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 175

F0V0164mfig. 159a
F0V0163mfig. 158
176
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

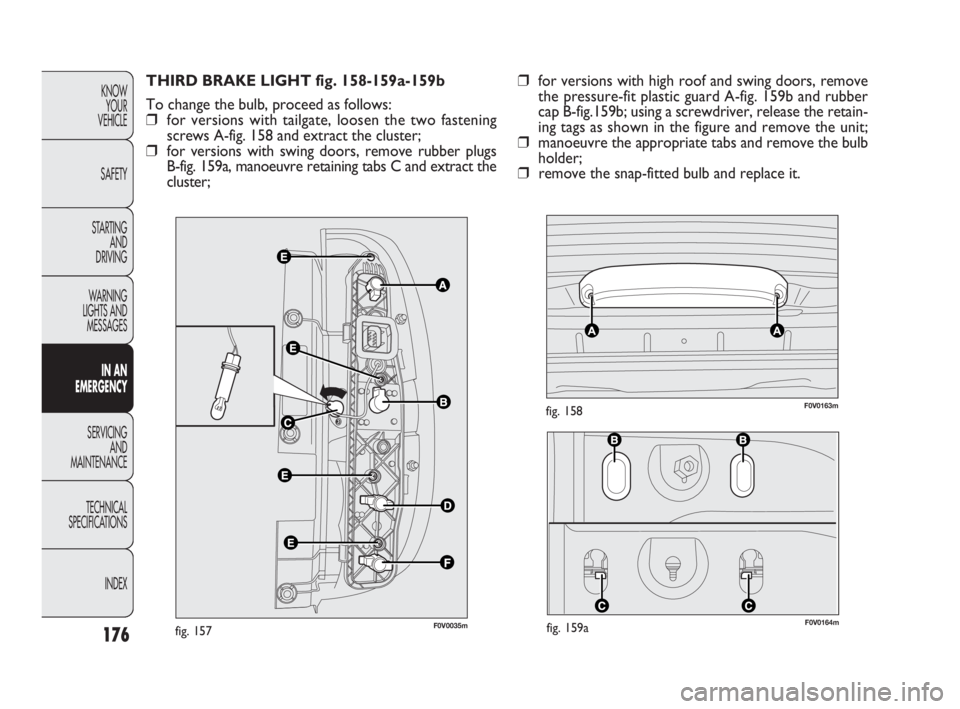

THIRD BRAKE LIGHT fig. 158-159a-159b
To change the bulb, proceed as follows:
❒for versions with tailgate, loosen the two fastening
screws A-fig. 158 and extract the cluster;
❒for versions with swing doors, remove rubber plugs
B-fig. 159a, manoeuvre retaining tabs C and extract the
cluster;❒for versions with high roof and swing doors, remove
the pressure-fit plastic guard A-fig. 159b and rubber
cap B-fig.159b; using a screwdriver, release the retain-
ing tags as shown in the figure and remove the unit;
❒manoeuvre the appropriate tabs and remove the bulb
holder;
❒remove the snap-fitted bulb and replace it.
F0V0035mfig. 157
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 176

177
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0037mfig. 161
F0V0179mfig. 160

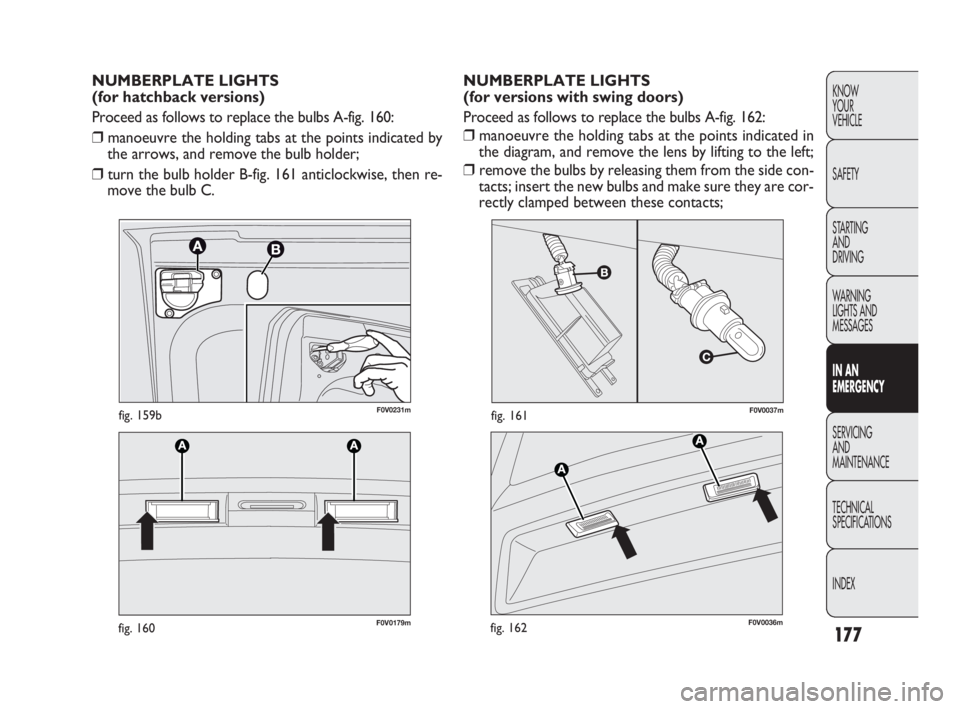

NUMBERPLATE LIGHTS
(for versions with swing doors)
Proceed as follows to replace the bulbs A-fig. 162:
❒manoeuvre the holding tabs at the points indicated in
the diagram, and remove the lens by lifting to the left;
❒remove the bulbs by releasing them from the side con-
tacts; insert the new bulbs and make sure they are cor-
rectly clamped between these contacts; NUMBERPLATE LIGHTS
(for hatchback versions)
Proceed as follows to replace the bulbs A-fig. 160:
❒manoeuvre the holding tabs at the points indicated by
the arrows, and remove the bulb holder;
❒turn the bulb holder B-fig. 161 anticlockwise, then re-
move the bulb C.
F0V0036mfig. 162
F0V0231mfig. 159b
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 177

178
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
❒open the cover B-fig. 164 as shown;
❒remove bulb C-fig. 165 by releasing it from the side con-
tacts, then insert the new bulb and make sure it is cor-
rectly clamped between these contacts;
❒ close the cover and secure the ceiling light into its hous-

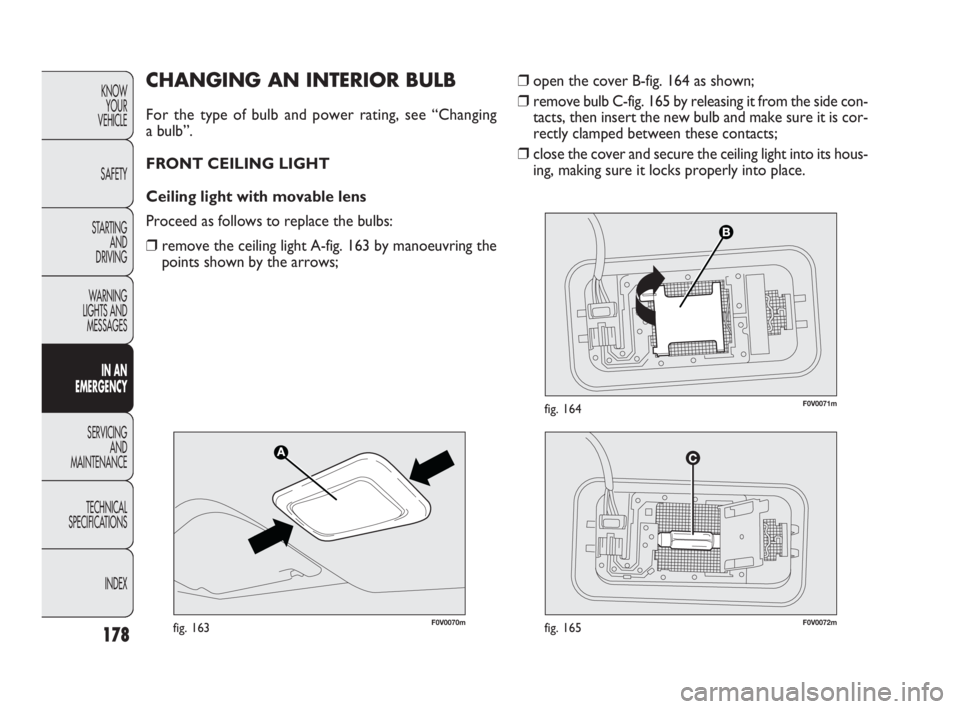

ing, making sure it locks properly into place.CHANGING AN INTERIOR BULB
For the type of bulb and power rating, see “Changing
a bulb”.
FRONT CEILING LIGHT
Ceiling light with movable lens
Proceed as follows to replace the bulbs:
❒remove the ceiling light A-fig. 163 by manoeuvring the
points shown by the arrows;
F0V0070mfig. 163F0V0072mfig. 165
F0V0071mfig. 164
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 178

179
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

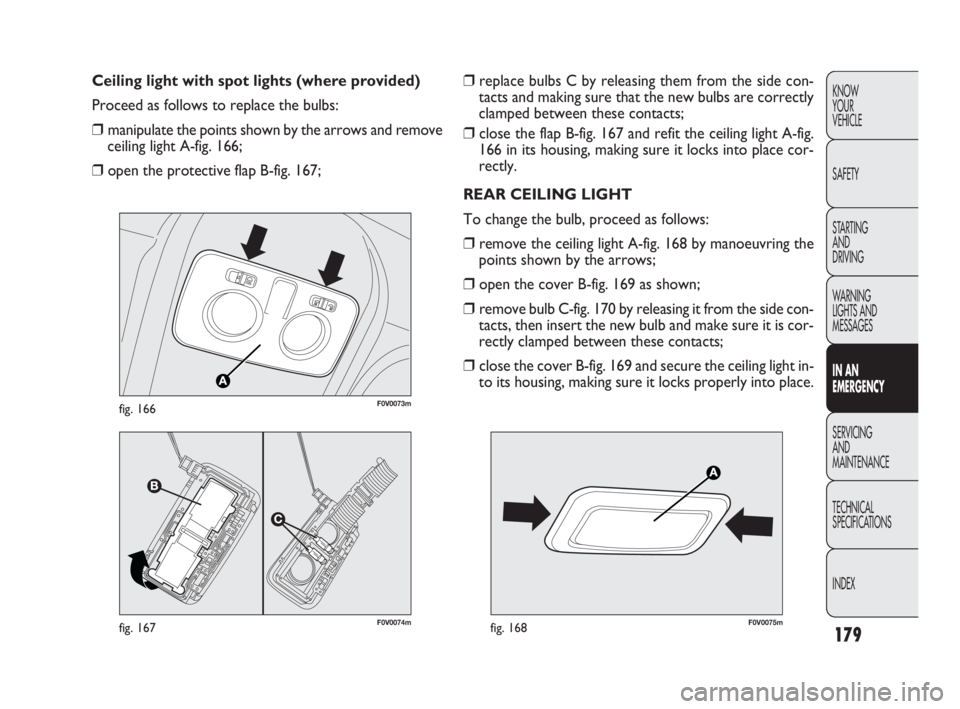

❒replace bulbs C by releasing them from the side con-
tacts and making sure that the new bulbs are correctly
clamped between these contacts;
❒ close the flap B-fig. 167 and refit the ceiling light A-fig.
166 in its housing, making sure it locks into place cor-
rectly.
REAR CEILING LIGHT
To change the bulb, proceed as follows:
❒remove the ceiling light A-fig. 168 by manoeuvring the
points shown by the arrows;
❒open the cover B-fig. 169 as shown;
❒remove bulb C-fig. 170 by releasing it from the side con-
tacts, then insert the new bulb and make sure it is cor-
rectly clamped between these contacts;
❒close the cover B-fig. 169 and secure the ceiling light in-
to its housing, making sure it locks properly into place. Ceiling light with spot lights (where provided)
Proceed as follows to replace the bulbs:
❒manipulate the points shown by the arrows and remove
ceiling light A-fig. 166;
❒open the protective flap B-fig. 167;
F0V0074mfig. 167
F0V0073mfig. 166
F0V0075mfig. 168
