clock FIAT DOBLO COMBI 2010 Owner handbook (in English)

168
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0099mfig. 147F0V0100mfig. 148

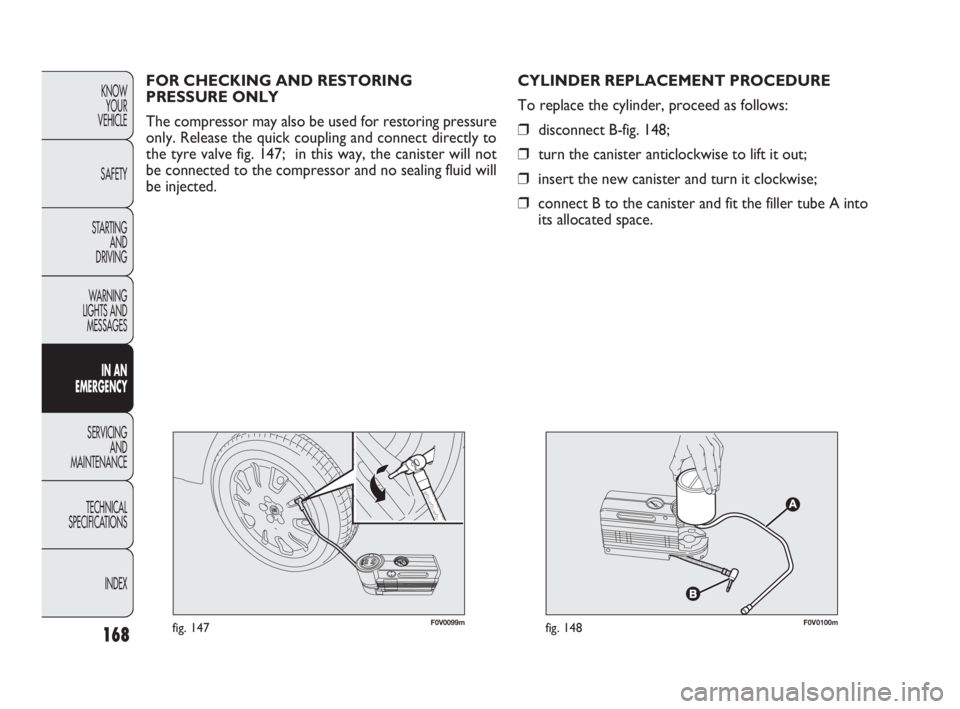

CYLINDER REPLACEMENT PROCEDURE
To replace the cylinder, proceed as follows:
❒disconnect B-fig. 148;
❒turn the canister anticlockwise to lift it out;
❒insert the new canister and turn it clockwise;
❒connect B to the canister and fit the filler tube A into
its allocated space. FOR CHECKING AND RESTORING
PRESSURE ONLY
The compressor may also be used for restoring pressure
only. Release the quick coupling and connect directly to
the tyre valve fig. 147; in this way, the canister will not
be connected to the compressor and no sealing fluid will
be injected.
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 168

170
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0027mfig. 149
BULB TYPES fig. 149
Various types of bulbs are fitted to your vehicle.
A Glass bulbs: pushed into position. Pull to extract.
B Bayonet-type bulbs: to remove from its holder, press
the bulb in and turn it anti-clockwise.
C Tubular bulbs: release them from their contacts to re-
move.D Halogen bulbs: to remove the bulb, release the clip
holding the bulb in place.
E Halogen bulbs: to remove the bulb, release the clip
holding the bulb in place.
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 170

172
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0028mfig. 150F0V0029mfig. 151
CHANGING AN EXTERIOR BULB
For the type of bulb and relevant power rating, see
“Changing a bulb”.
FRONT LIGHT CLUSTERS fig. 150
The front light clusters contain sidelight, dipped beam, main
beam and direction indicator bulbs.
The bulbs are arranged inside the light cluster as follows:
A Direction indicators.
B Side lights and dipped beam headlights;
C Daytime running lights and main beams.
To access the bulbs, remove the snap-fitted covers.
SIDE LIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover B-fig. 150;
❒turn the bulb holder A-fig. 151 anticlockwise and pull
it out;
❒remove the bulb B and replace it;
❒refit the new bulb, put the bulb holder A-fig. 151 back
into place and then refit the protective cover B-fig. 150
properly.
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 172

173
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0030mfig. 152F0V0031mfig. 153
DIRECTION INDICATORS
Front
To change the bulb, proceed as follows:
❒remove the protective cover A-fig. 150;
❒turn the bulb holder C-fig. 153 anticlockwise and pull
it out;
❒remove the bulb B-fig. 153 by pushing it in slightly and
turning it anticlockwise;
❒replace the bulb and refit the bulb holder C by turning
it clockwise and locking it properly into place;
❒reattach the protective cover A-fig. 150;
Side
IMPORTANT Go to a Fiat Dealership to have bulbs for
the side direction indicators replaced, because they are lo-
cated inside the wing mirror. DIPPED BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover B-fig. 150;
❒disconnect the electric connector;
❒release the bulb holding clips A-fig. 152;
❒remove the bulb B-fig. 152 and replace it;
❒fit the new bulb, ensuring that the outline of the metal
part lines up with the grooves on the headlight parabo-
la. Then reconnect the electrical connector and reat-
tach the bulb holding clips A;
❒refit the protective cover B-fig. 150 correctly.
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 173

174
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0032mfig. 154F0V0033mfig. 155
DAYTIME RUNNING LIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover C-fig. 150;
❒turn the bulb holder E-fig. 155 anticlockwise and pull
it out;
❒remove the snap-fitted bulb;
❒replace the bulb and refit the bulb holder E by turning
it clockwise and locking it properly into place;
❒reattach the protective cover C-fig. 150;
FRONT FOG LIGHTS
(for versions/markets where provided)
IMPORTANT Go to a Fiat Dealership to have the front
fog light bulbs replaced. MAIN BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover C-fig. 150;
❒disconnect the electric connector;
❒release the bulb holding clips D-fig. 154;
❒remove the bulb and replace it;
❒fit the new bulb, ensuring that the outline of the metal
part lines up with the grooves on the headlight parabo-
la. Then reconnect the electrical connector and reat-
tach the bulb holding clips D;
❒refit the protective cover C-fig. 150 correctly.
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 174

175
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
To access bulbs A – B – D – F, loosen the four fastening
screws E-fig. 157 and extract the bulb holder. To change
the bulb, push it in gently and turn it anticlockwise (“bay-
onet” fixture), then remove and replace it. REAR LIGHT CLUSTERS
The rear light clusters contain taillight, brake light, direc-
tion indicator and reverse/rear fog light bulbs. To access
the light clusters, proceed as follows:
❒open the rear doors;
❒undo the fastening screws A-fig 156;
❒disconnect the electrical connector and then remove
the light cluster.
The bulbs are arranged inside the light cluster fig. 157 as
follows:
A Brake lights
B Direction indicators
C Reverse lights
D Taillights
F Taillights/rear fog light;
To change the reverse light bulbs, turn bulb holder
C-fig. 157 anticlockwise, extract the snap-fitted bulb and
replace it.
F0V0034mfig. 156
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 175

177
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0037mfig. 161
F0V0179mfig. 160
NUMBERPLATE LIGHTS
(for versions with swing doors)
Proceed as follows to replace the bulbs A-fig. 162:
❒manoeuvre the holding tabs at the points indicated in
the diagram, and remove the lens by lifting to the left;
❒remove the bulbs by releasing them from the side con-
tacts; insert the new bulbs and make sure they are cor-
rectly clamped between these contacts; NUMBERPLATE LIGHTS
(for hatchback versions)
Proceed as follows to replace the bulbs A-fig. 160:
❒manoeuvre the holding tabs at the points indicated by
the arrows, and remove the bulb holder;
❒turn the bulb holder B-fig. 161 anticlockwise, then re-
move the bulb C.
F0V0036mfig. 162
F0V0231mfig. 159b
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 177

193
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
●●
●●●●●●
●
●
●●●
●●●●●●
●●●●●●
●●●●●●
●●●●●●
●●●
●●●●●●
Thousands of kilometres 30 60 90 120 150 180
Check condition of toothed timing belt
Replace spark plugs
Replace accessory drive belt(s)
Replace toothed timing belt (*)
Replace air filter cartridge
Check and, if necessary, top up fluid levels (brakes/hydraulic
clutch, windscreen washer, battery, engine coolant, etc.)
Check engine management system operation
(through diagnostic socket)
Check cleanliness of sliding side door lower guides
(or every 6 months)
Change engine oil and replace oil filter (or every 24 months) (**)
Change brake fluid (or every 24 months)
Replace pollen filter (or every 24 months)
(*) Regardless of distance covered, the timing belt must be replaced every four years in the case of particularly demanding use (cold cli-
mate, city traffic, long idling) or at least every five years in all other cases.
(**) If the vehicle is mainly driven in towns or clocks less than 10,000 km a year, the engine oil and filter should be changed every
12 months.
191-218 DOBLO LUM EN 2e 7.0 24-05-2010 10:40 Pagina 193

263
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Cruise Control (constant
speed regulator) .................... 63
Cut-off system ......................... 70
Dashboard .................................. 3
Dead lock .................................... 8
Dead lock device ....................... 8
Defrosting-demisting
– rear windscreen ..... 46-49-58
– windscreen and front
side windows .......... 45-48-57
Demisting/defrosting
– door mirrors ..........46-49-58
– rear windscreen ..... 46-49-58
– windscreen and front
side windows ................ 45-49
Diesel filter ............................. 206
– water in the filter
warning light ........................ 151
Diesel particulate filter
(DPF) ..................................... 114Digital display ........................... 14
– control buttons .................. 14
– Set-up menu ....................... 15
– standard screen ................. 14
Dipped beam headlights
– bulb replacement.............. 173
– switching on......................... 59
Dipped beam headlights
– bulb replacement.............. 173
– switching on......................... 59
Direction indicators
– front bulb replacement ... 173
– rear bulb replacement..... 175
– switching on ....................... 60
Direction indicators
– front bulb replacement ... 172
– rear bulb replacement..... 175
– switching on ....................... 60
Direction indicators
– front bulb replacement ... 173 – windows .............................. 61
Cleaning your vehicle
– engine compartment ...... 216
– exterior ............................. 214
– interiors ............................ 216
Climate control system ... 47-51
– Air vents .............................. 43
Climate control system
controls .............................47-51
Climate control vents ............ 43
Clock
– adjusting .............................. 22
Clutch
– technical specifications .... 224
CO
2emissions at exhaust .. 253
CODE Card ............................... 5
Constant speed regulator
(Cruise Control) ................... 63
Control buttons ...................... 70
Controls (buttons) ................. 70
261-272 DOBLO LUM EN 2e 7.0 24-05-2010 9:26 Pagina 263

270
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Safety ...................................... 115
Saving fuel ............................... 137
SBR system ............................. 117
Scheduled servicing
plan ........................192-194-196
Scrappage ............................... 255
Scrappage ............................... 255
Seat adjustment ....................... 30
Seat belt pretensioners ....... 117
– load limiters ..................... 118
Seat belts................................. 115
– carrying children safely .. 120
– general warnings ............. 118
– load limiters ..................... 118
– maintenance ..................... 120
– pretensioners ................... 117
– SBR system ....................... 117
– using the seat belts ......... 115
Seat heating .............................. 32
Servicing and maintenance .. 199– checking fluid
levels ..................199-200-201
– heavy use of the vehicle...198
– precautions
and warnings .....................191
– regular inspections ...........198
– scheduled servicing
plan ...................192-193-194-
195-196-197
Setting the clock....................... 22
Side air bags (side bag -
window bag) ......... 130-131-132
– general warnings ............. 131
Side/taillights
– front bulb replacement ... 172
– rear bulb
replacement..............175-176
– switching on......................... 59
Sliding side doors ..................... 78
Smart washing
(windscreen wipers) ............. 61Snow chains ........................... 141
Sockets ................................72-73
Spare wheel ........................... 228
– technical specifications .... 228
Spark plugs (type) .................. 223
Speed block system .............. 102
Speed block............................. 102
Speedometer ........................... 12
Speedometer ........................... 12
Speedometer .....................14-19
Start&Stop (system).............. 104
Start&Stop system................. 104
Starting and driving ............... 133
Steering lock and ignition
switch ........................................ 9
Steering wheel adjustment .... 39
Steering wheel levers ....... 59-61
Steering wheel lock.................... 9
Steering wheel
– adjustment lever ................ 39
– turning circle..................... 225
261-272 DOBLO LUM EN 2e 7.0 24-05-2010 9:26 Pagina 270
