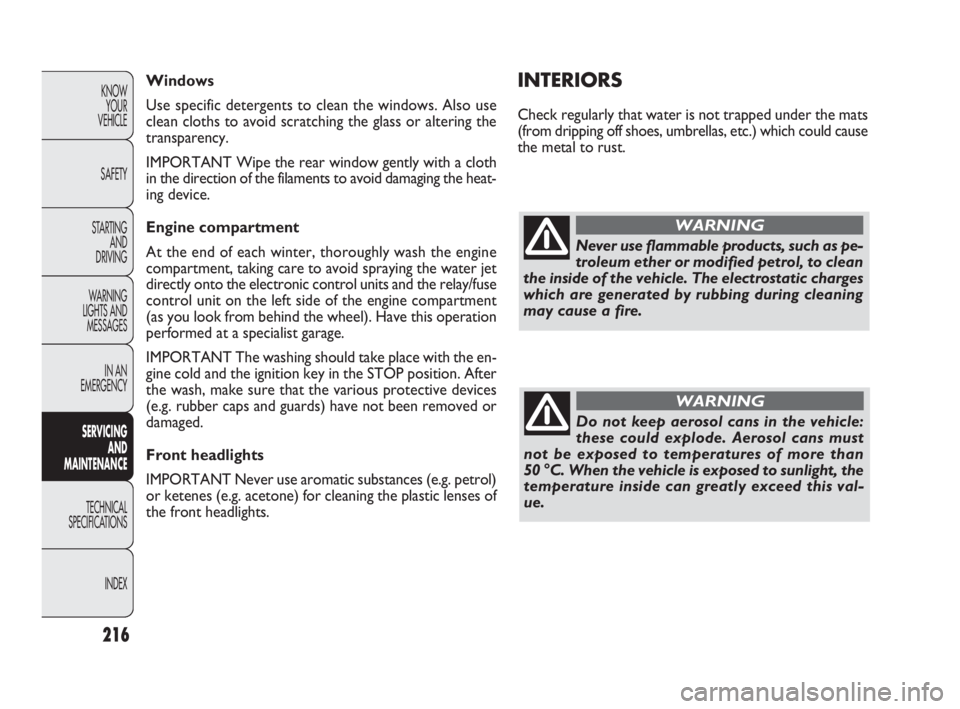

INTERIORS
Check regularly that water is not trapped under the mats
(from dripping off shoes, umbrellas, etc.) which could cause
the metal to rust. Windows
Use specific detergents to clean the windows. Also use
clean cloths to avoid scratching the glass or altering the
transparency.
IMPORTANT Wipe the rear window gently with a cloth
in the direction of the filaments to avoid damaging the heat-
ing device.
Engine compartment
At the end of each winter, thoroughly wash the engine
compartment, taking care to avoid spraying the water jet
directly onto the electronic control units and the relay/fuse
control unit on the left side of the engine compartment
(as you look from behind the wheel). Have this operation
performed at a specialist garage.
IMPORTANT The washing should take place with the en-
gine cold and the ignition key in the STOP position. After
the wash, make sure that the various protective devices
(e.g. rubber caps and guards) have not been removed or
damaged.
Front headlights
IMPORTANT Never use aromatic substances (e.g. petrol)
or ketenes (e.g. acetone) for cleaning the plastic lenses of
the front headlights.
Never use flammable products, such as pe-
troleum ether or modified petrol, to clean
the inside of the vehicle. The electrostatic charges
which are generated by rubbing during cleaning
may cause a fire.
WARNING
Do not keep aerosol cans in the vehicle:
these could explode. Aerosol cans must
not be exposed to temperatures of more than
50 °C. When the vehicle is exposed to sunlight, the
temperature inside can greatly exceed this val-
ue.
WARNING
191-218 DOBLO LUM EN 2e 7.0 24-05-2010 10:41 Pagina 216

249
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

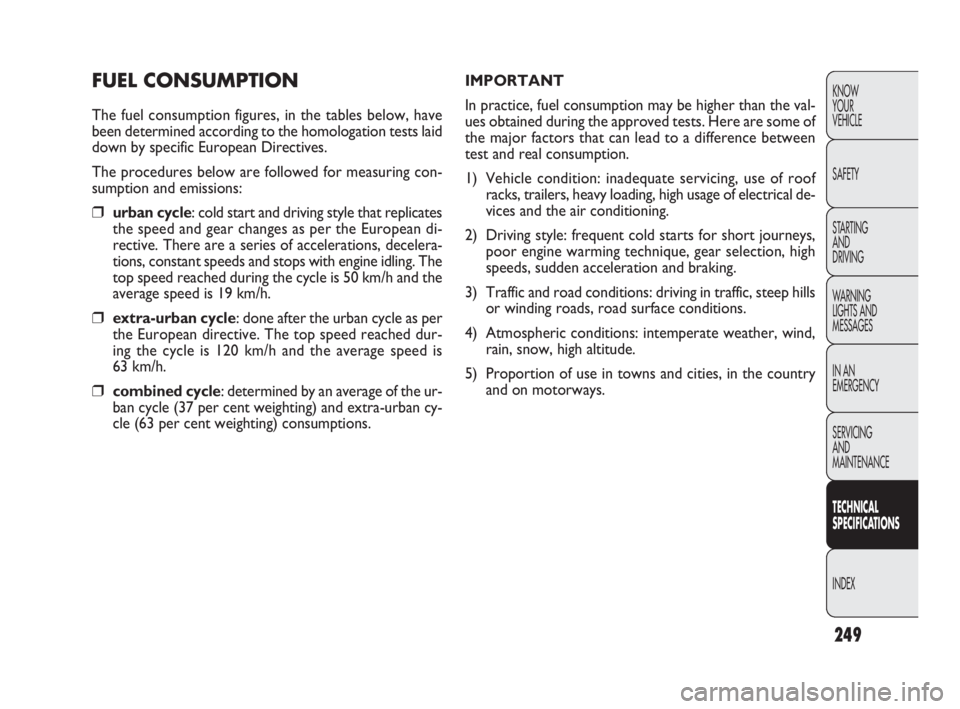

FUEL CONSUMPTION
The fuel consumption figures, in the tables below, have
been determined according to the homologation tests laid
down by specific European Directives.
The procedures below are followed for measuring con-
sumption and emissions:
❒urban cycle: cold start and driving style that replicates
the speed and gear changes as per the European di-
rective. There are a series of accelerations, decelera-
tions, constant speeds and stops with engine idling. The
top speed reached during the cycle is 50 km/h and the
average speed is 19 km/h.
❒extra-urban cycle: done after the urban cycle as per
the European directive. The top speed reached dur-
ing the cycle is 120 km/h and the average speed is
63 km/h.
❒combined cycle: determined by an average of the ur-
ban cycle (37 per cent weighting) and extra-urban cy-
cle (63 per cent weighting) consumptions.IMPORTANT
In practice, fuel consumption may be higher than the val-
ues obtained during the approved tests. Here are some of
the major factors that can lead to a difference between
test and real consumption.
1) Vehicle condition: inadequate servicing, use of roof
racks, trailers, heavy loading, high usage of electrical de-
vices and the air conditioning.
2) Driving style: frequent cold starts for short journeys,
poor engine warming technique, gear selection, high
speeds, sudden acceleration and braking.
3) Traffic and road conditions: driving in traffic, steep hills
or winding roads, road surface conditions.
4) Atmospheric conditions: intemperate weather, wind,
rain, snow, high altitude.
5) Proportion of use in towns and cities, in the country
and on motorways.
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 249

250
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

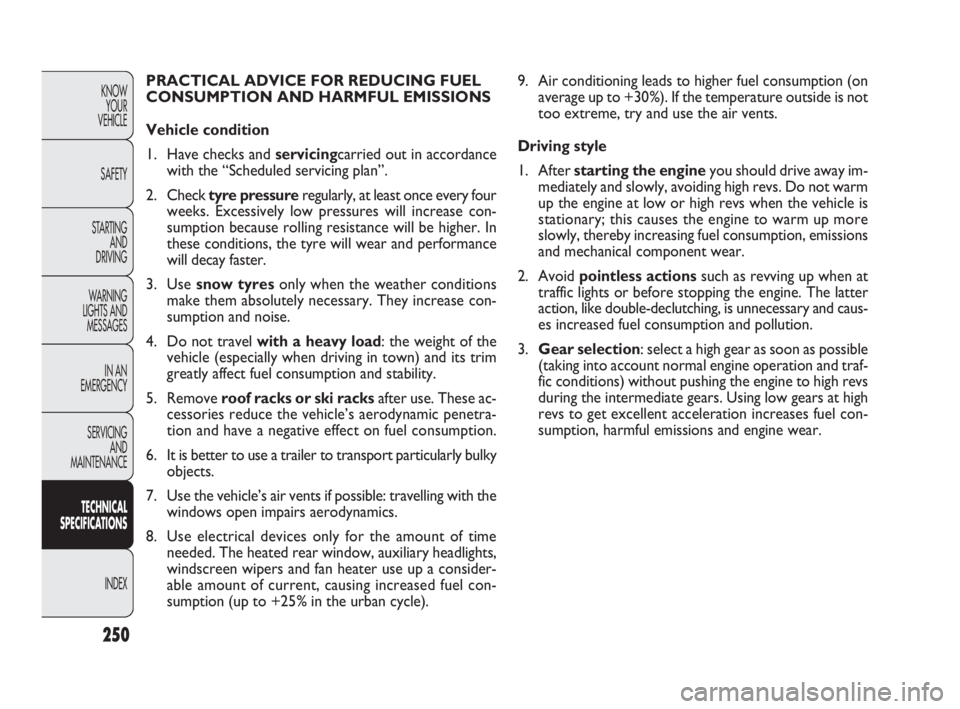

9. Air conditioning leads to higher fuel consumption (on
average up to +30%). If the temperature outside is not
too extreme, try and use the air vents.
Driving style
1. After starting the engineyou should drive away im-
mediately and slowly, avoiding high revs. Do not warm
up the engine at low or high revs when the vehicle is
stationary; this causes the engine to warm up more
slowly, thereby increasing fuel consumption, emissions
and mechanical component wear.
2. Avoid pointless actions such as revving up when at
traffic lights or before stopping the engine. The latter
action, like double-declutching, is unnecessary and caus-
es increased fuel consumption and pollution.
3.Gear selection: select a high gear as soon as possible
(taking into account normal engine operation and traf-
fic conditions) without pushing the engine to high revs
during the intermediate gears. Using low gears at high
revs to get excellent acceleration increases fuel con-
sumption, harmful emissions and engine wear. PRACTICAL ADVICE FOR REDUCING FUEL
CONSUMPTION AND HARMFUL EMISSIONS
Vehicle condition
1. Have checks and servicingcarried out in accordance
with the “Scheduled servicing plan”.
2. Check tyre pressure regularly, at least once every four
weeks. Excessively low pressures will increase con-
sumption because rolling resistance will be higher. In
these conditions, the tyre will wear and performance
will decay faster.
3. Use snow tyresonly when the weather conditions
make them absolutely necessary. They increase con-
sumption and noise.
4. Do not travel with a heavy load: the weight of the
vehicle (especially when driving in town) and its trim
greatly affect fuel consumption and stability.
5. Remove roof racks or ski racksafter use. These ac-
cessories reduce the vehicle’s aerodynamic penetra-
tion and have a negative effect on fuel consumption.
6. It is better to use a trailer to transport particularly bulky
objects.
7. Use the vehicle’s air vents if possible: travelling with the
windows open impairs aerodynamics.
8. Use electrical devices only for the amount of time
needed. The heated rear window, auxiliary headlights,
windscreen wipers and fan heater use up a consider-
able amount of current, causing increased fuel con-
sumption (up to +25% in the urban cycle).
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 250

251
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

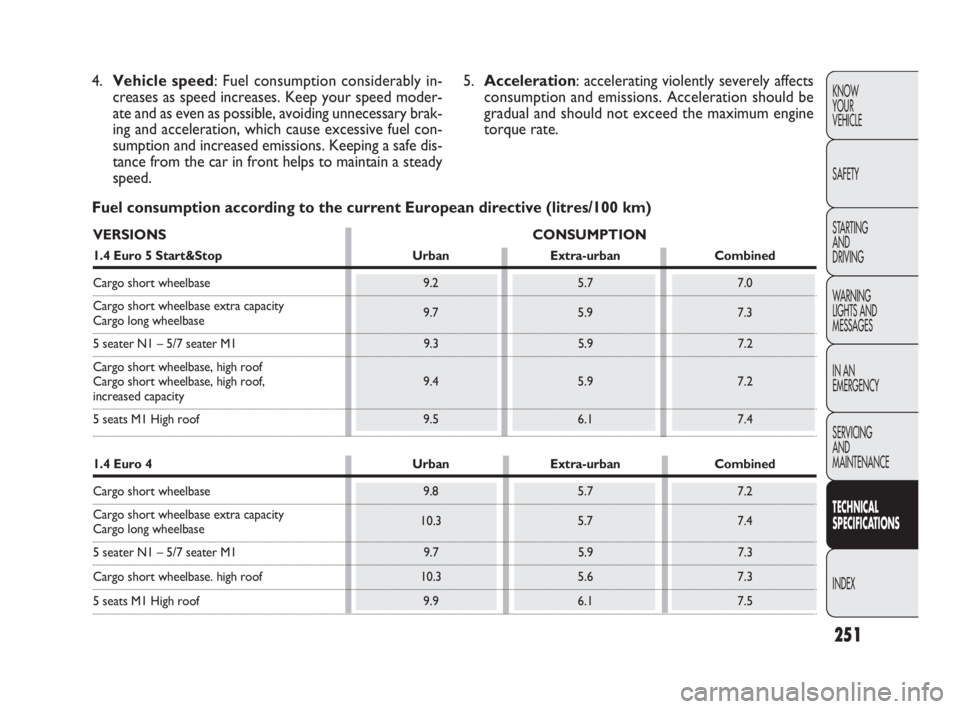

4.Vehicle speed: Fuel consumption considerably in-
creases as speed increases. Keep your speed moder-
ate and as even as possible, avoiding unnecessary brak-
ing and acceleration, which cause excessive fuel con-
sumption and increased emissions. Keeping a safe dis-
tance from the car in front helps to maintain a steady
speed.5.Acceleration: accelerating violently severely affects
consumption and emissions. Acceleration should be
gradual and should not exceed the maximum engine
torque rate.
Fuel consumption according to the current European directive (litres/100 km)
VERSIONS CONSUMPTION
1.4 Euro 5 Start&Stop Urban Extra-urban Combined
Cargo short wheelbase 9.2 5.7 7.0
Cargo short wheelbase extra capacity
9.7 5.9 7.3
Cargo long wheelbase
5 seater N1 – 5/7 seater M1 9.3 5.9 7.2
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof, 9.4 5.9 7.2
increased capacity
5 seats M1 High roof 9.5 6.1 7.4
1.4 Euro 4 Urban Extra-urban Combined
Cargo short wheelbase 9.8 5.7 7.2
Cargo short wheelbase extra capacity
10.3 5.7 7.4
Cargo long wheelbase
5 seater N1 – 5/7 seater M1 9.7 5.9 7.3
Cargo short wheelbase. high roof 10.3 5.6 7.3
5 seats M1 High roof 9.9 6.1 7.5
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 251

252
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

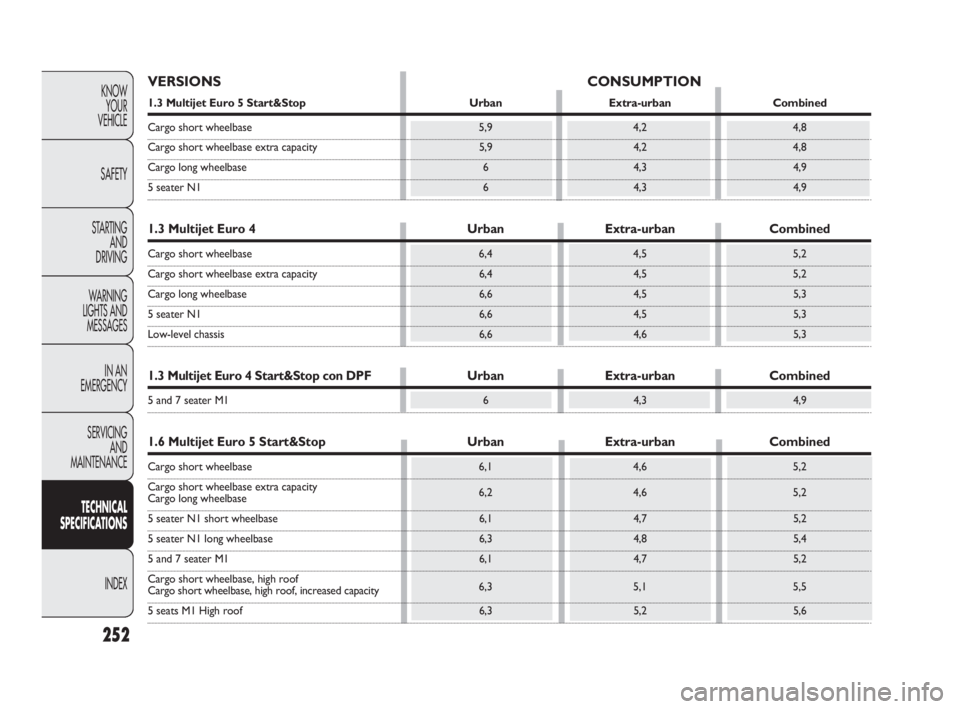

VERSIONS CONSUMPTION
1.3 Multijet Euro 5 Start&Stop Urban Extra-urban Combined
Cargo short wheelbase 5,9 4,2 4,8
Cargo short wheelbase extra capacity 5,9 4,2 4,8
Cargo long wheelbase 6 4,3 4,9
5 seater N1 6 4,3 4,9
1.3 Multijet Euro 4 Urban Extra-urban Combined
Cargo short wheelbase 6,4 4,5 5,2
Cargo short wheelbase extra capacity 6,4 4,5 5,2
Cargo long wheelbase 6,6 4,5 5,3
5 seater N1 6,6 4,5 5,3
Low-level chassis 6,6 4,6 5,3
1.3 Multijet Euro 4 Start&Stop con DPF Urban Extra-urban Combined
5 and 7 seater M1 6 4,3 4,9
1.6 Multijet Euro 5 Start&Stop Urban Extra-urban Combined
Cargo short wheelbase 6,1 4,6 5,2
Cargo short wheelbase extra capacity
6,2 4,6 5,2
Cargo long wheelbase
5 seater N1 short wheelbase 6,1 4,7 5,2
5 seater N1 long wheelbase 6,3 4,8 5,4
5 and 7 seater M1 6,1 4,7 5,2
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof, increased capacity6,3 5,1 5,5
5 seats M1 High roof 6,3 5,2 5,6
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 252

253
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

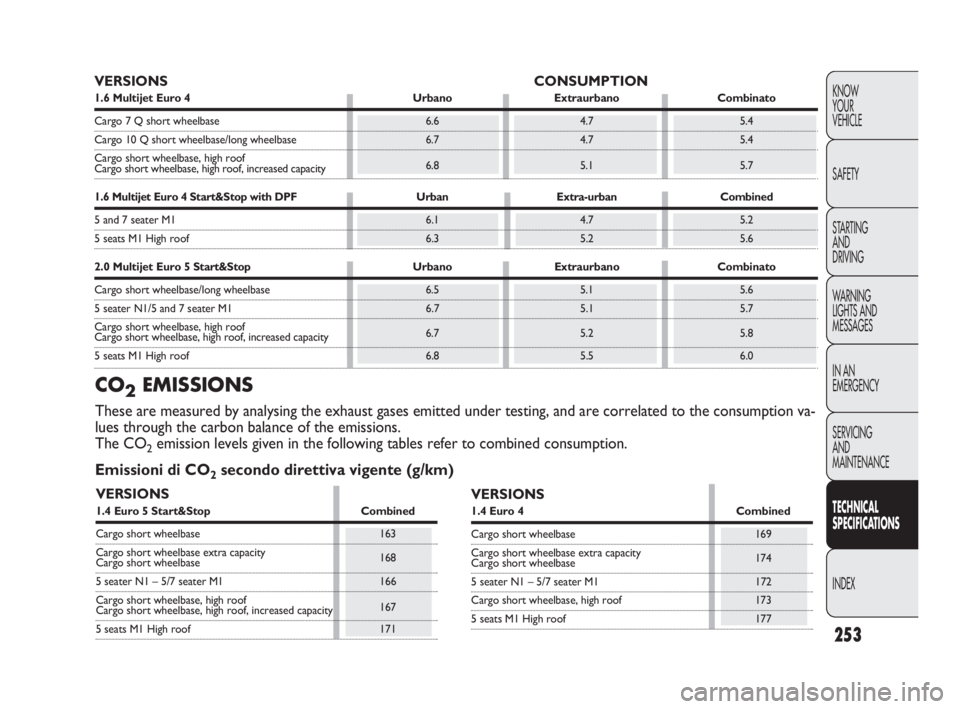

VERSIONS CONSUMPTION
1.6 Multijet Euro 4 Urbano Extraurbano Combinato
Cargo 7 Q short wheelbase 6.6 4.7 5.4
Cargo 10 Q short wheelbase/long wheelbase 6.7 4.7 5.4
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof, increased capacity6.8 5.1 5.7
1.6 Multijet Euro 4 Start&Stop with DPF Urban Extra-urban Combined
5 and 7 seater M1 6.1 4.7 5.2
5 seats M1 High roof 6.3 5.2 5.6
2.0 Multijet Euro 5 Start&Stop Urbano Extraurbano Combinato
Cargo short wheelbase/long wheelbase 6.5 5.1 5.6
5 seater N1/5 and 7 seater M1 6.7 5.1 5.7
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof, increased capacity6.7 5.2 5.8
5 seats M1 High roof 6.8 5.5 6.0
CO2EMISSIONS
These are measured by analysing the exhaust gases emitted under testing, and are correlated to the consumption va-
lues through the carbon balance of the emissions.
The CO
2emission levels given in the following tables refer to combined consumption.
Emissioni di CO
2secondo direttiva vigente (g/km)
VERSIONS
1.4 Euro 5 Start&Stop Combined
Cargo short wheelbase 163
Cargo short wheelbase extra capacity
168
Cargo short wheelbase
5 seater N1 – 5/7 seater M1 166
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof, increased capacity167
5 seats M1 High roof 171
VERSIONS
1.4 Euro 4 Combined
Cargo short wheelbase 169
Cargo short wheelbase extra capacity
174
Cargo short wheelbase
5 seater N1 – 5/7 seater M1 172
Cargo short wheelbase, high roof 173
5 seats M1 High roof 177
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 253

254
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

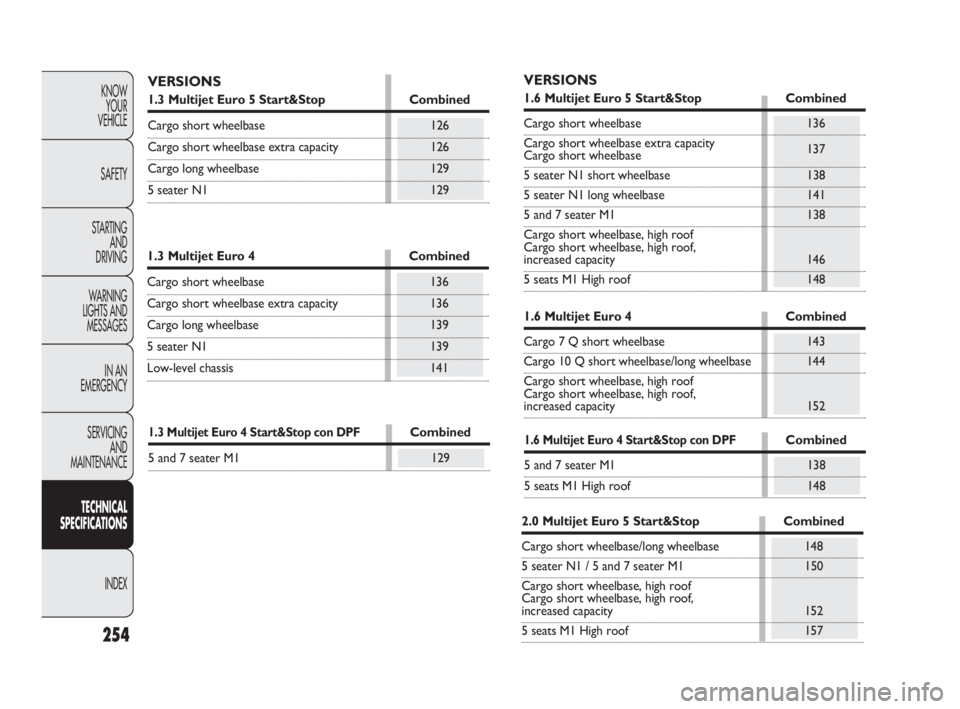

VERSIONS
1.3 Multijet Euro 5 Start&Stop Combined
Cargo short wheelbase 126
Cargo short wheelbase extra capacity 126
Cargo long wheelbase 129
5 seater N1 129
1.3 Multijet Euro 4 Combined
Cargo short wheelbase 136
Cargo short wheelbase extra capacity 136
Cargo long wheelbase 139
5 seater N1 139
Low-level chassis 141
1.3 Multijet Euro 4 Start&Stop con DPFCombined
5 and 7 seater M1 129
1.6 Multijet Euro 4 Start&Stop con DPFCombined
5 and 7 seater M1 138
5 seats M1 High roof 148
1.6 Multijet Euro 4 Combined
Cargo 7 Q short wheelbase 143
Cargo 10 Q short wheelbase/long wheelbase 144
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof,
increased capacity 152
2.0 Multijet Euro 5 Start&Stop Combined
Cargo short wheelbase/long wheelbase 148
5 seater N1 / 5 and 7 seater M1 150
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof,
increased capacity 152
5 seats M1 High roof 157
VERSIONS
1.6 Multijet Euro 5 Start&Stop Combined
Cargo short wheelbase 136
Cargo short wheelbase extra capacity
137
Cargo short wheelbase
5 seater N1 short wheelbase 138
5 seater N1 long wheelbase 141
5 and 7 seater M1 138
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof,
increased capacity 146
5 seats M1 High roof 148
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 254

265
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

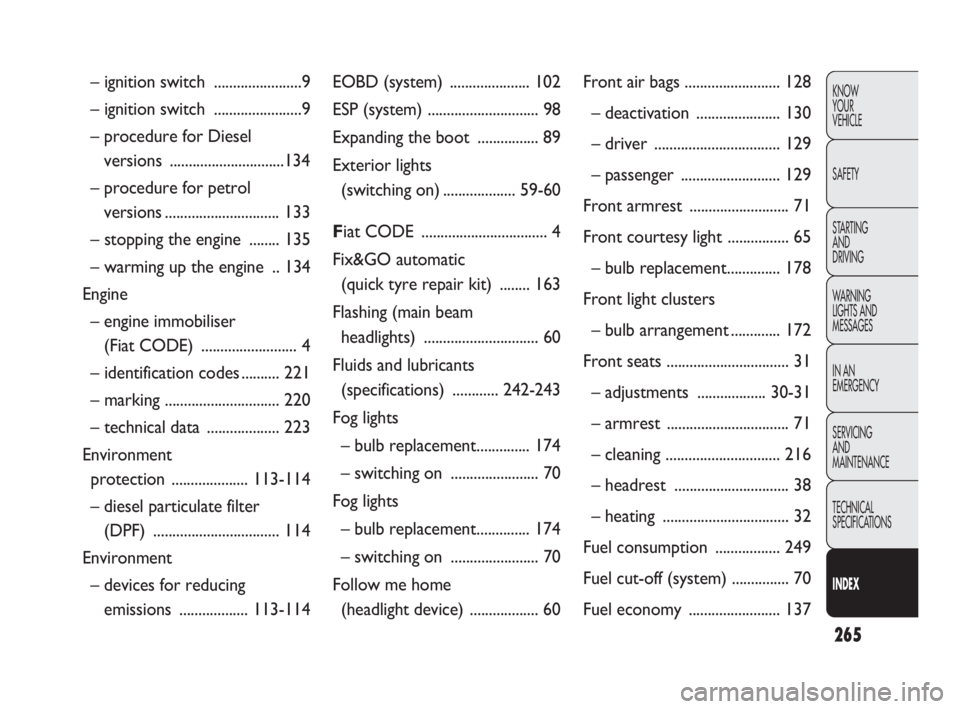

– ignition switch .......................9
– ignition switch .......................9
– procedure for Diesel
versions ..............................134
– procedure for petrol
versions .............................. 133
– stopping the engine ........ 135
– warming up the engine .. 134
Engine
– engine immobiliser
(Fiat CODE) ......................... 4
– identification codes .......... 221
– marking .............................. 220
– technical data ................... 223
Environment
protection ....................113-114
– diesel particulate filter
(DPF) ................................. 114
Environment
– devices for reducing
emissions ..................113-114EOBD (system) ..................... 102
ESP (system) ............................. 98
Expanding the boot ................ 89
Exterior lights
(switching on)................... 59-60
Fiat CODE ................................. 4
Fix&GO automatic
(quick tyre repair kit) ........ 163
Flashing (main beam
headlights) .............................. 60
Fluids and lubricants
(specifications) ............242-243
Fog lights
– bulb replacement.............. 174
– switching on ....................... 70
Fog lights
– bulb replacement.............. 174
– switching on ....................... 70
Follow me home
(headlight device) .................. 60Front air bags ......................... 128
– deactivation ...................... 130
– driver ................................. 129
– passenger .......................... 129
Front armrest .......................... 71
Front courtesy light ................ 65
– bulb replacement.............. 178
Front light clusters
– bulb arrangement ............. 172
Front seats ................................ 31
– adjustments .................. 30-31
– armrest ................................ 71
– cleaning .............................. 216
– headrest .............................. 38
– heating ................................. 32
Fuel consumption ................. 249
Fuel cut-off (system) ............... 70
Fuel economy ........................ 137
261-272 DOBLO LUM EN 2e 7.0 24-05-2010 9:26 Pagina 265

270
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Safety ...................................... 115
Saving fuel ............................... 137
SBR system ............................. 117
Scheduled servicing
plan ........................192-194-196
Scrappage ............................... 255
Scrappage ............................... 255
Seat adjustment ....................... 30
Seat belt pretensioners ....... 117
– load limiters ..................... 118
Seat belts................................. 115
– carrying children safely .. 120
– general warnings ............. 118
– load limiters ..................... 118
– maintenance ..................... 120
– pretensioners ................... 117
– SBR system ....................... 117
– using the seat belts ......... 115
Seat heating .............................. 32
Servicing and maintenance .. 199– checking fluid
levels ..................199-200-201
– heavy use of the vehicle...198
– precautions
and warnings .....................191
– regular inspections ...........198
– scheduled servicing
plan ...................192-193-194-
195-196-197
Setting the clock....................... 22
Side air bags (side bag -
window bag) ......... 130-131-132
– general warnings ............. 131
Side/taillights
– front bulb replacement ... 172
– rear bulb
replacement..............175-176
– switching on......................... 59
Sliding side doors ..................... 78
Smart washing
(windscreen wipers) ............. 61Snow chains ........................... 141
Sockets ................................72-73
Spare wheel ........................... 228
– technical specifications .... 228
Spark plugs (type) .................. 223
Speed block system .............. 102
Speed block............................. 102
Speedometer ........................... 12
Speedometer ........................... 12
Speedometer .....................14-19
Start&Stop (system).............. 104
Start&Stop system................. 104
Starting and driving ............... 133
Steering lock and ignition
switch ........................................ 9
Steering wheel adjustment .... 39
Steering wheel levers ....... 59-61
Steering wheel lock.................... 9
Steering wheel
– adjustment lever ................ 39
– turning circle..................... 225
261-272 DOBLO LUM EN 2e 7.0 24-05-2010 9:26 Pagina 270
