stop start FIAT DOBLO COMBI 2010 Owner handbook (in English)

59
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

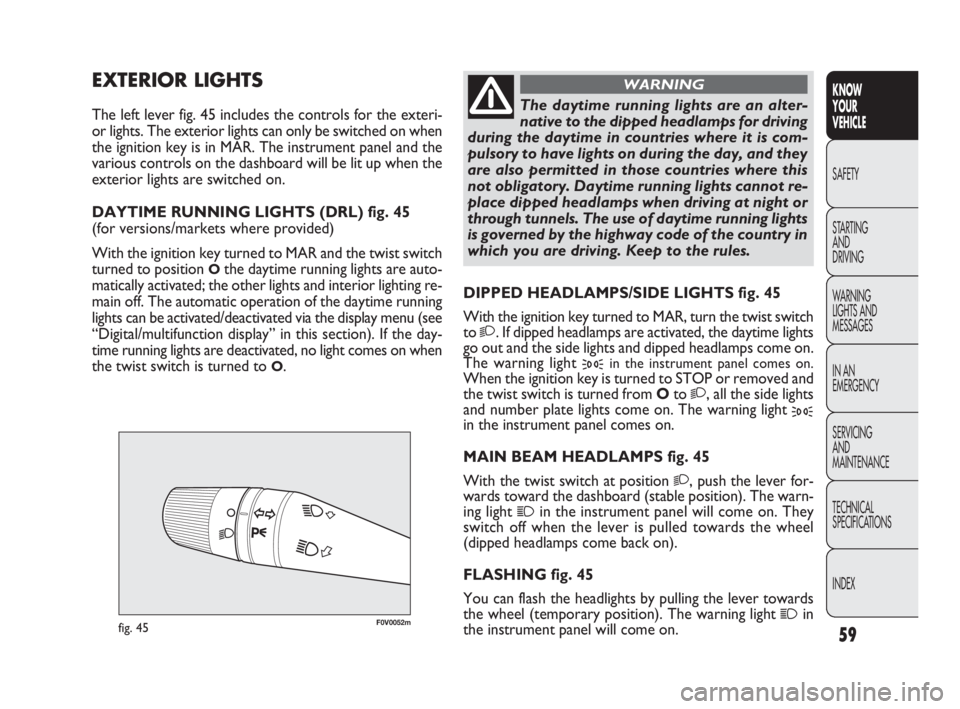

F0V0052mfig. 45
DIPPED HEADLAMPS/SIDE LIGHTS fig. 45
With the ignition key turned to MAR, turn the twist switch
to
2. If dipped headlamps are activated, the daytime lights
go out and the side lights and dipped headlamps come on.
The warning light
3in the instrument panel comes on.
When the ignition key is turned to STOP or removed and
the twist switch is turned from Oto
2, all the side lights
and number plate lights come on. The warning light
3in the instrument panel comes on.
MAIN BEAM HEADLAMPS fig. 45
With the twist switch at position
2, push the lever for-
wards toward the dashboard (stable position). The warn-
ing light
1in the instrument panel will come on. They
switch off when the lever is pulled towards the wheel
(dipped headlamps come back on).
FLASHING fig. 45
You can flash the headlights by pulling the lever towards
the wheel (temporary position). The warning light
1in
the instrument panel will come on.
EXTERIOR LIGHTS
The left lever fig. 45 includes the controls for the exteri-
or lights. The exterior lights can only be switched on when
the ignition key is in MAR. The instrument panel and the
various controls on the dashboard will be lit up when the
exterior lights are switched on.
DAYTIME RUNNING LIGHTS (DRL) fig. 45
(for versions/markets where provided)
With the ignition key turned to MAR and the twist switch
turned to position
Othe daytime running lights are auto-
matically activated; the other lights and interior lighting re-
main off. The automatic operation of the daytime running
lights can be activated/deactivated via the display menu (see
“Digital/multifunction display” in this section). If the day-
time running lights are deactivated, no light comes on when
the twist switch is turned to
O.
The daytime running lights are an alter-
native to the dipped headlamps for driving
during the daytime in countries where it is com-
pulsory to have lights on during the day, and they
are also permitted in those countries where this
not obligatory. Daytime running lights cannot re-
place dipped headlamps when driving at night or
through tunnels. The use of daytime running lights
is governed by the highway code of the country in
which you are driving. Keep to the rules.
WARNING
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 59

60
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
FV0053mfig. 46
Lane change function
If you wish to signal a lane change, put the left lever in the
temporary position for less than half a second. The direc-
tion indicator on the side selected will flash five times and
then go out automatically.
“FOLLOW ME HOME” DEVICE
This device lights up the space in front of the vehicle for
a short time.
Activation
With the ignition key in the STOP position or extracted,
pull the lever towards the steering wheel and move it with-
in 2 minutes of the engine switching off.
Each time the lever is moved, the lights stay on for an ex-
tra 30 seconds up to a maximum of 210 seconds; then the
lights are switched off automatically.
Each time the lever is moved, warning light 3 on the in-
strument panel comes on and the corresponding mes-
sage will appear on the display (see “Warning lights and
messages”) for as long as the function remains on. The
warning light comes on when the lever is operated and
stays on until the function is automatically deactivated. Each
movement of the lever only increases the amount of time
the lights stay on.
Deactivation
Keep the lever pulled towards the steering wheel for more
than two seconds. DIRECTION INDICATORS fig. 46
Place the lever in the (stable) position:
❒up (position 1): activation of right direction indicator;
❒down (position 2): activation of left direction indicator.
The
¥or Îwarning lights will come on intermittently in
the instrument panel.
Direction indicators switch off automatically when the ve-
hicle is back in a straight line.
If you want the indicator to flash briefly to show that you
are about to change lane, move the lever up or down with-
out it clicking into position. When released, the lever will
return to its default position.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 60

61
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Move the lever to position A-fig. 47 (temporary position)
to limit operation to the time for which the lever is held
in this position. When released, the lever will return to
its default position and the wiper will be automatically
stopped. With the twist switch at
≤, the windscreen wiper
will automatically adapt to the speed of the vehicle.
With the windscreen wipers working, the rear window
wiper is automatically activated when reverse gear is en-
gaged.
WINDOW CLEANING
The right lever fig. 47 controls windscreen wiper/washer
and heated rear window wiper/washer operation (for ver-
sions/markets where provided).
WINDSCREEN WIPER/WASHER
This operates only with the ignition key turned to MAR.
The right lever can assume four different positions:
Owindscreen wiper off.
≤intermittent operation.
≥continuous slow operation.
¥continuous fast operation.
Do not use the windscreen wipers to re-
move layers of snow or ice from the wind-
screen. In such conditions, the windscreen
wipers may be subjected to excessive stress and the
motor protection which prevents operation for
a few seconds may trip. If the issue persists, contact
the Fiat Service Network.
“Smart washing” function
Pull the lever towards the steering wheel (temporary po-
sition) to operate the screen washer jet. Keeping the lever
pulled for more than half a second, with just one move-
ment it is possible to operate the washer jet and the wiper
at the same time. The wiper stops working three strokes
after releasing the lever.
A further stroke after approximately six seconds com-
pletes the wiping cycle.
F0V0054mfig. 47
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 61

62
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
REAR WINDOW WIPER/WASHER
(for versions/markets where provided)
This operates only with the ignition key turned to MAR.
Activation
Turn the twist switch to
'to operate the rear window
wiper:
❒in intermittent mode if the windscreen wiper is off;
❒synchronised operation (but with half-stroke frequen-
cy) when the windscreen wiper is on;
❒continuous operation with reverse engaged and func-
tion on.
With the windscreen wiper on and reverse gear engaged,
rear window wiping will be continuous.
Pushing the lever towards the dashboard (temporary po-
sition) will activate the rear window washer jet. Keeping
the lever pushed for more than half a second will also ac-
tivate the rear window wiper. Releasing the lever will ac-
tivate the smart washing function, as described for the
windscreen wiper.
Deactivation
The function stops when the lever is released.
Do not use the rear window wiper to re-
move layers of snow or ice. In such condi-
tions, the wiper may be subjected to ex-
cessive stress and the motor protection, which pre-
vents operation for a few seconds, may intervene.
If the issue persists, contact the Fiat Service Net-
work.
HEADLIGHT WASHERS
(for versions/markets where provided)
They are activated when the dipped headlamps are on and the
screen washer is activated.
WARNING Check jet function and cleanliness at regular
intervals.
The headlamp washer jet does not function
when the level of fluid in the reservoir falls
below 1.6 litres.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 62

69
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
The rear courtesy lights go out immediately (with fading),
if the key is in the MAR position when all the side doors
and the rear door (swing or tailgate) are closed.
The rear courtesy lights go out after 10 secs. (with fading),
if the key is in the OFF position when all the side doors
and the rear door (swing or tailgate) are closed.
Doblò/Doblò Combi versions
Switching on
The front and rear courtesy lights come on when one of
the front doors or a sliding side door is opened and they
stay on for 3 minutes if at least one of these doors con-
tinues to remain open.
Switching off
The front and rear courtesy lights go out immediately (with
fading), if the key is in the MAR position when all the front
doors and the sliding side doors are closed.
The front and rear courtesy lights go out after 10 secs.
(with fading), if the key is in the OFF position when all
the front doors and the sliding side doors are closed. When the removable courtesy light is secured to its fixed
support, the electric torch battery is automatically
recharged.
For Cargo versions with fixed window
With the vehicle stationary and the ignition key either
turned to STOP or removed, the courtesy light is
recharged for a maximum of 15 minutes.
SWITCHING COURTESY LIGHTS ON/OFF
Cargo versions
Switching on
The front courtesy light comes on when one of the two
front doors is opened and remains on for 3 minutes if at
least one of the two doors continues to remain open.
The rear courtesy lights come on when one of the sliding
side doors or the rear door (swing or tailgate) is opened
and they stay on for 3 minutes if at least one of these doors
remains open.
Switching off
The front courtesy light goes out immediately (with fad-
ing), if the key is in the MAR position when all the front
doors are closed.
The front courtesy light goes out after 10 secs. (with fad-
ing), if the key is in the OFF position when all the front
doors are closed.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 69

F0V0019mfig. 56
FRONT FOG LIGHTS fig. 56
(for versions/markets where provided)
Press button 5to switch them on. The warning light 5
in the instrument panel will come on.
When the fog lights are on, the side lights also come on,
while the daytime running lights go off irrespective of the
position of the twist switch.
Press the button again to turn the lights off.
REAR FOG LAMPS fig. 56
Press button
4to switch them on when the dipped head-
lamps or front fog lamps are on. The warning light
4in the
instrument panel will come on.
Press the button again to turn the lights off, or turn off the
dipped headlamps and/or the front fog lamps (where pro-
vided).
FUEL CUT-OFF SYSTEM
This system triggers after a collision and activates the fol-
lowing:
❒cut-off of fuel supply with consequent switching off of
the engine;
❒doors automatically unlocked;
❒switching on of all interior lights.
When the system has been triggered, the message “Fuel
cut off, see handbook” is displayed on some versions.
Check carefully for fuel leaks, for instance in the engine
compartment, under the vehicle or near the tank area.
After a crash, turn the ignition key to STOP to avoid drain-
ing the battery.
CONTROLS
HAZARD WARNING LIGHTS
They are turned on by pressing switch A-fig. 56, regard-
less of the ignition key position. With the device on, warn-
ing lights
Îand¥light up in the instrument panel. Press
switch A again to turn the lights off.
WARNING The use of hazard warning lights is governed
by the highway code of the country you are in. Keep to
the rules.
Emergency braking
(for versions/markets where provided)
During emergency braking, the hazard warning lights come
on automatically and warning lights
Îand¥light up in the
panel at the same time. They go out automatically as soon
as the emergency braking is over. This function complies
with the relevant legal regulations currently in force.
70
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 70

71
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
INTERIOR FITTINGS
DRIVER SIDE ARMREST fig. 57
(for versions/markets where provided)
On some versions, the driver’s side front seat has an arm-
rest.
Lift or lower the armrest as shown by the arrows.
STORAGE COMPARTMENT
fig. 58
This is located in front of the passenger’s side front seat.
GLOVE COMPARTMENT
To open the glove compartment, operate handle
A-fig. 59.
Turn the key clockwise/anticlockwise to lock/unlock the glove
compartment (for versions/markets where provided).
The following procedure should be carried out to restore
the correct operation of the vehicle:
❒turn the ignition key to MAR;
❒activate the right indicator;
❒deactivate the right indicator;
❒activate the left indicator;
❒deactivate the left indicator;
❒activate the right indicator;
❒deactivate the right indicator;
❒activate the left indicator;
❒deactivate the left indicator;
❒turn the ignition key to STOP.
If, after a crash, you smell fuel or notice
leaks from the fuel system, do not reacti-
vate the system to avoid the risk of fire.
WARNING
F0V0058mfig. 57
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 71

78
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
On Cargo versions, the sliding side door is fitted with
a spring-loaded latch that stops the door from opening any
further. To lock it, simply push the door as far as it will go;
to unlock it, pull forward firmly.
In any case, make sure that the door is properly attached
to the device which keeps it fully open.SLIDING SIDE DOORS
(for versions/markets where provided)
Before opening a door, check that you can
do so safely.
WARNING
Before refuelling, check that the left sliding
side door is fully closed; if it is not, you could
damage the door and the slide locking
mechanism when the fuel cap is open.
You must not open the left-hand sliding
side door with the fuel cap open while re-
fuelling. Check that the fuel cap is closed while
opening/closing the sliding side door to avoid dam-
age.
WARNING
If you are parked on a slope, do not leave
the sliding door locked in the open posi-
tion. An involuntary impact could unhook the
door, causing it to move.
WARNING
Before leaving the vehicle parked with the
sliding doors open, always check that they
are locked into place.
WARNING
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 78

80
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0066mfig. 76F0V0186mfig. 77
The device remains engaged even if the doors are unlocked
remotely. Opening/closing from the inside
(Cargo versions)
Opening: pull lever A-fig. 76 and slide the door towards
the rear of the vehicle until it can go no further.
Closing: slide the door towards the front of the vehicle.
CHILD LOCK SYSTEM fig. 77
This system prevents the sliding side doors being opened
from the inside.
It can be engaged only with the sliding side door open:
❒position 1 – engaged (door locked);
❒position 2 – disengaged (door can be opened from in-
side).
Always use this device when carrying chil-
dren.
WARNING
DOUBLE REAR SWING DOORS
The rear double swing doors are fitted with a link system
that stops them when they have opened to an angle of
approximately 90 degrees.
To open them wider to an angle of 180 degrees, push the
locking device A-fig. 78 (one on each side) as shown in the
diagram and simultaneously open the doors.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 80

83
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
WARNING In the event that the anti-crushing function
is activated five times in less than a minute, the system will
automatically enter “recovery” mode (self-protection).
This condition is apparent from the window closing in
stages.
On such occasions, it is necessary to carry out the system
restore procedure, acting as follows:
❒open the windows;
or
❒turn the ignition key to STOP and then to MAR.
If no malfunction is present, the window returns to its nor-
mal operation automatically.
WARNING With the ignition key at STOP or removed,
the window opening mechanism remains activated for
about two minutes and is deactivated as soon a door is
opened.
WINDOW OPENING MECHANISM
FRONT ELECTRIC WINDOWS
Buttons fig. 82 have been provided on the driver’s door
panel to control the following functions with the ignition
key turned to MAR:
A: Opening/closing left window
B: Opening/closing right window
Push button A or B to open/close the appropriate win-
dow.
When one of the two buttons is pressed briefly, the win-
dow moves in stages; if the button is held down, continu-
ous automatic operation is activated both for closing and
opening. Press button A or B again to stop the window
in its current position.
The window opening mechanism is fitted with a security
system (where provided) that can detect the presence of
an obstacle whilst the window is closing; when this hap-
pens, the system kicks in and the movement of the glass
is immediately reversed.
F0V0020mfig. 82
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 83
