Date FIAT DOBLO COMBI 2010 Owner handbook (in English)

REFUELLING
Petrol engines: only refuel with unleaded petrol with
an octane rating (RON) of no less than 95 conform-
ing to the European specification EN 228.
Diesel engines: only use diesel fuel for motor vehicles
conforming to the European specification EN 590. The
use of other products or mixtures may damage the en-
gine beyond repair and consequently invalidate the war-
ranty, depending on the damage caused.
STARTING THE ENGINE
Petrol engines: make sure that the handbrake is en-
gaged, place the gear lever in neutral, fully depress the
clutch without depressing the accelerator, then turn
the ignition key to AVV and release it as soon as the
engine has started.
Diesel engines: turn the ignition key to MAR and wait
until the warning lights Y(or symbol on the display)
and mgo off. Then, turn the ignition key to AVV and
release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
The catalytic silencer reaches high temperatures dur-
ing operation. Do not park the on grass, dry leaves, pine
needles or other flammable material as this constitutes
a fire hazard.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows contin-
uous diagnosis of the emission-related components in
order to help protect the environment.
K
ELECTRICAL ACCESSORIES
If, after buying the vehicle, you decide to add electri-
cal accessories (with the risk of gradually draining the
battery), visit the Fiat Service Network. They can cal-
culate the overall electrical requirement and check that
the vehicle’s electrical system can support the required
load.
CODE card
Keep it in a safe place, not in the vehicle. You should
have the electronic code from the CODE card with
you at all times.
SCHEDULED MAINTENANCE
Correct maintenance is essential for ensuring the ve-
hicle stays in tip-top condition and retains its safety fea-
tures, its environmental friendliness and low running
costs for a long time to come.
THE OWNER’S HANDBOOK CONTAINS…
... information, tips and important warnings on the cor-
rect use and maintenance of your vehicle over time as
well as safe driving tips. Pay special attention to the sym-
bols
"(personal safety) #(protecting the environ-
ment) !(risk of serious damage to the vehicle).
READ THIS CAREFULLY!


001-034 DOBLO LUM EN 2e 7.0 21-05-2010 8:38 Pagina 2

10
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Never extract the key while the vehicle is
moving. The steering wheel should lock au-
tomatically as soon as it is turned. This is always
the case, even when the vehicle is being towed.
WARNING
It is absolutely forbidden to carry out any
aftersales operation involving steering sys-
tem or steering column modifications (e.g. installing
an anti-theft device) that could badly affect per-
formance and safety, invalidate the warranty and
also result in the vehicle failing to comply with reg-
ulations.
WARNING
When getting out of the vehicle, always re-
move the key to prevent someone from
accidentally activating the controls. Remember to
engage the handbrake. Engage first gear if the ve-
hicle is parked uphill or reverse gear if the vehi-
cle is parked downhill. Never leave children un-
attended in the vehicle.
WARNING
001-034 DOBLO LUM EN 2e 7.0 21-05-2010 8:38 Pagina 10

19
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0038mfig. 16F0V0012mfig. 17
F Start&Stop indicator (for versions/markets where pro-
vided)
G Gear Shift Indicator (for versions/markets where pro-
vided)
N.B. When one of the front doors is opened, the display
turns on and shows the time and distance covered (in km
or mi) for a few seconds.
CONTROL BUTTONS fig. 17
▲To scroll up the screen and the menu options or in-
crease the displayed value.
SETESCPress to access the menu and/or go to the
next screen or confirm your choice.
Hold down to go back to the standard screen.
▼To scroll down the screen and the menu options or de-
crease the displayed value.
MULTIFUNCTION DISPLAY
(for versions/markets where provided)
The vehicle may be equipped with a multifunction display
that gives the driver useful information depending on the
previous settings.
STANDARD SCREEN fig. 16
The standard screen shows the following information:
A Date.
B Milometer (distance covered in km or miles).
C Time (always displayed, even with the key extracted
and the front doors closed);
D Outside temperature.
E Headlamp alignment position (only with dipped head-
lamps on).
001-034 DOBLO LUM EN 2e 7.0 21-05-2010 8:38 Pagina 19

20
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SETUP MENU
The menu comprises a series of functions arranged in
a circle which can be selected through buttons ▲and ▼
to access the settings described below. A submenu is pro-
vided for some items (Clock and Unit of measurement).
The setup menu can be activated by pressing SET ESC.
Pressing buttons ▲or ▼scrolls through the setup menu
options. Management modes differ from each other ac-
cording to the option selected. The menu comprises the
following functions:
– LIGHTING
– SPEED BEEP
– TRIP B DATA
– SET TIME
– SET DATE
– RADIO INFO (if present)
– AUTOCLOSE
– UNIT OF MEASUREMENT
– LANGUAGE
– WARNING VOLUME
– BUTTON VOLUME
– SEAT BELT BUZZER
(only if previously disabled)
– SERVICE N.B. Buttons ▲and ▼activate different functions in the
following situations:
Adjusting the vehicle’s interior lighting
– on the standard screen, they adjust the brightness of the
instrument panel and the radio.
Setup menu
– within the menu, they scroll up and down;
– during setting operations they increase or decrease the
value.
001-034 DOBLO LUM EN 2e 7.0 21-05-2010 8:38 Pagina 20

23
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Set date (Setting the date)
Using this function it is possible to change the date (day
– month – year).
To update, proceed as follows:
– press SET ESC: the year flashes on the display;
– press ▲or ▼to adjust the value;
– press SET ESC: the month flashes in the display;
– press ▲or ▼to adjust the value;
– press SET ESC: the day flashes in the display;
– press ▲or ▼to adjust the value.
N.B. The setting will increase or decrease by one unit each
time ▲or ▼is pressed. Hold the button down to in-
crease/decrease the setting rapidly. Complete the setting
with single presses of the button when you approach the
required setting.
– press the SET ESC button to go back to the menu screen
or hold the button down to go back to the standard screen
without saving. – when you select “Time”, pressing SET ESC makes the
hours flash on the display;
– press ▲or ▼to adjust the value;
– press SET ESC: the minutes flash in the display;
– press ▲or ▼to adjust the value.
N.B. The setting will increase or decrease by one unit each
time ▲or ▼is pressed. Hold the button down to in-
crease/decrease the setting rapidly. Complete the setting
with single presses of the button when you approach the
required setting.
– when you select “Mode”, pressing SET ESC makes the
mode flash on the display;
– press ▲or ▼to select 24h or 12h.
When you have made the required adjustments, press SET
ESC to go back to the submenu screen or hold the but-
ton down to go back to the main menu screen without
saving.
– hold down SET ESC again to go back to the standard
screen or main menu, depending on which point in the
menu you have reached.
001-034 DOBLO LUM EN 2e 7.0 21-05-2010 8:38 Pagina 23

28
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Values displayed
Range
Shows the approximate distance the vehicle can travel with
the amount of fuel left in the tank. The display will show
the reading “----” when the following events take place:
– range is lower than 50 km (or 30 mi)
– vehicle is left parked with the engine running for a long
time.
WARNING The range can be affected by several factors:
driving style (see “Driving style” in the “Starting and dri-
ving” section), type of route (motorway, towns and cities,
mountain roads, etc.), conditions of use (load, tyre pres-
sures, etc.). Trip planning must therefore take the above
into account.
Distance travelled
Shows the distance covered since the start of the new jour-
ney.
Average consumption
Shows the approximate average fuel consumption since
the start of the new journey.
Current consumption
Shows the constantly updated fuel consumption. The read-
ing “----” appears on the display if the vehicle is parked with
the engine running.
Average speed
Shows the average speed of the vehicle by using the over-
all time elapsed since the start of a new journey.TRIP COMPUTER
General information
The Trip computer is used to display information on ve-
hicle operation when the ignition key is turned to MAR.
This function allows you to define two separate trips, called
“Trip A” and “Trip B”, for monitoring the vehicle’s „com-
plete mission” (journey) in a reciprocally independent man-
ner. Both functions can be reset (reset – start of a new
journey).
“Trip A” is used to display the figures relating to:
– Range
– Distance travelled
– Average consumption
– Instant consumption
– Average speed
– Travel time (driving time).
“Trip B”, available on multifunction display only, is used to
display the figures relating to:
– Distance travelled B
– Average consumption B
– Average speed B
– Travel time B (driving time).
N.B. “Trip B” may be disabled (see “Activating Trip B”).
“Range” and “Instant consumption” parameters cannot be
reset.
001-034 DOBLO LUM EN 2e 7.0 21-05-2010 8:38 Pagina 28

39
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0014mfig. 34
STEERING WHEEL
The height and axial position of the steering wheel can
be adjusted on all versions.
To carry out the adjustment, proceed as follows:
❒release lever A-fig. 34 by pushing it forwards
(position 1);
❒adjust the steering wheel;
❒lock lever A by pulling it towards the steering wheel
(position 2).
The adjustments should only be carried
out with the vehicle stationary and the en-
gine turned off.
WARNING
It is absolutely forbidden to carry out any
after-sales operations involving steering
system or steering column modifications (e.g. in-
stalling an anti-theft device). This could affect per-
formance and safety, invalidate the warranty and
also result in the vehicle failing to comply with reg-
ulations.
WARNING
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 39

110
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0068mfig. 108

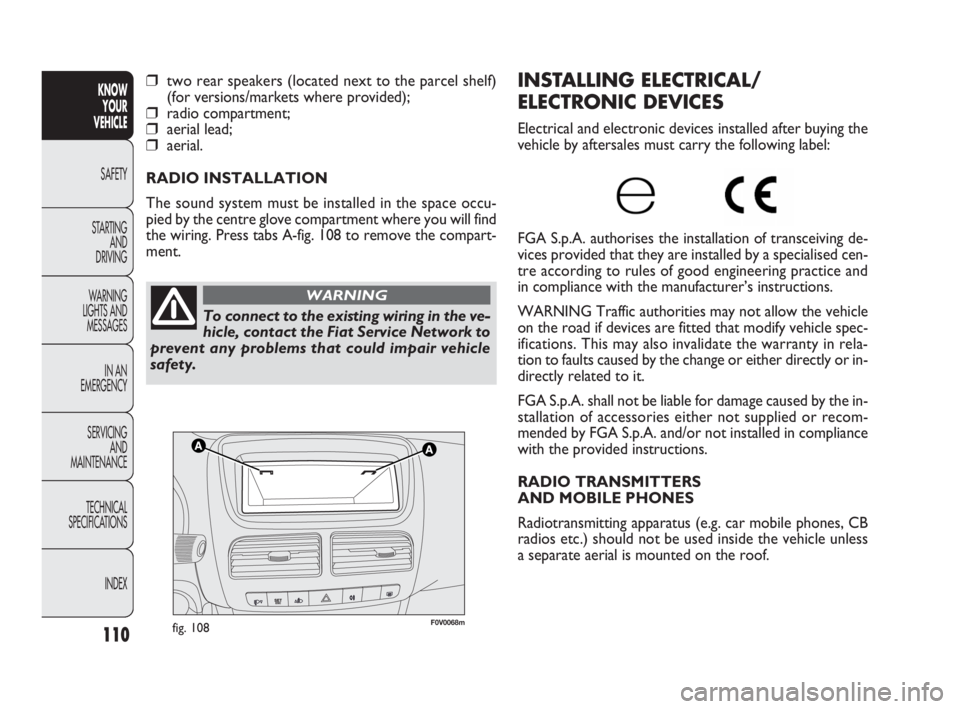

INSTALLING ELECTRICAL/
ELECTRONIC DEVICES
Electrical and electronic devices installed after buying the
vehicle by aftersales must carry the following label:
FGA S.p.A. authorises the installation of transceiving de-
vices provided that they are installed by a specialised cen-
tre according to rules of good engineering practice and
in compliance with the manufacturer’s instructions.
WARNING Traffic authorities may not allow the vehicle
on the road if devices are fitted that modify vehicle spec-
ifications. This may also invalidate the warranty in rela-
tion to faults caused by the change or either directly or in-
directly related to it.
FGA S.p.A. shall not be liable for damage caused by the in-
stallation of accessories either not supplied or recom-
mended by FGA S.p.A. and/or not installed in compliance
with the provided instructions.
RADIO TRANSMITTERS
AND MOBILE PHONES
Radiotransmitting apparatus (e.g. car mobile phones, CB
radios etc.) should not be used inside the vehicle unless
a separate aerial is mounted on the roof.
❒two rear speakers (located next to the parcel shelf)
(for versions/markets where provided);
❒radio compartment;
❒aerial lead;
❒aerial.
RADIO INSTALLATION
The sound system must be installed in the space occu-
pied by the centre glove compartment where you will find
the wiring. Press tabs A-fig. 108 to remove the compart-
ment.
To connect to the existing wiring in the ve-
hicle, contact the Fiat Service Network to
prevent any problems that could impair vehicle
safety.
WARNING
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:55 Pagina 110

112
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0086mfig. 109
REFUELLING CAPACITY
To fill the tank completely, top up twice after the pump
switches off. Further top ups could cause faults in the fu-
el supply system. If using/parking the vehicle in mountainous/cold areas for
a long time, you should refuel with locally available diesel.
In this case, it is also advisable to keep the tank over 50% full.
For diesel engines, use only diesel fuel for
motor vehicles in accordance with EN590
European specifications. The use of other
products or mixtures may damage the engine be-
yond repair and consequently invalidate the war-
ranty, depending on the damage caused. If you ac-
cidentally introduce other types of fuel into the
tank, do not start the engine. Empty the tank. If the
engine has run, even for a very short time, you will
need to have the entire fuel supply system emptied
in addition to the tank.
FUEL TANK CAP fig. 109
To open
1) Open the flap A-fig. 109 by pulling it outwards, keep the
cap B still, insert the ignition key in the lock and turn it an-
ticlockwise.
2) Turn the cap anticlockwise and remove it. The cap has
a device C that attaches it to the flap so it cannot be lost.
When refuelling, attach the cap to the flap as illustrated
in the diagram.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:55 Pagina 112

117
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

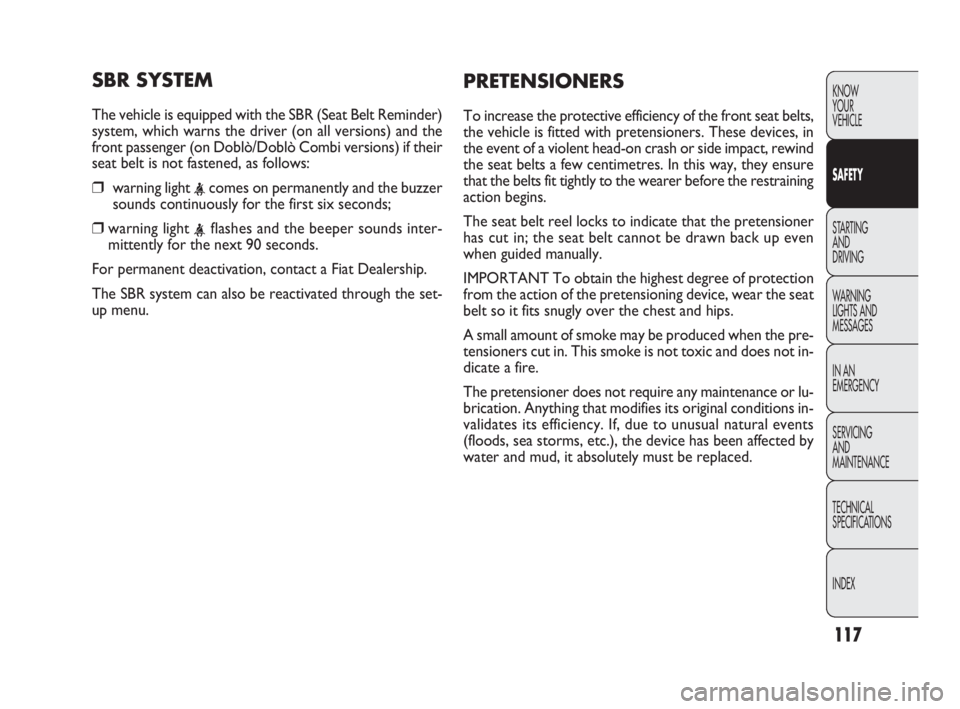

SBR SYSTEM
The vehicle is equipped with the SBR (Seat Belt Reminder)
system, which warns the driver (on all versions) and the
front passenger (on Doblò/Doblò Combi versions) if their
seat belt is not fastened, as follows:
❒warning light sounds continuously for the first six seconds;
❒warning light mittently for the next 90 seconds.
For permanent deactivation, contact a Fiat Dealership.
The SBR system can also be reactivated through the set-
up menu.
PRETENSIONERS
To increase the protective efficiency of the front seat belts,
the vehicle is fitted with pretensioners. These devices, in
the event of a violent head-on crash or side impact, rewind
the seat belts a few centimetres. In this way, they ensure
that the belts fit tightly to the wearer before the restraining
action begins.
The seat belt reel locks to indicate that the pretensioner
has cut in; the seat belt cannot be drawn back up even
when guided manually.
IMPORTANT To obtain the highest degree of protection
from the action of the pretensioning device, wear the seat
belt so it fits snugly over the chest and hips.
A small amount of smoke may be produced when the pre-
tensioners cut in. This smoke is not toxic and does not in-
dicate a fire.
The pretensioner does not require any maintenance or lu-
brication. Anything that modifies its original conditions in-
validates its efficiency. If, due to unusual natural events
(floods, sea storms, etc.), the device has been affected by
water and mud, it absolutely must be replaced.
115-132 DOBLO LUM EN 2e 7.0 21-05-2010 11:11 Pagina 117
