F0V0182mfig. 194
DIMENSIONS

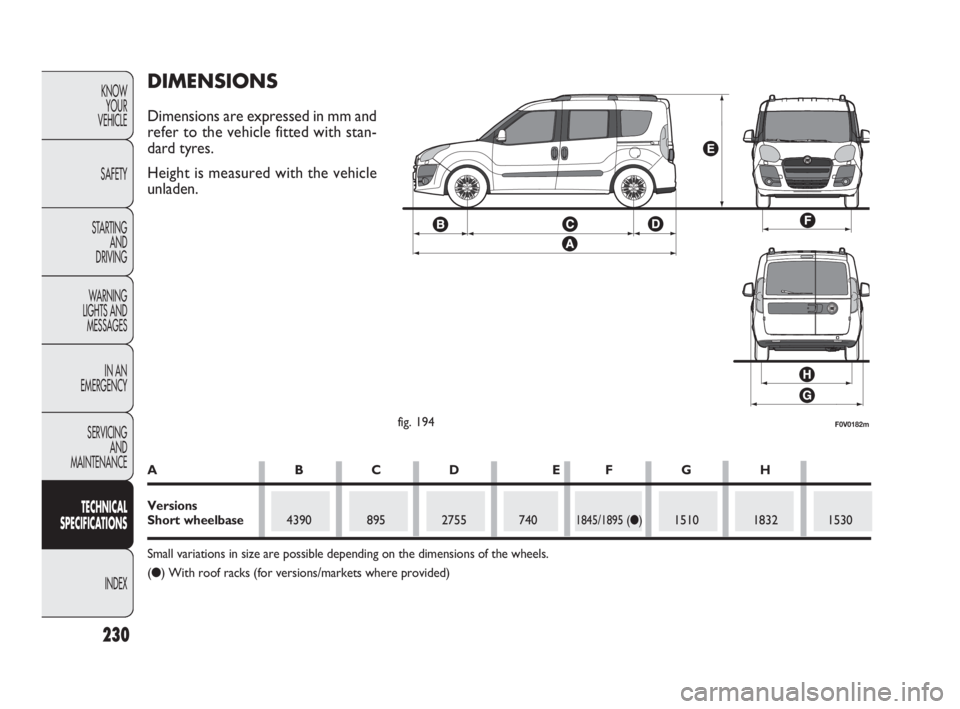

Dimensions are expressed in mm and
refer to the vehicle fitted with stan-
dard tyres.
Height is measured with the vehicle
unladen.
ABCDEFGH
Versions
Short wheelbase4390 895 2755 7401845/1895 (●)1510 1832 1530
Small variations in size are possible depending on the dimensions of the wheels.
(●) With roof racks (for versions/markets where provided)
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 230

231
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0183mfig. 195

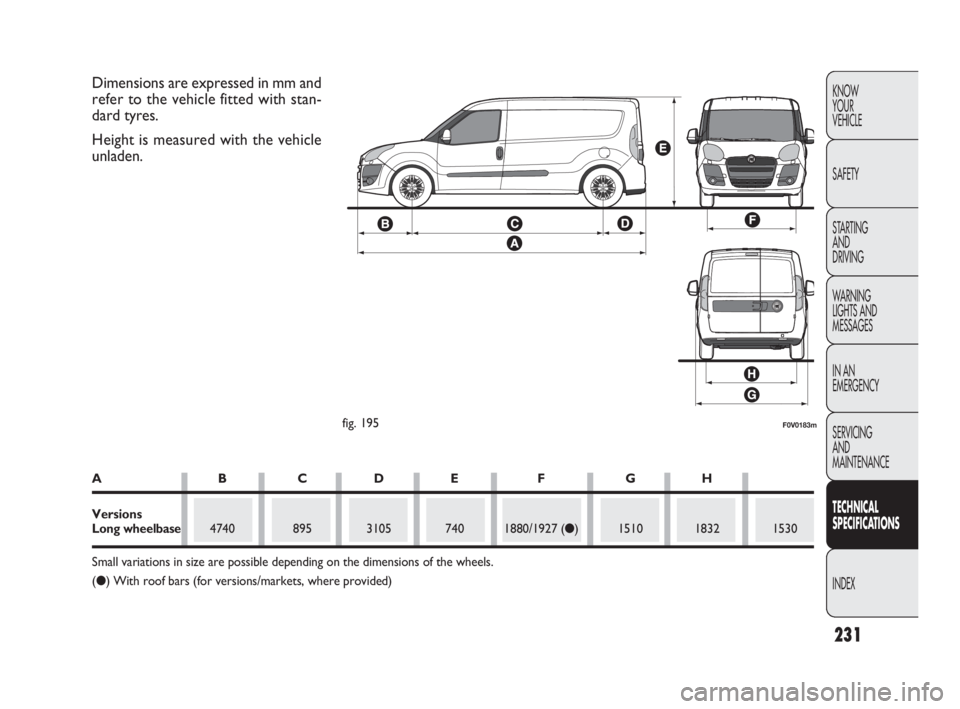

Dimensions are expressed in mm and
refer to the vehicle fitted with stan-
dard tyres.
Height is measured with the vehicle
unladen.
ABCDEFGH
Versions
Long wheelbase4740 895 3105 740 1880/1927 (●) 1510 1832 1530
Small variations in size are possible depending on the dimensions of the wheels.
(●) With roof bars (for versions/markets, where provided)
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 231

232
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0230mfig. 195a

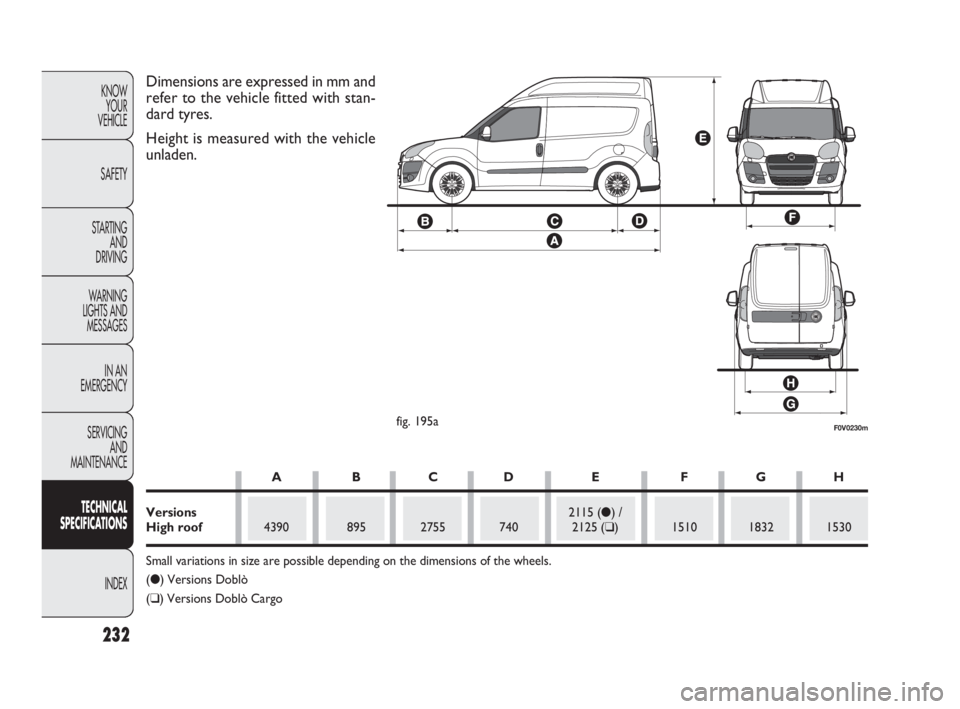

Dimensions are expressed in mm and
refer to the vehicle fitted with stan-
dard tyres.
Height is measured with the vehicle
unladen.
ABCD E FGH
Versions 2115 (●) /
High roof4390 895 2755 740 2125 (❑) 1510 1832 1530
Small variations in size are possible depending on the dimensions of the wheels.
(●) Versions Doblò
(❑) Versions Doblò Cargo
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 232
